Thin section single-row deep groove ball bearing, 25 mm bore, 37 mm OD, 7 mm width, two non-contact steel shields, CN clearance, grease filled. 1 Pc.
List Price
$27.83
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 61805-2Z |
| GTIN | 4012802402568 |
| Model | 618052ZHLC 61805Z |
| Bearing Type | Ball Bearing, Double Shield |
| ID | 25 mm |
| OD | 37 mm (1.4567 in) |
| Width | 7 mm |
| Material | Bearing Steel |
|---|---|
| Series | 61800 |
| Base Number | 61805 |
| Industry Terms | thin section bearing, slim ball bearing, 6805 bearing, 61805 bearing, shielded deep groove bearing, 25mm bore thin bearing |
| Common Misspellings | FAG 61805 2Z, 618052ZHLC, 61805-2ZZ, 6l805-2Z, 61805 ZZ FAG, 6805 2Z FAG |
| Application Types | Machine tools, robotics and joint drives, encoders and instruments, compact gearheads, printing and packaging machinery |
| Overall Width | 7 mm (0.2756 in) |
| Bore Shaft Size | 25 mm (0.9843 in) |
| Mpn Variants | 61805-2Z, 618052Z, 61805 2Z, 61805-ZZ, 61805ZZ, 61805Z, 6805-2Z, 6805ZZ, 61805, 6805 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN (normal) |
| Lubricant | Grease filled behind the shields |
| Harmonization Code | 8482.10.50.68 |
| Design Units | Metric |
| Bearing Material | Through-hardened bearing steel |
| Part Number | 61805-2Z |
| Closure Type | Two steel shields, non-contact |
| Cross Reference 1 | SKF 61805-2Z |
|---|---|
| Cross Reference 2 | NSK 6805ZZ |
| Cross Reference 3 | NTN 6805ZZ |
| Cross Reference 4 | Koyo 6805ZZ |
| Cross Reference 5 | Nachi 6805ZZ |

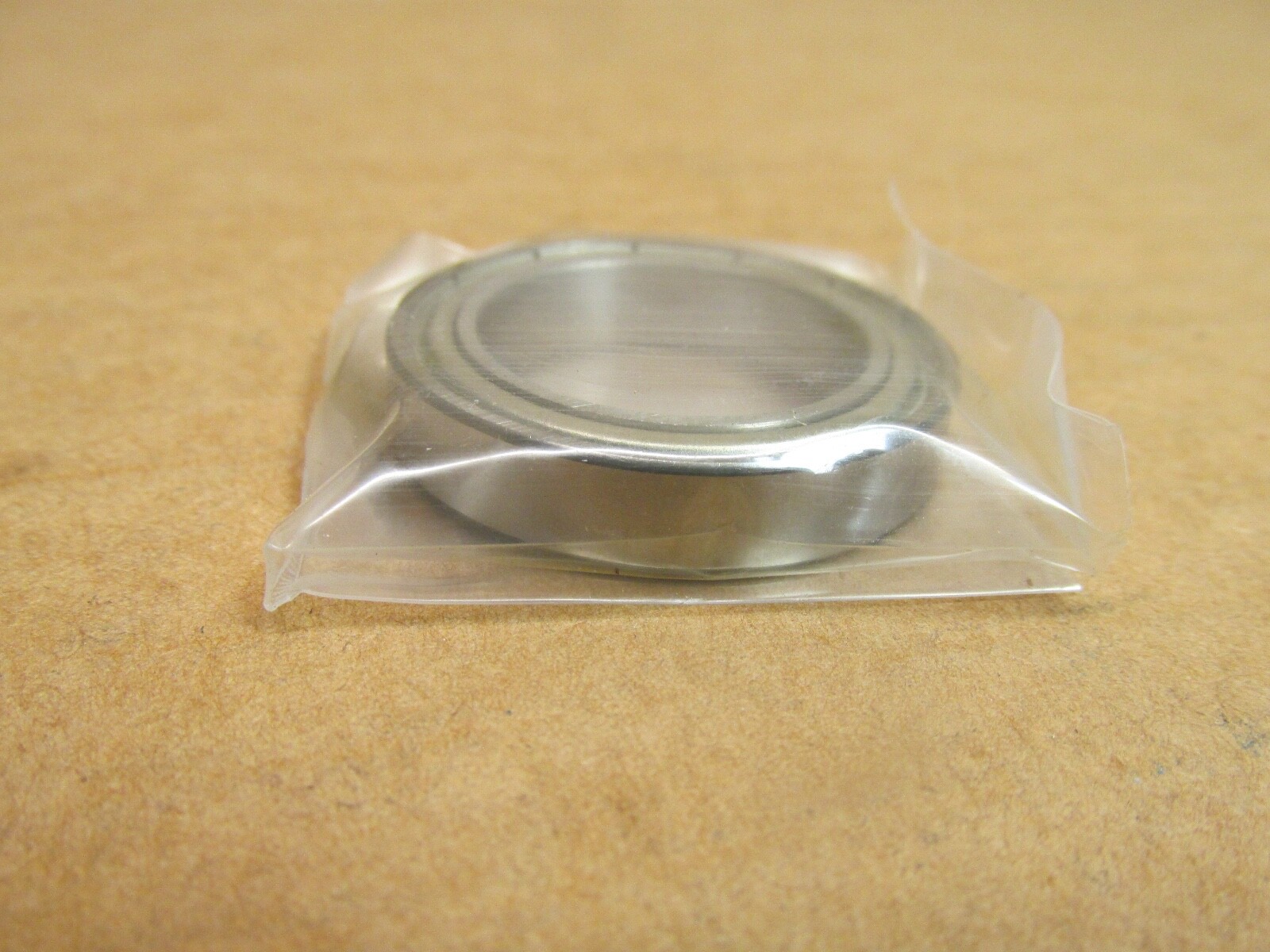

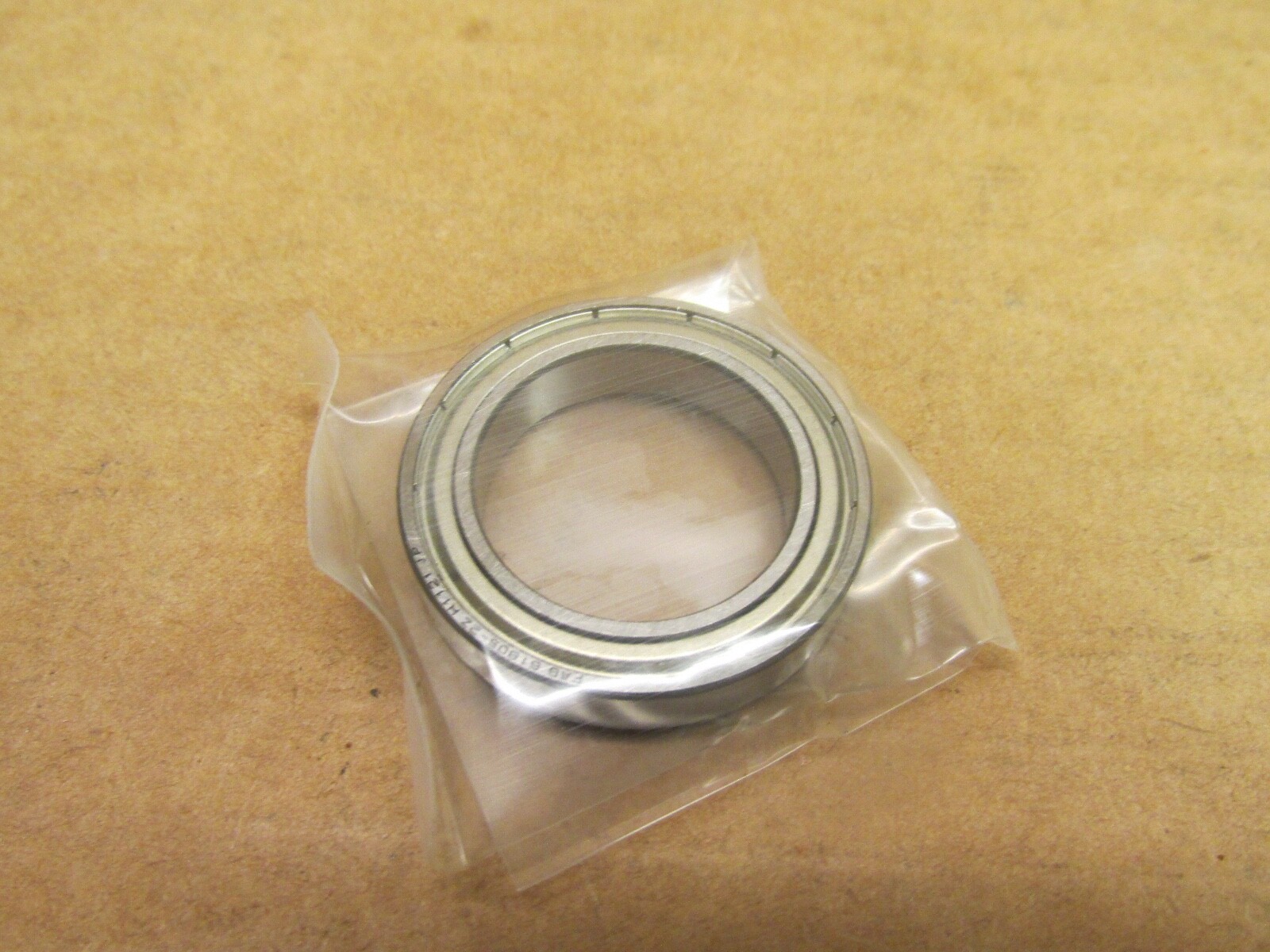

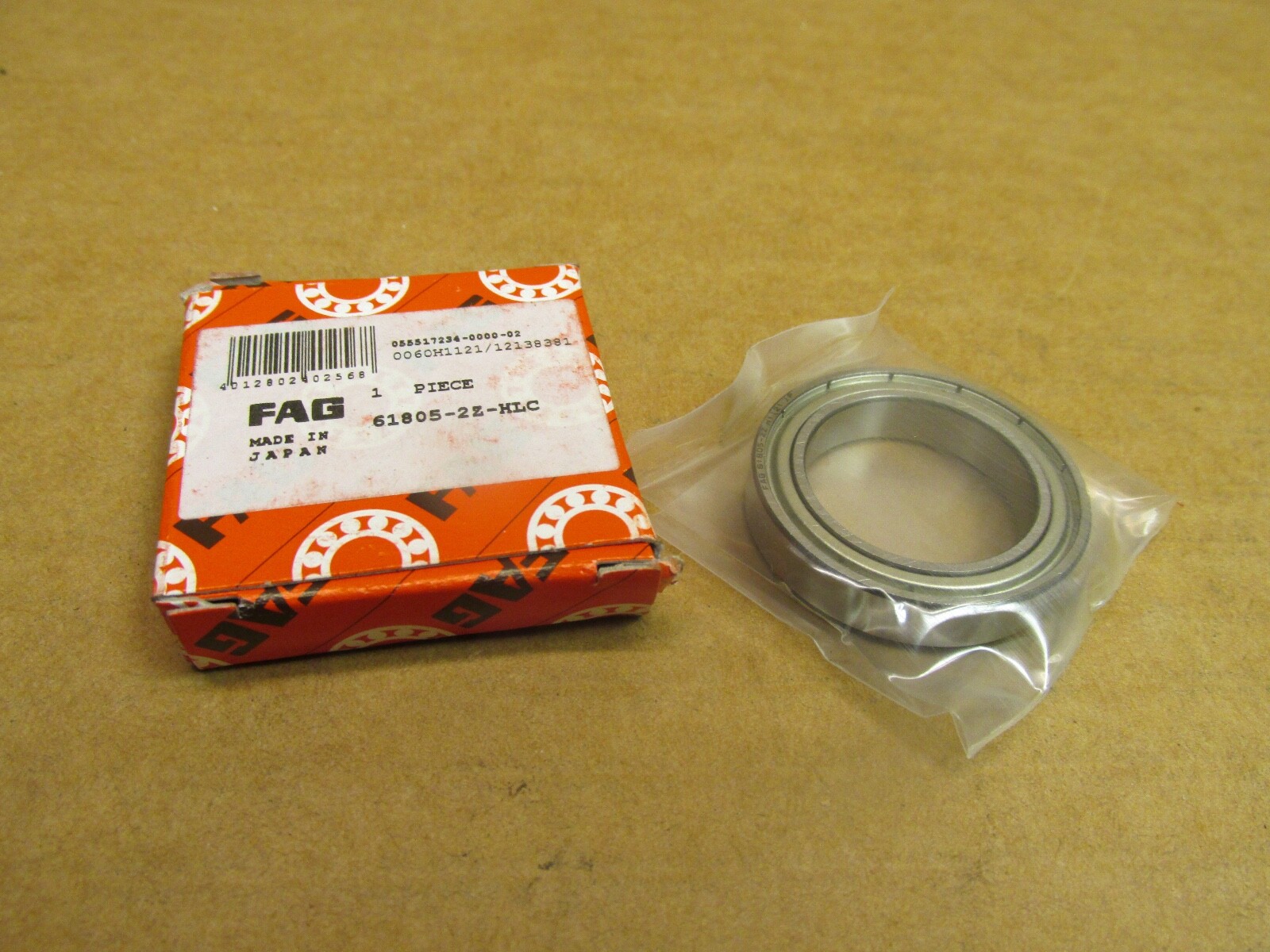

FAG 61805-2Z thin section single-row deep groove ball bearing with a steel shield on each face. Bore: 25 mm. Outside Diameter: 37 mm. Width: 7 mm. Unit Quantity: 1 Pc. One complete bearing with both shields fitted.
61805 — thin section single-row deep groove ball bearing, 25 mm bore, 37 mm OD, 7 mm width; also written 6805.
2Z — two steel shields, one on each face, non-contact.
No clearance suffix — normal internal clearance, CN.
Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Two steel shields, non-contact. Internal Clearance: CN (normal). Lubricant: grease filled behind the shields. Bearing Material: Through-hardened bearing steel. Series: 61800 / 6800.
Bore Diameter: 25 mm (0.9843 in). Outside Diameter: 37 mm (1.4567 in). Overall Width: 7 mm (0.2756 in).
Other makers’ double-shielded 25 x 37 x 7 mm bearings: SKF 61805-2Z, NSK 6805ZZ, NTN 6805ZZ, Koyo 6805ZZ, Nachi 6805ZZ. Contact-sealed 61805-2RS and 6805-2RS share the envelope with seals that rub on the inner ring. Open 61805 has no closure.
25 mm bore, 37 mm outside diameter, 7 mm width.
Two steel shields, non-contact, one on each face.
CN, normal.
