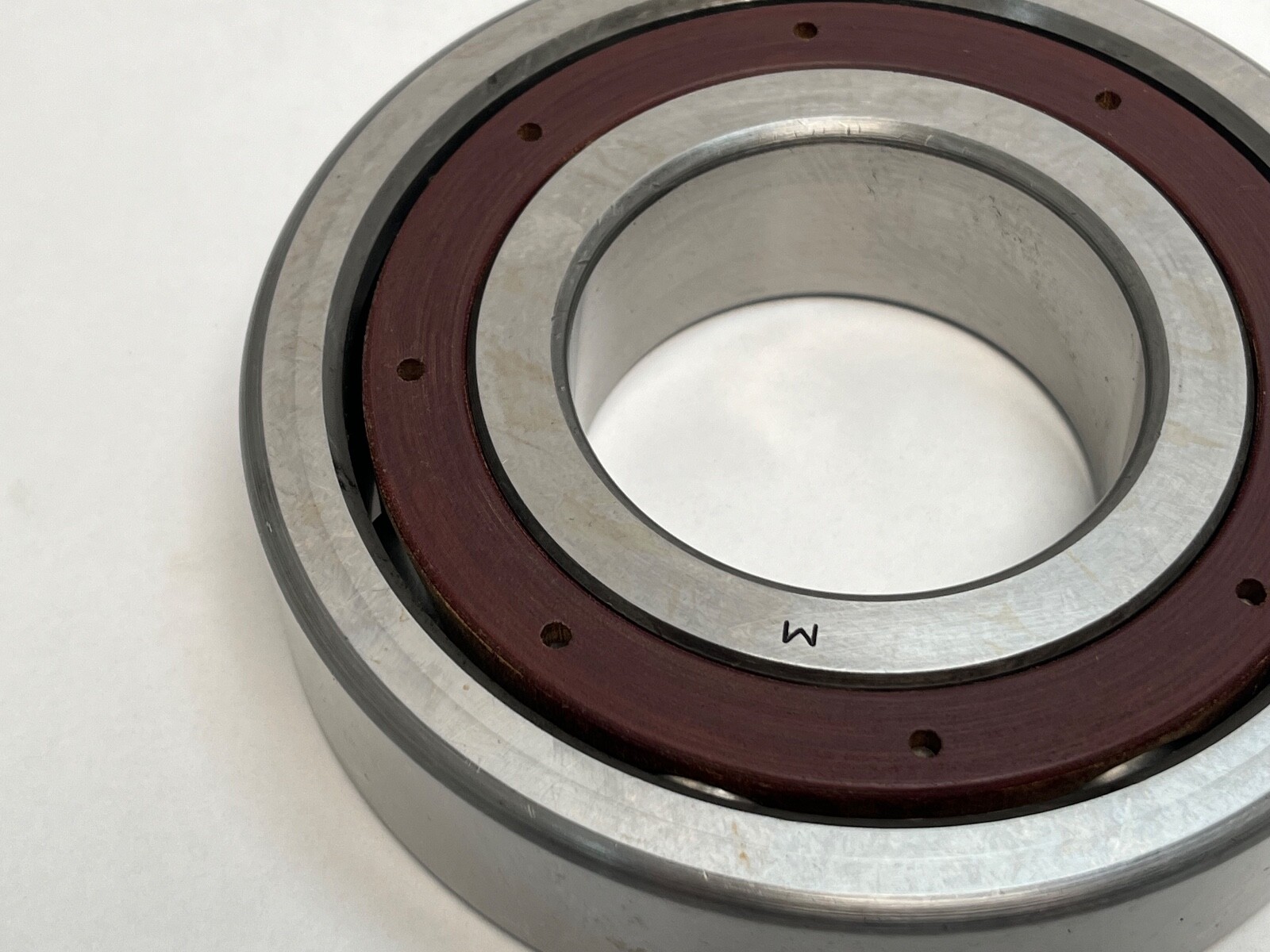

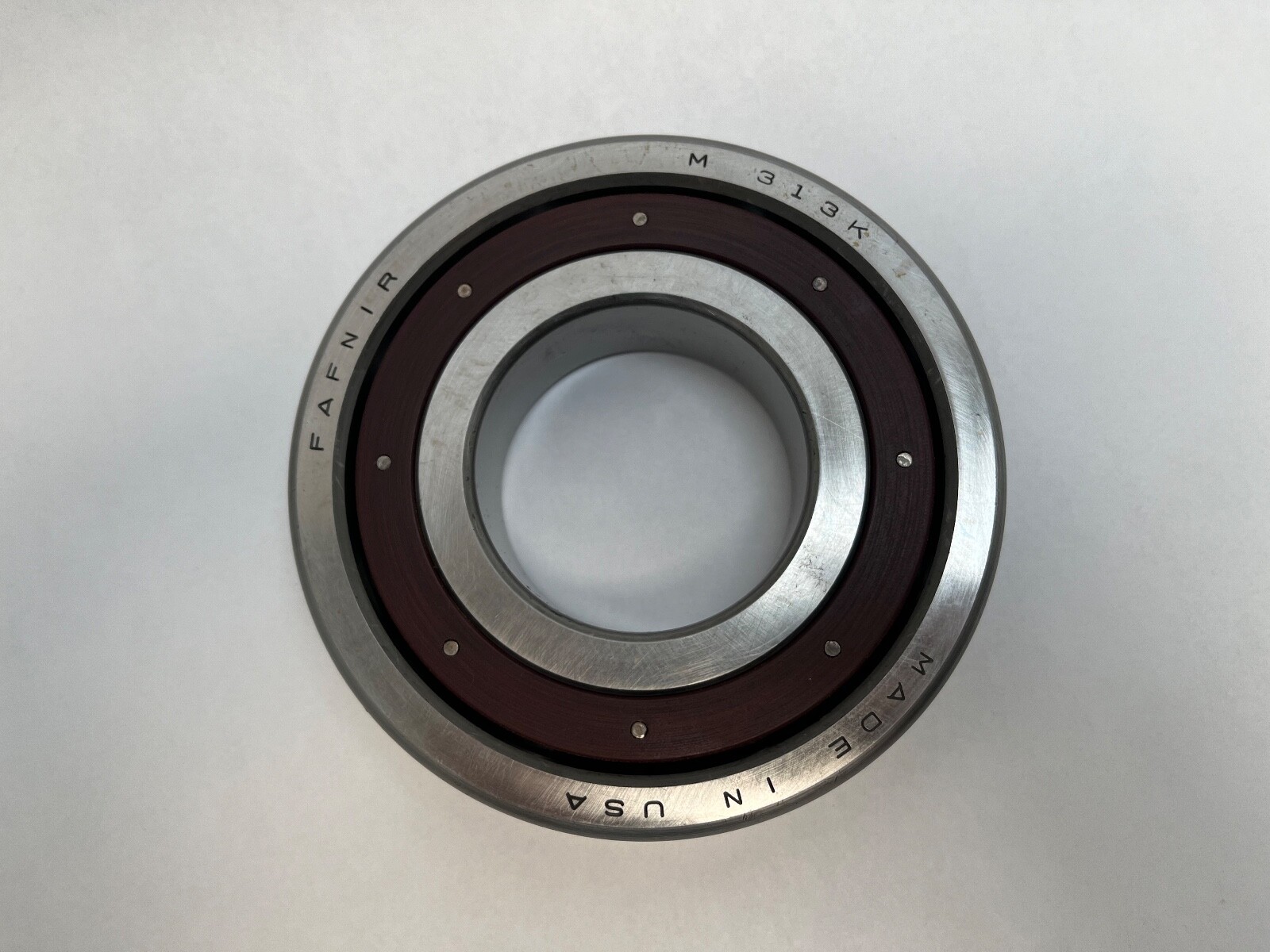

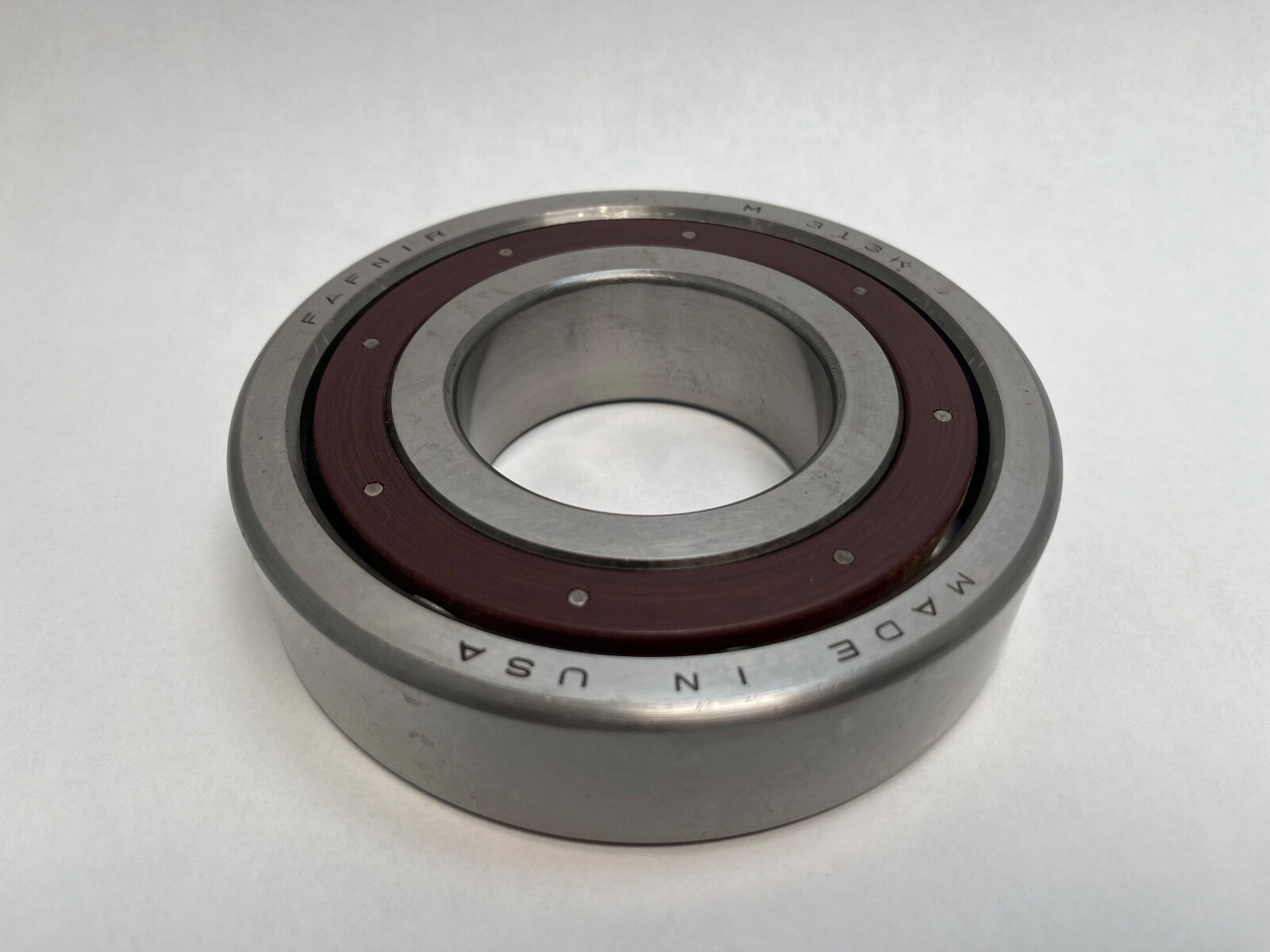

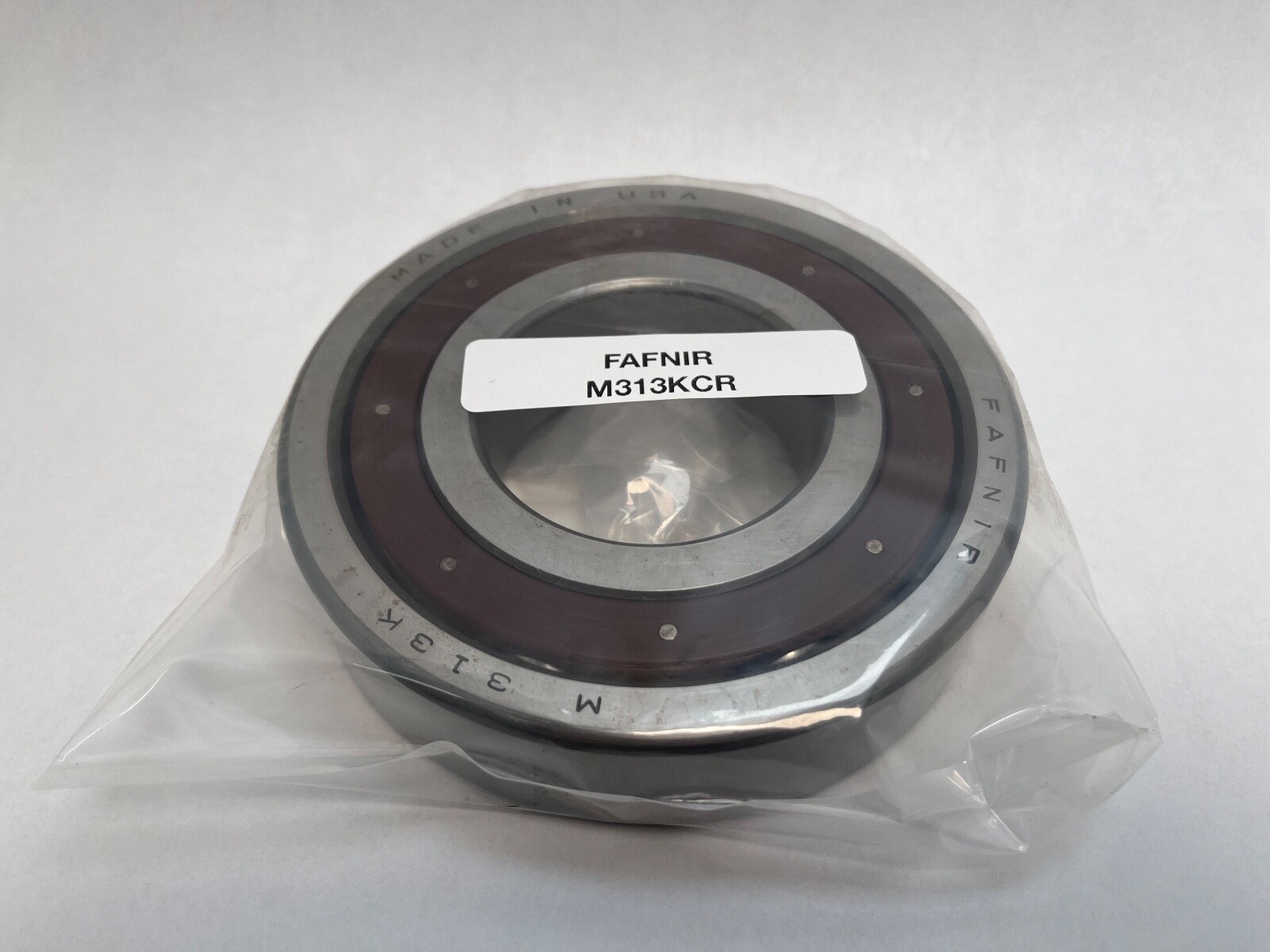

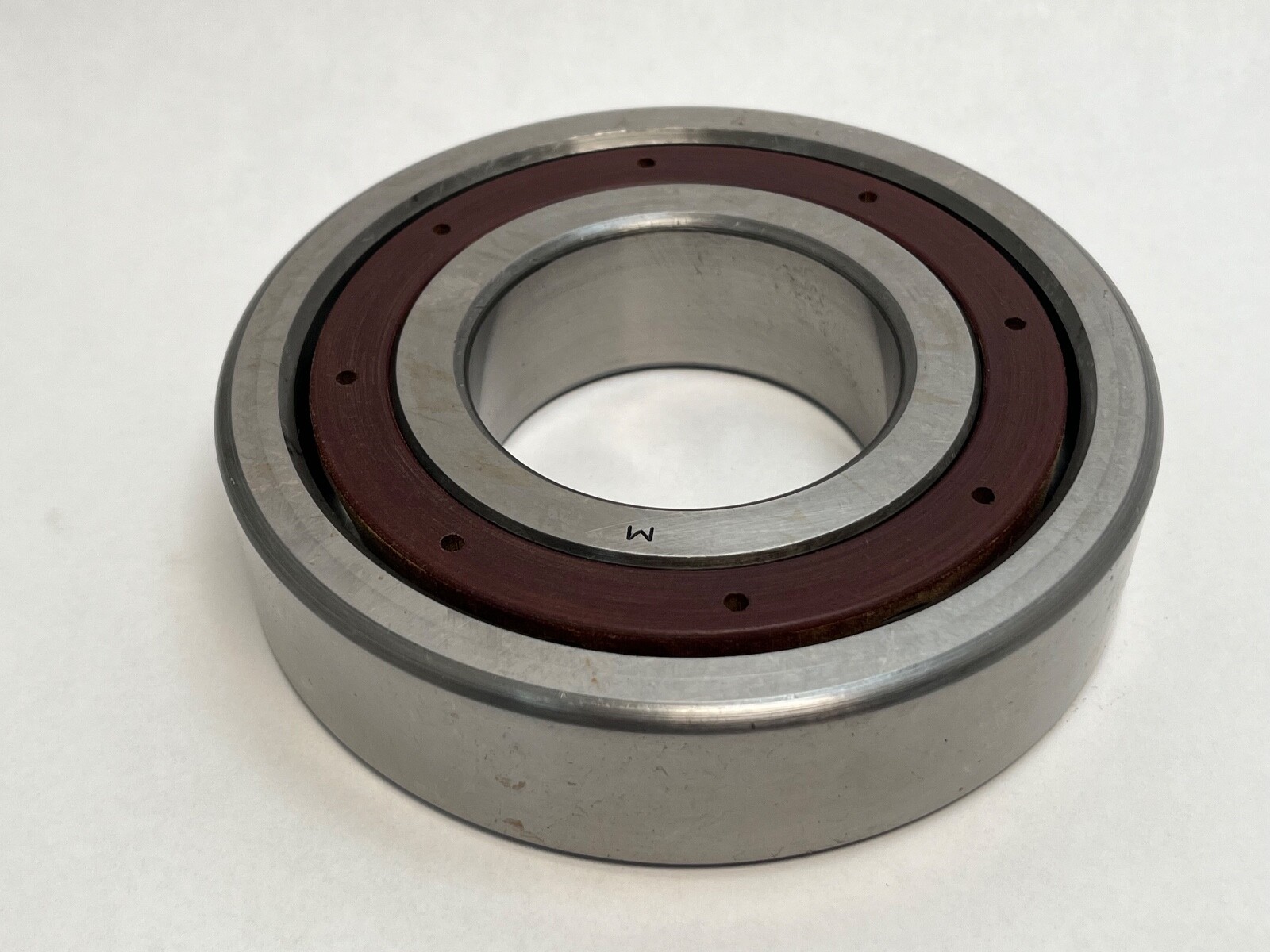

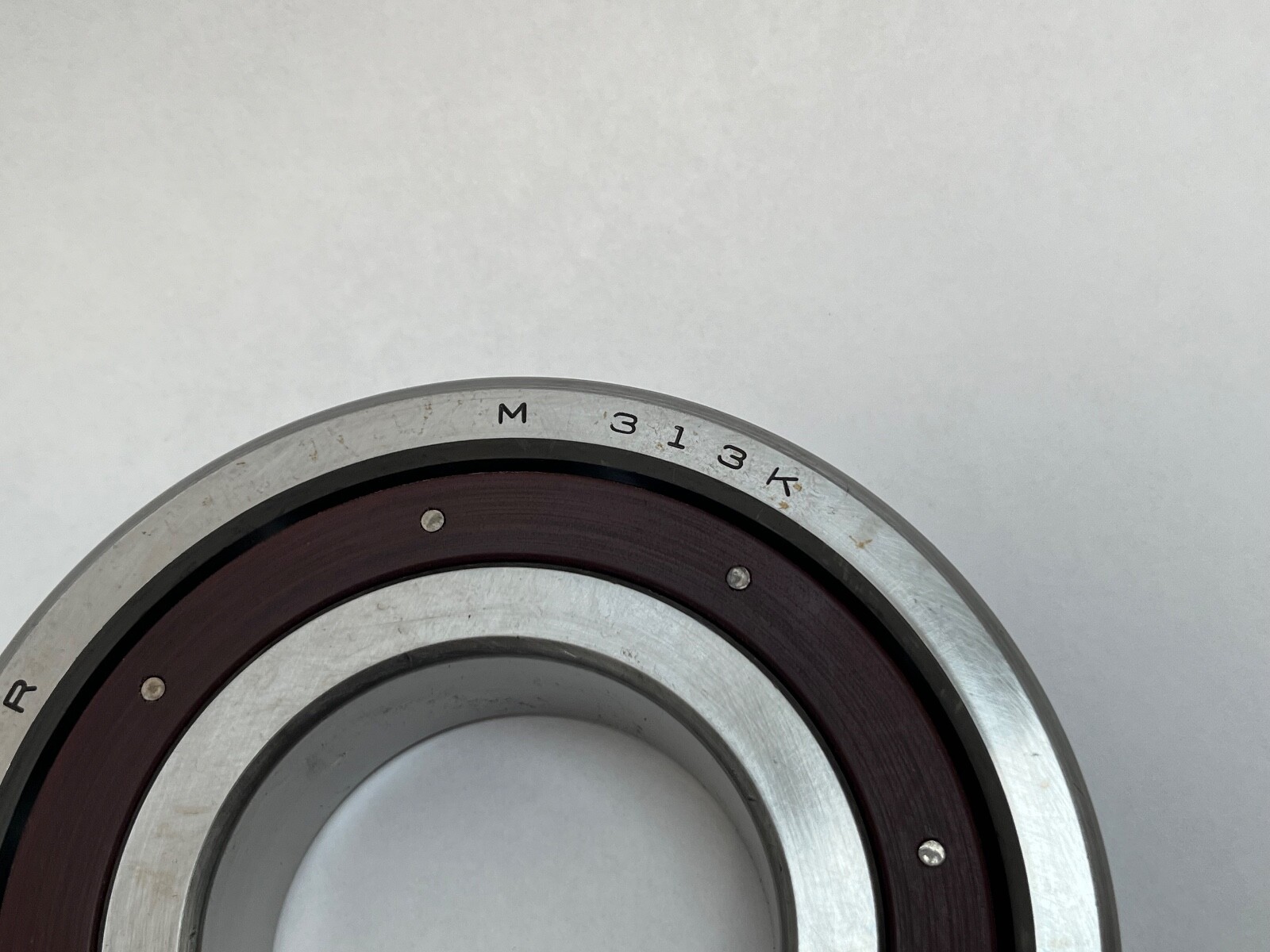

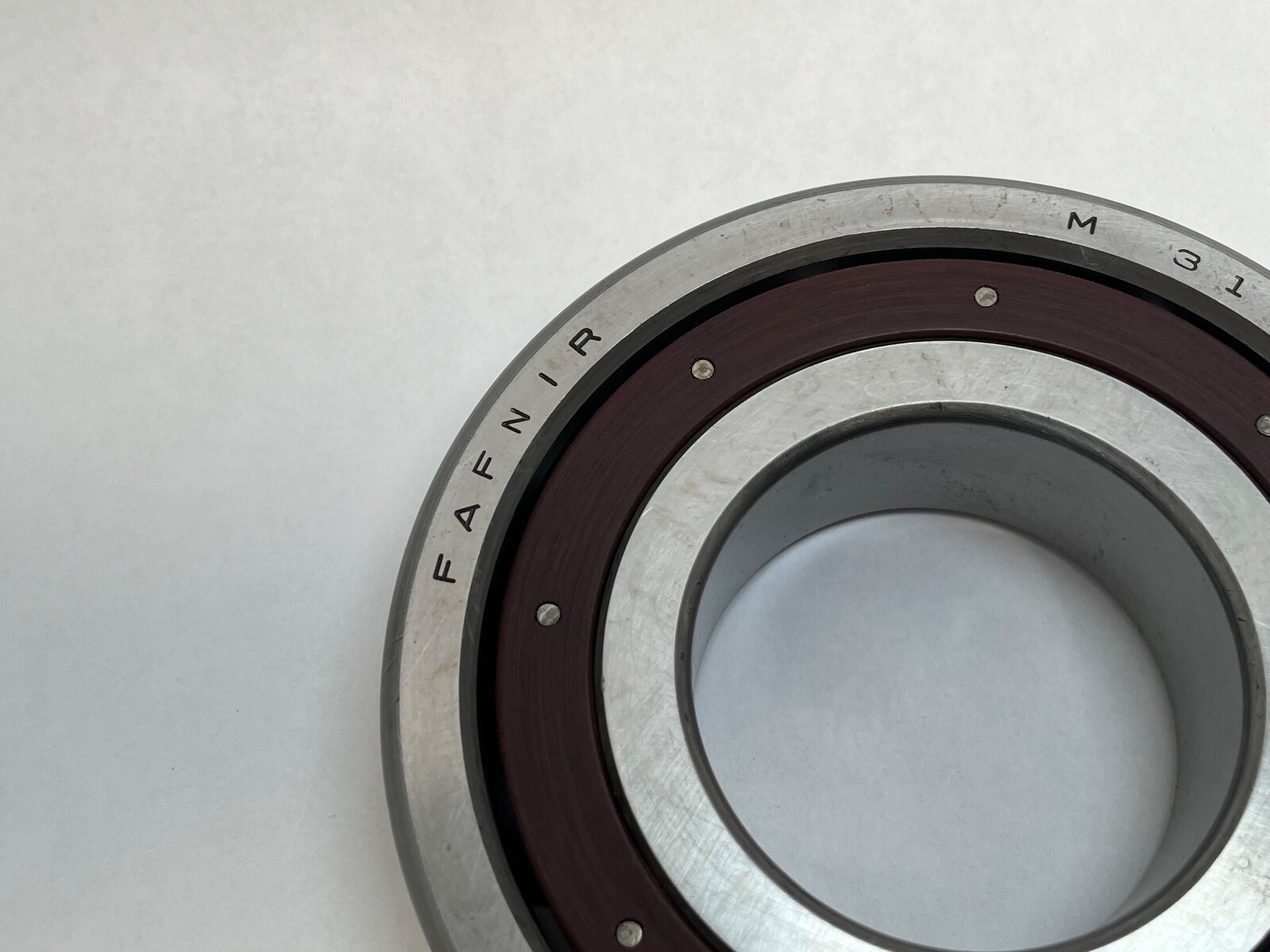

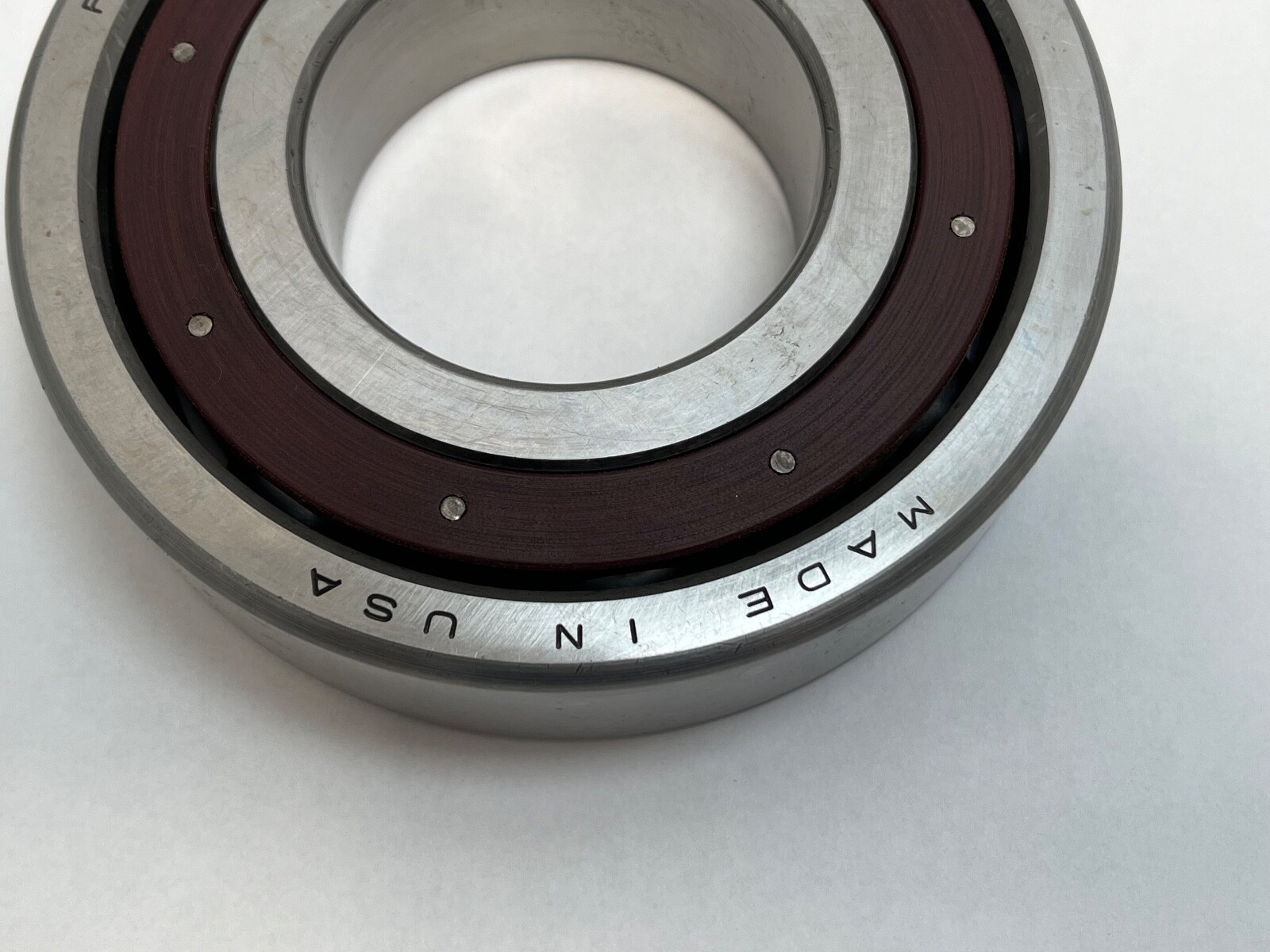

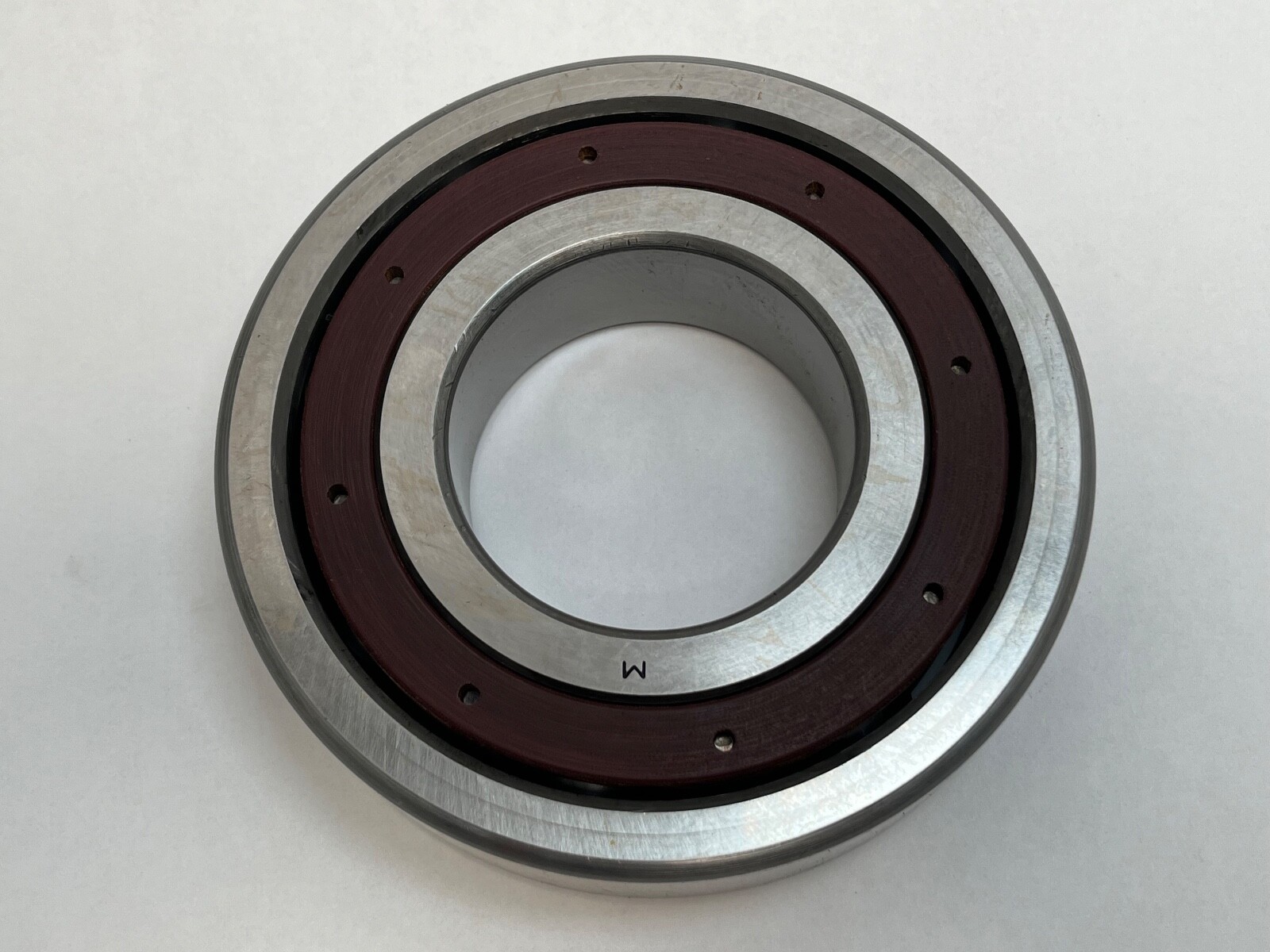

Single-row spindle deep groove ball bearing, 65 x 140 x 33 mm, ABEC 5 / P5 precision, machined phenolic land-riding cage, straight bore, open.
List Price
$68.82
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spindle Deep Groove Ball Bearing - Straight Bore, 65 mm ID, 140 mm OD, 33 mm Width, Open, ABEC 5 / P5, Machined Phenolic Cage$74.02
Ball Bearing — 65 mm ID, 140 mm OD, 33 mm Width, Single Shield$67.18
Sealed Deep Groove Ball Bearing – 65 mm ID x 100 mm OD x 18 mm, Contact Seals Both Sides, Snap Ring and Groove$42.06
Deep Groove Ball Bearing — 65 mm ID, 120 mm OD, 23 mm Width, ABEC 5, Open, CN Clearance$45.69| MFR / Brand | Fafnir |
|---|---|
| MPN | M313KCR |
| Model | M-313-K-CR / 6313 T P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 65 mm |
| OD | 140 mm |
| Width | 33 mm |
| Base Number | M313K |
|---|---|
| Industry Terms | Spindle bearing, precision deep groove ball bearing, machine tool spindle bearing, radial ball bearing, 6313 precision |
| Common Misspellings | M313 KCR, M-313KCR, M313KCR-, M313CR, Fafnir M313K, 313KCR |
| Overall Width | 33 mm |
| Bore Shaft Size | 65 mm |
| Mpn Variants | M313KCR, M313K-CR, M-313-K-CR, M 313 K CR, 6313 T P5, 313K |
| Precision Class | ABEC 5 / P5 |
| Dynamic Load Rating C1 | 102,754 N |
| Material | Chrome steel |
| Cage Type | Machined, land-riding |
| Dynamic Load Rating | 102,754 N |
| Static Load Rating | 59,606 N |
| Precision Rating | ABEC 5 / P5 |
| Series | 300K |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 2,930 rpm grease; 3,410 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50.68 |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | M313KCR |
| Cross Reference 1 | SKF 6313/P5 |
|---|---|
| Cross Reference 2 | FAG 6313-P5 |
| Cross Reference 3 | NSK 6313P5 |
| Cross Reference 4 | NTN 6313P5 |
| Cross Reference 5 | Koyo 6313 P5 |
| Cross Reference 6 | RHP 6313 (related, standard-class Conrad type) |
| Cross Reference 7 | SNR 6313 (related, standard-class Conrad type) |
| Cross Reference 8 | MRC 6313 (related, standard-class Conrad type) |
| Cross Reference 9 | Timken/Fafnir 313K (related, standard-class Conrad type) |
Fafnir M313KCR precision spindle deep groove ball bearing. Brand: Fafnir. Manufacturer Part Number: M313KCR. Bearing Type: Deep groove ball bearing, spindle quality. Series: 300K. Base Number: M313K. Bore Diameter: 65 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Chrome steel. Design Units: Metric. Country of Origin: United States.
313K — the Fafnir 300K spindle deep groove family at 65 mm bore: one row of balls running in a deep radial groove, ground and cased to spindle quality.
CR — Cage Material: Phenolic. Cage Type: Machined, land-riding. A phenolic cage is light, quiet and self-lubricating, and it is what carries the speed rating on a spindle-quality bearing.
P5 — Precision Class: ABEC 5 / P5. Tighter bore, outside-diameter and running-accuracy tolerances than standard class.
Dynamic Load Rating: 102,754 N. Static Load Rating: 59,606 N. Limiting Speed: 2,930 rpm grease; 3,410 rpm oil. Lubricant: grease or oil. A deep groove raceway carries radial load and thrust in both directions from a single bearing, so one unit locates a shaft without an opposing partner. ABEC 5 / P5 tolerances hold the running accuracy a machine-tool spindle or a precision gearbox needs, and the open execution lets the housing supply lubricant directly to the ball complement.
Maximum shaft fillet radius: 2.11 mm. Shaft backing shoulder diameter: 77 mm. Housing backing shoulder diameter: 128 mm. Outer ring to-clear radius: 2.11 mm.
Unit Quantity: 1 Pc. One bearing, complete with inner ring, outer ring, ball complement and cage.
Envelope: ISO 6313, 65 x 140 x 33 mm. Same-envelope, same-class crosses: SKF 6313/P5, FAG 6313-P5, NSK 6313P5, NTN 6313P5, Koyo 6313 P5. Same-envelope standard-class Conrad types, which match on fit and sit a class below on running accuracy: RHP 6313, SNR 6313, MRC 6313, Timken/Fafnir 313K. MPN Variants: M313KCR, M313K-CR, M-313-K-CR, M 313 K CR, 6313 T P5, 313K.
