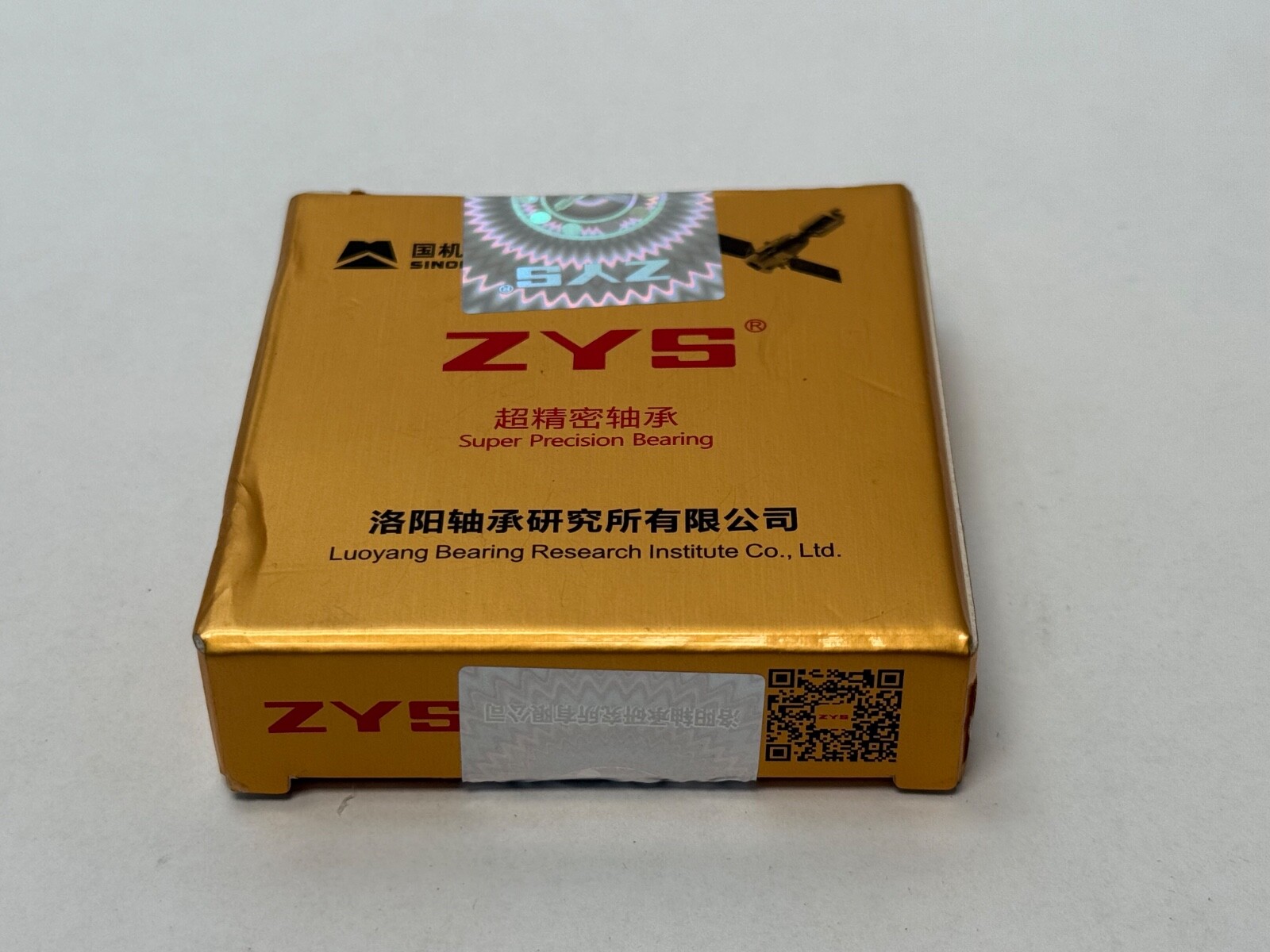

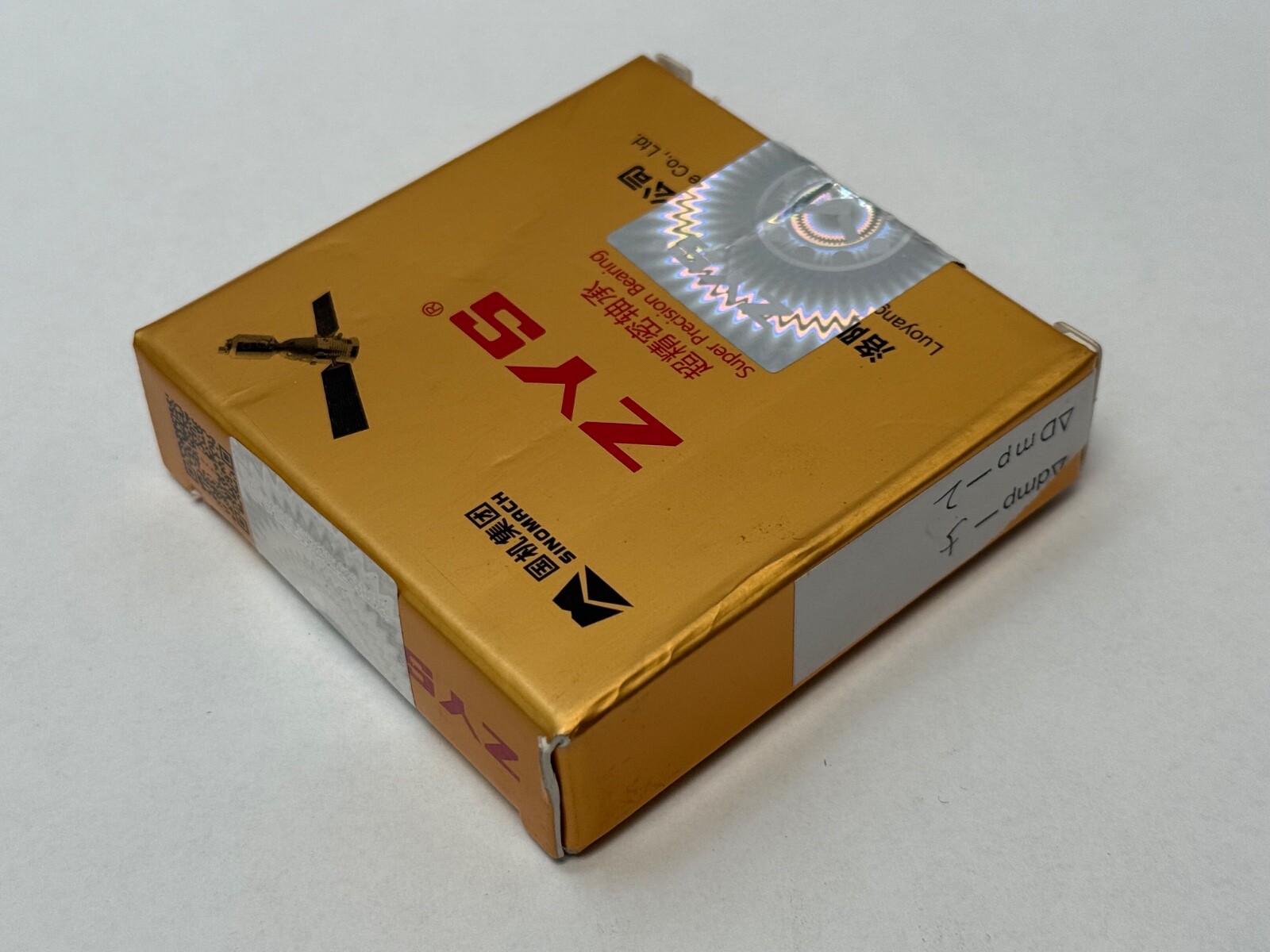

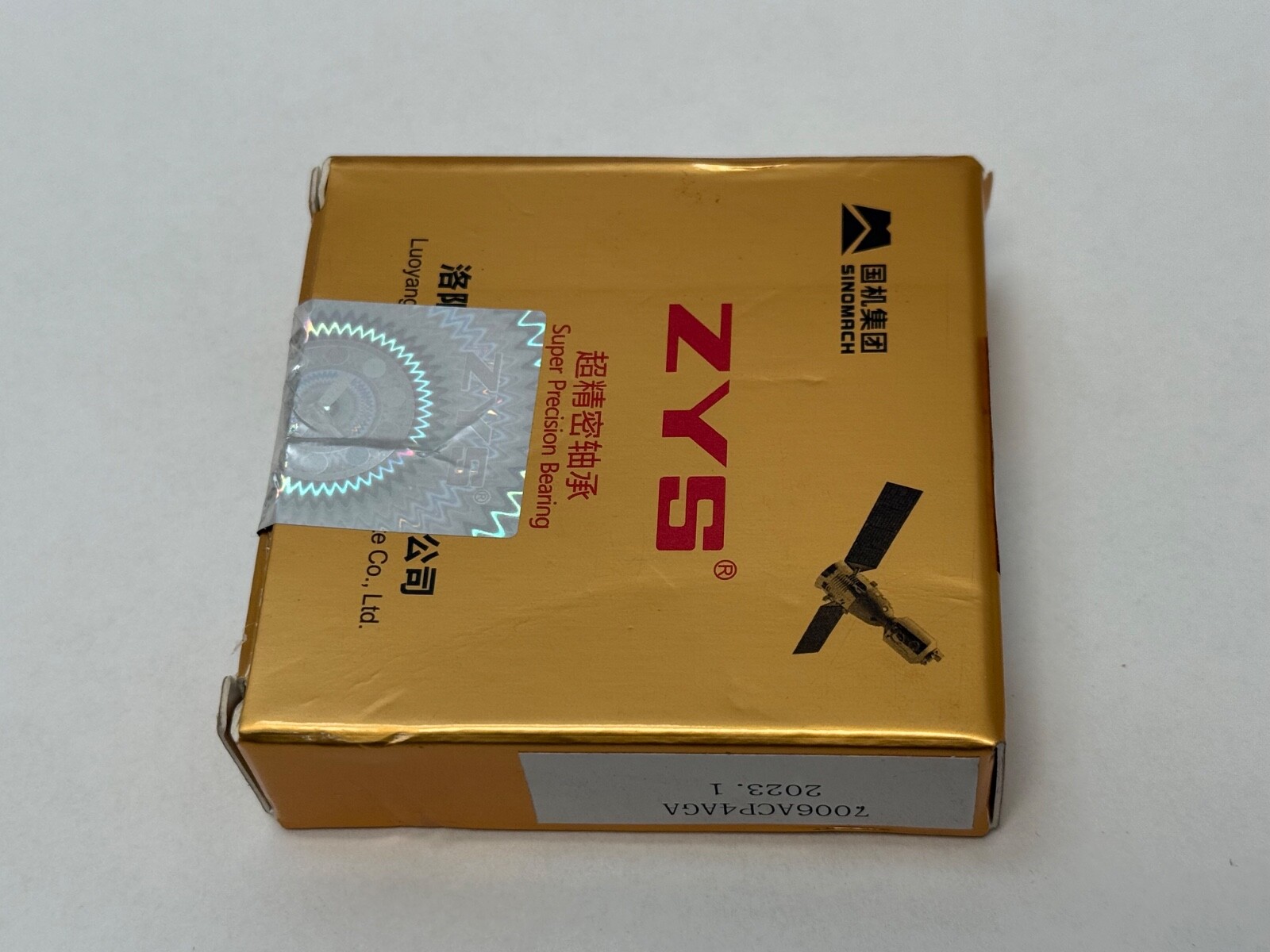

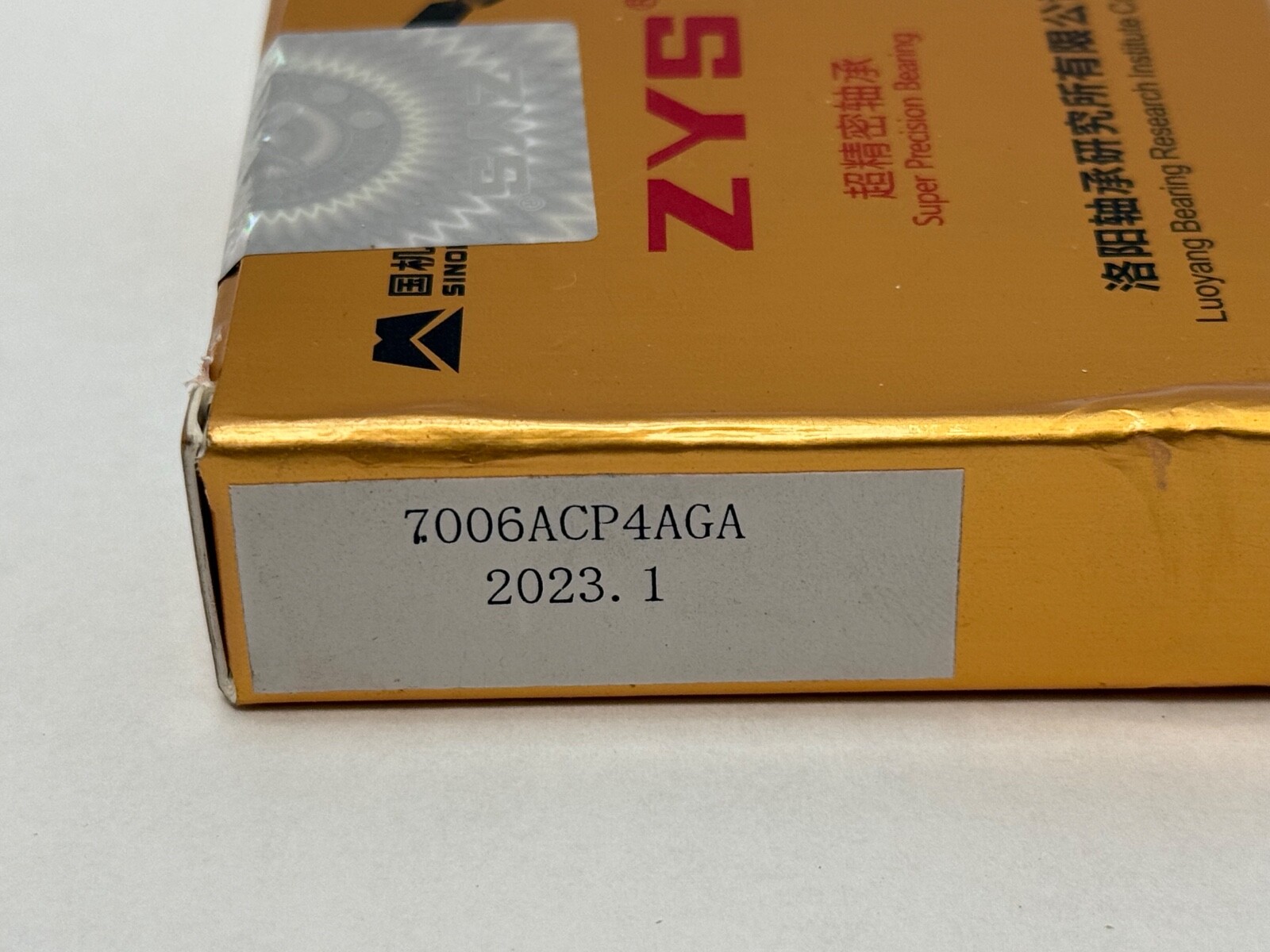

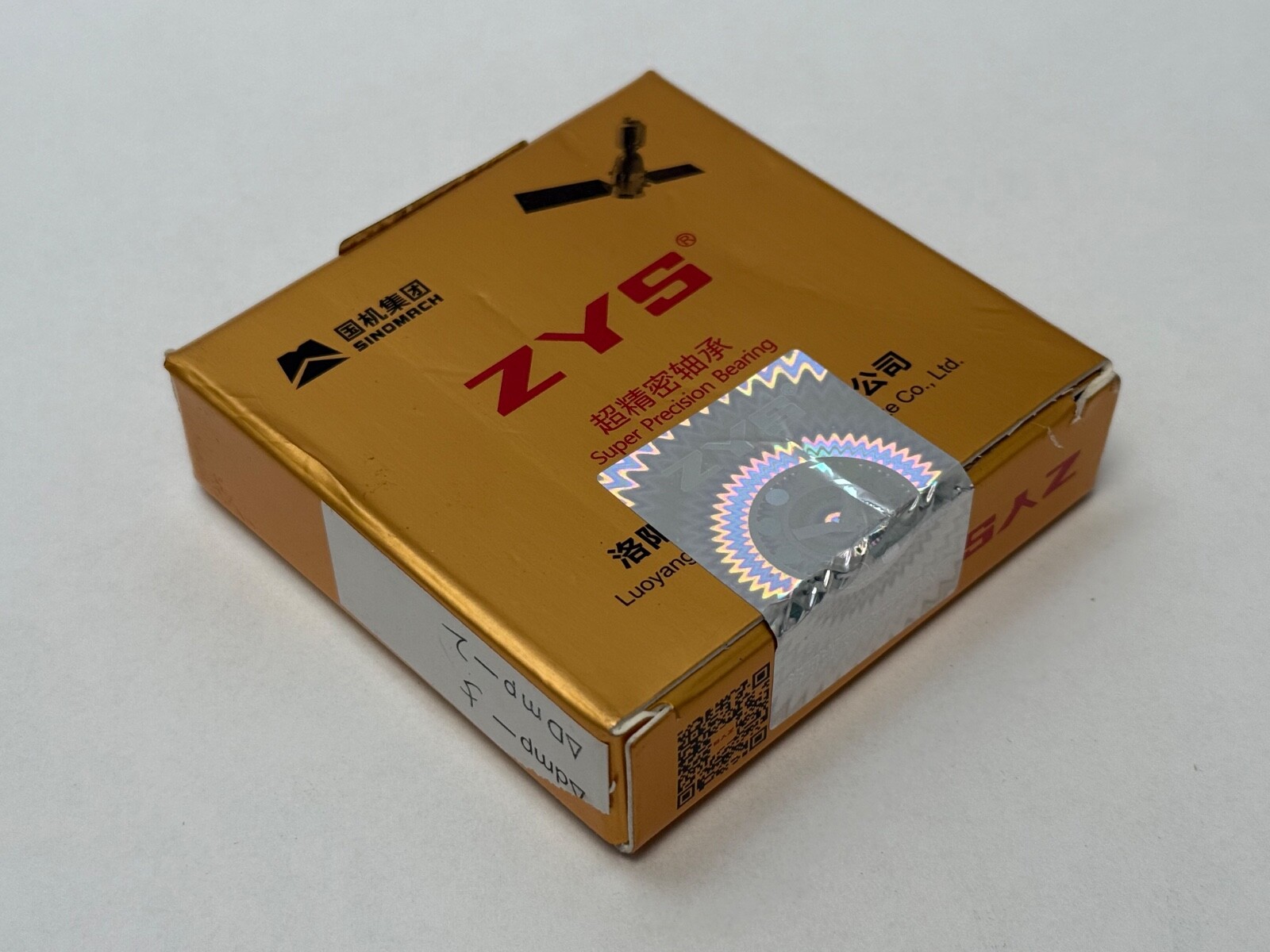

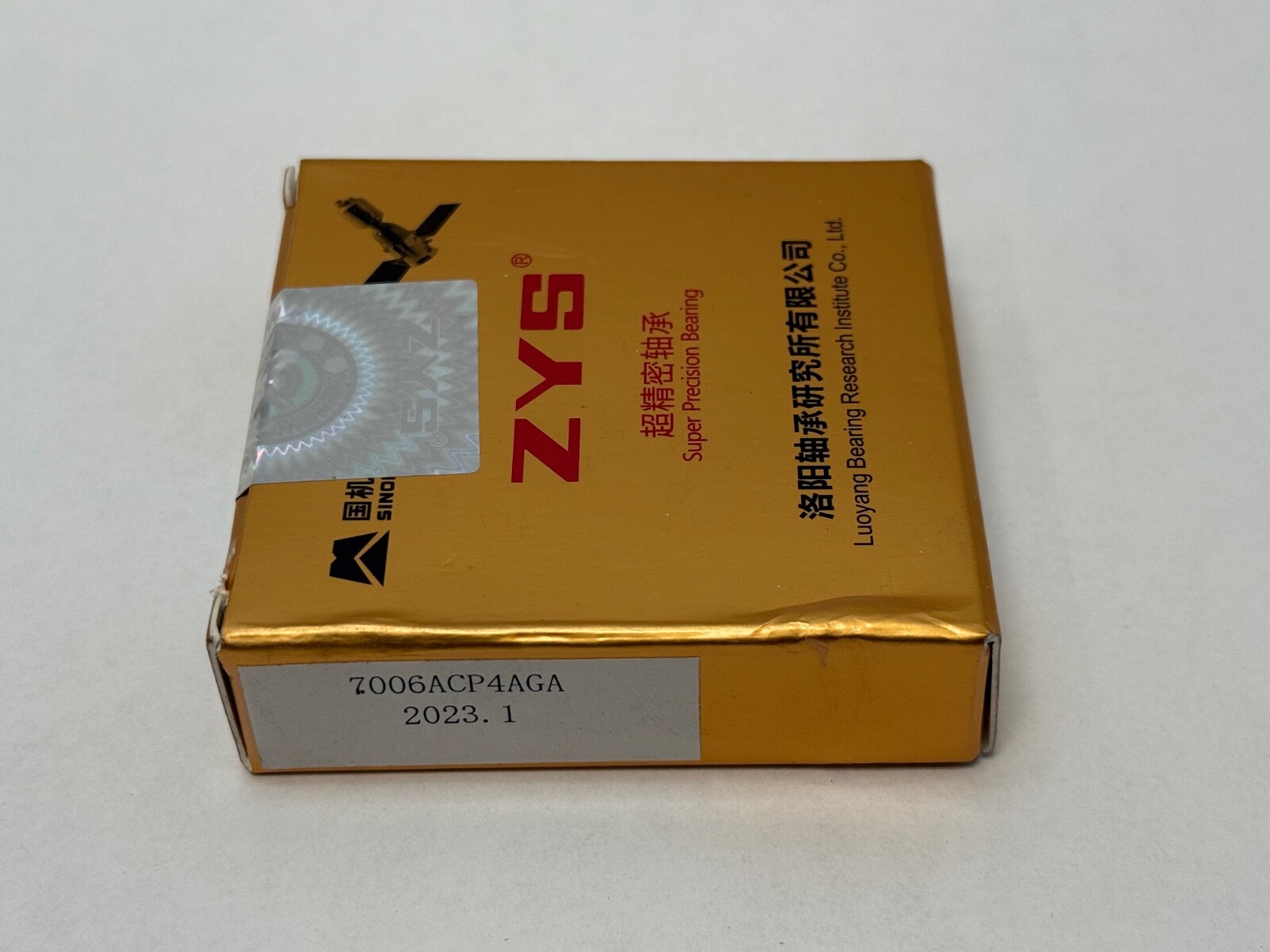

Super-precision angular contact ball bearing, 30 x 55 x 13 mm, 25° contact angle, P4A precision. ZYS 7006ACD/P4A GA, universally matchable, open, 1 Pc.
List Price
$91.63
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | ZYS |
|---|---|
| MPN | 7006ACDP4AGA |
| Model | 7006ACD/P4A GA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Precision Class | ABEC 7 / P4A |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal matching (GA) |
| Mpn Variants | 7006ACDP4AGA, 7006ACD/P4AGA, 7006ACD/P4A GA, 7006-ACD-P4A-GA |
| Cross Reference 1 | SKF 7006 ACD/P4A |
|---|---|
| Cross Reference 2 | NSK 7006A5TRSU P4 |
| Cross Reference 3 | FAG B7006-E-T-P4S - P4S class |
| Cross Reference 4 | Fafnir 3MM9106WI - P4 class |
The ZYS 7006ACD/P4A GA is a single-row super-precision angular contact ball bearing in the ISO 7006 envelope, made by ZYS (Luoyang Bearing Science and Technology). It is a machine-tool spindle bearing supplied as one piece.
7006 — ISO 7000 series, bore code 06, 30 mm bore.
ACD — 25° contact angle, high-capacity internal design.
P4A — precision class P4 dimensional accuracy with tighter running accuracy, equivalent to ABEC 7 or better.
GA — single bearing ground for universal matching, preload class A.
Bearing Type: Angular contact ball bearing.
Rolling Elements: Ball.
Number Of Rows: 1.
Contact Angle: 25°.
Precision Class: ABEC 7 / P4A.
Closure Type: Open.
Bore Type: Straight.
Mounting Arrangement: Universal matching (GA).
Unit Quantity: 1 Pc.
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm.
25° parts from other makers, 30 x 55 x 13 mm: SKF 7006 ACD/P4A, NSK 7006A5TRSU P4, FAG B7006-E-T-P4S (P4S class), Fafnir 3MM9106WI (P4 class). Also marked 7006-ACD-P4A-GA, 7006E, 7006A5.
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm.
Contact Angle: 25°. Precision Class: ABEC 7 / P4A.
GA marks a single bearing ground for universal matching, preload class A.
