Availability:
2 in stock

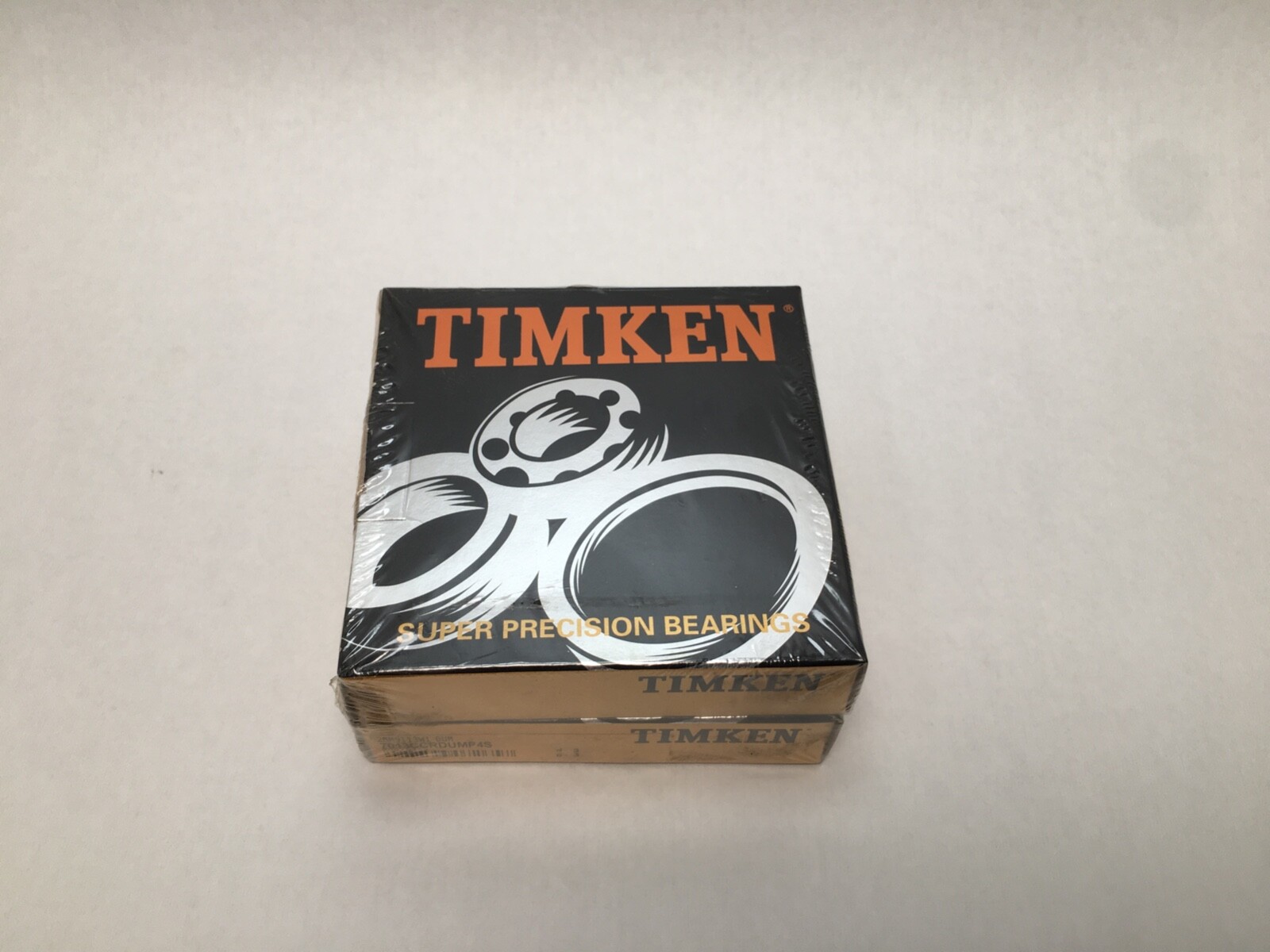

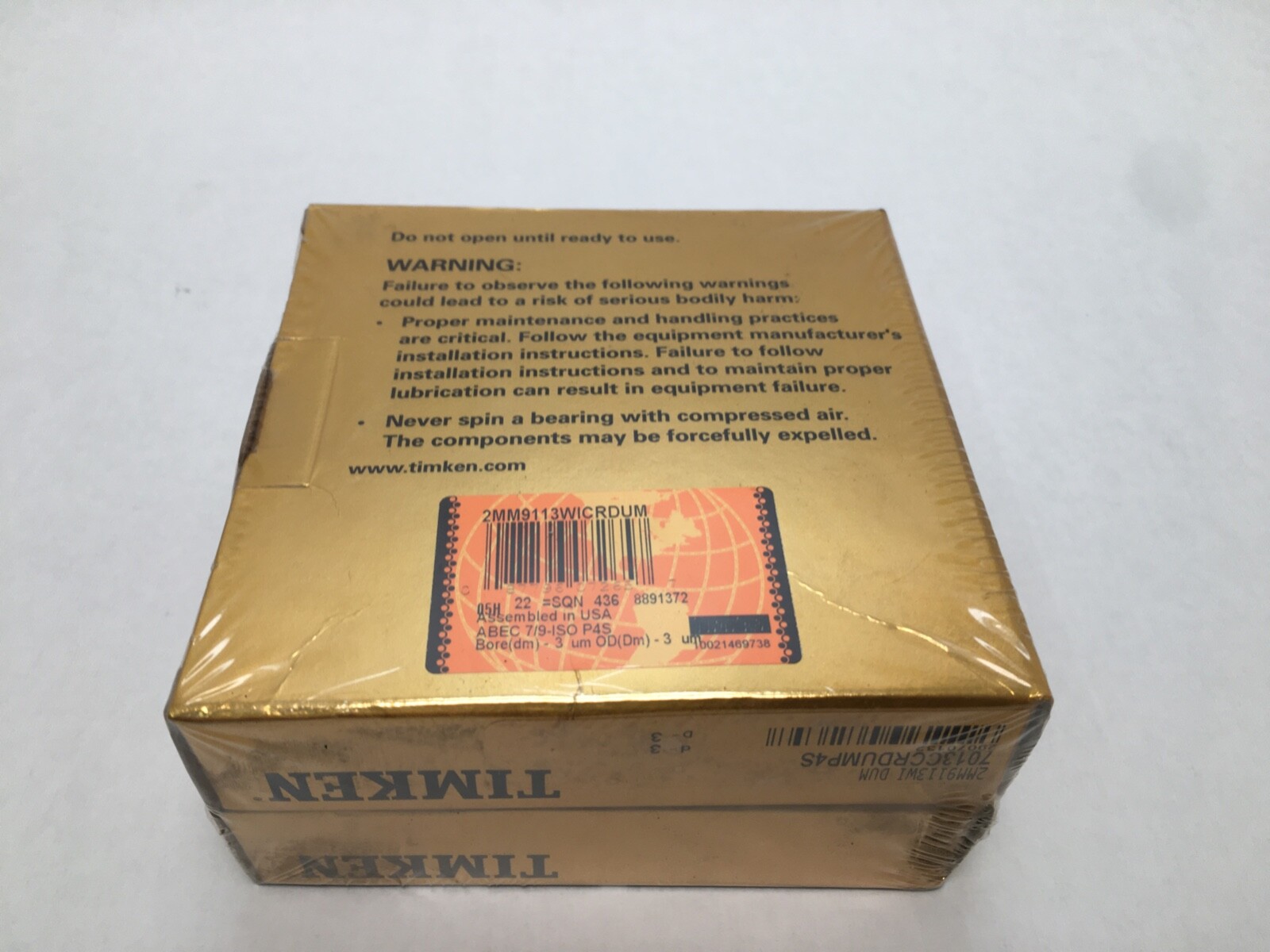

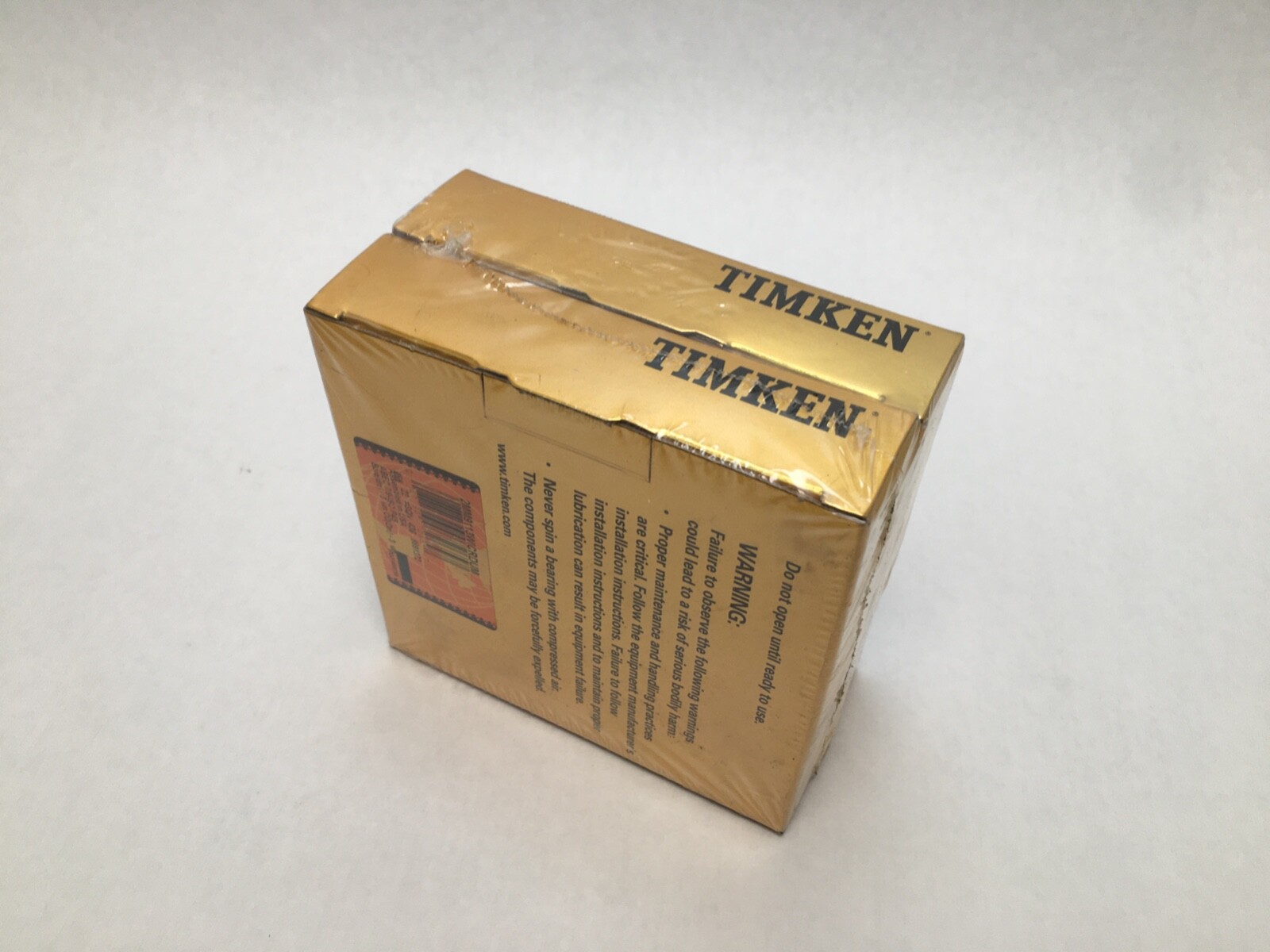

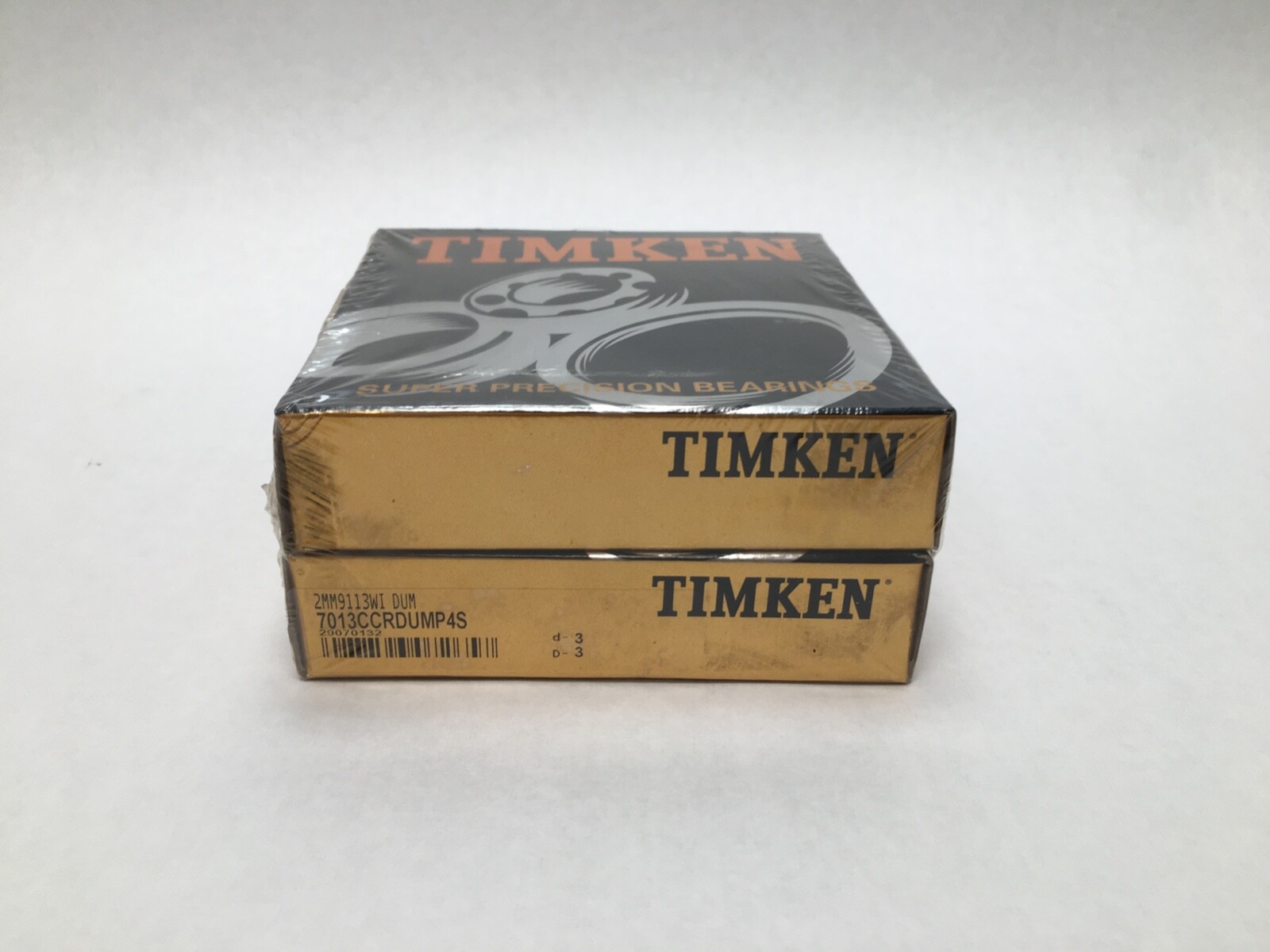

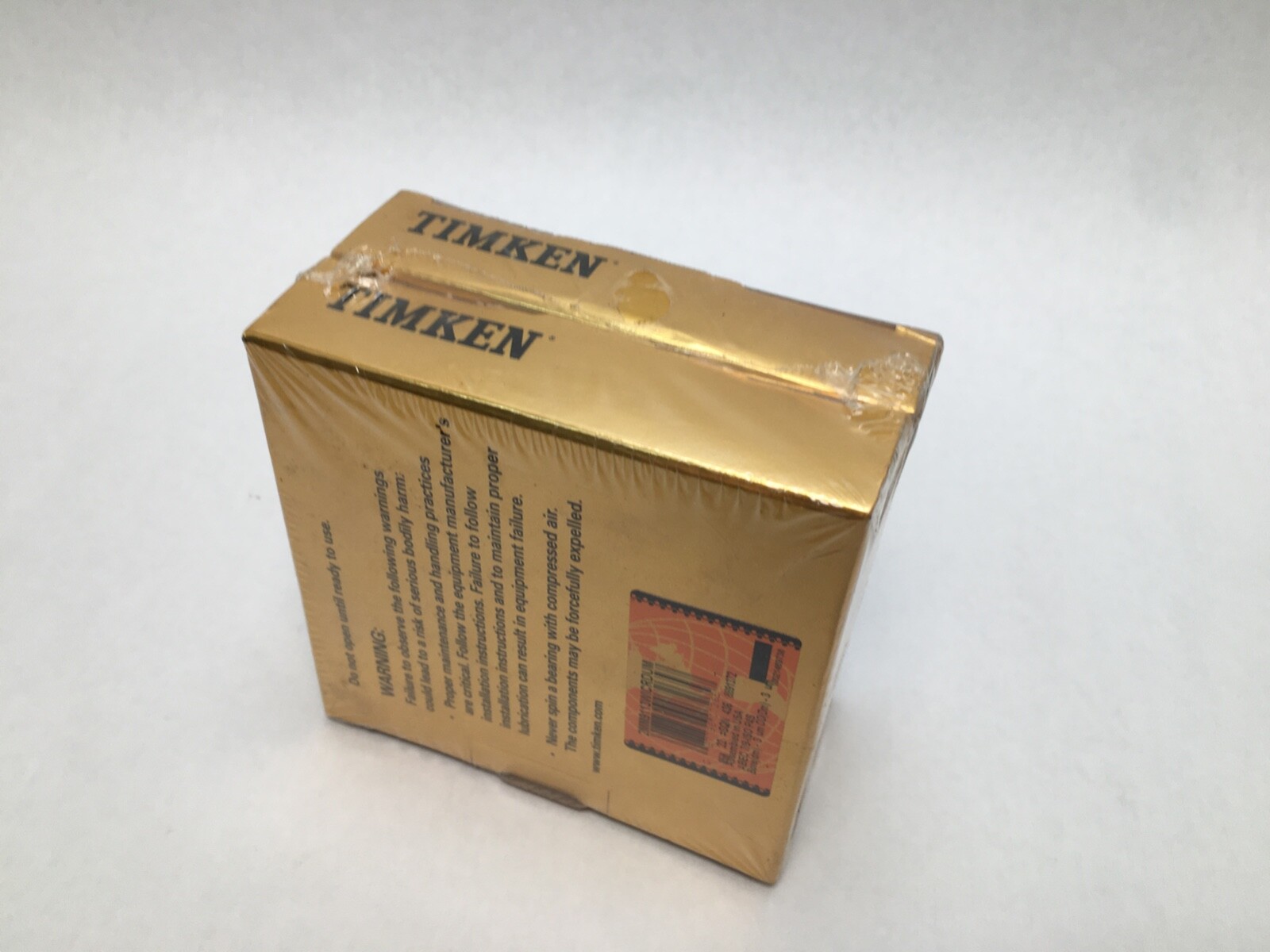

Angular contact ball bearing pair, 65 x 100 x 18 mm, 15° contact angle, ABEC 7 / P4, Medium preload. Fafnir 2MM9113WI-DUM duplex set, ISO 7013 size.
List Price
$302.06
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 2MM9113WIDUM |
| GTIN | 087796072657 |
| Model | 2MM 9113 WI DUM / 7013 CCR DUM P4S |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Lubricant | Grease or oil |
| Preload | Medium |
| Mpn Variants | 2MM9113WIDUM, 2MM9113WI-DUM, 2MM9113WICRDUM, 7013CCRDUMP4S, 2MM 9113 WI DUM |
| Precision Class | ABEC 7 / P4 |
| Dynamic Load Rating | 39,800 N |
| Static Load Rating | 32,600 N |
| Rolling Elements | Ball |
| Item Weight | 0.87 kg (1.92 lb) pair |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 12,700 rpm grease; 25,400 rpm oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex universal (DB, DF or DT) |
| Cross Reference 1 | SKF 7013 CD/P4ADGB |
|---|---|
| Cross Reference 2 | NSK 7013CTRDUMP4 |
| Cross Reference 3 | FAG B7013-C-T-P4S-DUM |
Timken Fafnir 2MM9113WI-DUM is a matched pair of super-precision angular contact ball bearings, universally ground for duplex mounting with Medium preload. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Width: 18 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Medium. Cage Material: Phenolic. Closure Type: Open. Rolling Elements: Ball. Item Weight: 0.87 kg (1.92 lb) for the pair.
2MM — Fafnir super-precision angular contact, 15° contact angle, ABEC 7 / ISO P4 tolerances.
9113 — 9100 extra-light series, ISO 7013 size, 65 x 100 x 18 mm.
WI — low shoulder on both rings, the duplex construction.
CR — phenolic cage.
DU — duplex universal: two bearings flush-ground to mount back-to-back, face-to-face or tandem.
M — Medium preload.
Dynamic Load Rating: 39,800 N (8,950 lbf) per bearing, Timken C1. Static Load Rating: 32,600 N (7,330 lbf) per bearing. Limiting Speed: 12,700 rpm grease; 25,400 rpm oil. The 15° angle and Medium preload give a stiff, high-speed spindle arrangement.
Max Fillet Radius (mating part): 1 mm (0.039 in). Shaft Backing Shoulder Diameter: 72.1 mm (2.840 in). Housing Backing Shoulder Diameter: 93.2 mm (3.670 in).
Unit Quantity: 2 Pcs, one matched duplex pair. GTIN: 087796072657.
ISO 7013 15° super-precision equivalents with medium preload: SKF 7013 CD/P4ADGB, NSK 7013CTRDUMP4, FAG B7013-C-T-P4S-DUM, SNFA/NTN equivalents in the 7013C family. The title string 7013CCRDUMP4S is a Fafnir-to-ISO cross designation.
