SNR7212CG1DUJ74Angular Contact Ball Bearing – Straight Bore, 60 mm ID, 110 mm OD, 22 mm Width, Open, 15° Contact Angle, Light Preload, Phenolic Cage, ABEC 7.

Product Description

What this part is

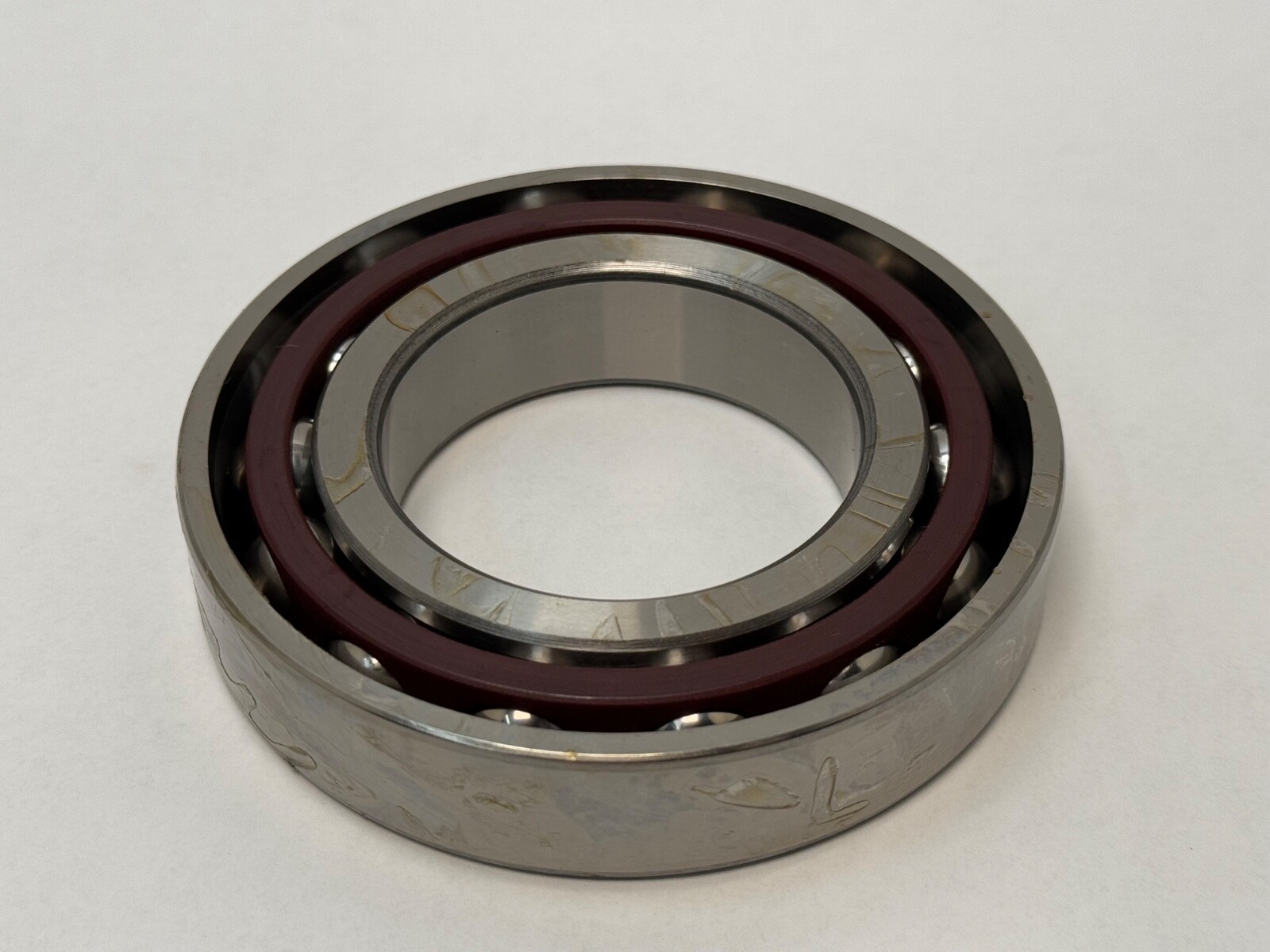

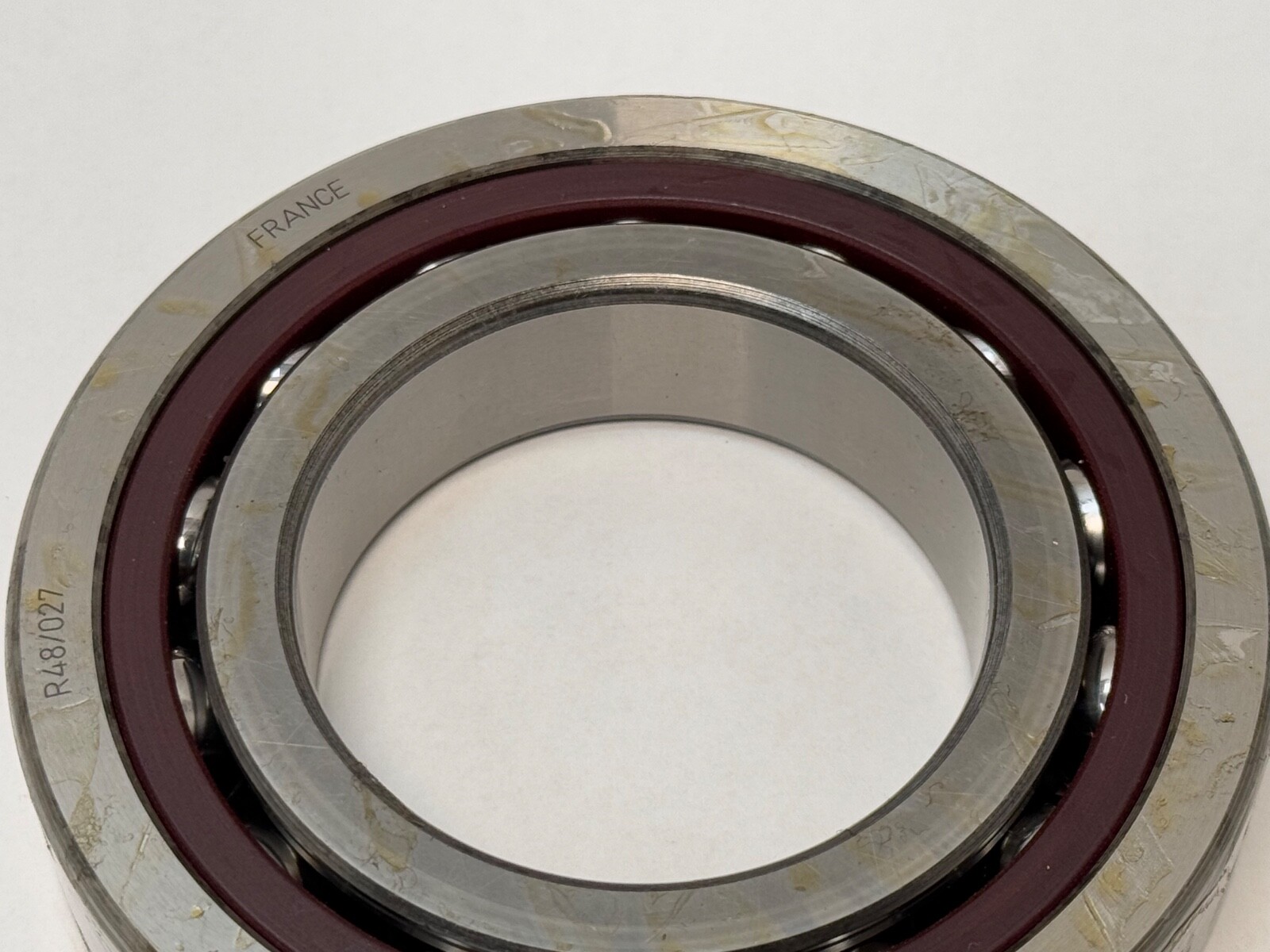

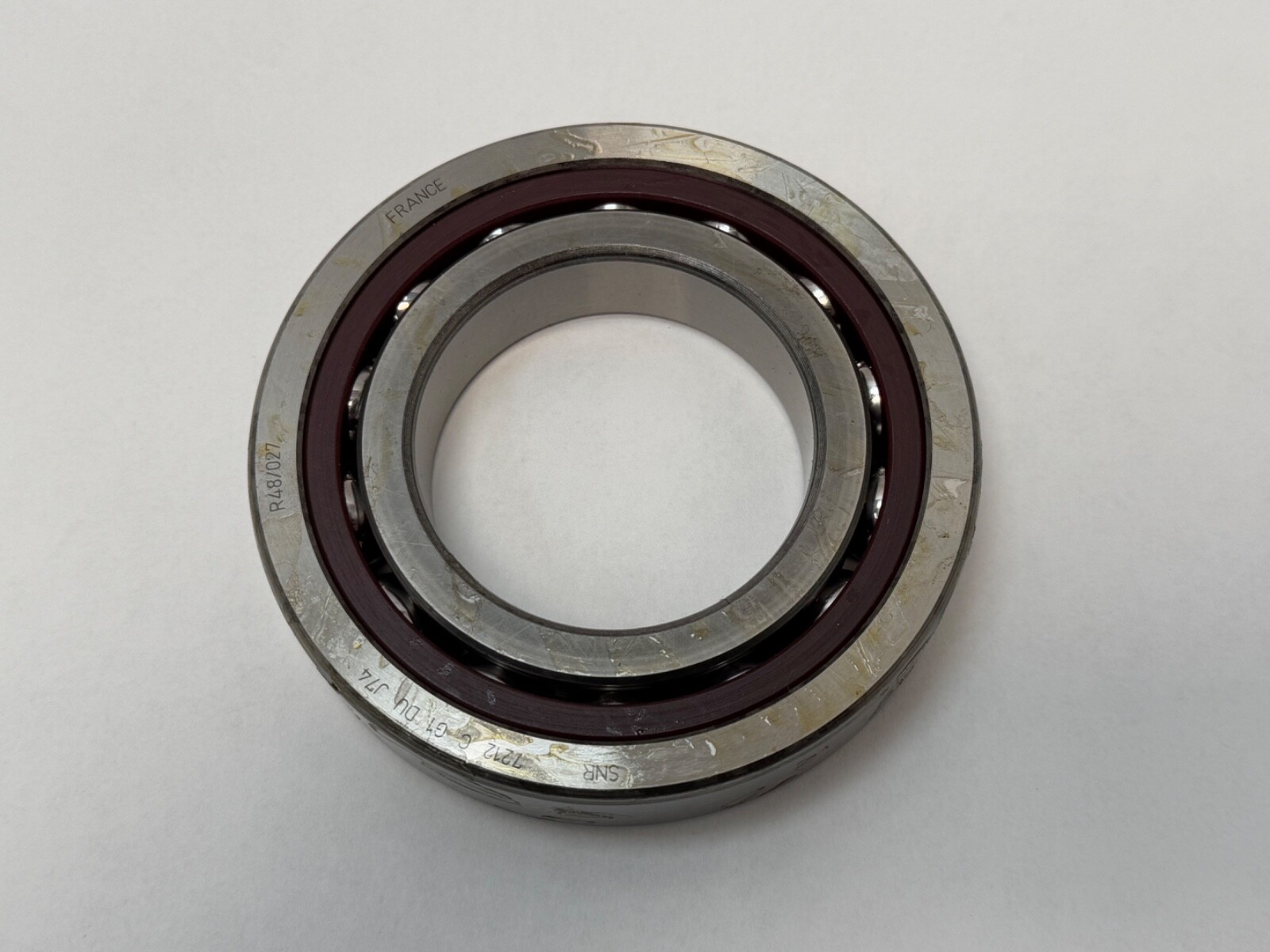

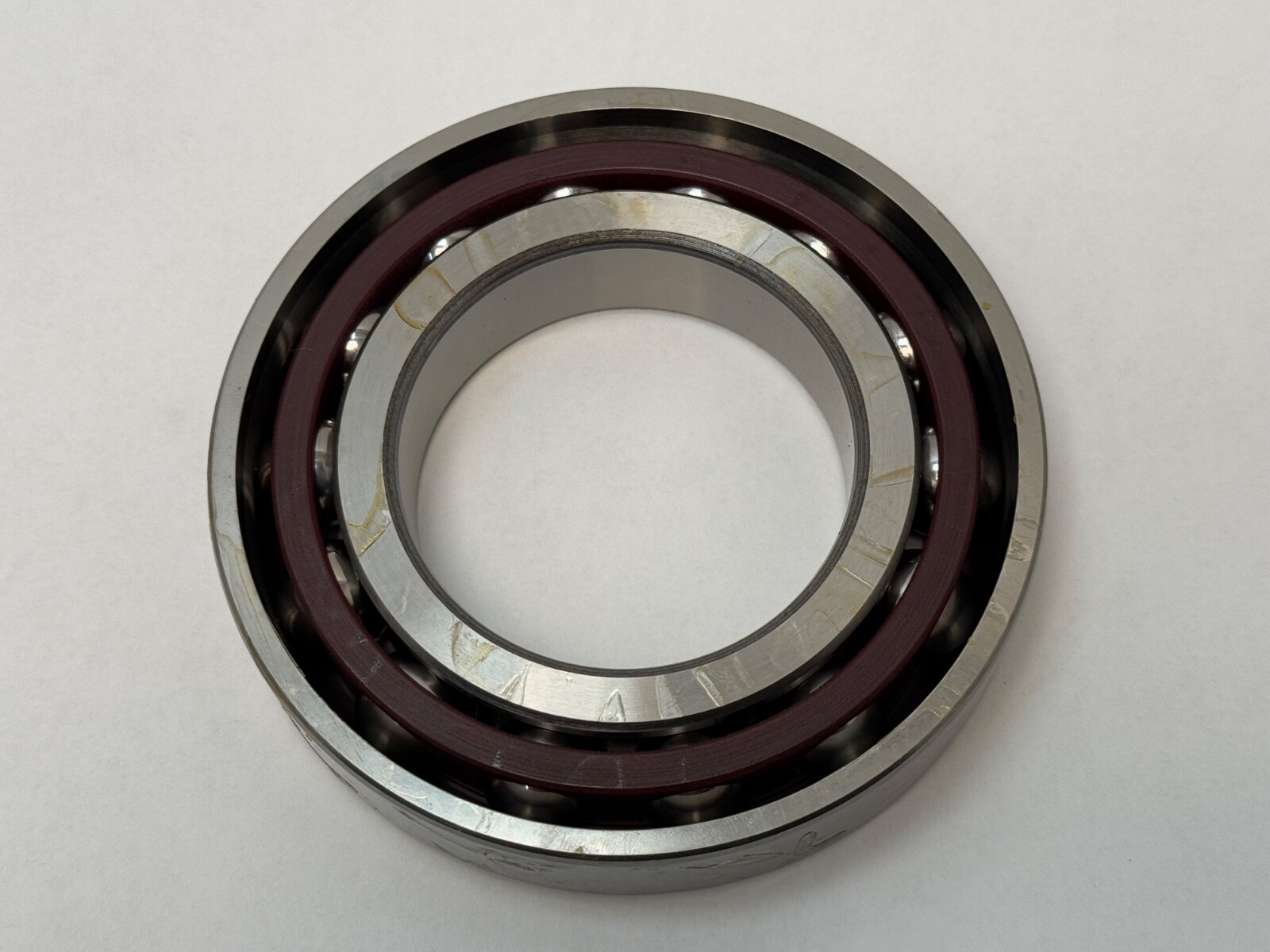

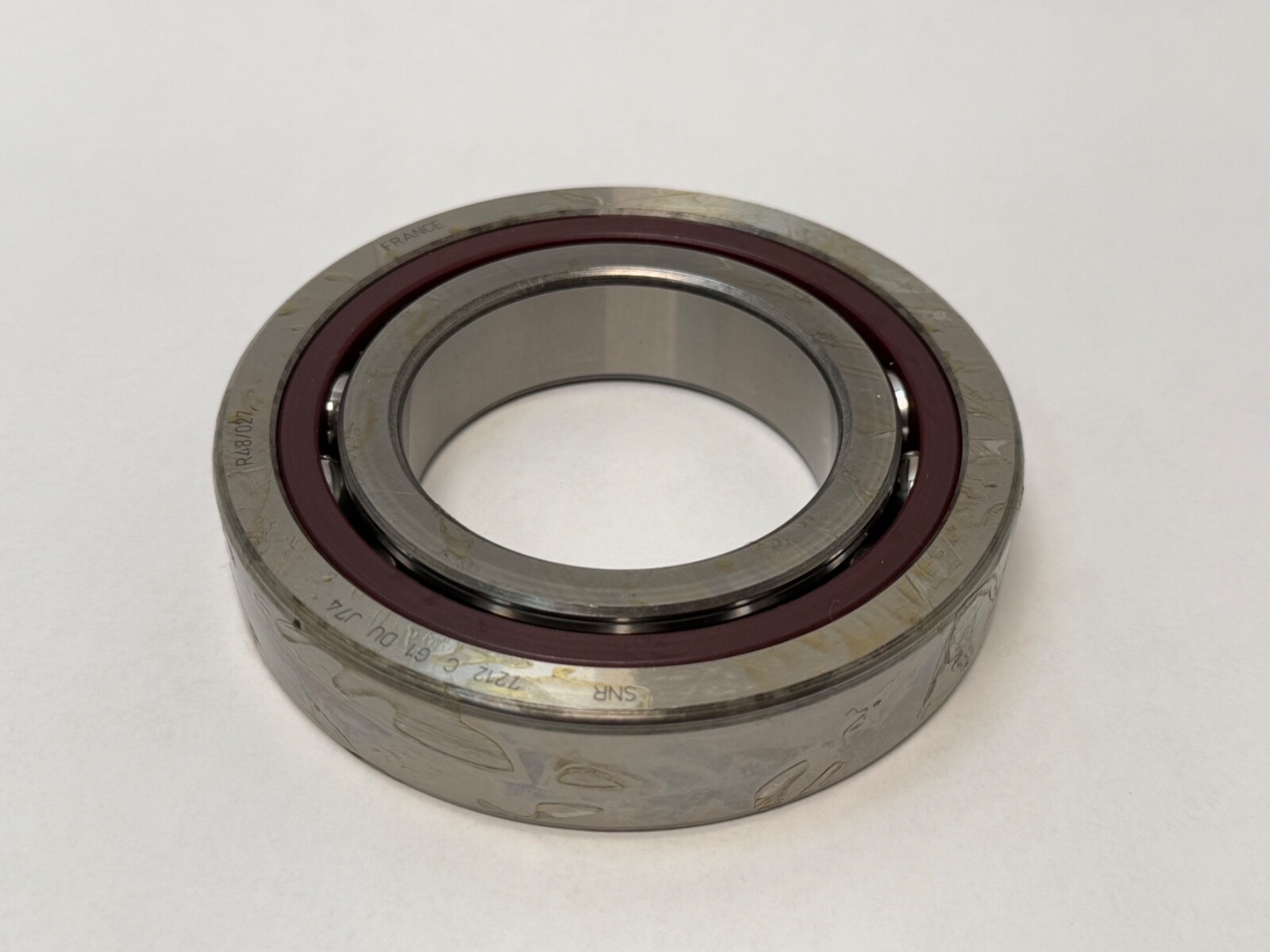

SNR 7212CG1DUJ74 angular contact ball bearing, ISO 72 series, 60 x 110 x 22 mm. Bore: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing Steel. Bore Type: Straight. Closure Type: Open. Series: 7200 (ISO 72). Base Number: 7212. Snap Ring Included: Not specified. Country of Origin: France.

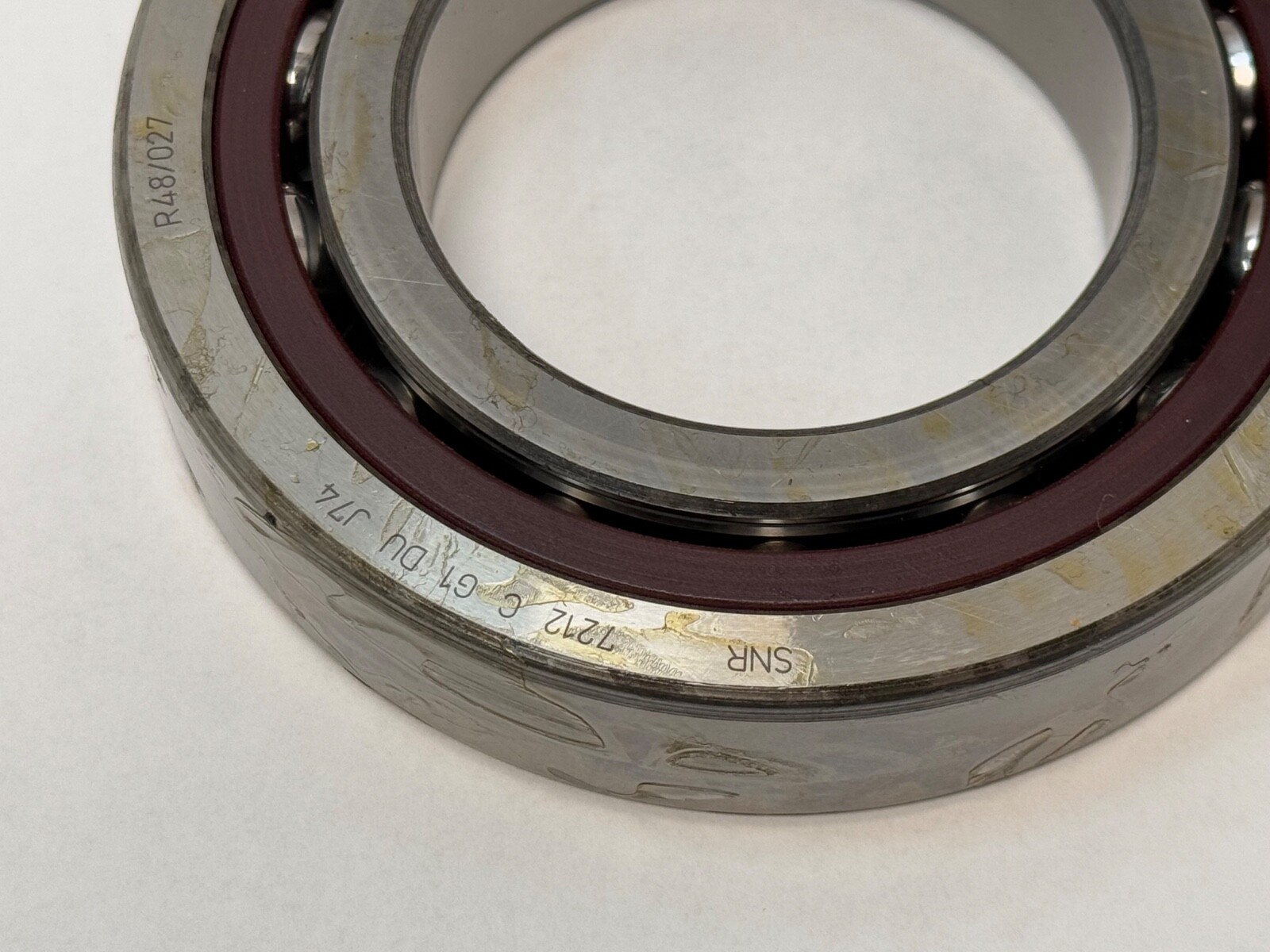

Decoding the designation

Contact Angle: 15°, from the C position. Cage Material: Phenolic (laminated resin), from G1. Cage Type: Machined, outer-ring centred. Preload: Light, from J74. Precision Class: ISO Class 4 (ABEC 7 / P4). Internal Clearance: N/A. Searchable forms of the number: 7212CG1DUJ74, 7212 C G1 DU J74, 7212-C-G1-DU-J74, 7212CG1DUJ84.

What these specs mean in practice

A 15° contact angle favours speed and radial stiffness, and it carries less thrust than a 25° execution on the same envelope. The laminated resin cage is light and quiet, and it is centred on the outer ring for stable guidance. Light preload holds the balls in defined contact for repeatable shaft location while keeping heat generation low. ISO Class 4 tolerances give closer running accuracy and lower runout than Class 5. Item weight: 1.74 lbs.

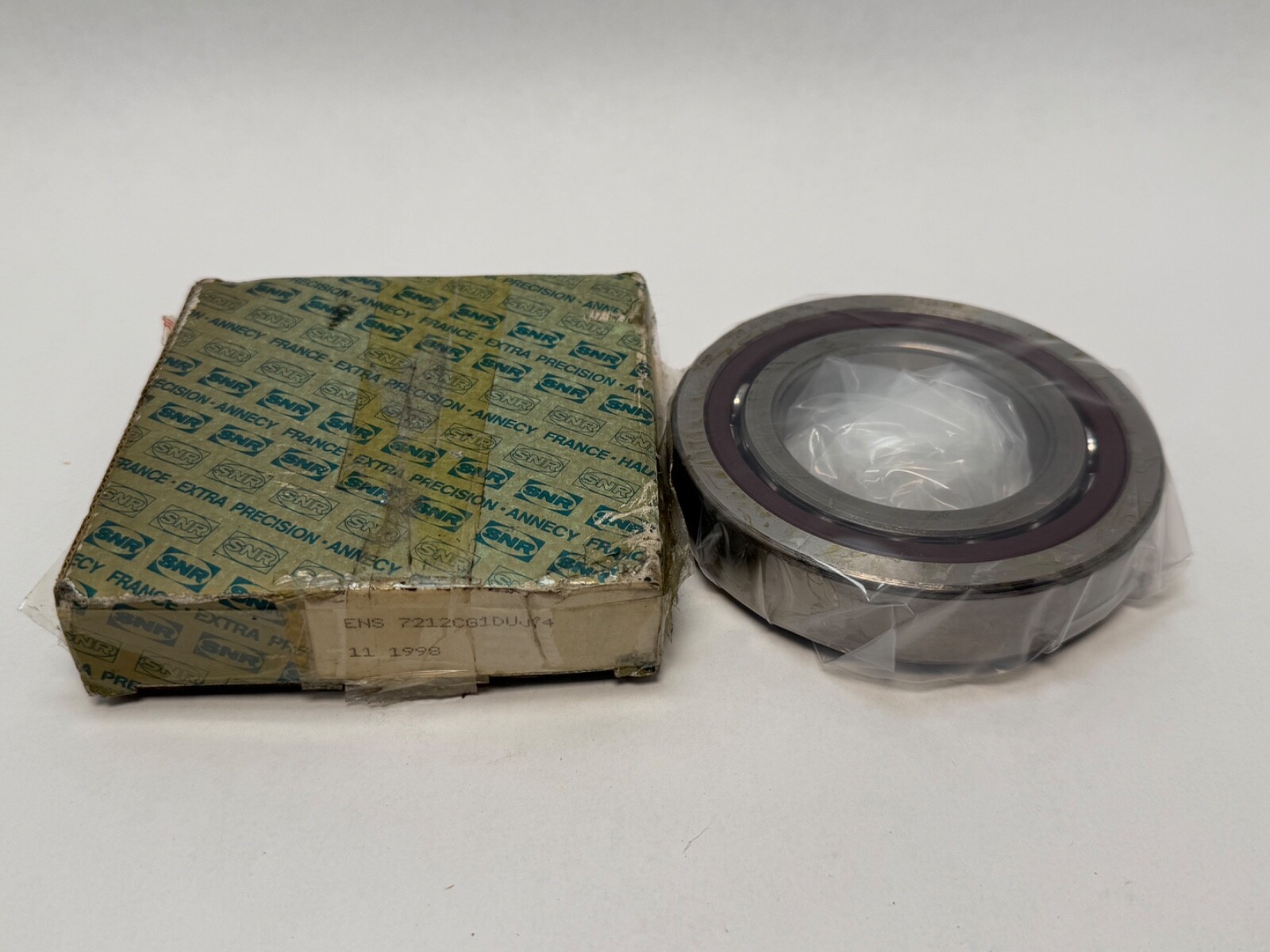

Quantity and configuration

Unit Quantity: 2 Pcs. Mounting Arrangement: Universal (DB, DF or DT). The ring faces are flush-ground, so the pair sets back-to-back, face-to-face or in tandem, and the J74 light preload is established when the pair is clamped together.

Interchange guidance

Cross-Reference 1: SKF 7212 CD/P4ADGA. Cross-Reference 2: FAG B7212-C-T-P4S-DUL. Cross-Reference 3: NSK 7212CTYNDULP4. Cross-Reference 4: Fafnir 2MM212WICRDUL. Each shares the 60 x 110 x 22 mm envelope, a 15° contact angle, ABEC 7 precision and light preload on a universally matchable set. Harmonization Code: 8482.10.50.68.
