Angular Contact Ball Bearing — Super-Precision P4A Matched Pair, 20 mm ID, 37 mm OD, 9 mm Width, 15° Contact Angle, Extra Light Preload 25 N$227.83
Angular Contact Ball Bearing Duplex Pair - 20 mm ID, 37 mm OD, 9 mm Width, Open, 15° Contact Angle, P4$95.00
Angular Contact Ball Bearing - 20 mm ID, 37 mm OD, 9 mm Width, Open, 25° Contact Angle, Light Preload.$72.05

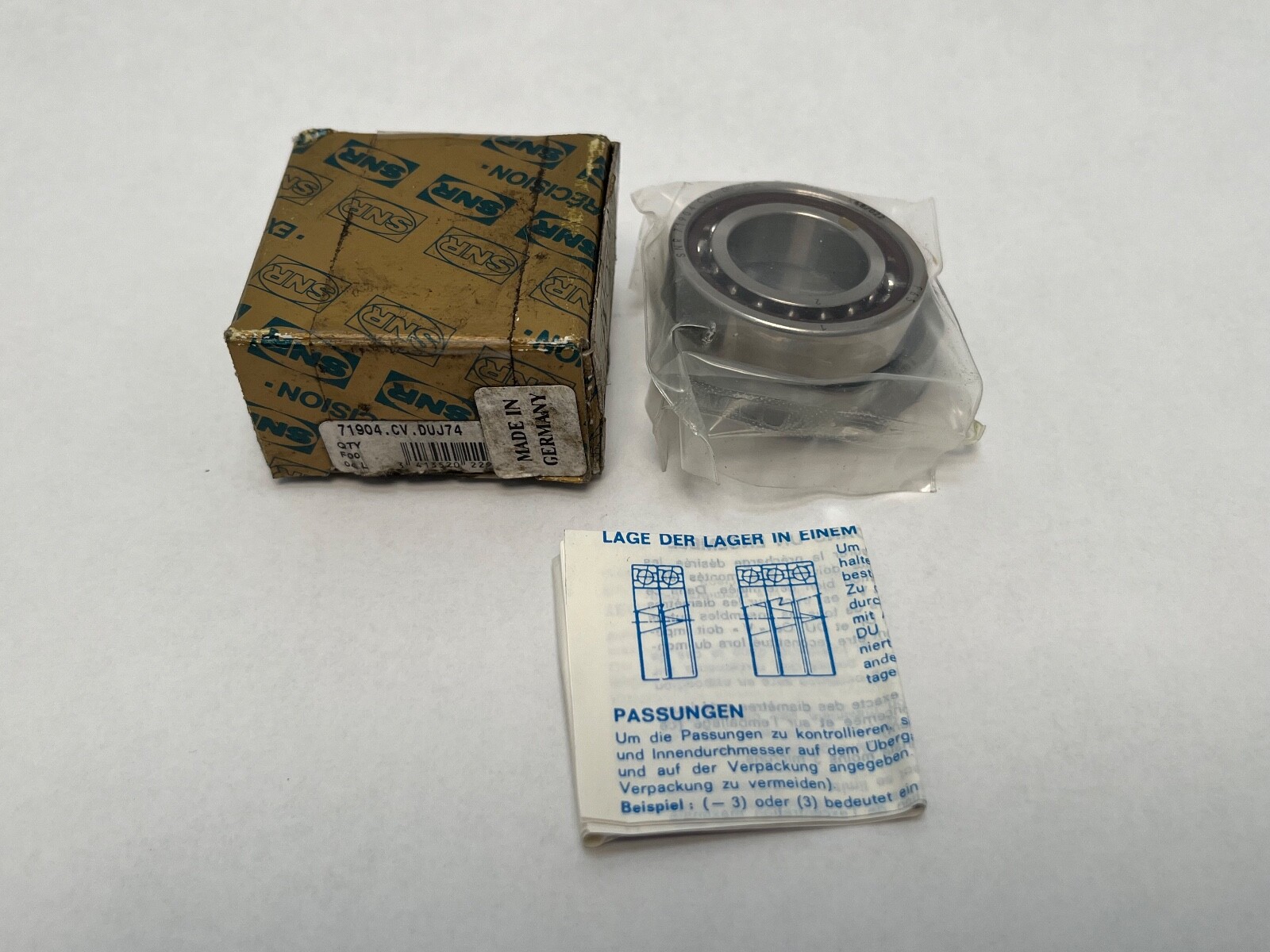

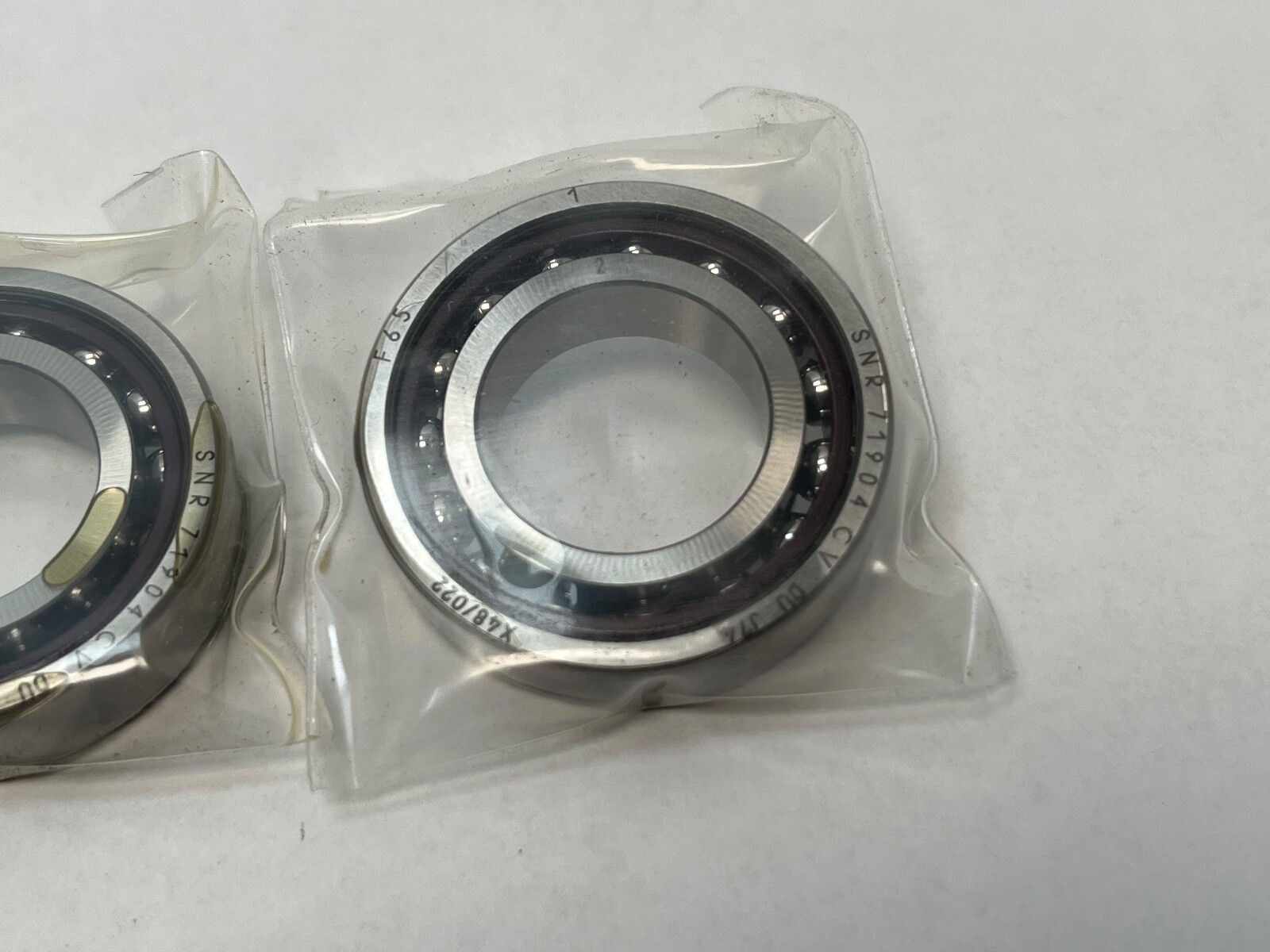

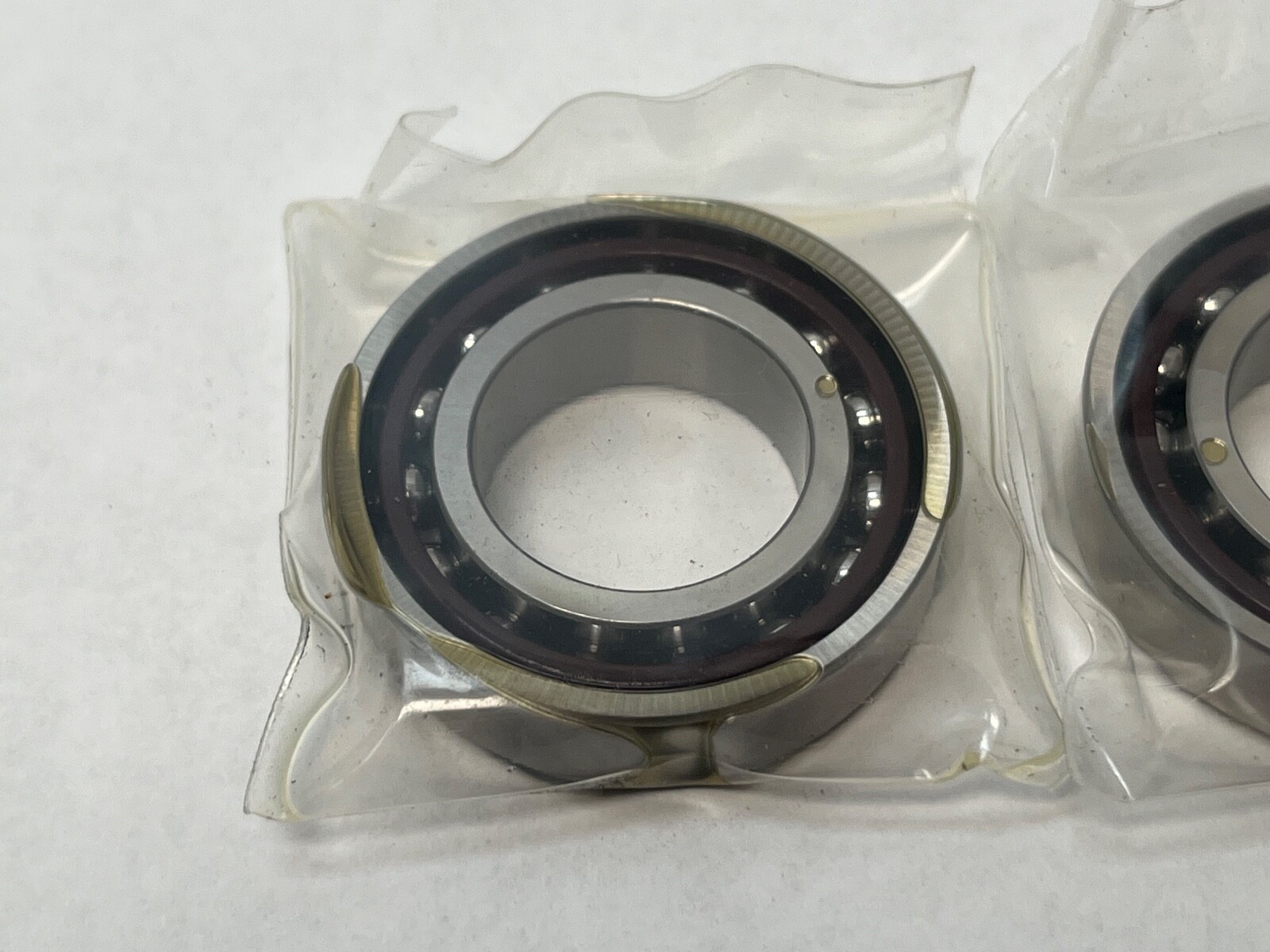

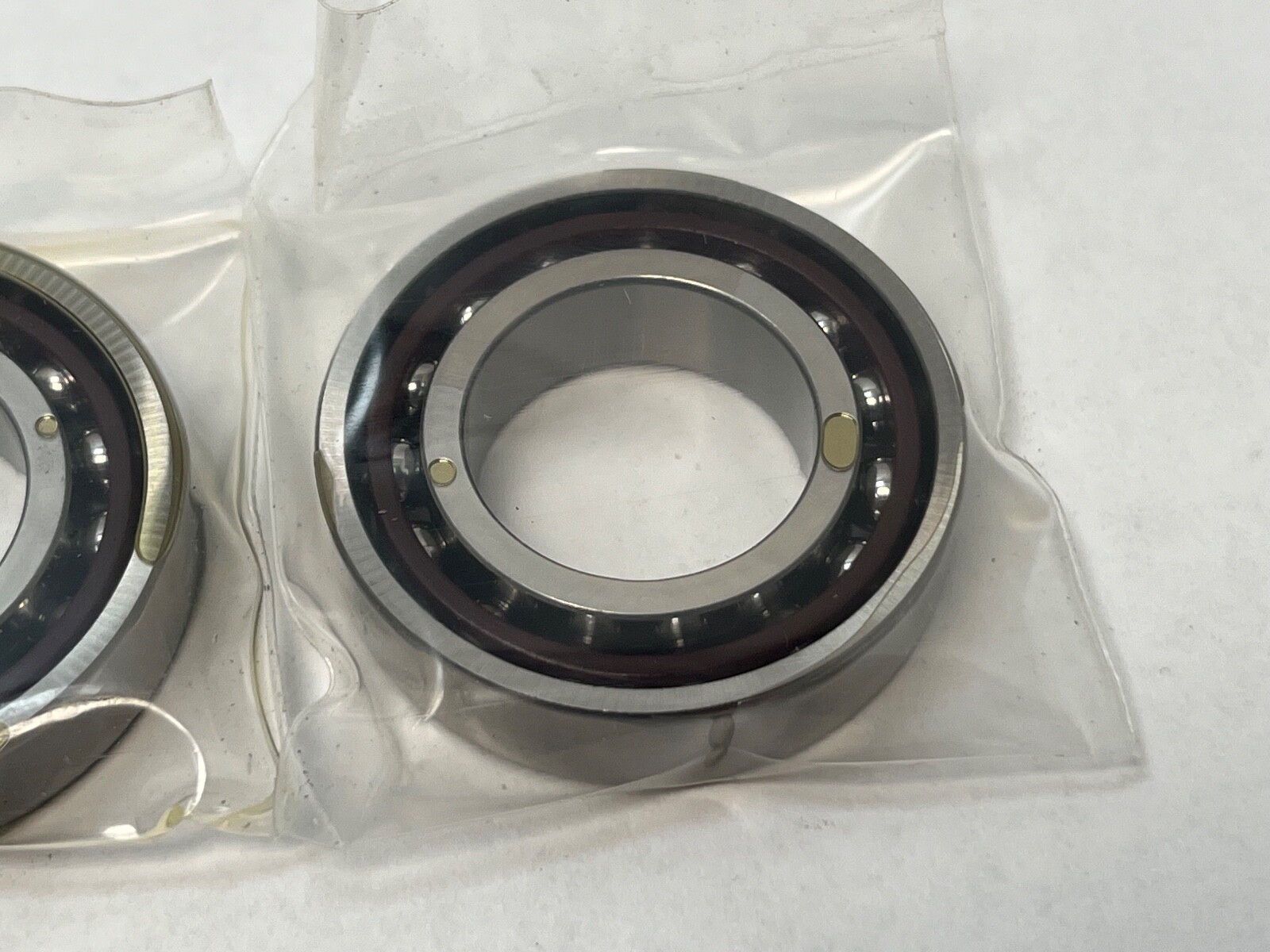

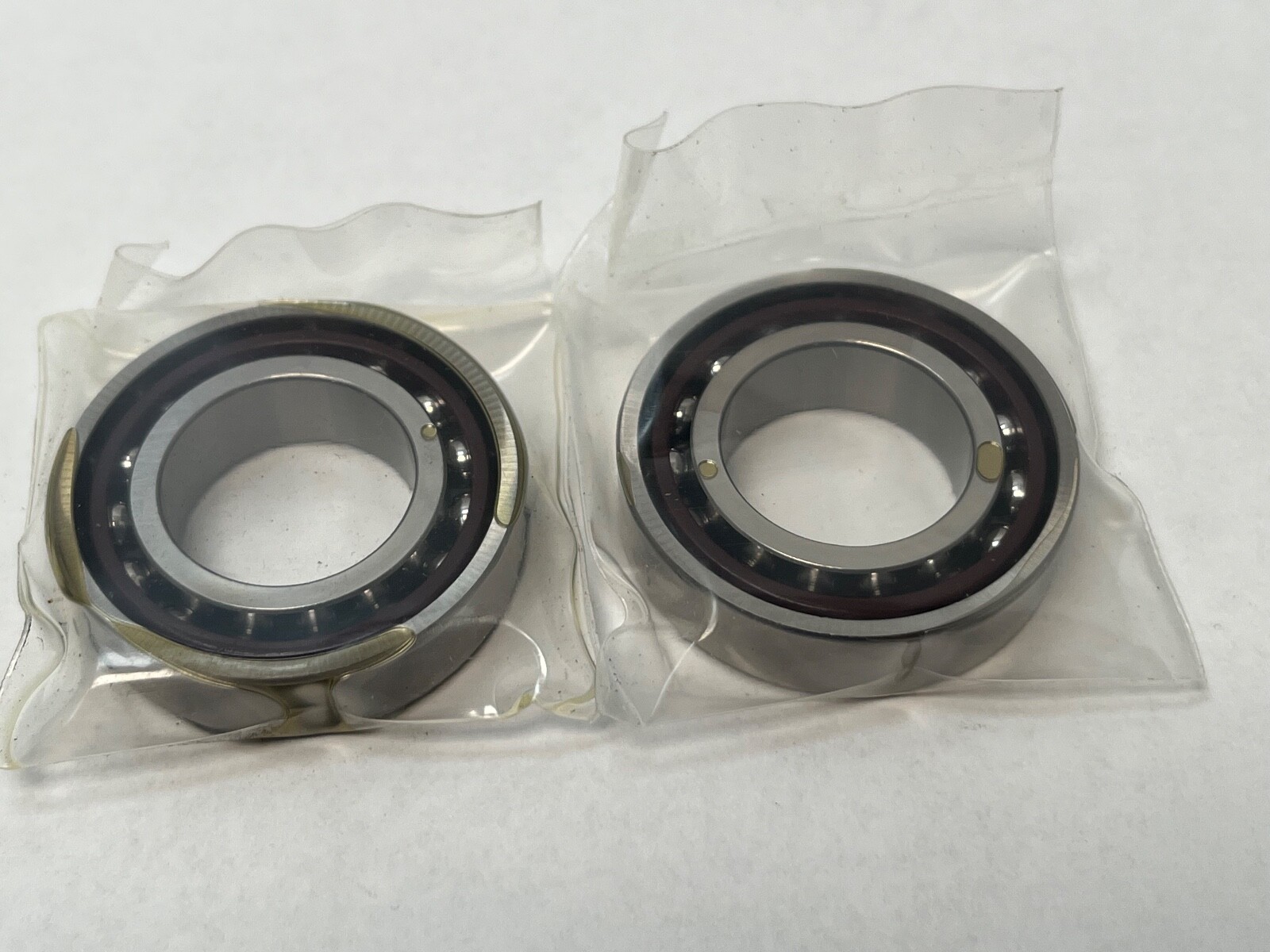

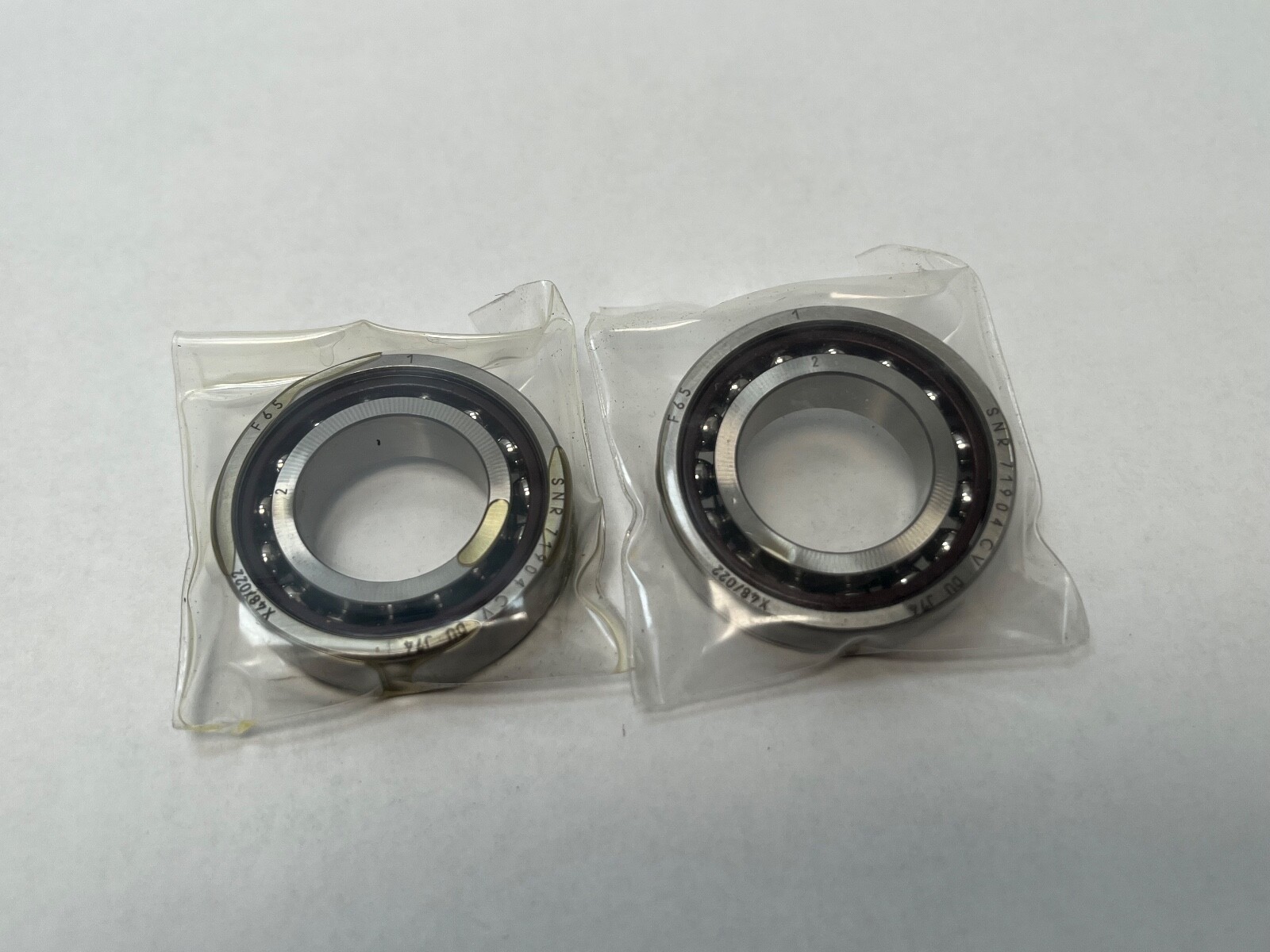

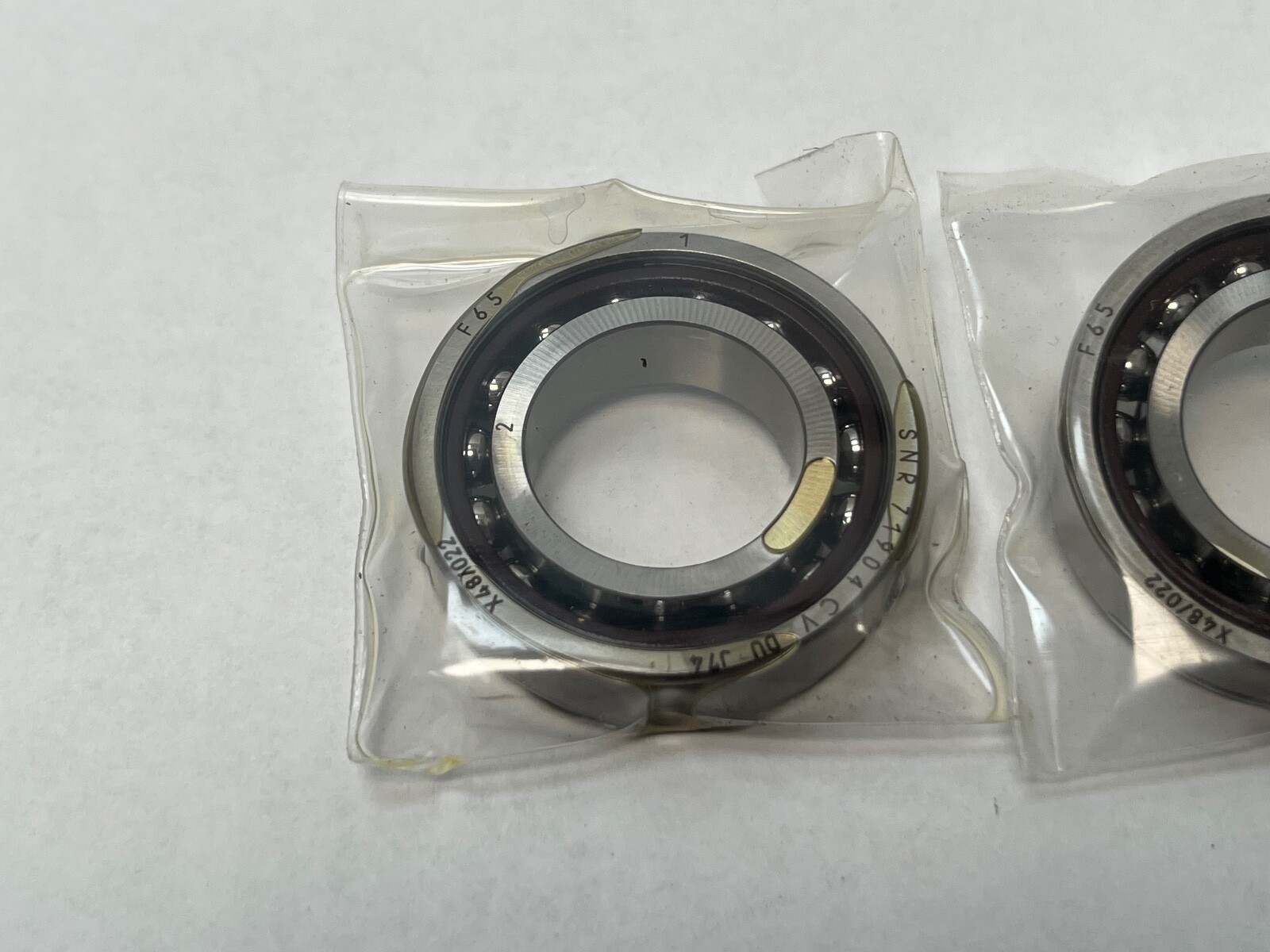

Super-Precision Angular Contact Ball Bearing Pair 20 x 37 x 9 mm, 25° Contact Angle, P4, Light Preload, Duplex Universal$144.88| MFR / Brand | SNR |
|---|---|
| MPN | 71904CVDUJ74 |
| Model | 7904C T DUL P4 / 2MM9304WI CR DUL / 71904 C V DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 37 mm |
| Width | 18 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 71900 |
| Lubricant | Oil |
| Min Temp | -40°C |
| Cage Type | Machined |
| Dynamic Load Rating | 7.7 kN / 1731 lbf |
| Static Load Rating | 4.3 kN / 967 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 0.11 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 56000 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 71904 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B71904-C-T-P4S-DUL |
