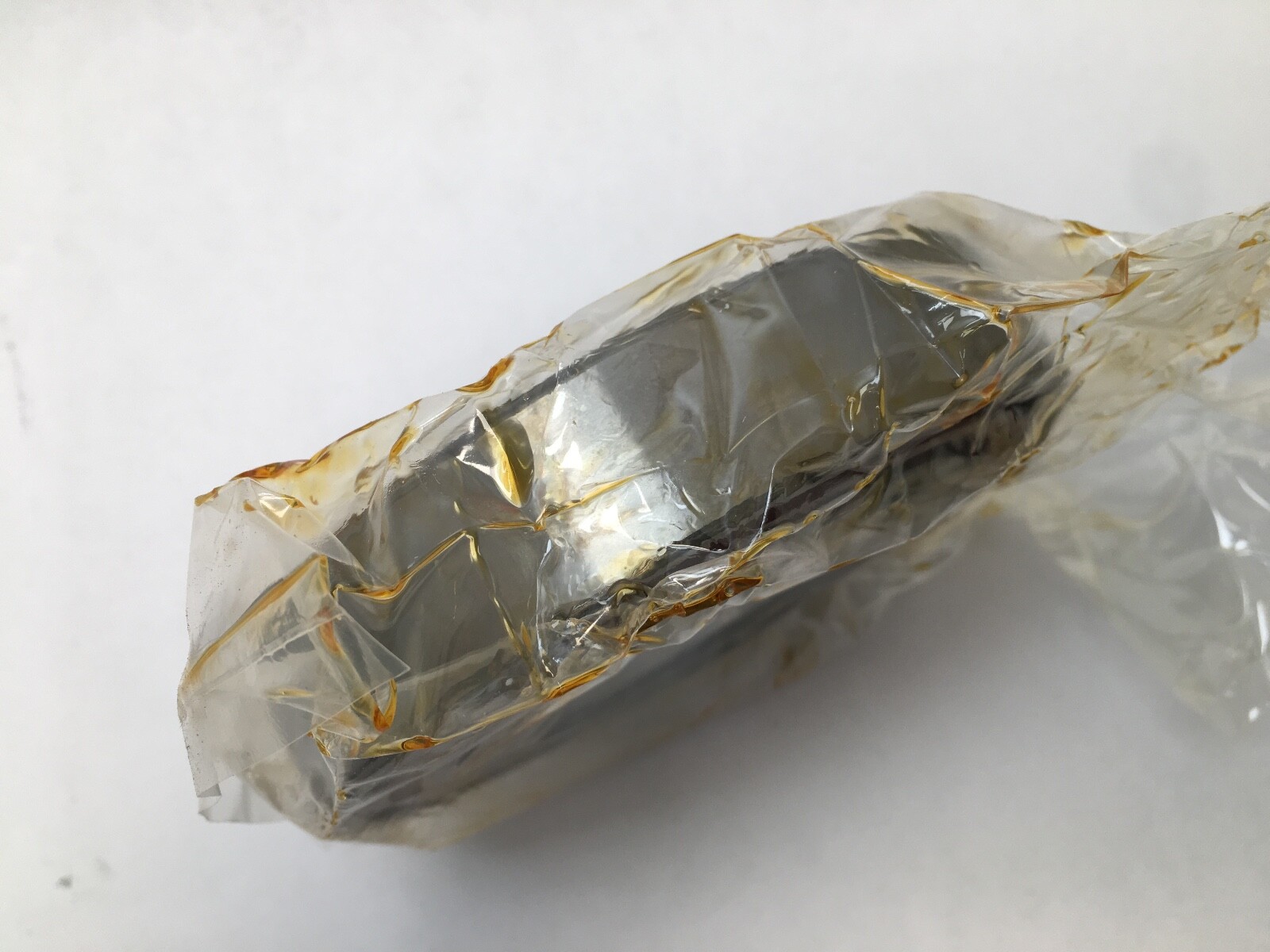

SKF 7215 ACD/P4ADT tandem pair of super-precision angular contact ball bearings, 75x130x25 mm each, 25° contact angle, P4A, 68,900 N dynamic rating.
List Price
$557.50
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7215 ACD/P4ADT |
| Model | 7215ACD/P4A DT |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Total Width | 50 mm (pair) |
| Mpn Variants | 7215 ACD/P4ADT, 7215-ACD/P4ADT, 7215-ACD-P4A-DT, 7215ACDP4ADT |
| Precision Class | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Closure Type | Open |
| Dynamic Load Rating | 68,900 N (per bearing) |
| Static Load Rating | 58,500 N (per bearing) |
| Precision Rating | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Tandem (DT) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7215-E-T-P4S-DT - 25 deg, tandem pair |
|---|---|
| Cross Reference 2 | NSK 7215A5TRDTP4 - 25 deg, tandem pair |
| Cross Reference 3 | Fafnir 3MM215WI DT - 25 deg, tandem pair |

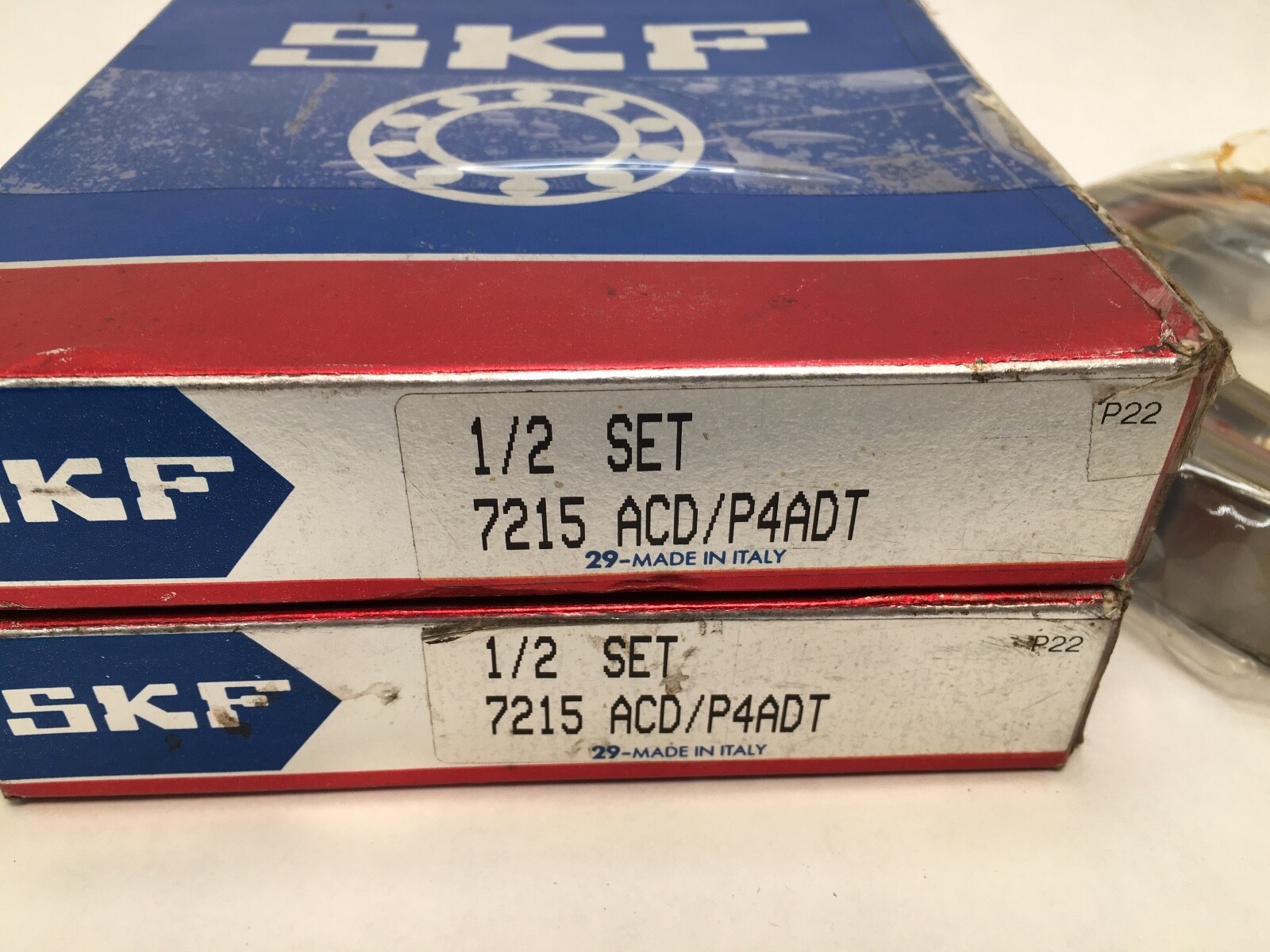

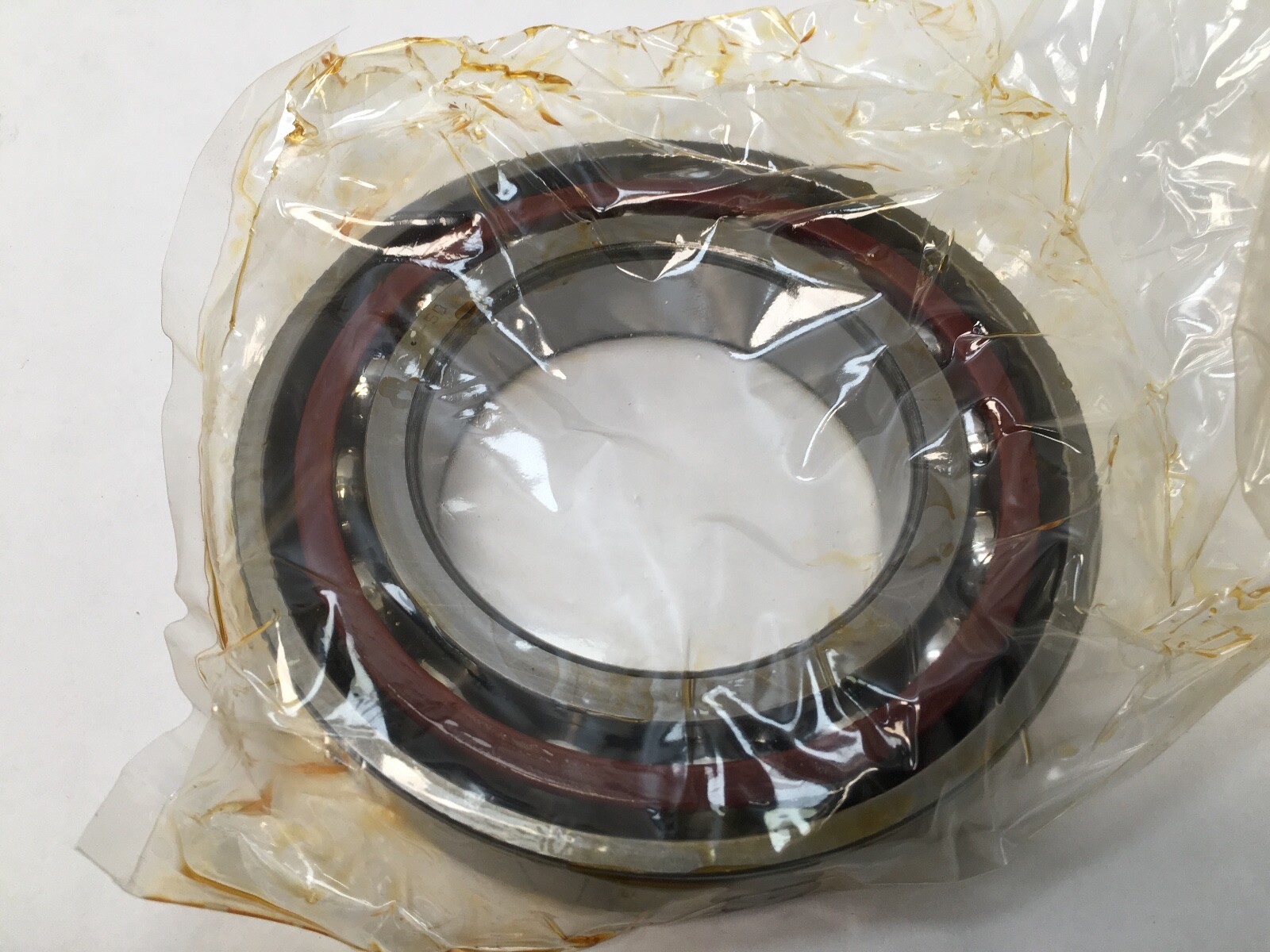

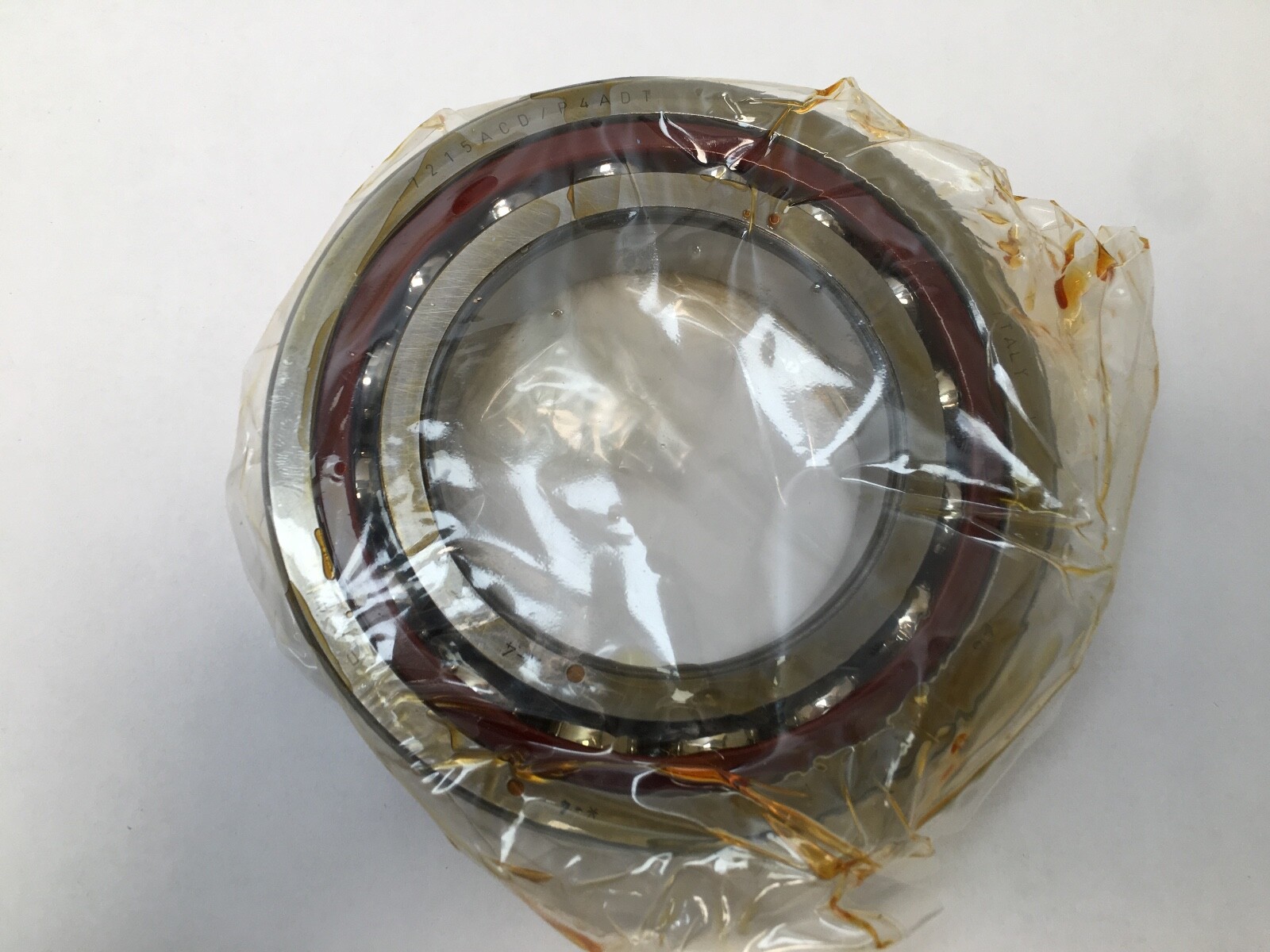

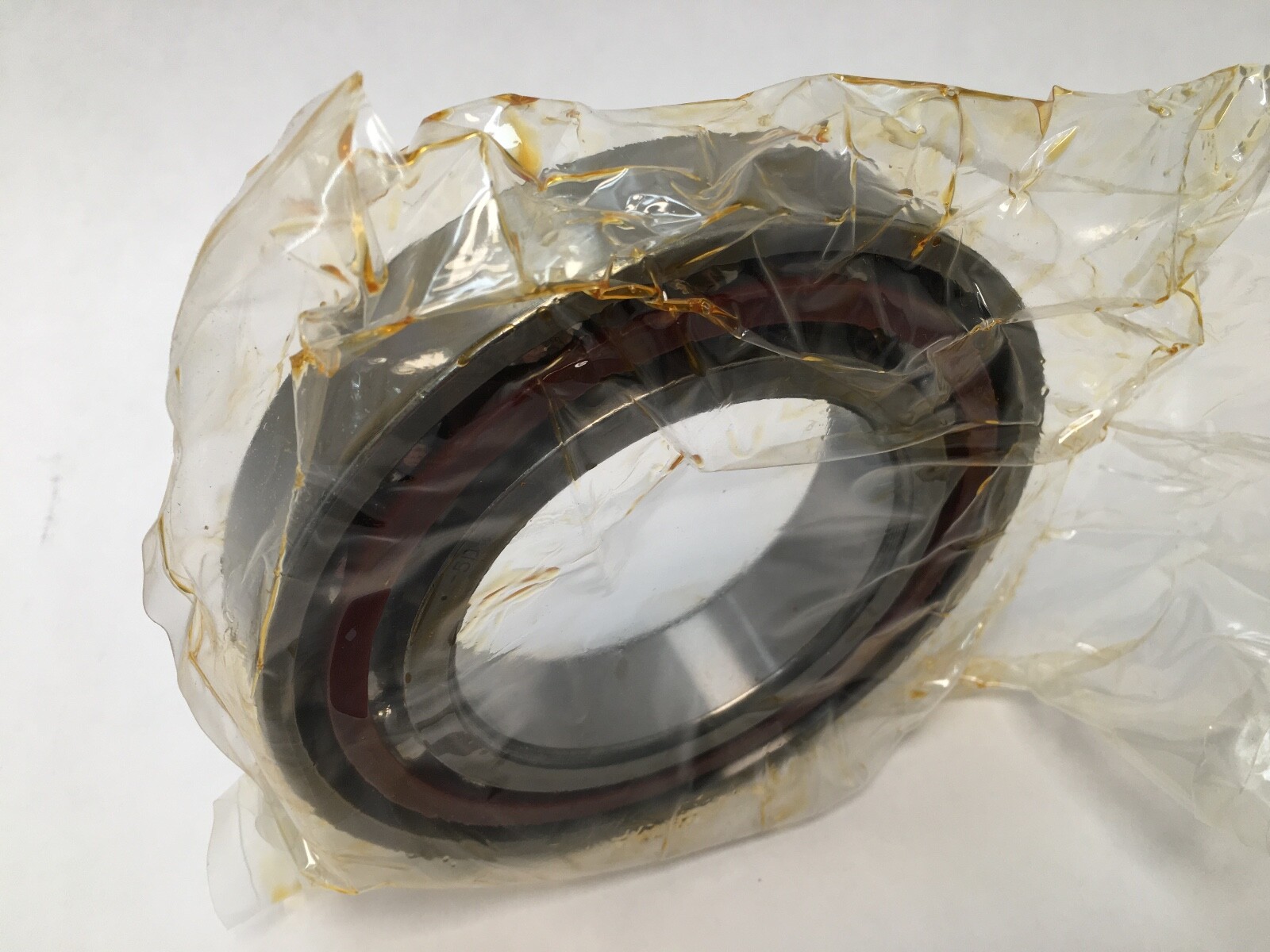

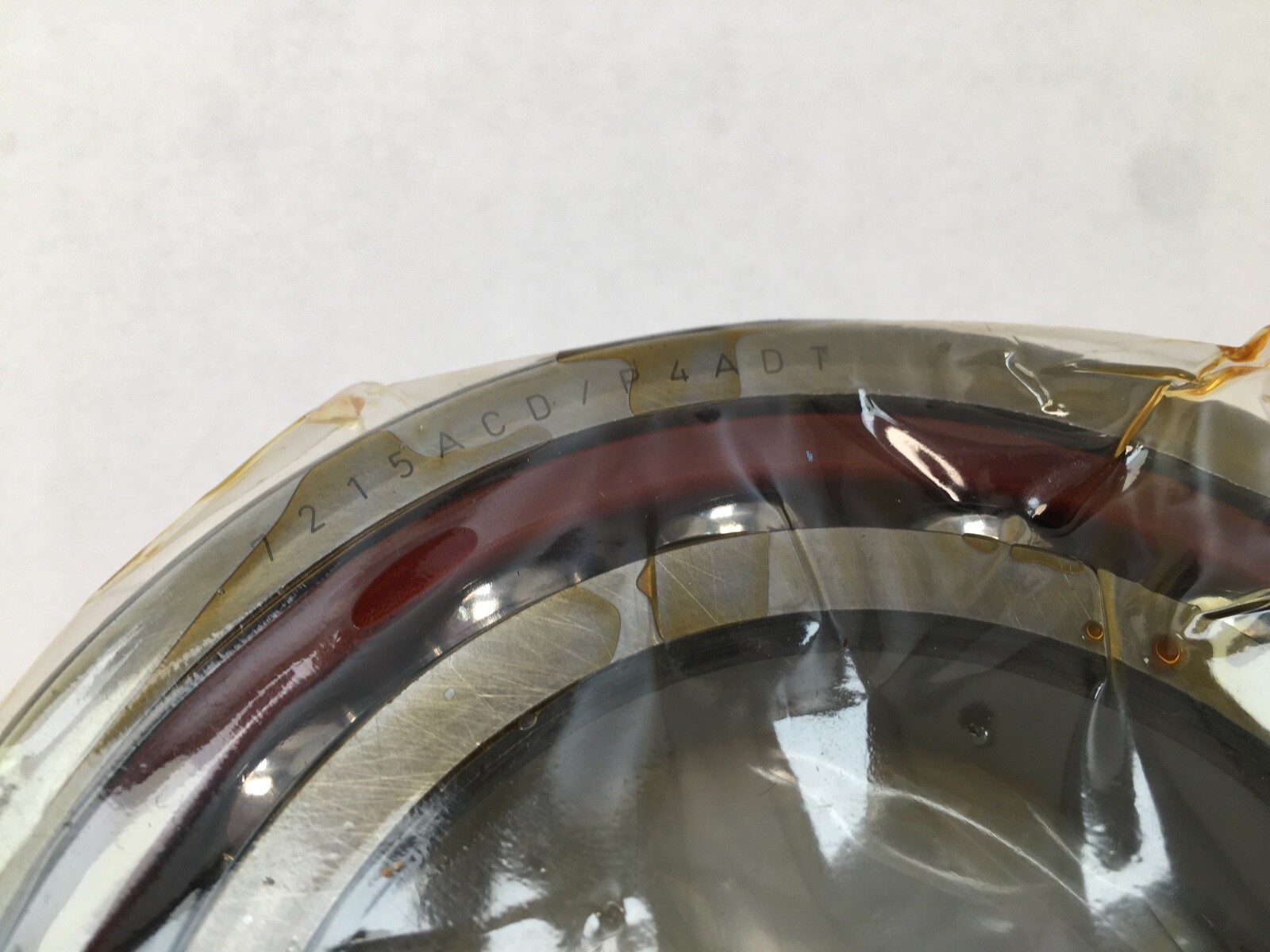

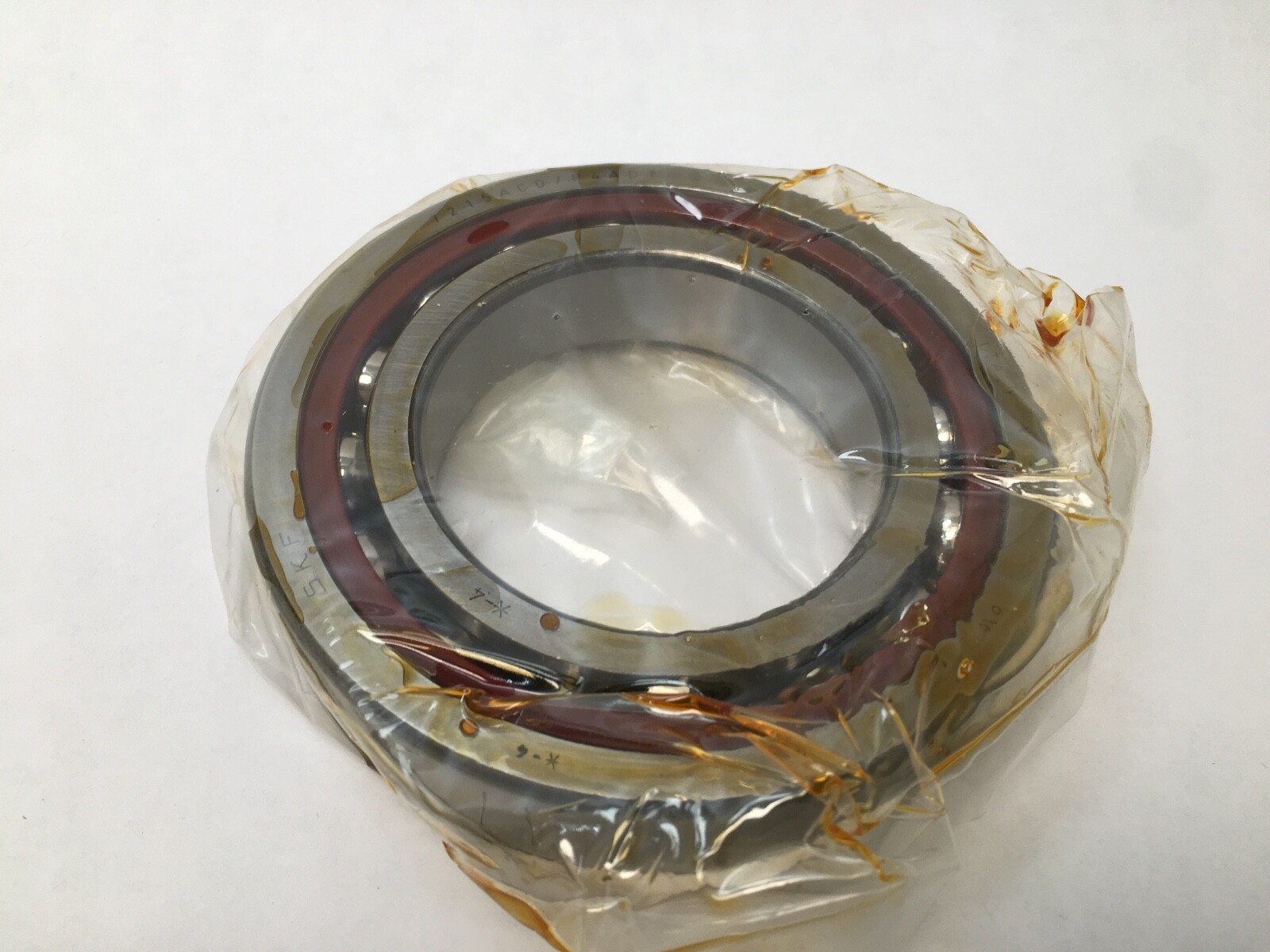

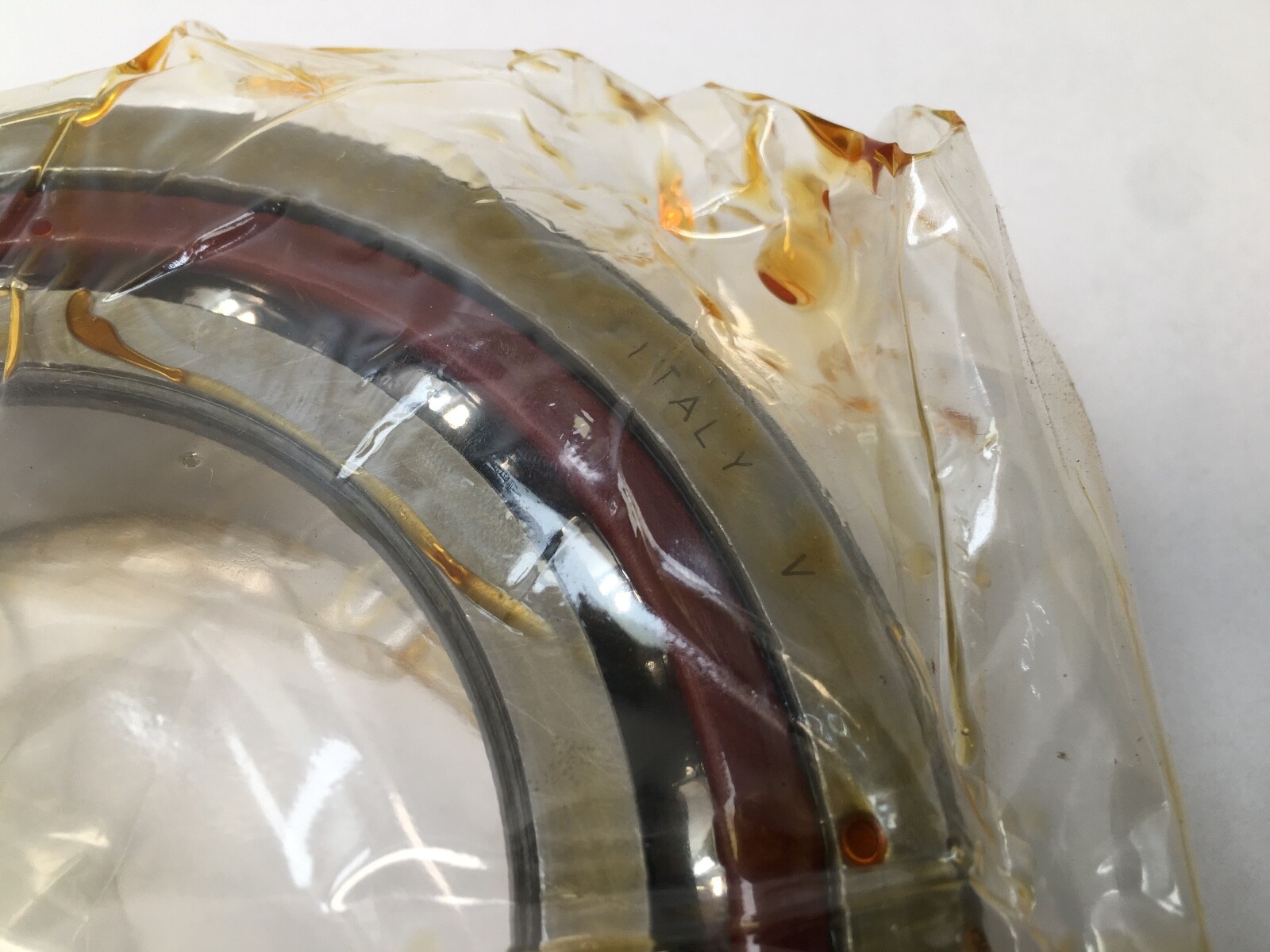

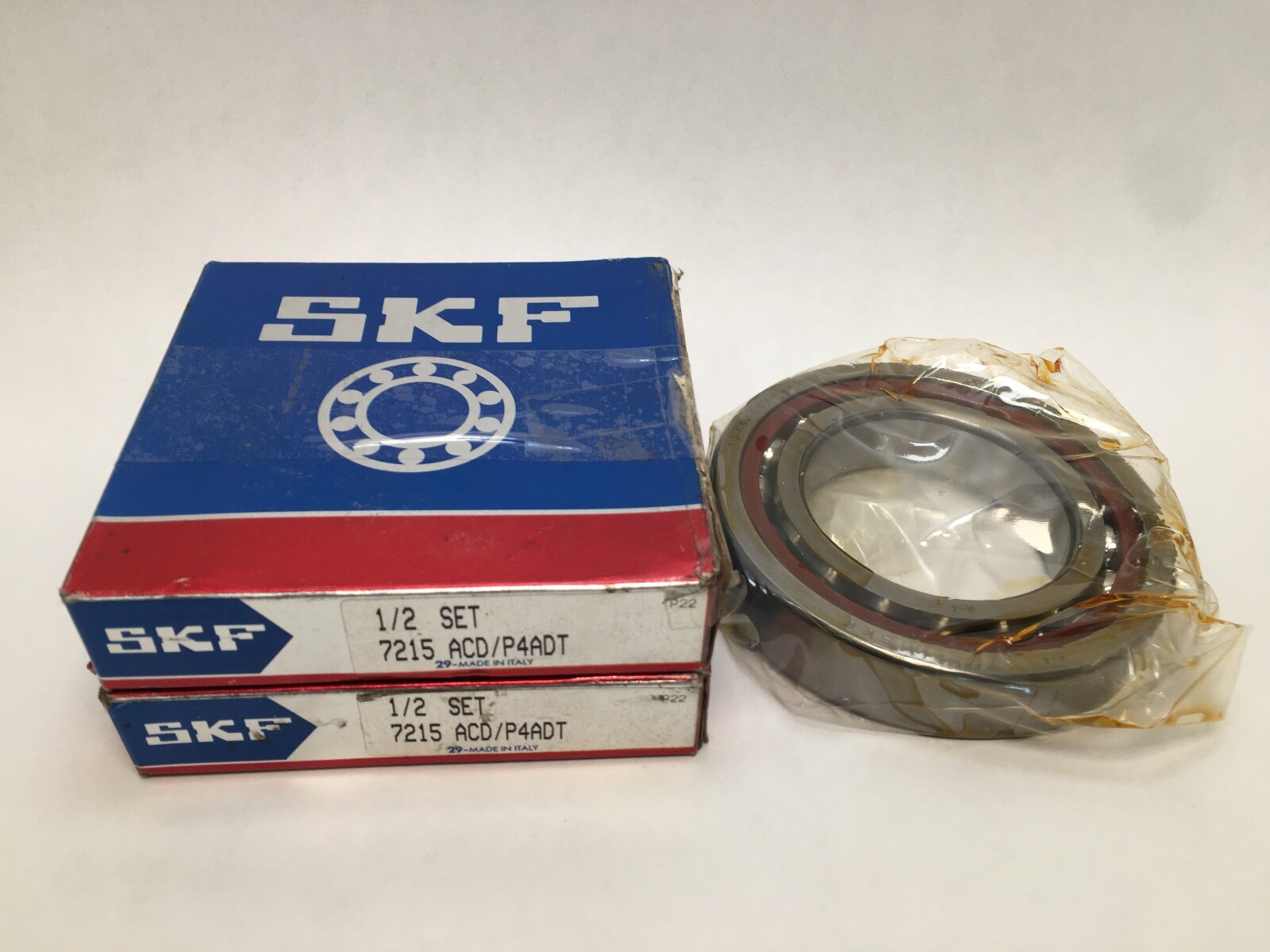

SKF 7215 ACD/P4ADT is a matched tandem pair (2 Pcs) of super-precision, high-capacity single row angular contact ball bearings in the 72 series, with a 25° contact angle. Both bearings are factory matched for a tandem (DT) arrangement, facing the same direction. Bore 75 mm, outside diameter 130 mm, width 25 mm per bearing, 50 mm across the pair. Open.
72 — ISO dimension series 02, light section.
15 — bore code, 15 x 5 = 75 mm bore.
ACD — 25° contact angle, high-capacity D design.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with ISO P2 running accuracy.
DT — matched pair for tandem arrangement.
Bore Diameter: 75 mm.
Outside Diameter: 130 mm.
Width: 25 mm per bearing; 50 mm pair total.
Contact Angle: 25°.
Dynamic Load Rating: 68,900 N per bearing.
Static Load Rating: 58,500 N per bearing.
Fatigue Load Limit: 2,500 N per bearing.
Precision Class: P4A (ABEC 7 / P4 dimensional, P2 running accuracy).
Mounting Arrangement: Tandem (DT).
Ball Diameter: 15.875 mm.
Number Of Balls: 17 per bearing.
Design: High-capacity D.
Bearing Material: Bearing steel.
Closure Type: Open.
Unit Quantity: 2 Pcs.
Load centre distance a: 36.5 mm from side face. Shaft abutment diameter: 84 mm min. Housing abutment diameter: 121 mm max (large side), 125.8 mm max (small side). Fillet radius: 1.5 mm max (large side), 0.6 mm max (small side). Oil nozzle position: 96.6 mm. Reference grease quantity: 14.9 cm³ per bearing.
Cross-references at 25° as tandem pairs: FAG B7215-E-T-P4S-DT, NSK 7215A5TRDTP4, Fafnir 3MM215WI DT. Also written 7215-ACD/P4ADT, 7215-ACD-P4A-DT and 7215ACDP4ADT. Harmonization Code: 8482.10.50.
Bore 75 mm, outside diameter 130 mm and width 25 mm per bearing, 50 mm across the tandem pair.
ACD gives a 25° contact angle and P4A gives ISO P4 dimensional accuracy with ISO P2 running accuracy.
Dynamic 68,900 N, static 58,500 N and fatigue load limit 2,500 N per bearing.
