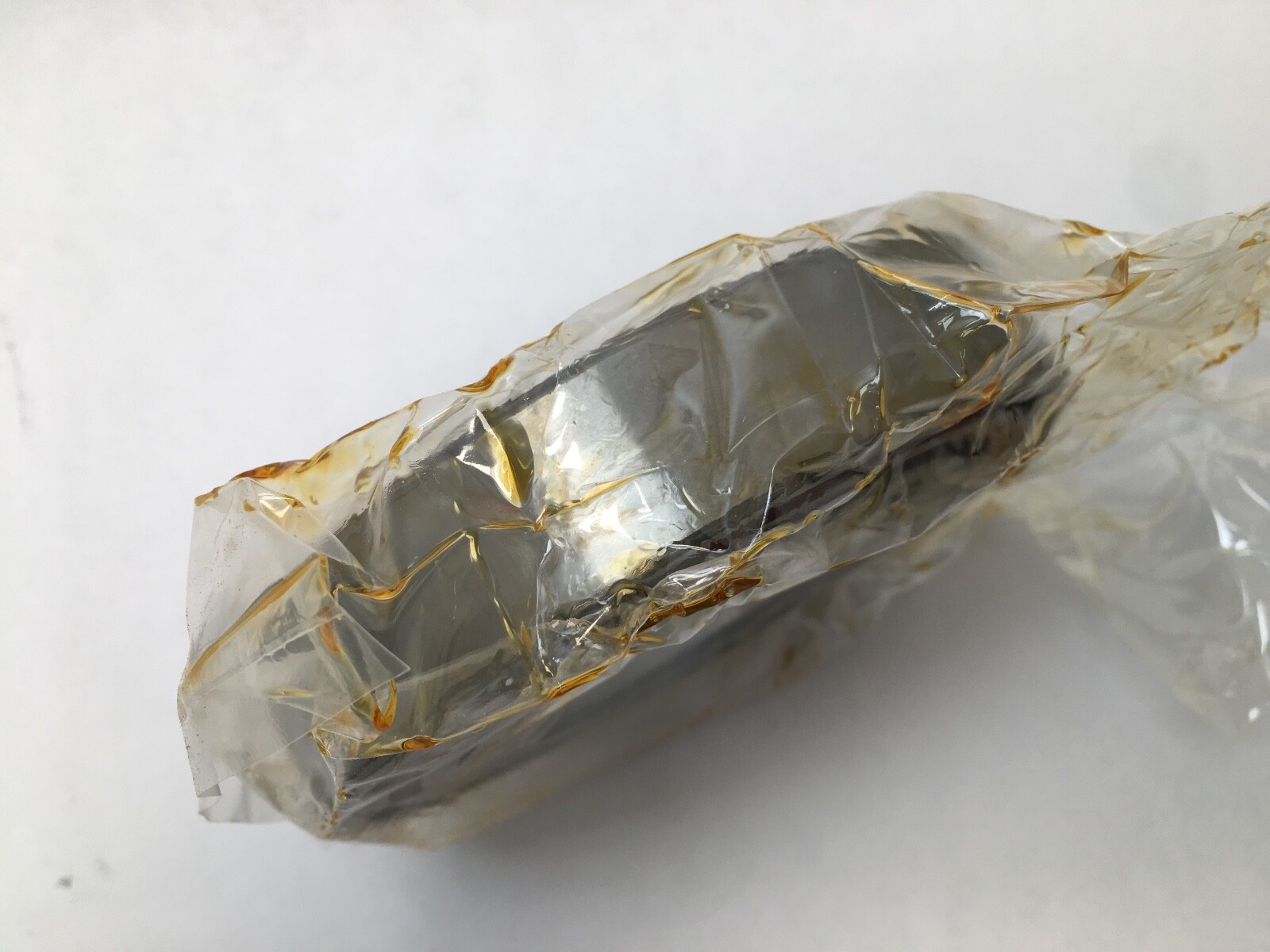

SKF 7215 ACD/P4ADT tandem-matched pair of super-precision angular contact bearings, 75 x 130 x 25 mm, 25° angle, P4A. Dynamic rating 68,900 N per bearing.
List Price
$557.50
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7215 ACD/P4ADT |
| Model | 7215ACD/P4A DT |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Total Width | 50 mm (pair) |
| Mpn Variants | 7215 ACD/P4ADT, 7215-ACD/P4ADT, 7215-ACD-P4A-DT, 7215ACDP4ADT |
| Precision Class | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Closure Type | Open |
| Dynamic Load Rating | 68,900 N (per bearing) |
| Static Load Rating | 58,500 N (per bearing) |
| Precision Rating | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Tandem (DT) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7215-E-T-P4S-DT |
|---|---|
| Cross Reference 2 | NSK 7215A5TRDTP4 |
| Cross Reference 3 | Fafnir 3MM215WI DT |
SKF 7215 ACD/P4ADT is a matched tandem pair of super-precision, high-capacity single row angular contact ball bearings in the 72 series, with a 25° contact angle. Both bearings face the same direction and share a heavy one-direction axial load in machine tool spindles.
72 — ISO dimension series 02, light section.
15 — bore code, 15 x 5 = 75 mm bore.
ACD — 25° contact angle, high-capacity D design.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with ISO P2 running accuracy.
DT — matched pair for tandem arrangement.
Bore Diameter: 75 mm. Outside Diameter: 130 mm. Width: 25 mm per bearing; 50 mm pair total. Contact Angle: 25°. Dynamic Load Rating: 68,900 N per bearing. Static Load Rating: 58,500 N per bearing. Fatigue Load Limit: 2,500 N per bearing. Precision Class: P4A (ABEC 7 / P4 dimensional, P2 running accuracy). Mounting Arrangement: Tandem (DT). Ball Diameter: 15.875 mm. Number Of Balls: 17 per bearing. Design: High-capacity D. Bearing Material: Bearing steel. Closure Type: Open.
Load centre distance a: 36.5 mm from side face. Shaft abutment diameter: 84 mm min. Housing abutment diameter: 121 mm max (large side), 125.8 mm max (small side). Fillet radius: 1.5 mm max (large side), 0.6 mm max (small side). Oil nozzle position: 96.6 mm. Reference grease quantity: 14.9 cm³ per bearing.
Unit Quantity: 2 Pcs. One factory-matched tandem pair.
Same envelope, 25° angle, super-precision class, tandem pair: FAG B7215-E-T-P4S-DT, NSK 7215A5TRDTP4, Fafnir 3MM215WI DT. MPN variants: 7215 ACD/P4ADT, 7215-ACD/P4ADT, 7215-ACD-P4A-DT, 7215ACDP4ADT. Harmonization Code: 8482.10.50.
