This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing - 60 mm ID, 110 mm OD, 22 mm Width, Open, 15° Contact Angle, Medium Preload, ABEC 7 / P4$73.64
Angular Contact Spindle Bearing Pair - 60 mm ID, 110 mm OD, 22 mm Width, 15° Contact Angle, ABEC 7 / P4, Phenolic Cage, Medium Preload$315.81
Super-Precision Angular Contact Ball Bearing - Straight Bore, 60 mm ID, 110 mm OD, 22 mm Width, Open, 15° Contact Angle, Medium Preload, P4A$187.42
Angular Contact Ball Bearing – Straight Bore, 60 mm ID, 110 mm OD, 22 mm Width, Open, 15° Contact Angle, ABEC 7 / P4$151.76| MFR / Brand | SKF |
|---|---|
| MPN | 7212CDP4ADGB |
| Model | 7212CD/P4A DGB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Preload | Light |
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 55.9 kN |
| Static Load Rating | 48.0 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Item Weight | 1.83 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Limiting Speed | 15000 rpm |
| Cross Reference 1 | Fafnir 2MM212WI-DUL |
|---|---|
| Cross Reference 2 | FAG B7212-C-T-P4S |

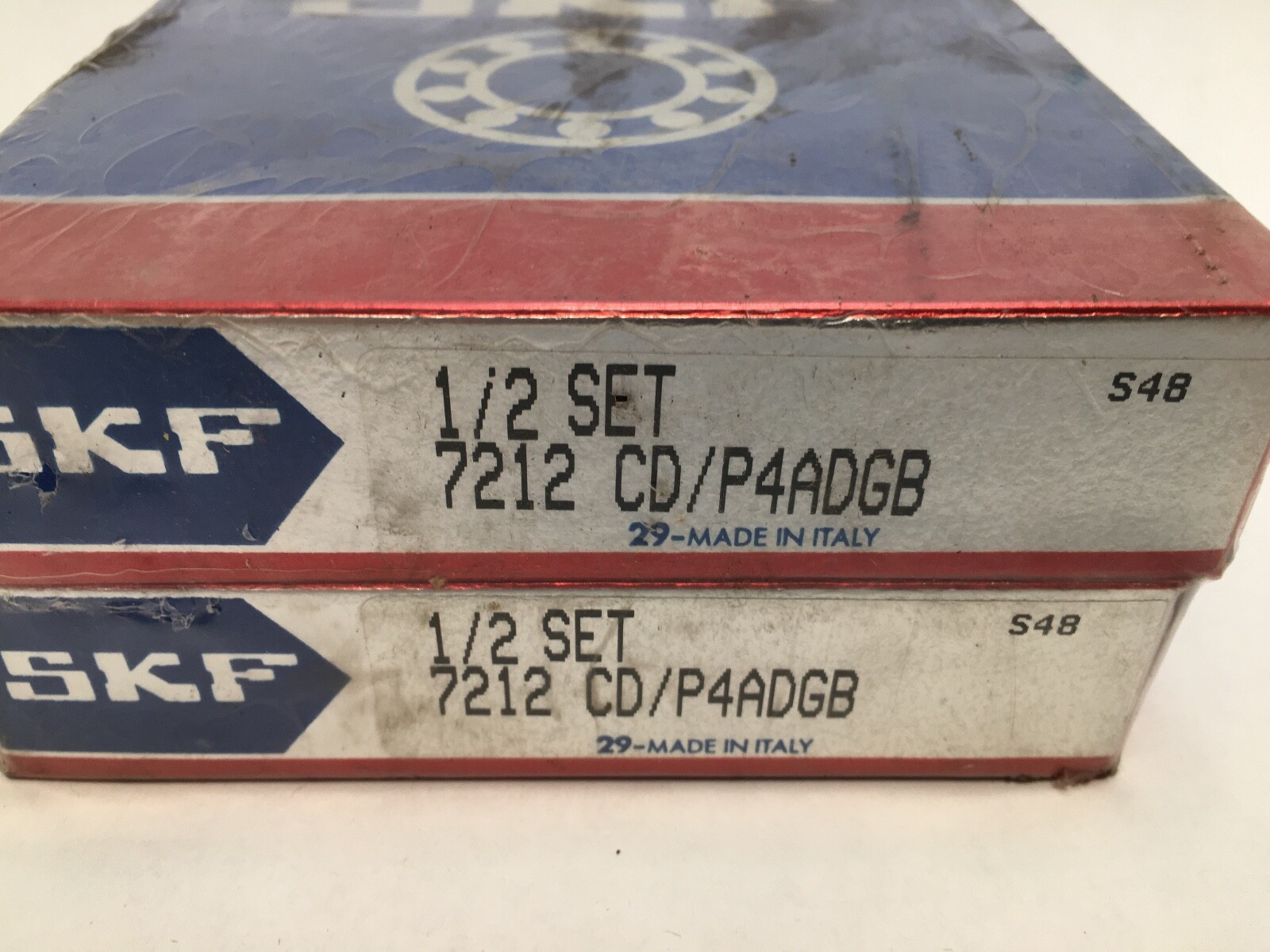

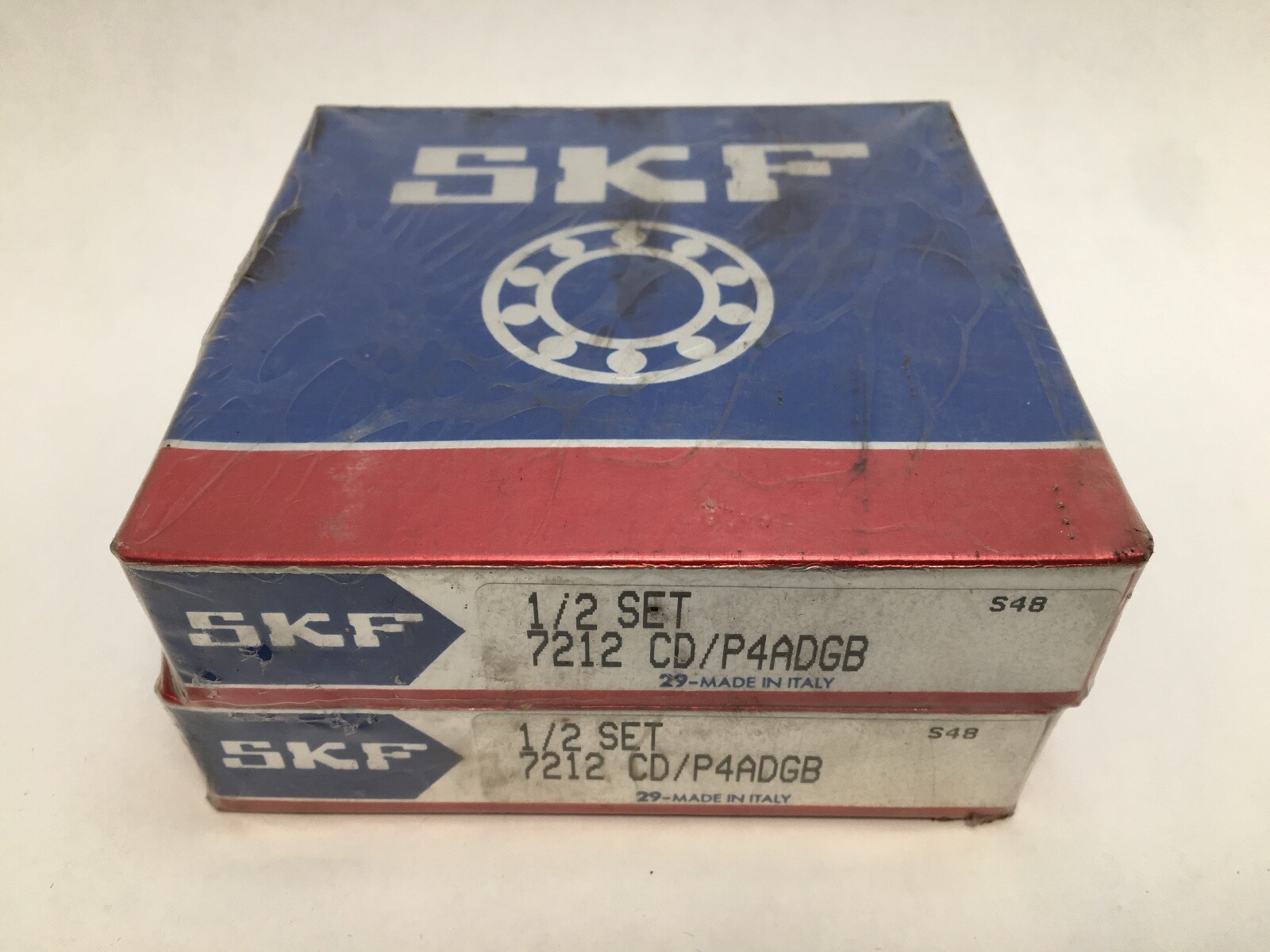

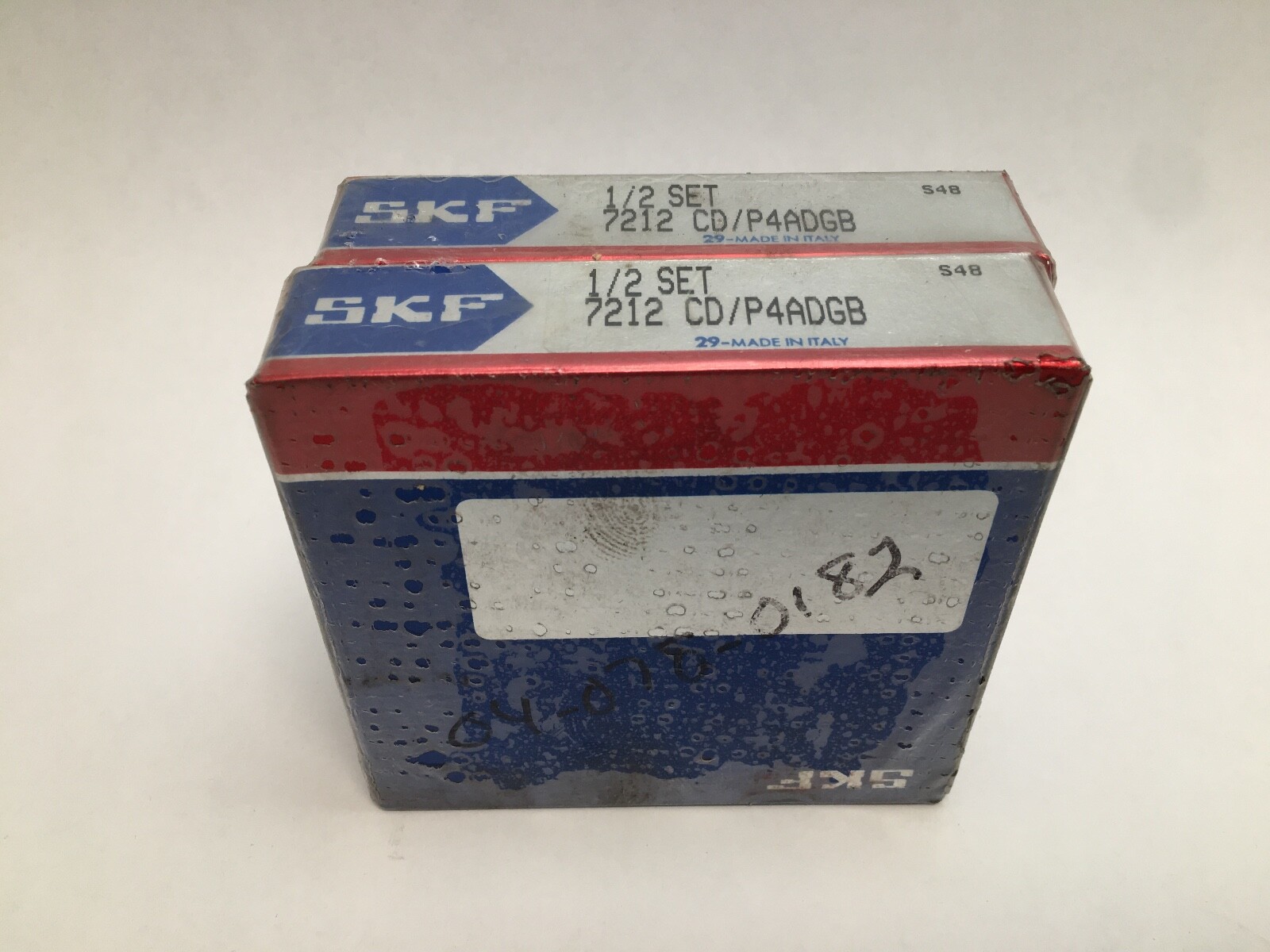

Enhance Your Machinery with the SKF 7212-CD/P4ADGB Angular Bearing Discover the unparalleled precision and reliability offered by the SKF 7212-CD/P4ADGB Angular Bearing. Measuring 60x110x22 mm, this top-tier Angular Contact Ball Bearing is expertly crafted by SKF, a brand synonymous with engineering excellence and superior quality. This model boasts an impressive ABEC7 rating, making it the ideal choice for high-performance applications where both accuracy and speed are vital. Manufactured in Italy, the SKF 7212CD/P4ADGB adheres to rigorous international standards, ensuring you receive nothing but the best. Key Features: Type: Angular Contact Ball Bearing – perfect for handling combined loads. Model Number: 7212CD/P4ADGB – simplicity in identification. Condition: Brand New – pristine and ready to install. Shipping & Handling: Take advantage of our competitive international shipping rates, with options for combined shipping on all orders! We guarantee same-day shipping on all items, along with next-day options available at checkout. If you require assistance sourcing specific parts, please reach out; we can locate the necessary components at competitive prices. Upgrade your machinery today with the SKF 7212-CD/P4ADGB Angular Bearing, and experience unmatched performance and durability!
