Matched pair of super-precision angular contact ball bearings, 55 x 100 x 21 mm, 15° contact angle, extra light preload, ABEC 9 / PA9A. SKF D design.
List Price
$311.99

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7211 CD/PA9ADGA |
| Model | 7211CD/PA9A DGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Preload | Extra light |
| Total Width | 42 mm (pair) |
| Mpn Variants | 7211 CD/PA9ADGA, 7211-CD/PA9ADGA, 7211CDPA9ADGA, 7211-CD-PA9A-DGA, 7211CD/PA9A DGA |
| Precision Class | ABEC 9 / PA9A |
| Additional Attributes | Axial stiffness 72 N/um; ball diameter 14.288 mm; 15 balls per bearing; da 64 mm; Da 91 mm; ra max 1.5 mm; oil nozzle dn 72.6 mm; grease quantity 8.6 cm3 per bearing |
| Dynamic Load Rating | 90,400 N (pair) |
| Static Load Rating | 85,000 N (pair) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 11,340 rpm grease; 17,820 rpm oil-air (back-to-back pair) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable pair (back-to-back, face-to-face or tandem) |
| Industry Terms | super precision angular contact ball bearing; matched bearing pair; universally matchable bearing set; machine tool spindle bearing; ABEC 9 angular contact; P2 angular contact bearing |
| Common Misspellings | SKF 7211CD/PA9ADGA; SFK 7211 CD; SKF 7211 CD PA9A DGA; SKF 7211CDPA9ADGA; SKF7211 CD/PA9ADGA |
| Application Types | Machine tool spindles; high-speed motor spindles; precision grinding spindles; precision instruments |
| Cross Reference 1 | FAG B7211-C-T-P2H-DUL – light vs extra light preload |
|---|---|
| Cross Reference 2 | NSK 7211CTYNDULP2 – light preload, polyamide cage |
| Cross Reference 3 | Fafnir 2MMV211WI CR DUL – light vs extra light preload |

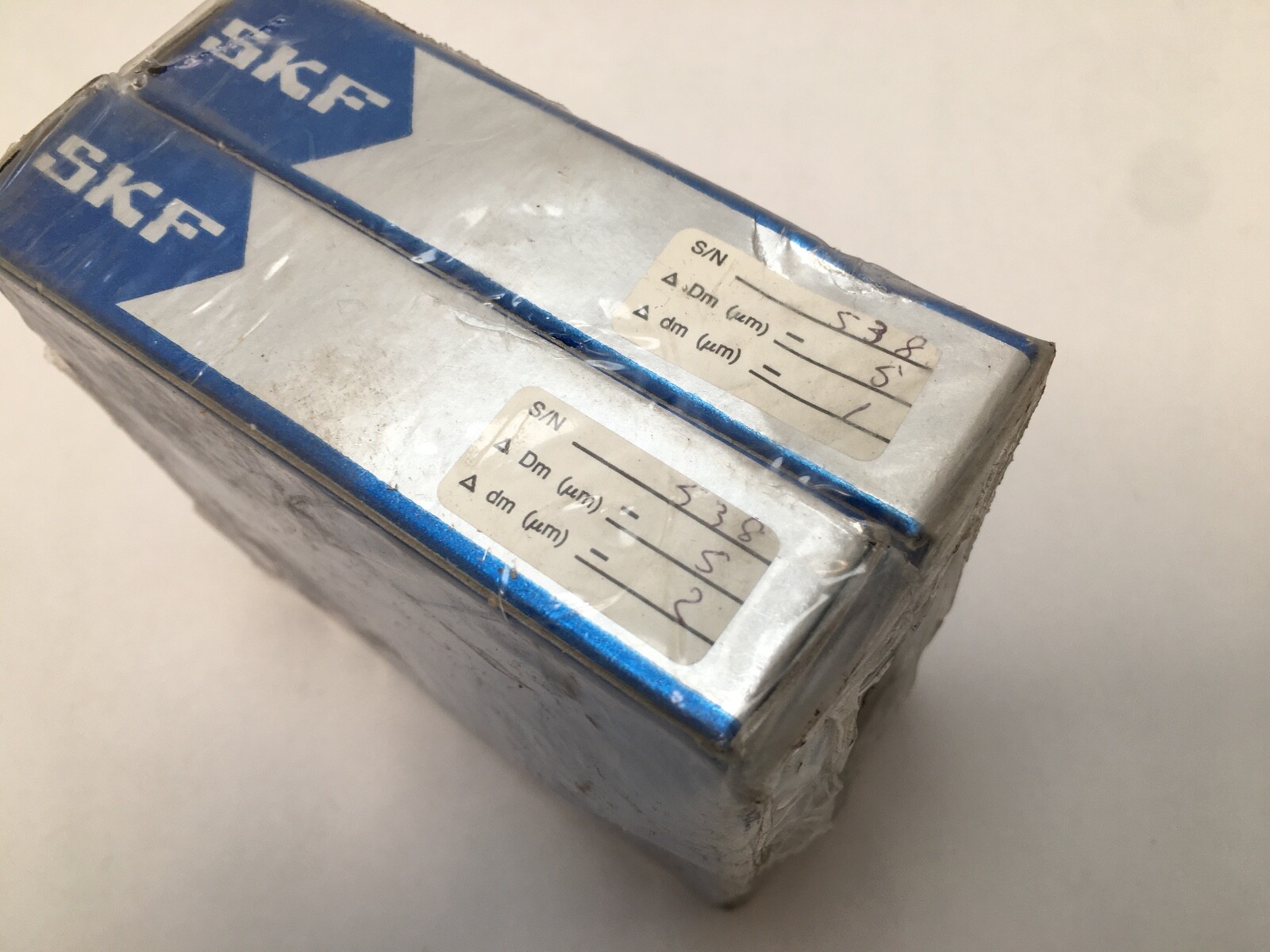

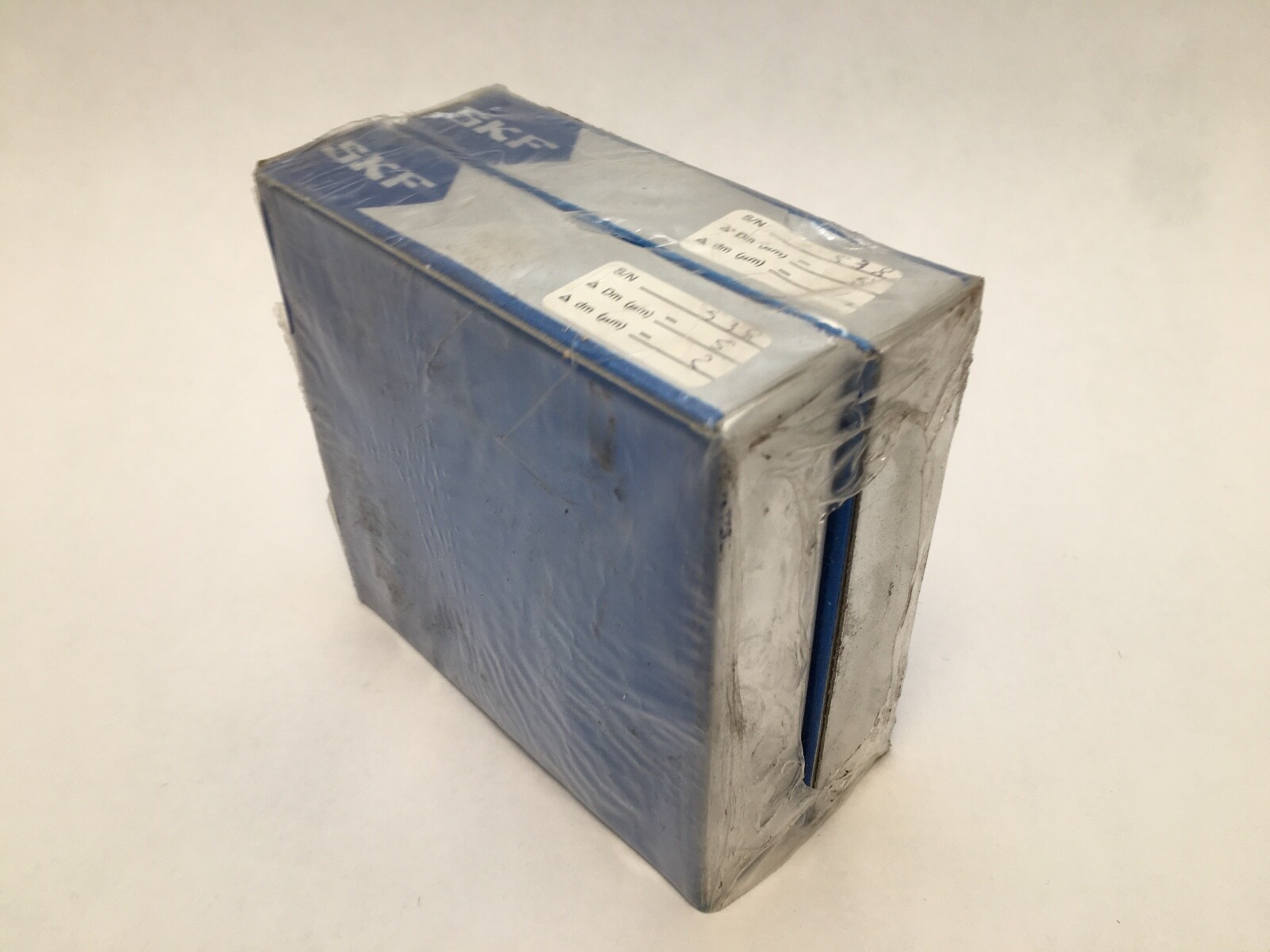

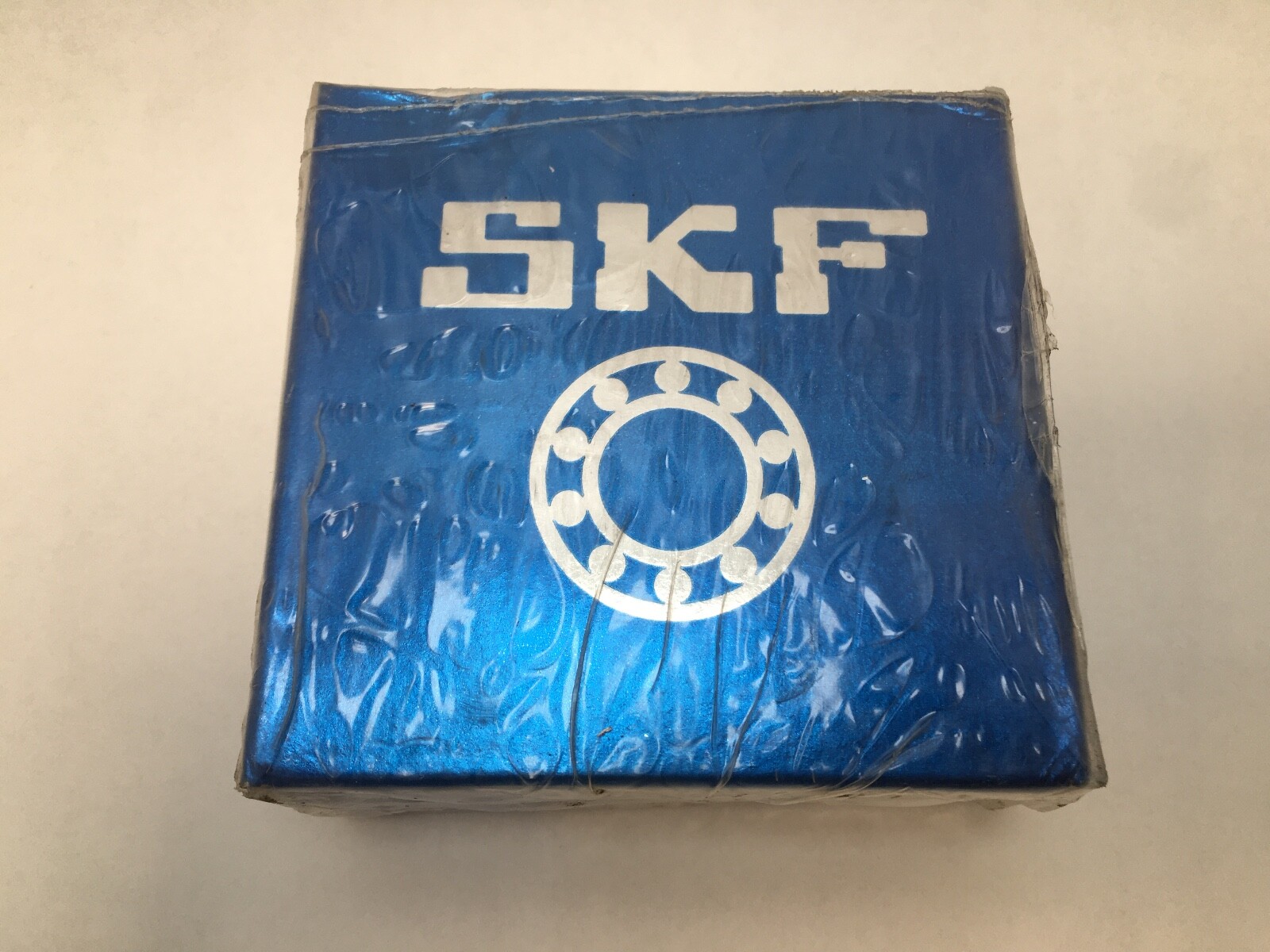

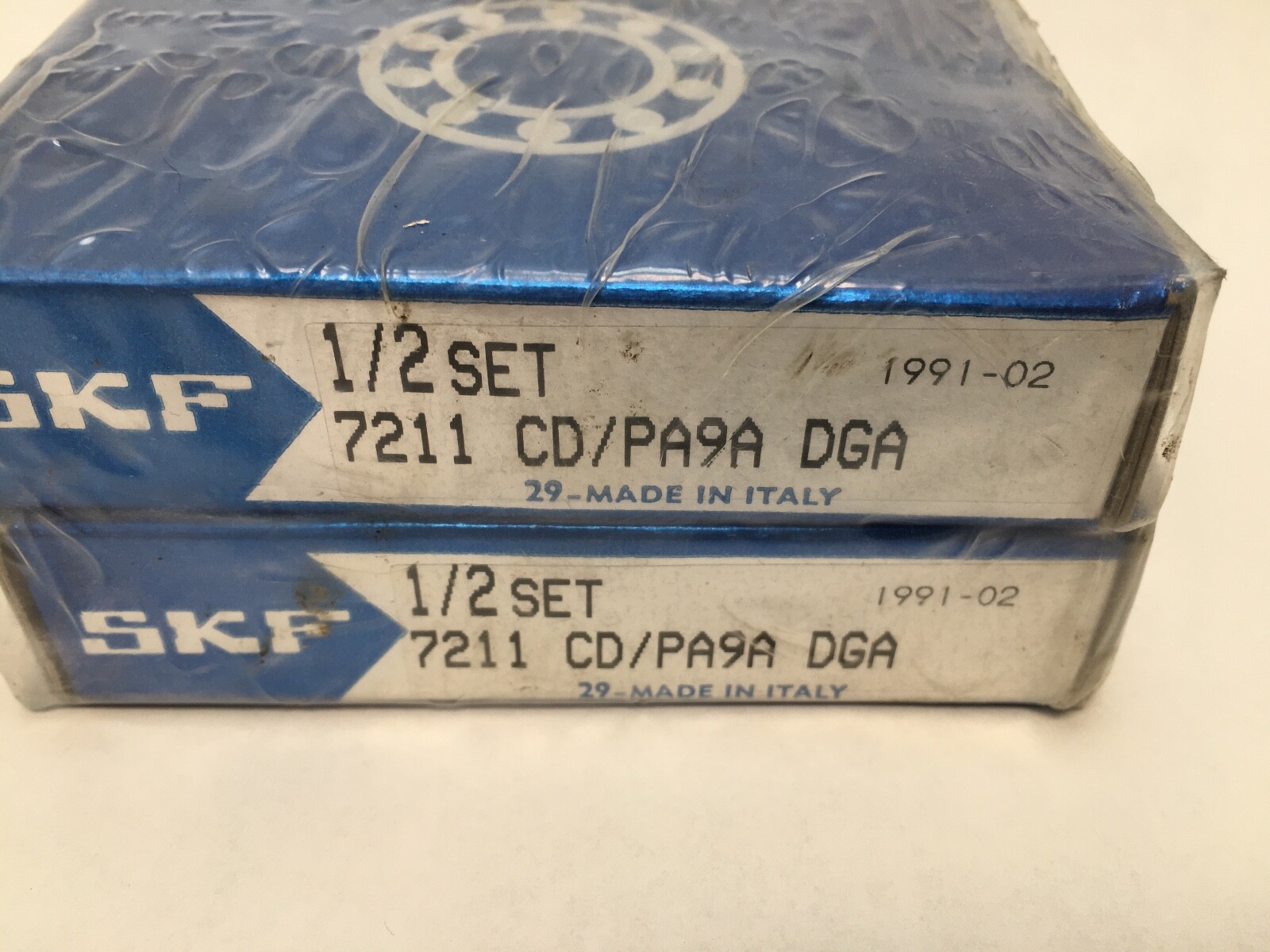

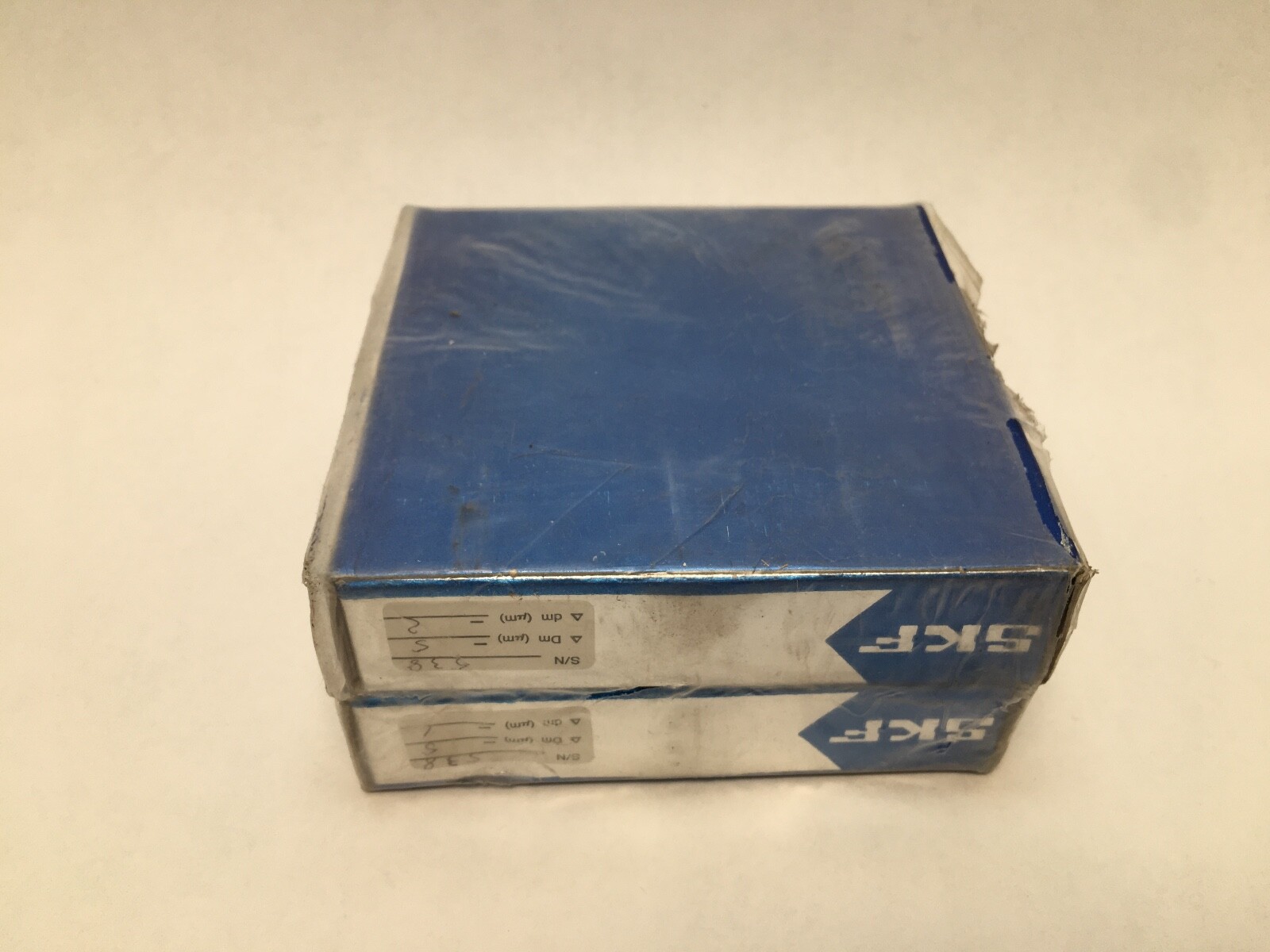

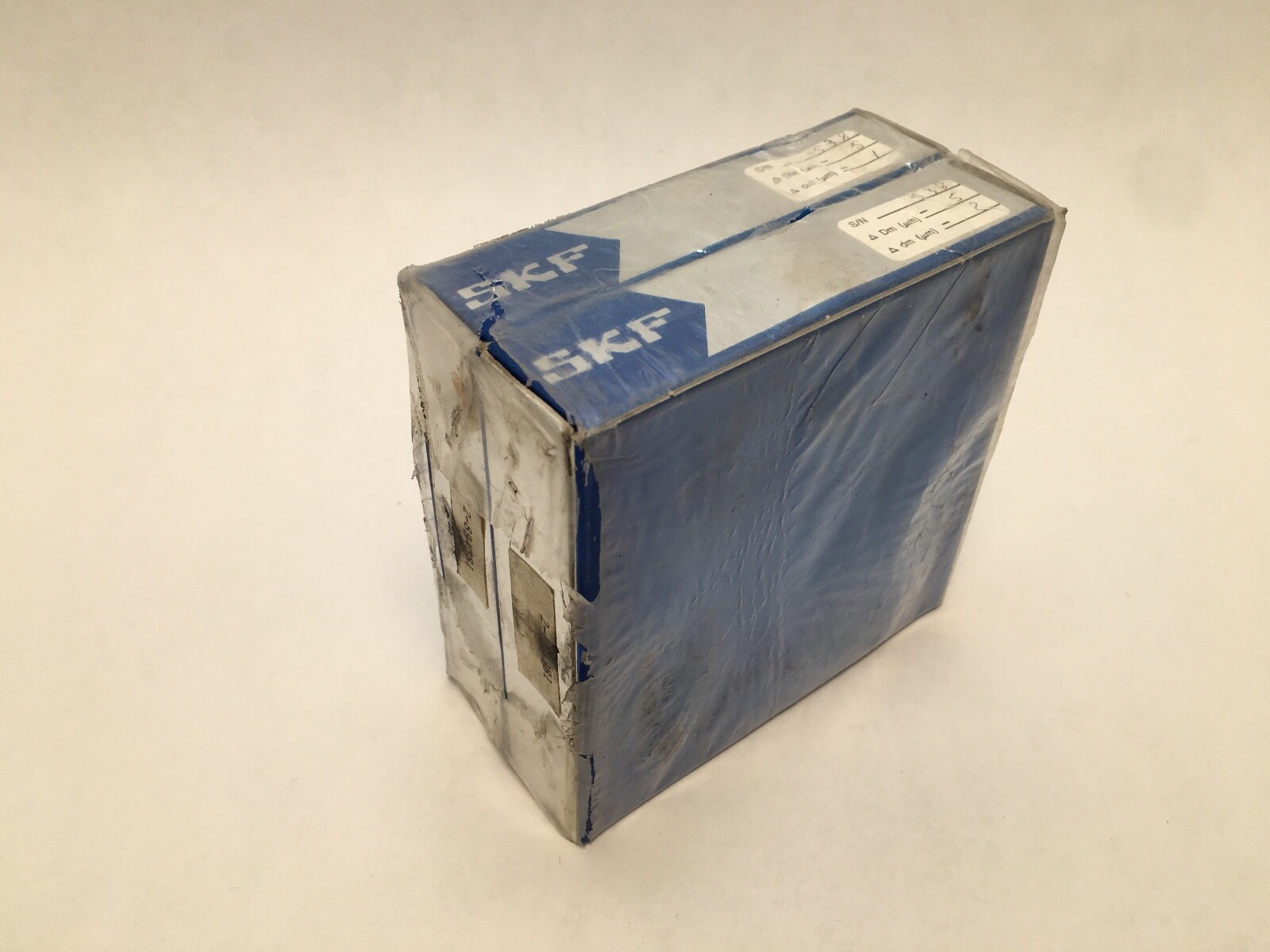

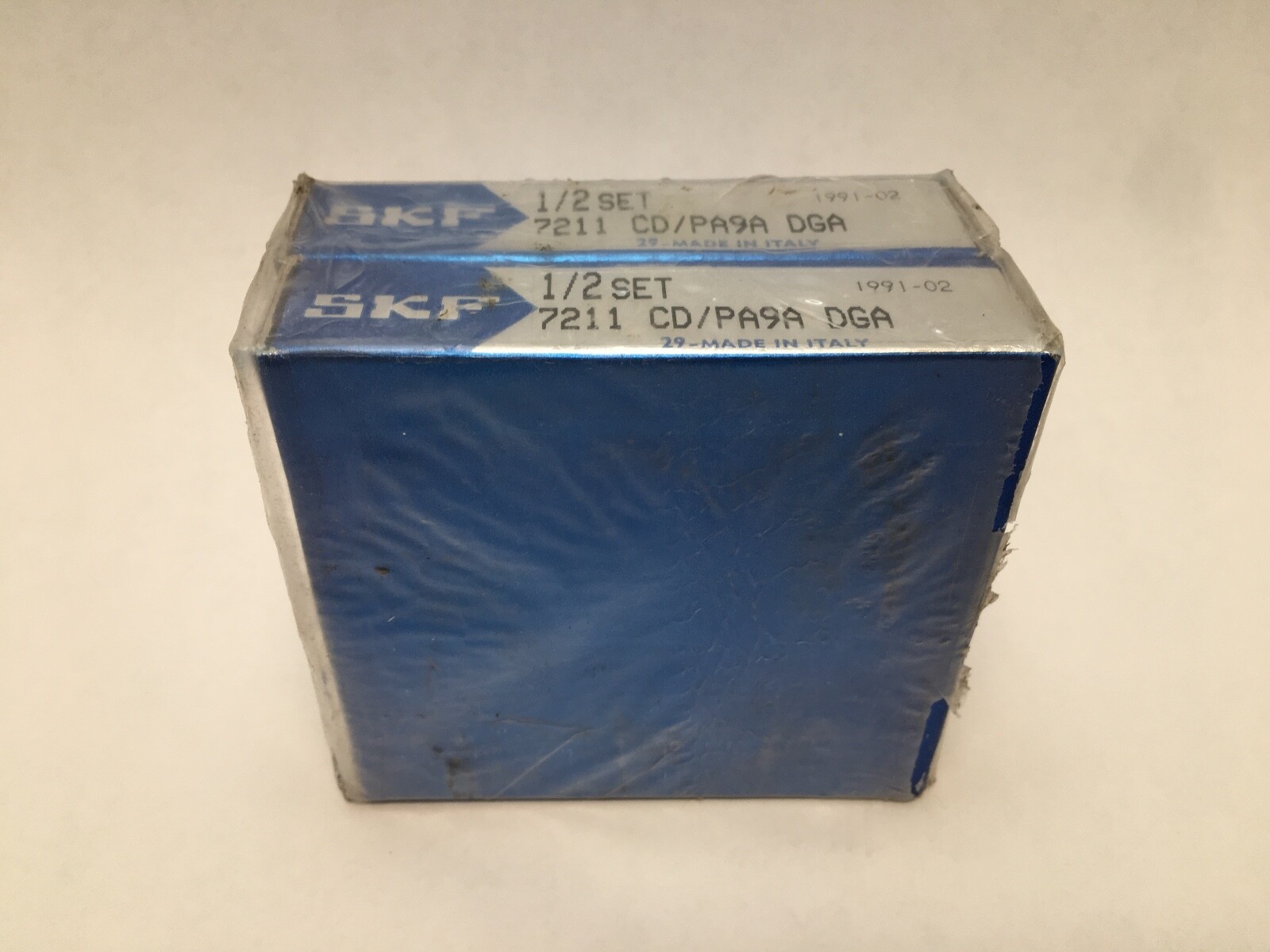

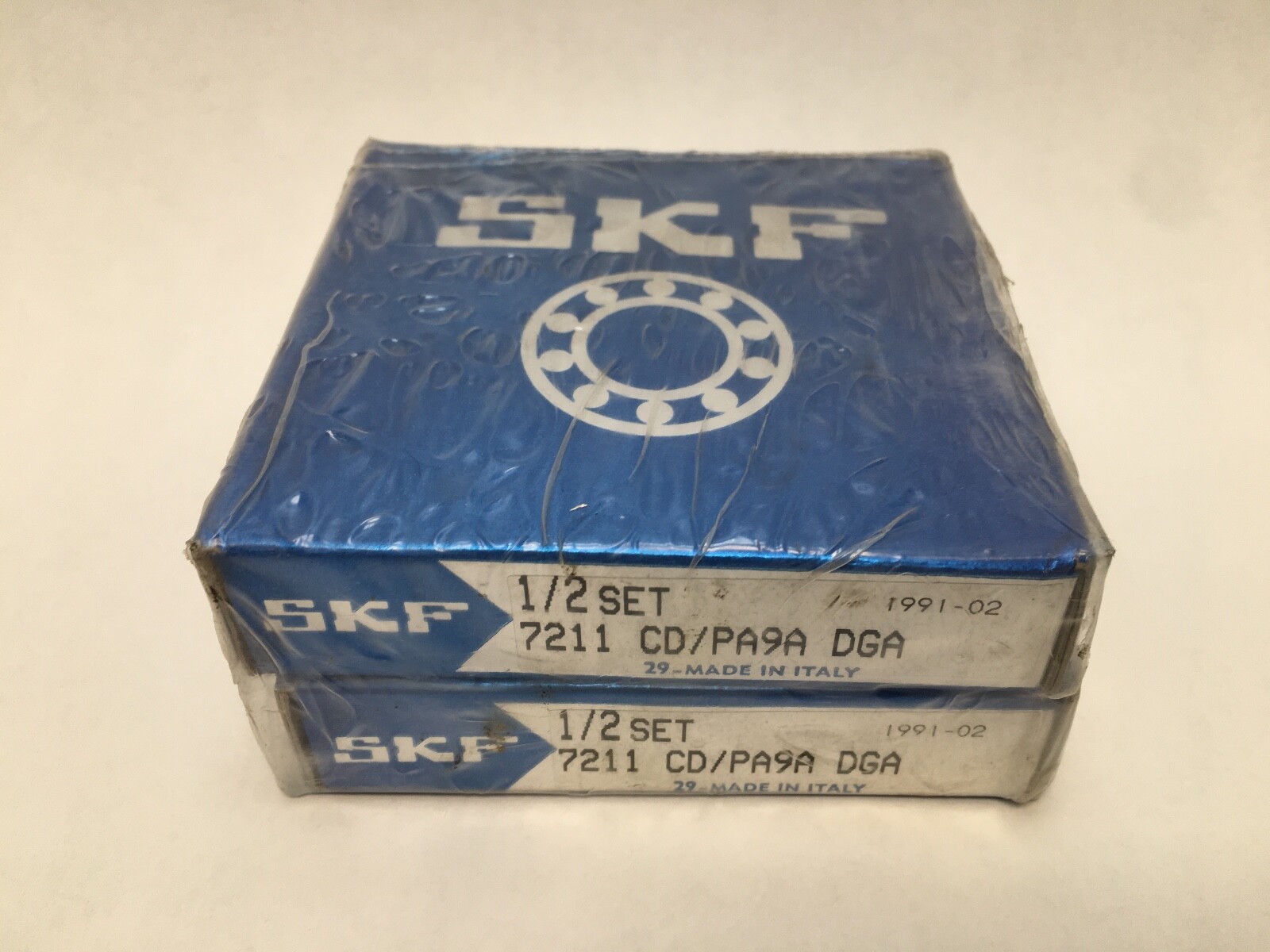

SKF 7211 CD/PA9ADGA is a matched set of two super-precision, high-capacity D design single row angular contact ball bearings, universally matchable for back-to-back, face-to-face or tandem mounting. Unit Quantity: 2 Pcs, one factory-matched pair.
7211 — ISO 72 series, 55 mm bore.
CD — 15° contact angle, SKF high-capacity D internal design.
PA9A — SKF tolerance class: ISO P2 dimensional and running accuracy, ABEC 9.
DG — matched set of two bearings, universally matchable in any arrangement.
A — extra light preload.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Width: 21 mm per bearing. Total Width: 42 mm (pair). Contact Angle: 15°. Precision Class: ABEC 9 / PA9A. Preload: Extra light. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open.
Dynamic Load Rating: 90,400 N (pair). Static Load Rating: 85,000 N (pair). Limiting Speed: 11,340 rpm grease; 17,820 rpm oil-air (back-to-back pair). Single bearing: 14,000 rpm grease; 22,000 rpm oil-air. Axial Stiffness: 72 N/µm. Ball Diameter: 14.288 mm. Number of Balls: 15 per bearing.
Shaft Abutment Diameter (da min): 64 mm. Housing Abutment Diameter (Da max): 91 mm. Fillet Radius (ra max): 1.5 mm. Chamfer (r1,2 min): 1.5 mm. Oil Nozzle Position (dn): 72.6 mm. Reference Grease Quantity: 8.6 cm³ per bearing.
Cross-references, all 55 x 100 x 21 mm with 15° contact angle: FAG B7211-C-T-P2H-DUL (light preload), NSK 7211CTYNDULP2 (light preload, polyamide cage), Fafnir 2MMV211WI CR DUL (light preload). Designation forms: 7211 CD/PA9ADGA, 7211CDPA9ADGA, 7211CD/PA9A DGA.
Two bearings, one factory-matched pair, universally matchable for any arrangement.
Contact Angle: 15° (CD). Preload: extra light (A).
55 mm bore, 100 mm outside diameter, 21 mm width per bearing. Precision Class: ABEC 9 / PA9A (ISO P2).
