SKF7205 CX/P4ADGASpindle Angular Contact Ball Bearing – 25 mm Bore, 52 mm OD, 15 mm Width, 15° Contact Angle, ABEC 7 / P4A, Extra Light Preload

Product Description

What this part is:

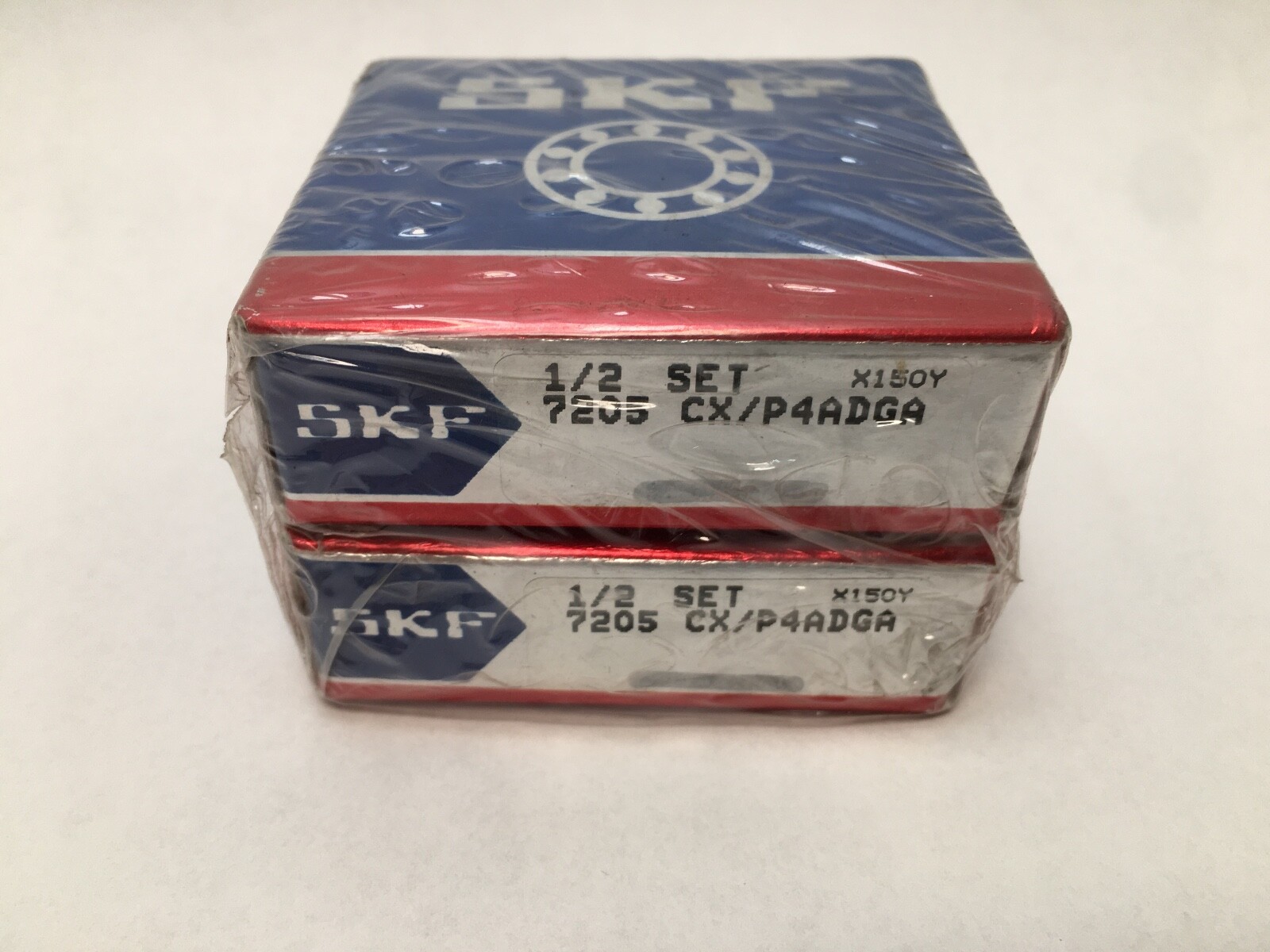

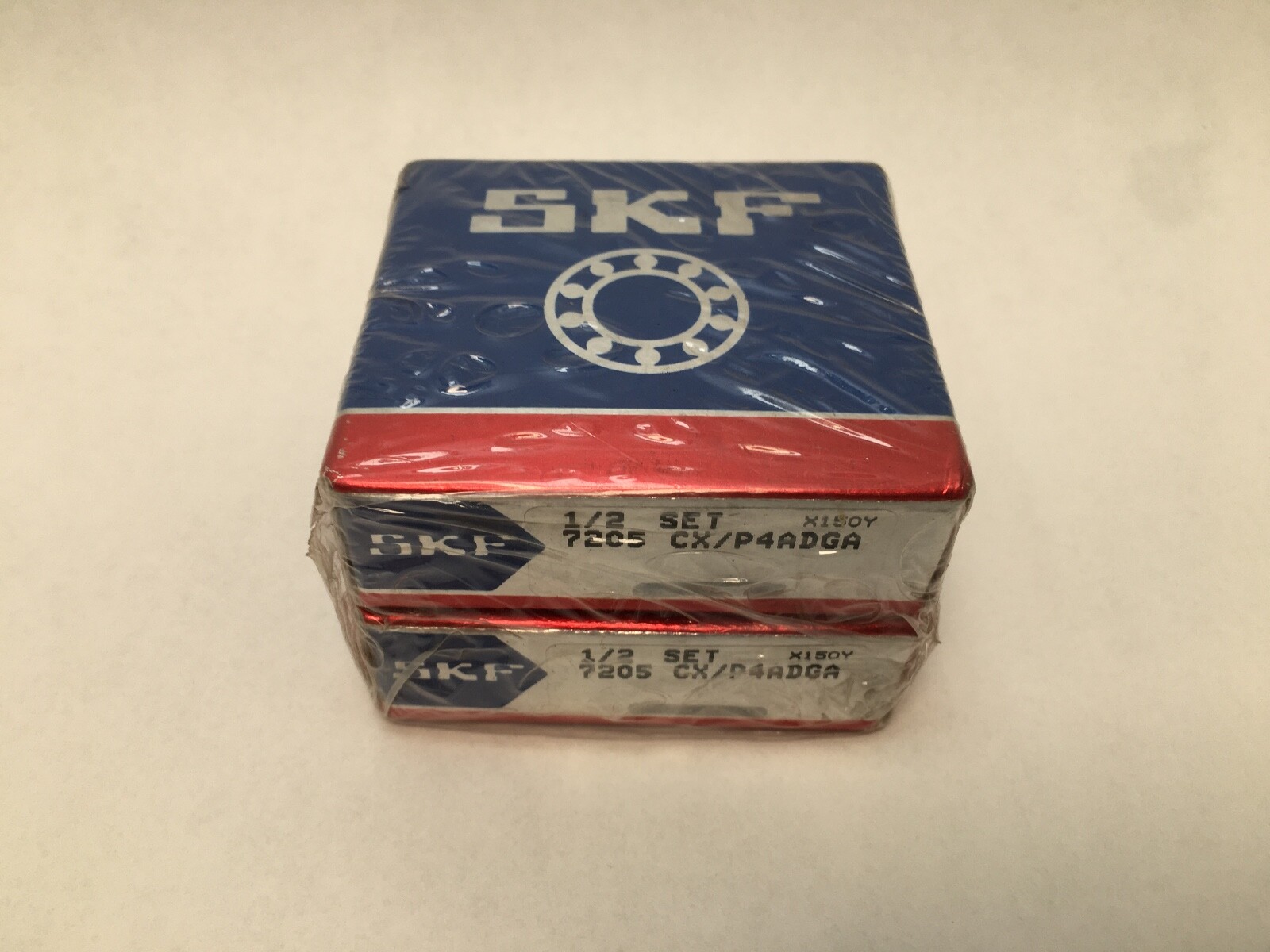

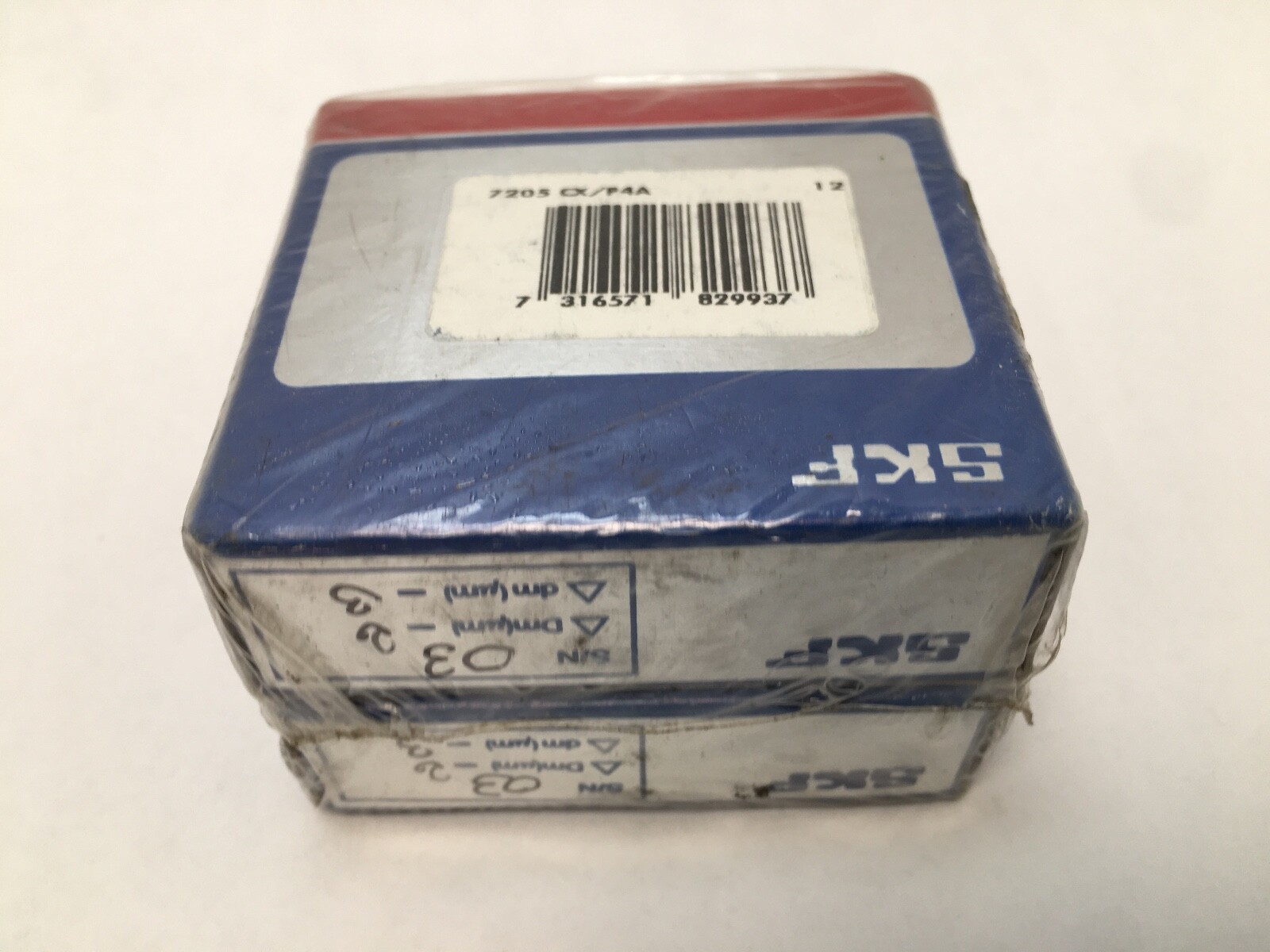

SKF 7205 CX/P4ADGA is a matched set of two super-precision, high-capacity D design, single-row angular contact ball bearings, 25 x 52 x 15 mm each, with 15° contact angle and extra light preload. SKF lists 7205 CD/P4ADGA as the replacement for this designation; the figures below are SKF’s published data for that replacement. Unit Quantity: 2 Pcs.

Decoding the designation:

7205 — ISO 72 light dimension series, bore code 05, giving a 25 x 52 x 15 mm envelope per bearing.

C — 15° contact angle.

P4A — SKF super-precision tolerance class P4A, ABEC 7 running accuracy.

DGA — universally matchable set of two bearings, extra light preload.

Specifications:

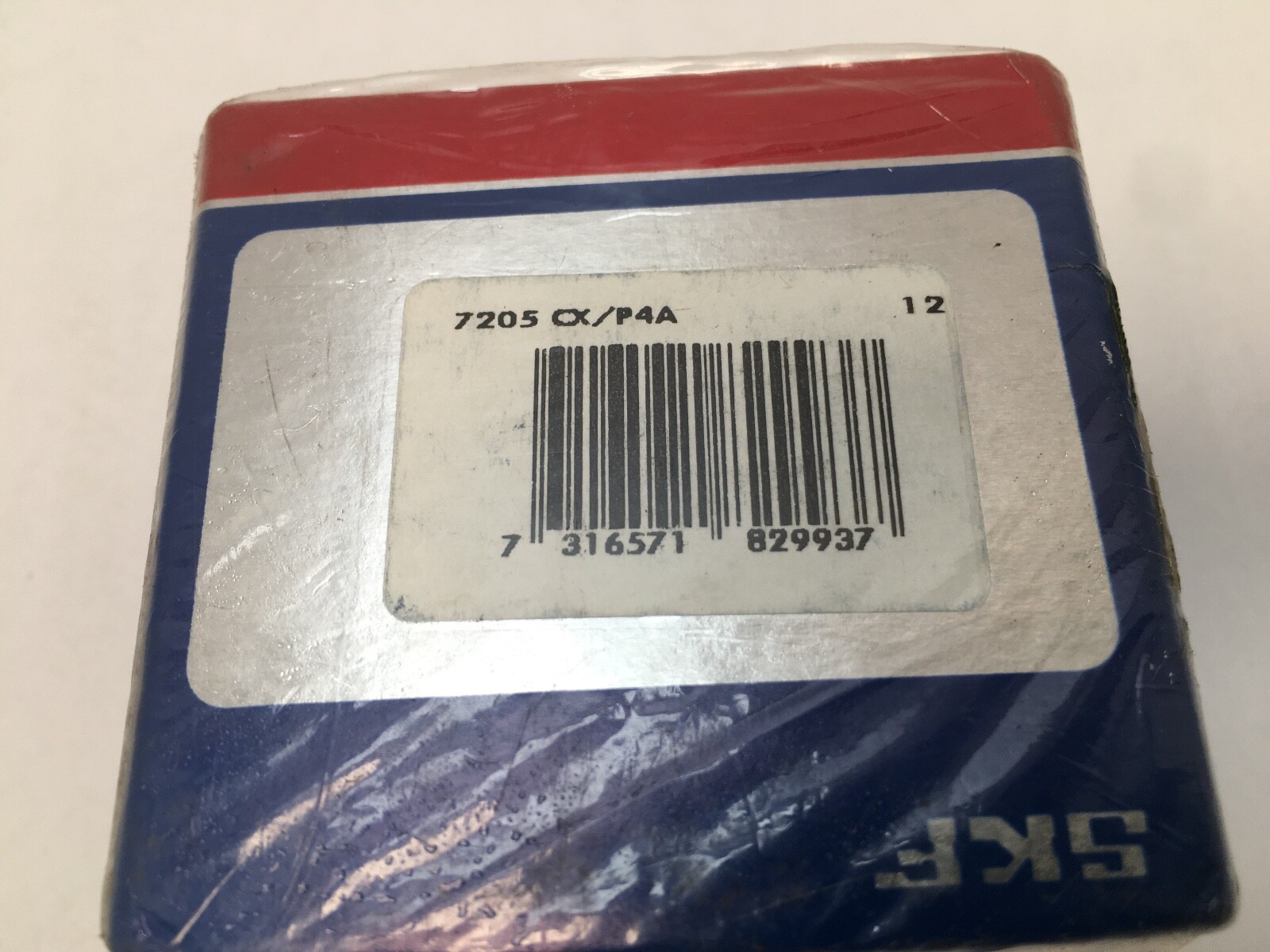

Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm per bearing. Total Width: 30 mm across the matched pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4A. Preload: Extra light. Dynamic Load Rating: 22,100 N for the matched set. Static Load Rating: 14,600 N for the matched set. Design: high-capacity D. Contact type: normal contact, two-point. Ring type: one-piece inner and outer rings. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bearing Material: Bearing steel. Closure Type: Open. GTIN: 7316571829937.

Dimensions and mounting:

Bore Type: Straight. Mounting Arrangement: universally matchable, back-to-back (DB), face-to-face (DF) or tandem (DT). Cage Type: outer-ring shoulder-guided. Item Weight: 0.252 kg (0.56 lb) per matched pair. Harmonization Code: 8482.10.50. eCl@ss code: 23-05-08-04. UNSPSC code: 31171531.

Compatibility and replacement:

SKF 7205 CD/P4ADGA is SKF’s own named successor for this designation. Other 25 x 52 x 15 mm, 15° super-precision executions: FAG B7205-C-T-P4S, NSK 7205CTYNSULP4, NTN 7205UCG/GNP4, RHP 7205CTDULP4. Preload class and arrangement are carried by separate suffixes in each maker’s own scheme.

Frequently asked questions:

What are the contact angle and preload of the SKF 7205 CX/P4ADGA?

Contact Angle: 15°. Preload: Extra light. The set is universally matchable for back-to-back, face-to-face or tandem mounting.

How many bearings are in this set?

Unit Quantity: 2 Pcs. Dynamic Load Rating 22,100 N and Static Load Rating 14,600 N are SKF set ratings for the two bearings together.

Which SKF designation replaces 7205 CX/P4ADGA?

SKF lists 7205 CD/P4ADGA as the replacement. Both are 25 x 52 x 15 mm per bearing.
