Super-precision angular contact ball bearing matched pair, 12 x 32 x 10 mm each, 15° contact angle, ABEC 7, extra light preload, universally matchable.
List Price
$143.71
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7201 CD/P4ADGA |
| GTIN | 7316570831023 |
| Model | 7201CD/P4A DGA 7201C |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm |
| OD | 32 mm |
| Width | 10 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7200 |
| Preload | Extra light |
| Base Number | 7201 |
| Industry Terms | spindle bearing pair; super precision angular contact; machine tool bearing; matched set bearing; extra light preload spindle bearing |
| Common Misspellings | 7201CD/P4A DGA; 7201-CDP4ADGA; SKF 7201CD/P4DGA; 7201CD P4A-DGA; 7201CDP4A/DGA |
| Application Types | High-speed grinding spindles; precision rotary axes; instrument and metrology spindles; small servo drives; ball screw ends |
| Bore Shaft Size | 12 mm (0.4724 in) |
| Mpn Variants | 7201 CD/P4ADGA; 7201CD/P4ADGA; 7201-CD-P4A-DGA; 7201CDP4ADGA; 7201CD |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7201 CD/P4ADGA |

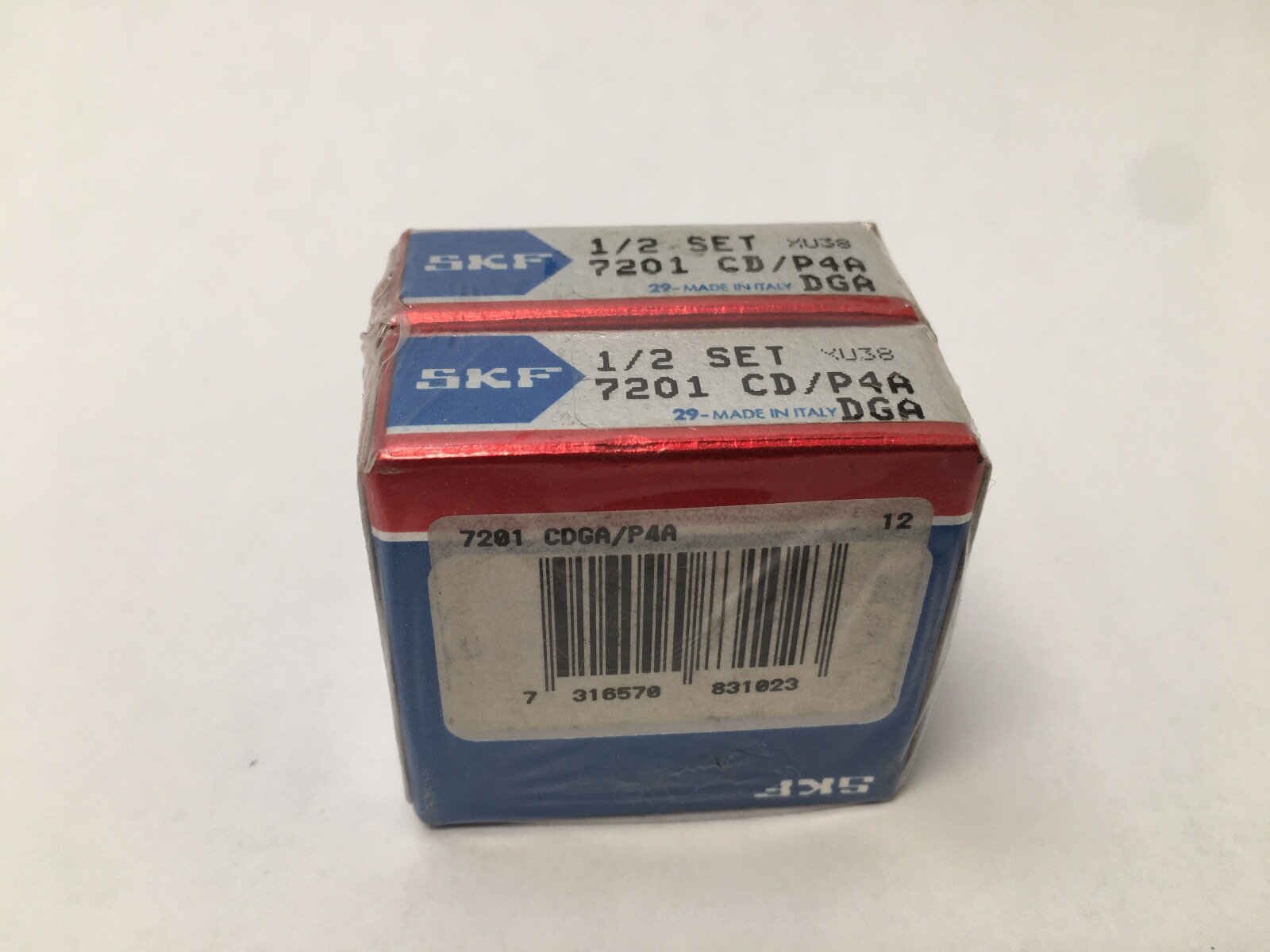

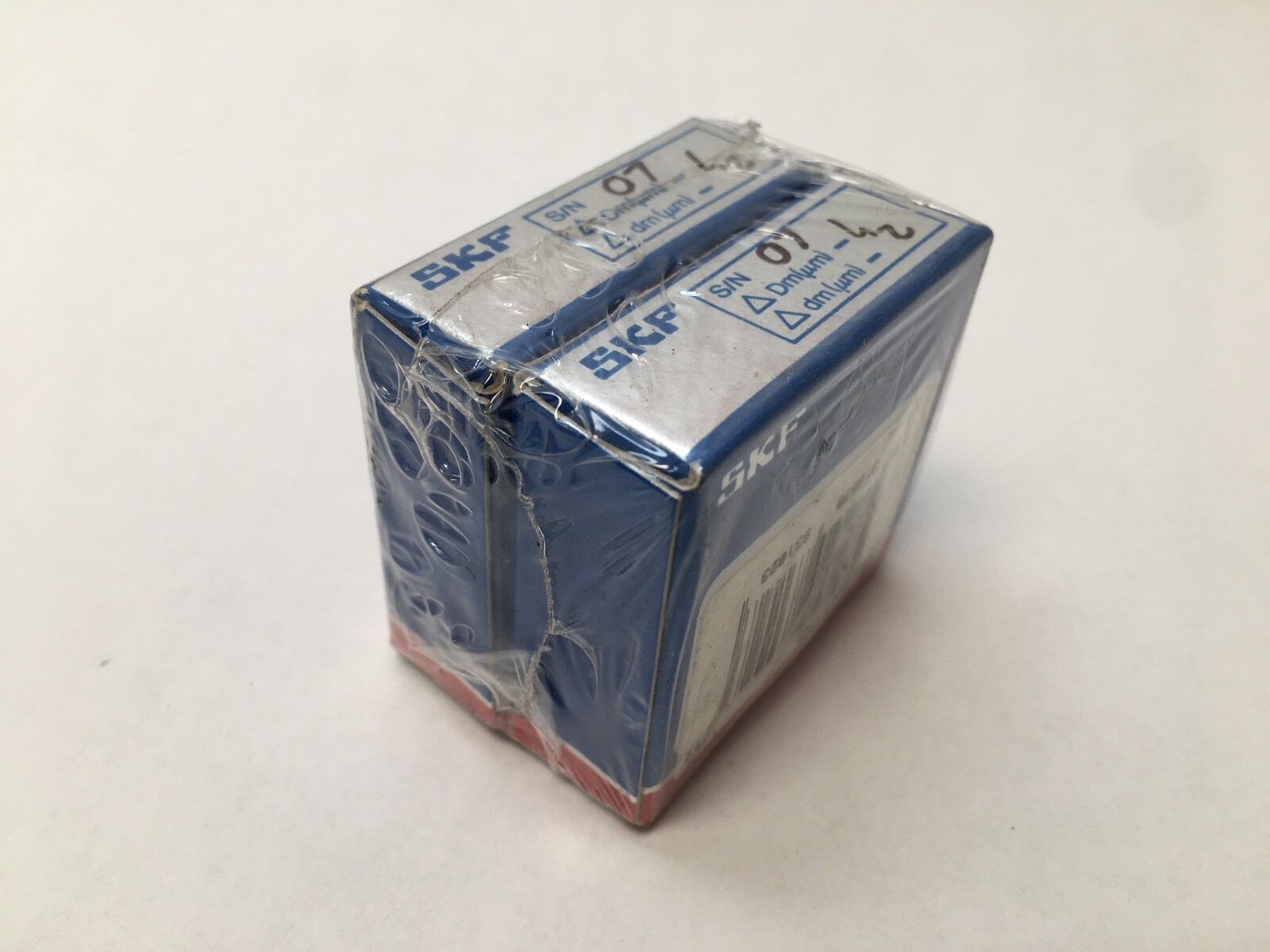

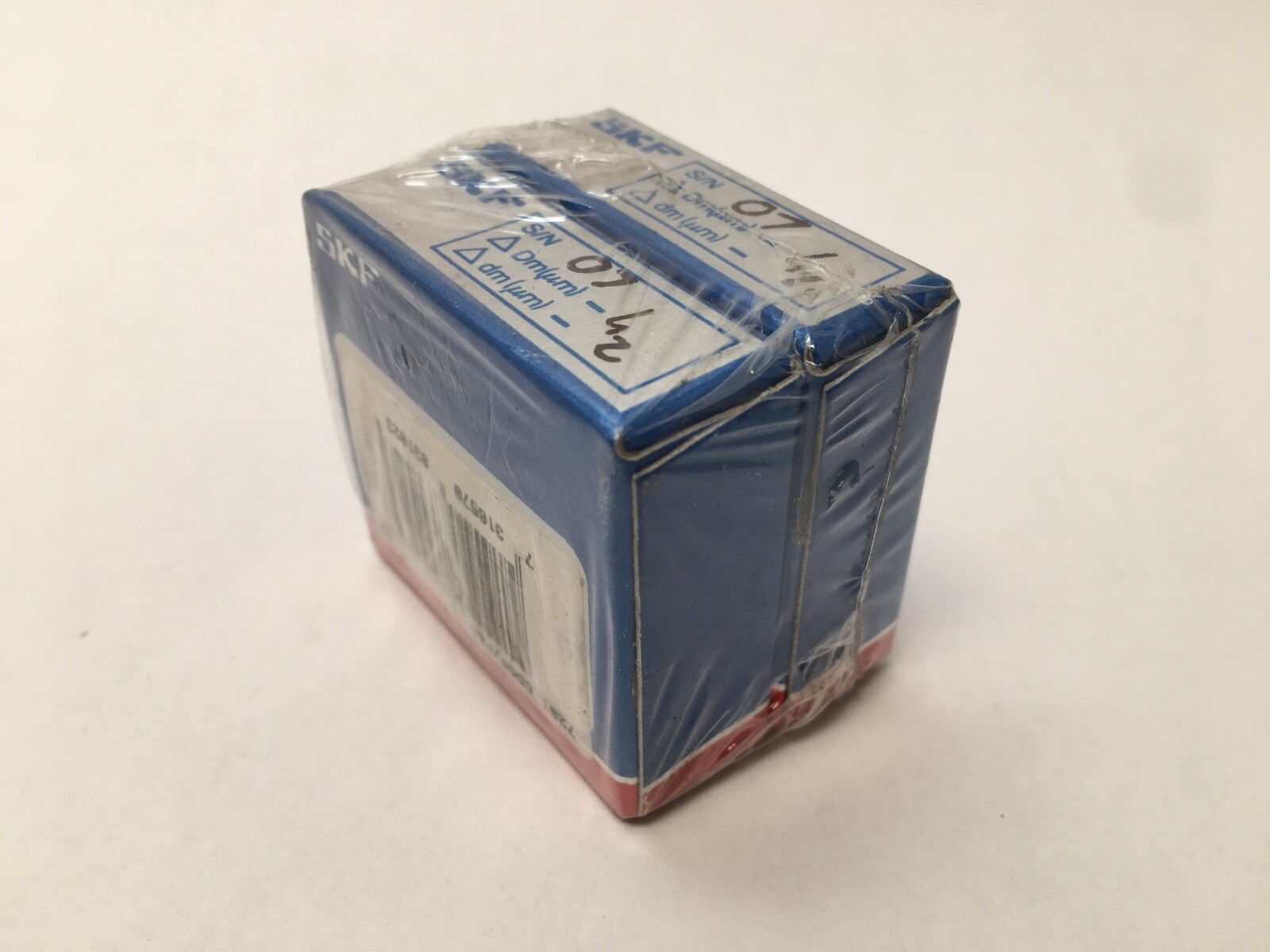

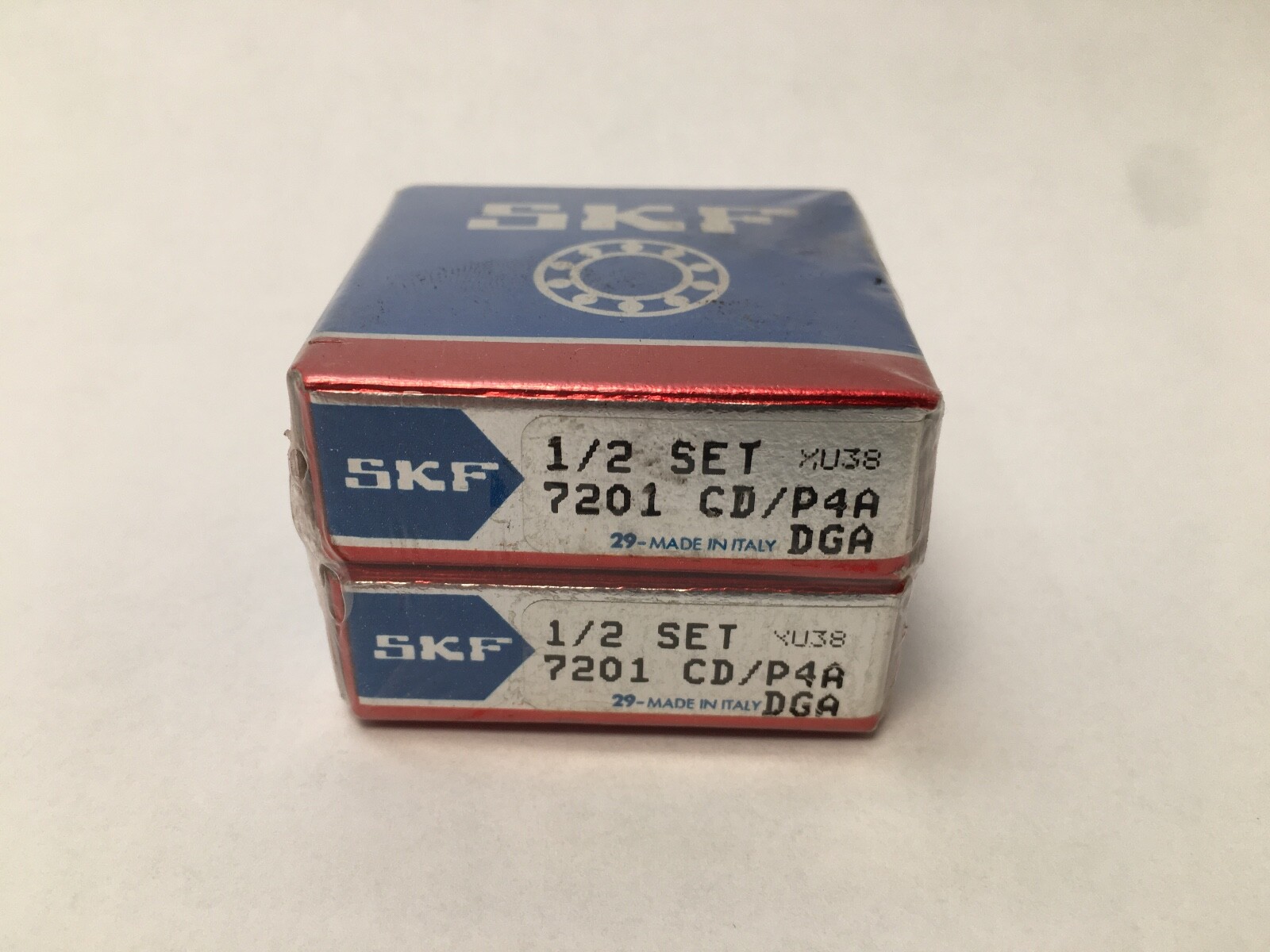

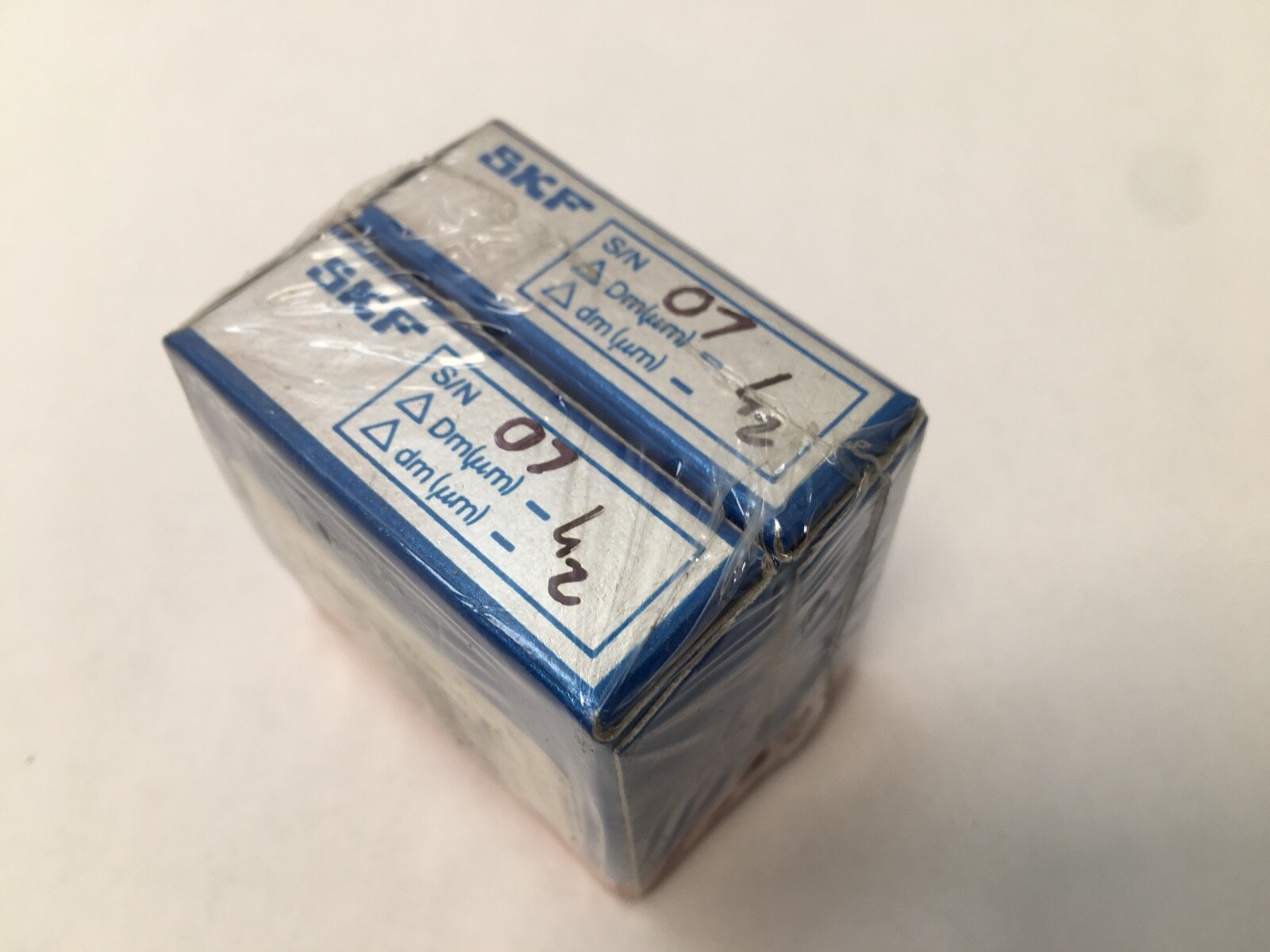

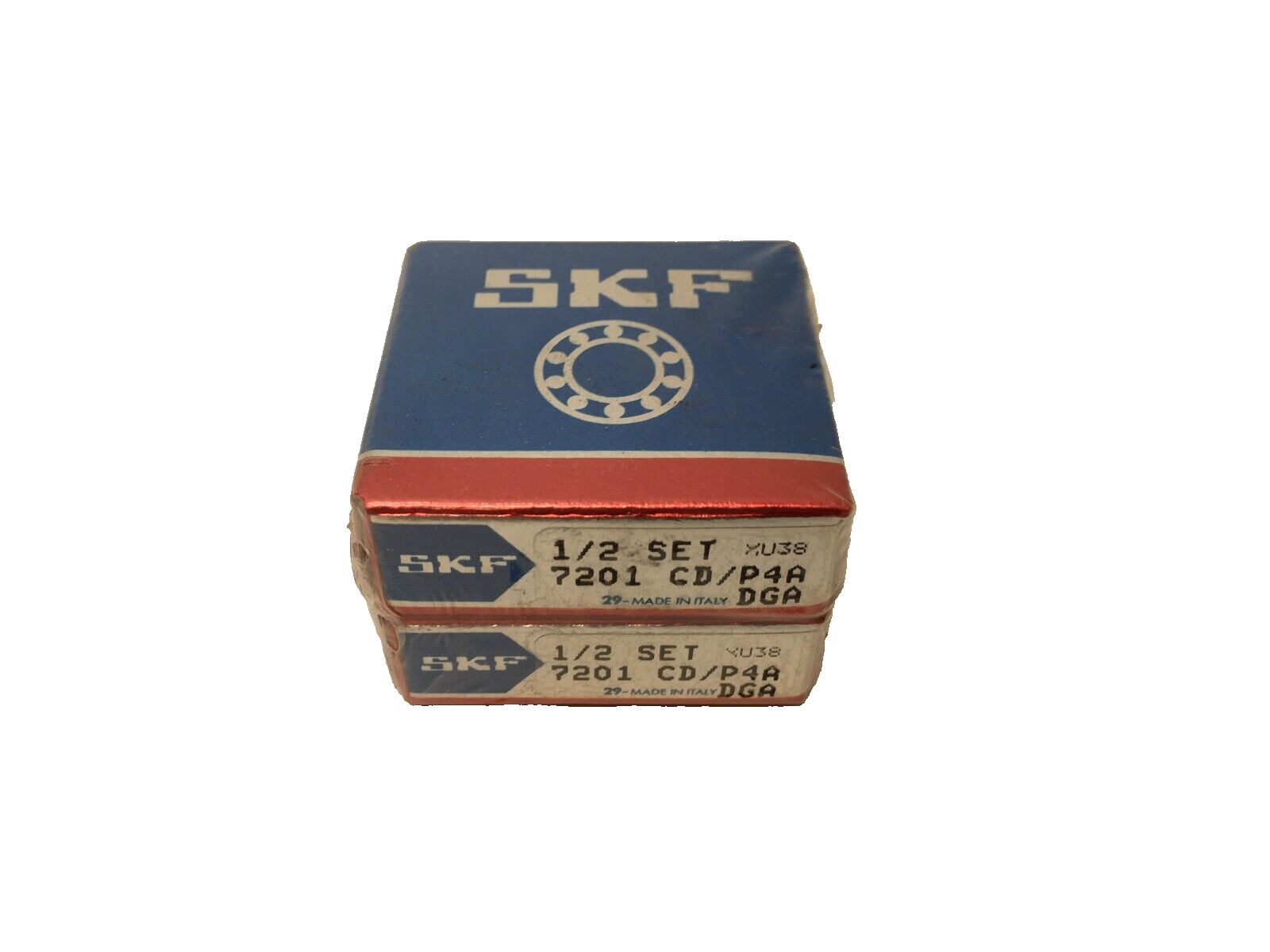

A matched pair of SKF 7201 CD/P4ADGA super-precision single-row angular contact ball bearings. Unit Quantity: 2 Pcs, universally matchable set. Bore Diameter: 12 mm. Outside Diameter: 32 mm. Width: 10 mm per bearing. Contact Angle: 15°. Closure Type: Open.
7201 — single-row angular contact ball bearing, ISO 72 series, 12 x 32 x 10 mm.
CD — 15° contact angle in the SKF scheme.
P4A — ABEC 7 super-precision class.
DGA — universally matchable set, extra light preload.
Bore Diameter: 12 mm. Outside Diameter: 32 mm. Width: 10 mm per bearing. Stacked width of the pair: 20 mm. Number Of Rows: 1 per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / ISO P4A. Preload: Extra light. Closure Type: Open. Rolling Elements: Steel balls. Unit Quantity: 2 Pcs.
Envelope per bearing: 12 x 32 x 10 mm. Stacked width of the pair: 20 mm. The ring faces are ground for universal matching: the two bearings reach the tabulated extra light preload in back-to-back, face-to-face or tandem arrangement.
The 7201 ACD/P4ADGA shares the 12 x 32 x 10 mm envelope at a 25° contact angle.
Each bearing measures 12 mm bore by 32 mm outside diameter by 10 mm wide.
CD is the SKF code for a 15° contact angle.
2 Pcs, a universally matchable set with extra light preload (DGA).
