Availability:
2 in stock

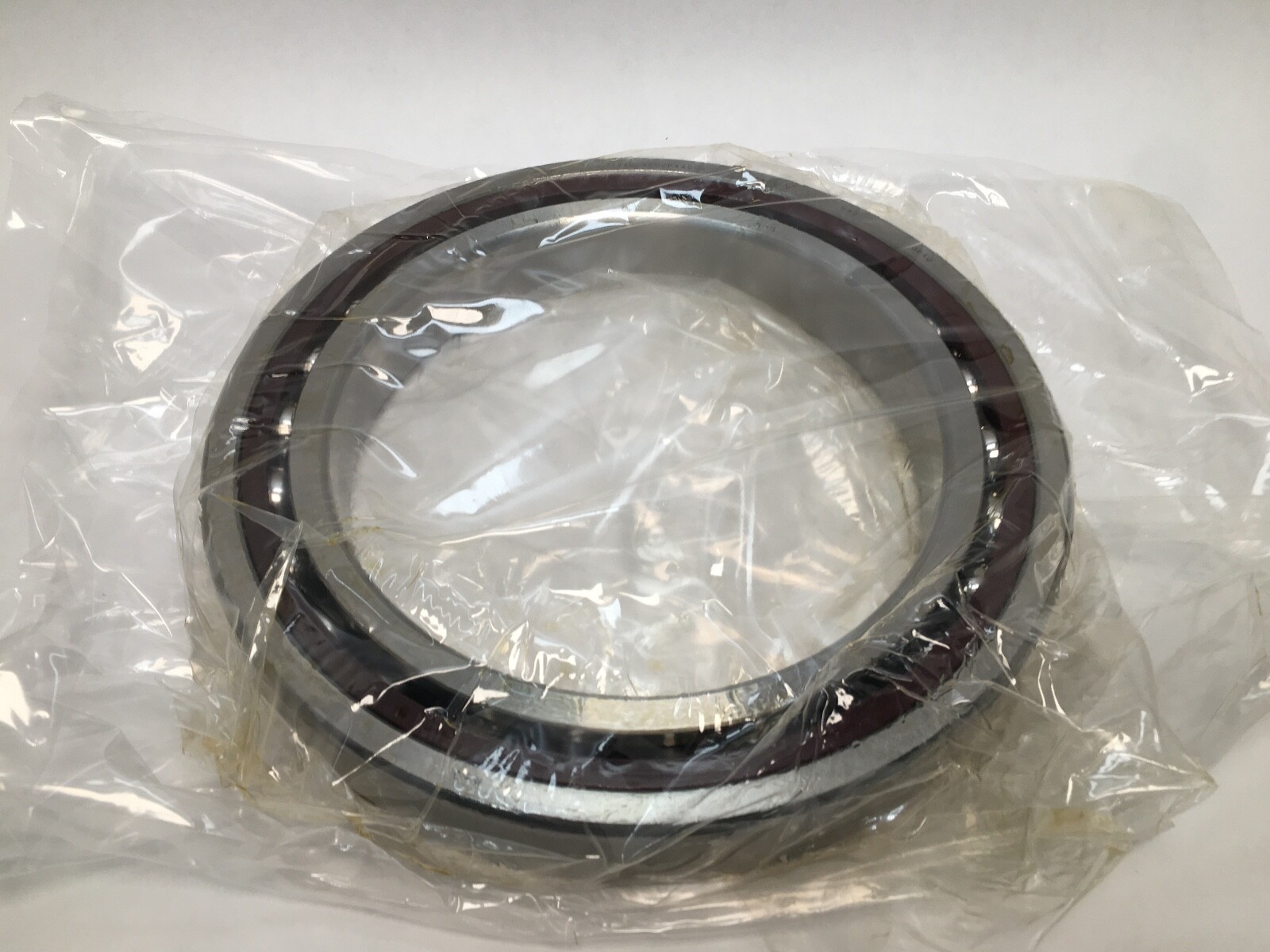

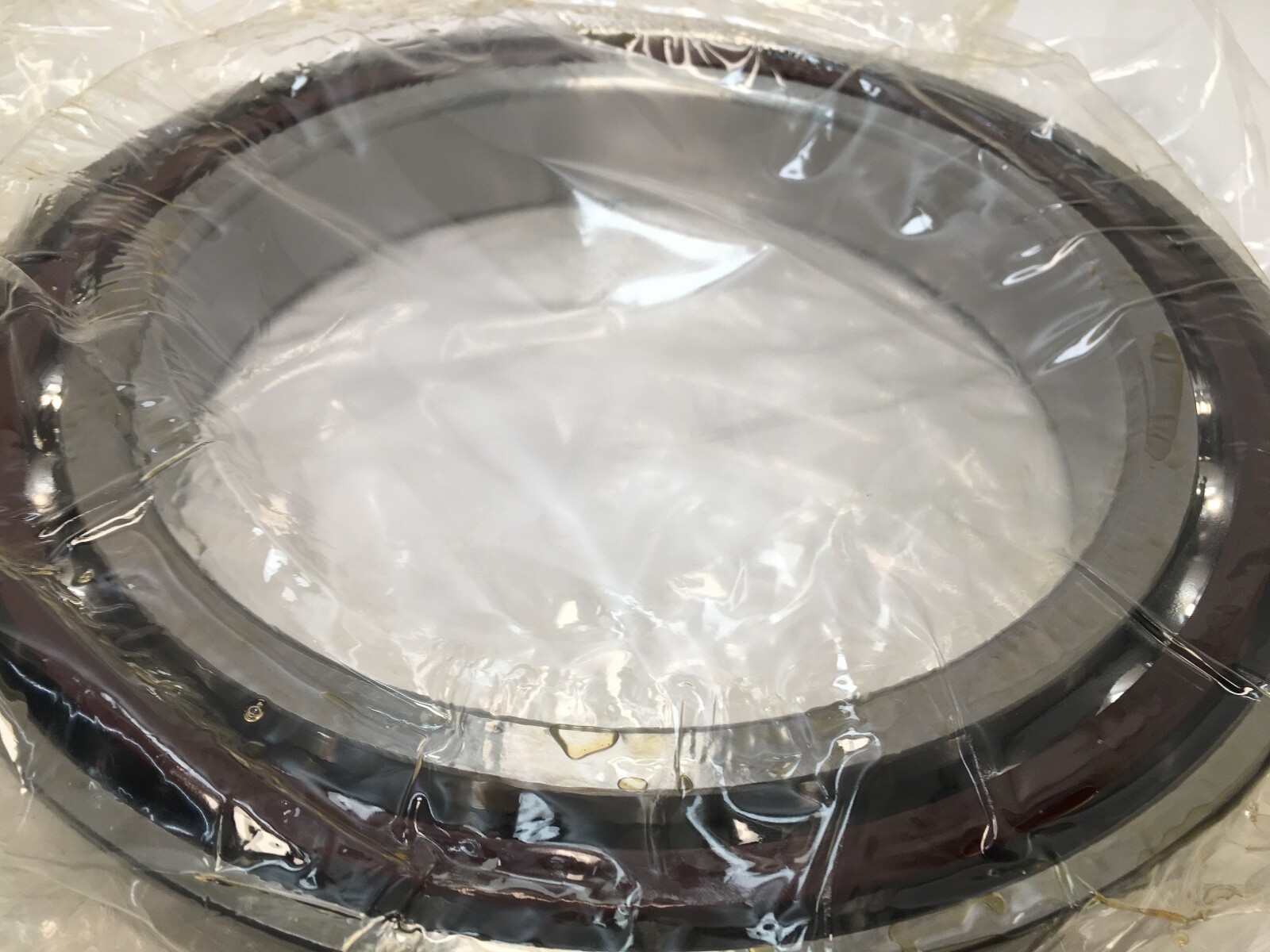

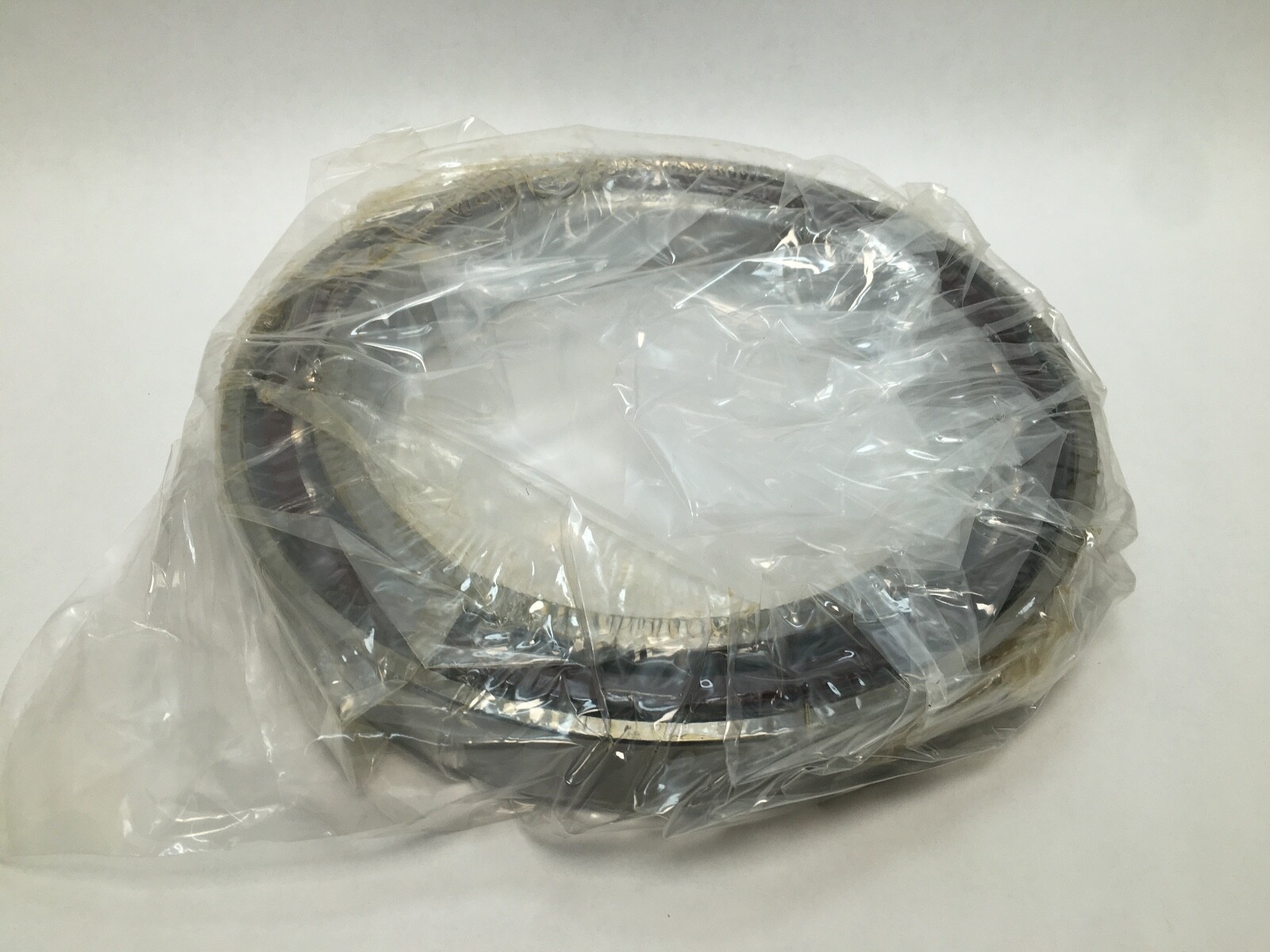

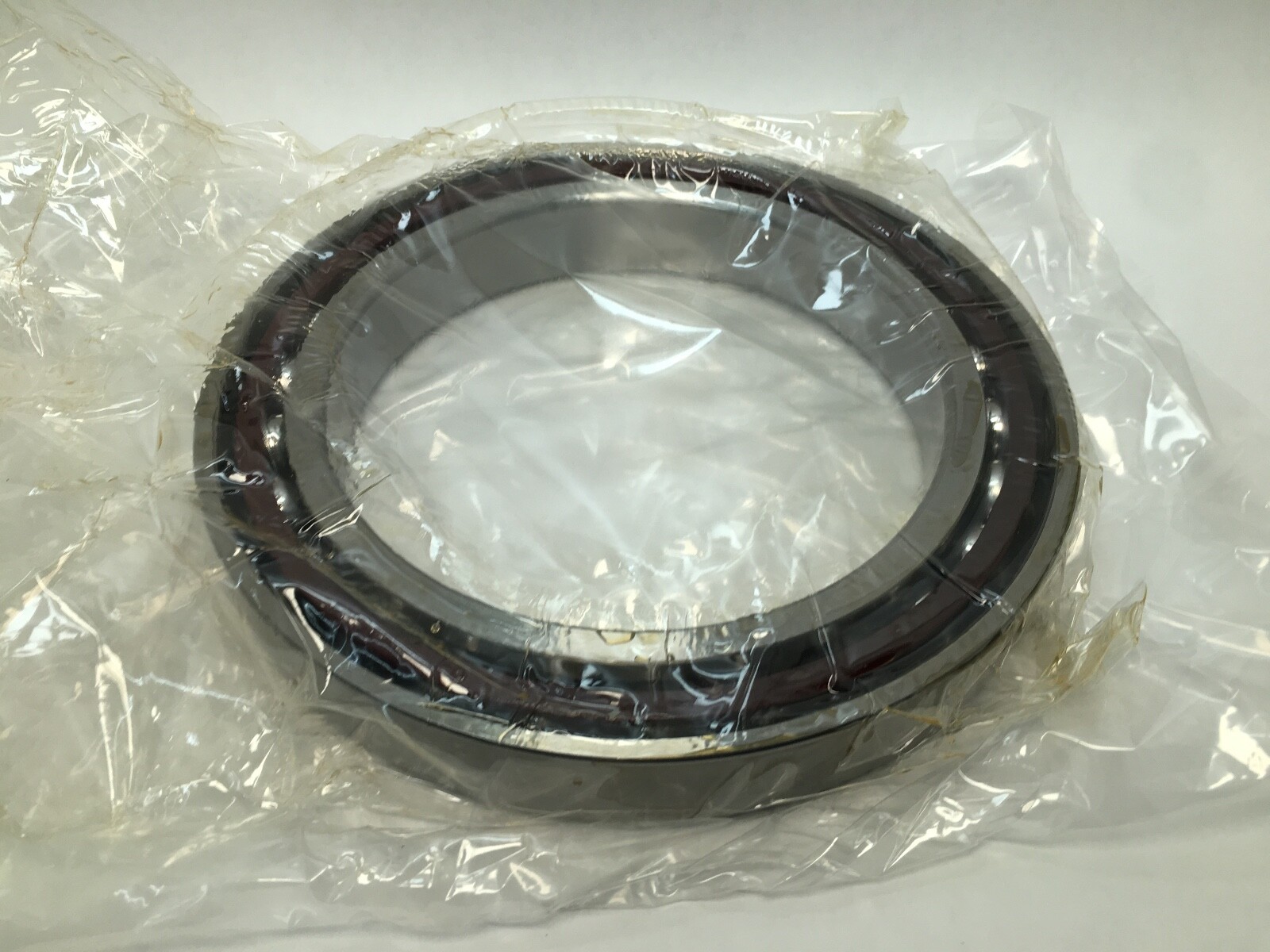

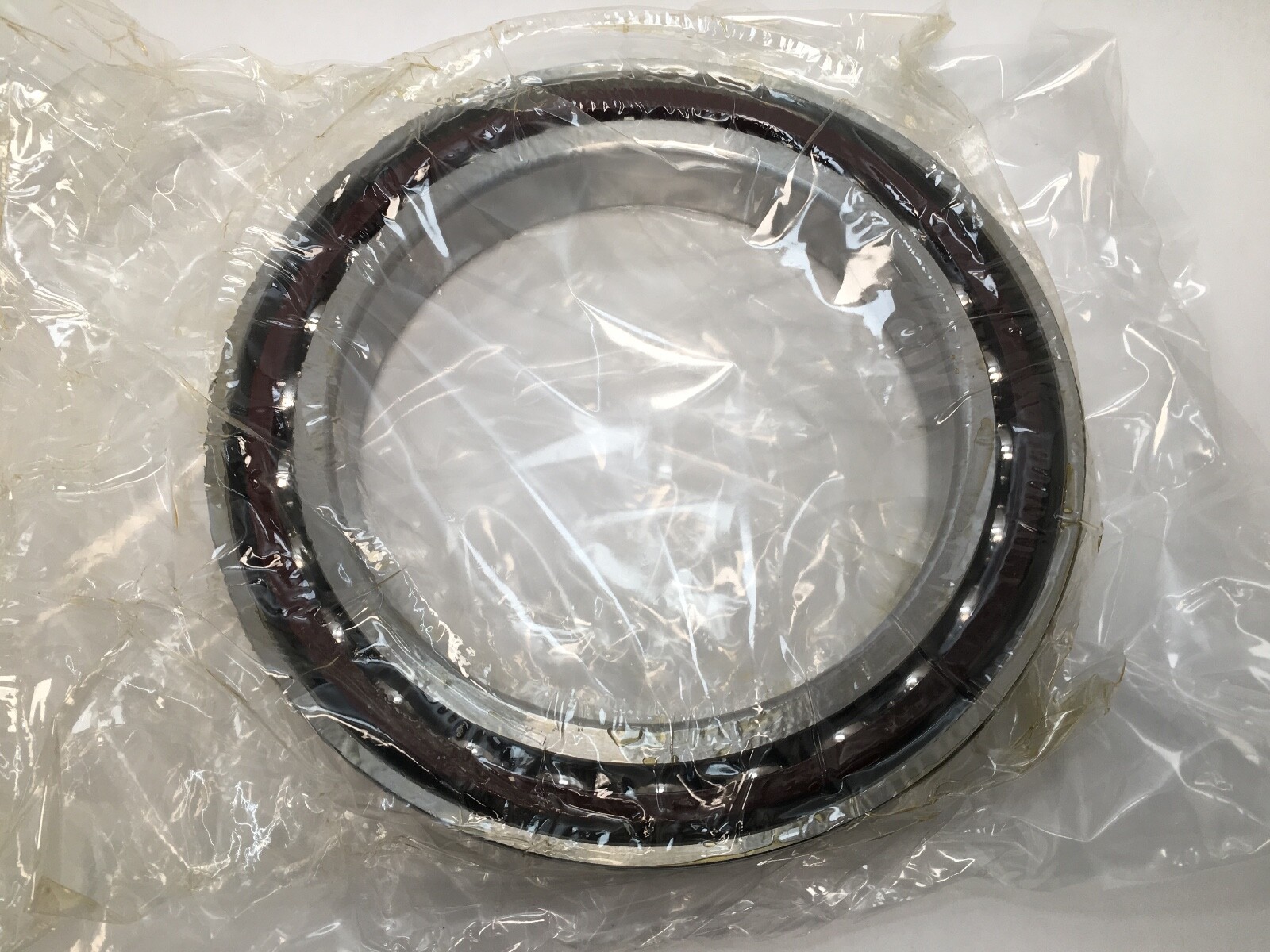

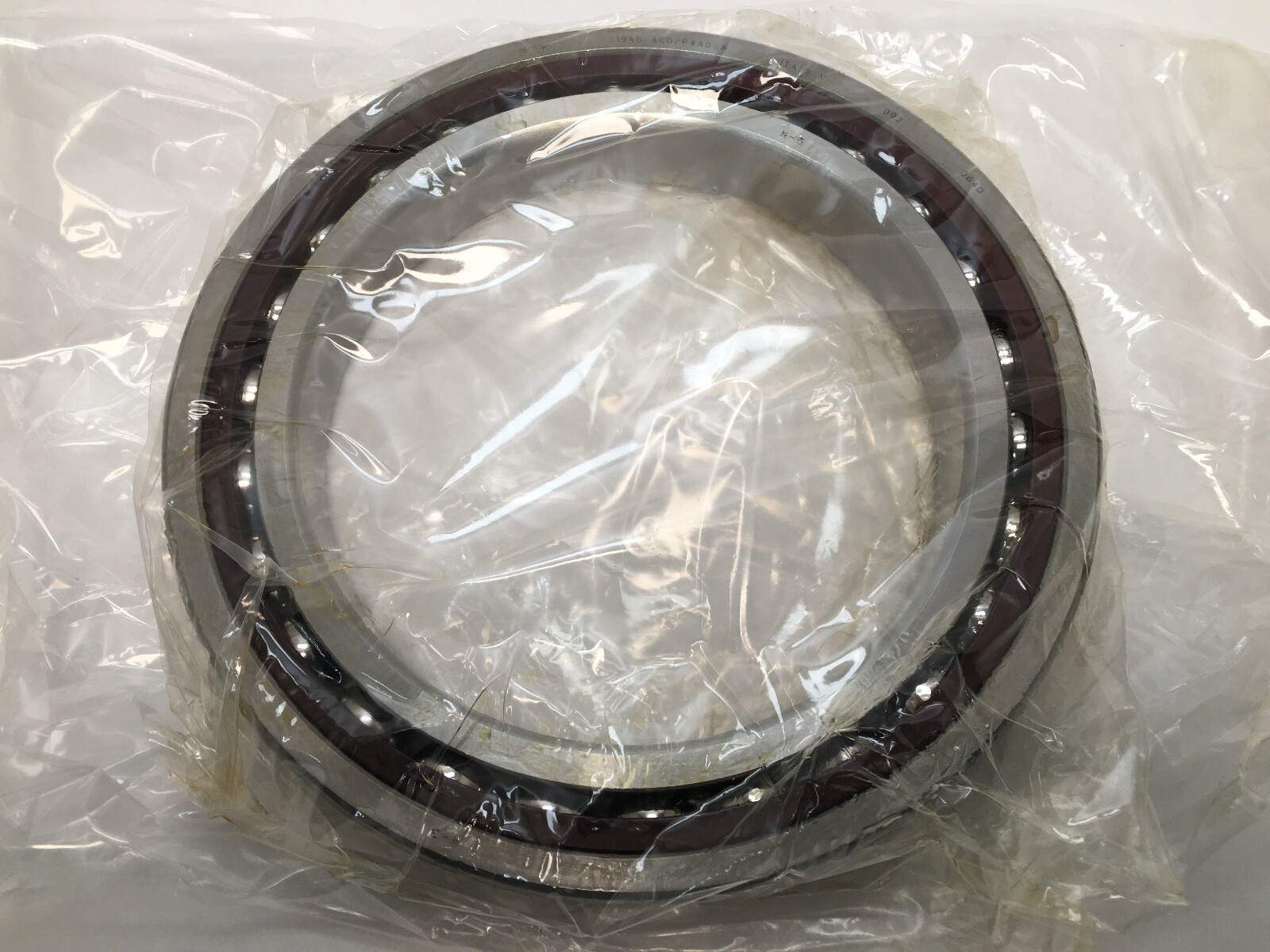

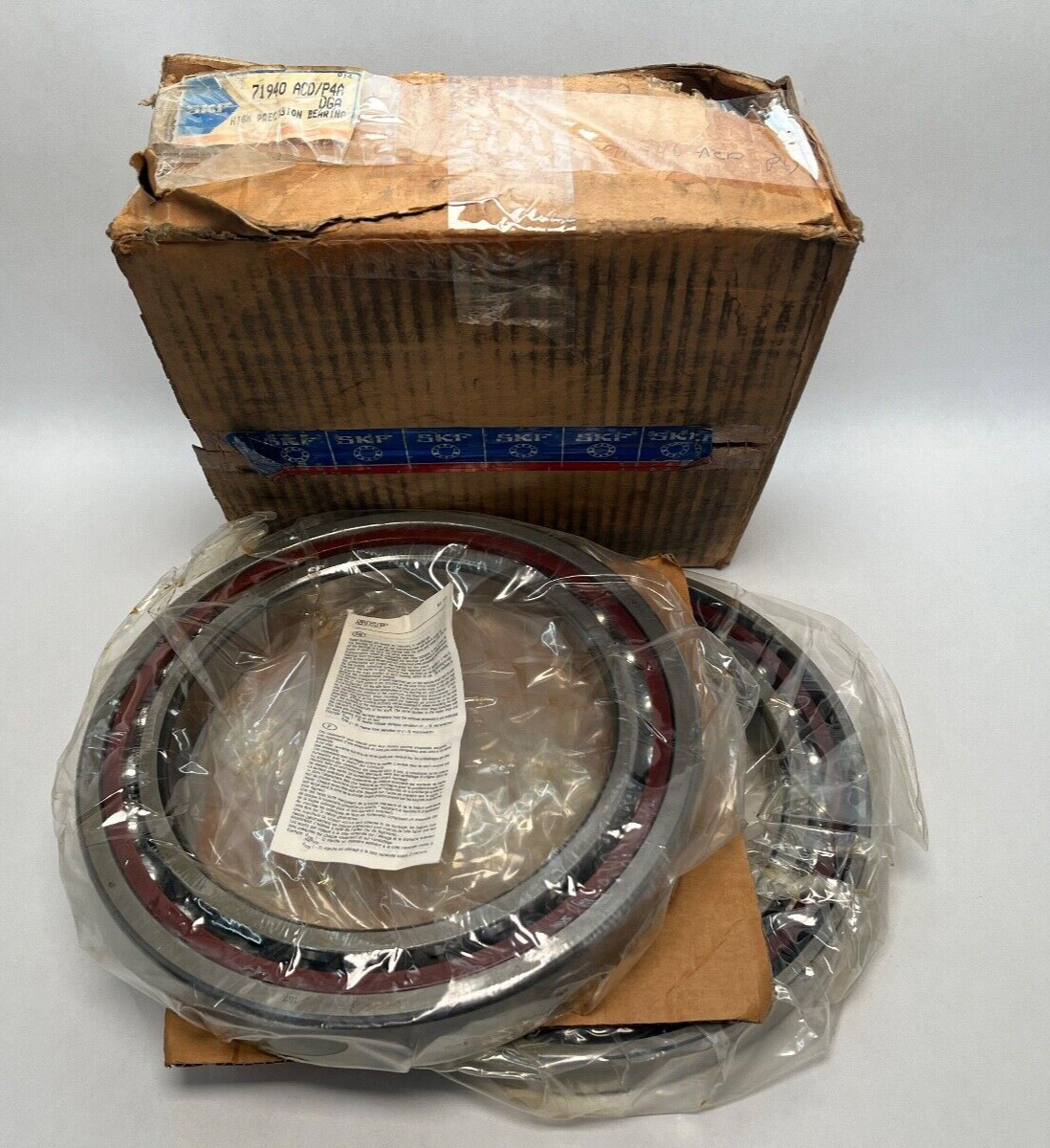

Super-precision angular contact ball bearing, 200 x 280 x 38 mm, 25° contact angle, class P4A. Universally matchable, extra light preload GA.
List Price
$3,785.93
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 71940ACDP4ADGA |

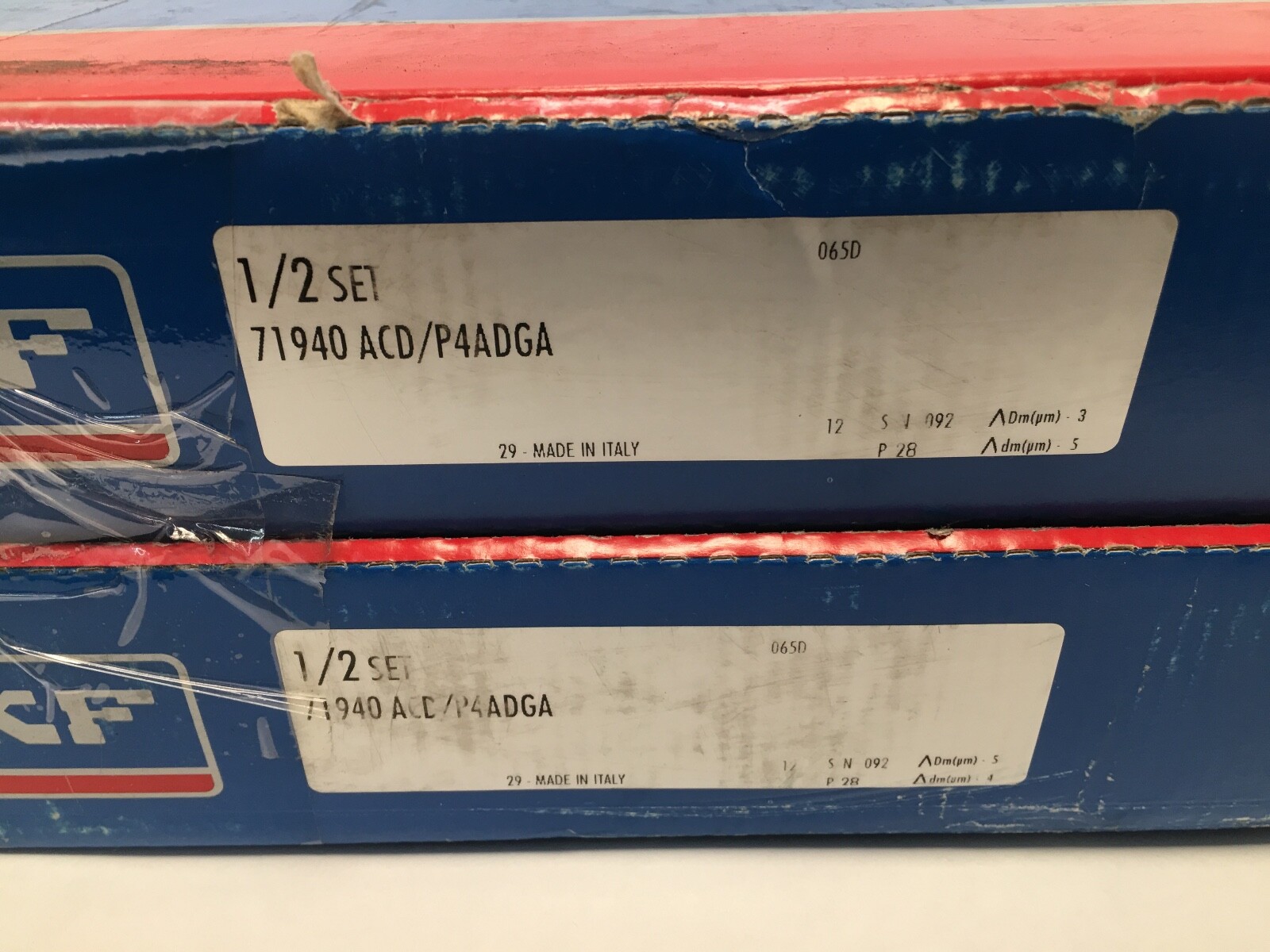

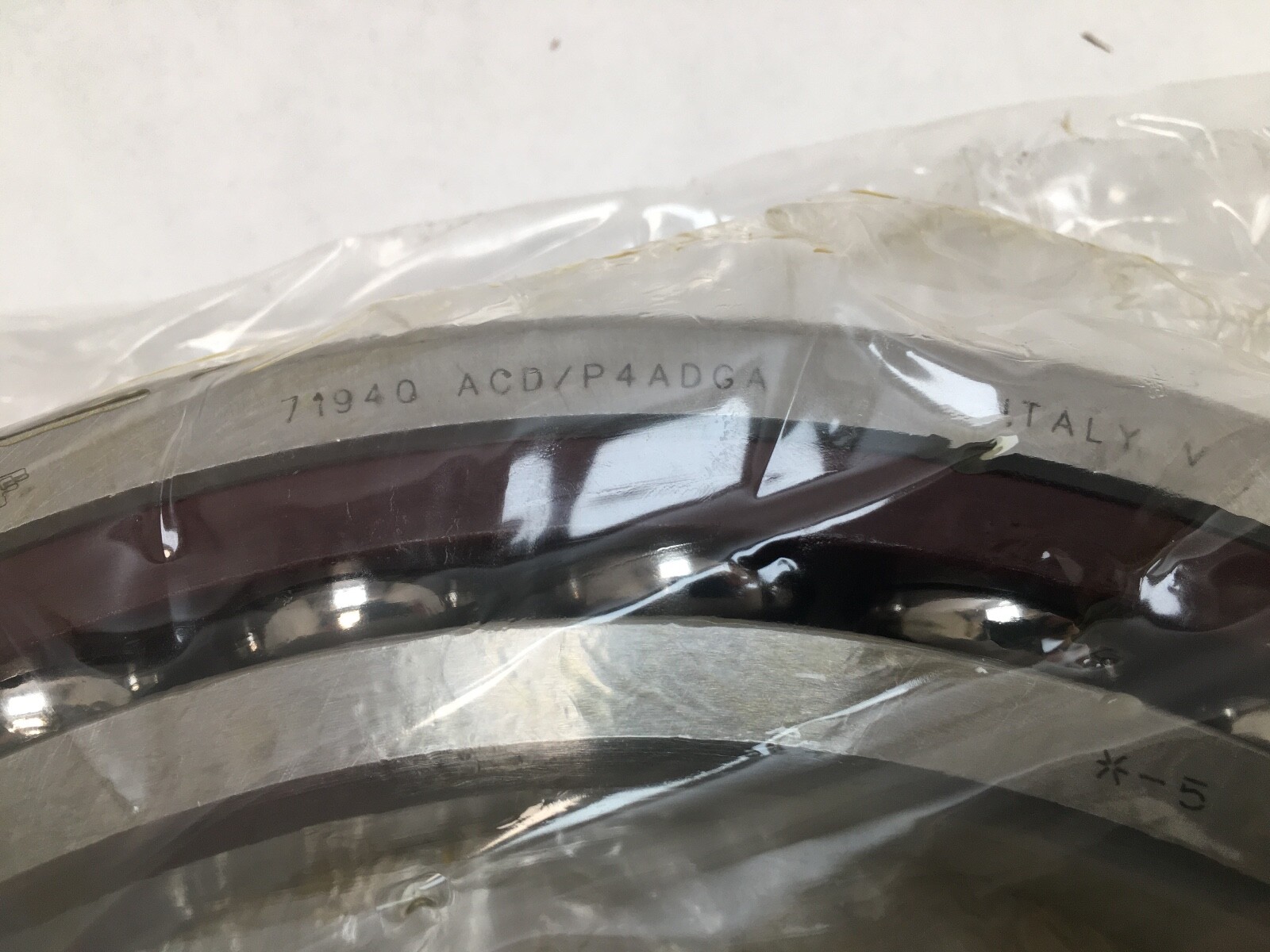

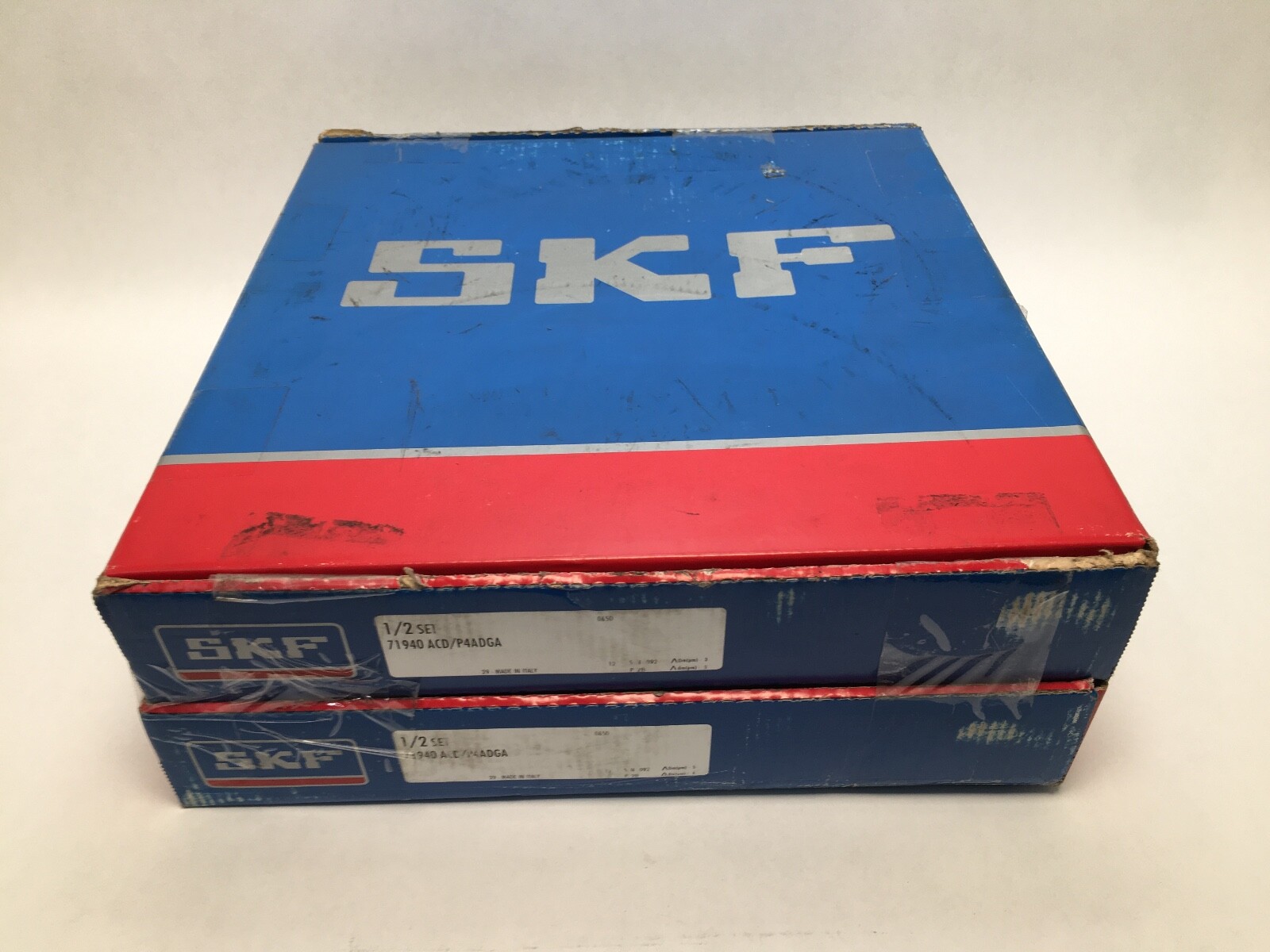

| Model | 71940ACD/P4A DGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 200 mm |
| OD | 280 mm |
| Width | 38 mm |
| Series | 71900 |
|---|---|
| Preload | Extra light (GA) |
| Base Number | 71940 |
| Industry Terms | Spindle bearing; super-precision bearing; precision angular contact bearing; machine tool bearing; large-bore spindle bearing |
| Common Misspellings | 71940 ACDGA P4A; 71940ACGDA/P4A; 719 40 ACDGA; 71940ACDG4/P4A; 71940 ADC P4A DGA |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles; precision rotary tables |
| Overall Width | 38 mm |
| Mpn Variants | 71940 ACDGA/P4A; 71940-ACD/P4ADGA; 71940-ACD-P4A-DGA; 71940ACDP4ADGA; 7940A; 71940AC |
| Arrangement Configuration | Universally matchable |
| Precision Class | P4A |
| Closure Type | Open |
| Cage Type | Outer-ring shoulder-guided |
| Dynamic Load Rating | 199,000 N |
| Static Load Rating | 250,000 N |
| Precision Rating | P4A |
| Rolling Elements | Ball |
| Item Weight | 6.04 kg (13.32 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universally matchable — back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken/Fafnir 3MM9340WICRSUL |
|---|---|
| Cross Reference 2 | FAG B71940-E-T-P4S-UL |
| Cross Reference 3 | NSK 7940A5TRSULP4 |
| Cross Reference 4 | RHP 71940X3TRSULP4 |
SKF 71940 ACDGA/P4A super-precision, high-capacity, universally matchable single-row angular contact ball bearing. Bore Diameter: 200 mm. Outside Diameter: 280 mm. Overall Width: 38 mm. Contact Angle: 25°. Precision Class: P4A. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Type: Outer-ring shoulder-guided. Bearing Material: Bearing steel. Item Weight: 6.04 kg (13.32 lb) per bearing.
719 — ISO extra-light dimension series. A 200 mm bore carries a 280 mm outside diameter in a 38 mm section.
40 — bore code. 40 × 5 = 200 mm.
AC — 25° contact angle. The higher angle carries more axial load and raises axial stiffness.
D — high-capacity internal design.
GA — universally matchable, extra light preload.
P4A — SKF super-precision tolerance class: P4 dimensional accuracy with running accuracy held tighter still.
Dynamic Load Rating: 199,000 N. Static Load Rating: 250,000 N. Both figures are per bearing. At this section the static rating sits well above the dynamic one, which is normal for the extra-light 719 series and sets a high permanent-deformation limit at rest.
Contact Angle: 25°. Radial load is carried together with axial load acting in one direction, with the steeper load line favouring thrust capacity and axial stiffness over top speed.
Closure Type: Open, supplied unlubricated and preserved for spindle-shop cleaning and grease or oil charging at build. Contact type is normal, two-point. Both rings are one piece.
Mounting Arrangement: universally matchable back-to-back, face-to-face or tandem. Bore Type: Straight. Item Weight: 6.04 kg (13.32 lb) per bearing. Harmonization Code: 8482.10.50.
Same envelope, same 25° angle, same super-precision class: Timken/Fafnir 3MM9340WICRSUL, FAG B71940-E-T-P4S-UL, NSK 7940A5TRSULP4, RHP 71940X3TRSULP4.
Preload class is part of the identity. GB (light preload) and GC (medium preload) are different parts on the same envelope.
