SKF71936 CDGA/P4AAngular Contact Ball Bearing — Super-Precision P4A, 180 mm ID, 250 mm OD, 33 mm Width, 15° Contact Angle, Universally Matchable, Extra Light Preload

Product Description

What this part is:

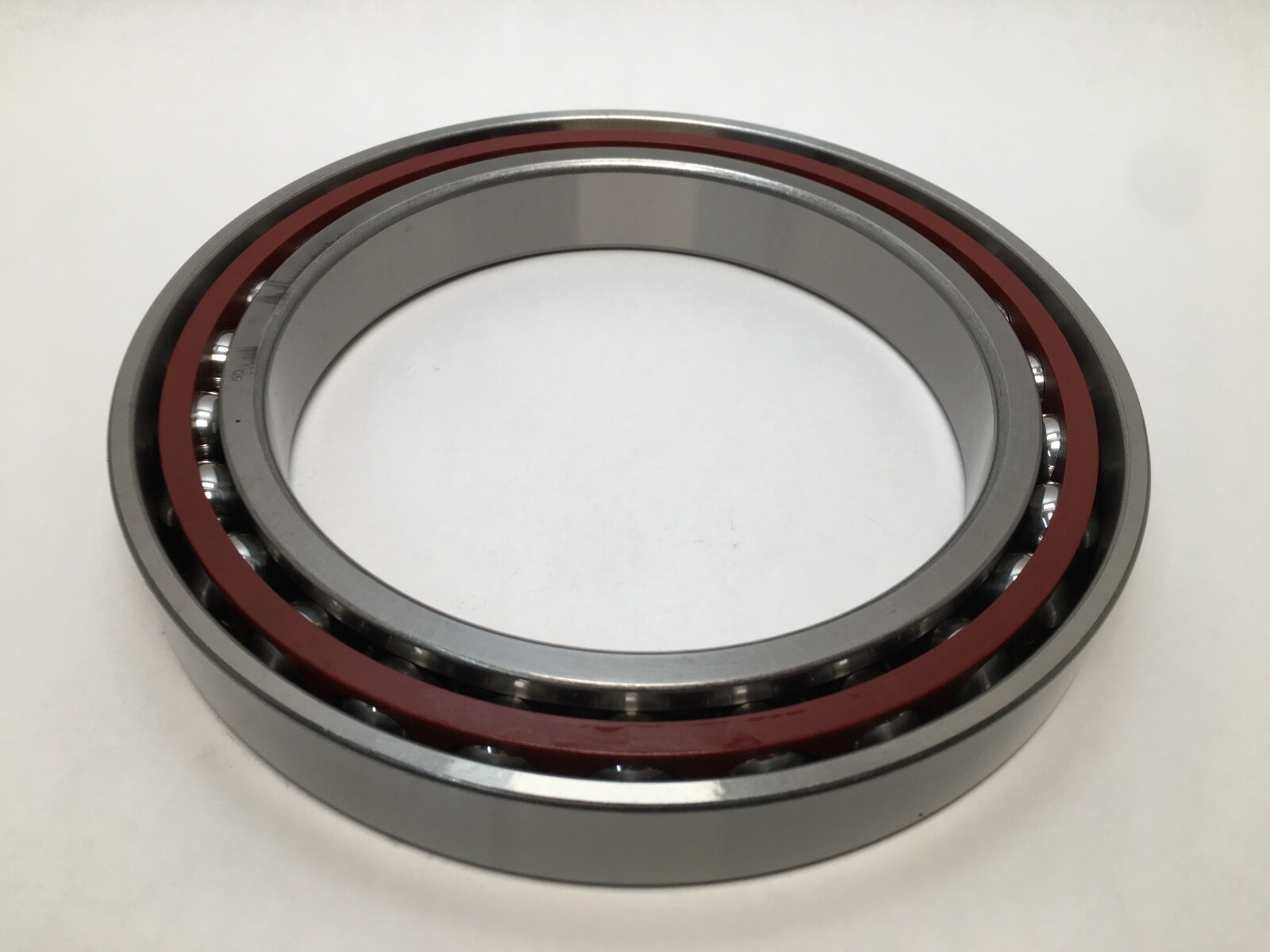

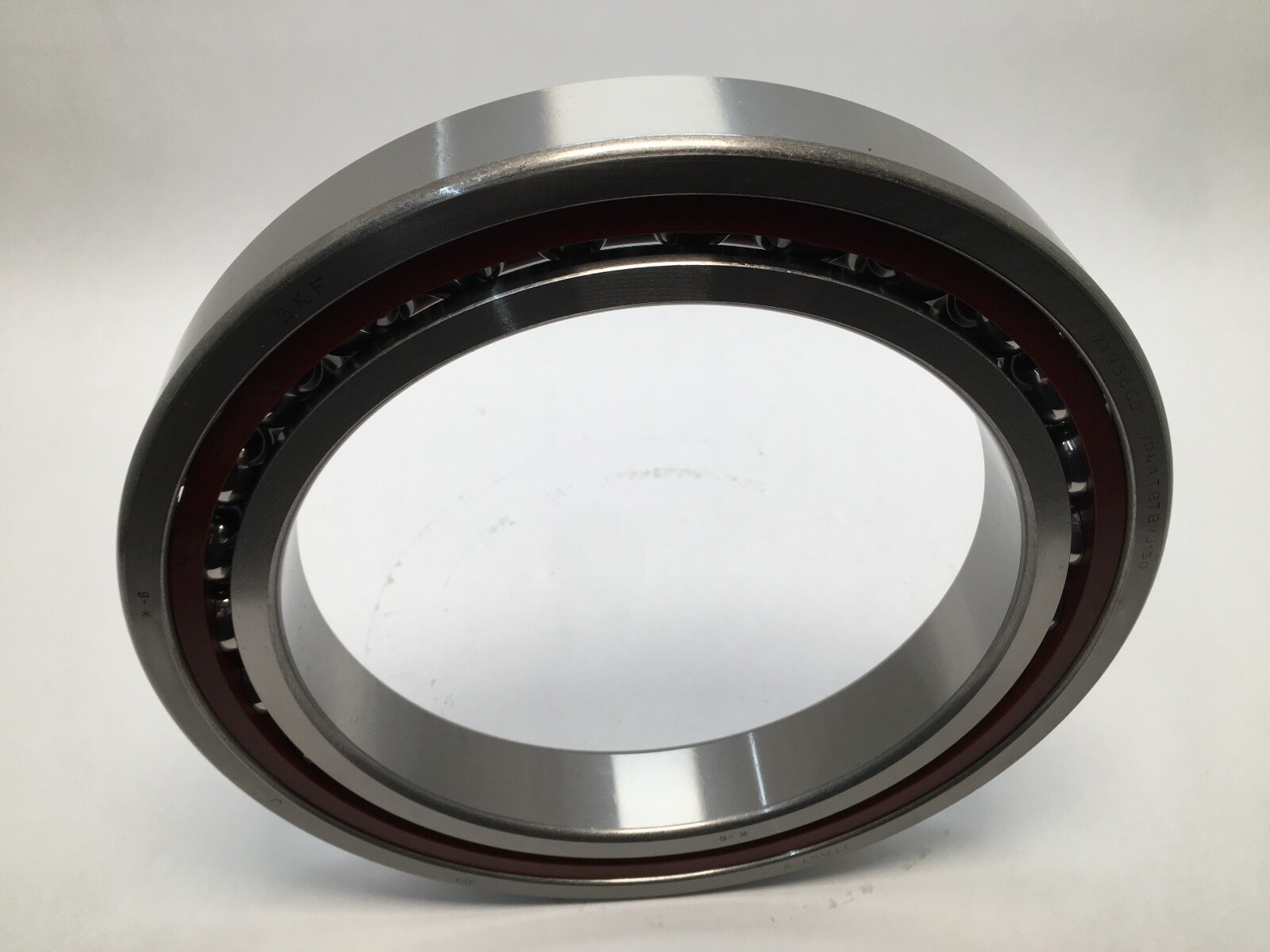

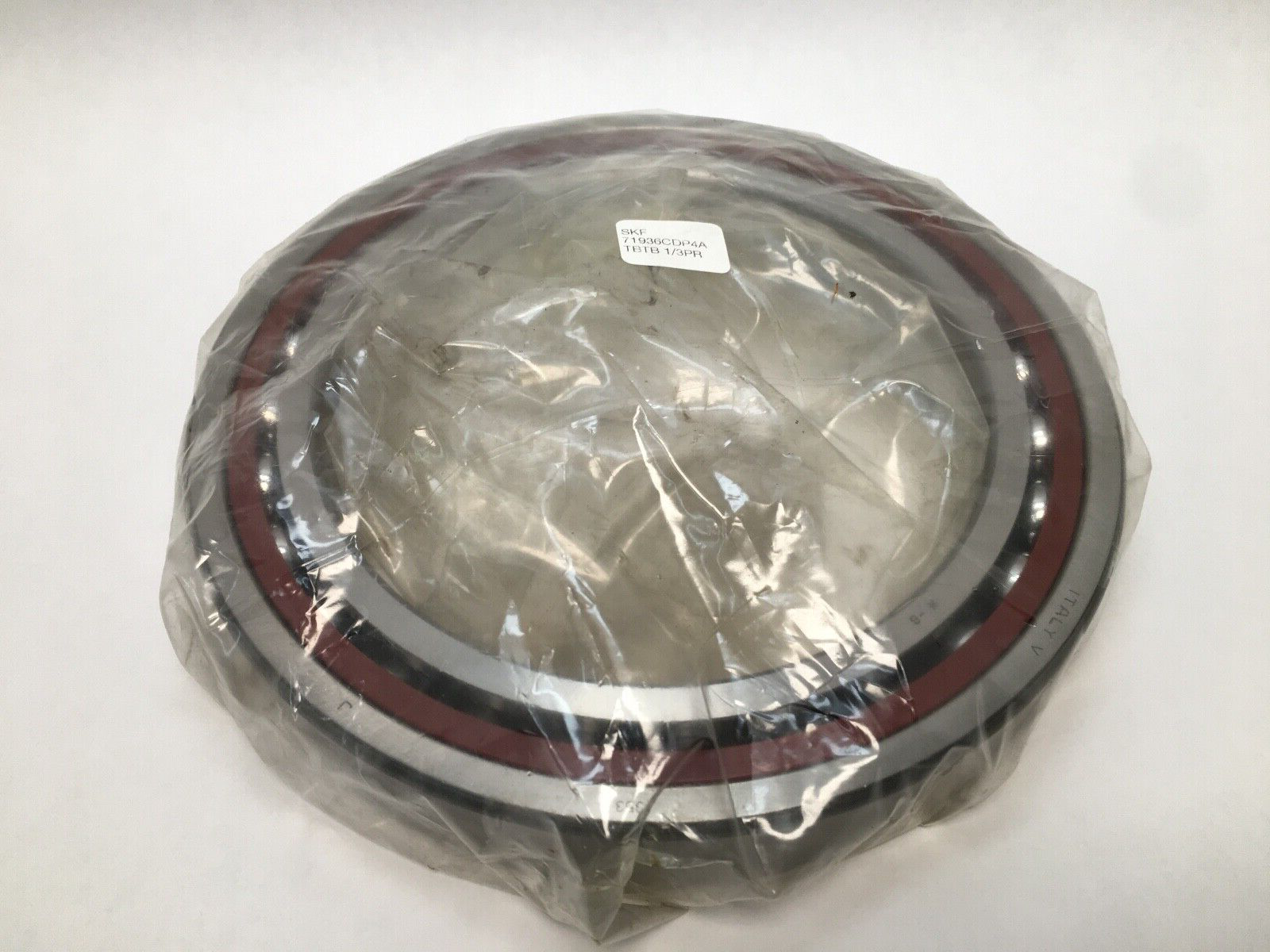

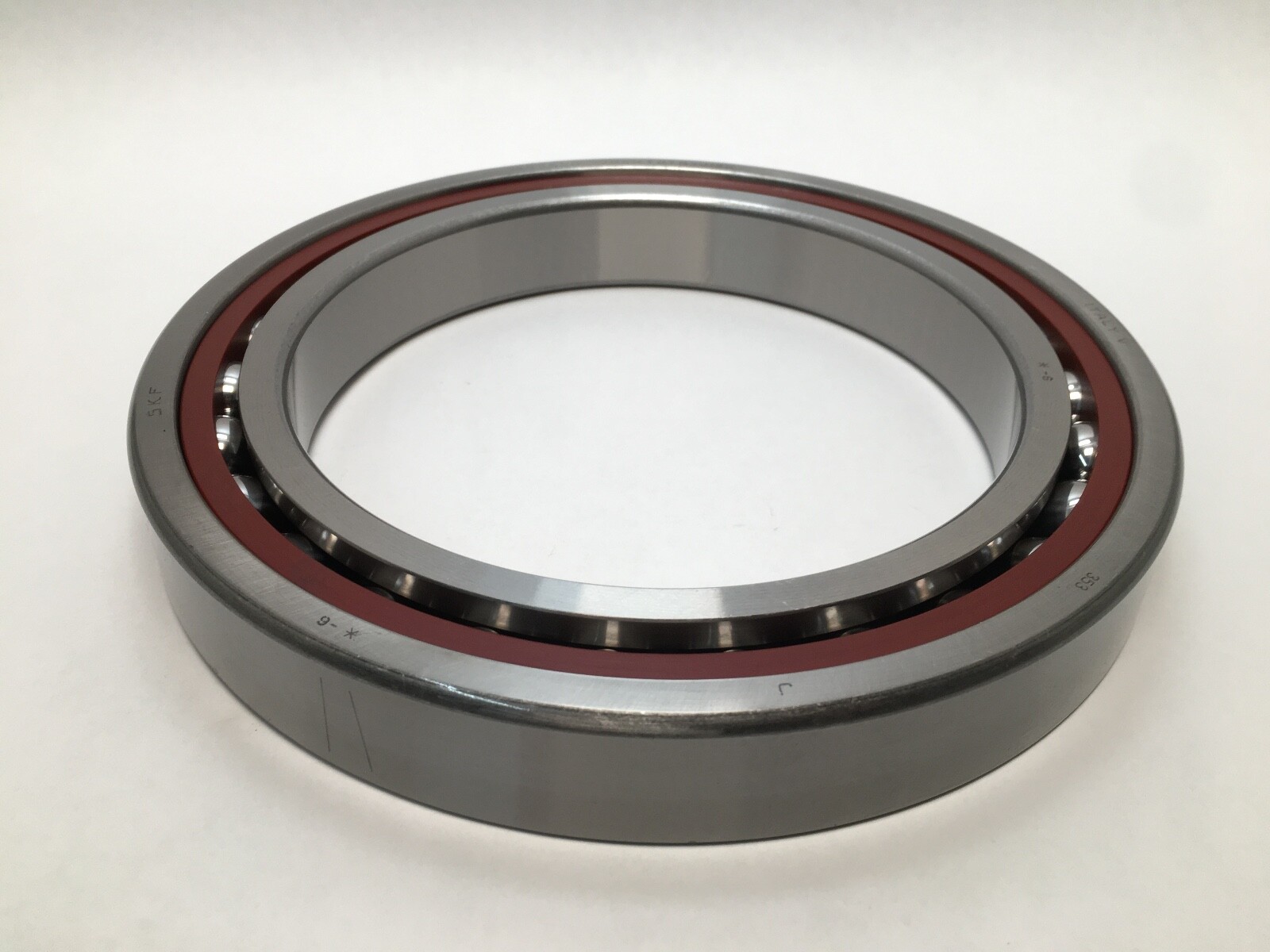

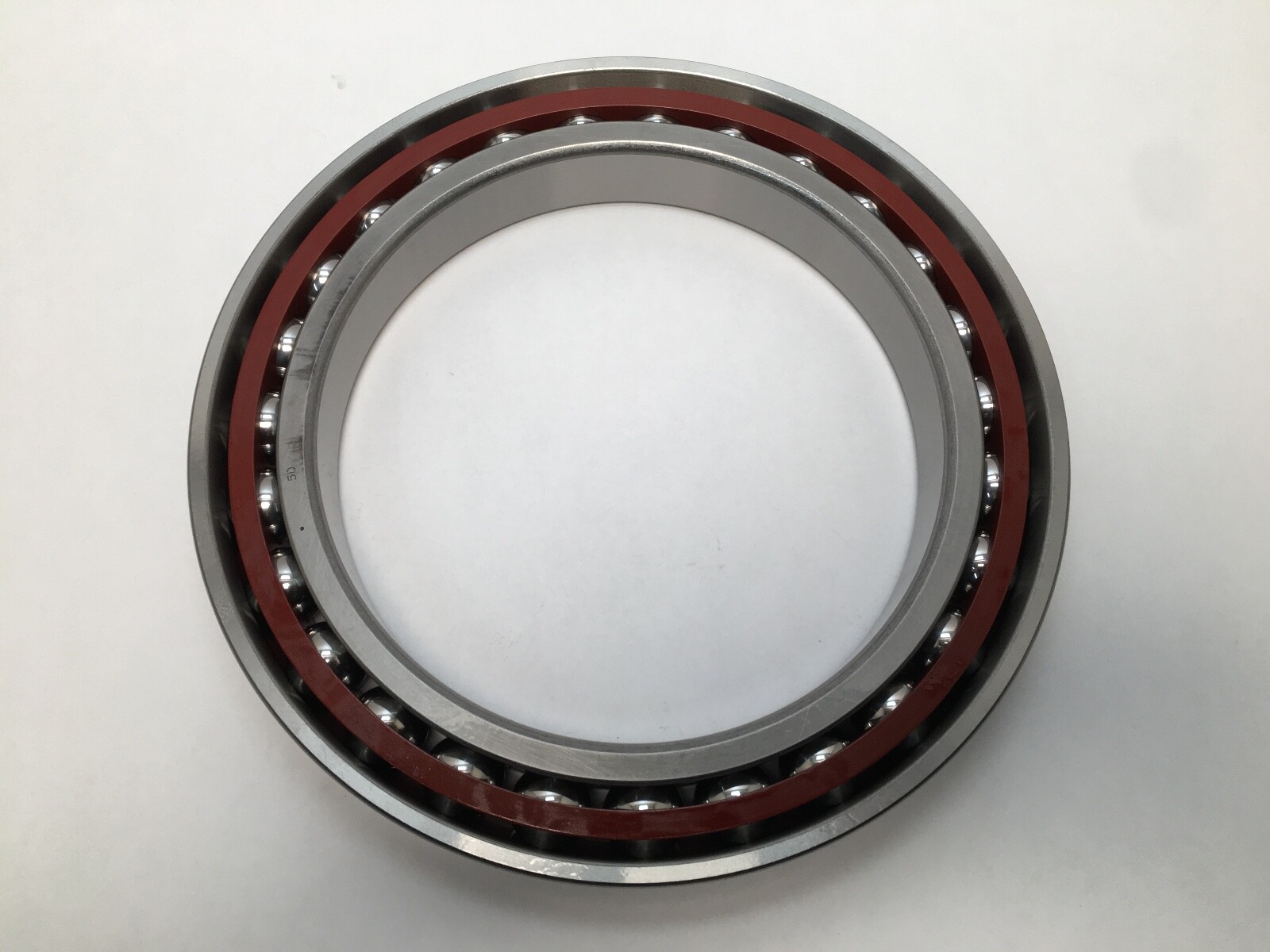

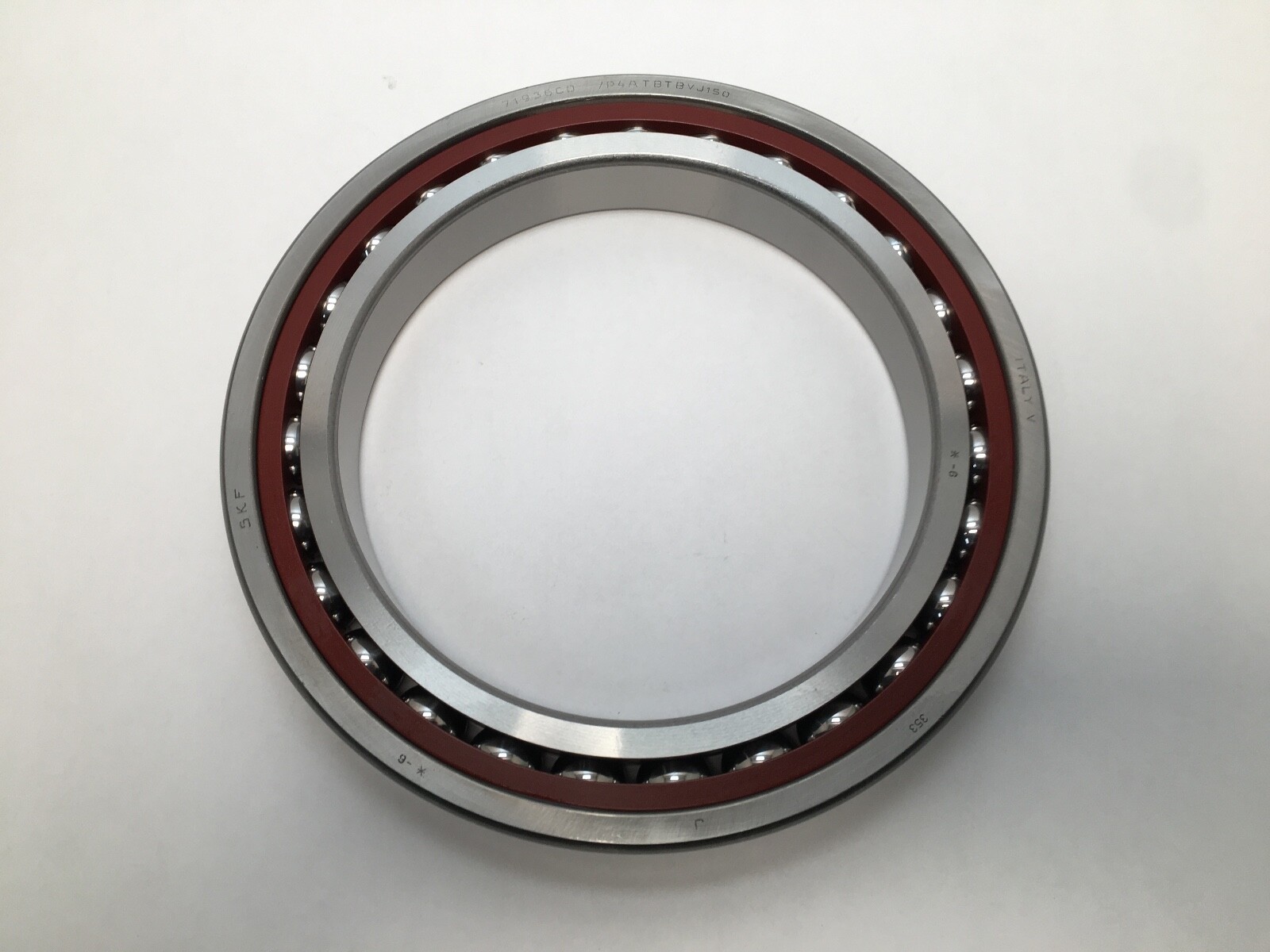

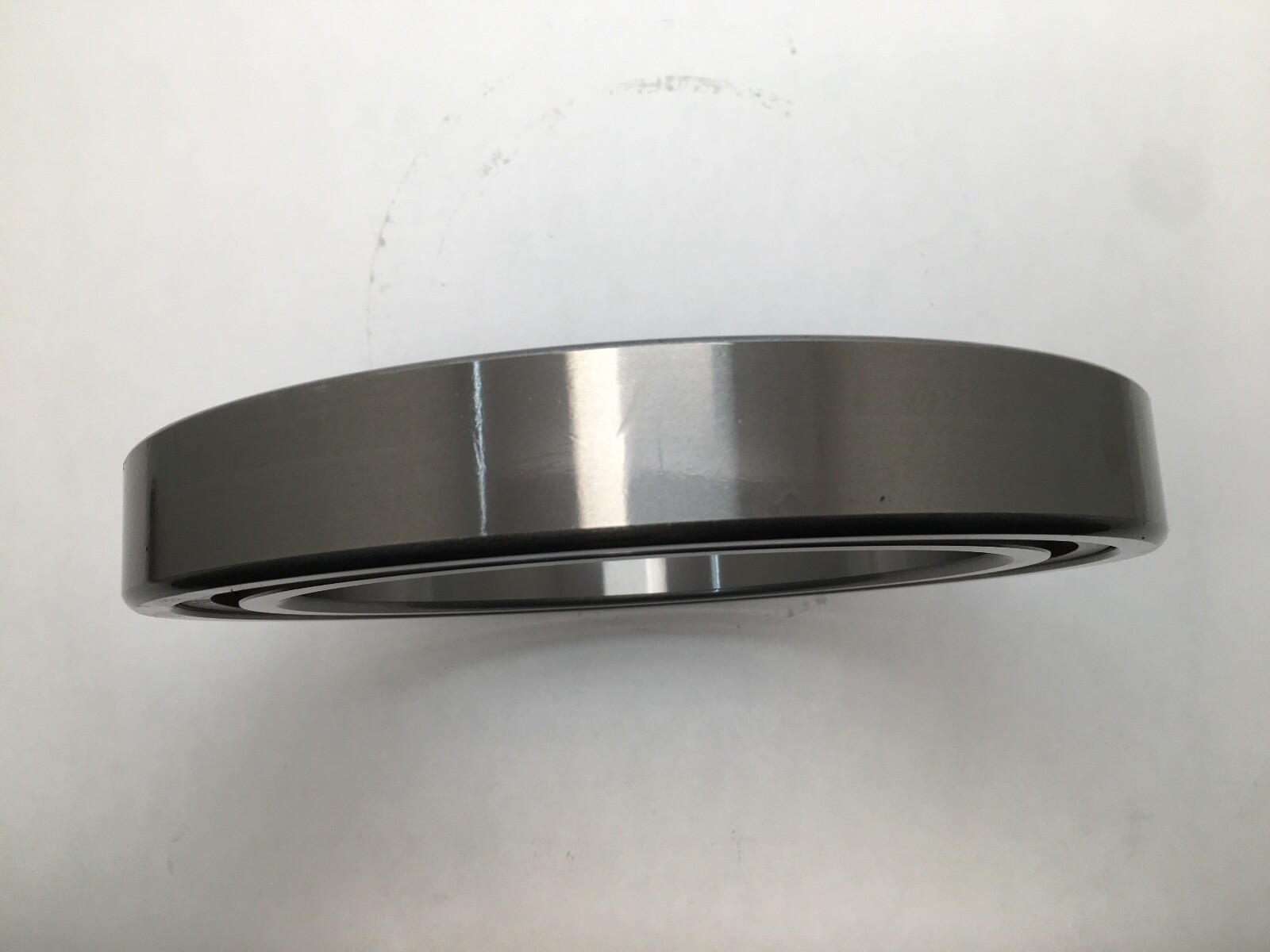

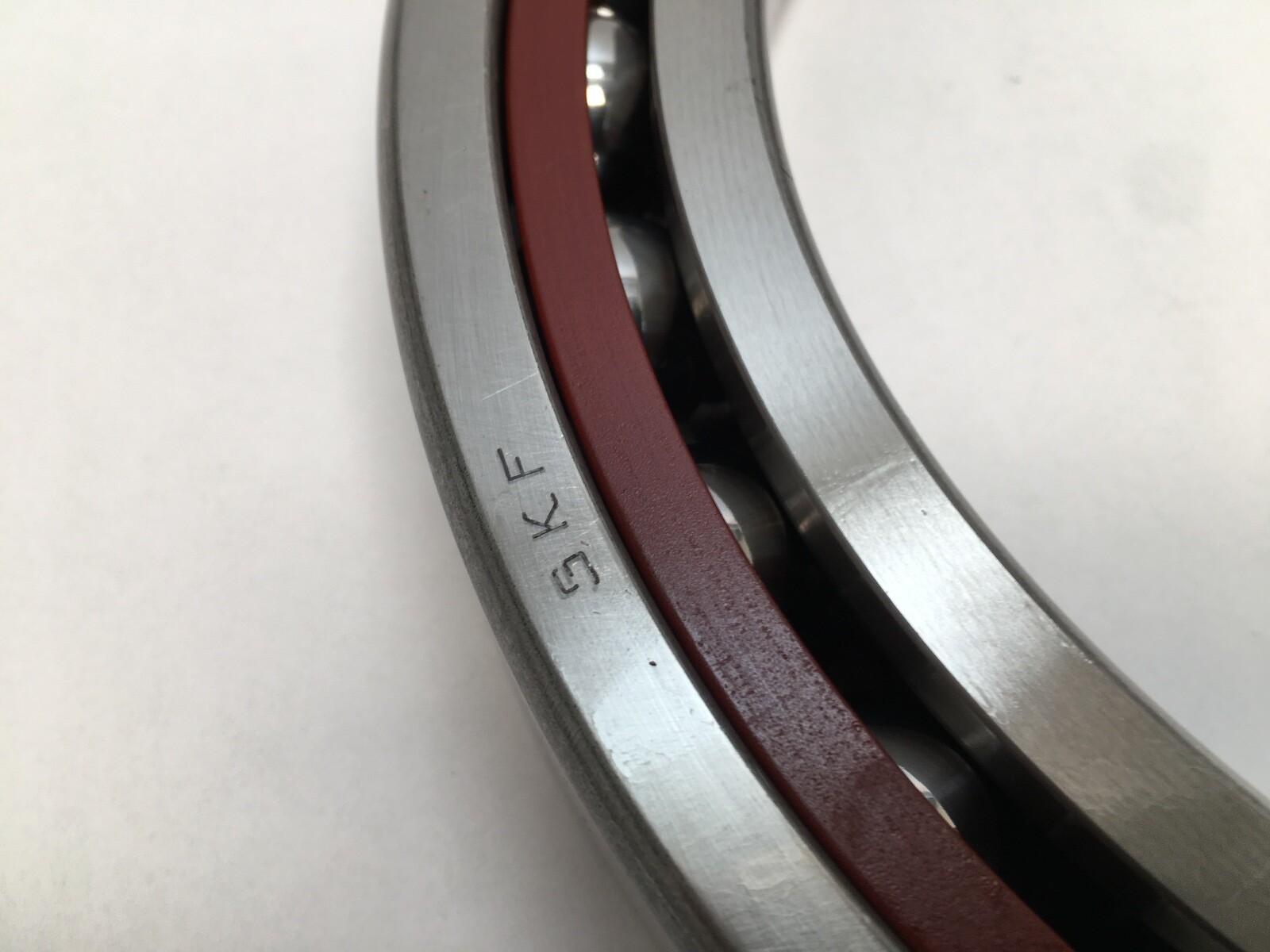

SKF 71936 CDGA/P4A super-precision, high-capacity, universally matchable single-row angular contact ball bearing. 719 extra-light series, open, 15° contact angle, extra light preload, P4A precision. Supplied without original box.

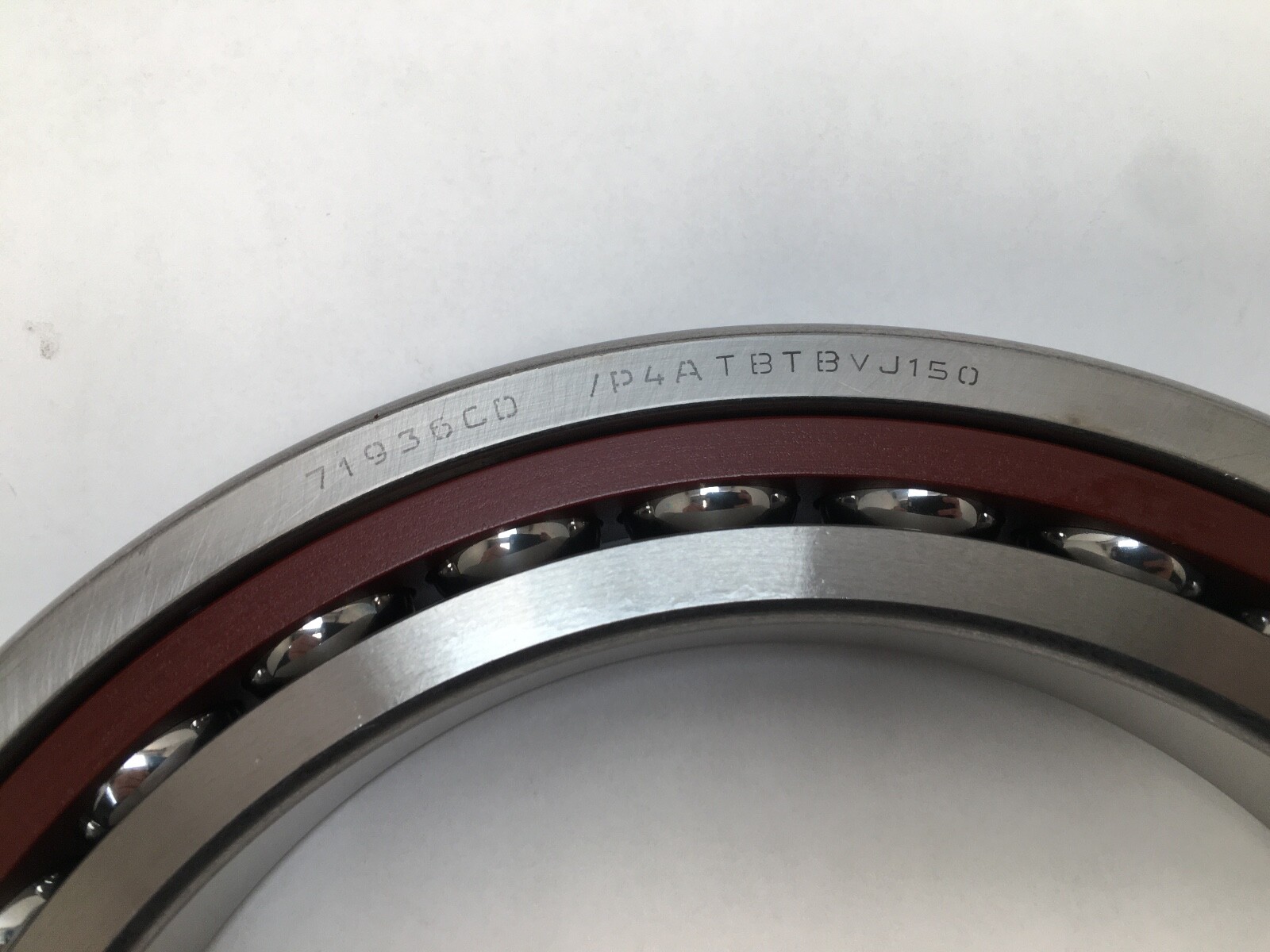

Decoding the designation:

719 — ISO extra-light dimension series.

36 — bore code; 36 x 5 = 180 mm bore.

C — 15° contact angle.

D — high-capacity internal design.

GA — universally matchable, extra light preload.

P4A — SKF super-precision tolerance class: P4 dimensional accuracy with tighter running accuracy.

Specifications:

Bore Diameter: 180 mm. Outside Diameter: 250 mm. Overall Width: 33 mm. Contact Angle: 15°. Number of Rows: 1. Closure Type: Open. Bore Type: Straight. Preload: Extra light (GA). Precision Class: P4A. Cage Type: Outer-ring shoulder-guided. Bearing Material: Bearing steel. Dynamic Load Rating: 168,000 N per bearing. Static Load Rating: 212,000 N per bearing. Item Weight: 4.13 kg (9.10 lb) per bearing. Harmonization Code: 8482.10.50.

Dimensions and mounting:

The envelope is 180 x 250 x 33 mm with a straight bore. Universally matchable: back-to-back, face-to-face or tandem. Contact type is normal, two-point, with one-piece rings. Radial load is carried together with axial load in one direction.

Compatibility and replacement:

Cross-references: Timken/Fafnir 2MM9336WICRSUL; FAG B71936-C-T-P4S-UL; NSK 7936CTRSULP4; RHP 71936X2TRSULP4 (all 15°, light preload); SKF 71936 ACDGA/P4A (25° vs 15°, 159,000 N / 200,000 N). Source: skf.com product page 71936 CDGA/P4A.

Frequently asked questions:

What is the contact angle of the SKF 71936 CDGA/P4A?

15°; C denotes the 15° contact angle.

What are the load ratings?

Dynamic 168,000 N and static 212,000 N per bearing.

What does GA mean?

Universally matchable bearing with extra light preload.
