Super-precision angular contact ball bearing, 130 x 200 x 33 mm, 15° contact angle, ABEC 7 / P4. One bearing from a universally matchable SKF DG pair.
List Price
$307.34
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing Pair - Straight Bore, 130 mm ID, 200 mm OD, 33 mm Width, Open, 15° Contact Angle, Extra Light Preload, Universally Matchable.$955.74
Angular Contact Ball Bearing — Super-Precision, 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Extra Light Preload, ABEC 7$955.74
Angular Contact Ball Bearing — Super-Precision P4A, 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Universally Matchable, Extra Light Preload$1,911.48
Angular Contact Ball Bearing - 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Open, Phenolic Cage, Heavy Preload$606.52| MFR / Brand | SKF |
|---|---|

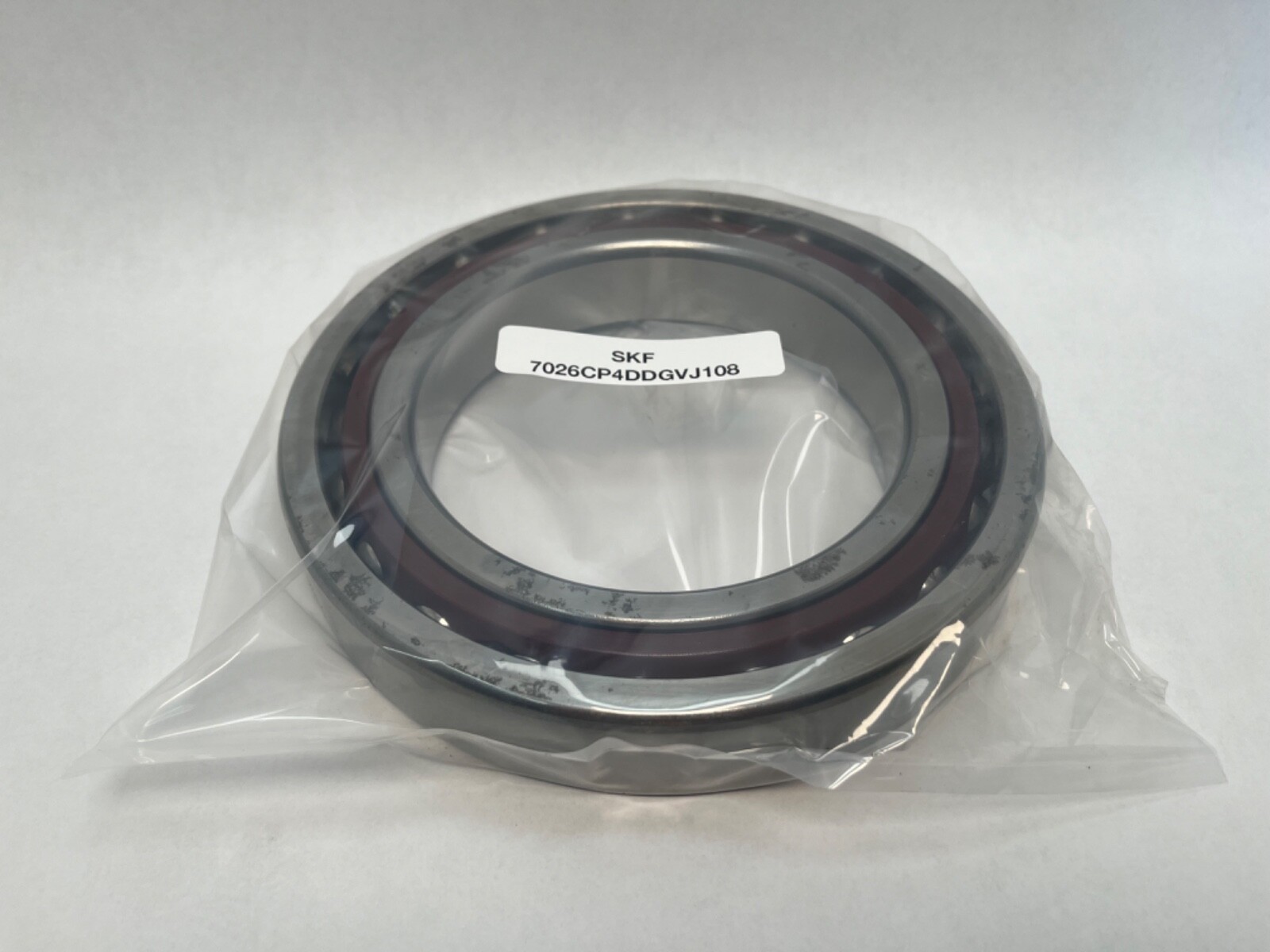

| MPN | 7026CP4DGVJ108 |

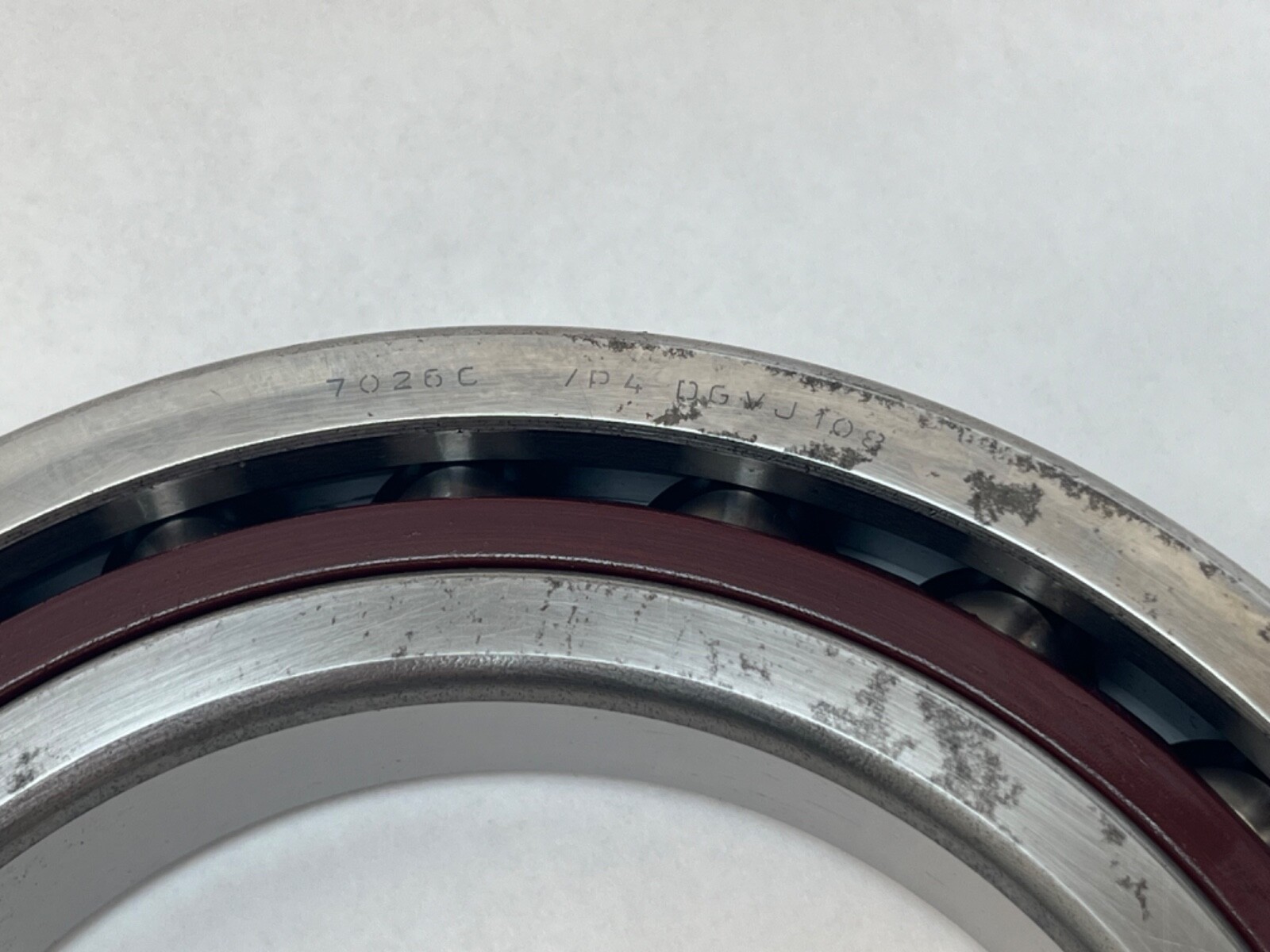

| Model | 7026 C P4 DG V J108 / 2MM9126 WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Arrangement Configuration | Universally matchable (DG) |
| Precision Class | ABEC 7 / P4 |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Cross Reference 1 | FAG B7026-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | NSK 7026CTYNSULP4 |
| Cross Reference 3 | Fafnir 2MM9126WI |

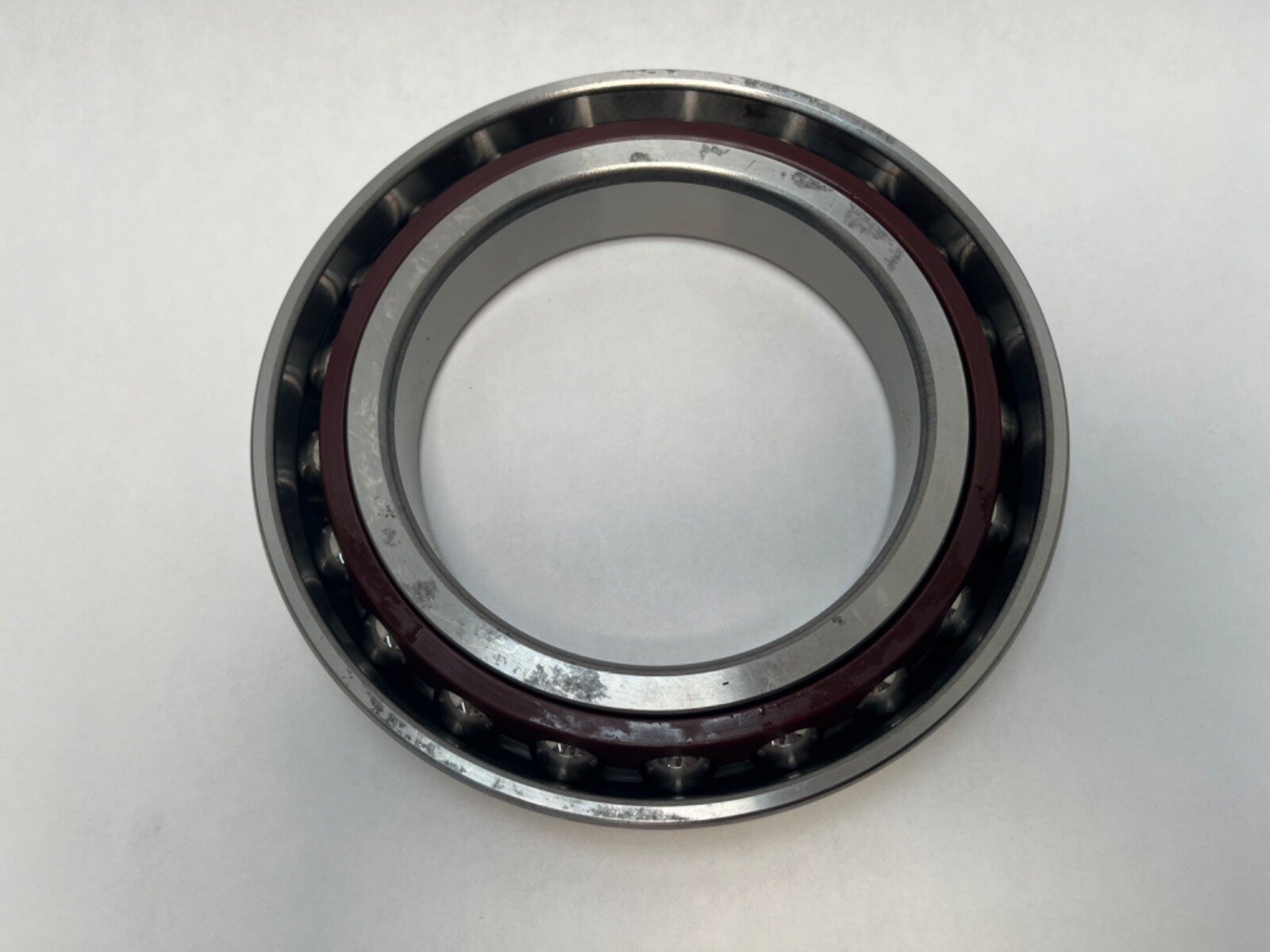

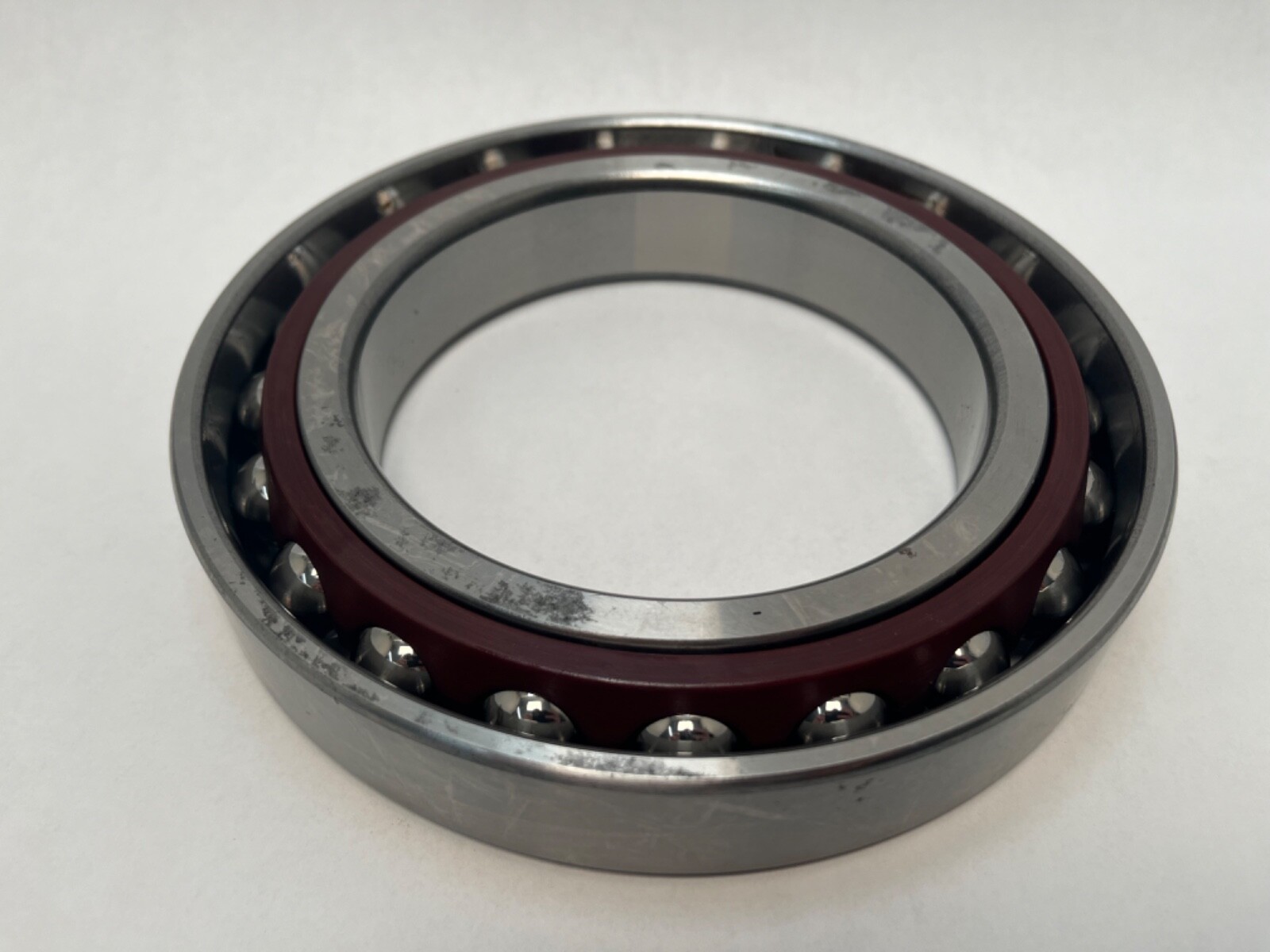

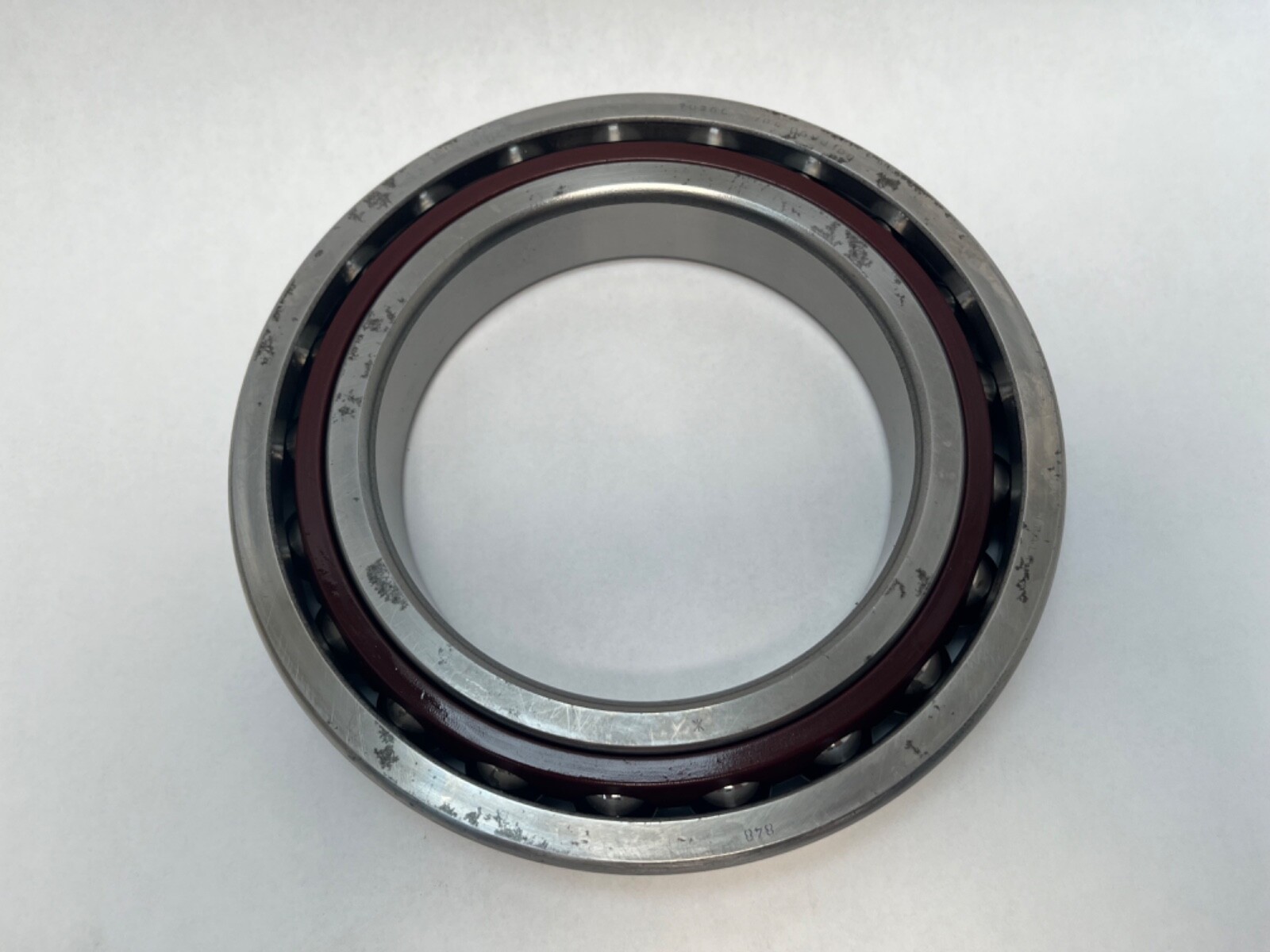

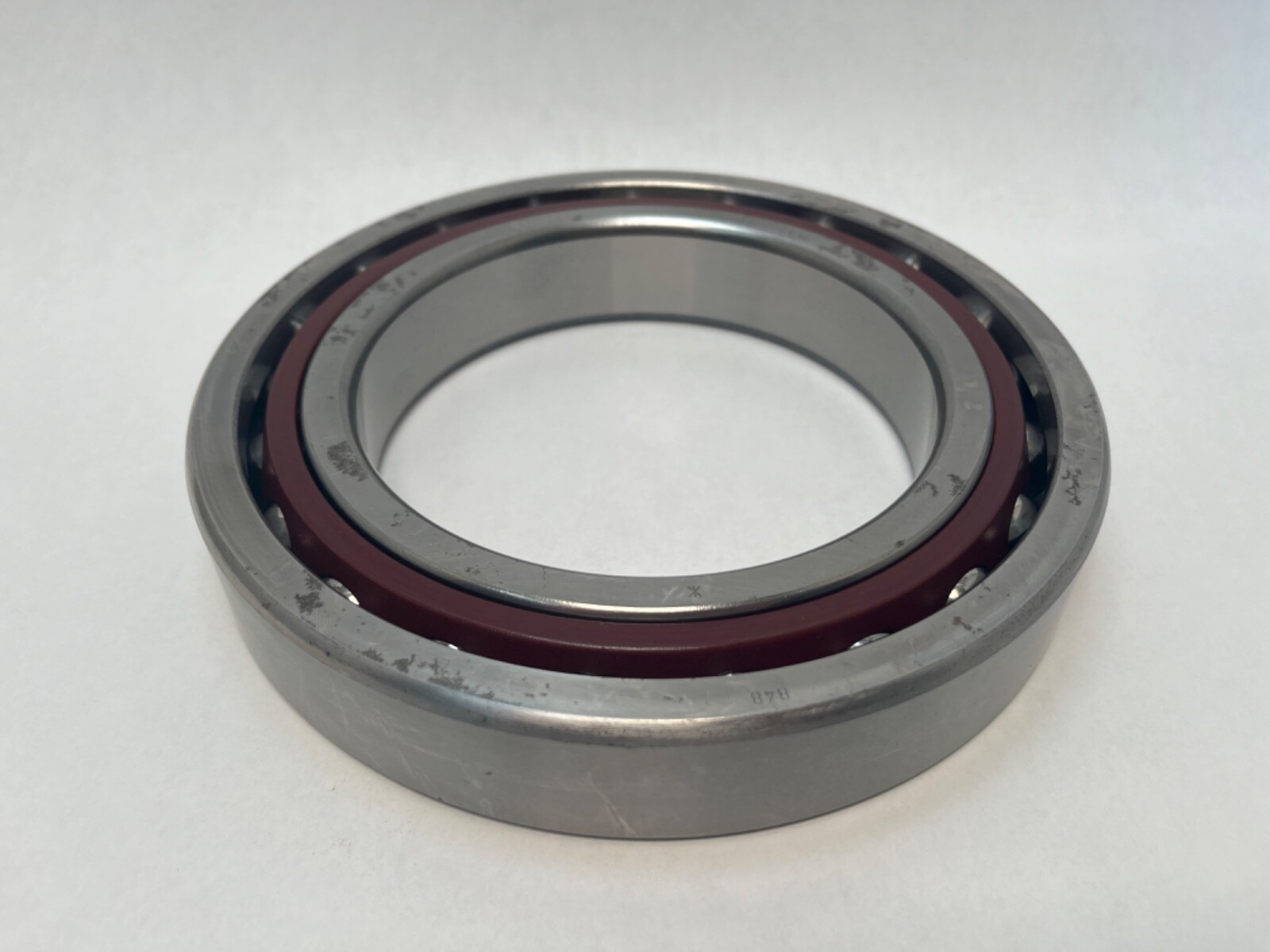

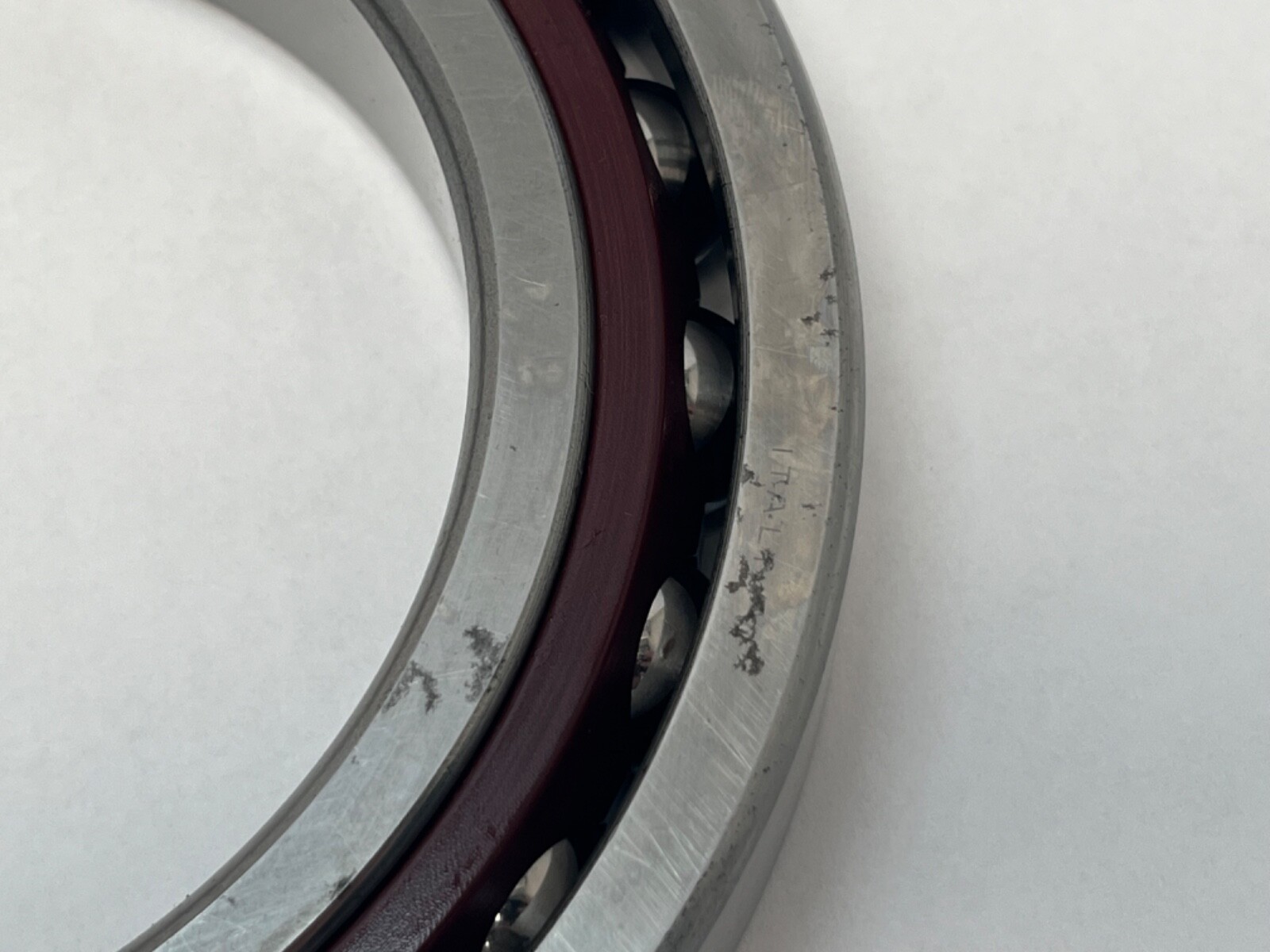

SKF 7026 C/P4DGVJ108 is a single row super-precision angular contact ball bearing in the ISO 70 dimension series, supplied as one bearing from a universally matchable pair. Bore Diameter: 130 mm. Outside Diameter: 200 mm. Overall Width: 33 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Bore Type: Straight. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Seal type: Open. Series: 7000. Unit Quantity: 1 Pc. Harmonization Code: 8482.10.50.28.
7026 — ISO 70 extra-light dimension series, bore code 26, 130 x 200 x 33 mm.
C — 15° contact angle.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
DG — universally matchable bearing, faces ground so it can be mounted in any arrangement with another DG bearing of the same execution.
The 15° contact angle favours radial stiffness and speed over axial capacity, the usual choice for machine-tool spindles. P4 tolerances hold bore, outside diameter and runout to super-precision limits.
Unit Quantity: 1 Pc. One bearing from a factory half-pair marking (-1/2PR).
Same-envelope 130 x 200 x 33 mm 15° P4 super-precision executions: FAG B7026-C-T-P4S-UL, NSK 7026CTYNSULP4, Fafnir 2MM9126WI (model marking on this listing).
