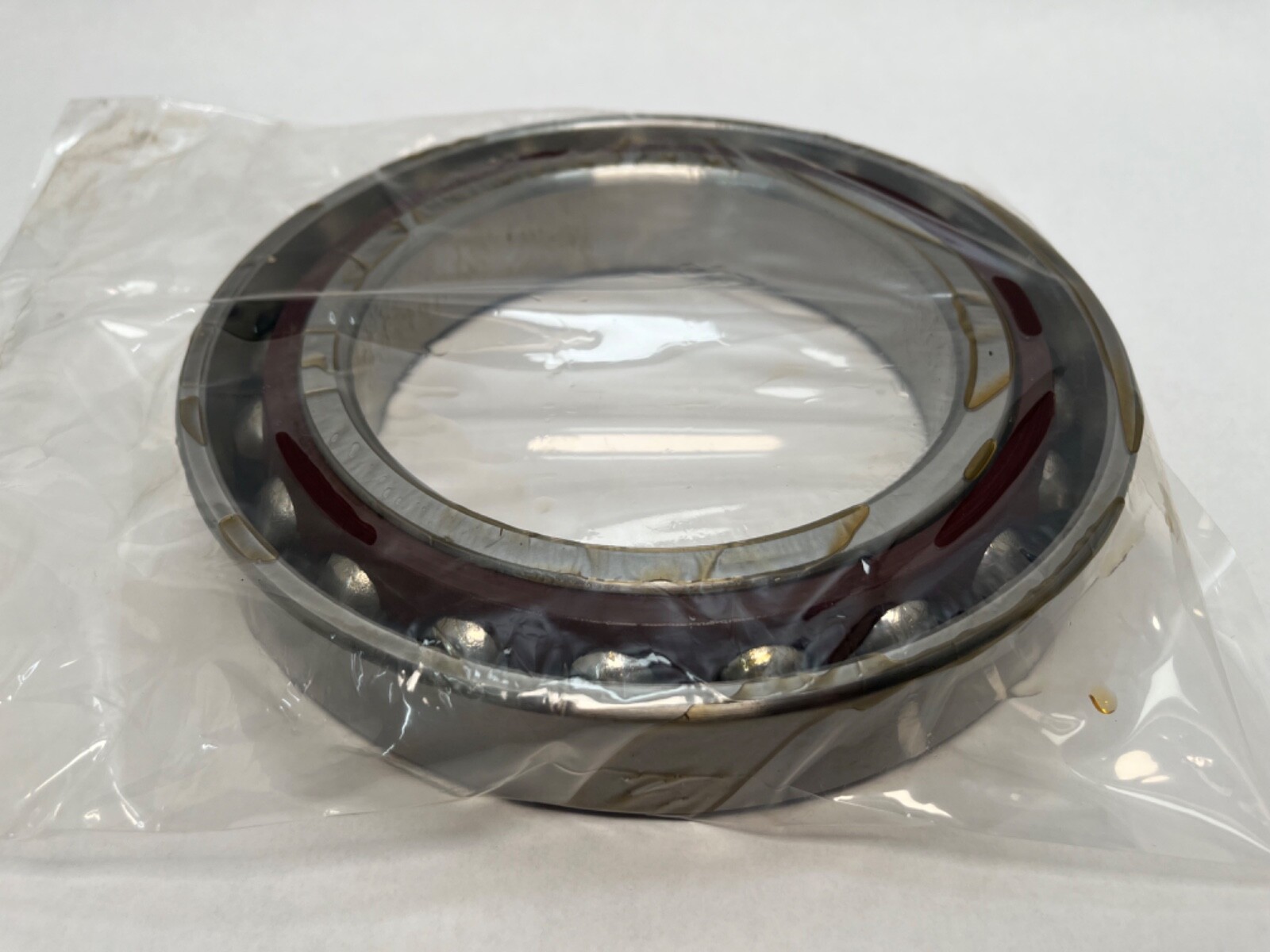

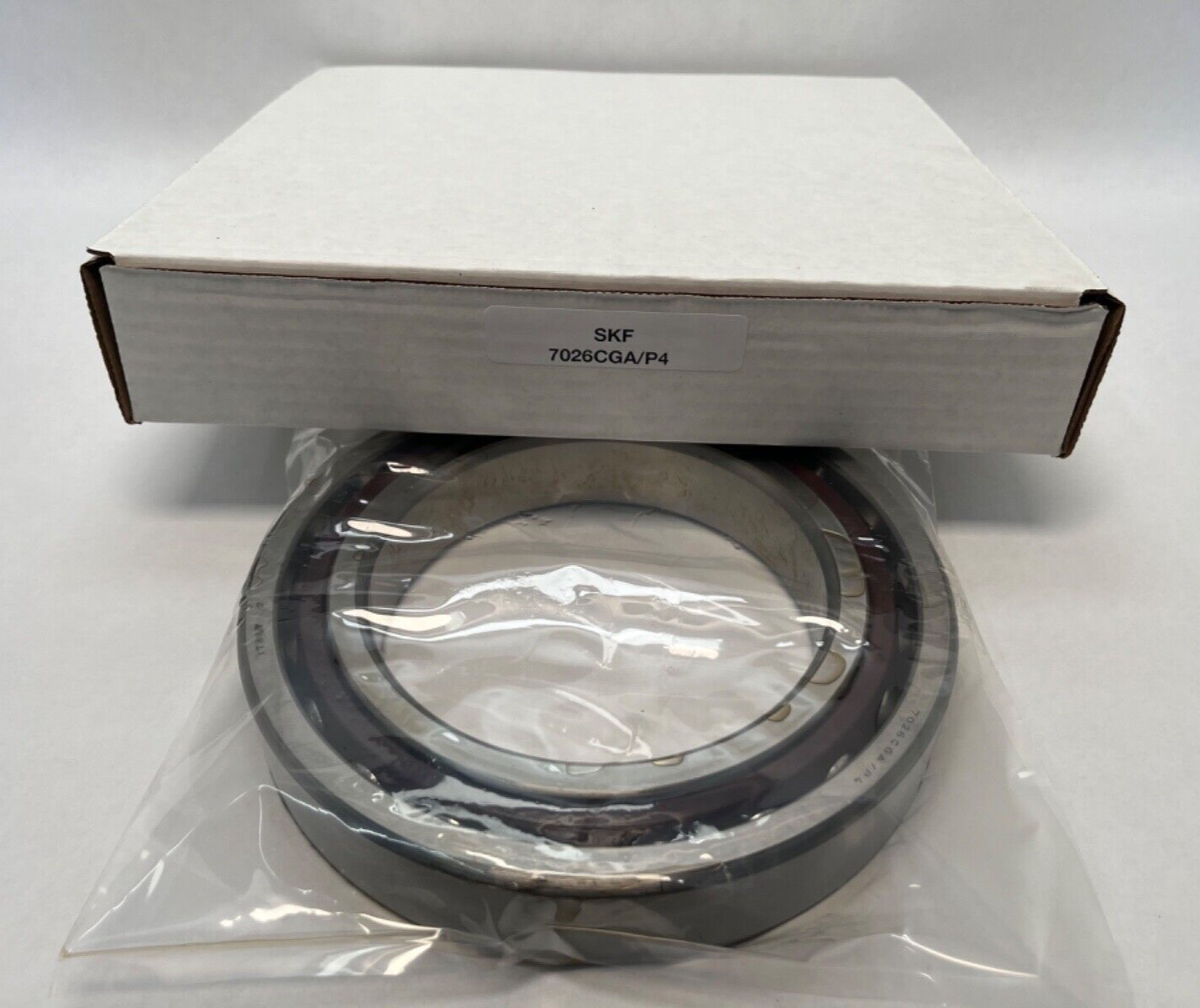

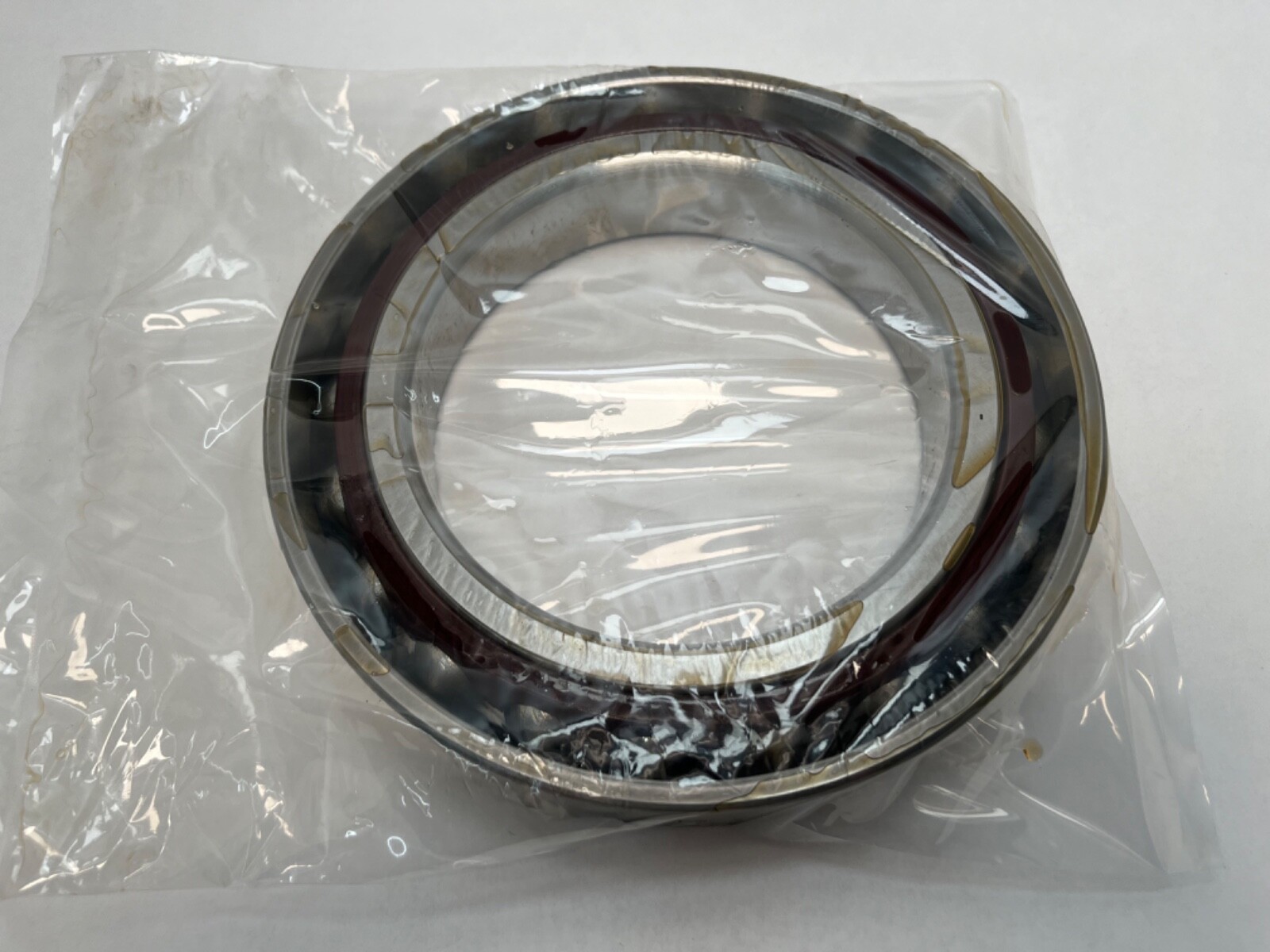

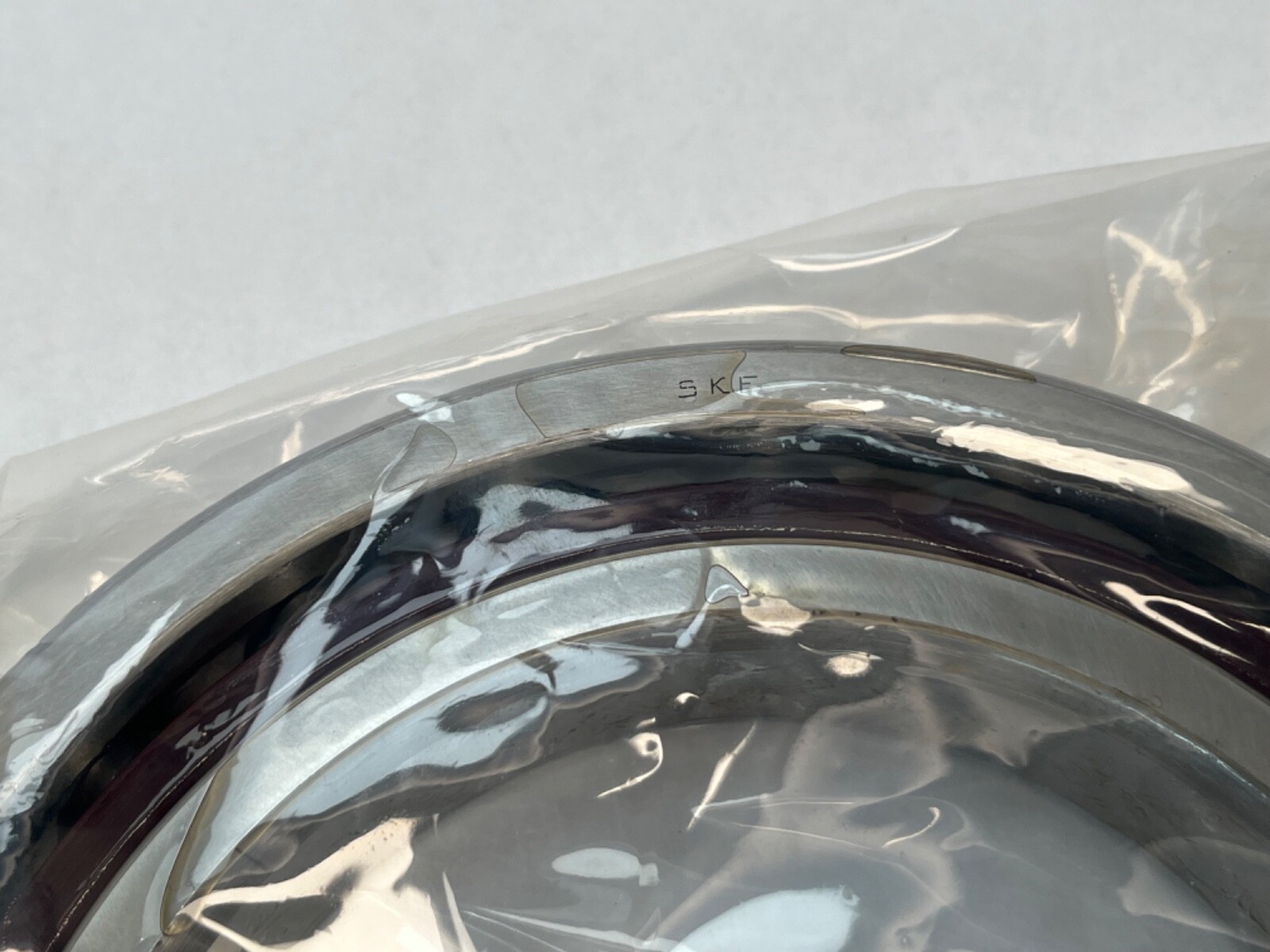

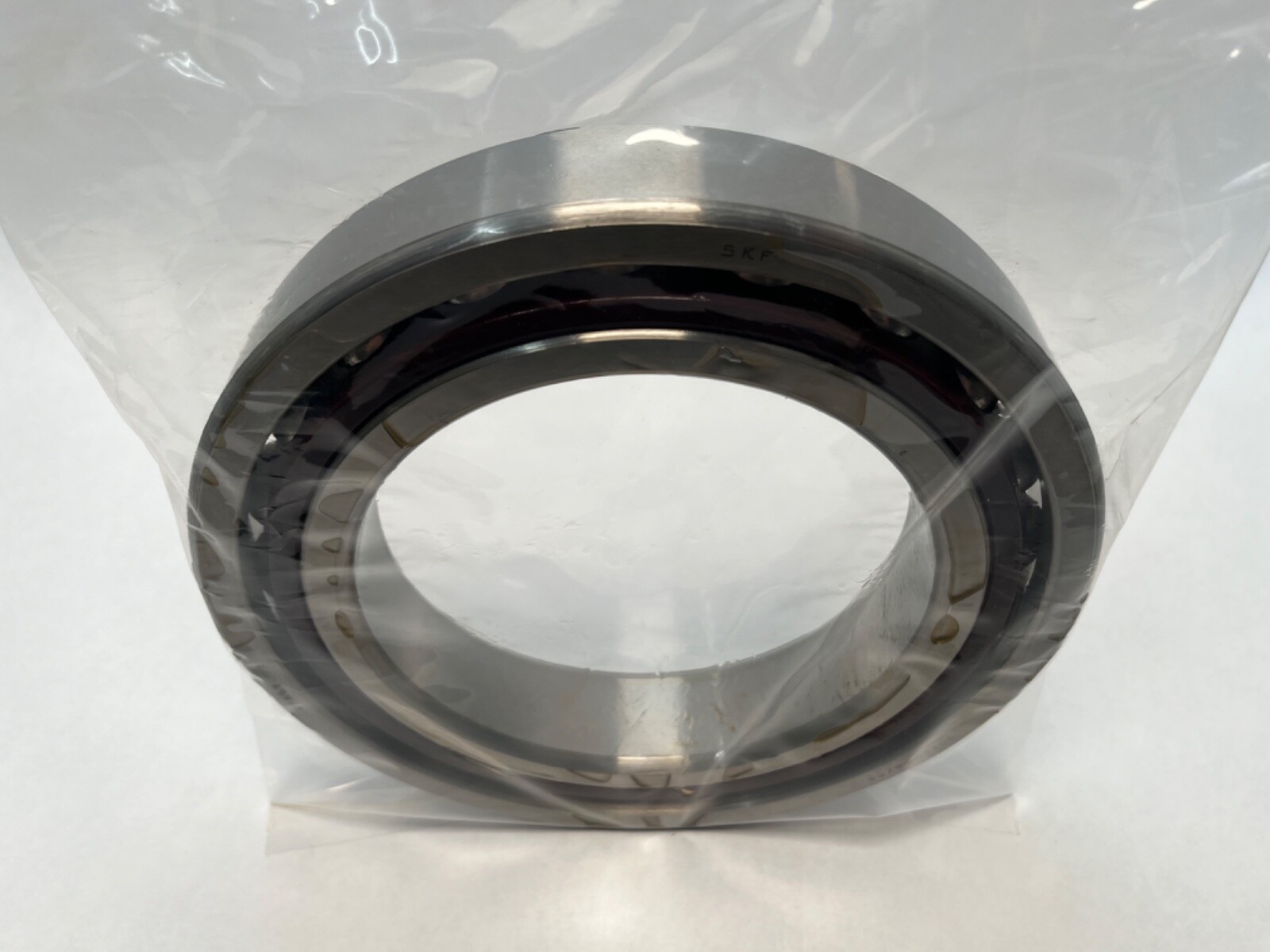

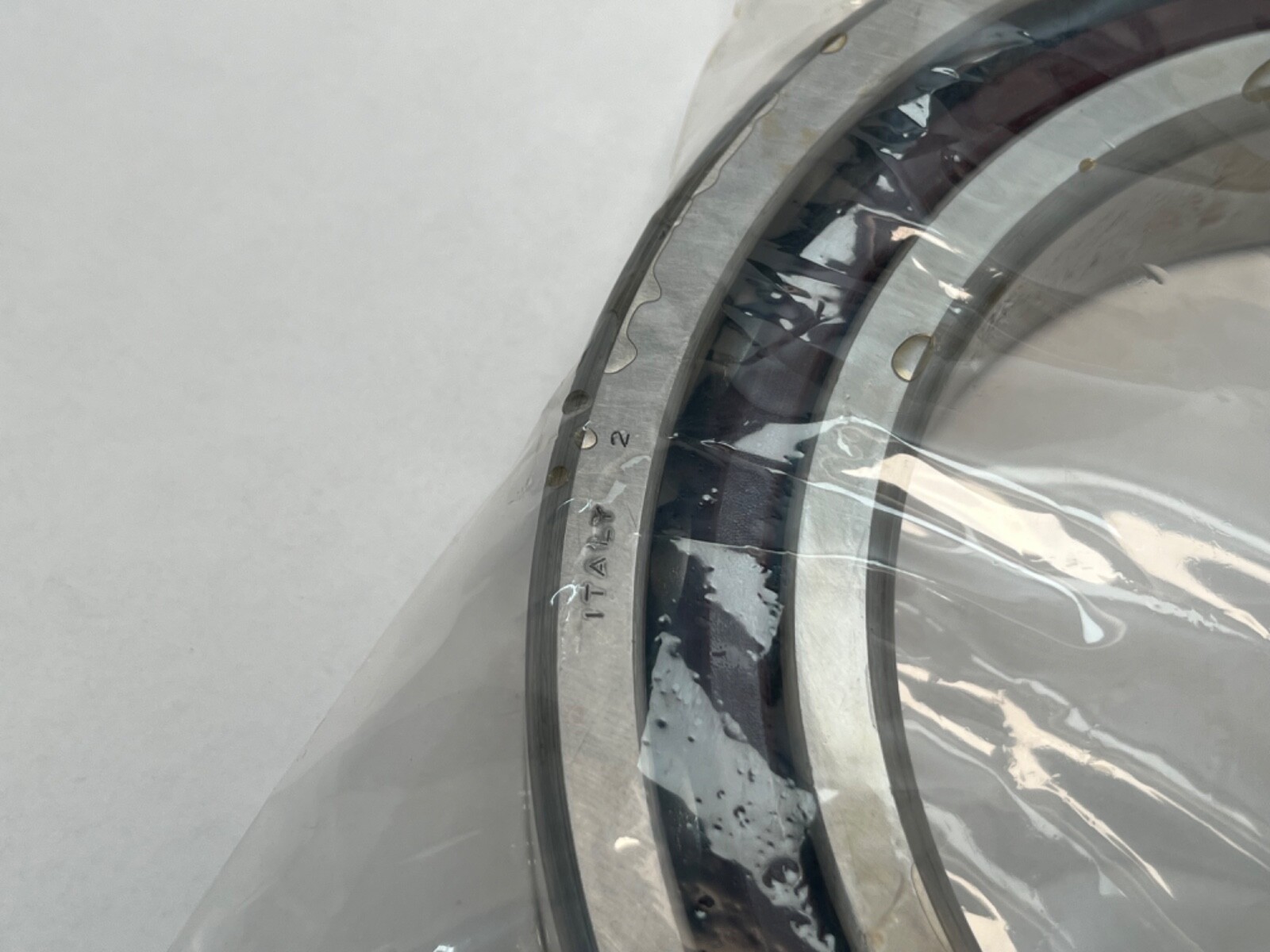

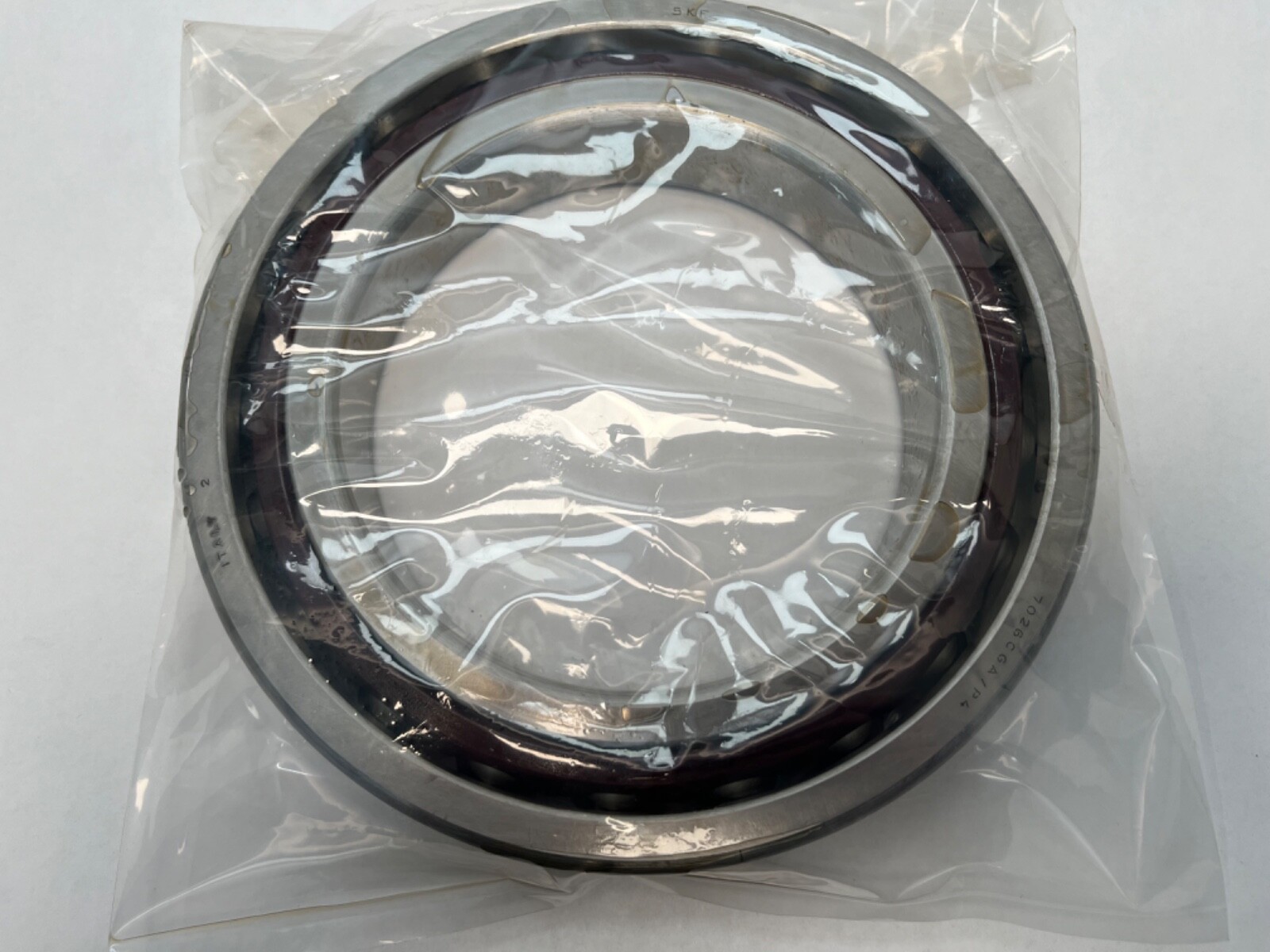

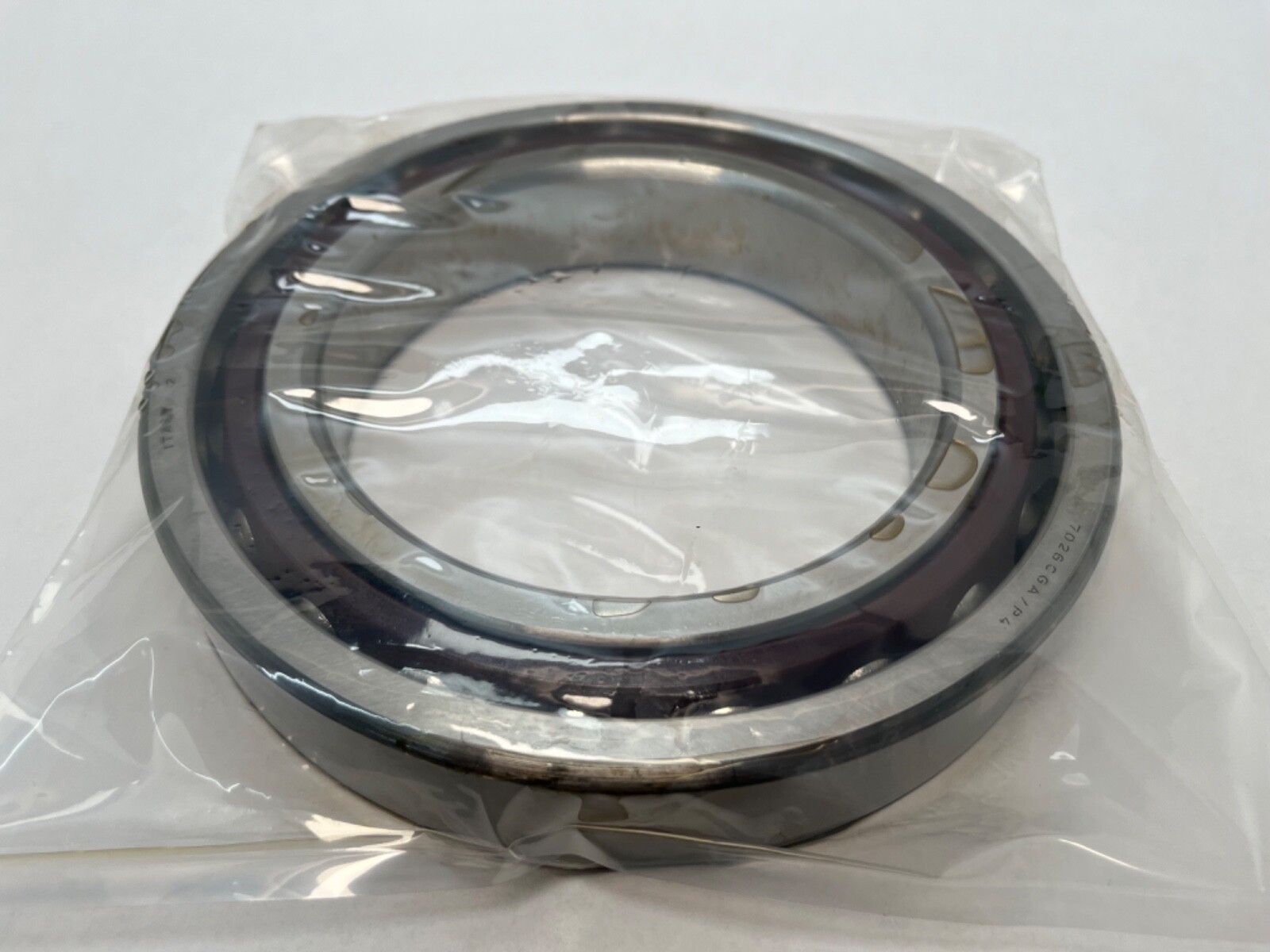

SKF 7026 CDGA/P4 super-precision angular contact bearing, 130 x 200 x 33 mm, 15° angle, extra light preload, ABEC 7. Dynamic rating 148,000 N, static 156,000 N.
List Price
$955.74
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7026 CDGA/P4 |
| Model | 7026CGAP4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Steel |
|---|---|
| Series | 7000 |
| Preload | Extra light (GA) |
| Mpn Variants | 7026 CDGA/P4, 7026CDGAP4, 7026-C-GA-P4, 7026CGAP4, 7026 CD/P4A DGA |
| Precision Class | ABEC 7 / P4 |
| Dynamic Load Rating | 148,000 N |
| Static Load Rating | 156,000 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 3.18 kg (7.01 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7026-C-T-P4S |
|---|---|
| Cross Reference 2 | NSK 7026C |
| Cross Reference 3 | NTN 7026C |
| Cross Reference 4 | Fafnir 2MM9126WI |
SKF 7026 CDGA/P4 is a super-precision, high-capacity single row angular contact ball bearing in the 70 series, with a 15° contact angle and extra light preload for universal matching. It carries combined radial and one-direction axial load in machine tool spindles.
70 — ISO dimension series 10, light section.
26 — bore code, 26 x 5 = 130 mm bore.
CD — 15° contact angle, high-capacity D design.
GA — single bearing for universal matching, extra light preload. Any two GA bearings mount back-to-back, face-to-face or in tandem.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
Bore Diameter: 130 mm. Outside Diameter: 200 mm. Width: 33 mm. Contact Angle: 15°. Dynamic Load Rating: 148,000 N. Static Load Rating: 156,000 N. Preload: Extra light (GA). Precision Class: ABEC 7 / P4. Number Of Rows: 1. Contact Type: Normal two-point contact. Design: High-capacity D. Bearing Material: Bearing steel. Closure Type: Open. Item Weight: 3.18 kg (7.01 lb).
The 15° angle favours speed and radial stiffness. The GA bearing is built to an extra light preload.
Unit Quantity: 1 Pc. Single universally matchable bearing: back-to-back, face-to-face or tandem with any other 7026 CDGA bearing.
Same envelope, 15° angle, super-precision class: FAG B7026-C-T-P4S, NSK 7026C, NTN 7026C, Fafnir 2MM9126WI. MPN variants: 7026 CDGA/P4, 7026CDGAP4, 7026-C-GA-P4, 7026CGAP4, 7026 CD/P4A DGA. Harmonization Code: 8482.10.50.
