SKF7026 CDGA/P4AAngular Contact Ball Bearing — Super-Precision P4A, 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Universally Matchable, Extra Light Preload

Product Description

What this part is:

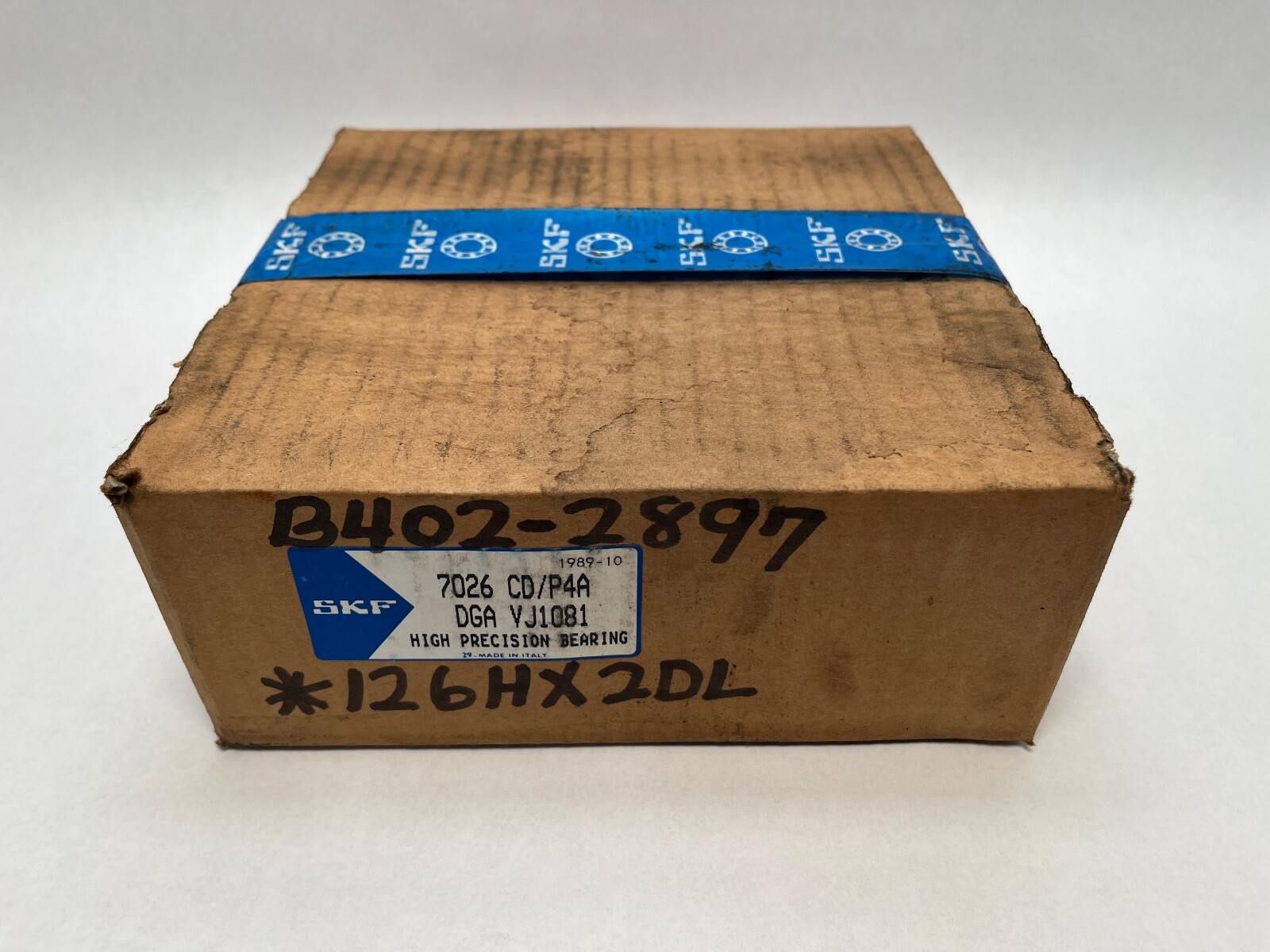

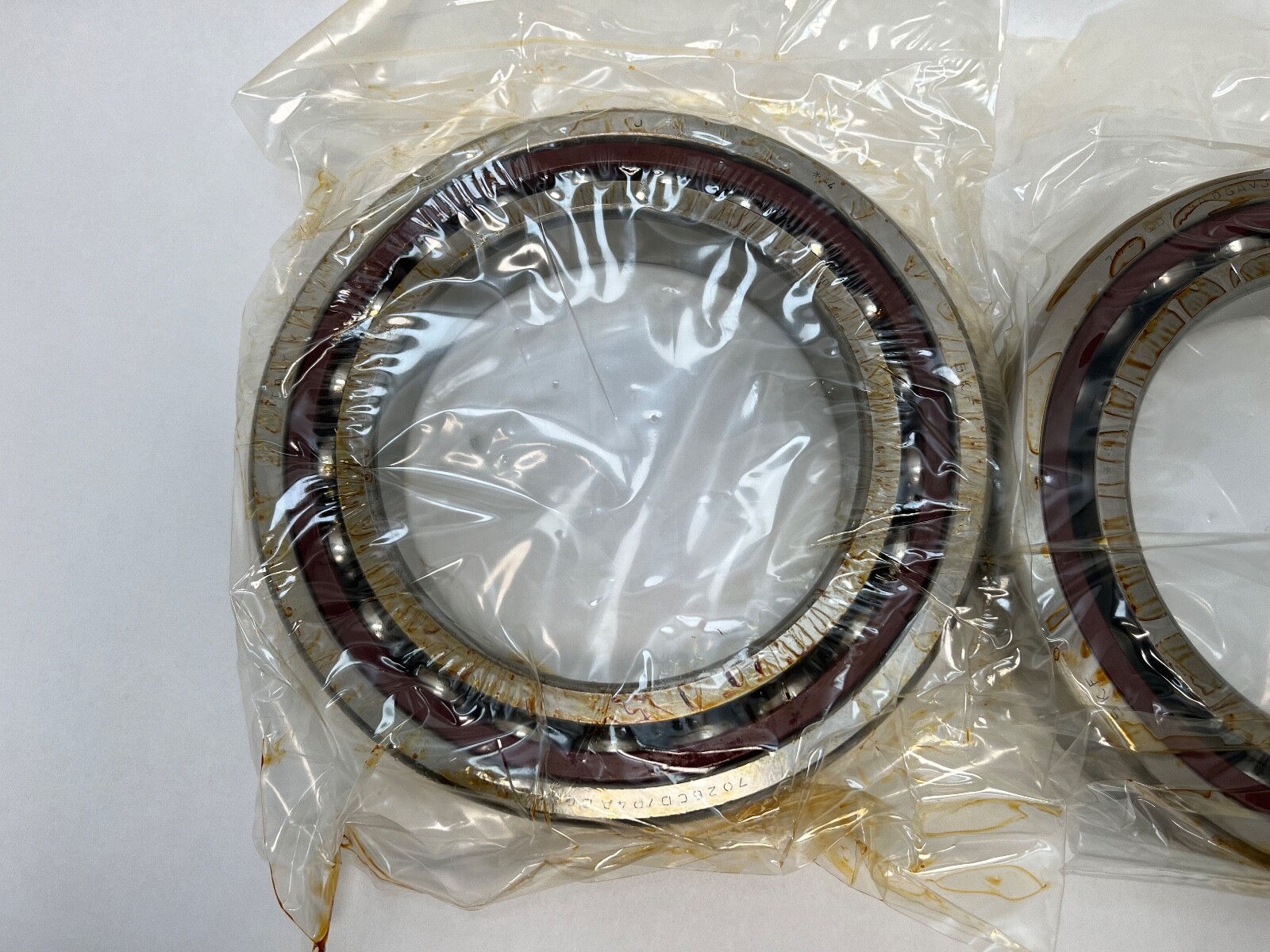

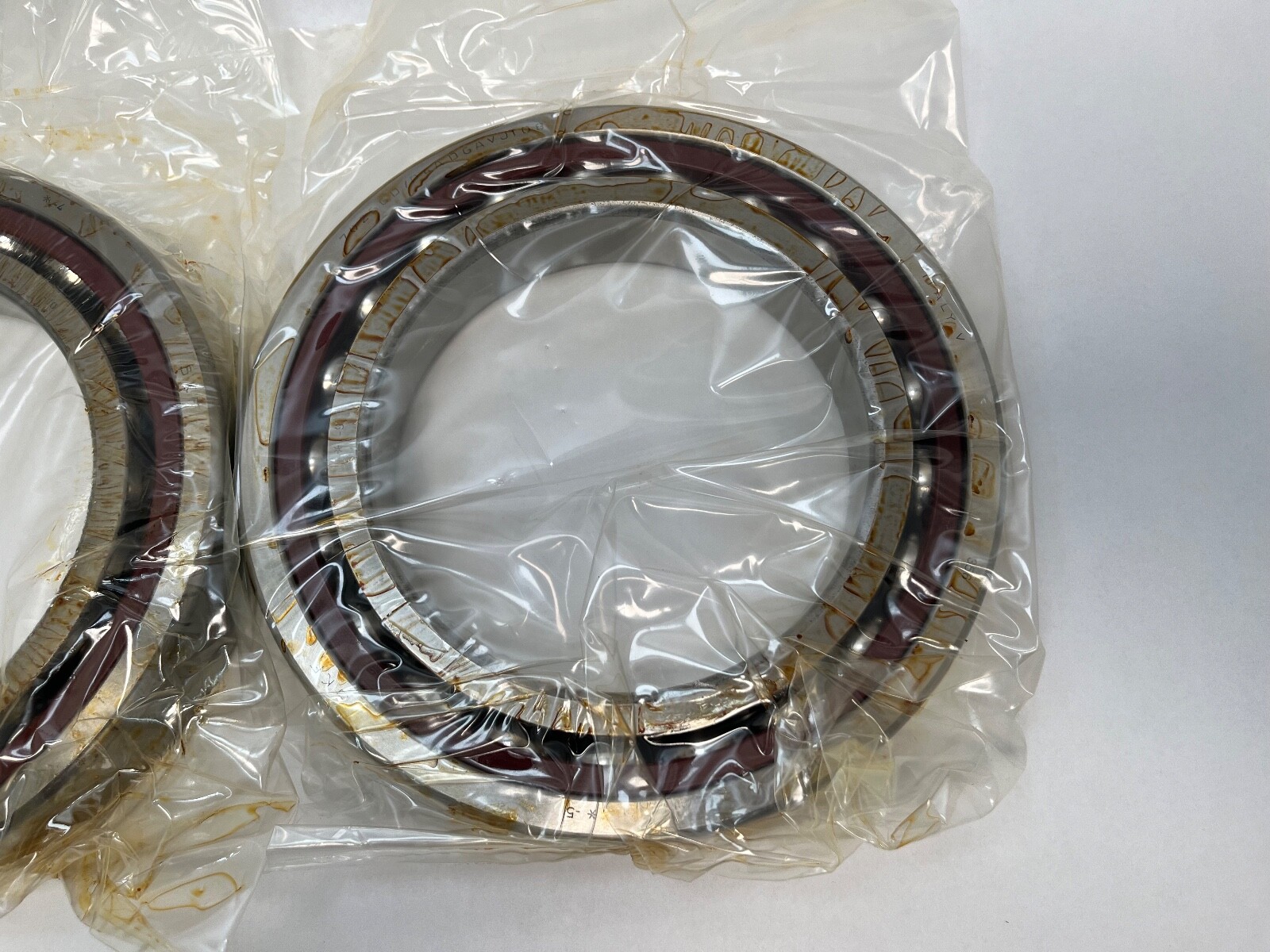

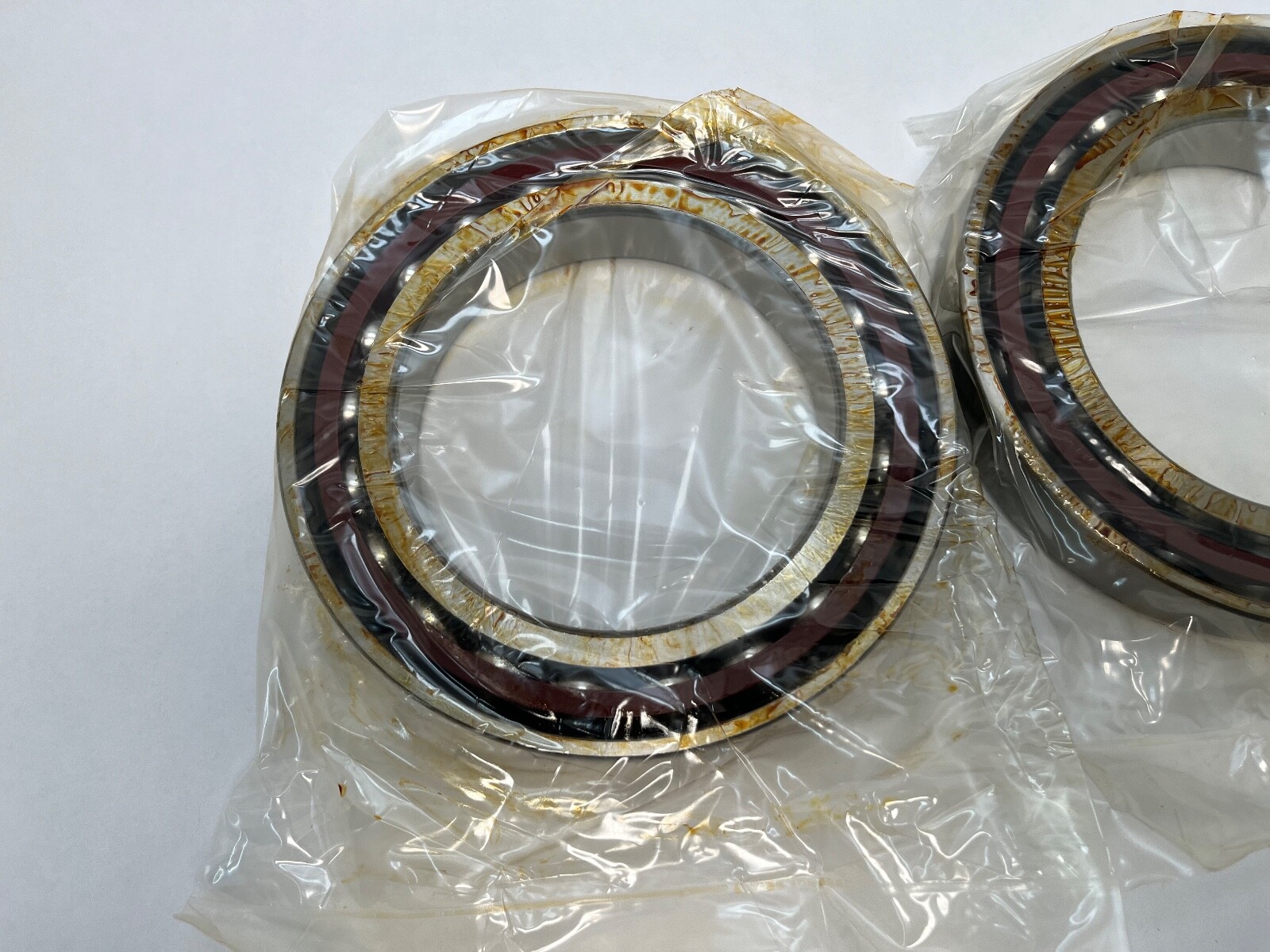

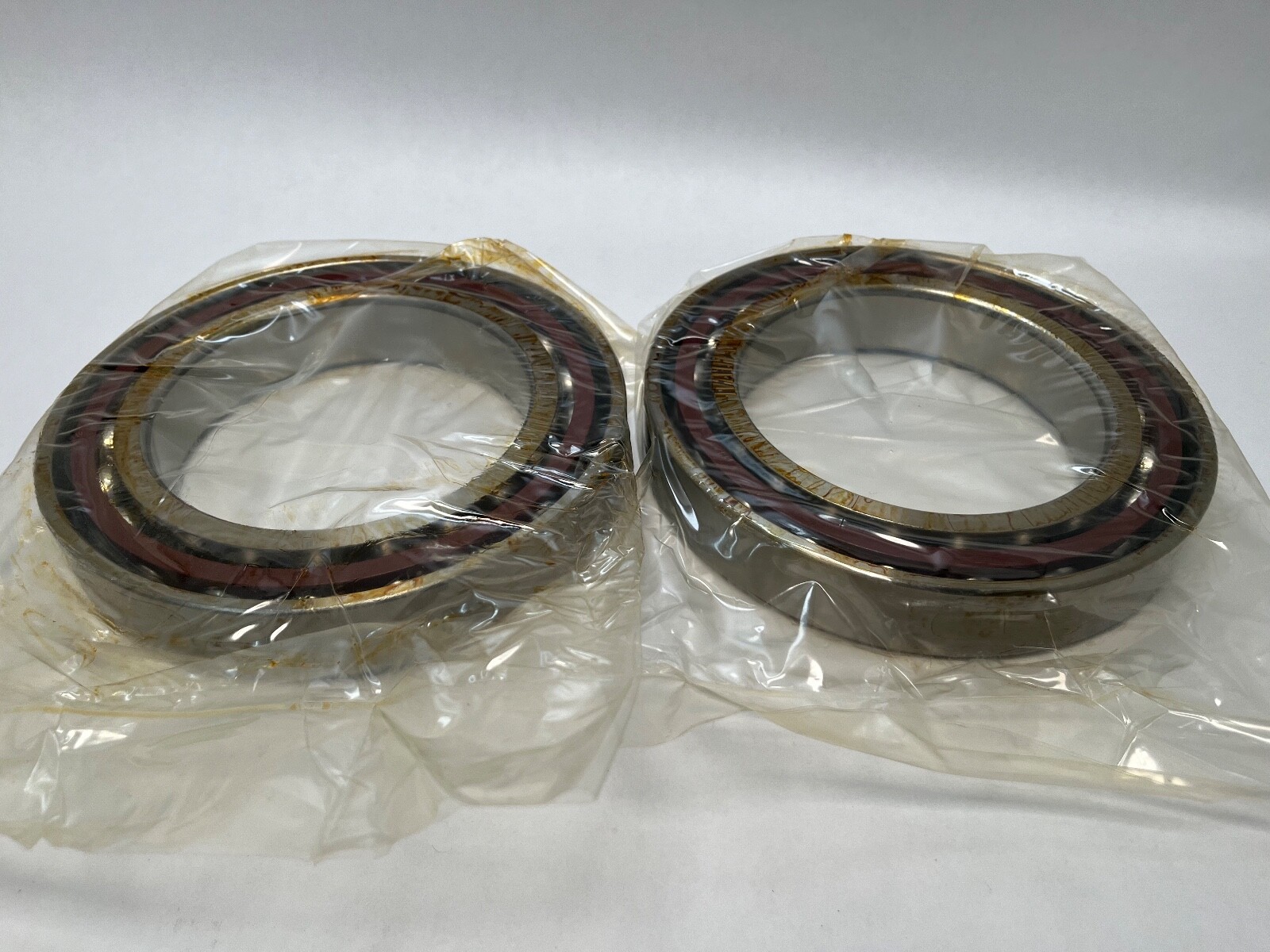

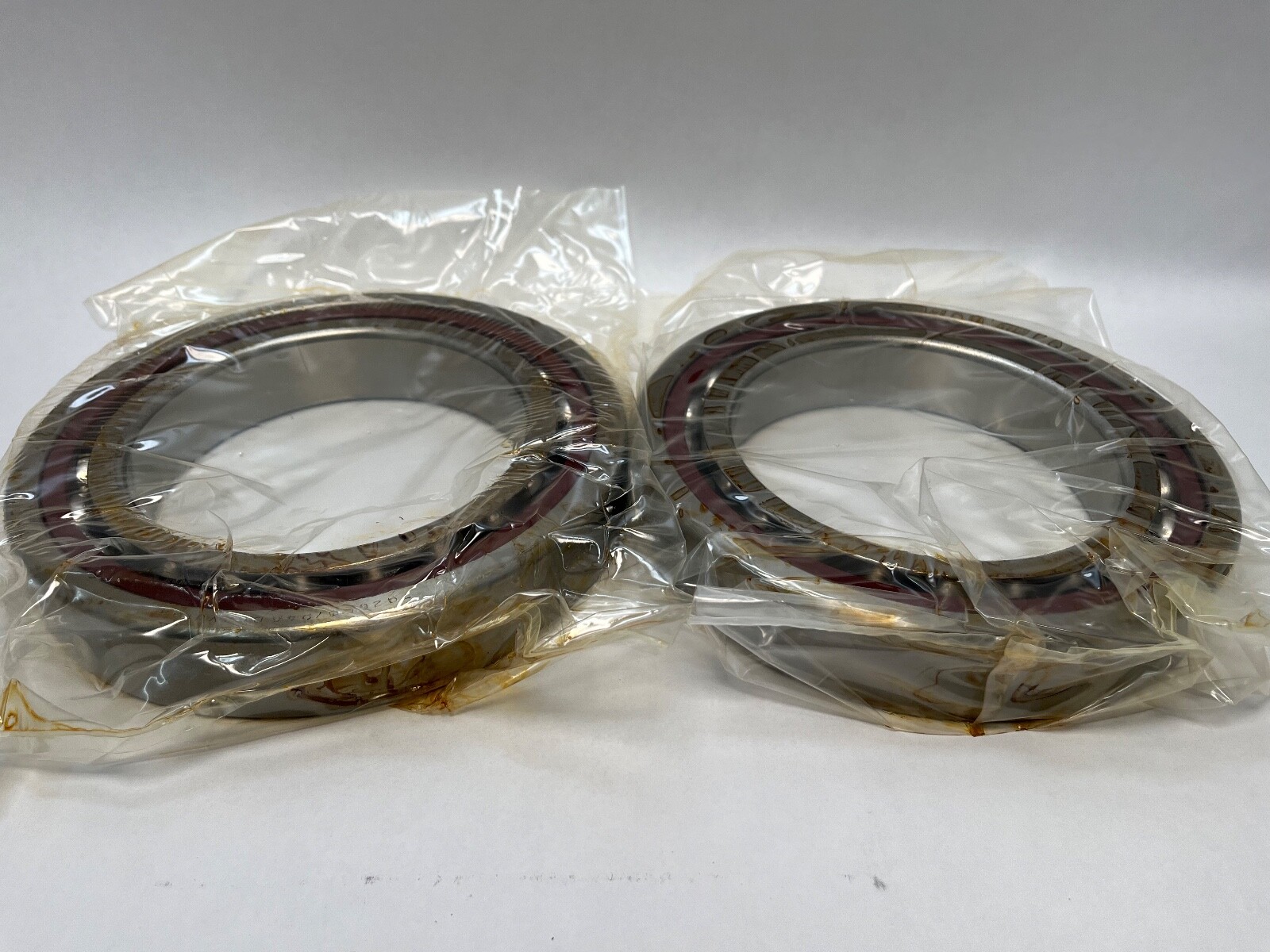

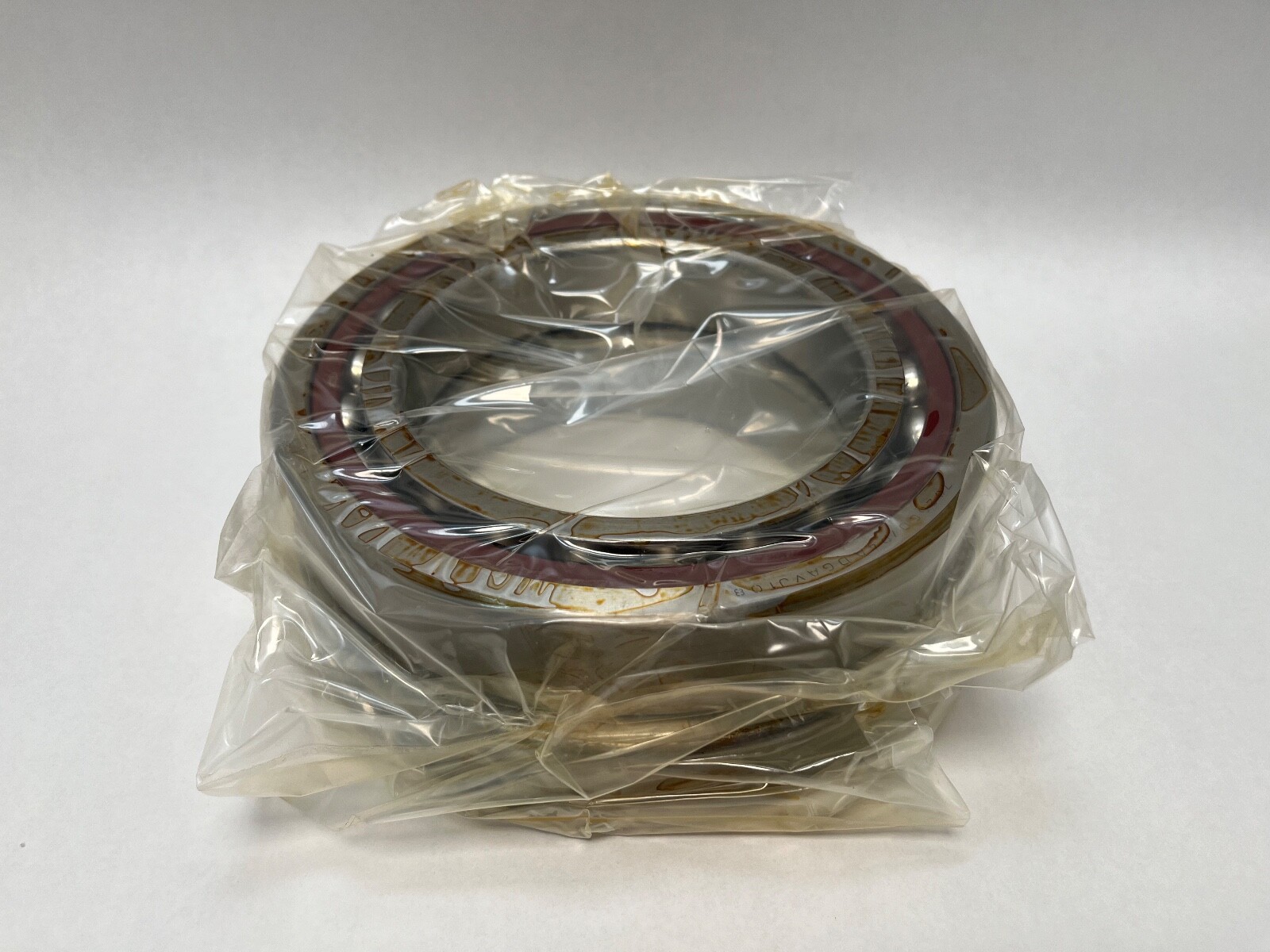

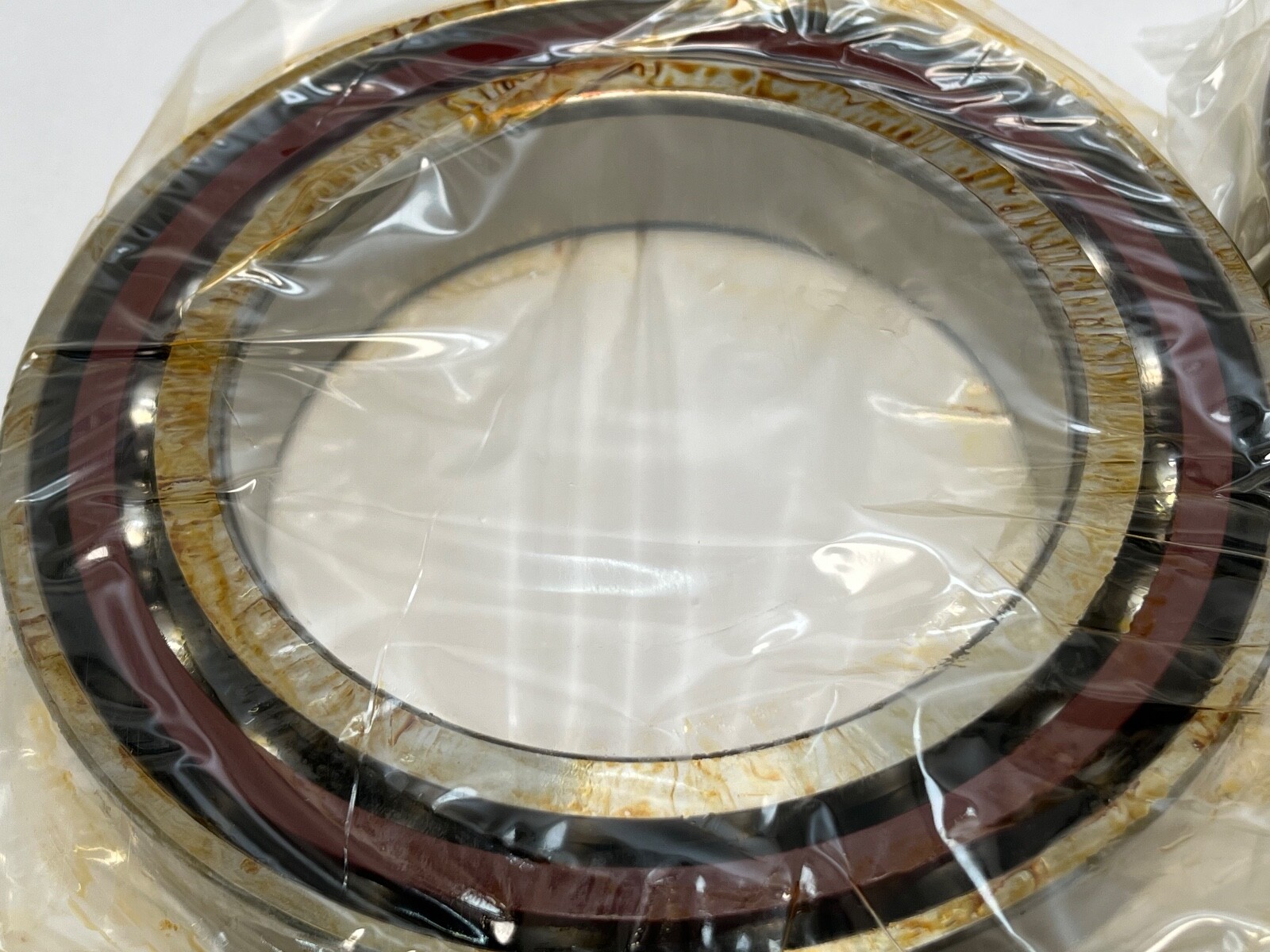

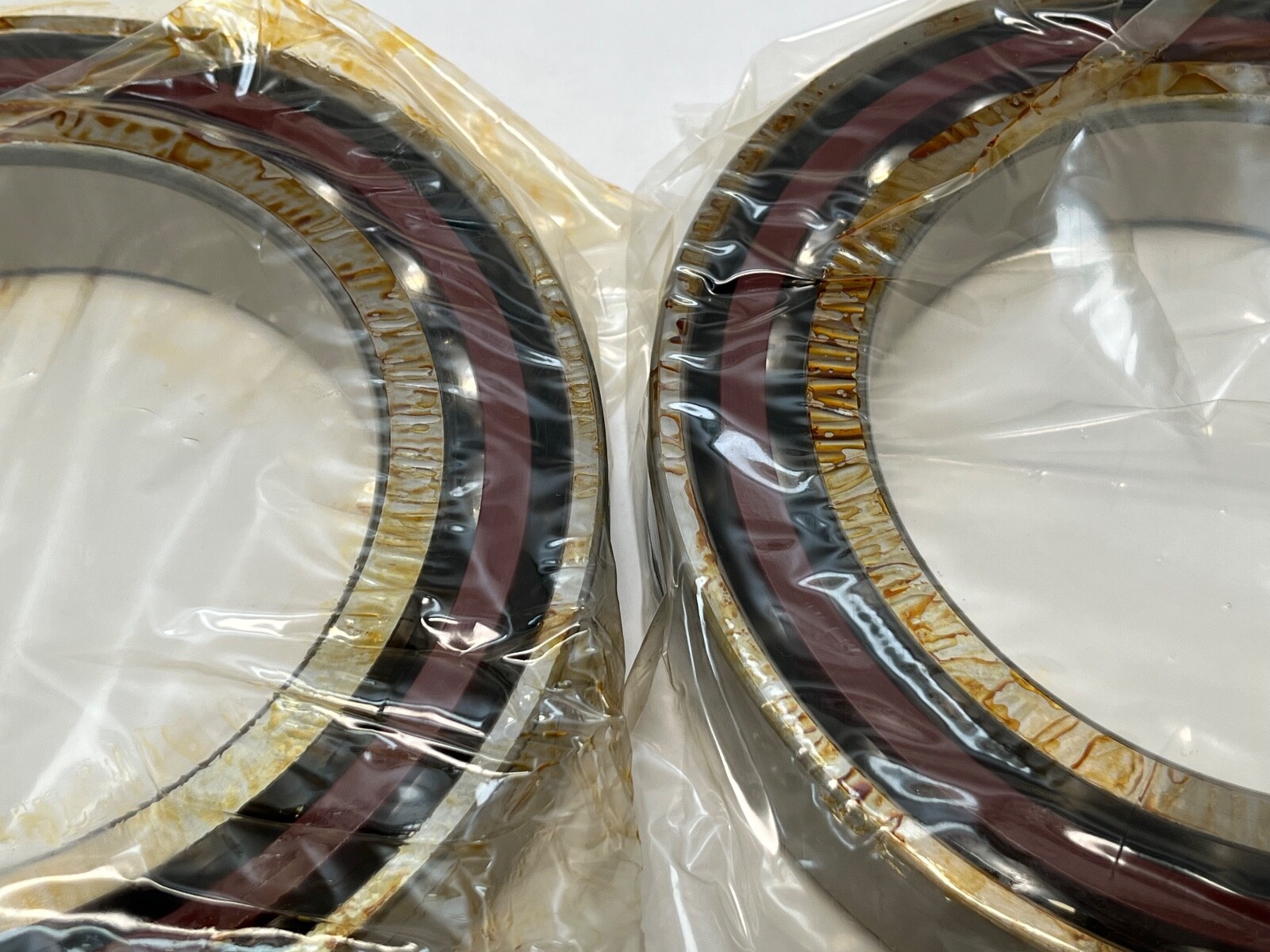

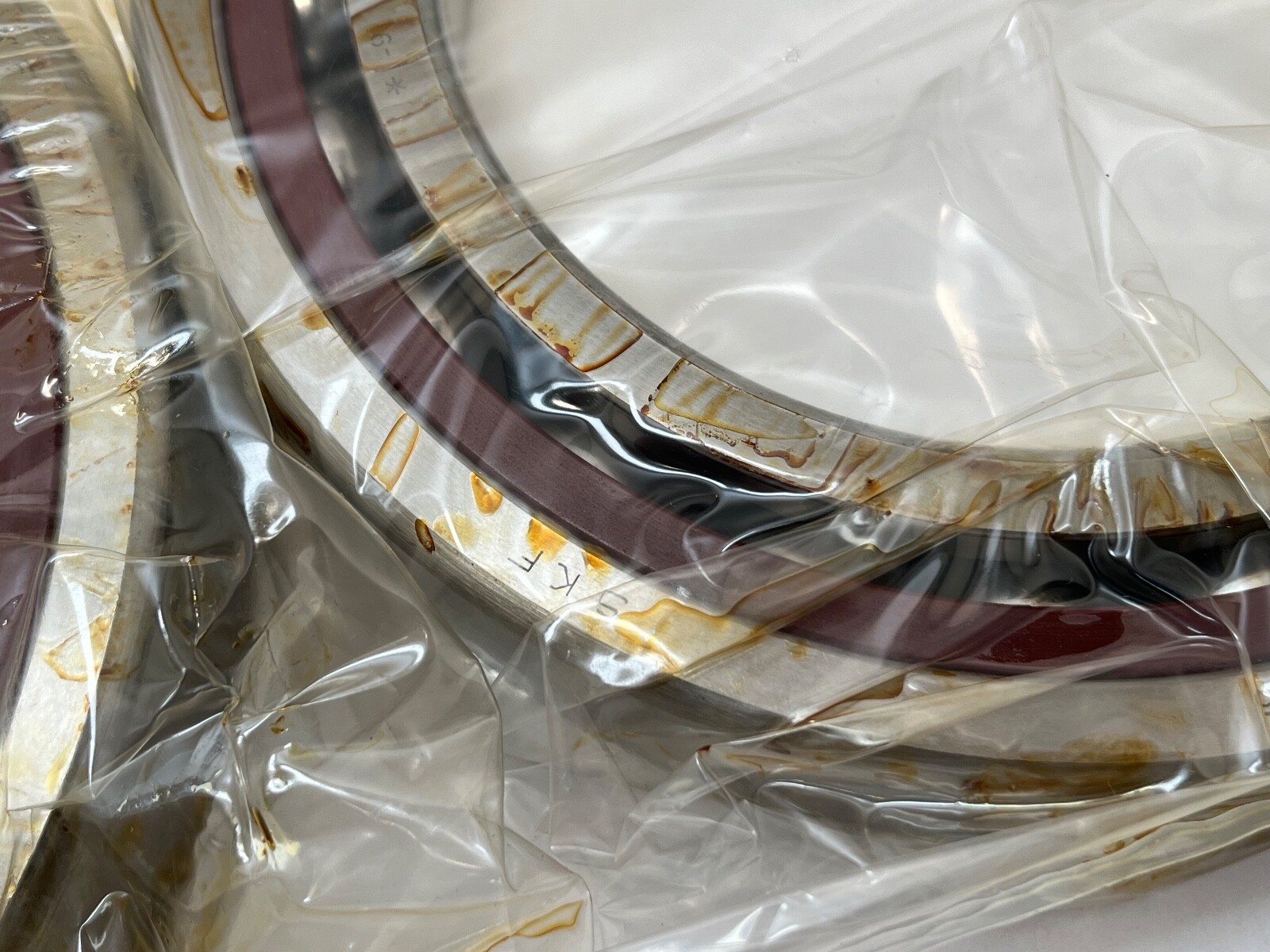

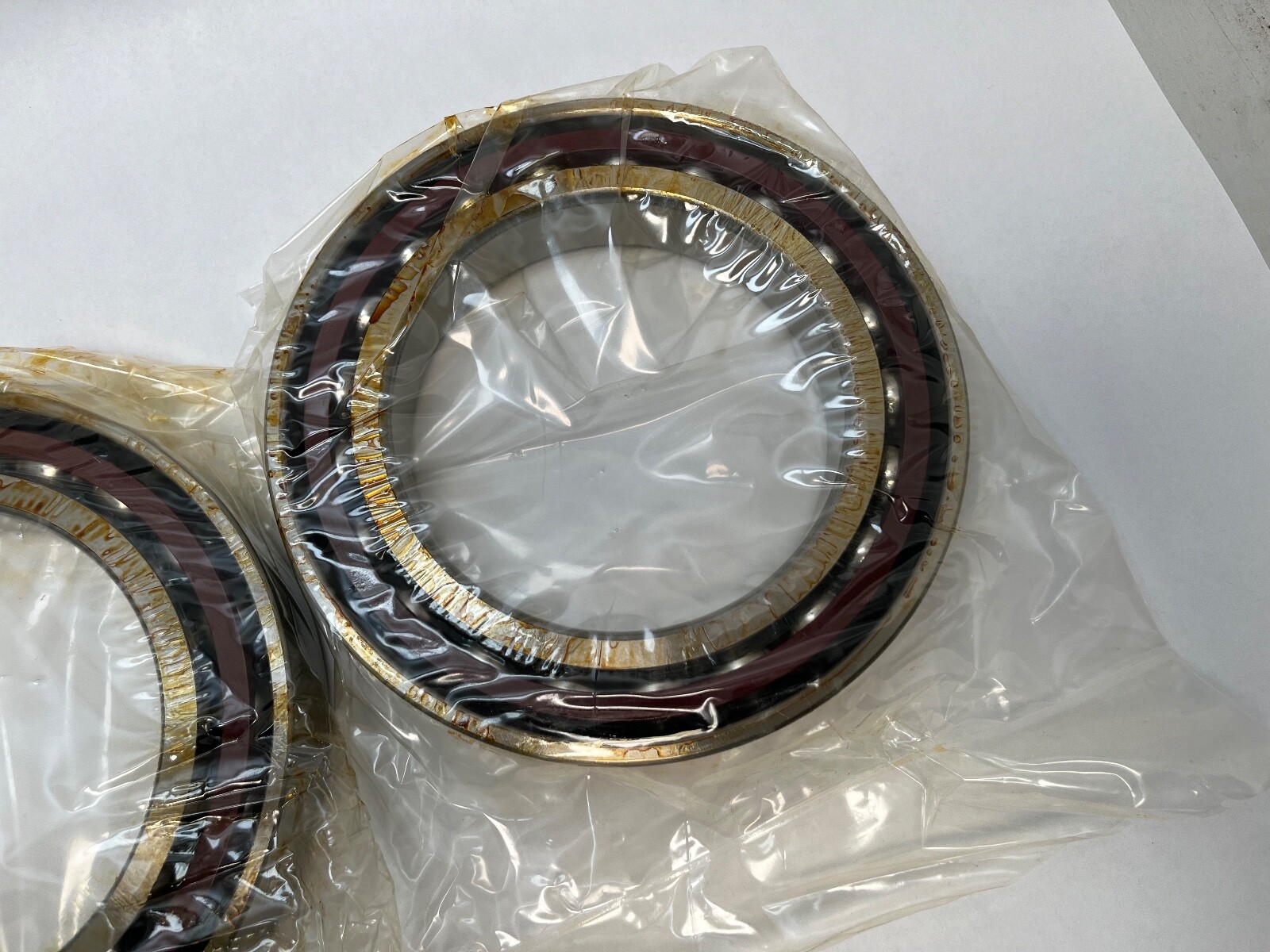

SKF 7026 CDGA/P4A super-precision, high-capacity, universally matchable single-row angular contact ball bearing, supplied as a set of 2 pieces. Open design, straight bore, 130 mm bore, 200 mm outside diameter, 33 mm width, 15° contact angle, precision class P4A.

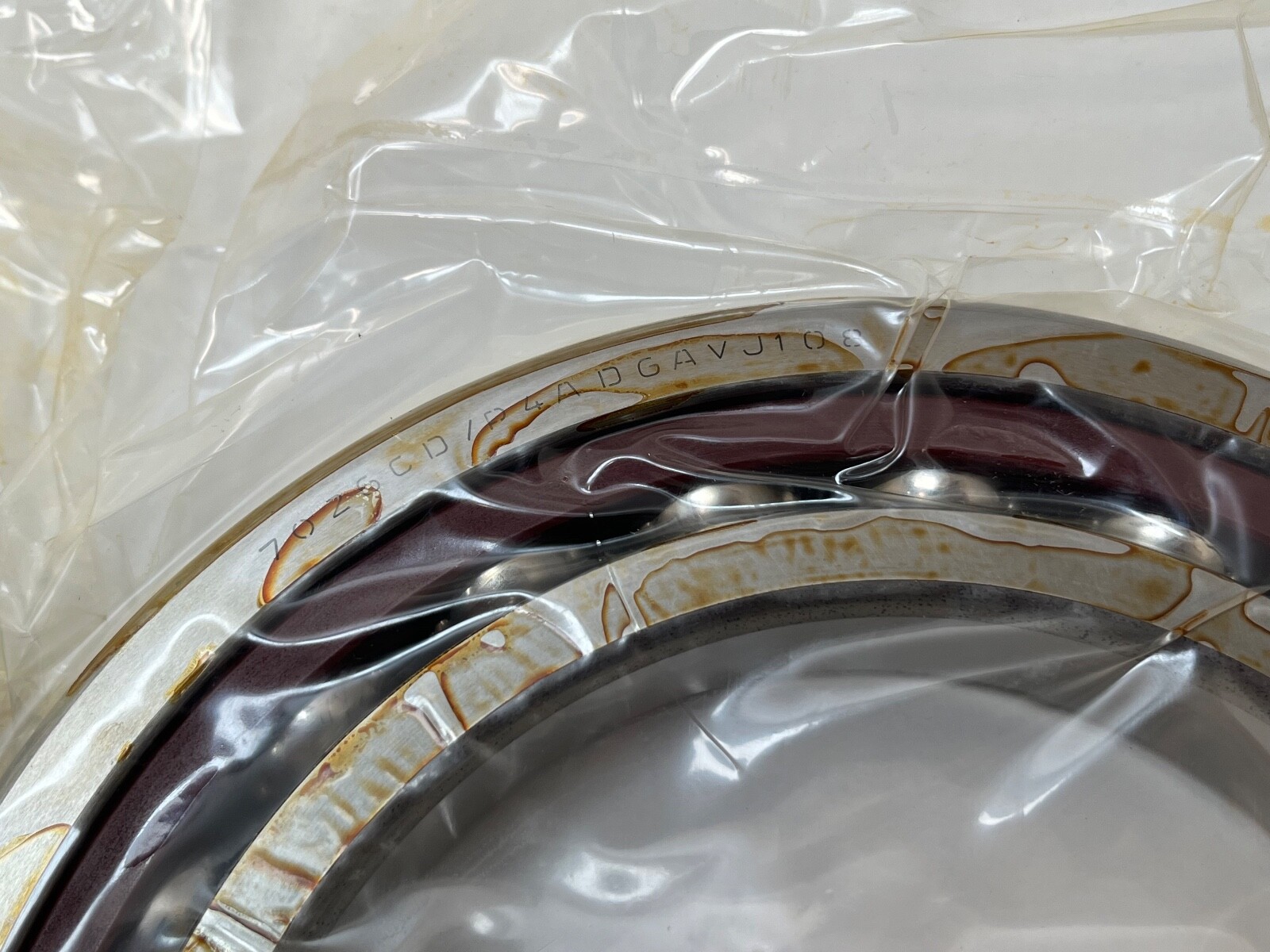

Decoding the designation:

70 — ISO dimension series 10. A 130 mm bore carries a 200 mm outside diameter in a 33 mm section.

26 — bore code. 26 × 5 = 130 mm.

C — 15° contact angle.

D — high-capacity internal design.

GA — universally matchable, extra light preload.

P4A — SKF super-precision tolerance class: P4 dimensional accuracy with tighter running accuracy.

Specifications:

Bore Diameter: 130 mm. Outside Diameter: 200 mm. Overall Width: 33 mm. Contact Angle: 15°. Dynamic Load Rating: 148,000 N per bearing. Static Load Rating: 156,000 N per bearing. Precision Class: P4A. Preload: Extra light (GA). Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Cage Type: Outer-ring shoulder-guided. Bearing Material: Bearing steel. Item Weight: 3.18 kg (7.01 lb) per bearing. Unit Quantity: 2 Pcs. Harmonization Code: 8482.10.50.

Dimensions and mounting:

Bore Type: Straight. Mounting Arrangement: universally matchable, back-to-back, face-to-face or tandem. Both rings are one piece. Contact type: normal, two-point. Supplied open, without lubricant.

Compatibility and replacement:

Same envelope, same 15° angle, super-precision class: Timken/Fafnir 2MM9126WICRSUL, FAG B7026-C-T-P4S-UL, NSK 7026CTRSULP4, RHP 7026X2TRSULP4. GB (light preload) and GC (medium preload) are separate SKF designations on the same envelope.

Frequently asked questions:

What are the dimensions of the SKF 7026 CDGA/P4A?

Bore 130 mm, outside diameter 200 mm, width 33 mm.

What are the load ratings?

Dynamic load rating 148,000 N and static load rating 156,000 N, each per bearing.

What does GA mean in the designation?

GA marks a universally matchable bearing with extra light preload, mountable back-to-back, face-to-face or in tandem.
