Angular contact ball bearing, 90 x 140 x 24 mm, 15° contact angle, ISO 70 series. SKF 7018 CTC C78 US-designation execution, single row, open.
List Price
$194.09
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing 90x140x24 mm 15° ABEC 7 Light Preload$168.28
Super-Precision Angular Contact Ball Bearing — 90 mm ID, 140 mm OD, 24 mm Width, 15° Contact Angle, Phenolic Cage, Medium Preload, ABEC 9$182.62
Angular Contact Ball Bearing - 90 mm ID, 140 mm OD, 24 mm Width, Open, 15° Contact Angle, Light Preload, Phenolic Cage, P6 / ABEC 3$214.98
Super Precision Angular Contact Ball Bearing 90x140x24 mm, 15° Contact Angle, Phenolic Cage, ABEC 7, Light Preload, Universally Ground, Single Bearing (Half Pair)$276.00| MFR / Brand | SKF |
|---|---|
| MPN | 7018CTCC78 |
| Model | 7018 C TC C78 / 2M9118WI CR / ABEC5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Mpn Variants | 7018CTCC78, 7018 CTC/C78, 7018-CTC-C78, 7018C, 2M9118WICR |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |

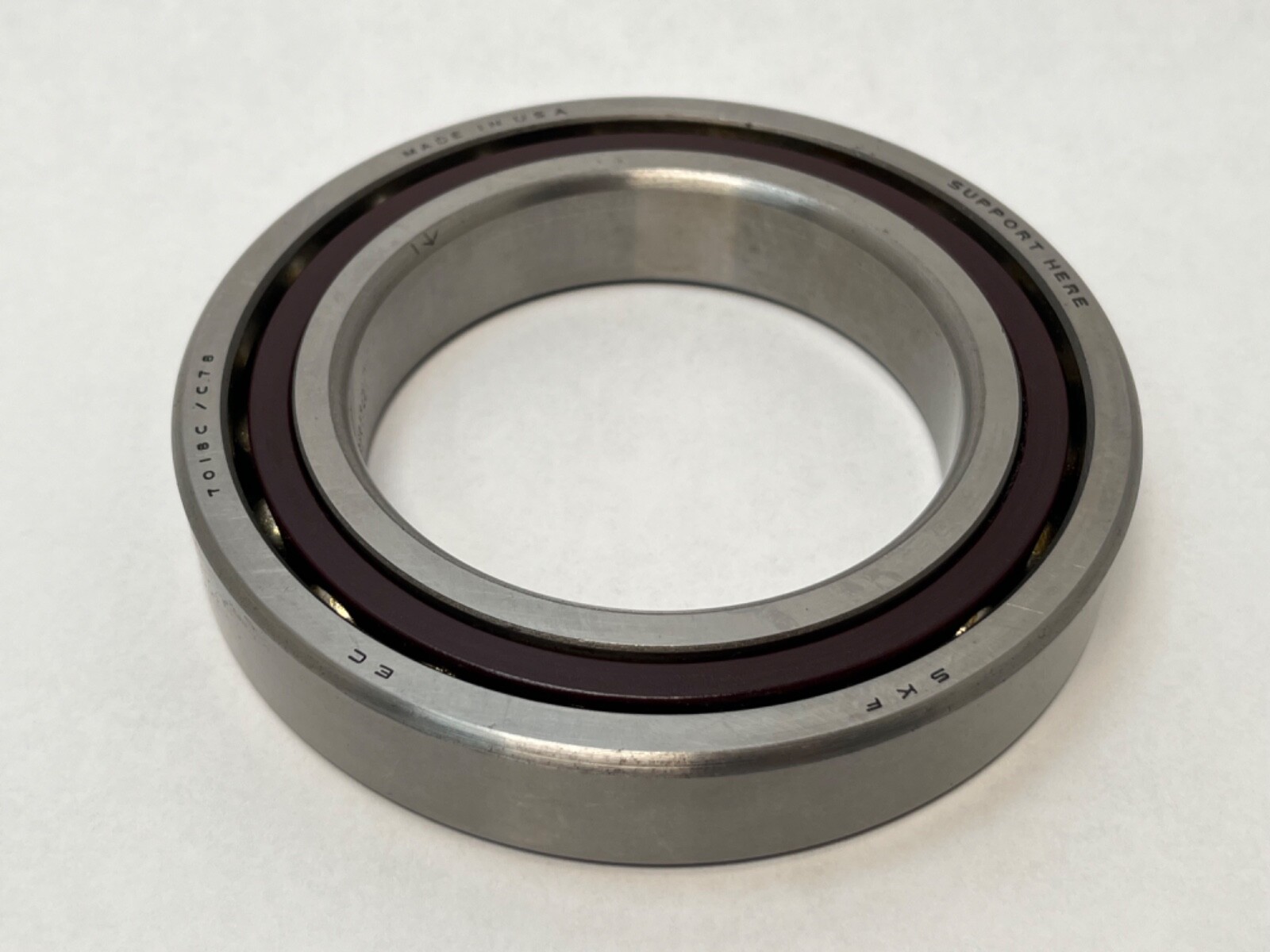

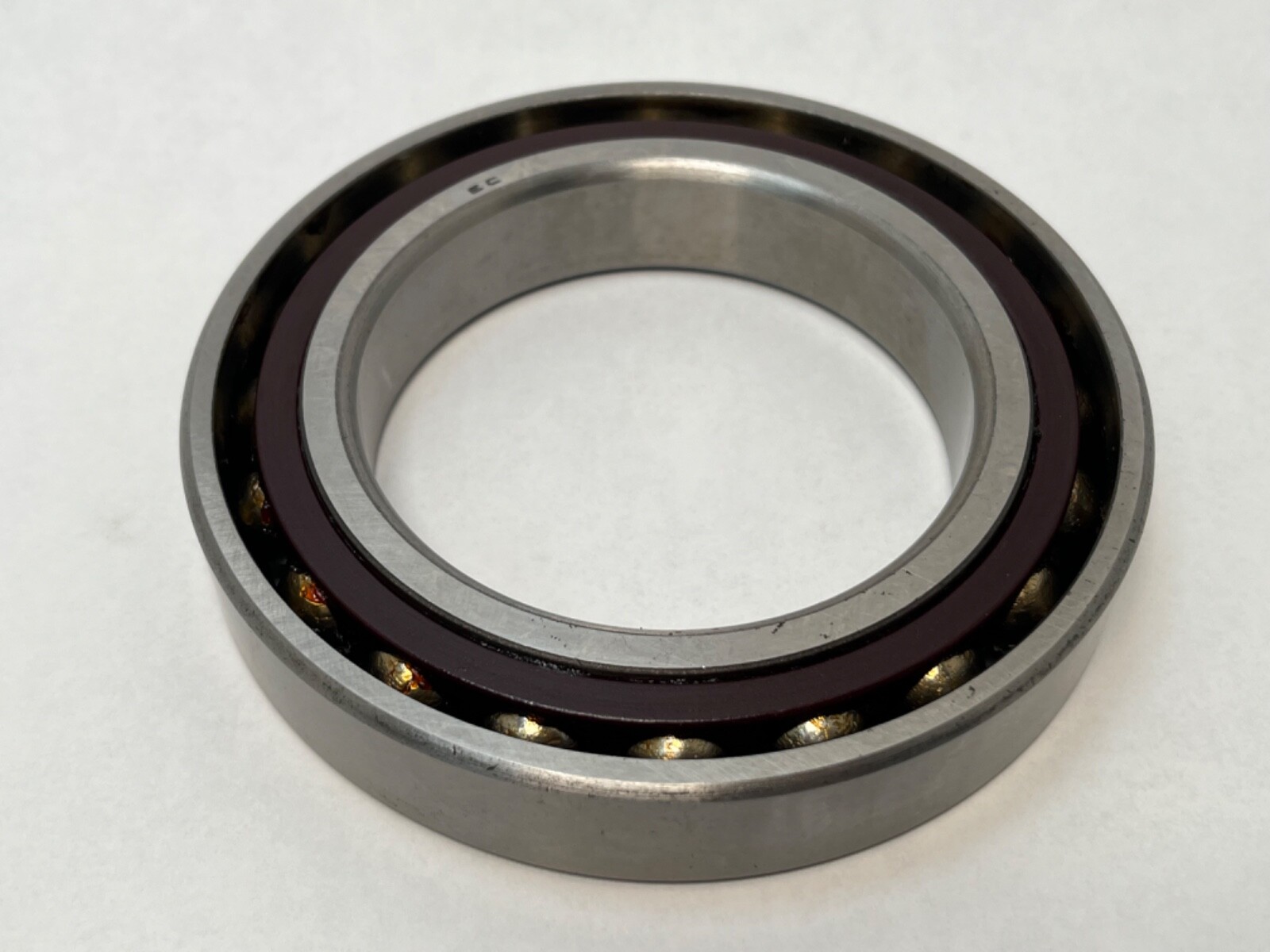

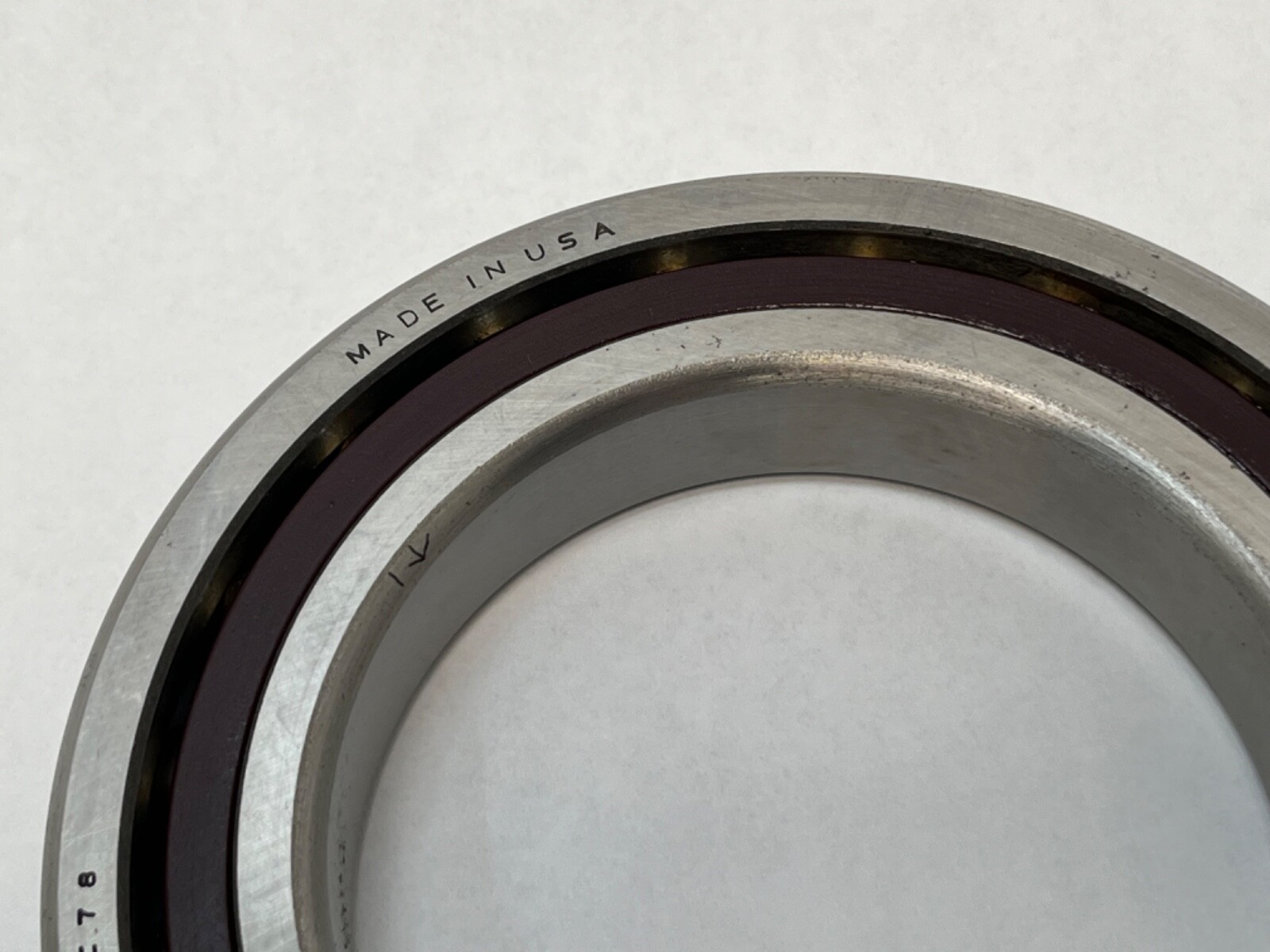

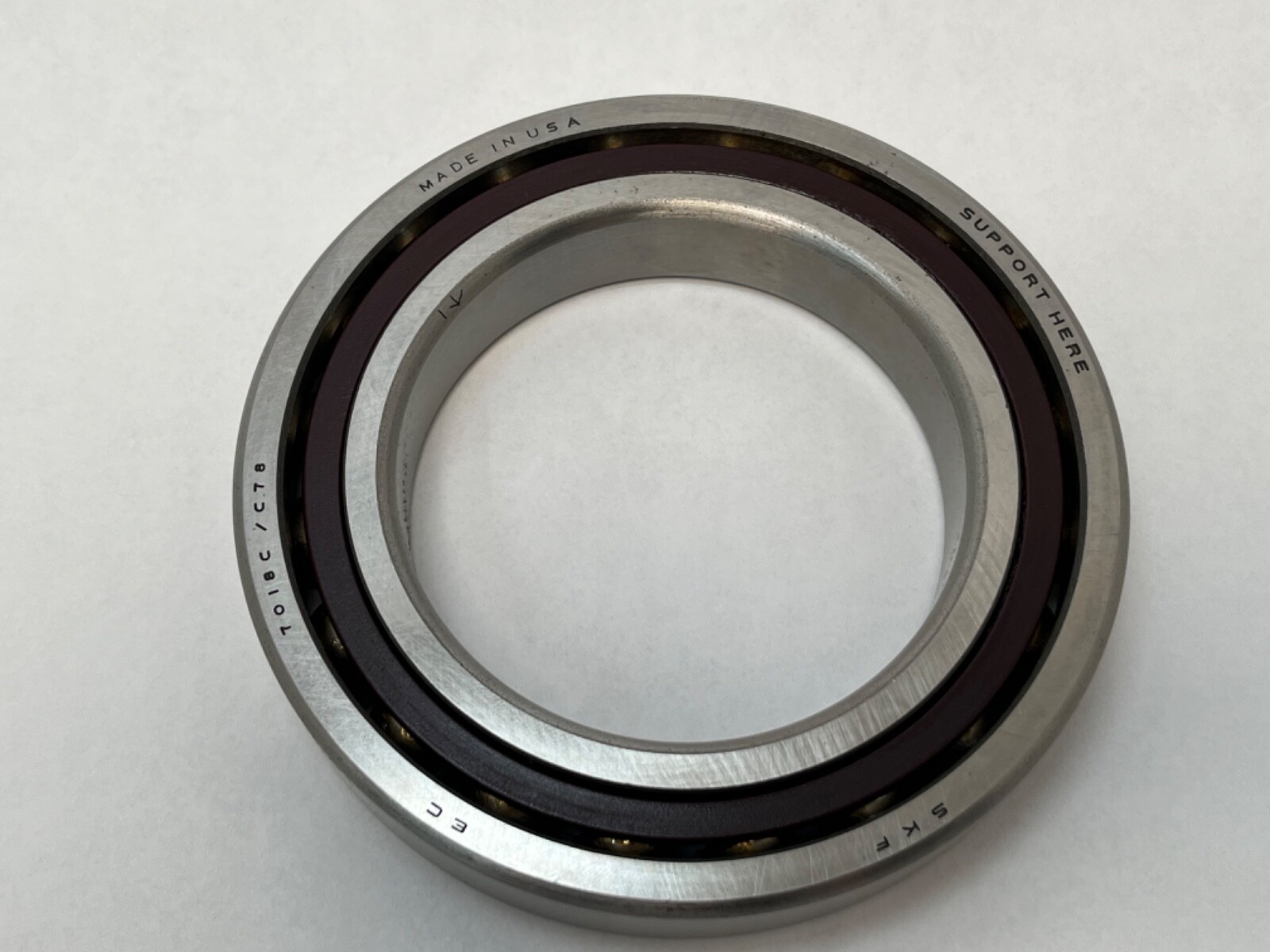

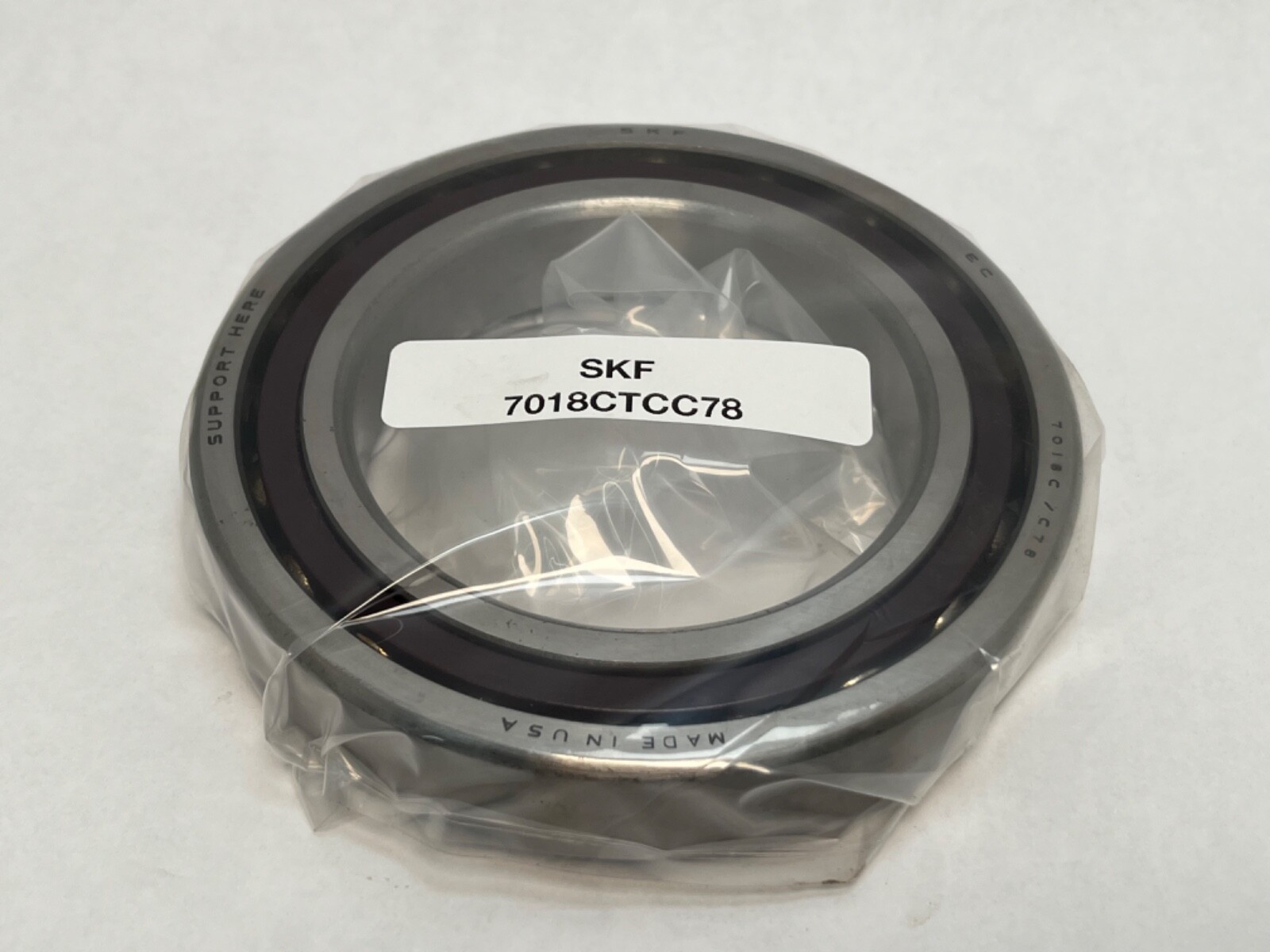

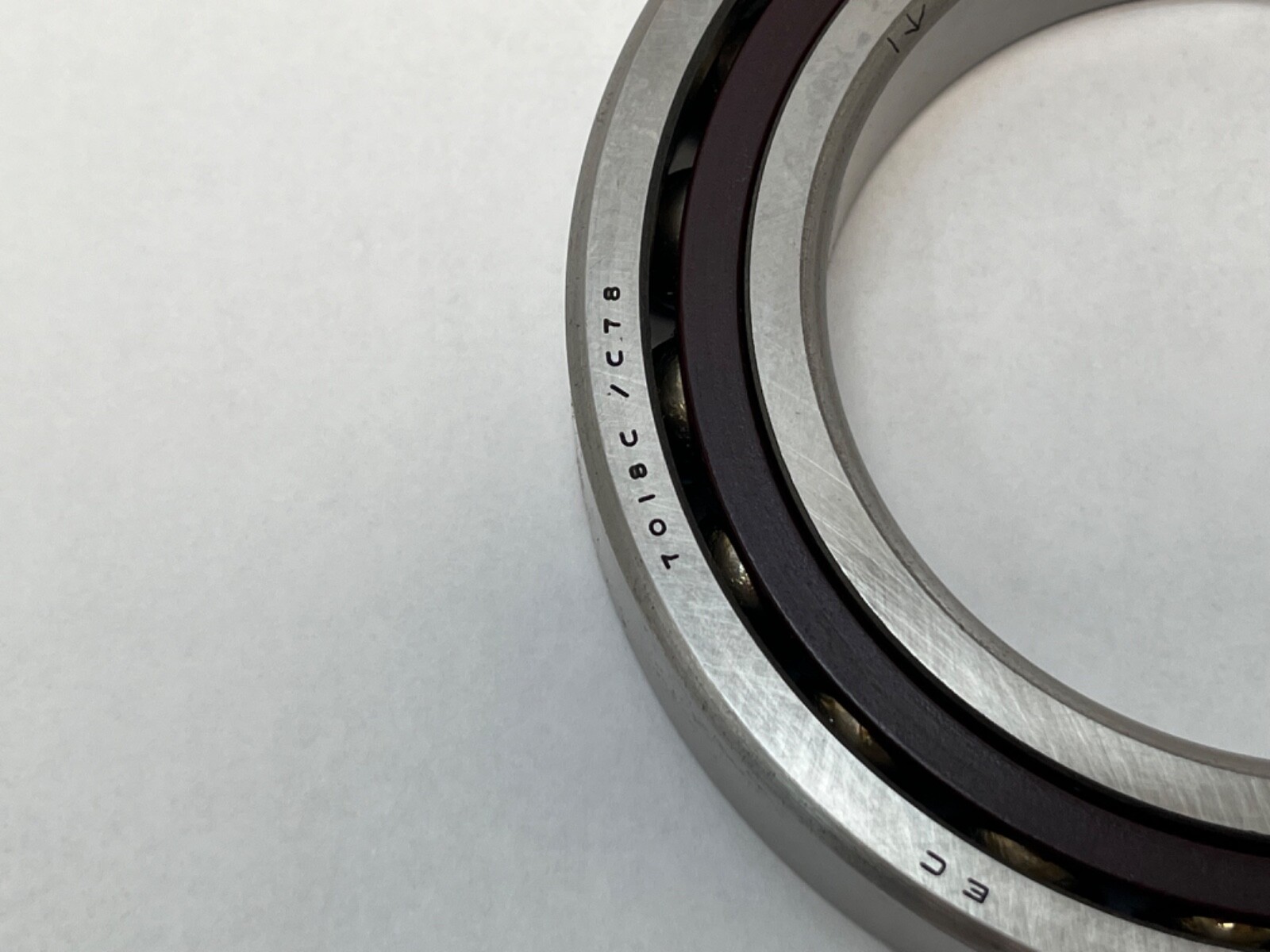

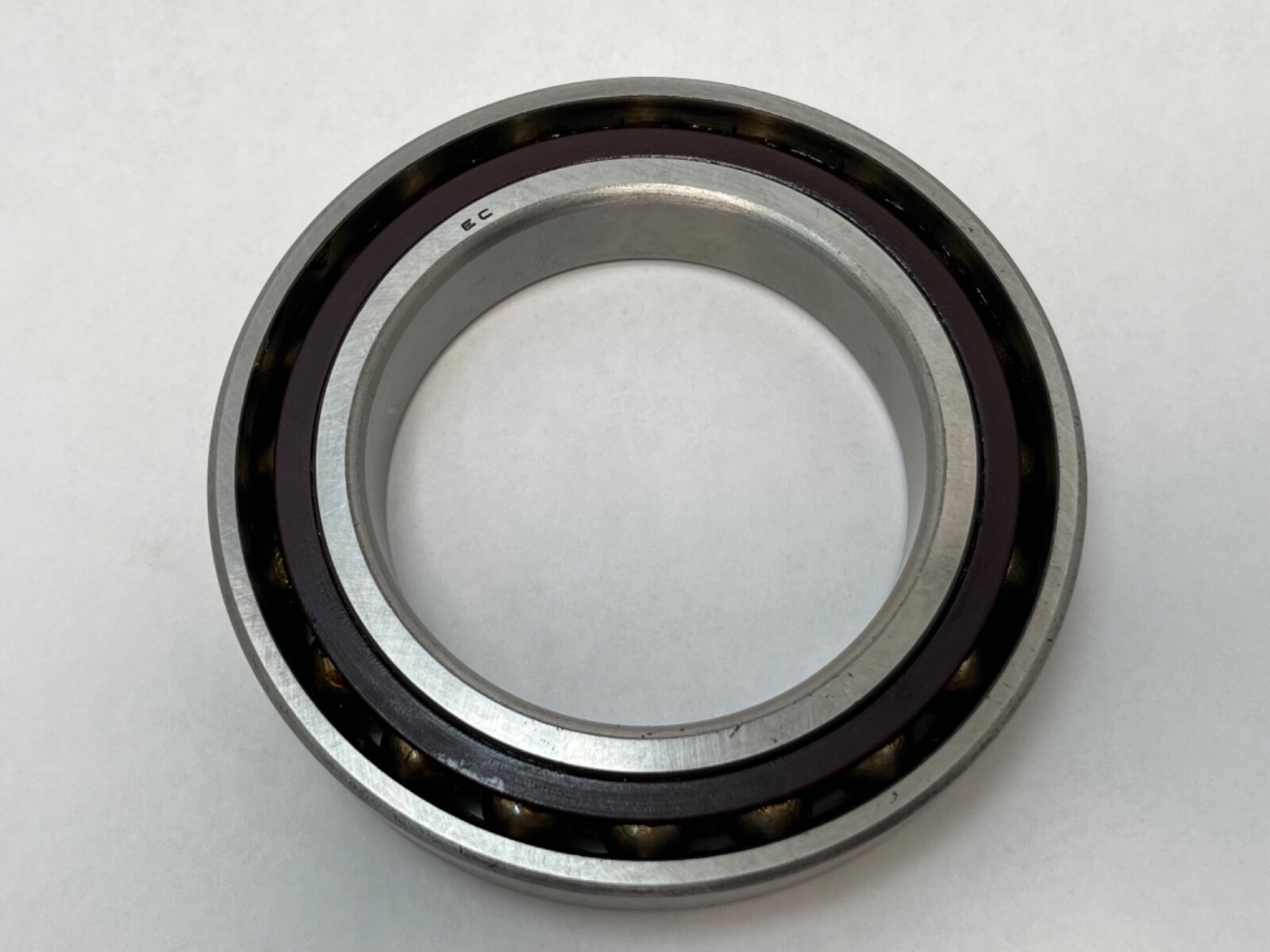

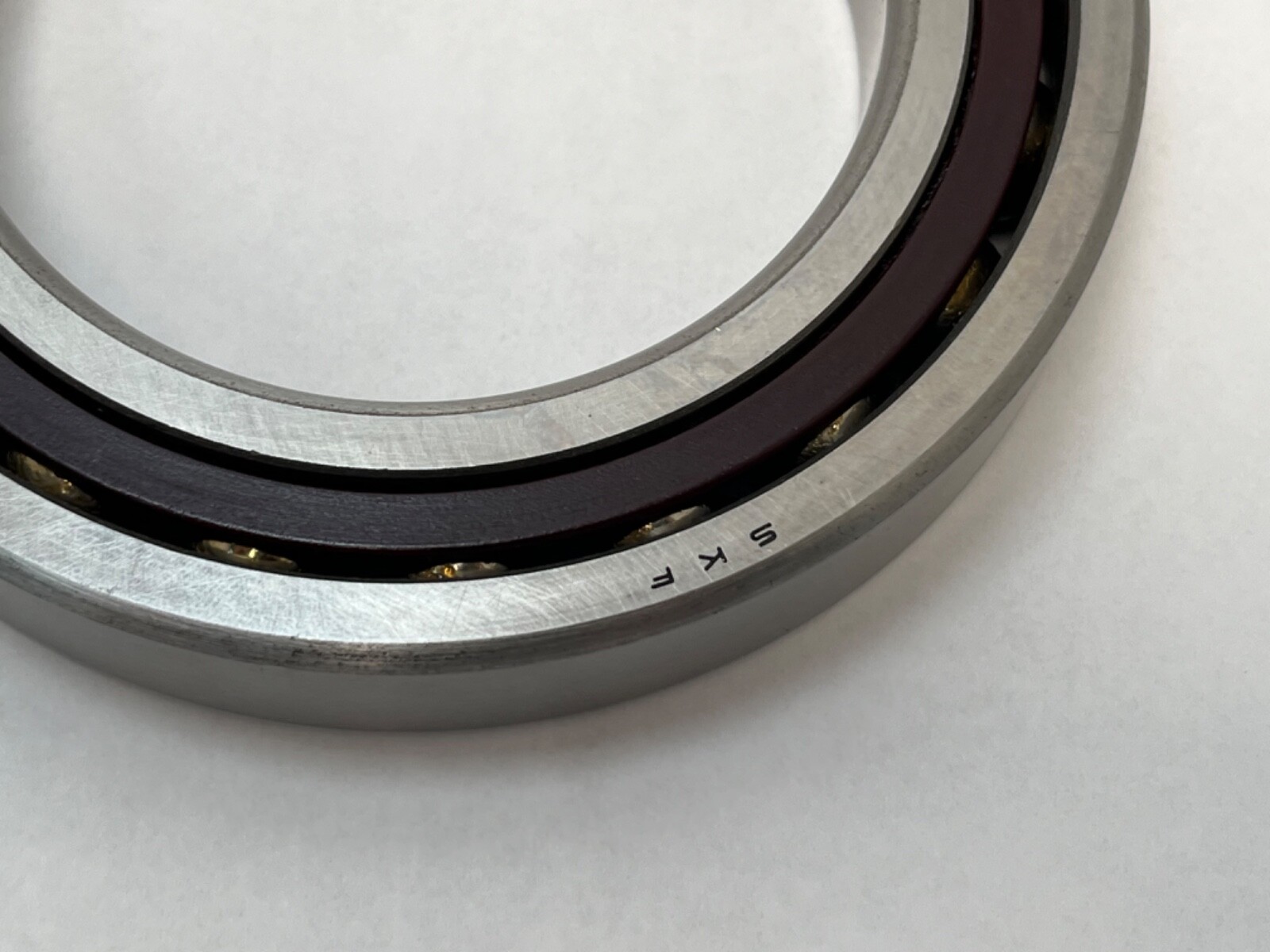

SKF 7018CTCC78 is a single-row angular contact ball bearing in the ISO 70 dimension series. Bore Diameter: 90 mm. Outside Diameter: 140 mm. Width: 24 mm. Contact Angle: 15°.
7018 — single-row angular contact ball bearing, ISO 70 series, 90 mm bore (18 x 5).
C — 15° contact angle.
Contact Angle: 15°. Bore Type: Cylindrical. Number Of Rows: 1. Rolling Elements: Ball. A 15° angle favours speed and radial stiffness, carrying axial load in one direction per bearing.
Unit Quantity: 1 Pc. Open bearing. New old stock.
Common search terms for this size: 7018C, 7018 C TC C78, 2M9118WICR.
