Super precision angular contact ball bearing, 90 x 140 x 24 mm, 15 degree contact angle, high-speed E design, extra light preload, open, P4A class.
List Price
$636.29
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7018 CE/P4A DGA |
| Model | 7018CEP4ADGA |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 70 |
| Preload | Extra light |
| Base Number | 7018 |
| Industry Terms | Spindle bearing; super precision bearing; machine tool bearing; high speed angular contact |
| Common Misspellings | 7018CE P4A; 7018 EC/P4A; SKF 7018CEP4A DGA |
| Overall Width | 24 mm |
| Bore Shaft Size | 90 mm |
| Mpn Variants | 7018CE/P4ADGA; 7018 CE P4A DGA; 7018CEP4ADGA; 7018-CE-P4A-TGA; 7018CEP4ATGA; 7018C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Part Number | 7018 CE/P4A DGA |

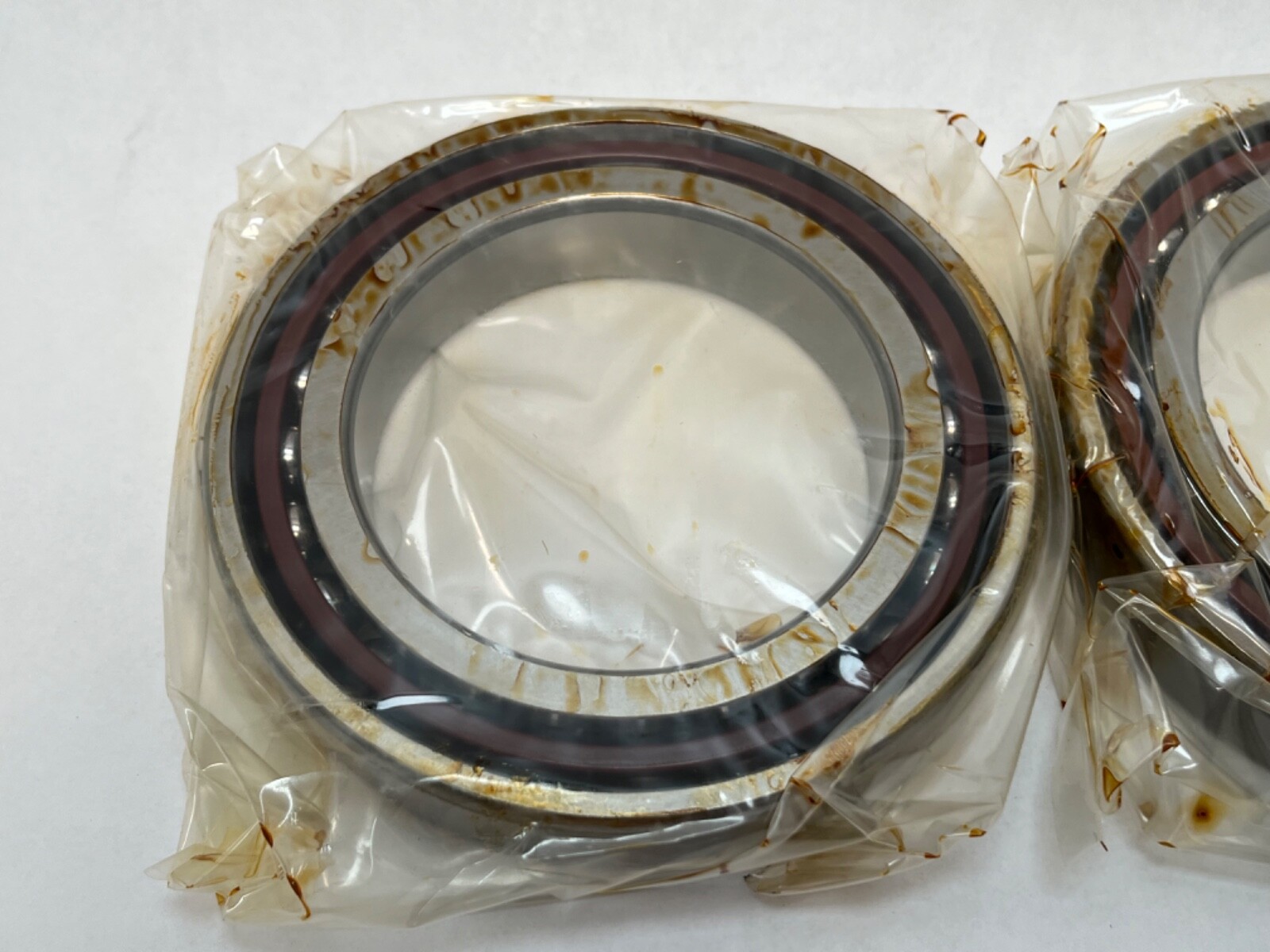

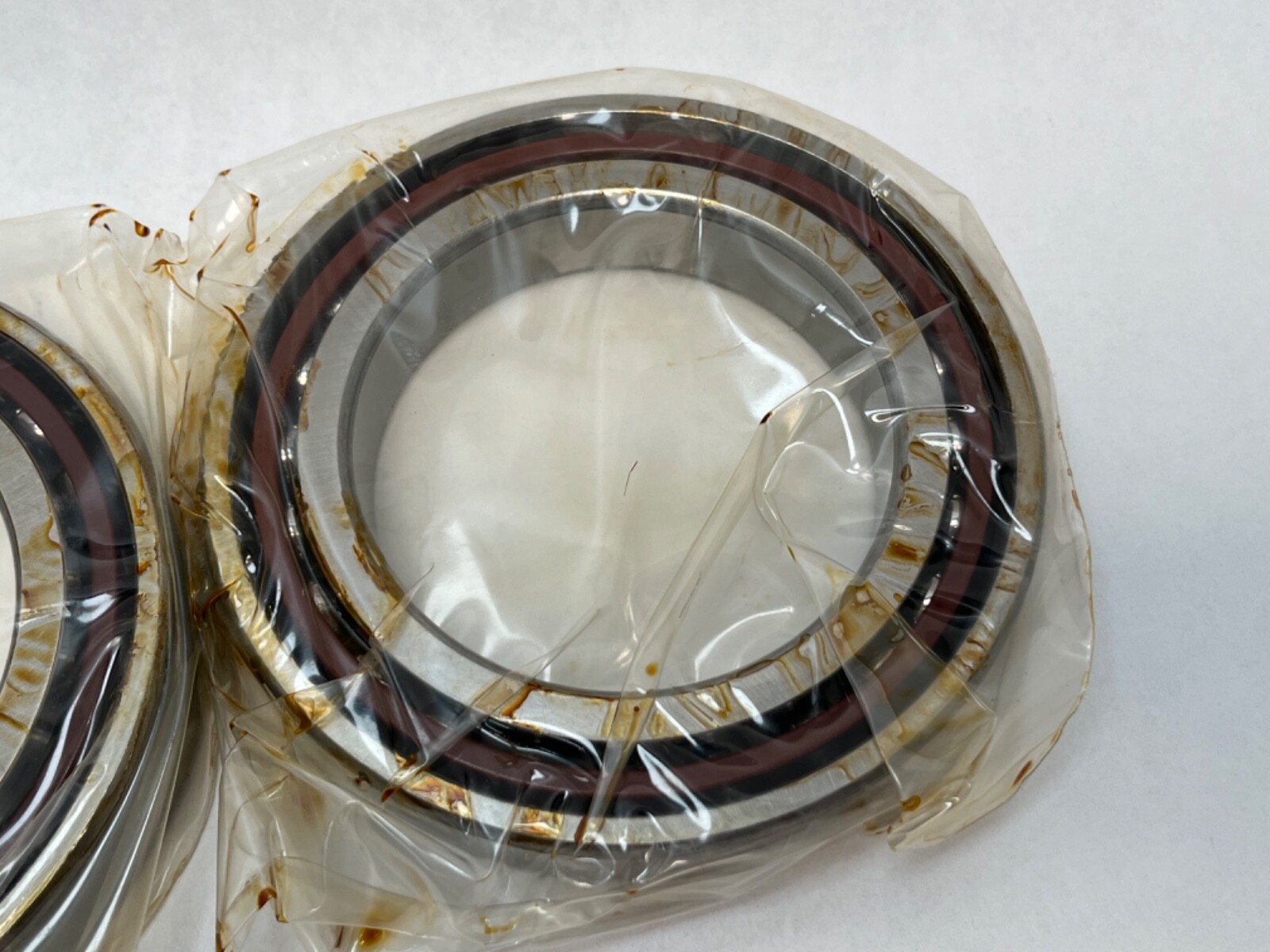

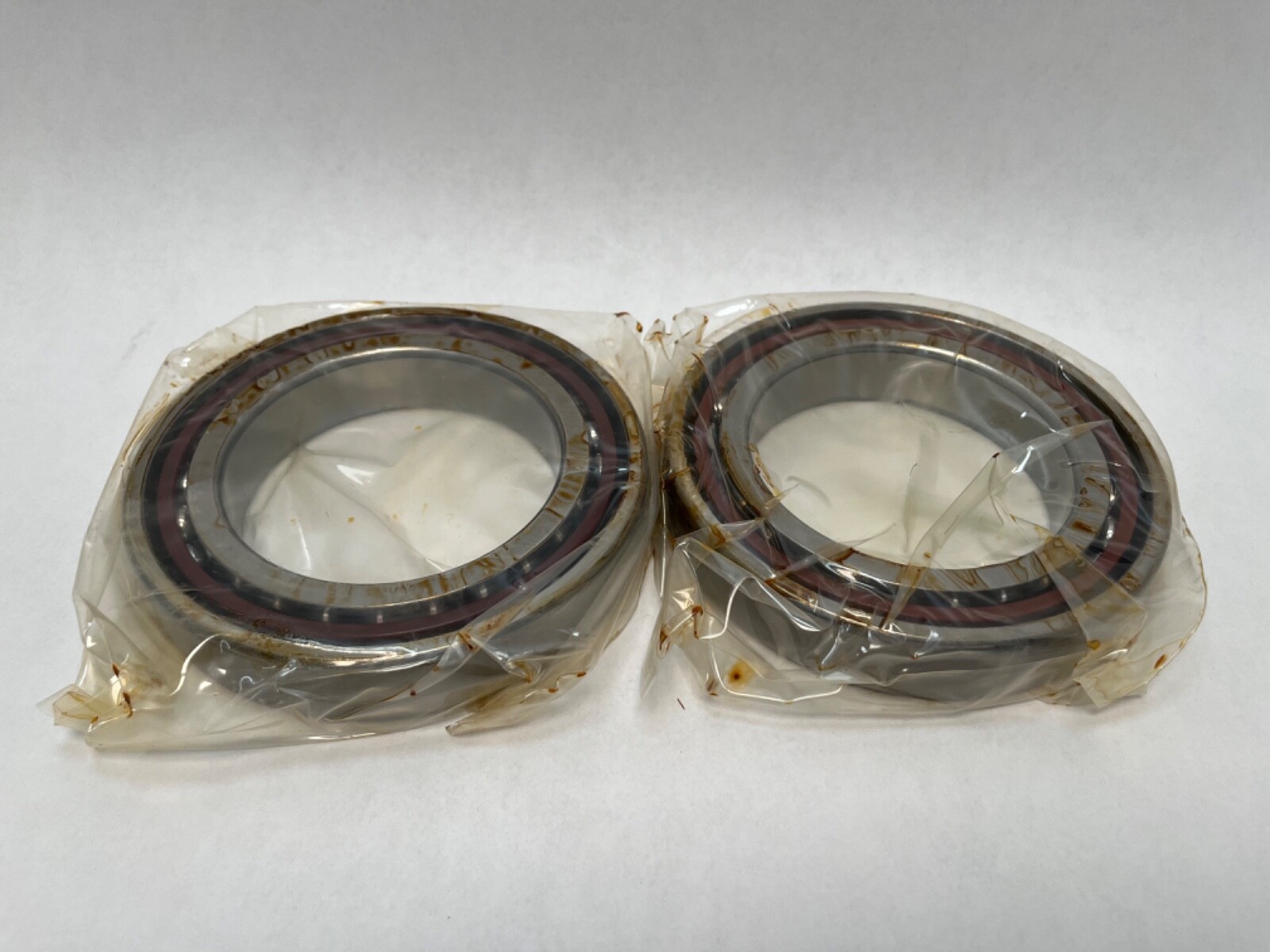

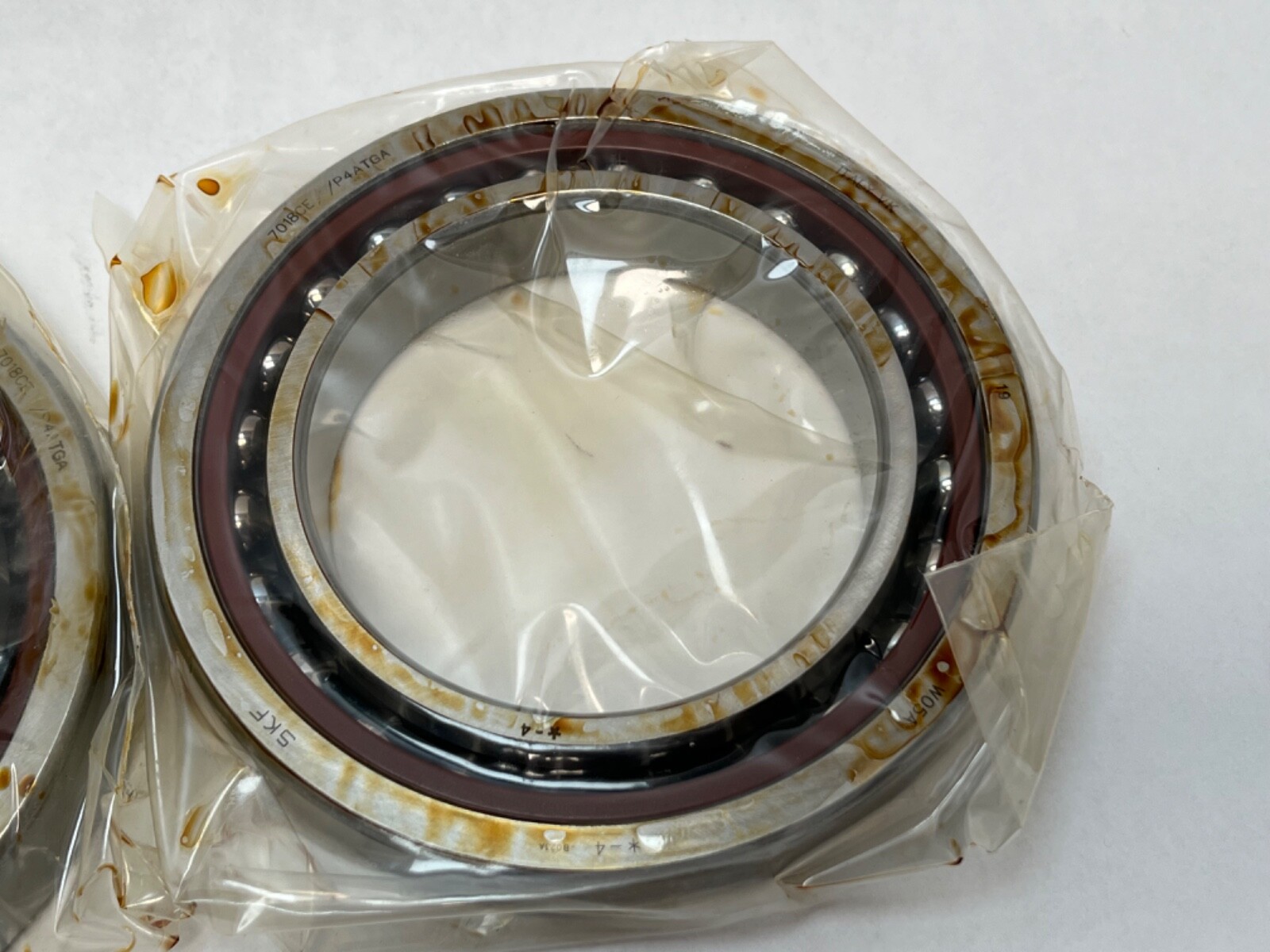

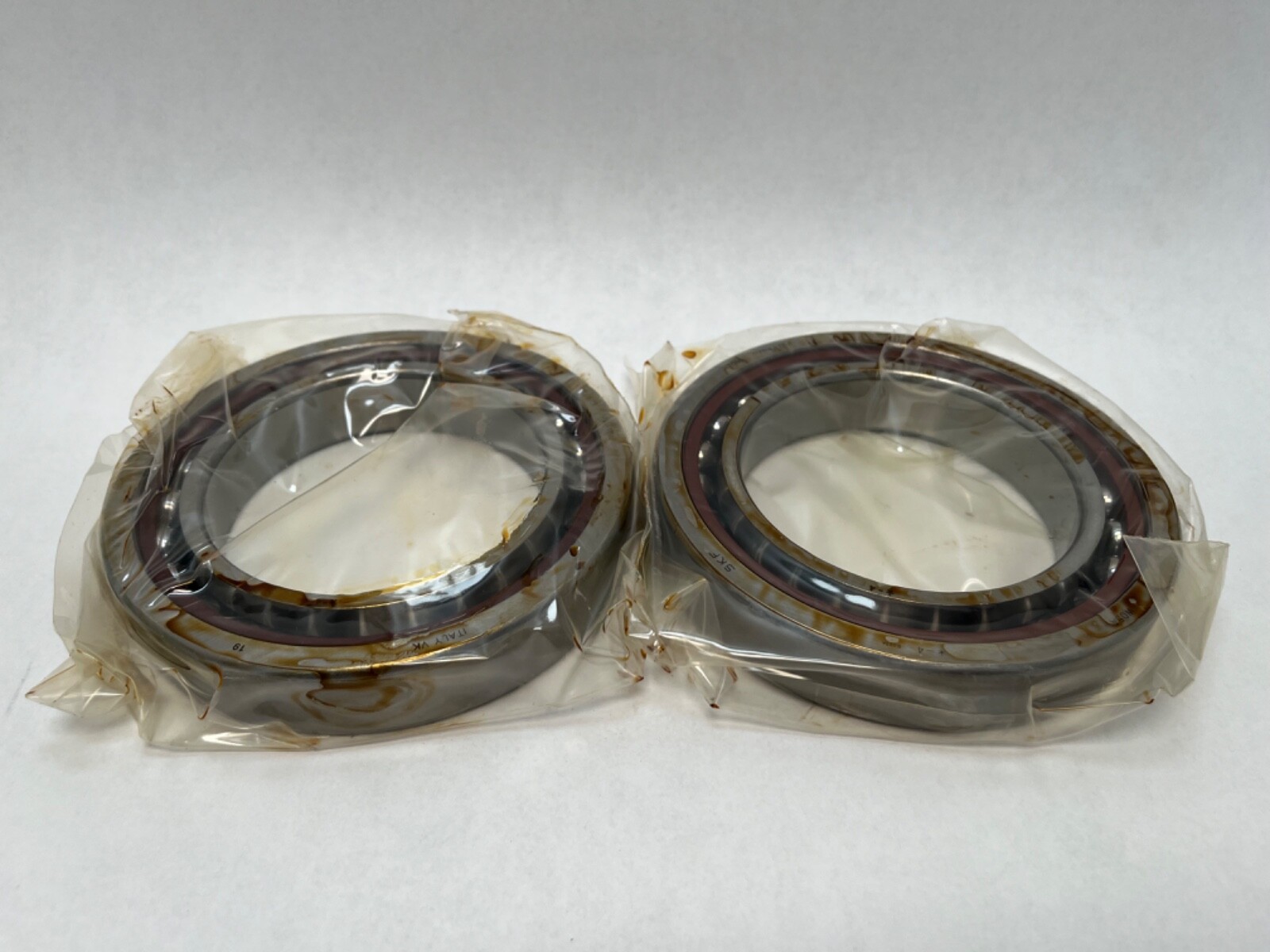

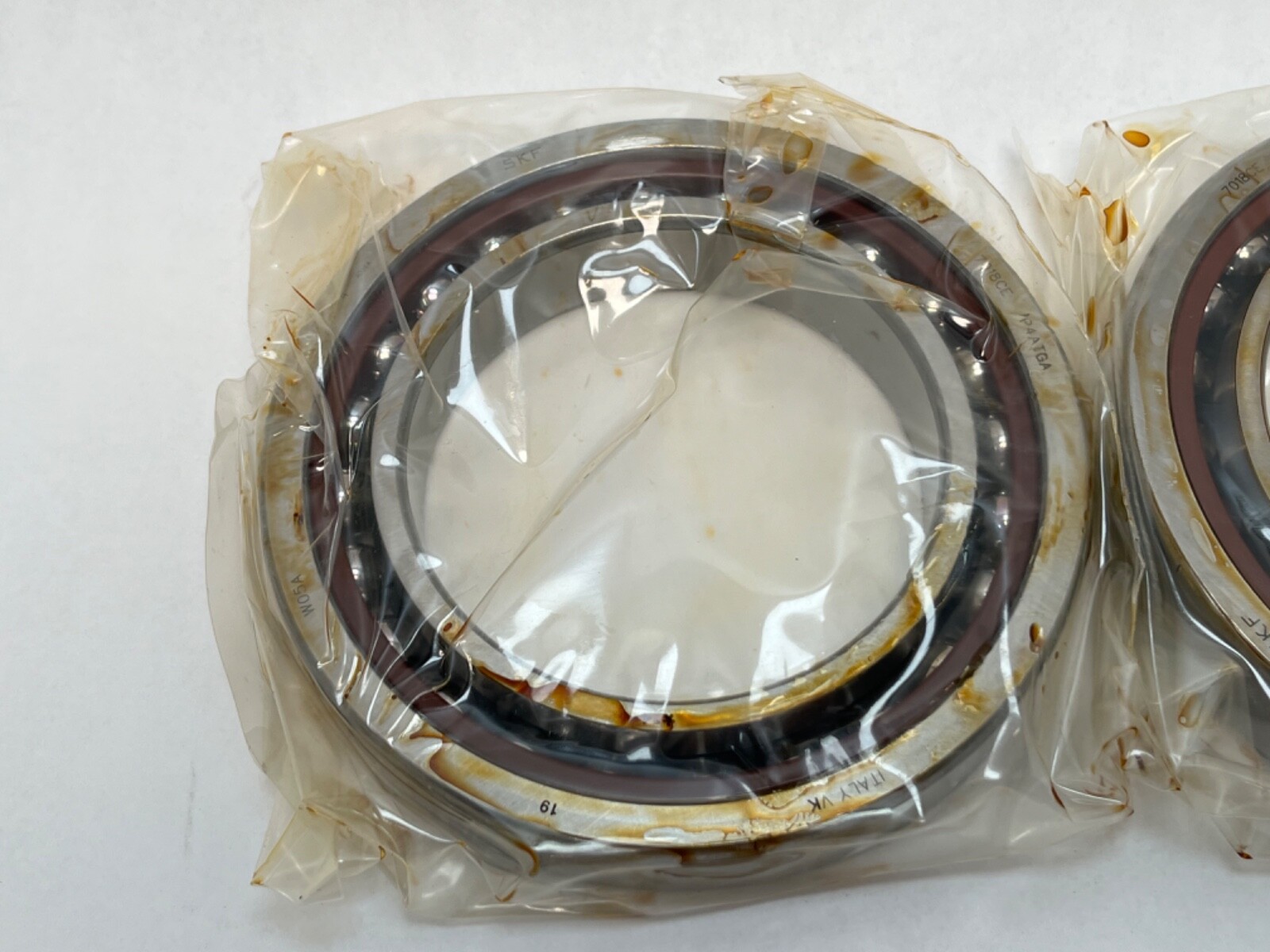

SKF 7018 CE/P4A DGA super-precision angular contact ball bearing. Series: 70, extra-light section. Base number: 7018. Bore: 90 mm. Outside diameter: 140 mm. Width: 24 mm. Single row, straight bore, open on both faces. Searchable variants of the designation: 7018CE/P4ADGA, 7018 CE P4A DGA, 7018CEP4ADGA, 7018-CE-P4A-TGA, 7018CEP4ATGA, 7018C.
Contact Angle: 15°. Design: CE high-speed E execution, which uses a moulded polymer cage in place of the phenolic cage of the CD design. Precision Class: P4A, equivalent to ABEC 7. Preload: extra light.
A 15° contact angle favours speed and radial rigidity over thrust capacity. The E high-speed design raises the speed ceiling: limiting speed 13300 rpm on grease and 21000 rpm on oil. Extra light preload holds running accuracy with low heat generation. Mass: 1.2 kg.
Universally matchable execution, ground to the extra light preload class. Internal Clearance: N/A — the bearing is preload-set, not clearance-set.
Mounting is by interference on the inner ring seat with the outer ring located axially in the housing. Grease or oil lubrication both suit the polymer cage.
Same-spec equivalent: FAG B7018-C-T-P4S-DUL. Related sizes on the same envelope: 7018 CD/P4A carries the high-capacity phenolic-cage design, and 7018 ACD/P4A carries a 25° contact angle.
