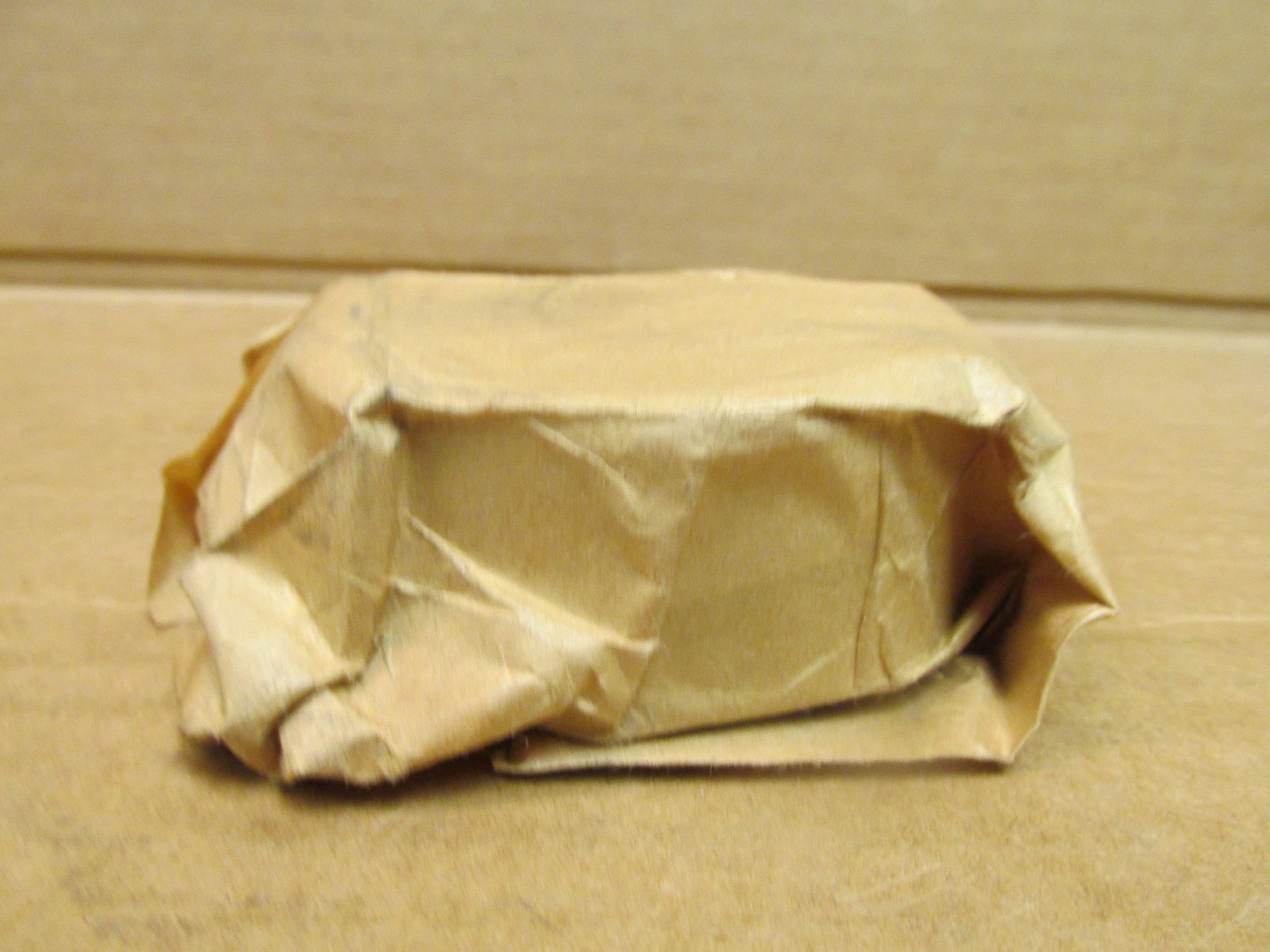

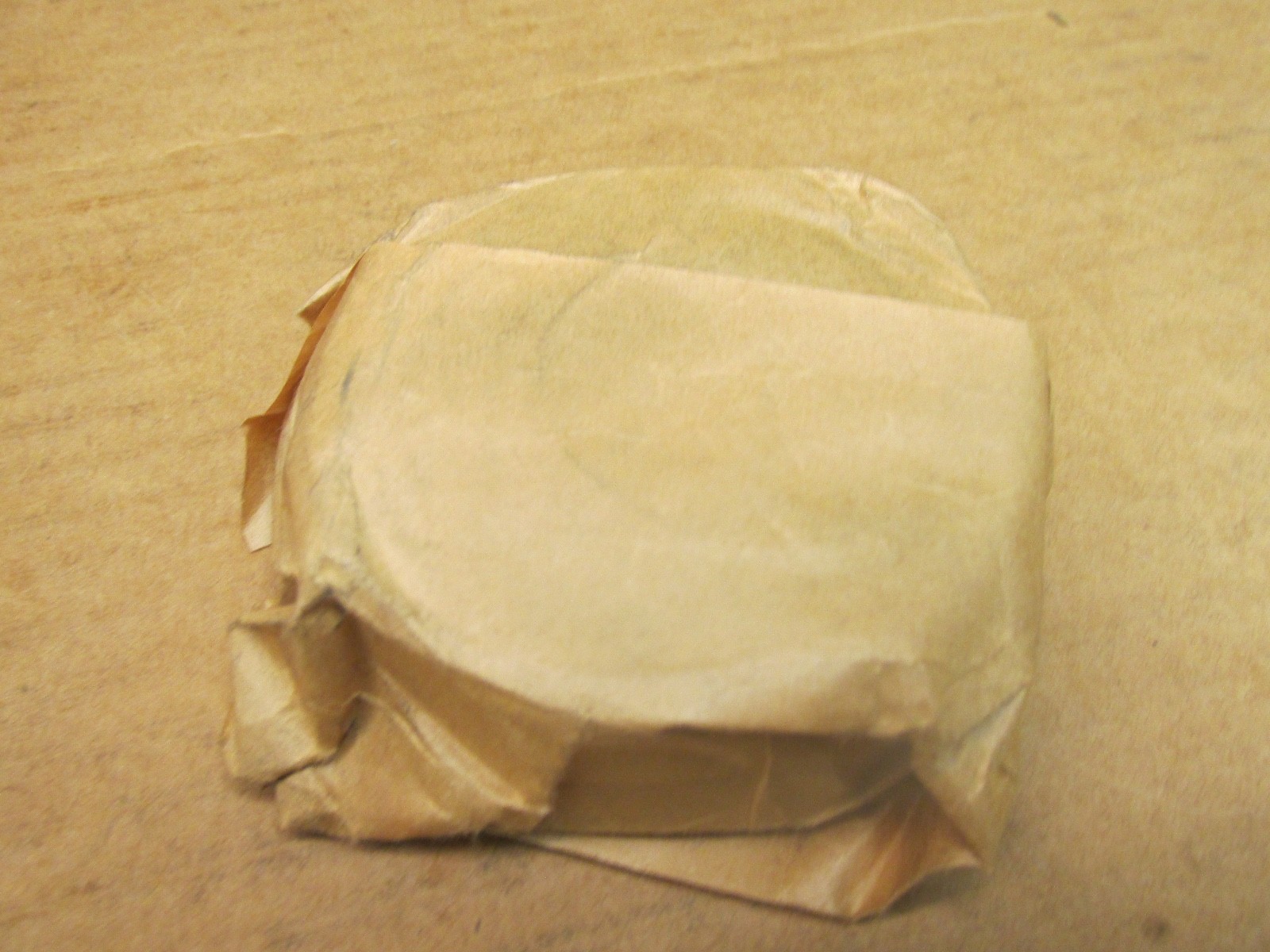

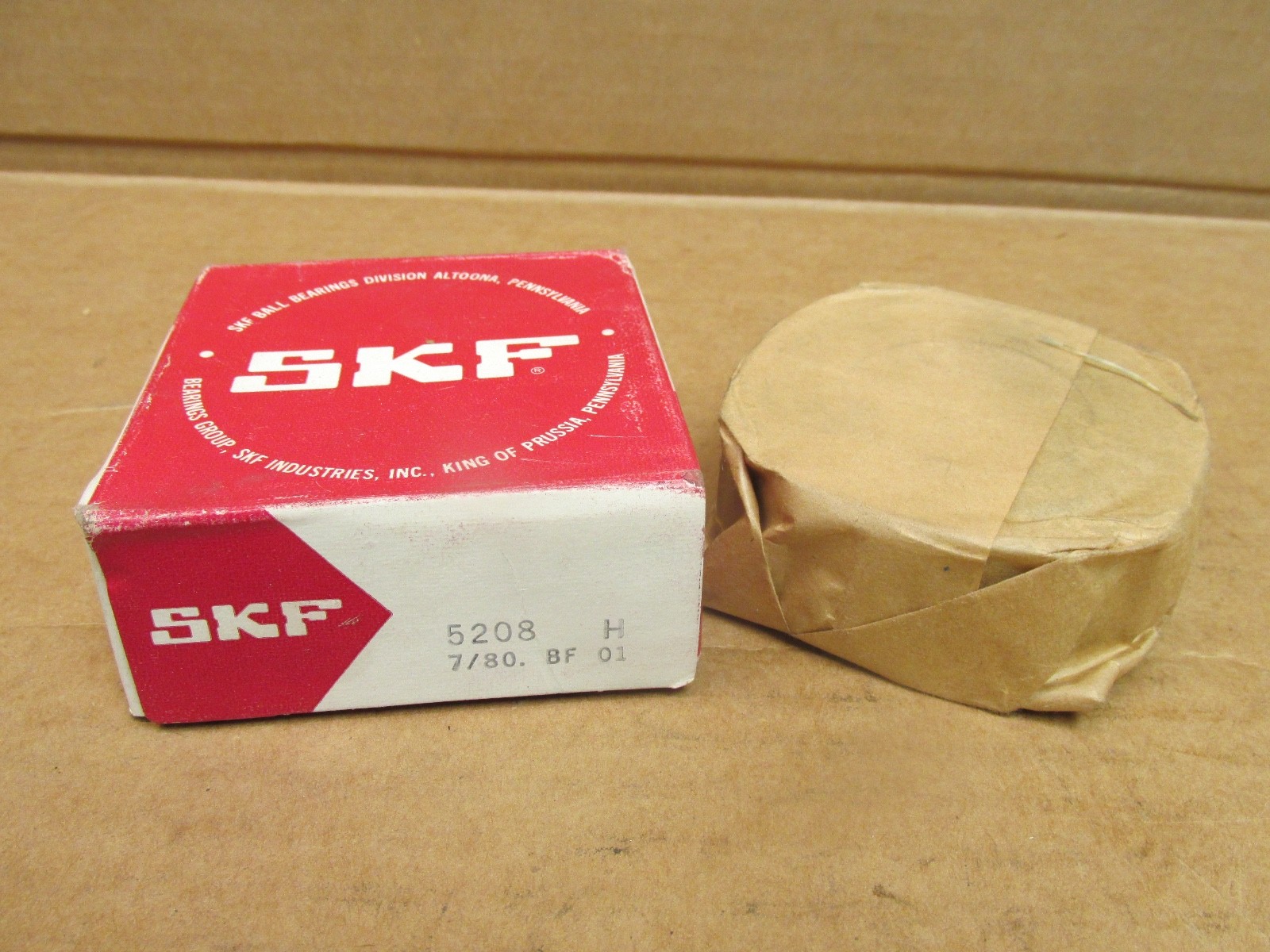

Double-row angular contact ball bearing, 40 mm bore, 80 mm OD, 1-3/16 in (30.2 mm) wide, open. SKF 5208 H, 5200 and 3200 series. New old stock, one bearing.
List Price
$26.48
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 5208 H |
| Model | 5208-H |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 1-3/16 in |
| Series | 5200 |
|---|---|
| Lubricant | Oil or Grease |
| Material | Bearing Steel |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard |
| Harmonization Code | 8482.10.50 |
| Overall Width | 1.1875 in |
| Mpn Variants | 5208H, 5208 H, 5208-H, 5208, 3208 |
| Cross Reference 1 | NSK 5208 |
|---|---|
| Cross Reference 2 | Koyo 5208 |
| Cross Reference 3 | Timken 5208 |
| Cross Reference 4 | FAG 3208 |
| Cross Reference 5 | Timken 5208 |
SKF 5208 H double-row angular contact ball bearing, 5200 series. Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 1-3/16 in (30.2 mm). Closure Type: Open.
52 — double-row angular contact ball bearing, inch-width 5200 series; the metric equivalent family is 32.
08 — bore code: 8 x 5 = 40 mm.
Bearing Type: Double-row angular contact ball bearing. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Snap Ring: No. Harmonization Code: 8482.10.50. Unit Quantity: 1 Pc.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 30.2 mm (1.1875 in). A double-row angular contact bearing carries radial load plus axial load in both directions in a single unit.
Same 40 x 80 x 30.2 mm envelope as NSK 5208, Koyo 5208, Timken/Fafnir 5208 and FAG 3208. MPN Variants: 5208H, 5208 H, 5208-H, 5208, 3208.
What are the dimensions of the SKF 5208 H?
40 mm bore, 80 mm outside diameter, 30.2 mm (1-3/16 in) wide.
Is it single or double row?
Double row.
Is it sealed?
No, it is open.
