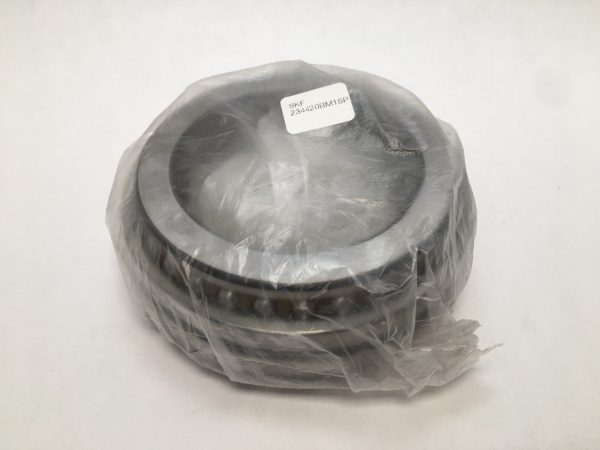

SKF234420-BM1/SPDouble-Direction Angular Contact Thrust Ball Bearing – 100 mm ID, 150 mm OD, 60 mm Width, 60° Contact Angle, SP Class

Product Description

What this part is:

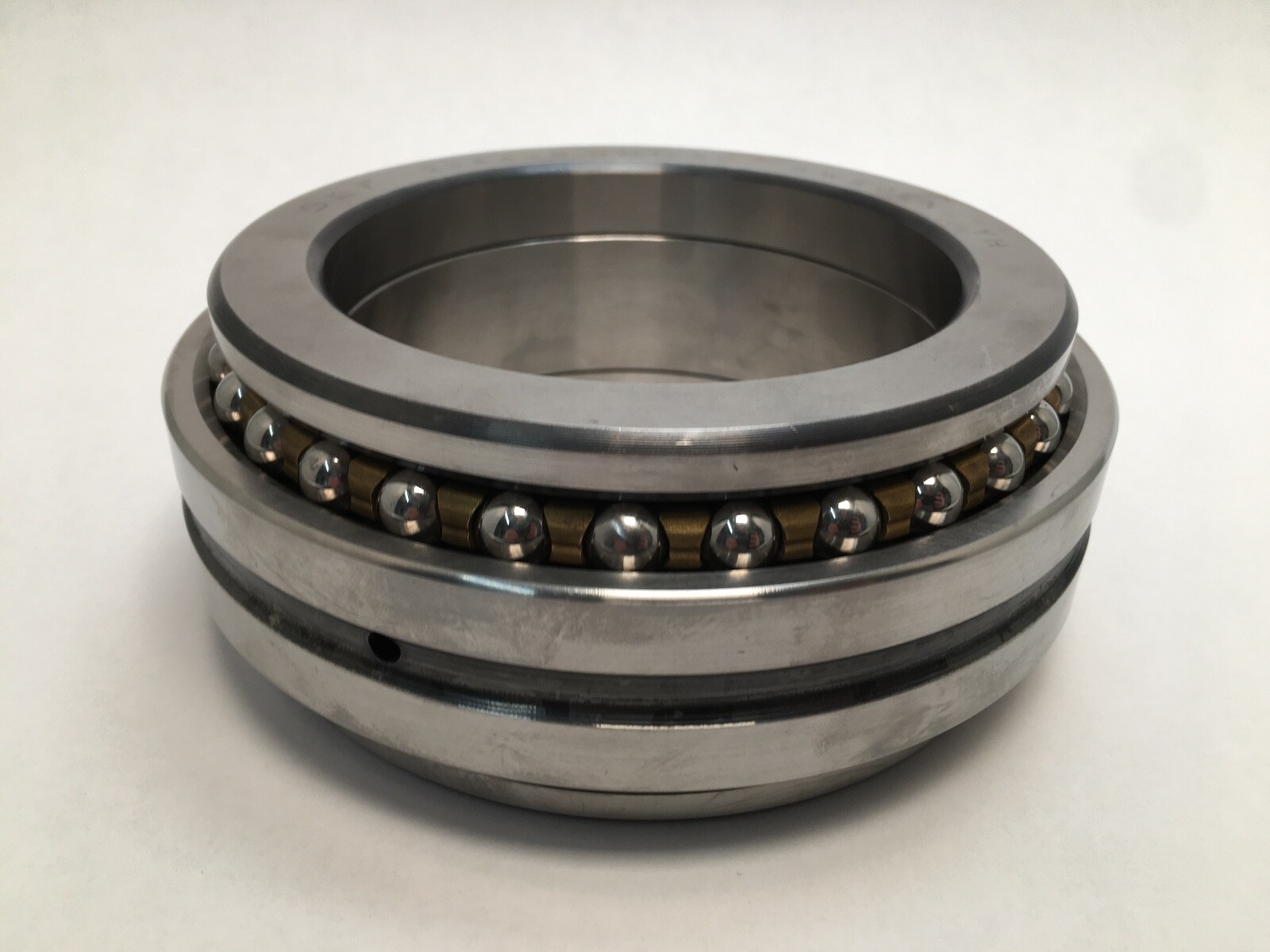

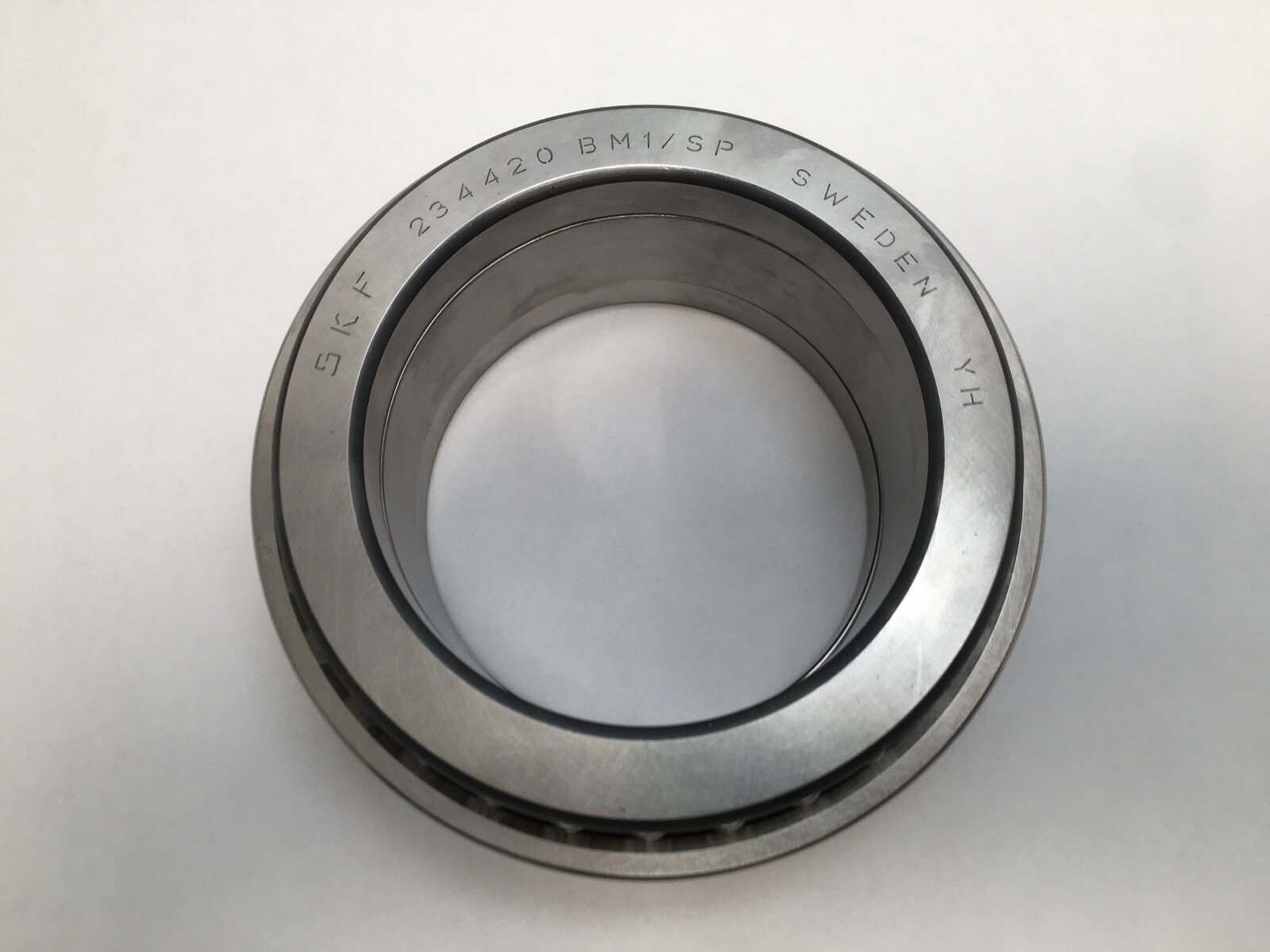

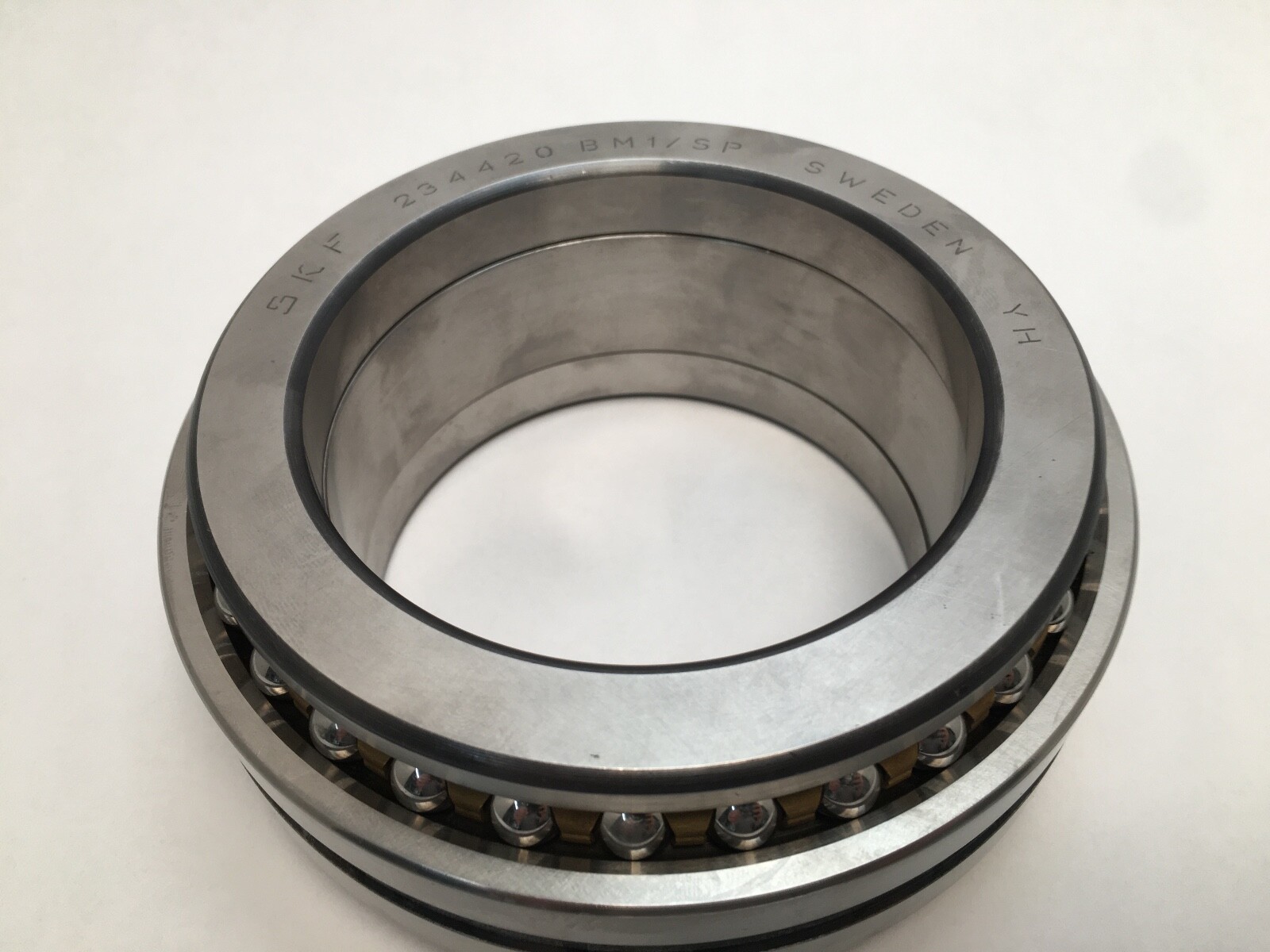

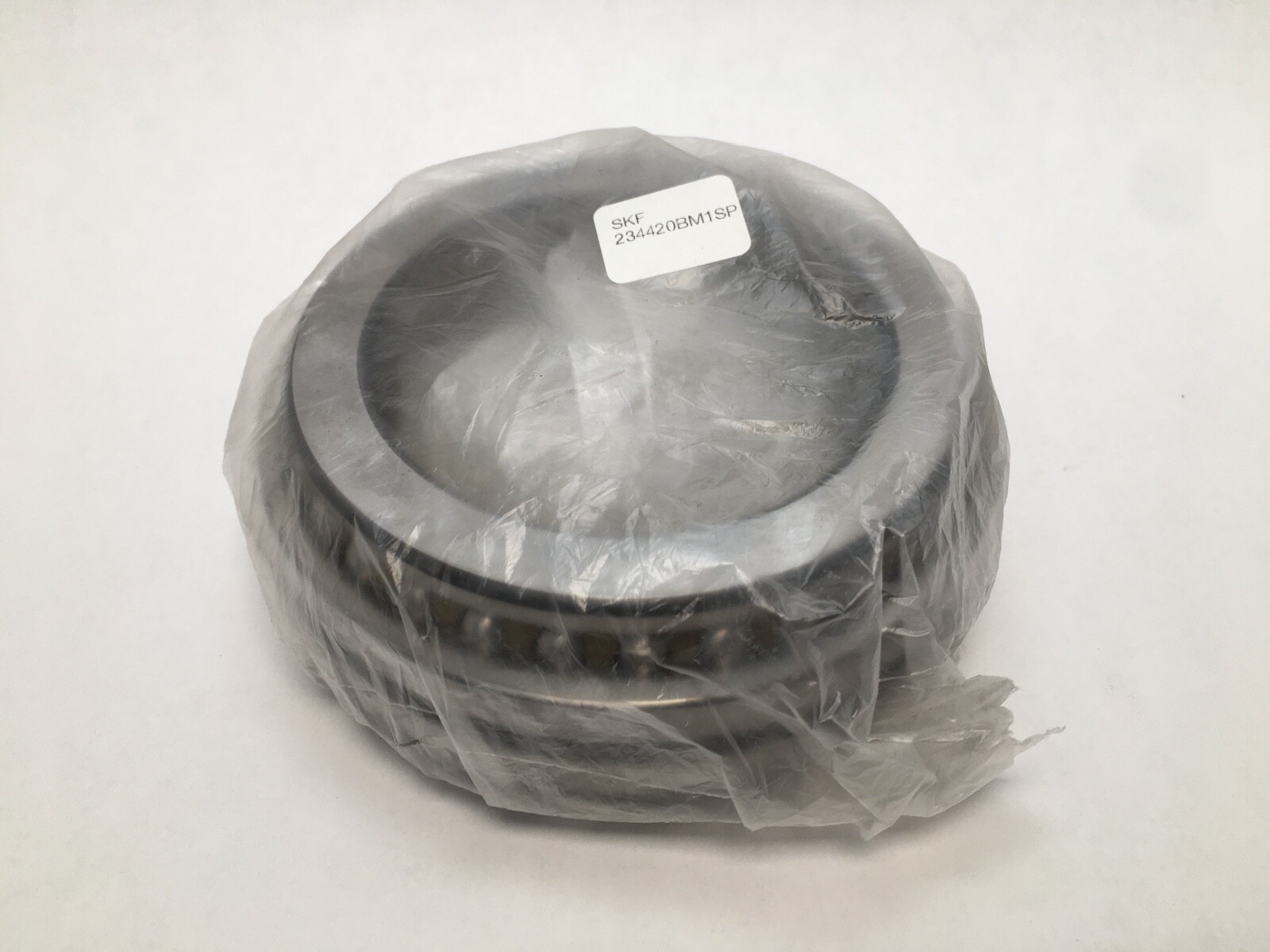

SKF 234420-BM1/SP double-direction angular contact thrust ball bearing. Two rows of balls at a 60° contact angle run against a common double-sided shaft washer, so the unit carries axial load in both directions. 2344 series, separable, open. Unit Quantity: 1 Pc. GTIN: 3663952352770.

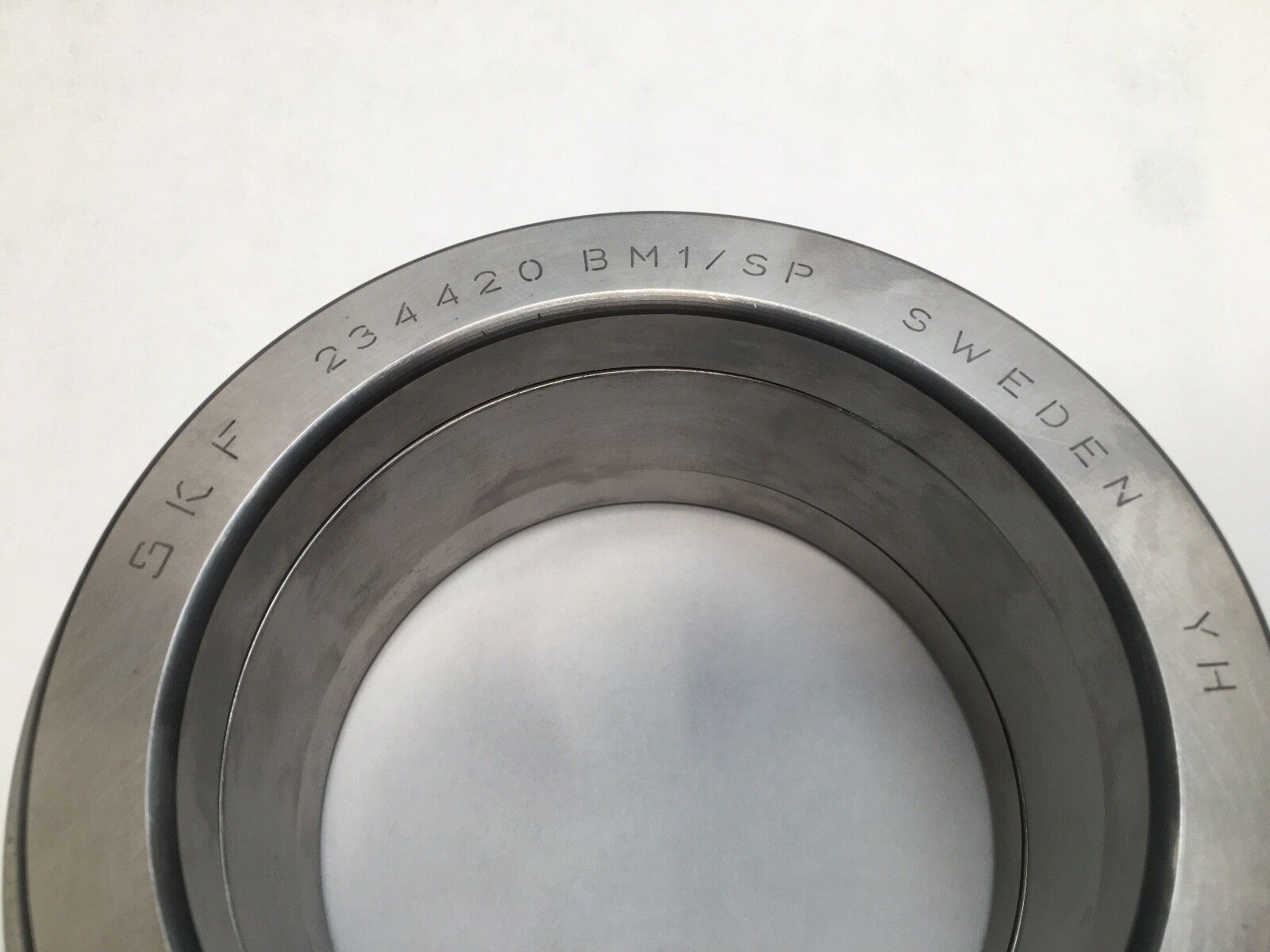

Decoding the designation:

2344 — SKF double-direction angular contact thrust ball bearing series.

20 — bore code, 100 mm bore.

BM1 — machined brass window cage, ball-guided.

SP — restricted running-accuracy and dimensional tolerance class.

Specifications:

Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 60 mm. Contact Angle: 60°. Dynamic Load Rating: 68,000 N axial. Static Load Rating: 229,000 N axial. Limiting Speed: 5,000 rpm oil; 3,800 rpm grease. Cage Material: Machined brass. Cage Type: Window, ball-guided. Precision Class: SP. Number Of Rows: 2. Rolling Elements: Ball. Closure Type: Open. Bore Type: Straight. Series: 2344.

Dimensions and mounting:

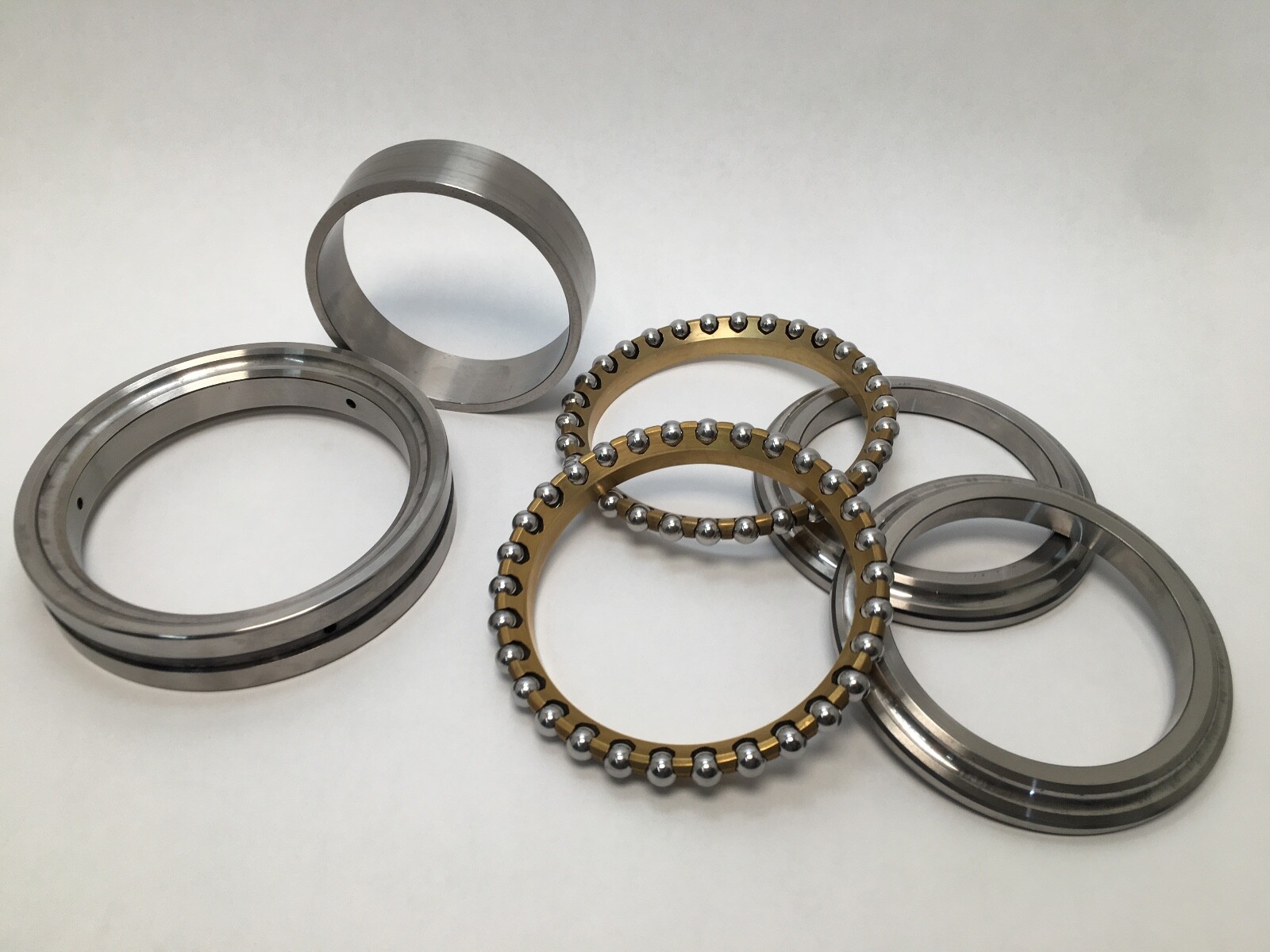

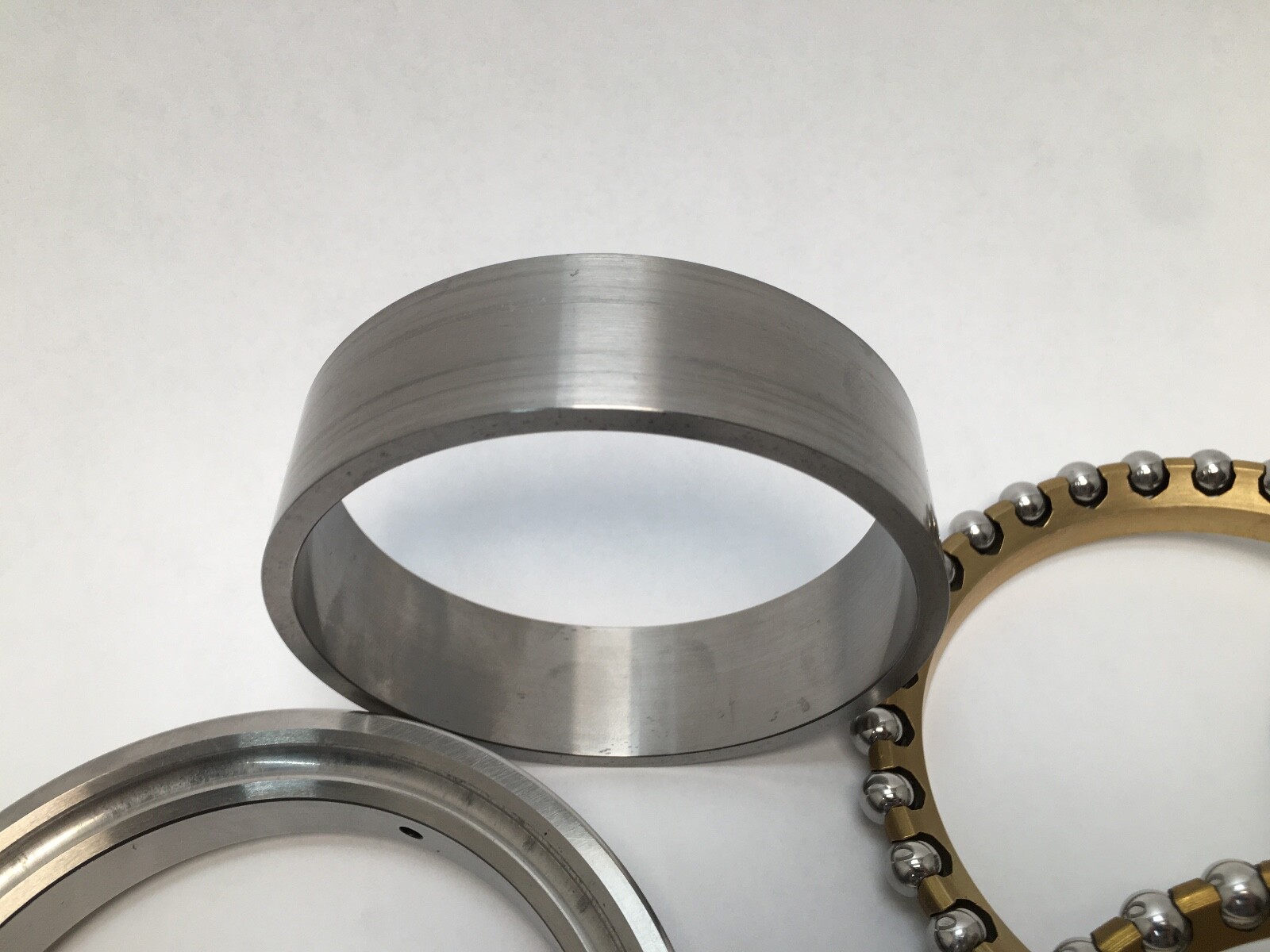

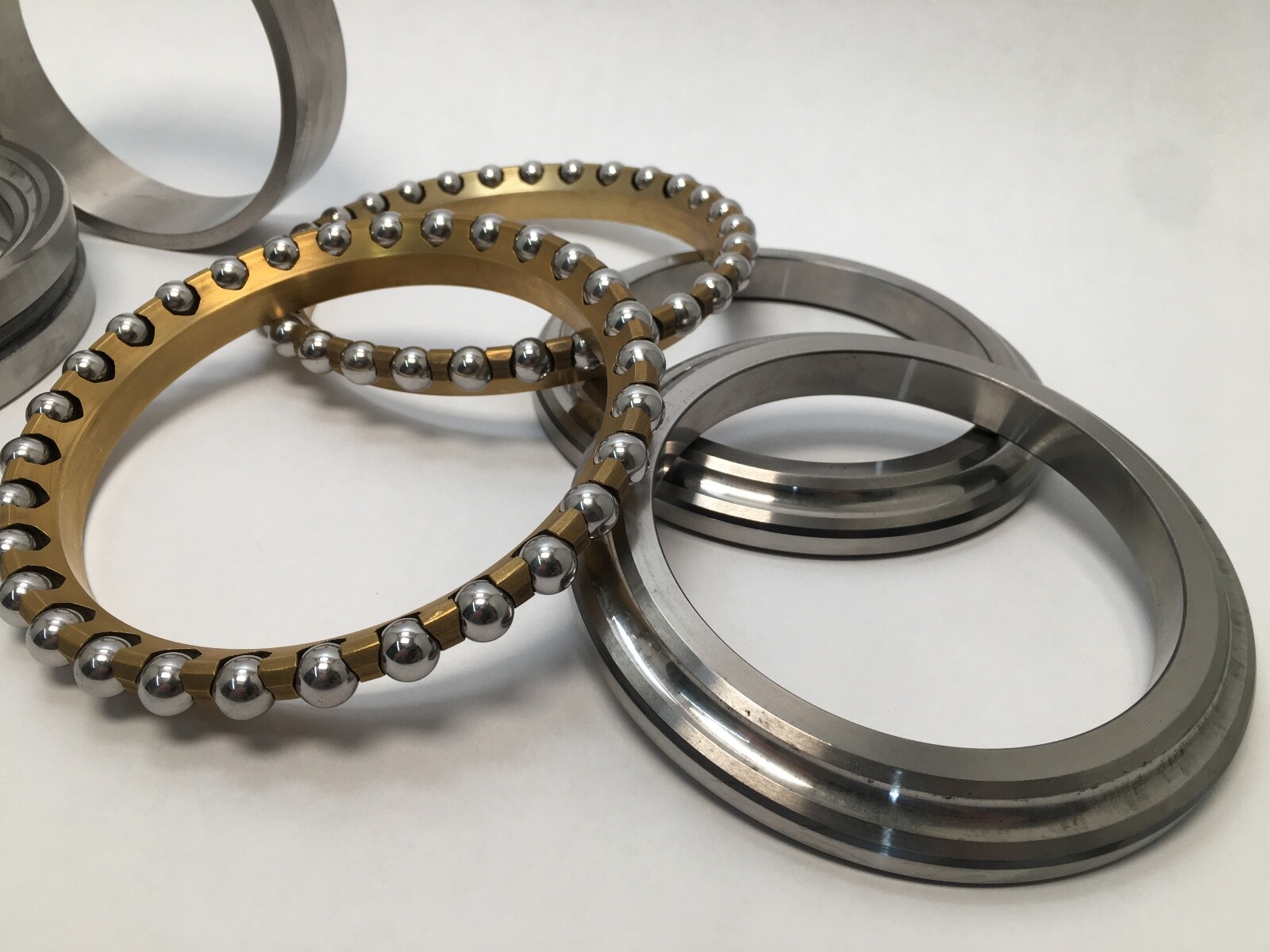

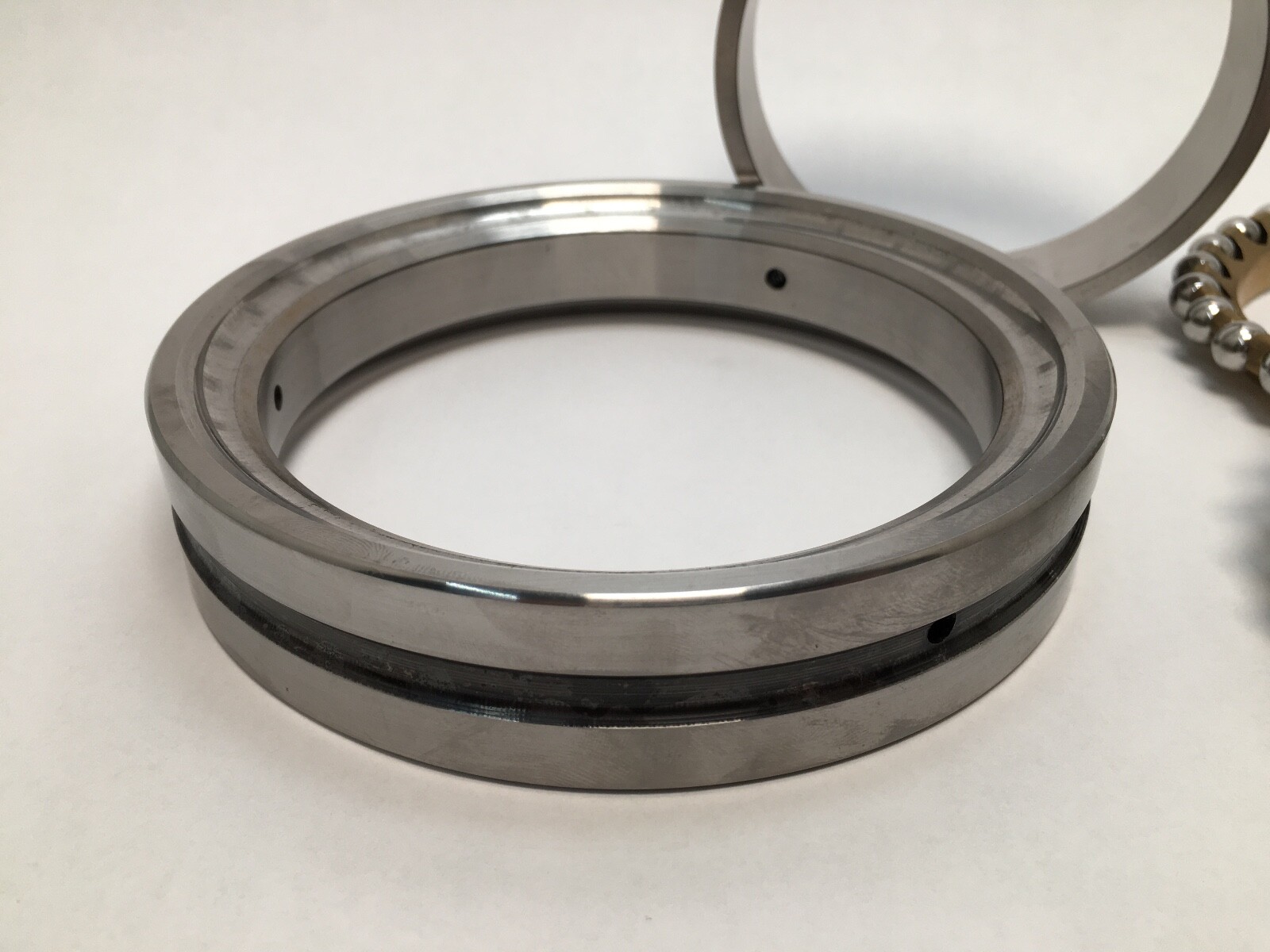

Bore: 100 mm. Outside diameter: 150 mm. Width: 60 mm. Components: two housing washers and one double-sided shaft washer, supplied together as a matched set.

Compatibility and replacement:

Cross-reference: FAG 234420-M-SP, 100 x 150 x 60 mm, 60° contact angle, SP tolerance class, with the same published axial ratings of 68,000 N dynamic and 229,000 N static.

Frequently asked questions:

What size is the SKF 234420-BM1/SP?

Bore 100 mm, outside diameter 150 mm, width 60 mm.

What are the load ratings and contact angle?

Axial dynamic load rating 68,000 N, axial static load rating 229,000 N, contact angle 60°.

What do BM1 and SP mean?

BM1 is a machined brass window cage, ball-guided, and SP is a restricted running-accuracy and dimensional tolerance class.
