SKF234416MSP5Double Direction Axial Angular Contact Thrust Ball Bearing – 80 mm ID, 125 mm OD, 54 mm Total Width, Open, 60° Contact Angle, Machined Brass Cage, SP Precision.

Product Description

What this part is

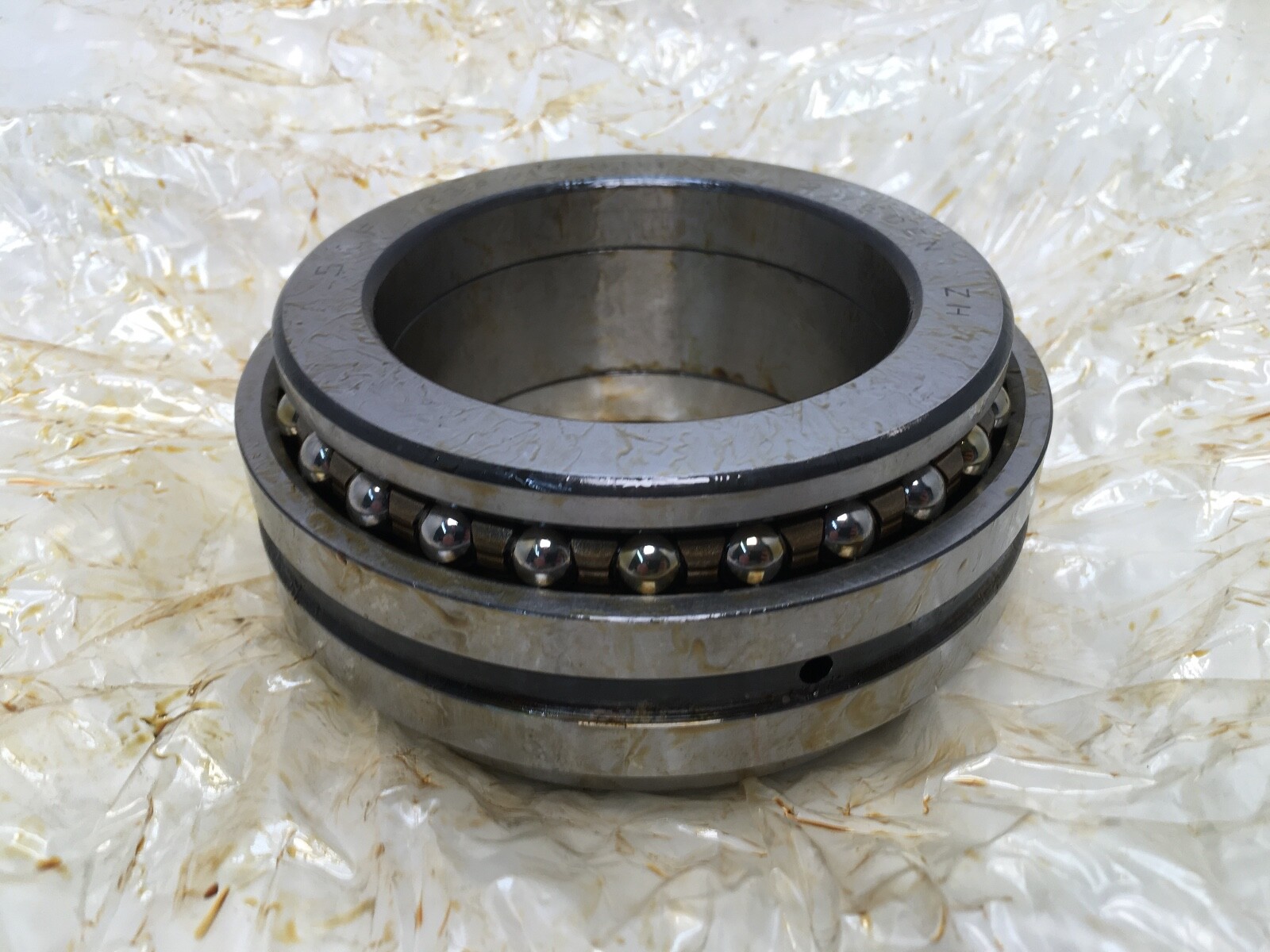

234416-M-SP double-direction axial angular contact thrust ball bearing, series 2344. Bore: 80 mm. Outside diameter: 125 mm. Total width B: 54 mm. Single-component width C: 27 mm. Two ball rows, 60° contact angle, separable matched component set, open.

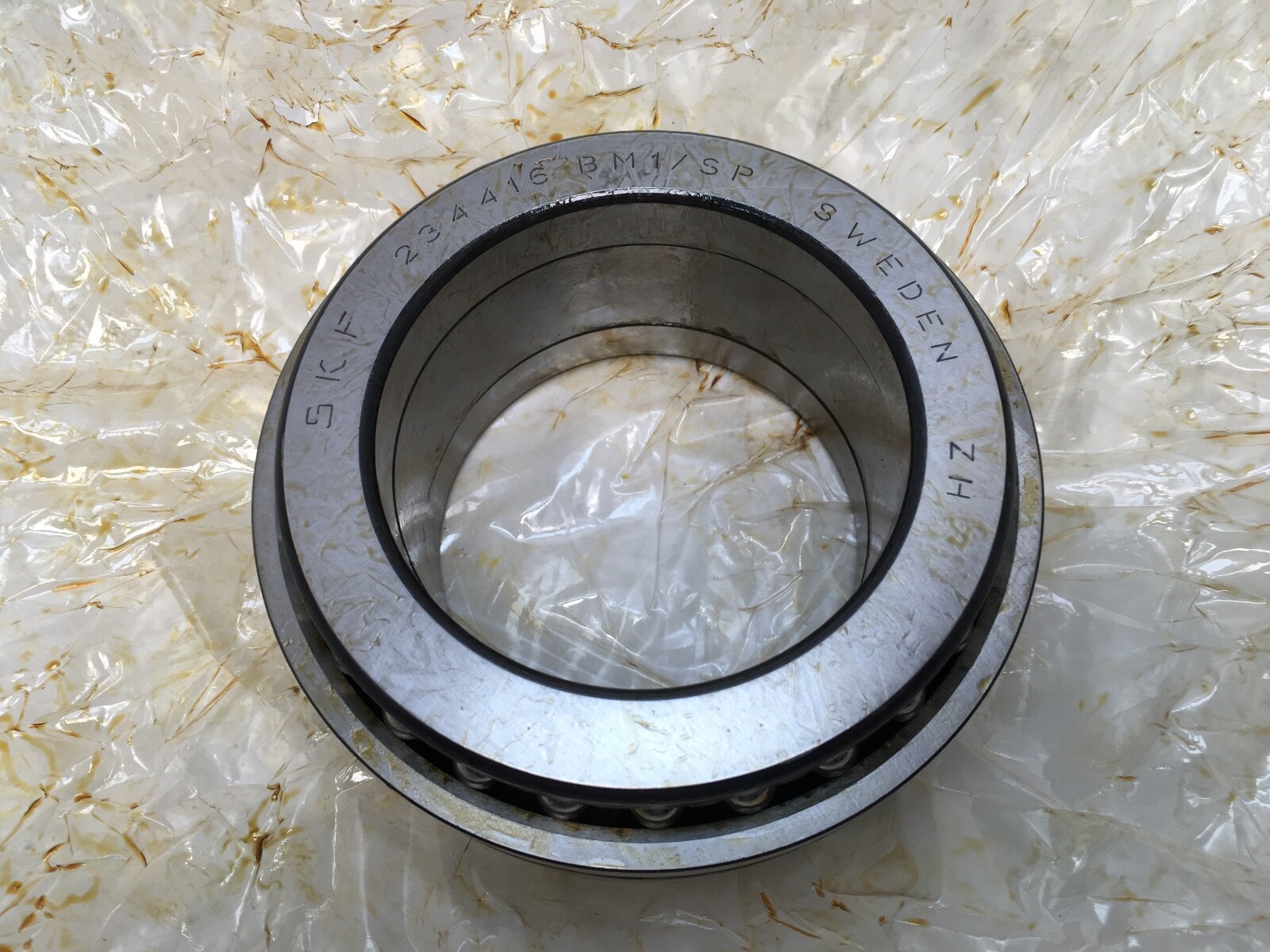

Decoding the designation

2344: double-direction axial angular contact series. 16: bore code, 80 mm. M: machined brass cage. SP: special precision tolerance class, held to restricted running accuracy.

What these specs mean in practice

Basic dynamic axial load rating Ca: 57.0 kN (12,810 lbf). Basic static axial load rating C0a: 173 kN (38,890 lbf). Fatigue load limit Cua: 15.7 kN. On a 60° double-direction thrust type the static rating sits far above the dynamic rating, and that is the normal relationship for this family. The 60° angle puts almost the whole load path along the axis, which is what makes this type the standard fixed bearing for a ball screw drive. Attainable speed: 4,500 r/min on grease and 6,000 r/min on oil. Axial rigidity: 640 N/µm.

Quantity and configuration

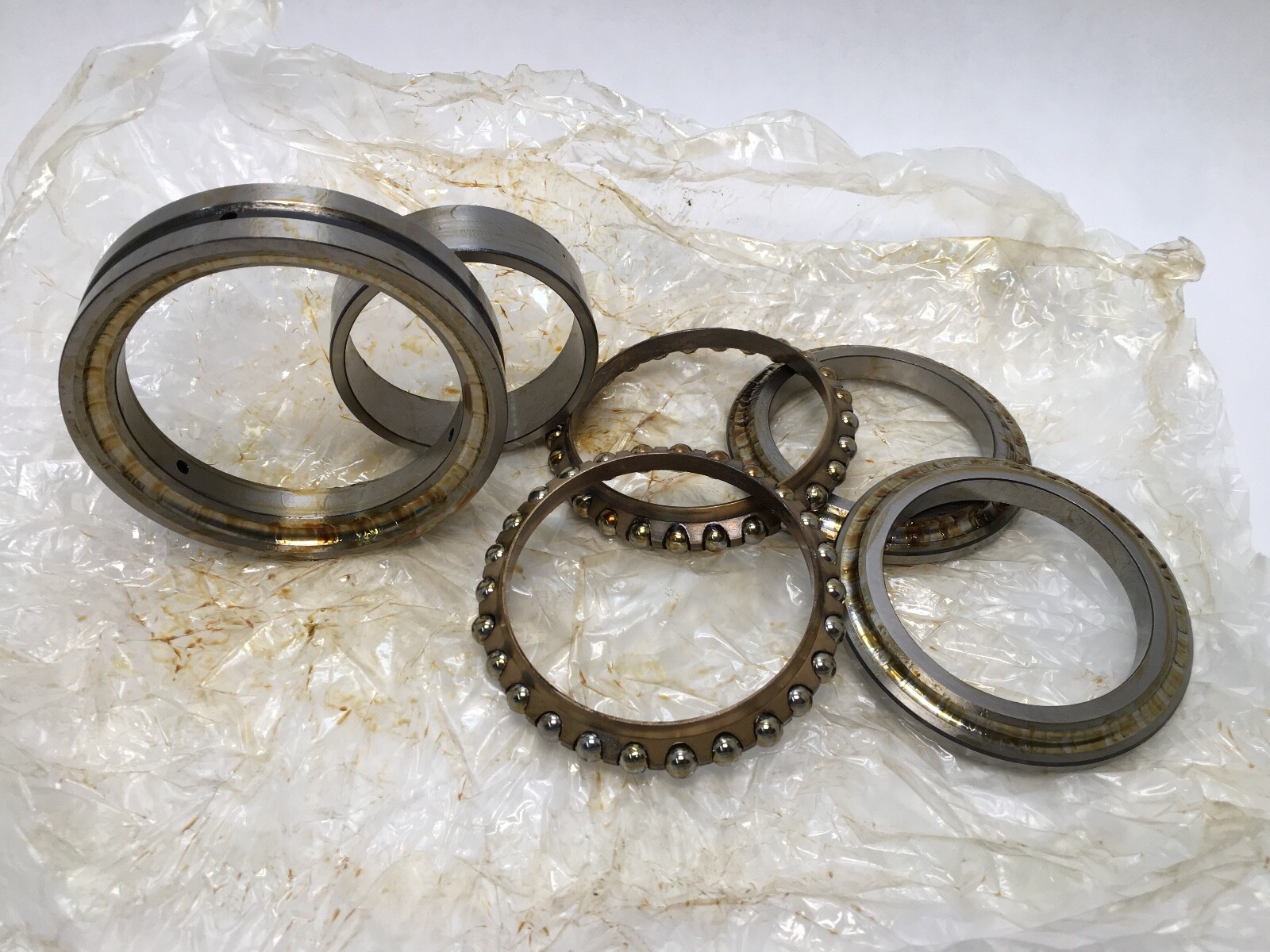

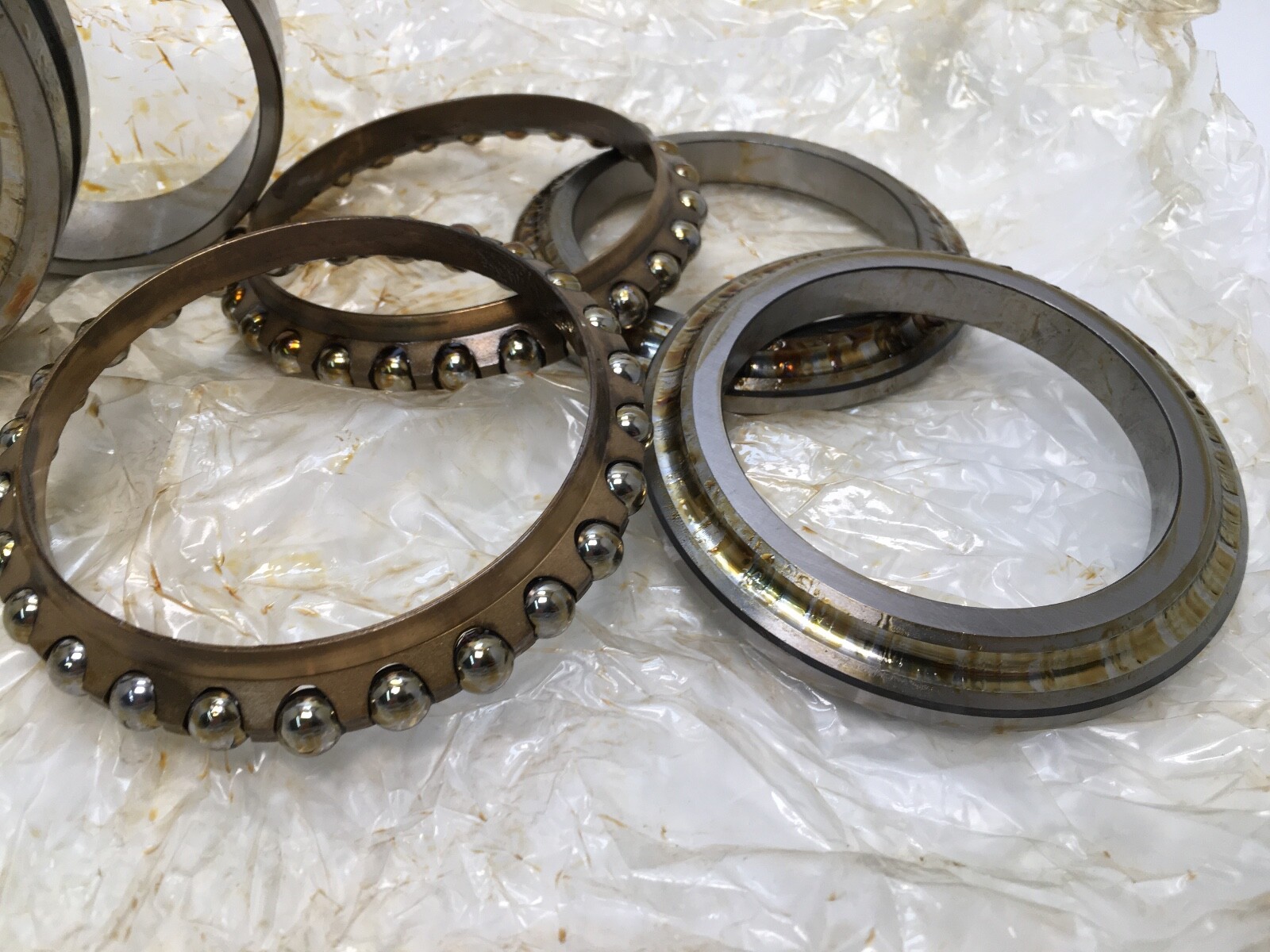

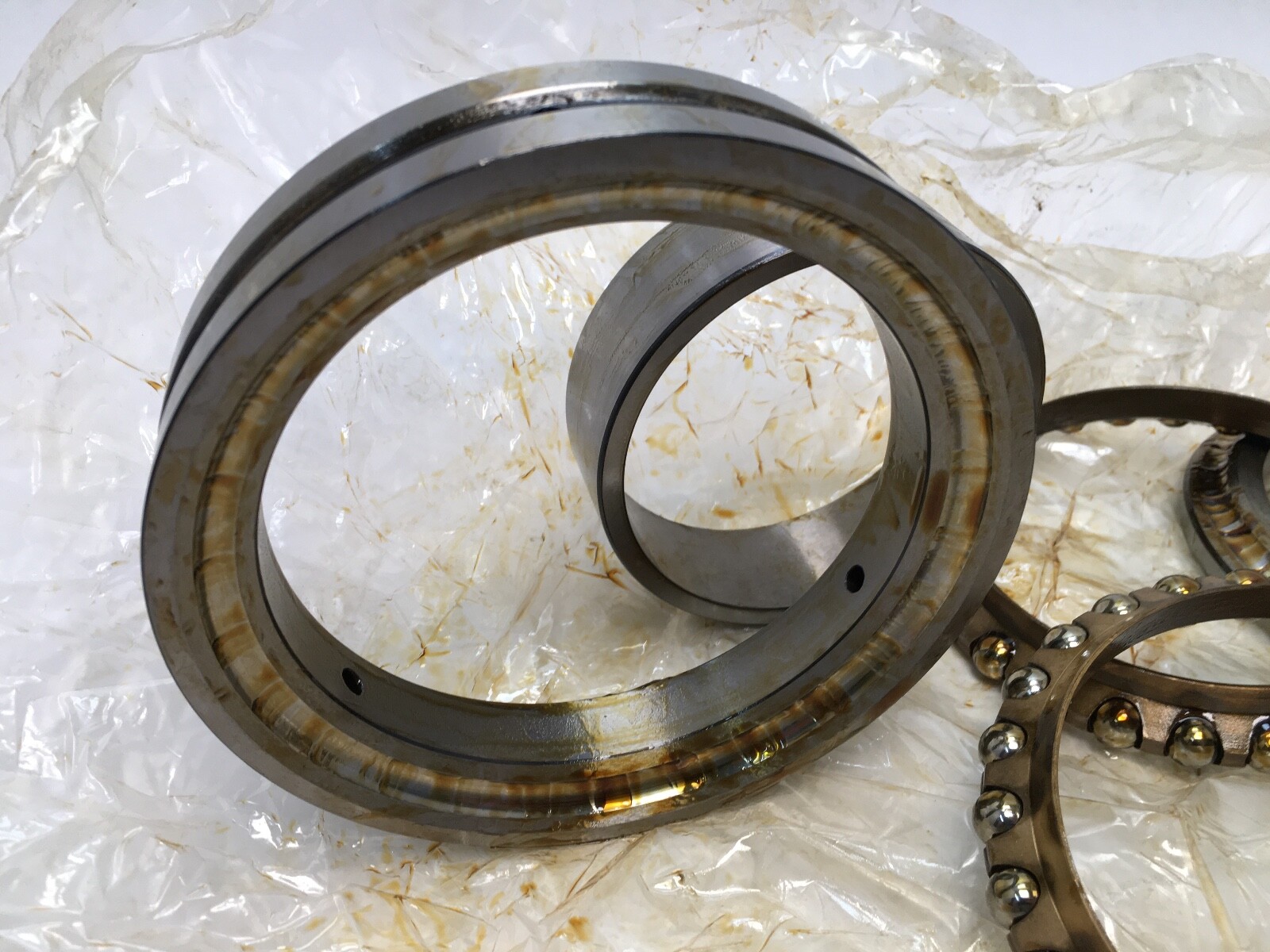

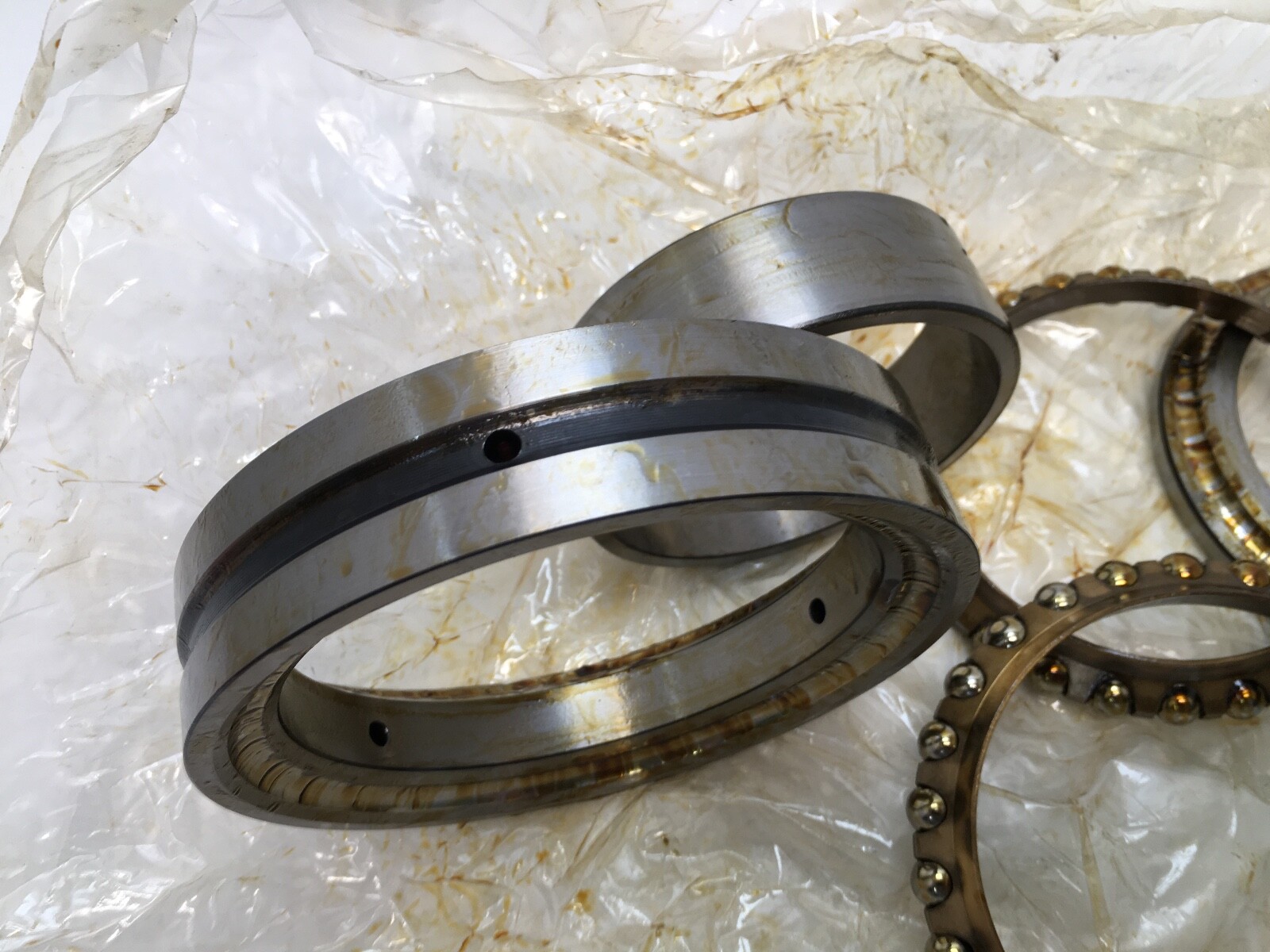

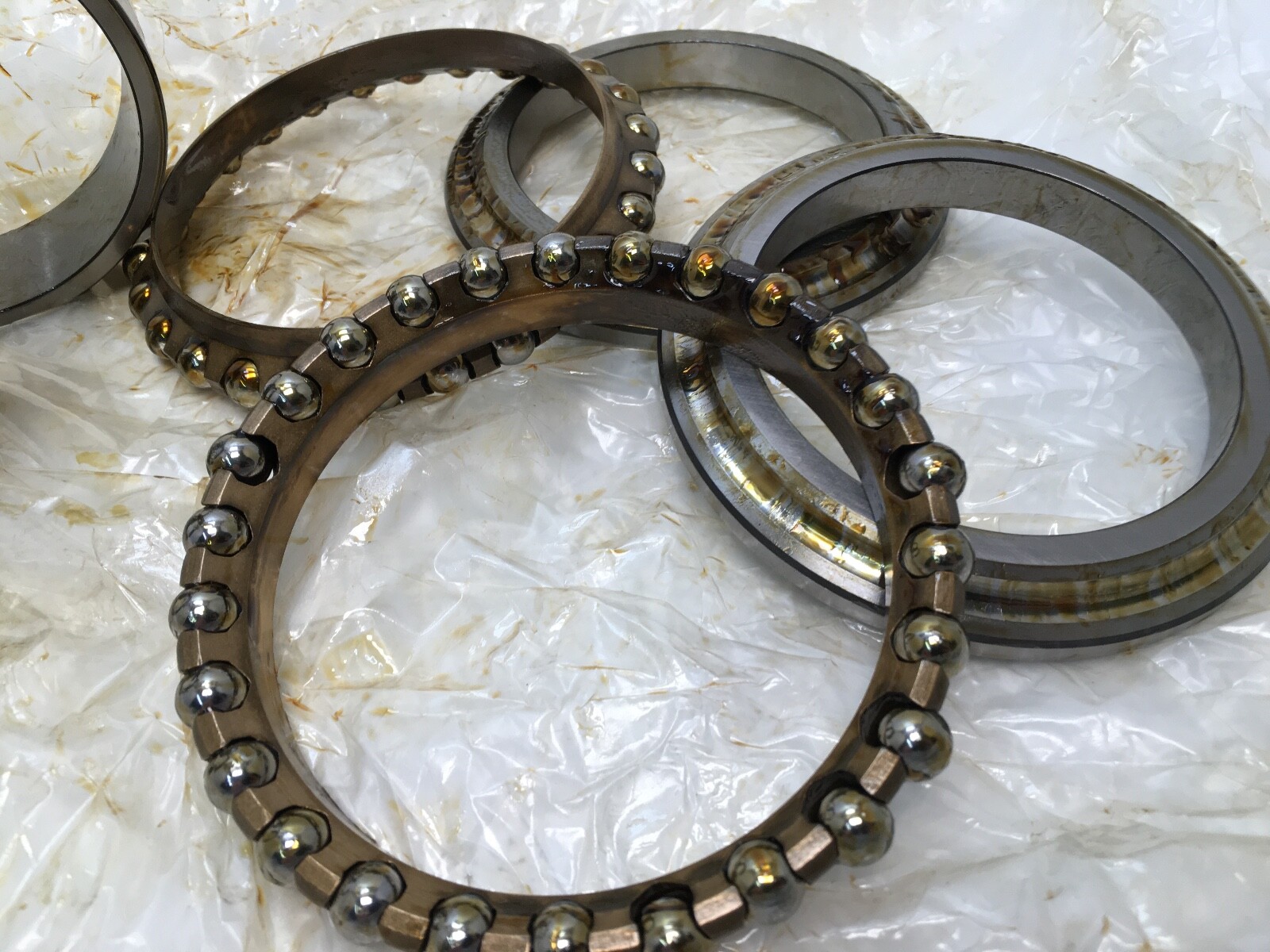

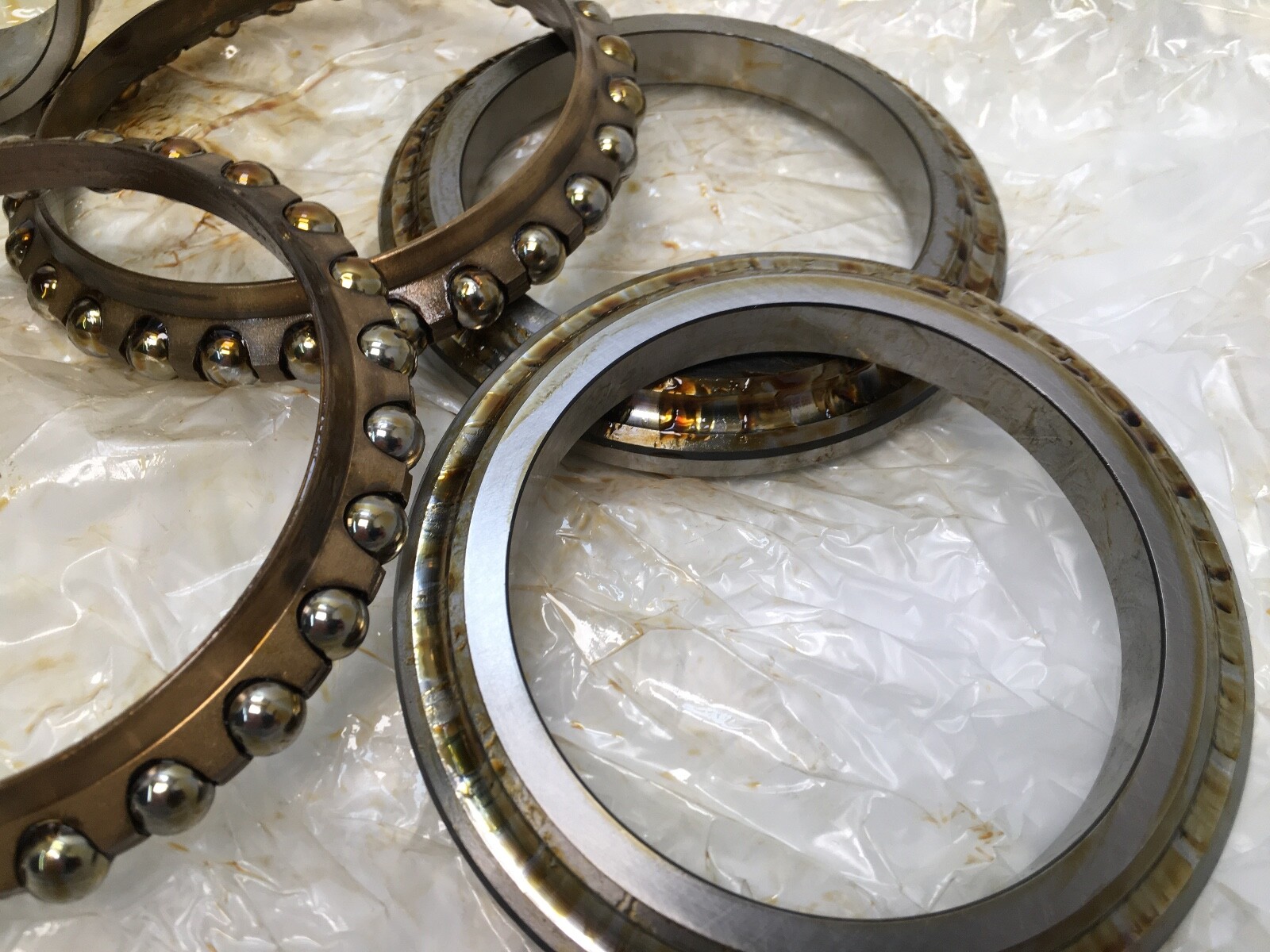

One bearing unit, supplied as a separable matched component set. Mass: 2.155 kg (4.75 lbs).

Fitting notes

Shaft abutment diameter da: 98.5 mm. Housing abutment diameter Da: 117 mm. Overall mounting length a: 207 mm. Axial preload Fv: 400 N. Axial breakaway load KaE: 1,140 N. Operating temperature range: −30 °C to +150 °C.

Interchange guidance

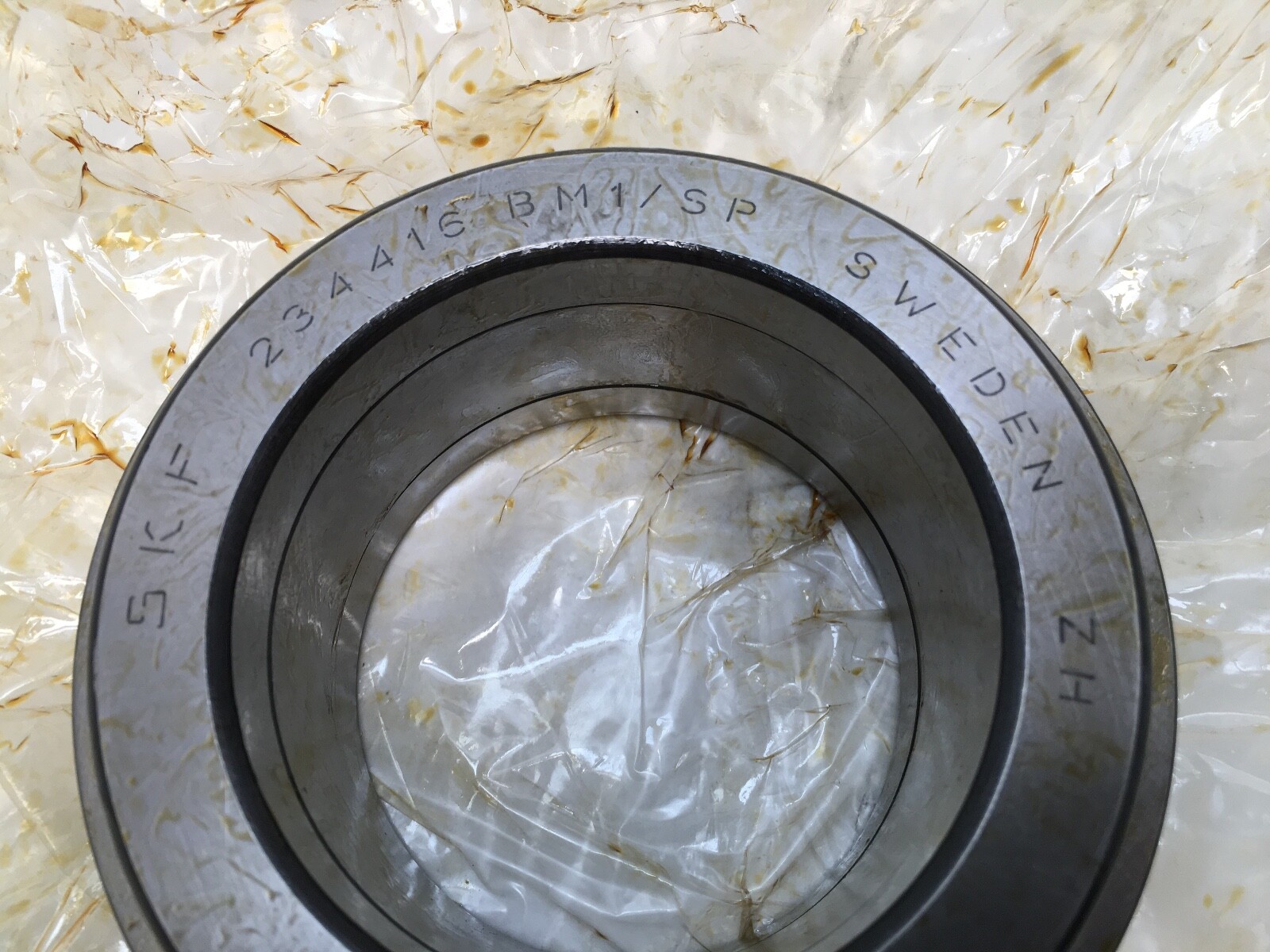

Equivalent designations on the same envelope: FAG 234416-M-SP, 234416M.SP, 234416-BM1/SP, and NSK 80TAC20D. Searchable forms: 234416MSP, 234416 M SP, 234416 MS P5, 234416-M-SP.
