RHP7216-T-DUL-P4Super-Precision Angular Contact Ball Bearing – 80 mm ID, 140 mm OD, 26 mm Width, Open, Light Preload, ABEC 7

Product Description

What this part is:

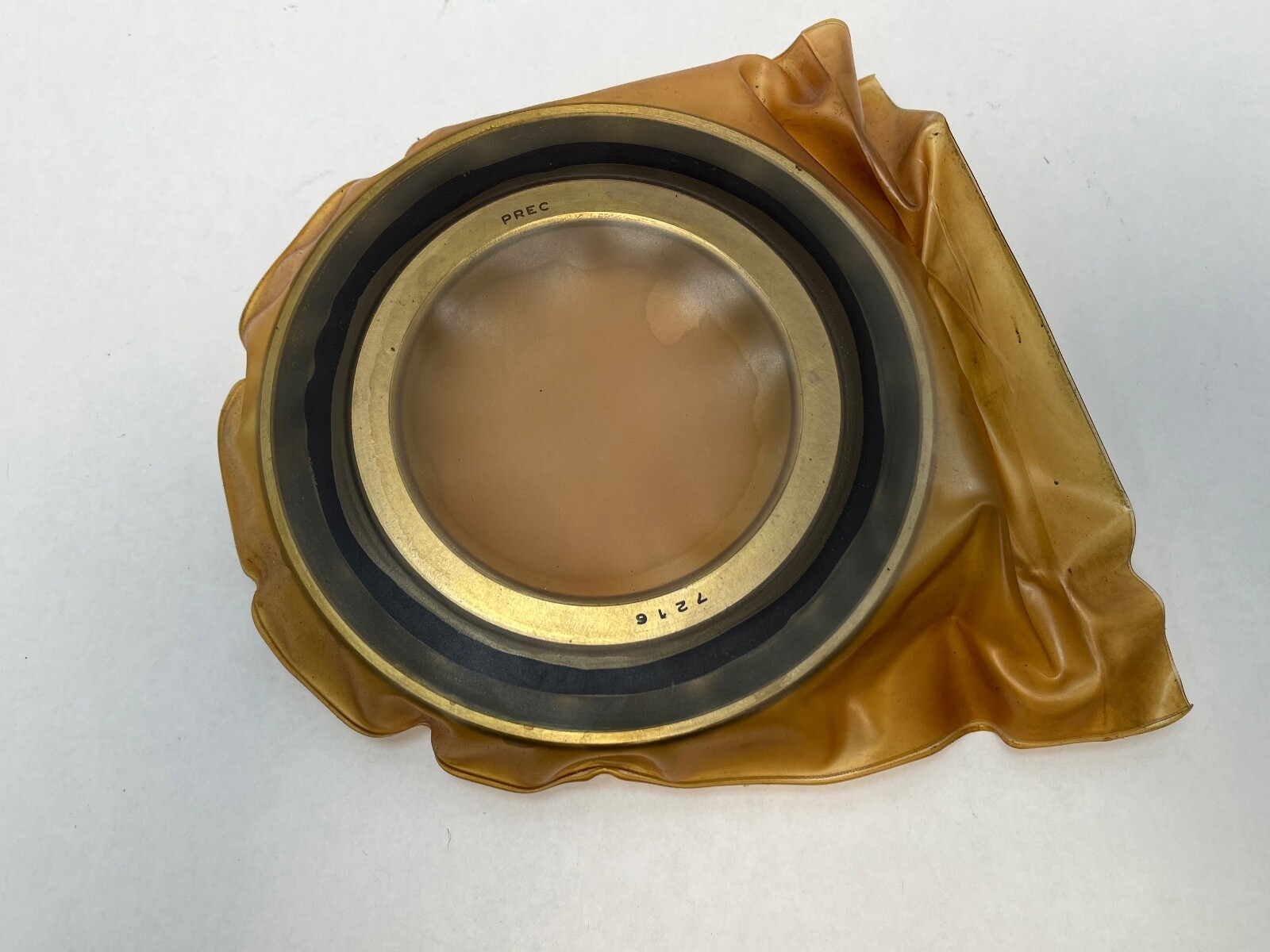

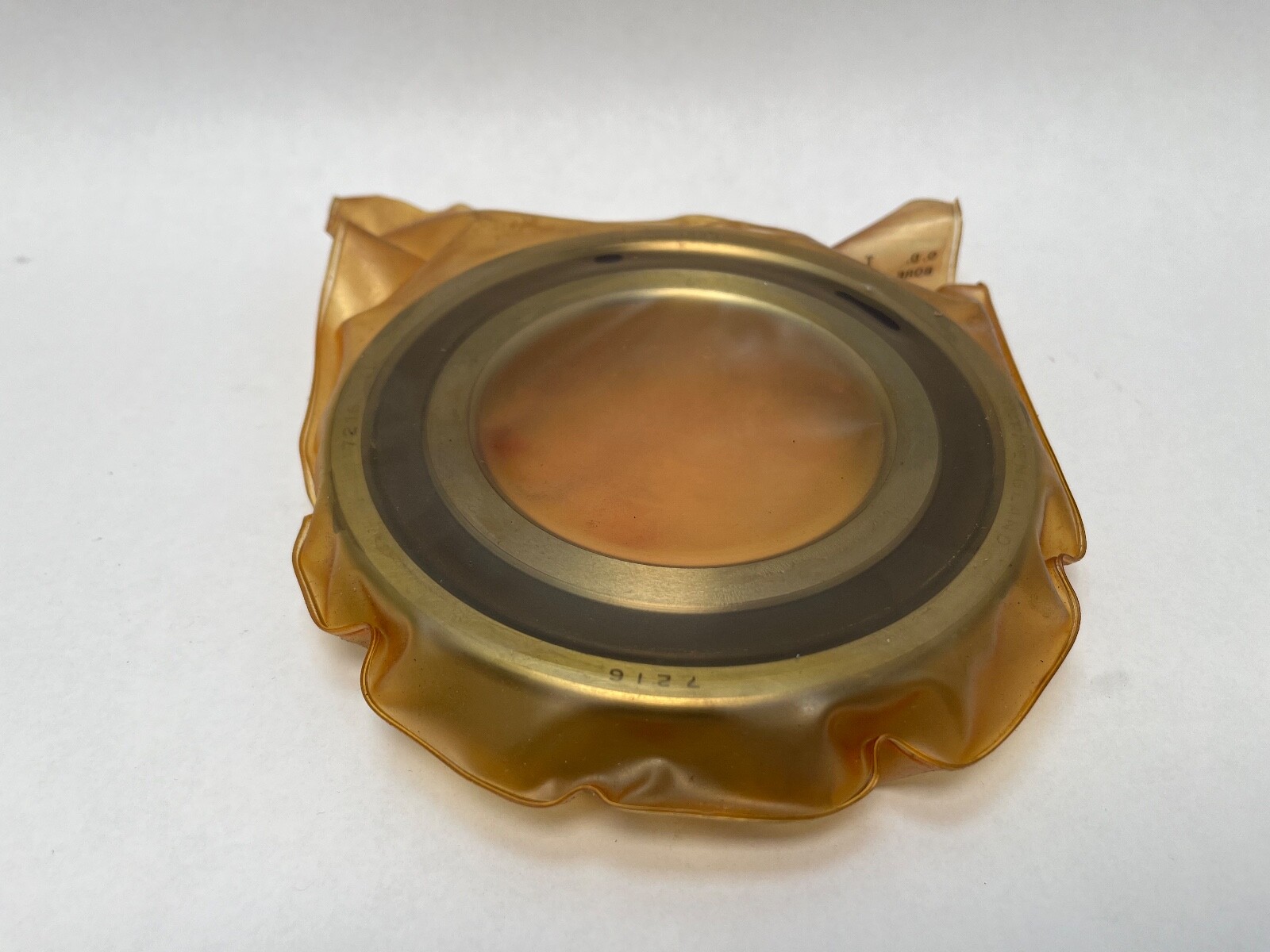

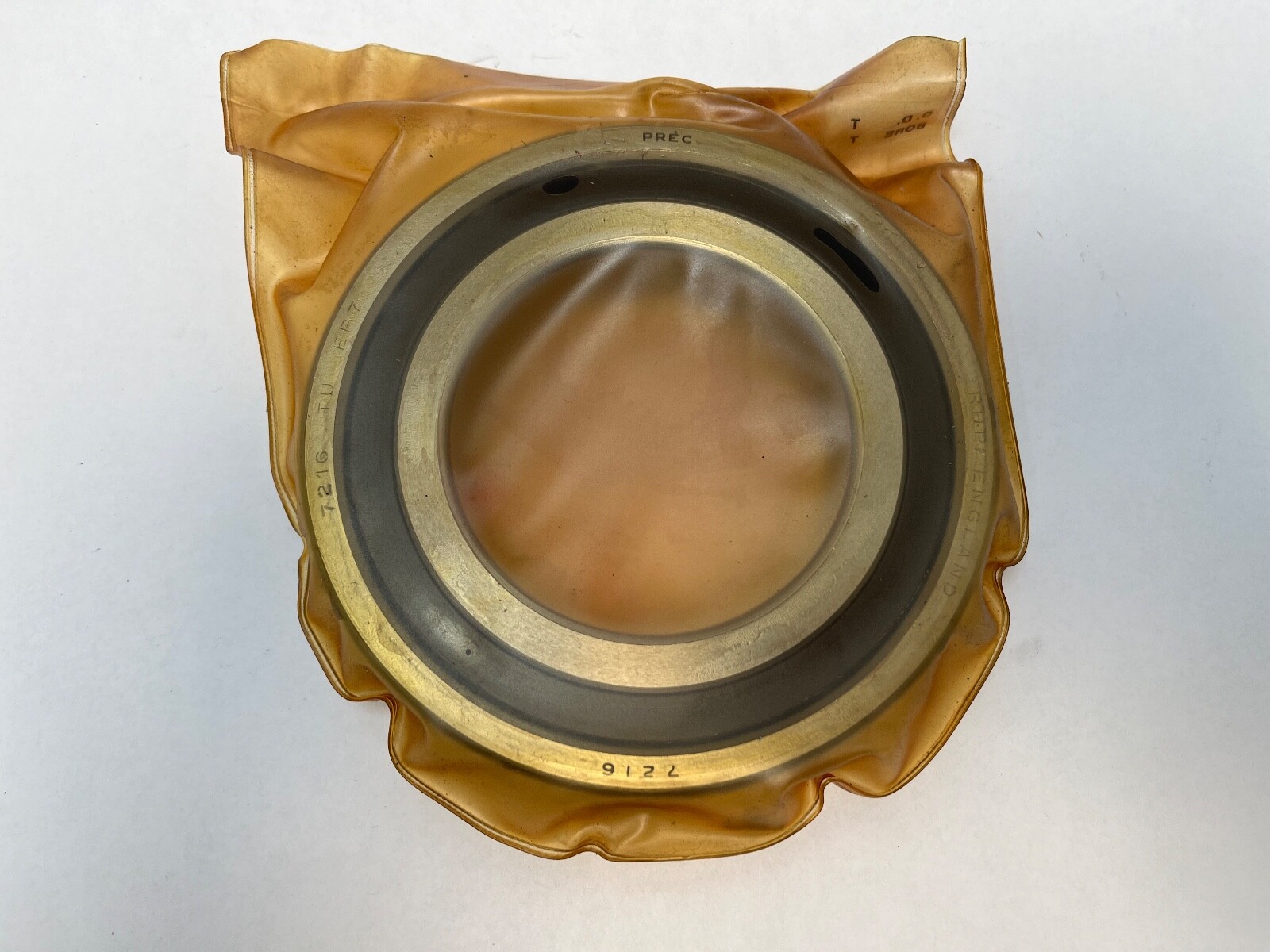

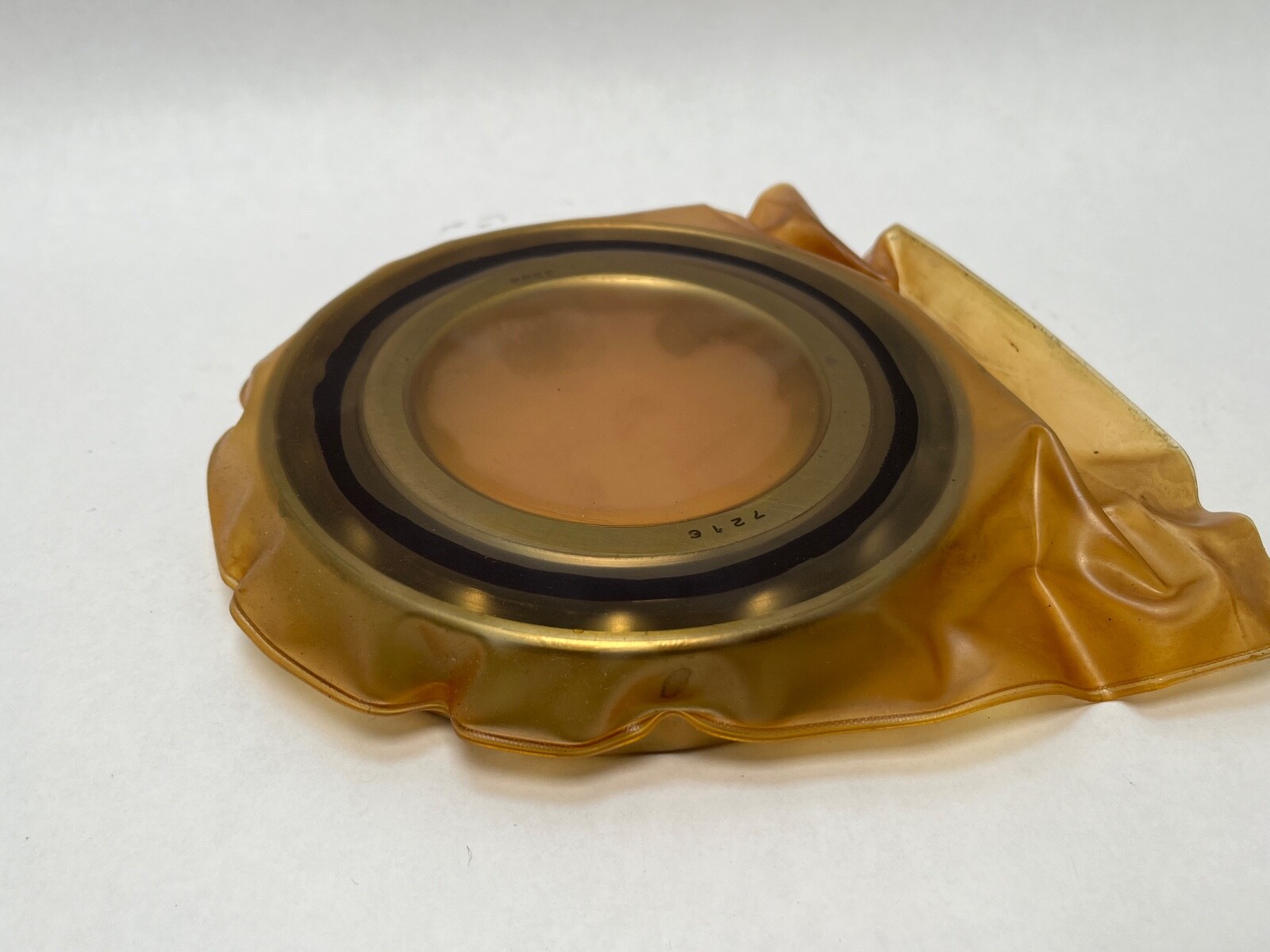

RHP 7216TDULP4 super-precision angular contact ball bearing, single row, open. Bore 80 mm, outside diameter 140 mm, width 26 mm. One half of a factory-matched duplex pair (-1/2PR), universally matchable.

Decoding the designation:

7216 — ISO 7200-series size, 80 x 140 x 26 mm.

T — machined phenolic cage.

DUL — light preload, duplex universally matchable.

P4 — precision class ABEC 7 / ISO P4; the RHP EP7 form on the carton carries the same class.

-1/2PR — one half of a factory-matched pair.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 26 mm. Series: 7200. Number of Rows: 1. Rolling Elements: Ball. Cage Material: Phenolic. Cage Type: Machined. Preload: Light (DUL). Mounting Arrangement: Universally matchable. Precision Class: ABEC 7 / ISO P4. Closure Type: Open. Material: Bearing steel. Unit Quantity: 1 Pc.

Dimensions and mounting:

Envelope 80 x 140 x 26 mm, straight bore. Total width across a full DUL pair: 52 mm. Preload is ground into the ring faces, so the bearing carries no radial internal clearance class.

Compatibility and replacement:

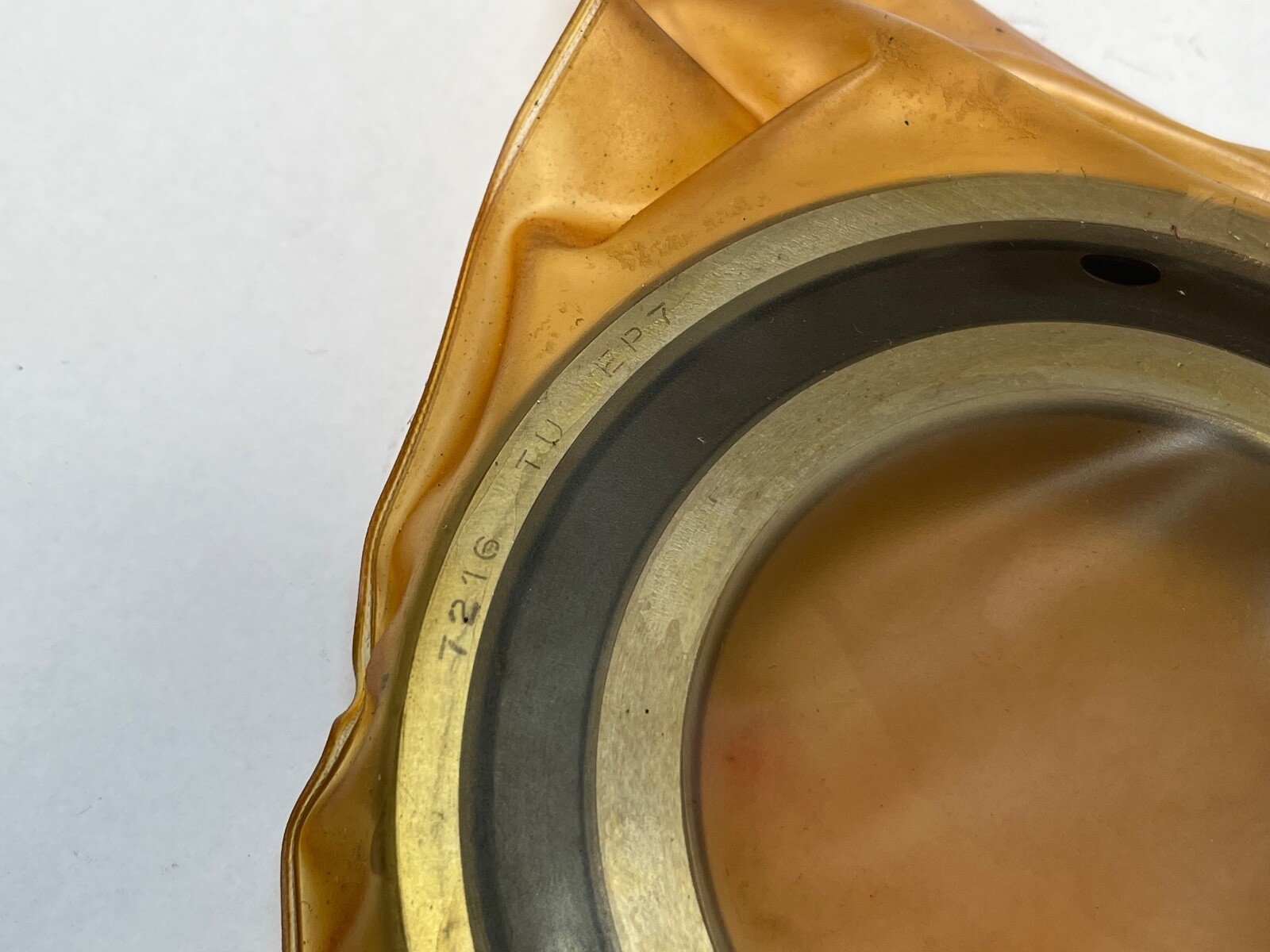

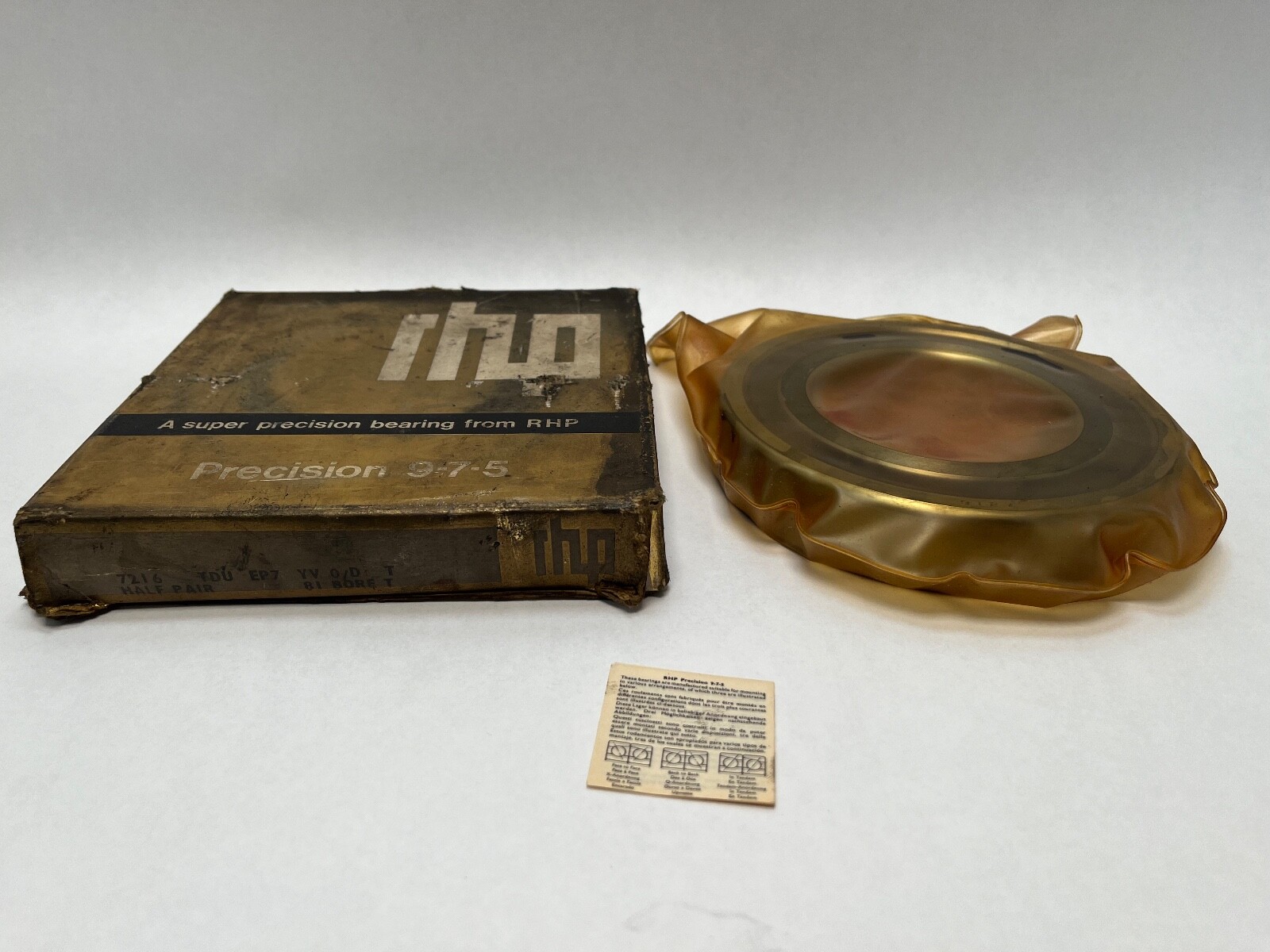

The carton carries three designation schemes: RHP 7216 T DUL P4, RHP B-series 7216TDU EP7 and Fafnir MM216WI CR DUL. Search forms: 7216TDULP4, 7216-T-DUL-P4, 7216TDULP4-1/2PR, 7216TDUEP7, 7216B, MM216WICRDUL.

Frequently asked questions:

What size is the RHP 7216TDULP4?

80 mm bore, 140 mm outside diameter, 26 mm width.

What precision class and preload does it have?

ABEC 7 / ISO P4 precision with light preload (DUL), universally matchable.

What does -1/2PR mean?

It marks one half of a factory-matched pair. A full DUL pair measures 52 mm across.
