Availability:
Out of stock
Angular contact ball bearing, 55 x 100 x 21 mm, 15 degree contact angle. ABEC 3 / P6 class, phenolic cage, universally ground faces for pairing.
List Price
$53.52
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing - 55 mm Bore, 100 mm OD, 21 mm Width, 15° Contact Angle, ABEC 7 / P4, Light Preload Duplex Set$53.47
Super Precision Angular Contact Ball Bearing Matched Pair – Straight Bore, 55 mm ID, 100 mm OD, 21 mm Width, Open, 15° Contact Angle, Medium Preload, ABEC 9$282.79
Super-Precision Angular Contact Spindle Bearing, 55x100x21 mm, 15° Contact Angle, Universally Ground Single, Medium Preload, ABEC 7 (P4)$128.78
Angular Contact Ball Bearing - Straight Bore, 55 mm ID, 100 mm OD, 21 mm Width, Open, 15° Contact Angle, Light Preload.$117.94| MFR / Brand | RHP |
|---|---|
| MPN | 7211CTSULP6 |
| Model | 7211 C T SUL P6 / B-7211-X2-T-UL-EP3 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21mm |
| Series | 7200 |
|---|---|
| Lubricant | Oil |
| Preload | Light |
| Material | Bearing Steel |
| Base Number | 7211 |
| Industry Terms | Angular contact ball bearing; spindle bearing; ABEC 3 bearing; P6 precision bearing; machine tool bearing |
| Common Misspellings | 7211 C T SUL P6; 7211CSULP6; 7211 CTSULP6; RHP 7211TSUL P6; B7211 X2 T UL EP3 |
| Application Types | Machine tool spindles; precision gearboxes; pumps; indexing heads; motor spindles |
| Overall Width | 21 mm |
| Mpn Variants | 7211CTSULP6; 7211-C-T-SUL-P6; B7211X2TULEP3; 7211X2; 2MM211WICRSUL |
| Precision Class | ABEC 3 / P6 |
| Additional Attributes | Effective load centre a: 20.9 mm; internal free volume 27.8 cm3; lubrication jet PCD 72.0 mm |
| Cage Type | Machined |
| Dynamic Load Rating | 53,000 N |
| Static Load Rating | 40,000 N |
| Precision Rating | ABEC 3 / P6 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally ground for pairing |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7211 CD/P4A - P4 class |
|---|---|
| Cross Reference 2 | FAG B7211-C-T-P4S - P4 class |
| Cross Reference 3 | NSK 7211CTRSULP4 - P4 class |
| Cross Reference 4 | NTN 7211UCG/GNP4 - P4 class |
| Cross Reference 5 | Timken Fafnir 2MM211WICRSUL - P4 class |
| Cross Reference 6 | RHP B7211X2TULEP3 - same bearing, RHP B-series scheme |
| Cross Reference 7 | Koyo 7211C/GNP4 - P4 class |
| Cross Reference 8 | GMN S6211 C TA P4 - P4 class |
| Cross Reference 9 | SNFA E 7211 7CE1 - P4 class |

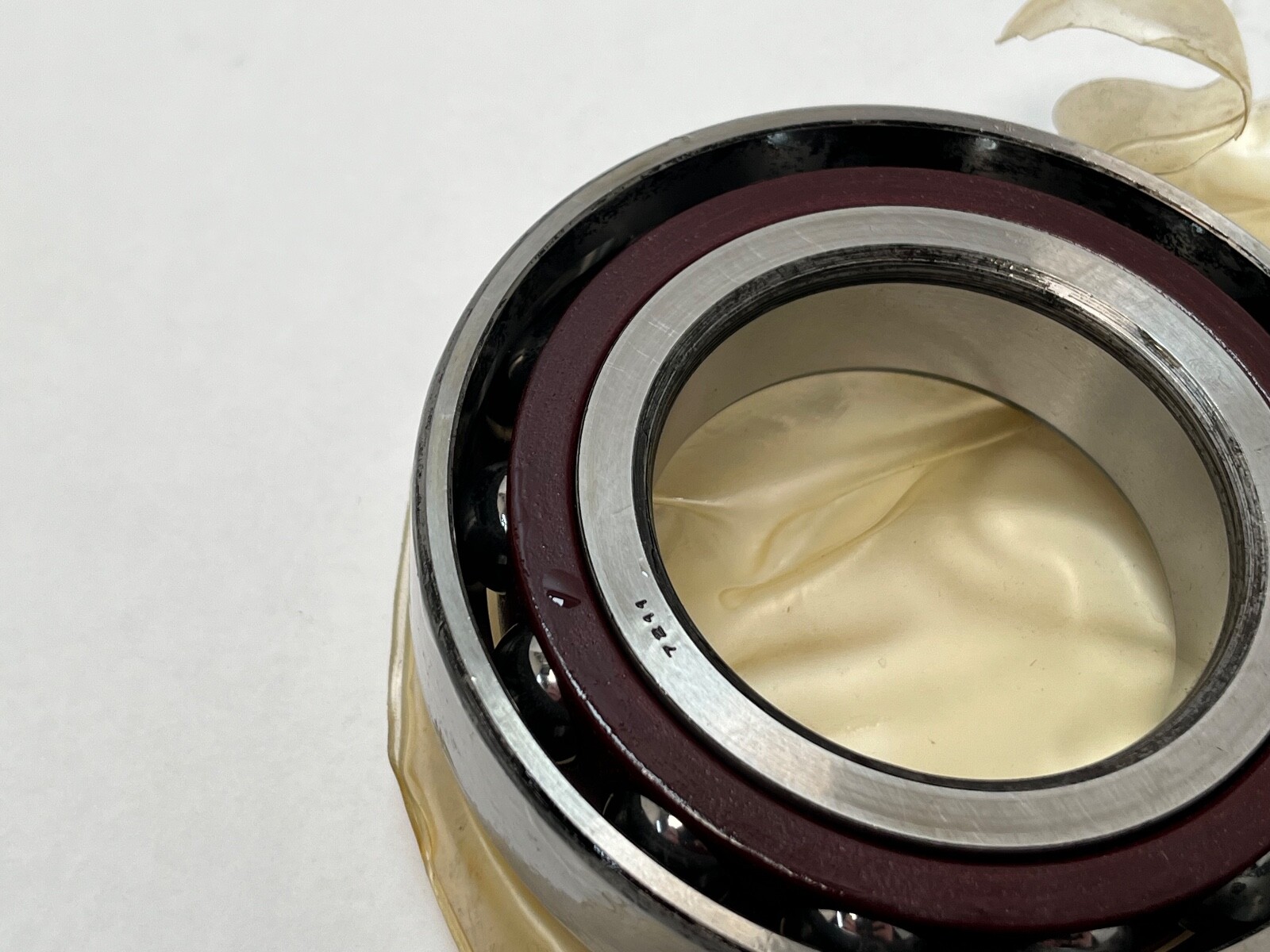

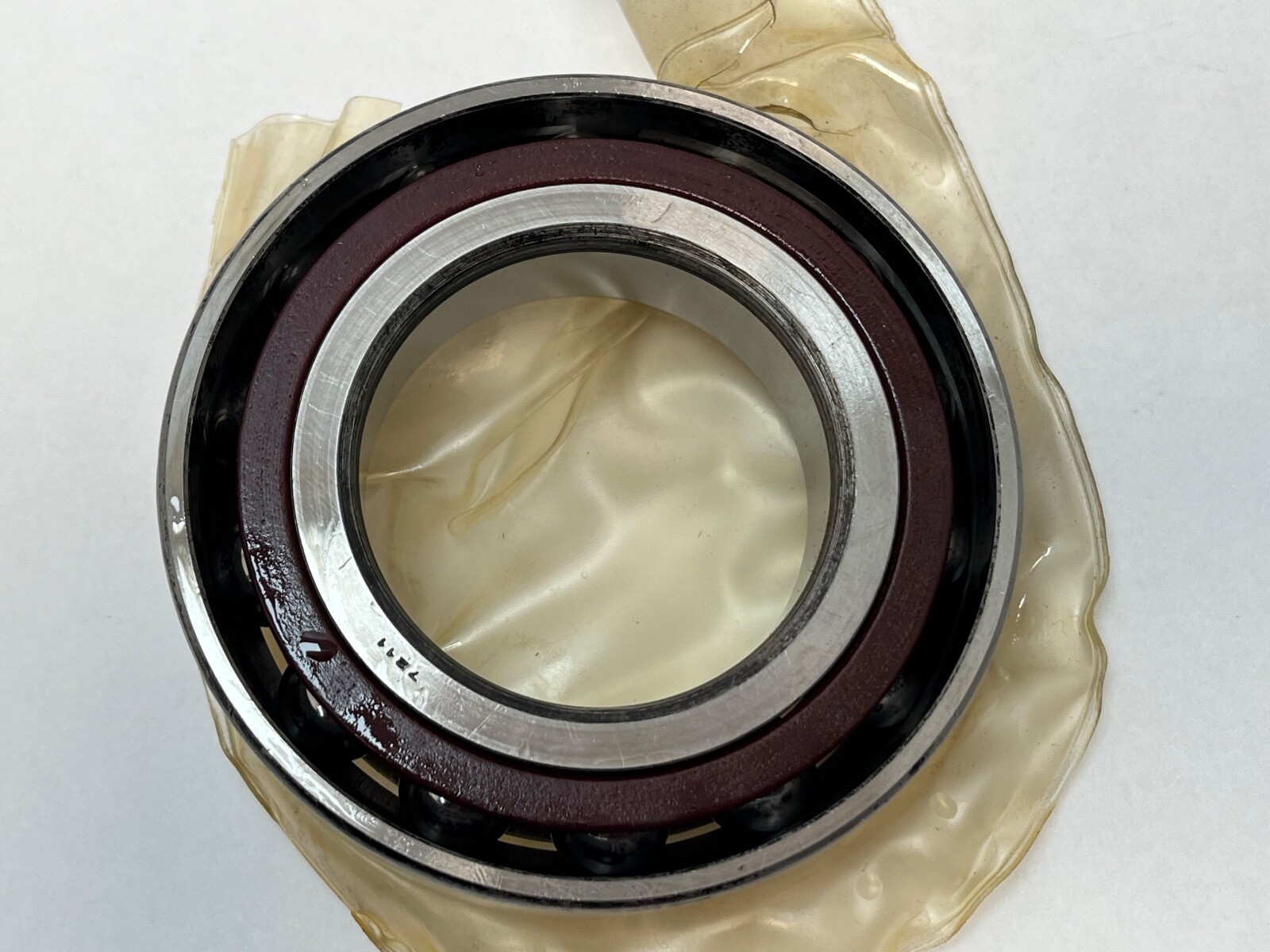

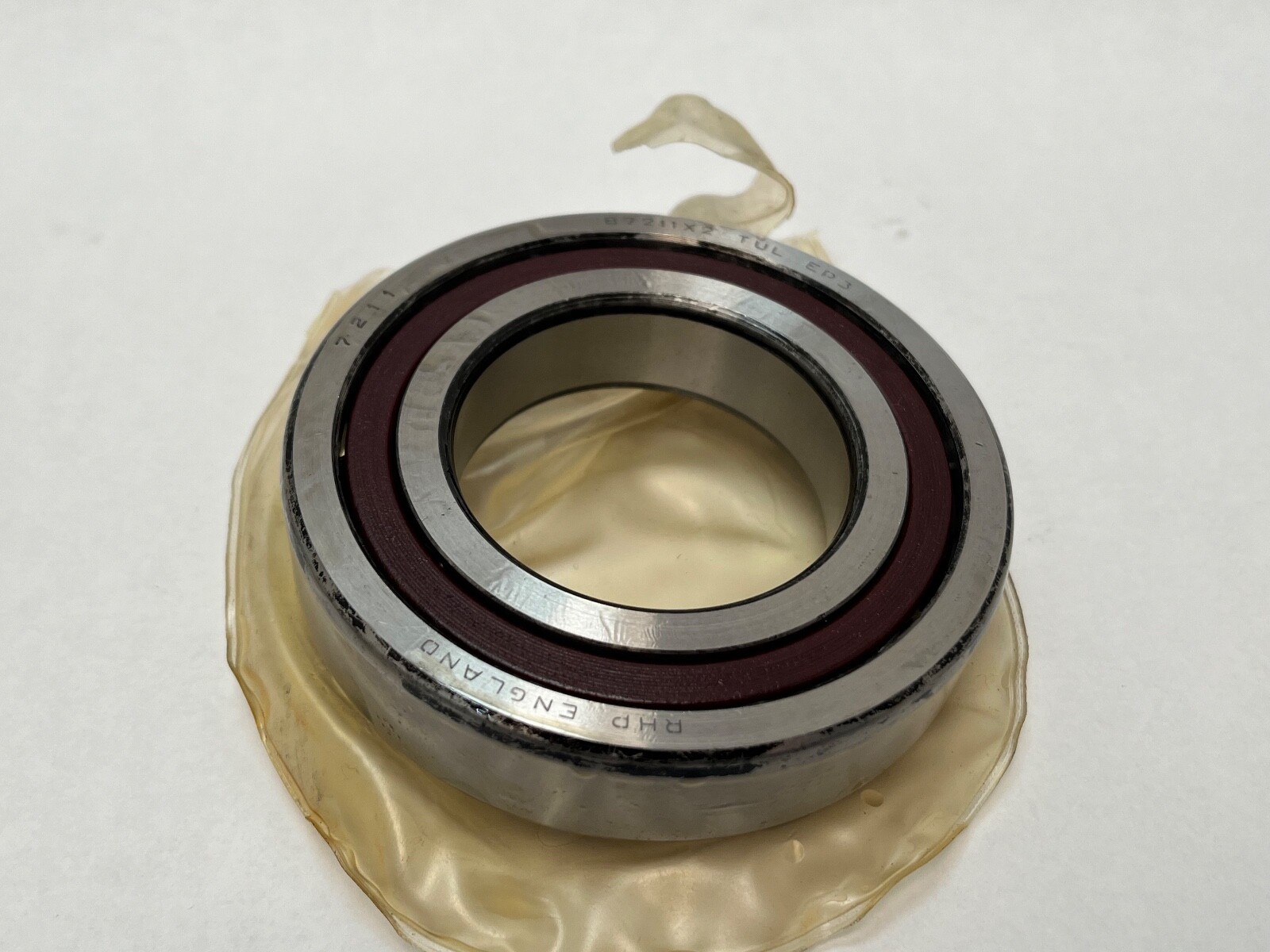

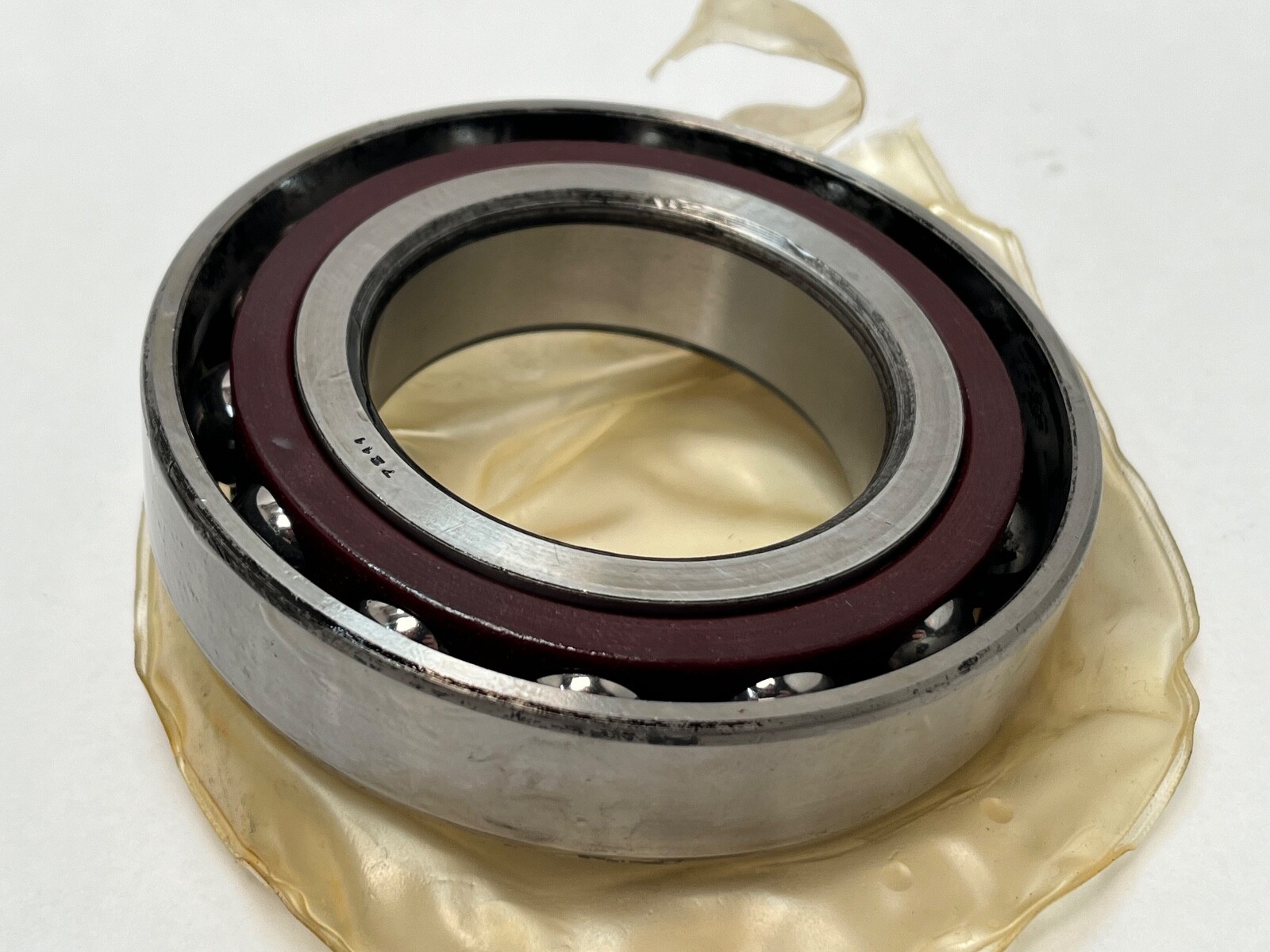

RHP 7211-C-T-SUL-P6 single-row angular contact ball bearing. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Contact Angle: 15°. Precision Class: ABEC 3 / P6. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic.
72 — ISO dimension series 02, the medium section of the angular contact range. It carries a heavier load than the 70 series at the same bore.
11 — bore code. Bore Diameter: 55 mm.
C — 15° contact angle. The carton confirms it with X2 in the RHP B-series string B7211X2TULEP3.
T — machined laminated phenolic cage.
SU — universal face control. Faces are ground so that any two bearings from the range stack back-to-back, face-to-face or in tandem without shims or ground spacers.
P6 — RHP tolerance class P6, equivalent to BS 292 EP3 and ABEC 3.
Dynamic Load Rating: 53,000 N. Static Load Rating: 40,000 N. These are the ISO 281 and ISO 76 ratings for the 7211 C envelope and are set by the internal geometry, so they hold across precision classes.
Cage Material: Phenolic. A laminated phenolic cage is light, tolerant of marginal lubrication and quiet at speed.
Item Weight: 0.603 kg (1.33 lb).
Minimum inner ring abutment diameter: 64 mm. Maximum outer ring abutment diameter: 91 mm. Maximum outer ring seating diameter: 94 mm. Chamfer r min: 1.5 mm. Chamfer r1 min: 1.0 mm.
Effective load centre a: 20.9 mm. Internal free volume: 27.8 cm3. Pitch circle diameter for lubrication jets: 72.0 mm.

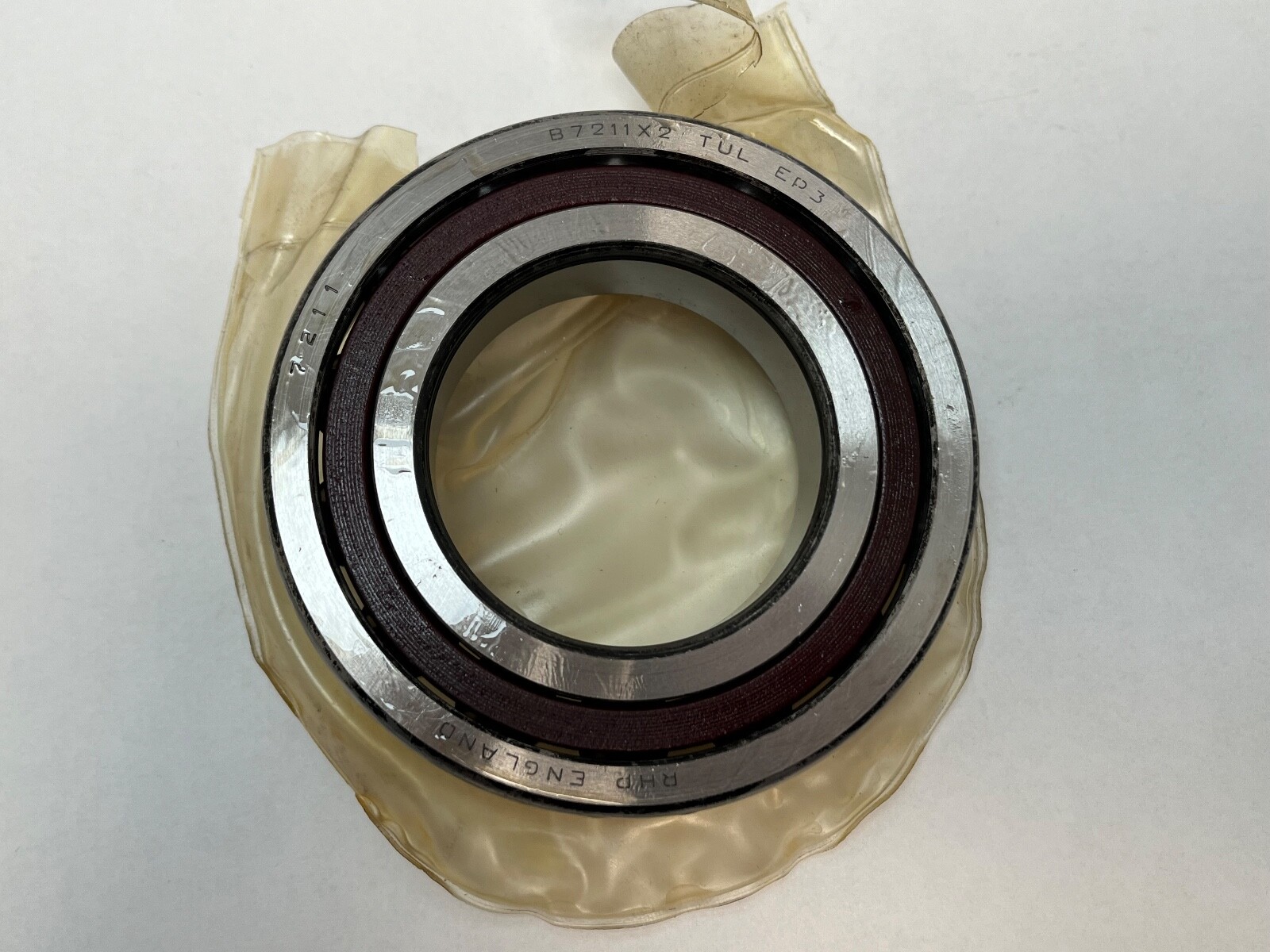

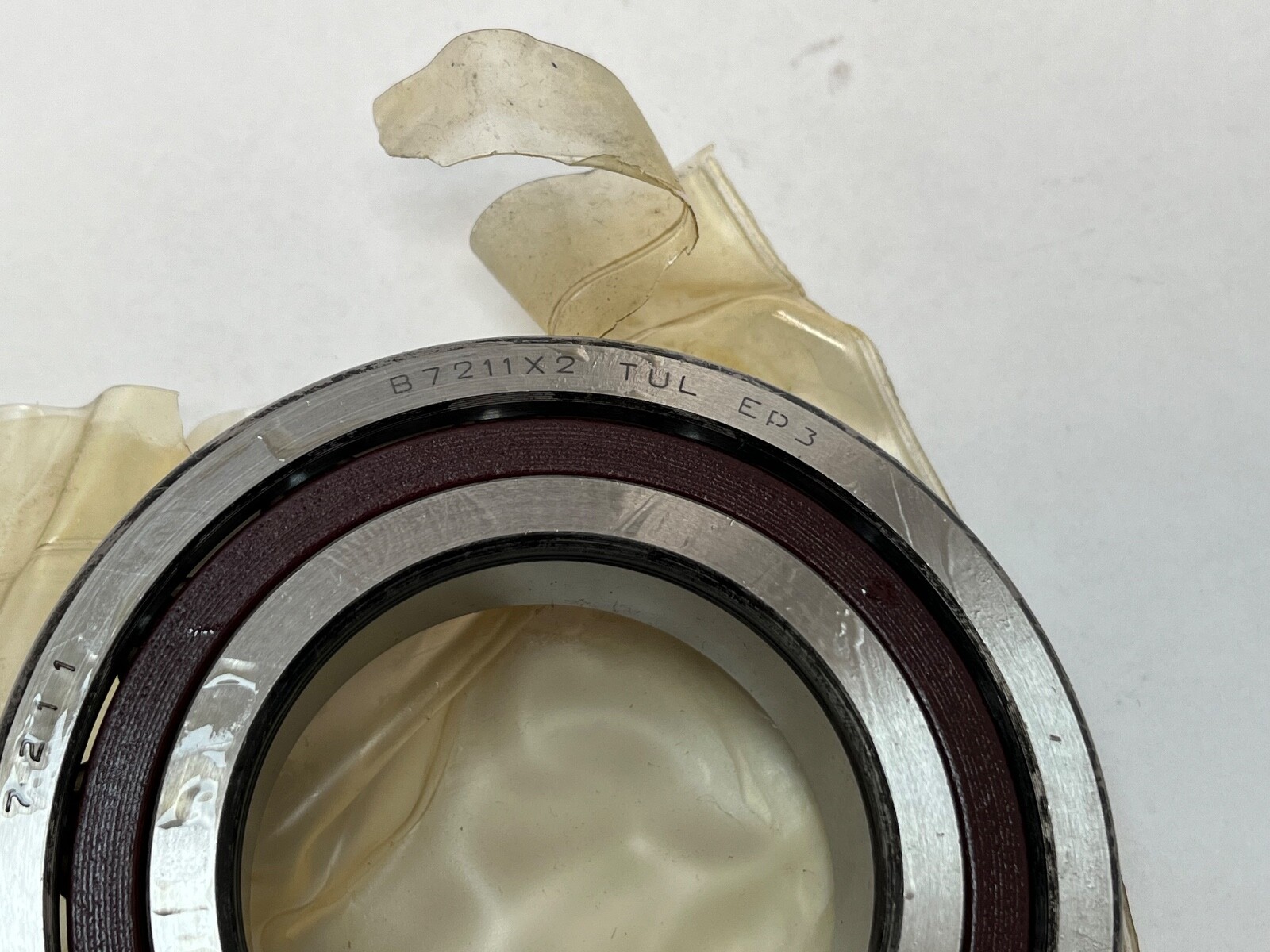

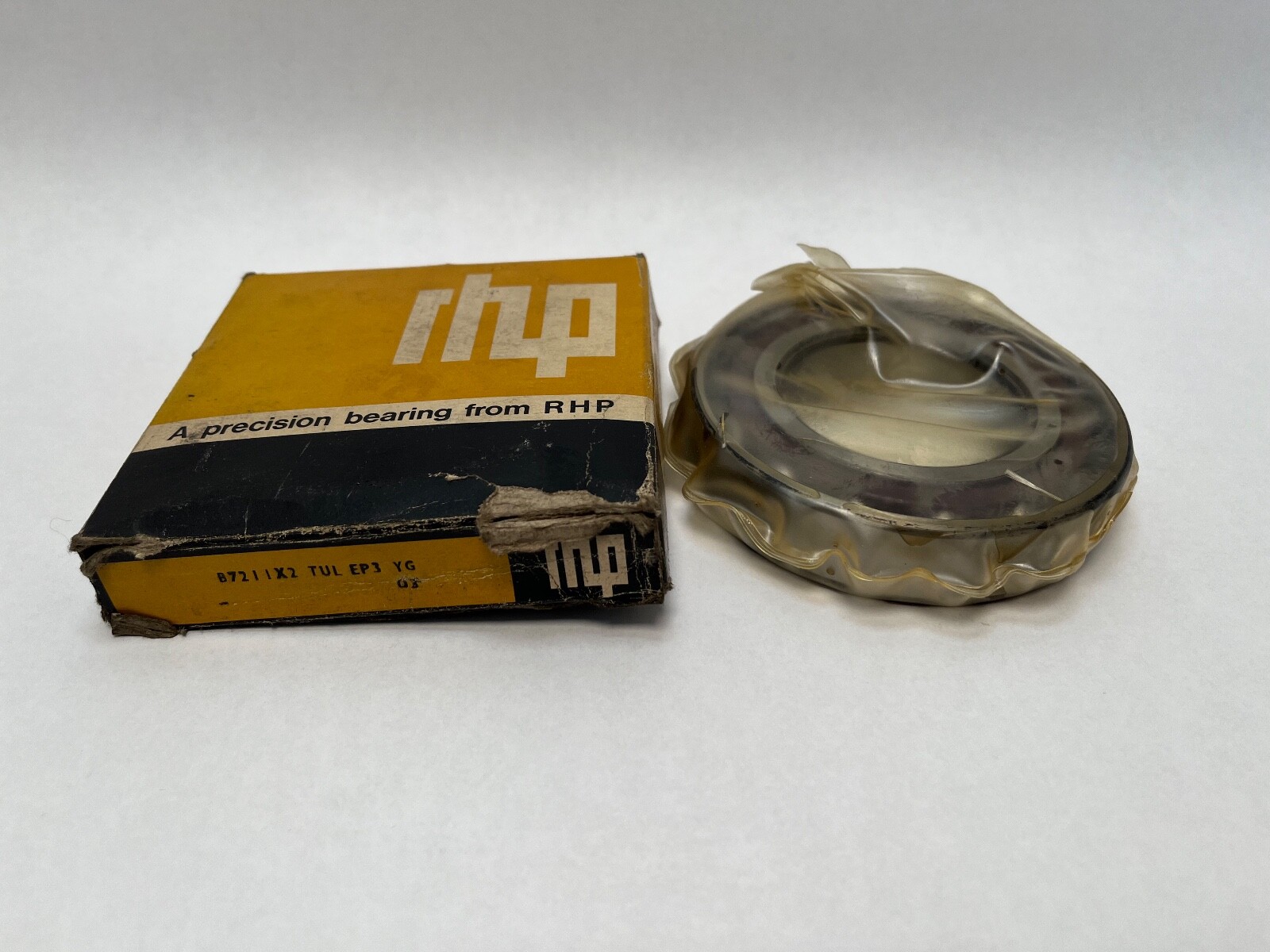

Unit Quantity: 1 Pc. Mounting Arrangement: Universally ground for pairing. The carton also carries the RHP B-series designation B7211X2TULEP3.
Same 55 x 100 x 21 mm envelope at 15°, in the precision classes each maker publishes: SKF 7211 CD/P4A, FAG B7211-C-T-P4S, NSK 7211CTRSULP4, NTN 7211UCG/GNP4, Timken Fafnir 2MM211WICRSUL, Koyo 7211C/GNP4, GMN S6211 C TA P4 and SNFA E 7211 7CE1 are all P4 executions of the same size and angle. RHP B7211X2TULEP3 is this same bearing in the RHP B-series scheme.
$141.11
255 in stock
