Availability:
2 in stock

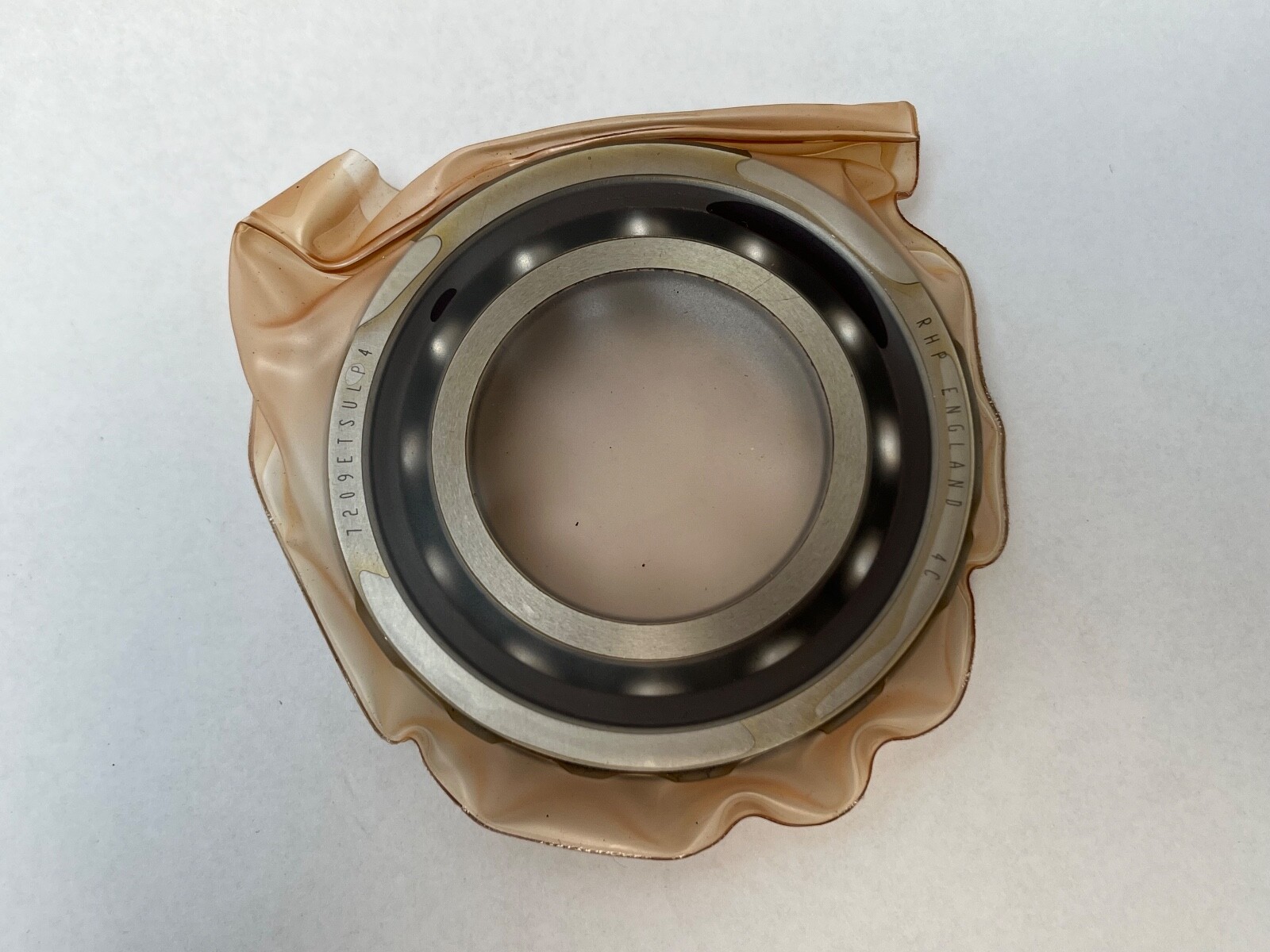

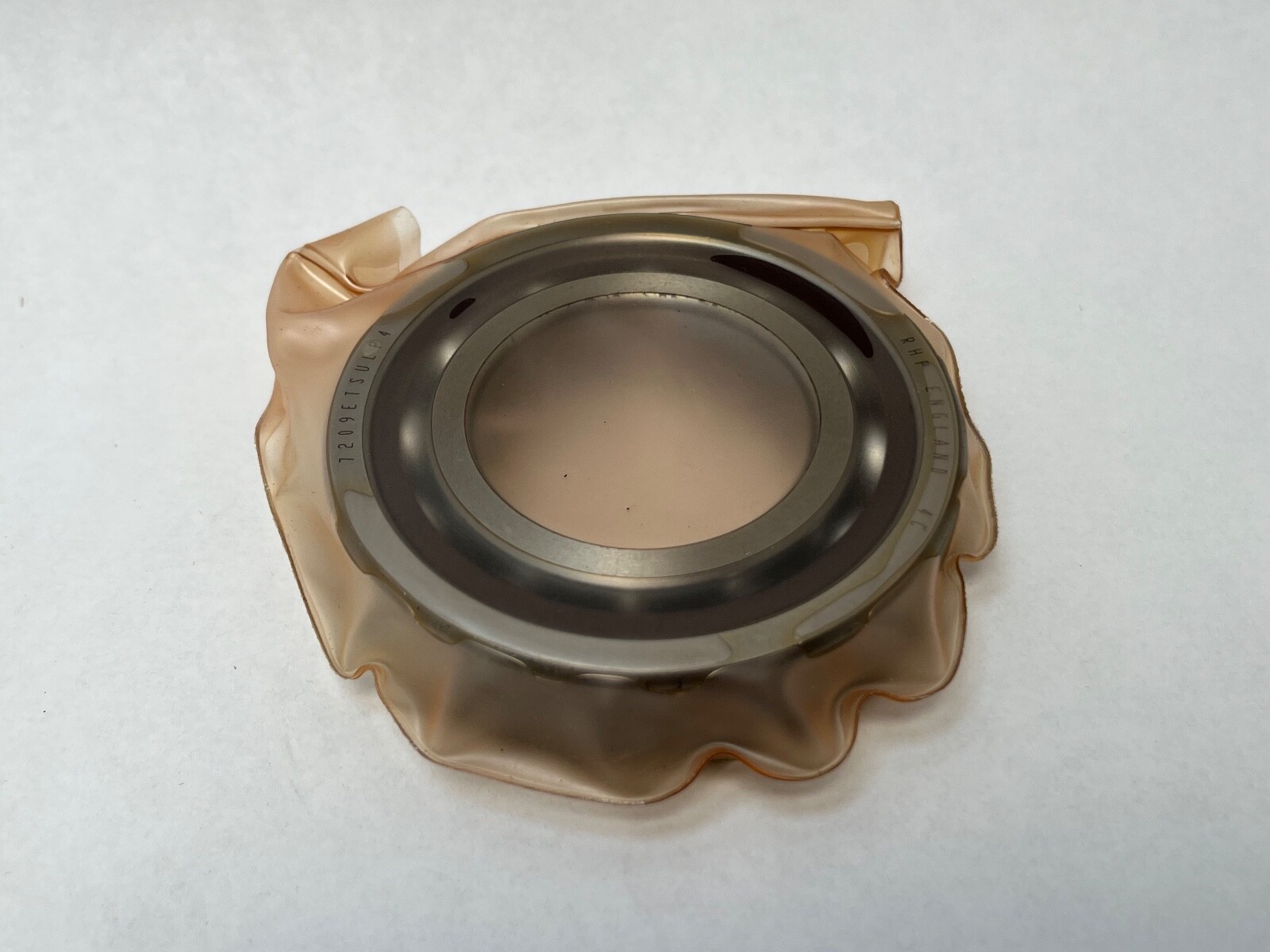

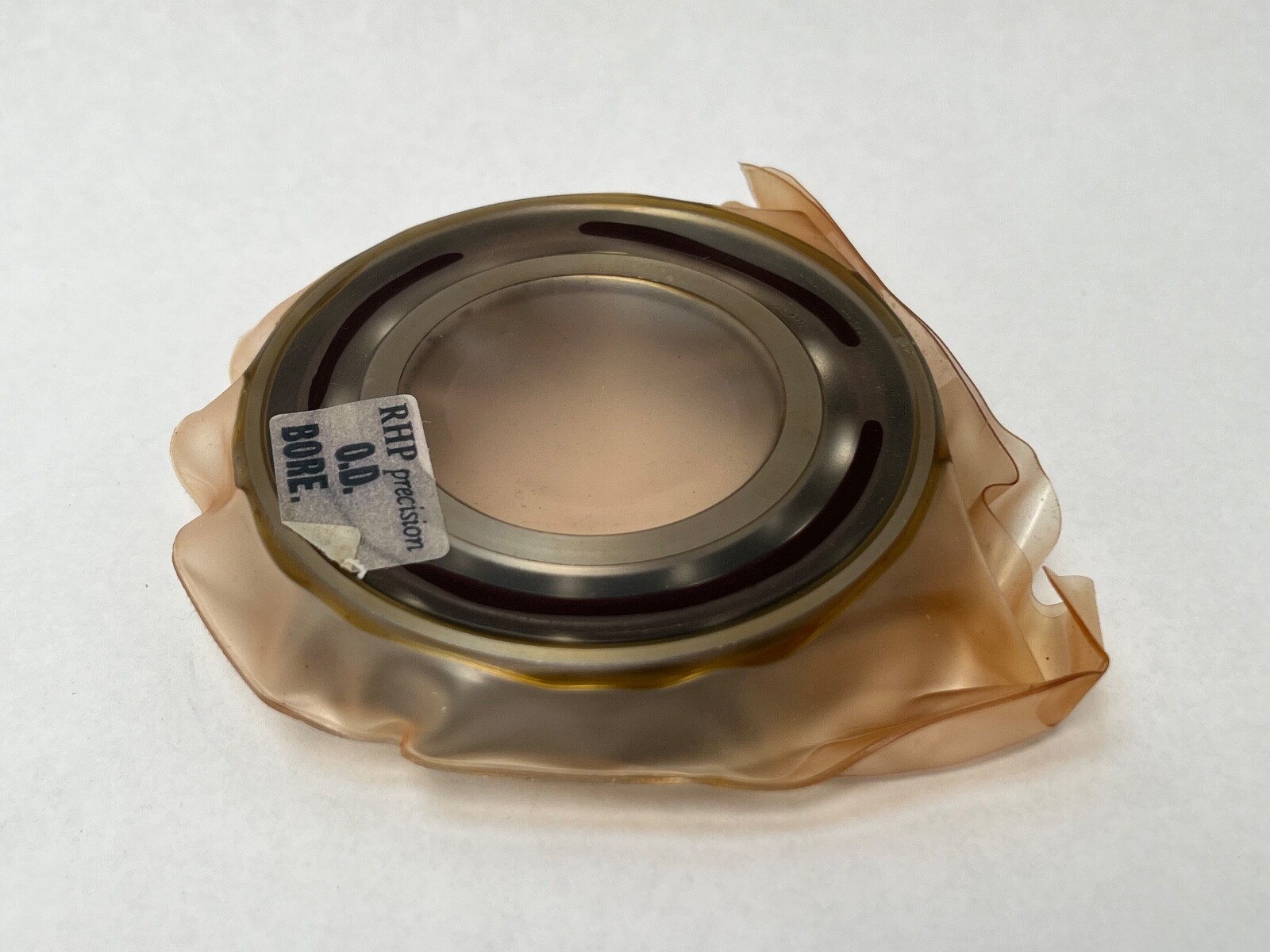

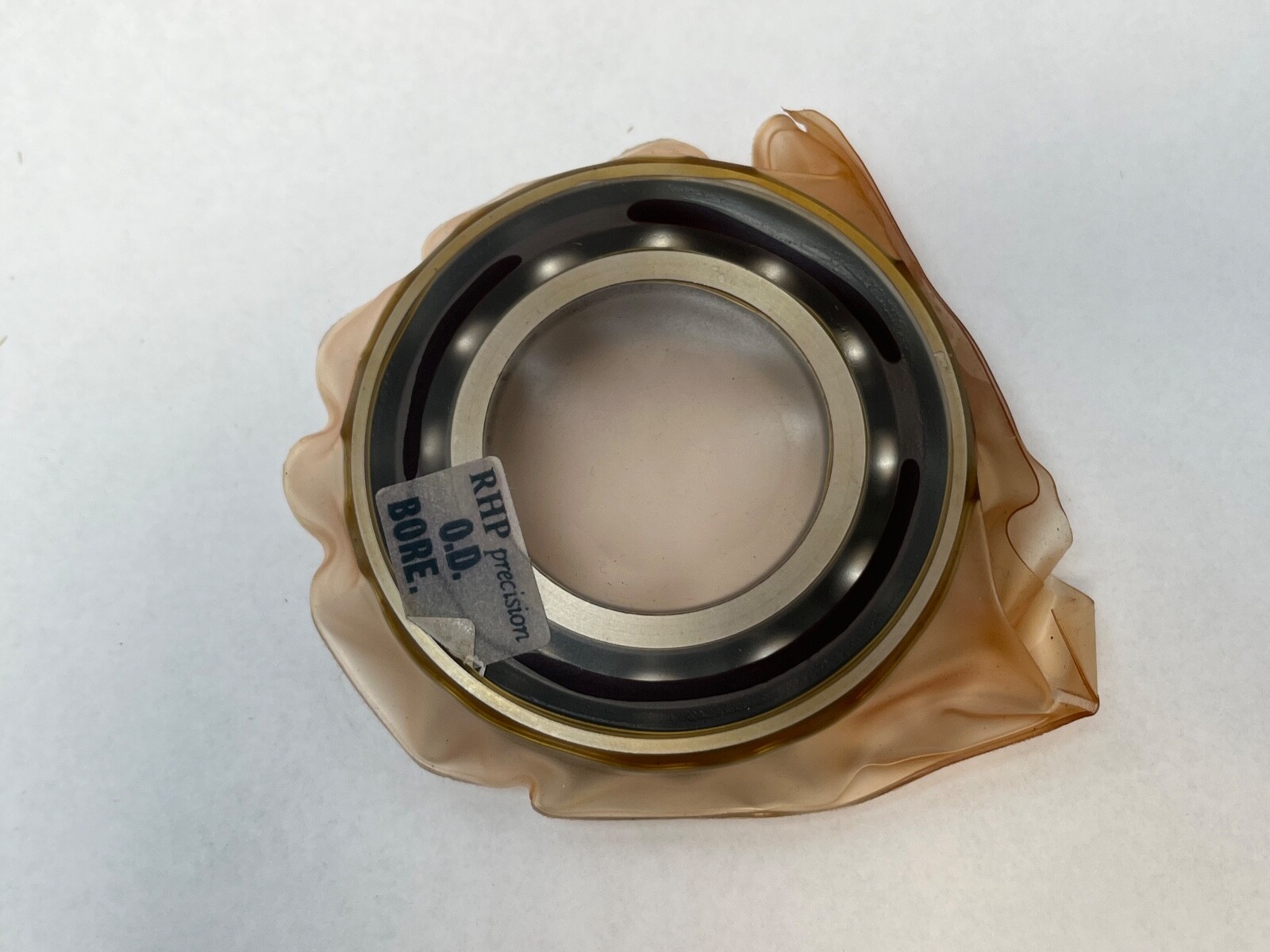

Super precision angular contact ball bearing, 45 x 85 x 19 mm, 25° contact angle, open, light preload, phenolic cage, ABEC 7 running accuracy.
List Price
$109.54
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|

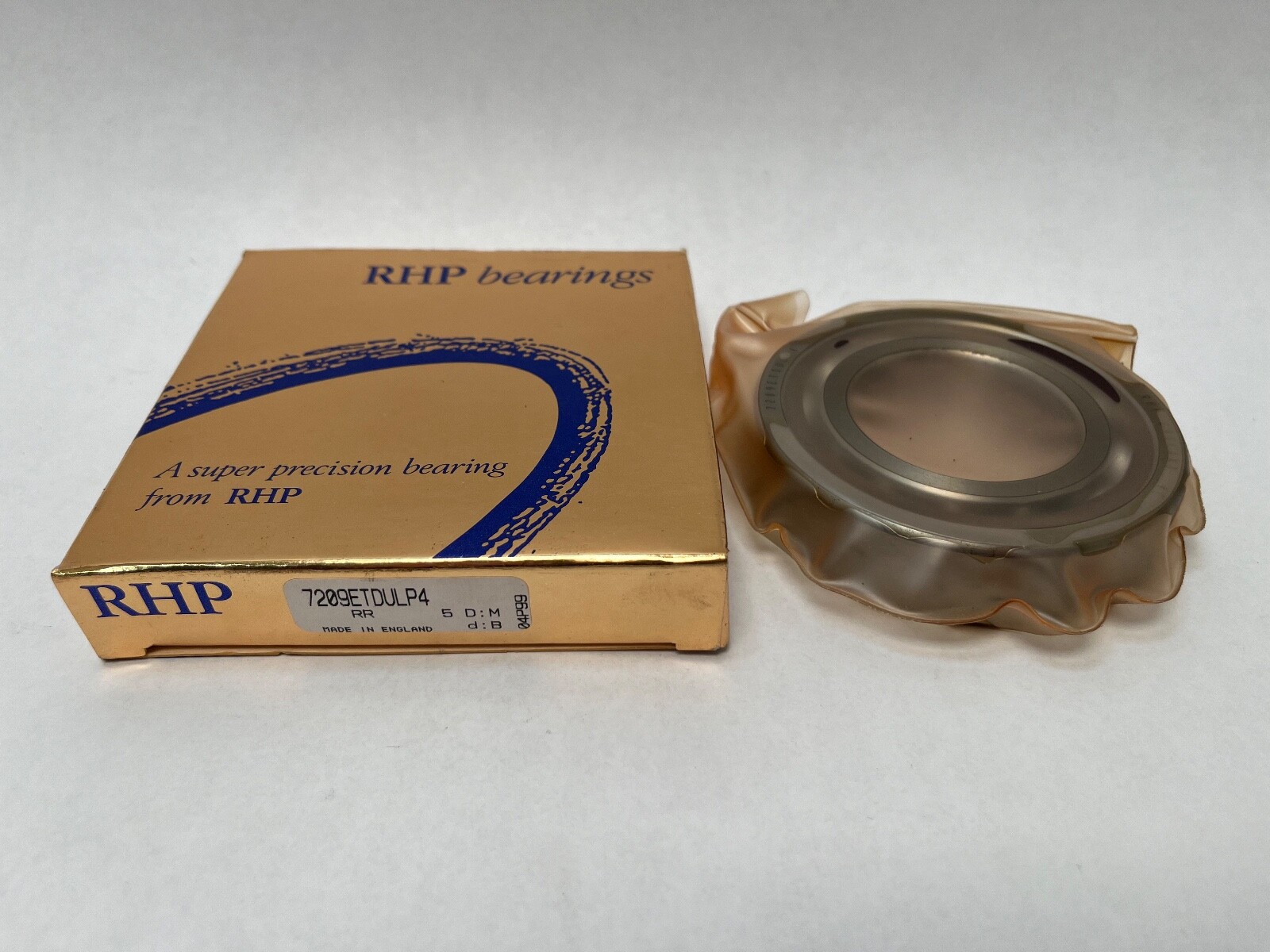

| Model | 7209 E T DUL P4 / B 7209 X3 TADUL EP7 / 3MM209WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Source | RHP, Motion |
|---|---|
| Material | Bearing Steel |
| Series | 7200 |
| Preload | Light (340 N axial, paired) |
| Lubricant | Grease or oil |
| Base Number | 7209 |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 7209ETSULP4 / 7209-E-T-SUL-P4 / 7209ETDULP4 / 7209 E T DUL P4 / B7209X3TADUEP7 / B7209X3TADULEP7 / 3MM209WICRDUL |
| Arrangement Configuration | SUL — single universal, light preload |
| Precision Class | P4 |
| Dynamic Load Rating C1 | 39.0 kN |
| Additional Attributes | Inner ring abutment diameter 52 mm min; outer ring abutment diameter 78 mm max; housing abutment diameter 80 mm max; fillet radius r min 1.1 mm; fillet radius r1 min 0.6 mm; internal volume 18.8 cm3; effective load centre 24.7 mm; axial preload 340 N paired; axial stiffness 147 N/micrometre paired |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 39.0 kN |
| Static Load Rating | 27.6 kN |
| Precision Rating | P4 (ABEC 7, ISO Class 4) |
| Rolling Elements | Ball |
| Max Temp | 120° |
| Item Weight | 0.407 kg (0.92 lb) |
| Cage Material | Laminated phenolic resin |
| Limiting Speed | 24700 (oil / oil-air); 15200 (grease) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal — back-to-back, face-to-face or tandem |
| Bearing Material | Carbon chrome bearing steel (SAE 52100) |

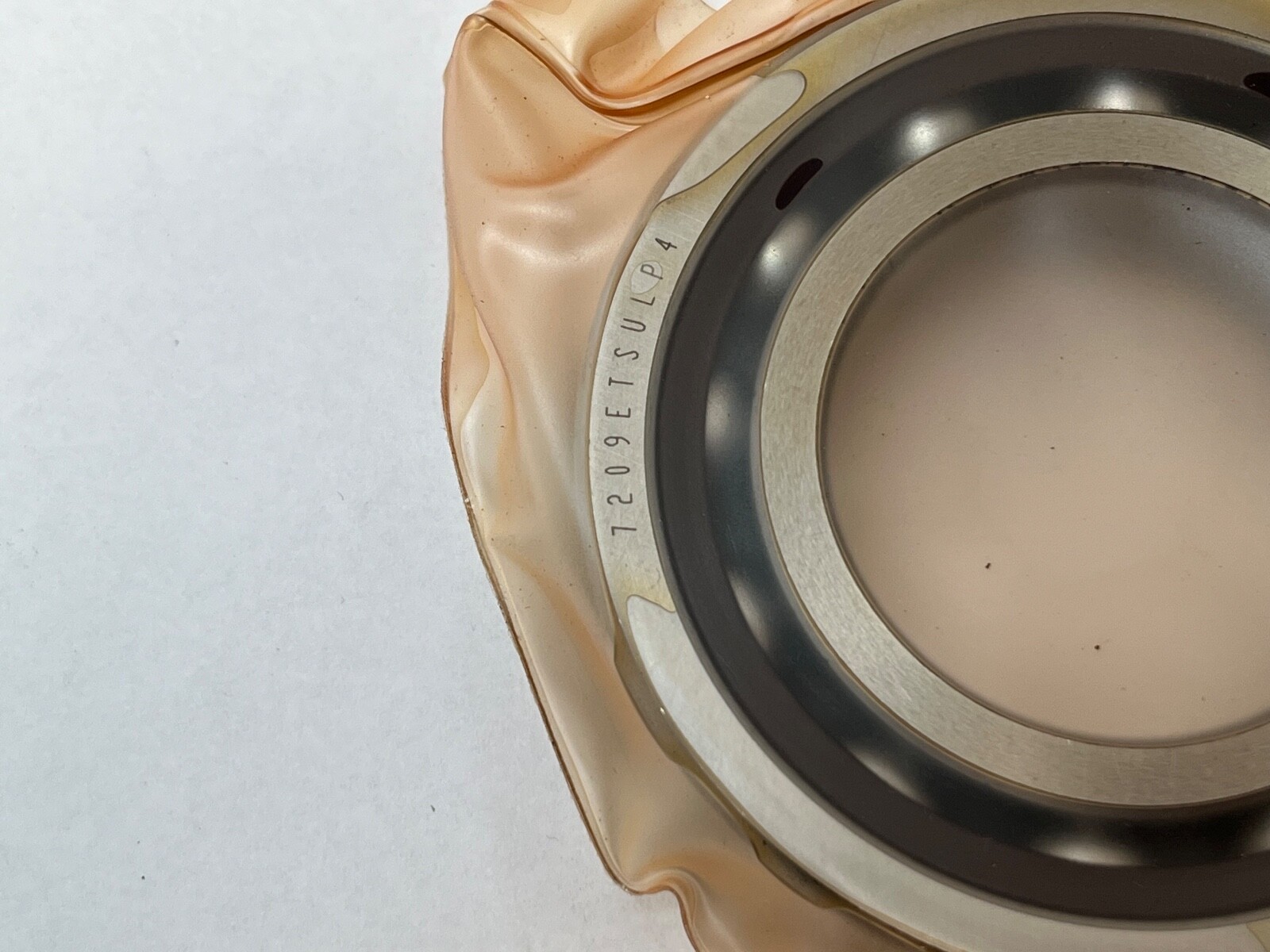

| Part Number | 7209ETSULP4 |
| Cross Reference 1 | SKF 7209 ACDGA/P4A |
|---|
RHP 7209ETSULP4 super precision angular contact ball bearing, ISO dimension series 02. Bore: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm. Contact Angle: 25°. Number of Rows: 1. Rolling Elements: steel balls. Bearing Material: carbon chrome bearing steel to SAE 52100. Bore Type: straight. Closure Type: open. Snap Ring Included: No. Unit Quantity: 1 Pc.
Series: 7200, ISO dimension series 02. Base Number: 7209. Contact Angle: 25°, the RHP E execution, catalogued as A5. Cage Material: laminated phenolic resin. Cage Type: machined, outer-ring guided. Grouping: SU, single universal. Preload: light. Precision Grade: P4, equivalent to ABEC 7 and ISO Class 4. Precision Class: P4.
Dynamic Load Rating: 39.0 kN. Static Load Rating: 27.6 kN. Limiting Speed, oil or oil-air lubrication: 24,700 rpm. Limiting Speed, grease lubrication: 15,200 rpm. Both figures are single-bearing values; a back-to-back pair at light preload runs at 0.80 of the tabulated speed.
Preload: light. Axial Preload: 340 N paired. Axial Stiffness: 147 N per micrometre paired. Effective Load Centre: 24.7 mm. Maximum Operating Temperature: 120°C, set by the laminated phenolic cage. Lubricant: grease or oil.
Inner Ring Abutment Diameter: 52 mm minimum. Outer Ring Abutment Diameter: 78 mm maximum. Housing Abutment Diameter: 80 mm maximum. Fillet Radius r min: 1.1 mm. Fillet Radius r1 min: 0.6 mm. Internal Volume: 18.8 cm³. Mass: 0.407 kg.
Unit Quantity: 1 Pc. Arrangement / Configuration: SUL, single universal at light preload. Mounting Arrangement: universal — back-to-back, face-to-face or tandem with another bearing of the same execution.
Searchable forms of the number: 7209ETSULP4, 7209-E-T-SUL-P4, 7209 E T SUL P4, B7209X3TADUEP7, 3MM209WICRDUL.
Cross-Reference: SKF 7209 ACDGA/P4A. The RHP B-series form is B7209X3TADUEP7 and the Fafnir cross is 3MM209WICRDUL. The 7209C shares the 45 x 85 x 19 mm envelope at a 15° contact angle.
