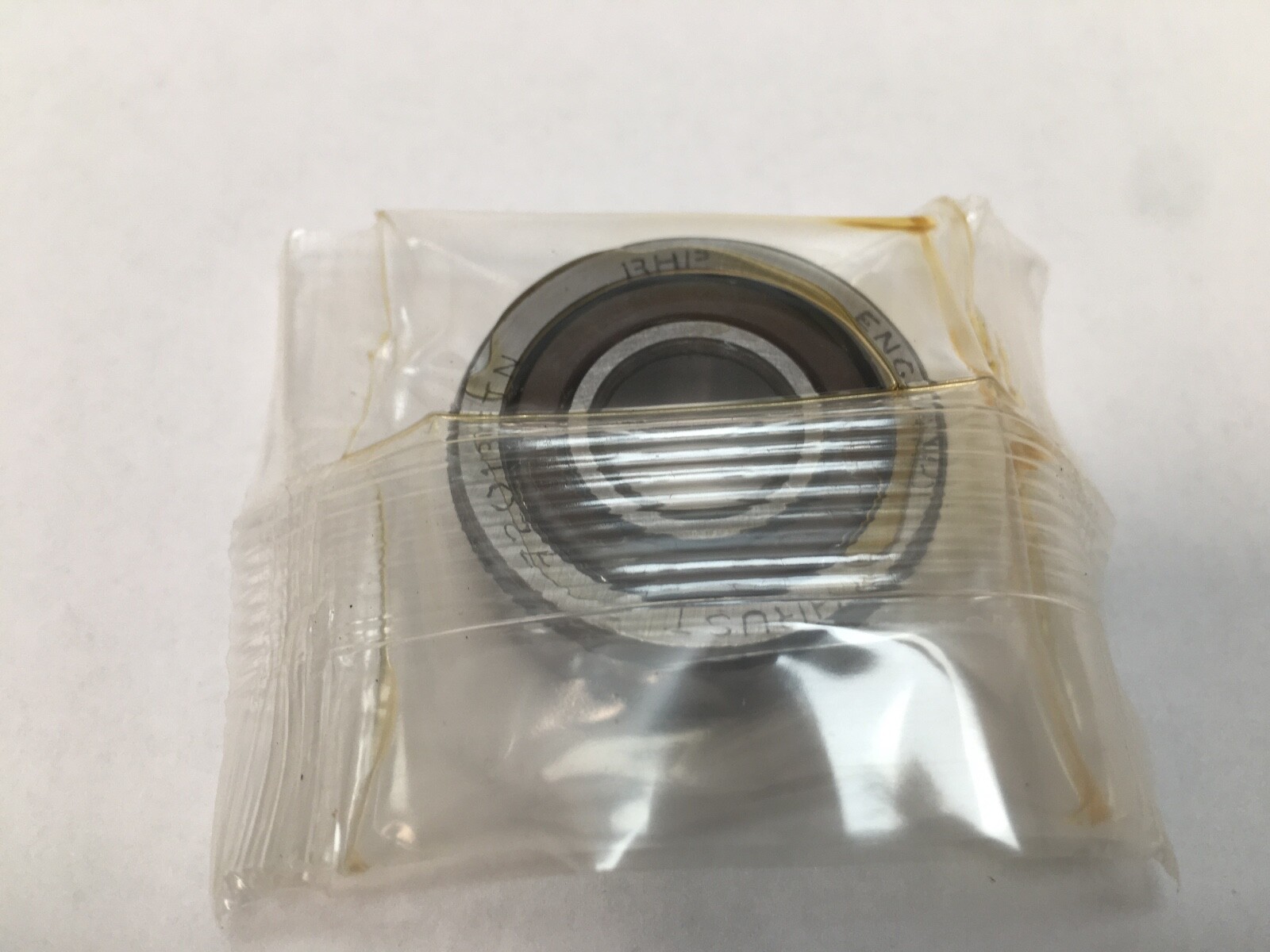

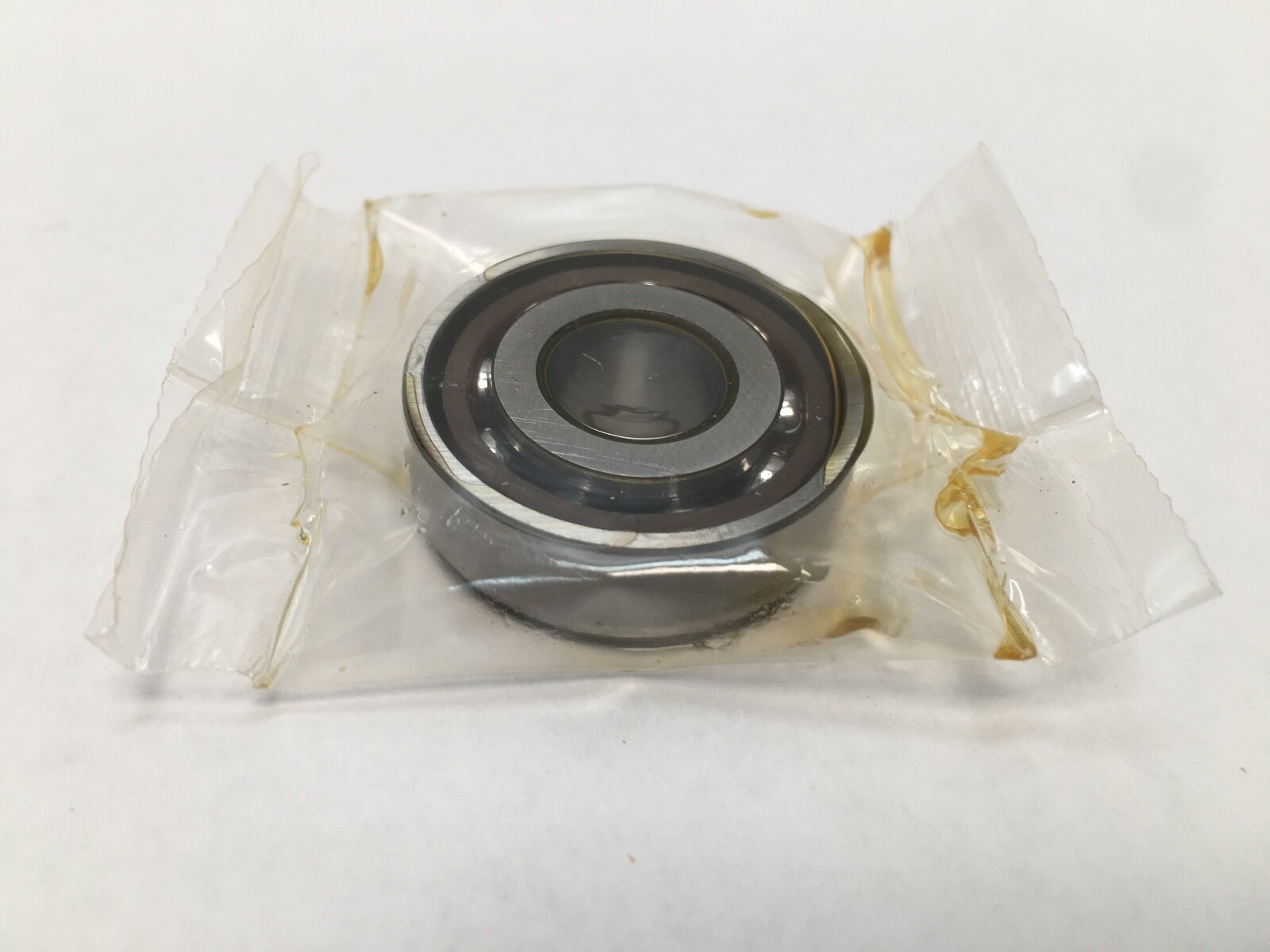

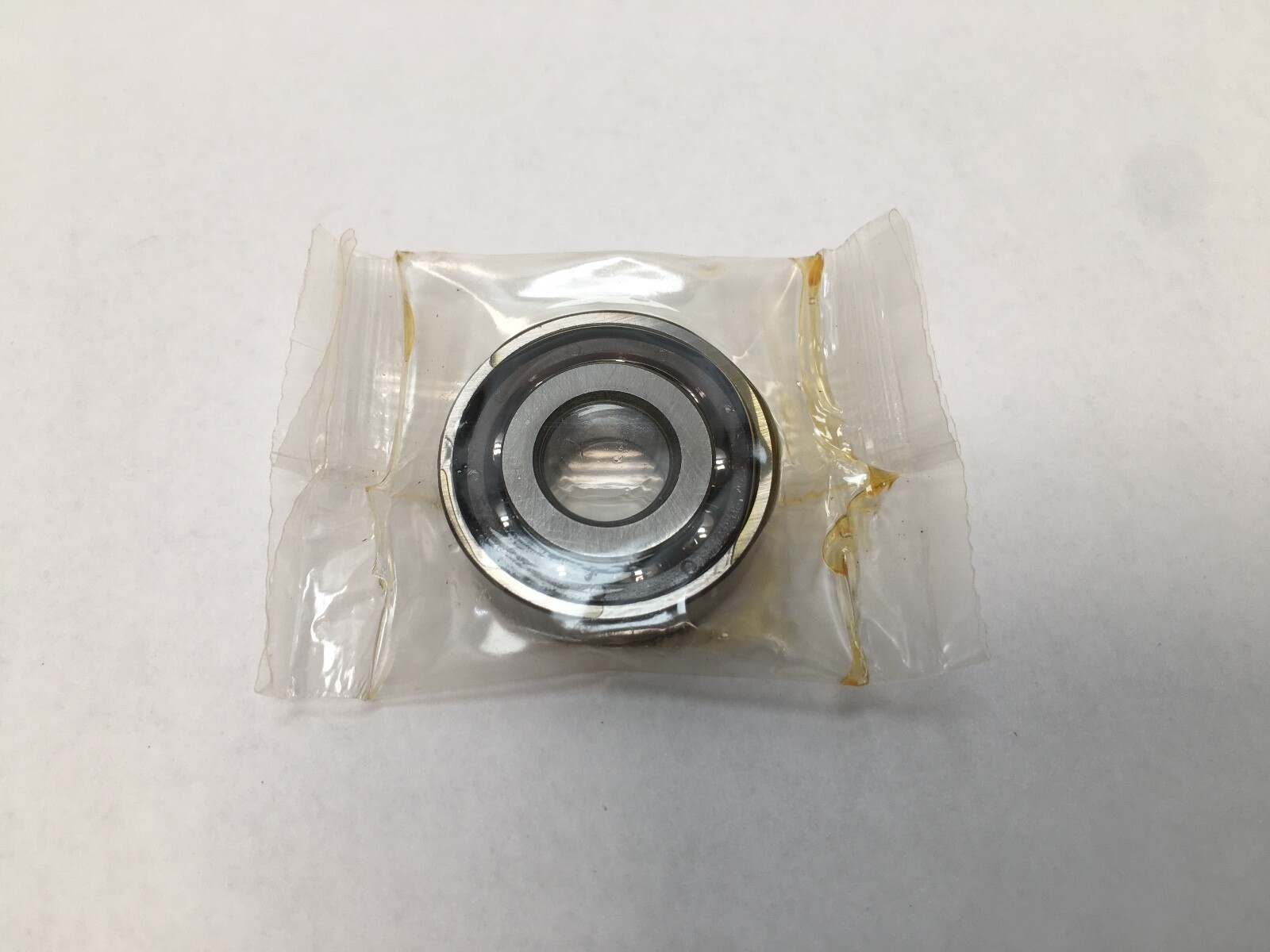

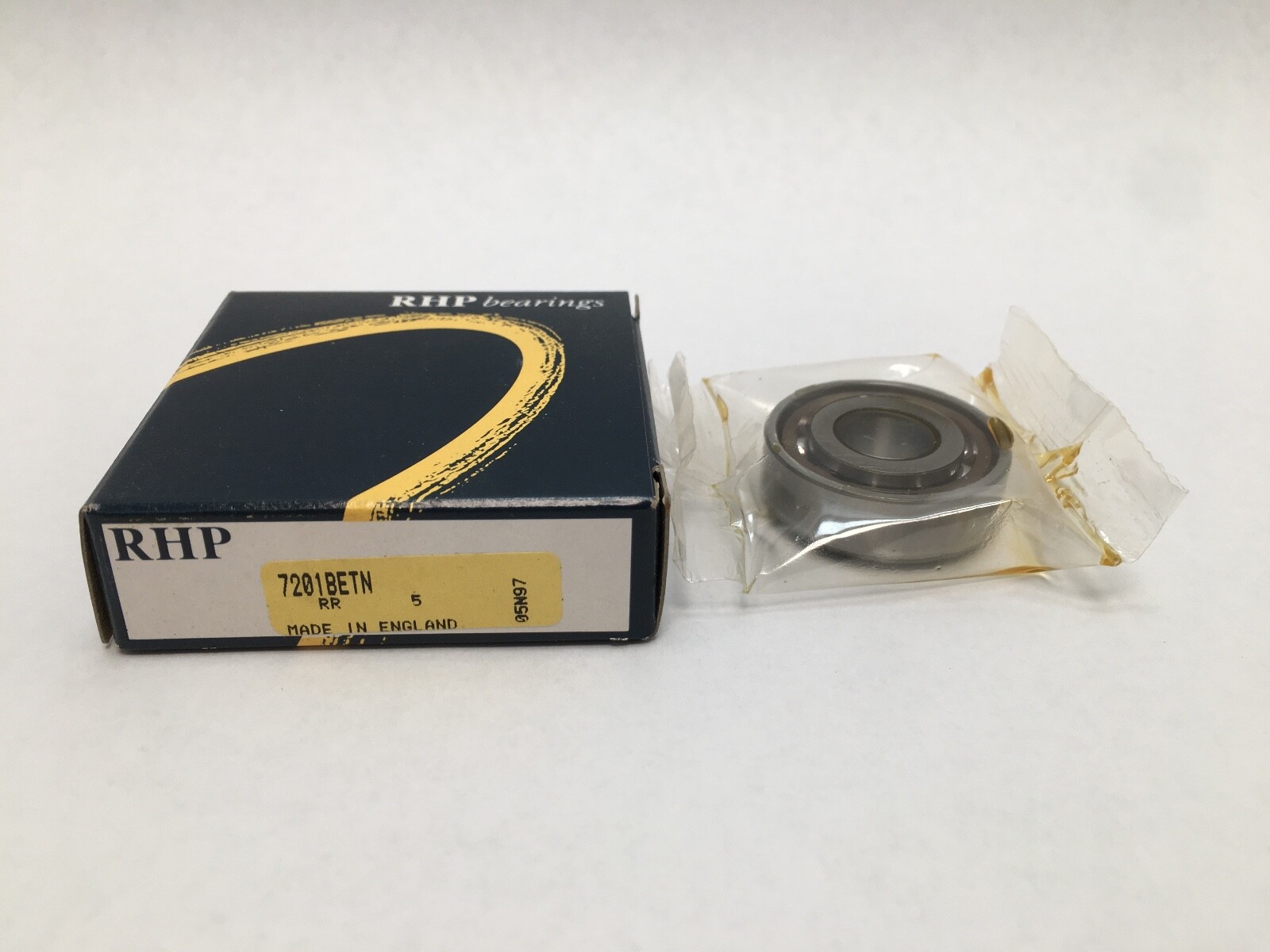

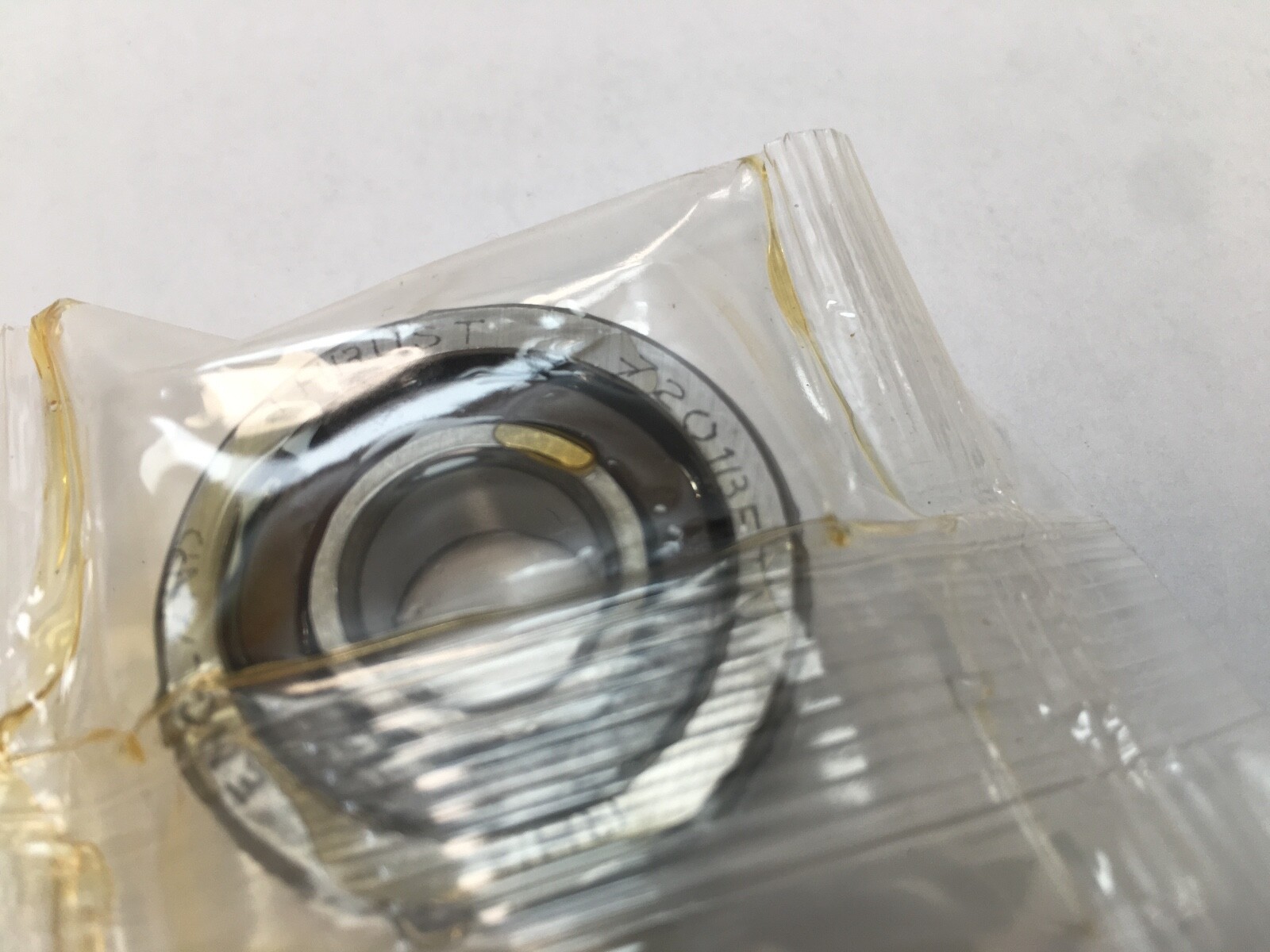

Angular contact ball bearing, 12 x 32 x 10 mm, 40° contact angle. Open both faces, moulded polyamide cage, single row, straight bore, ISO 7200 series.
List Price
$22.56
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7201BETN |
| Model | 7201 BE TN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm (0.4724 in) |
| OD | 32 mm (1.2598 in) |
| Width | 10 mm (0.3937 in) |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Base Number | 7201 |
| Industry Terms | angular contact ball bearing, 40 degree contact angle bearing, spindle bearing, polyamide cage bearing, 7200 series bearing |
| Overall Width | 10 mm (0.3937 in) |
| Bore Shaft Size | 12 mm (0.4724 in) |
| Mpn Variants | 7201BETN, 7201 BE TN, 7201-BE-TN, 7201BE, 7201B, 7201 |
| Additional Attributes | Chamfer r min 0.6 mm; r1 min 0.3 mm; d1 17 mm; D1 27 mm; D2 29.5 mm; effective load centre 19.6 mm; internal free volume 1.7 cm3 |
| Cage Type | Moulded |
| Rolling Elements | Ball |
| Item Weight | 0.036 kg (0.08 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Design Units | Metric |
| Bearing Material | Bearing Steel |
| Part Number | 7201BETN |
| Closure Type | Open |
| Common Misspellings | RHP 7201 BE TN, RHP 7201BTN, 7201 BETN RHP, RPH 7201BETN |
| Application Types | Machine tool spindles; small gearboxes; precision instruments; pumps |
| Cross Reference 1 | SKF 7201 BEP |
|---|---|
| Cross Reference 2 | FAG 7201-B-TVP |
| Cross Reference 3 | 7201C (related size, 15 degree contact angle) |
| Cross Reference 4 | 7201A5 (related size, 25 degree contact angle) |
RHP 7201BETN is a single-row angular contact ball bearing with a 12 mm bore, 32 mm outside diameter and 10 mm width, 40° contact angle, open both faces, with a moulded polyamide cage. Unit Quantity: 1 Pc. Series: 7200 (ISO dimension series 02).
7201 — ISO 72 series angular contact ball bearing, 12 x 32 x 10 mm.
B — 40° contact angle.
E — reinforced capacity design.
TN — moulded polyamide cage.
Bore Diameter: 12 mm (0.4724 in). Outside Diameter: 32 mm (1.2598 in). Overall Width: 10 mm (0.3937 in). Base Number: 7201. Contact Angle: 40°. Number Of Rows: 1. Cage Material: Polyamide. Cage Type: Moulded. Closure Type: Open. Bore Type: Straight. Bearing Material: Bearing Steel. Item Weight: 0.036 kg (0.08 lb).
Chamfer r min: 0.6 mm. Chamfer r1 min: 0.3 mm. Inner ring shoulder diameter d1: 17 mm. Outer ring shoulder diameter D1: 27 mm. Outer ring shoulder diameter D2: 29.5 mm. Effective load centre: 19.6 mm. Internal free volume: 1.7 cm³.
Same 40° reinforced polyamide-cage bearings in this envelope: SKF 7201 BEP, FAG 7201-B-TVP. Related sizes in the same 12 x 32 x 10 mm envelope: 7201C (15° contact angle) and 7201A5 (25° contact angle). Also written 7201 BE TN, 7201-BE-TN, 7201BE and 7201B.
12 mm bore, 32 mm outside diameter, 10 mm width.
40°, from the B in the designation.
E is the reinforced capacity design and TN is a moulded polyamide cage.
