Angular contact ball bearing, 60 x 95 x 18 mm, 25 degree contact angle, one-piece machined phenolic cage, open design, straight bore, ISO Normal class.
List Price
$102.45
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing – Straight Bore, 60 mm ID, 95 mm OD, 18 mm Width, Open, 25° Contact Angle, ABEC 7, Light Preload$52.41
Angular Contact Ball Bearing - Straight Bore, 60 mm ID, 95 mm OD, 18 mm Width, 36 mm Total Width, Open, 25° Contact Angle, ABEC 7, Medium Preload, Universal Duplex Pair$114.73
Super Precision Angular Contact Ball Bearing - Straight Bore, 60 mm ID, 95 mm OD, 18 mm Width, Open, 25 Degree Contact Angle, Universal Matchable Duplex Pair, Light Preload, Laminated Phenolic Cage$276.79
Super Precision Angular Contact Ball Bearing 60x95x18 mm 15° ABEC 7 Light Preload$138.40| MFR / Brand | RHP |
|---|---|
| MPN | 7012ETB |
| Model | 7012 E TB P0 / B 7012 X3 T EP1 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Base Number | 7012 |
| Overall Width | 18 mm |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7012ETB; 7012E; 7012-E-TB-P0; B7012X3TEP1 |
| Precision Class | ISO Normal class (RHP EP1, P0) |
| Additional Attributes | Chamfer r min 1.1 mm; chamfer r1 min 0.6 mm; shaft abutment d1 min 67 mm; housing abutment D1 max 88 mm; housing abutment D2 max 90 mm; internal volume 18.0 cm³; lubrication jet pitch circle dT 72.5 mm; effective load centre a 27.1 mm |
| Cage Type | One-piece machined, inner-ring centred |
| Dynamic Load Rating | 33.0 kN |
| Static Load Rating | 29.1 kN |
| Precision Rating | ISO Normal class |
| Rolling Elements | Ball |
| Item Weight | 0.407 kg |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 15000 rpm |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 25° |
| Design Units | Metric |
| Part Number | 7012ETB |

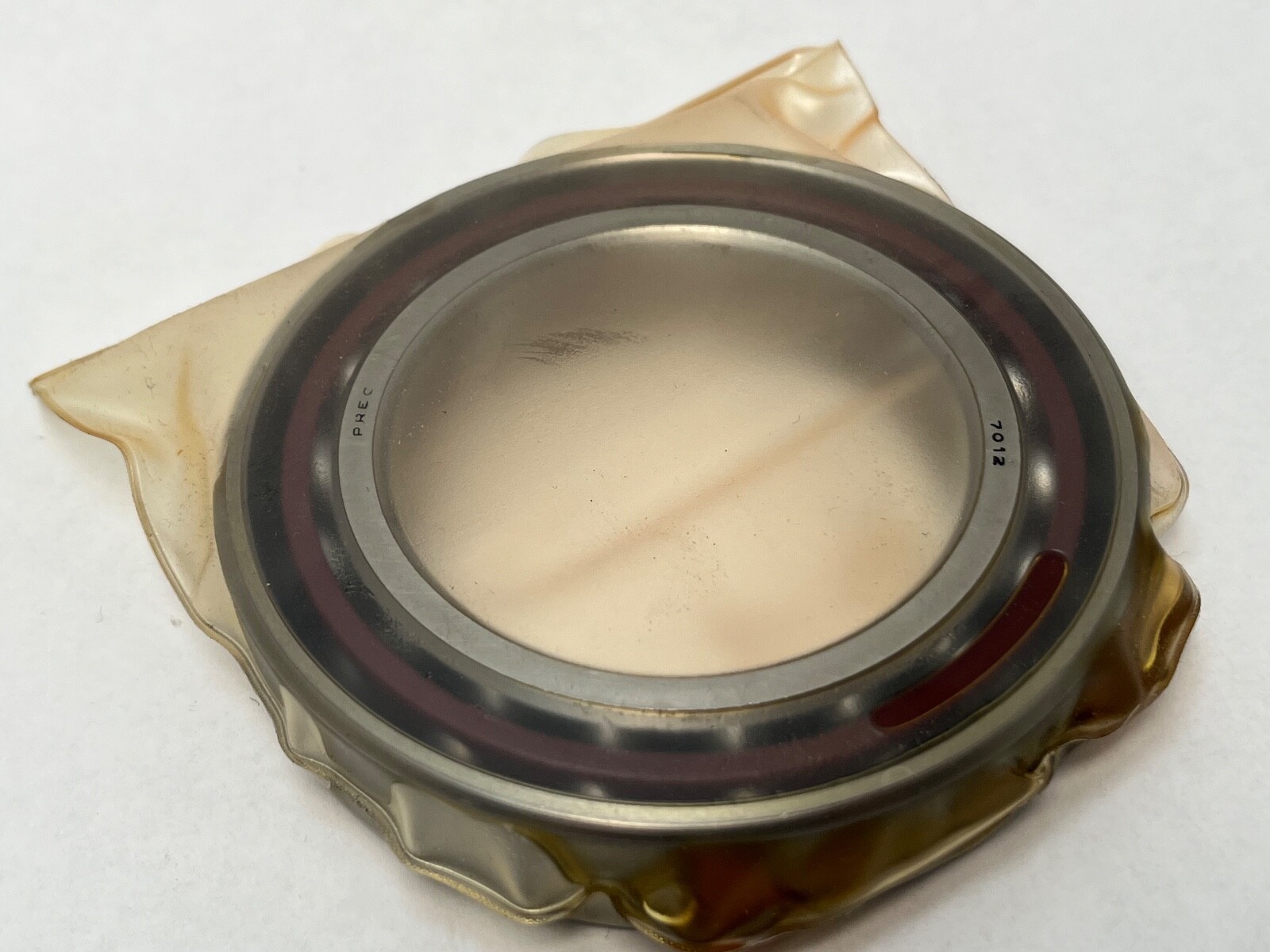

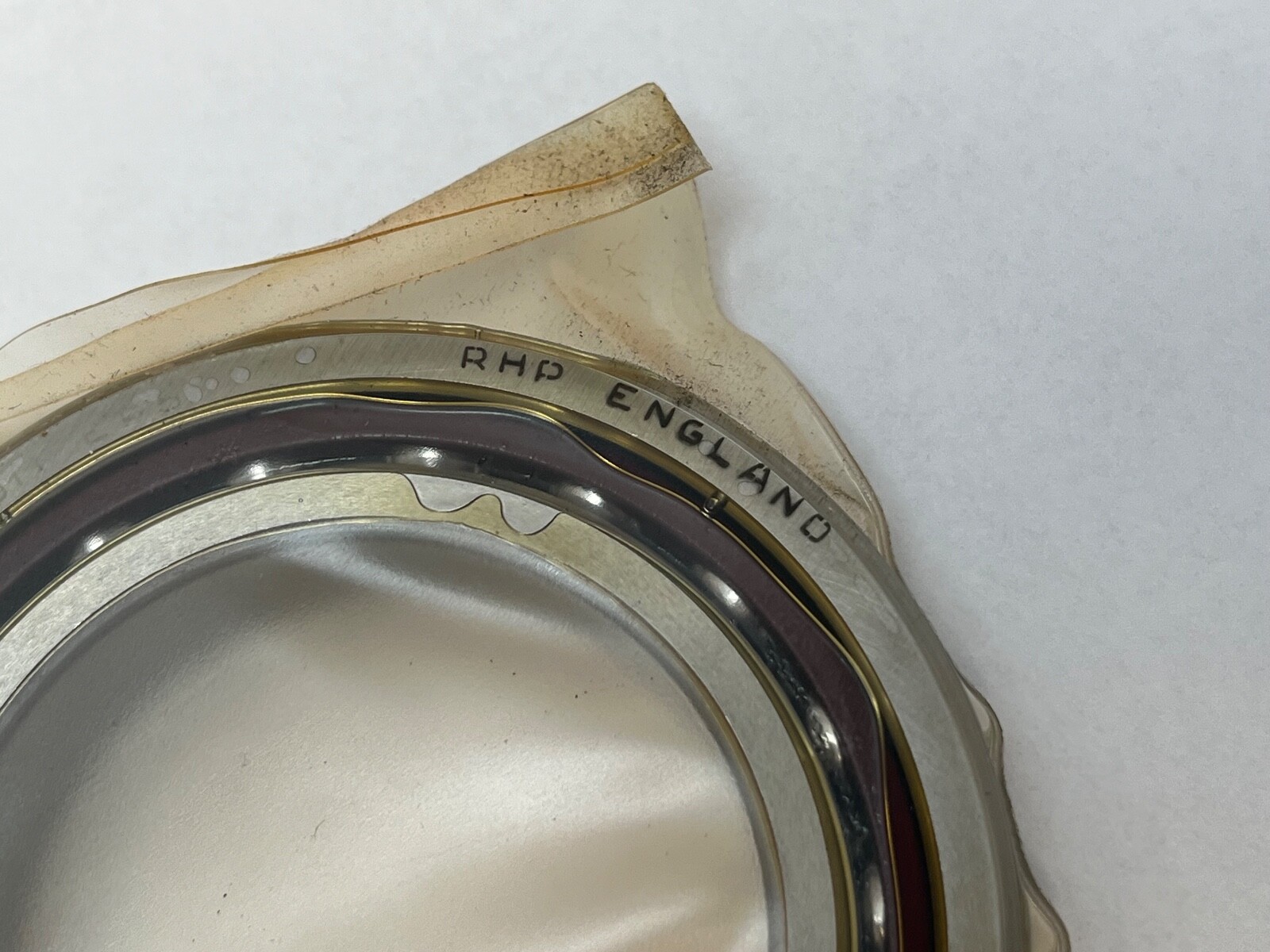

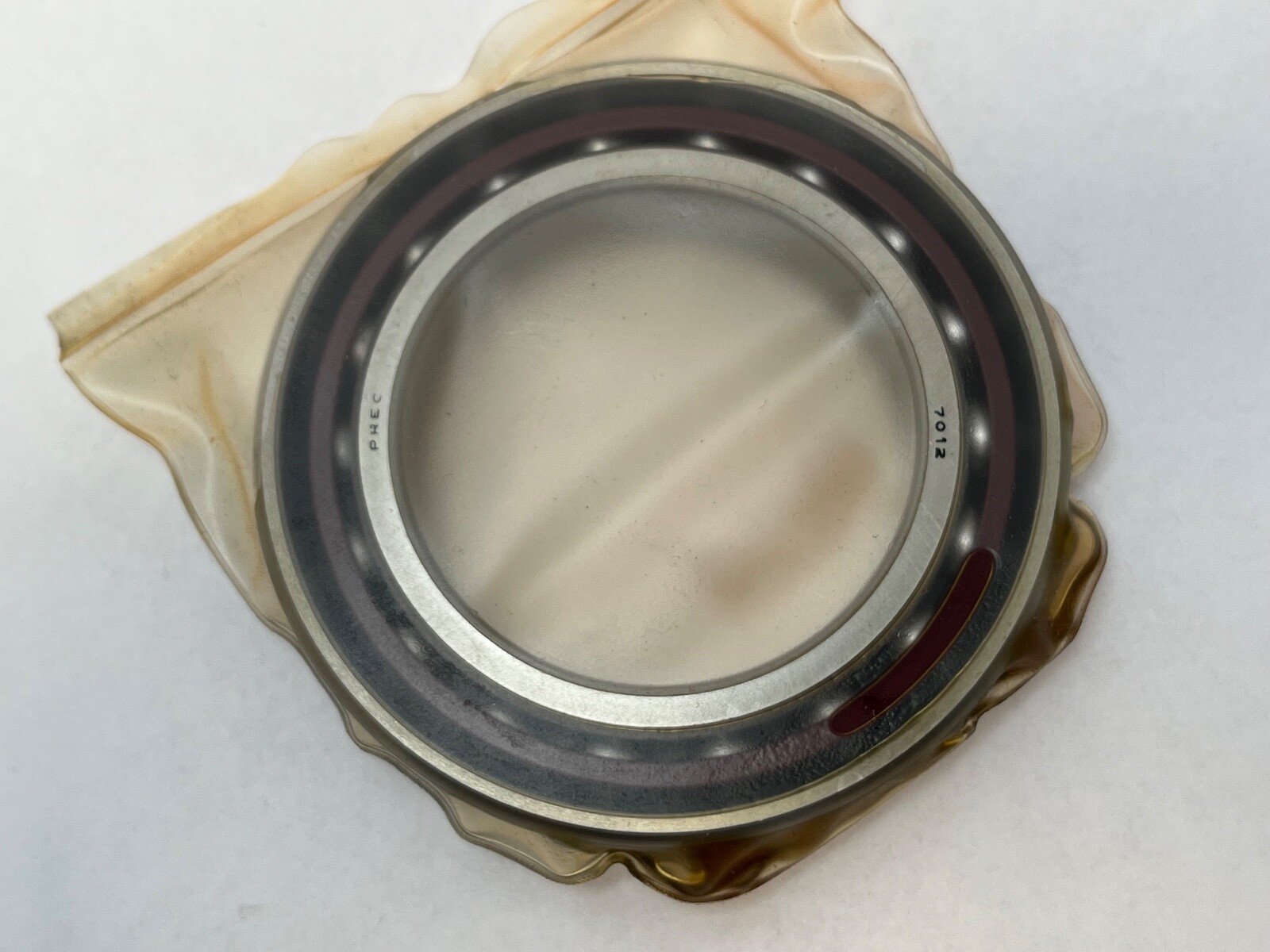

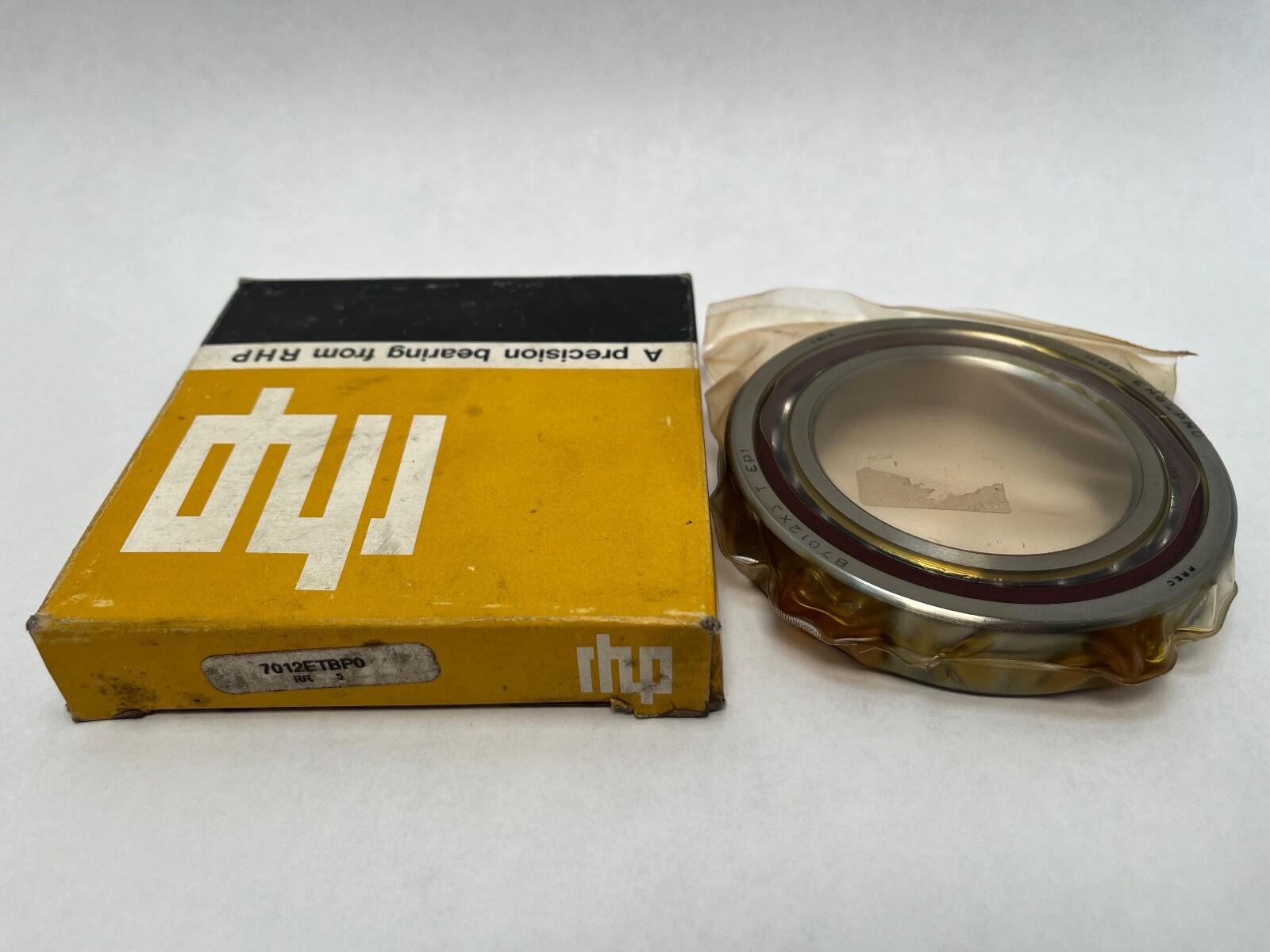

This is a single RHP precision single-row angular contact ball bearing, catalogue designation 7012ETB, which resolves in full as 7012-E-TB-P0. Bore: 60 mm, Outside Diameter: 95 mm, Overall Width: 18 mm. Contact Angle: 25°, with Rolling Elements: Ball, Number Of Rows: 1, Bore Type: Straight and Closure Type: Open. Material: High Carbon Chrome Steel. Design Units: Metric.
70 / 7012 — the ISO 7012 size in dimension series 10, 60 x 95 x 18 mm.
E — 25° contact angle.
TB — a one-piece machined phenolic cage, centred on the inner ring.
P0 — RHP EP1, ISO Normal class.
A 25° contact angle biases the load path toward the axial direction, so the bearing supports a substantial one-way thrust component alongside its radial load, typically working against an opposed bearing that takes thrust the other way. Dynamic Load Rating: 33.0 kN and Static Load Rating: 29.1 kN. Precision Class: ISO Normal (RHP EP1). Precision rating: ISO Normal class. Cage Material: Phenolic. Cage Type: One-piece machined, inner-ring centred, a construction that runs quietly and holds ball spacing well under acceleration. Lubricant: Grease or oil. Item weight: 0.407 kg.
Chamfer dimensions are r min 1.1 mm and r1 min 0.6 mm. Shaft abutment diameter d1 min 67 mm; housing abutment D1 max 88 mm and D2 max 90 mm. Effective load centre a: 27.1 mm from the bearing face. Internal volume: 18.0 cm³. Lubrication jet pitch circle dT: 72.5 mm.
Unit Quantity: 1 Pc. Series: 7000, ISO dimension series 10. Base Number: 7012. Part Number: 7012ETB.

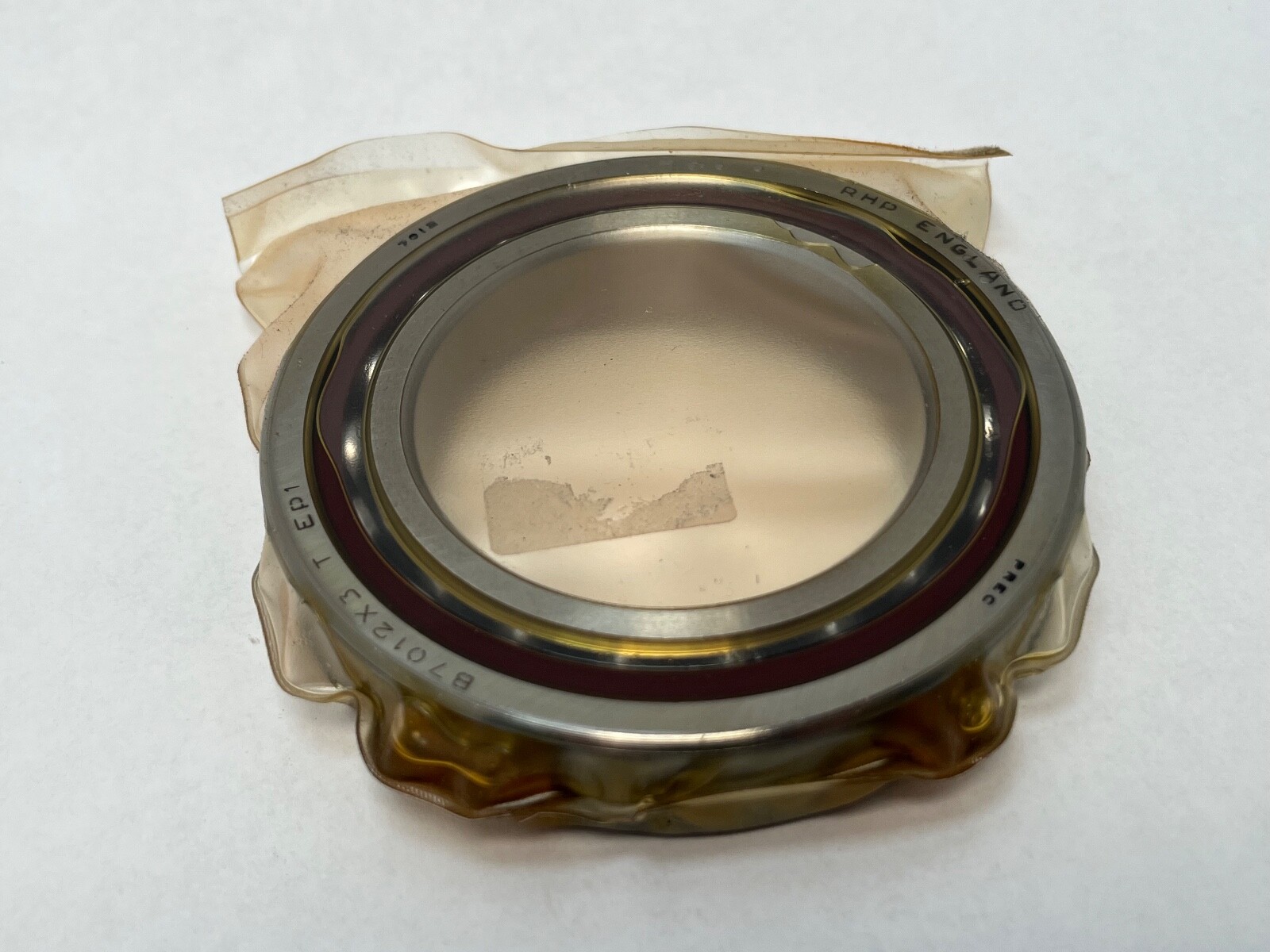

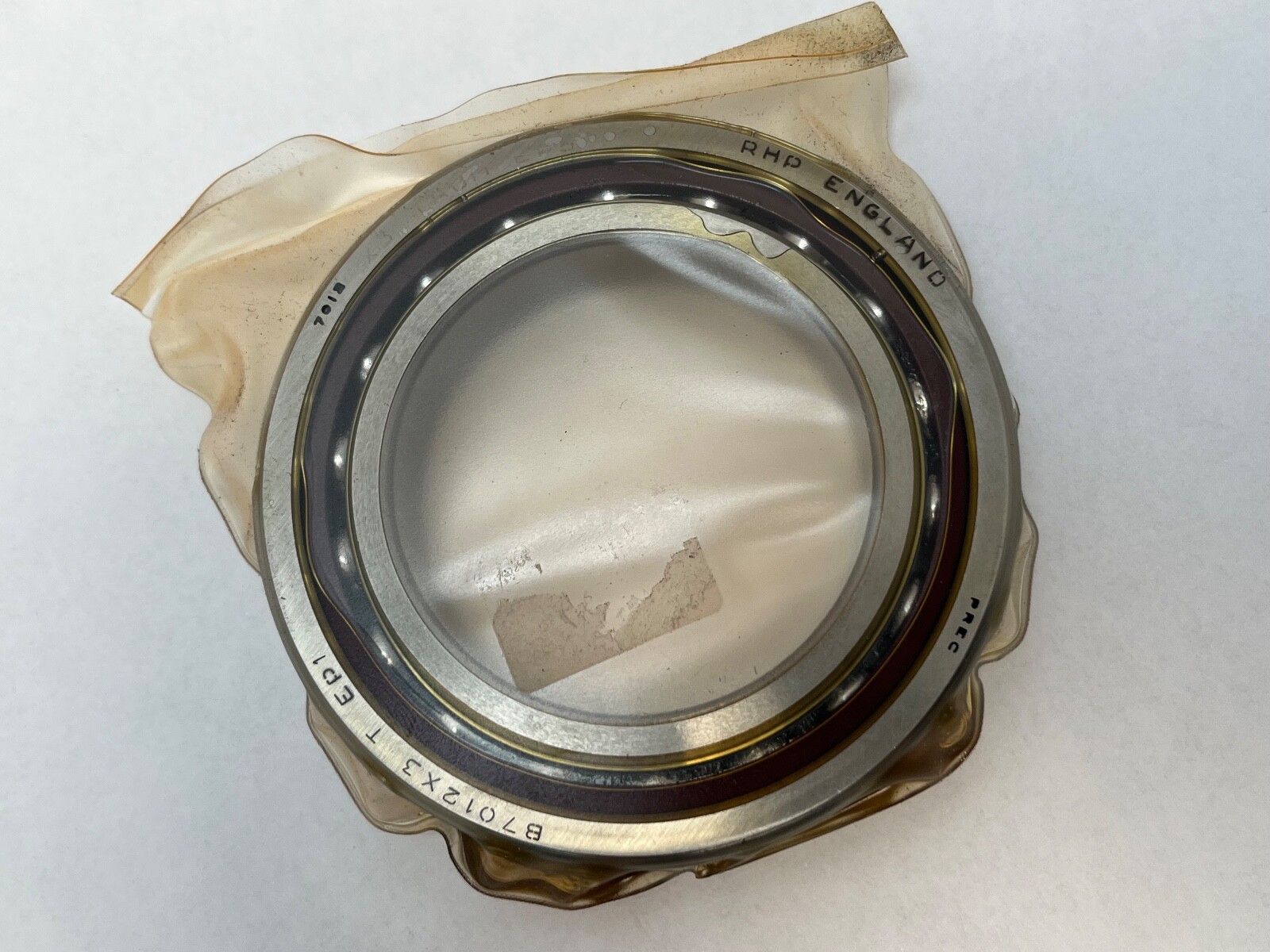

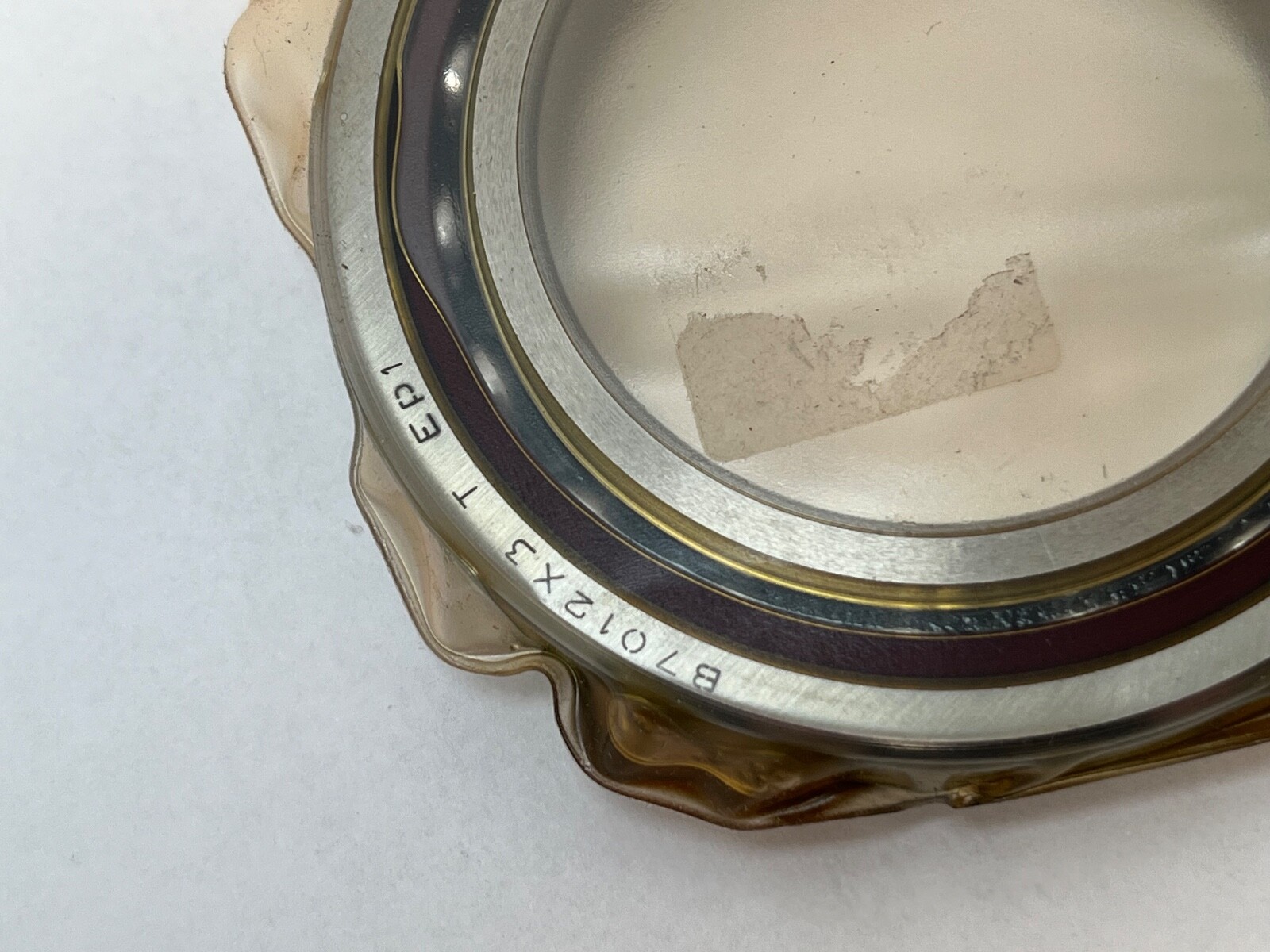

Equivalent designations for this size, angle and cage include 7012E, 7012-E-TB-P0 and B7012X3TEP1.
