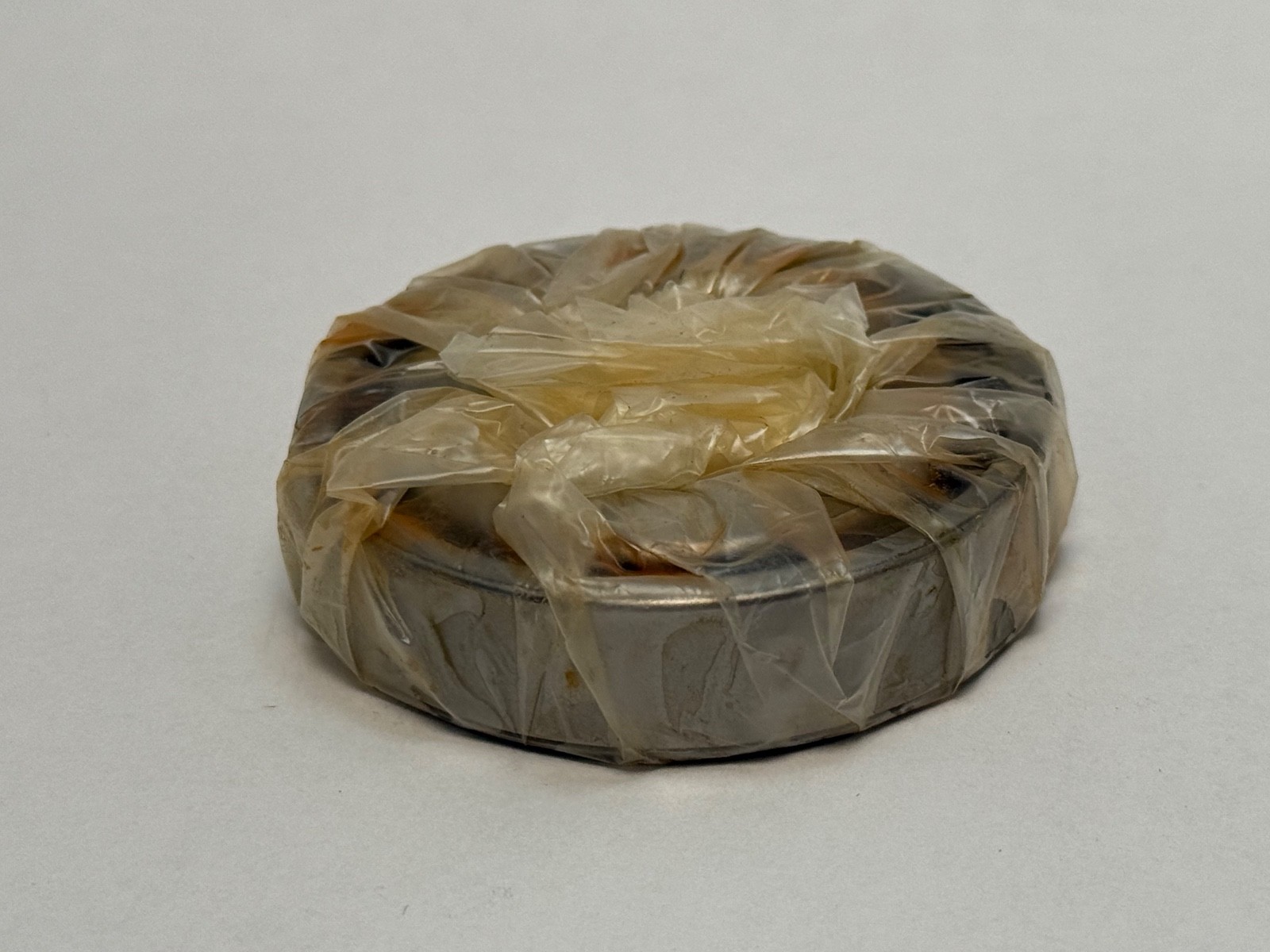

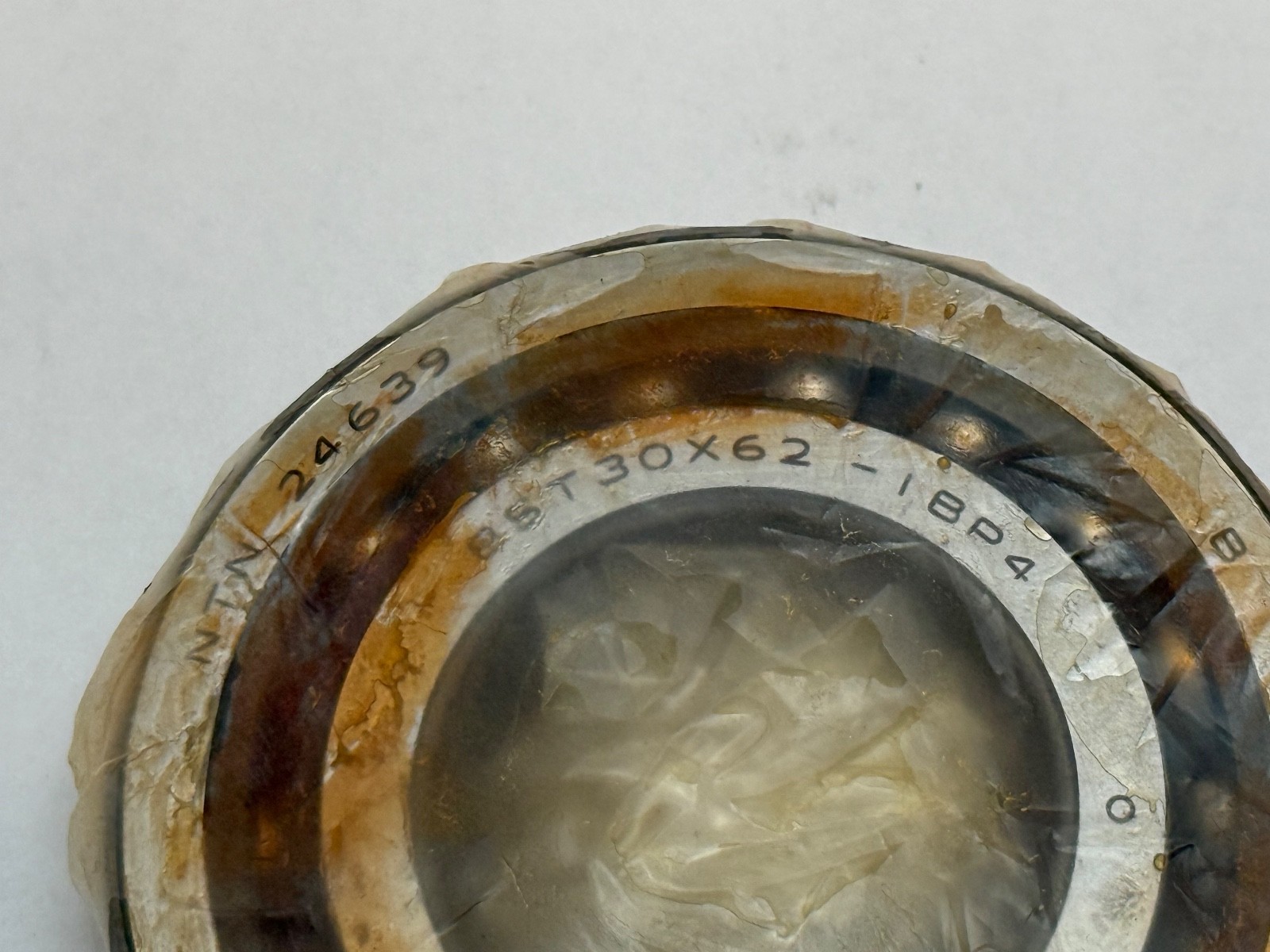

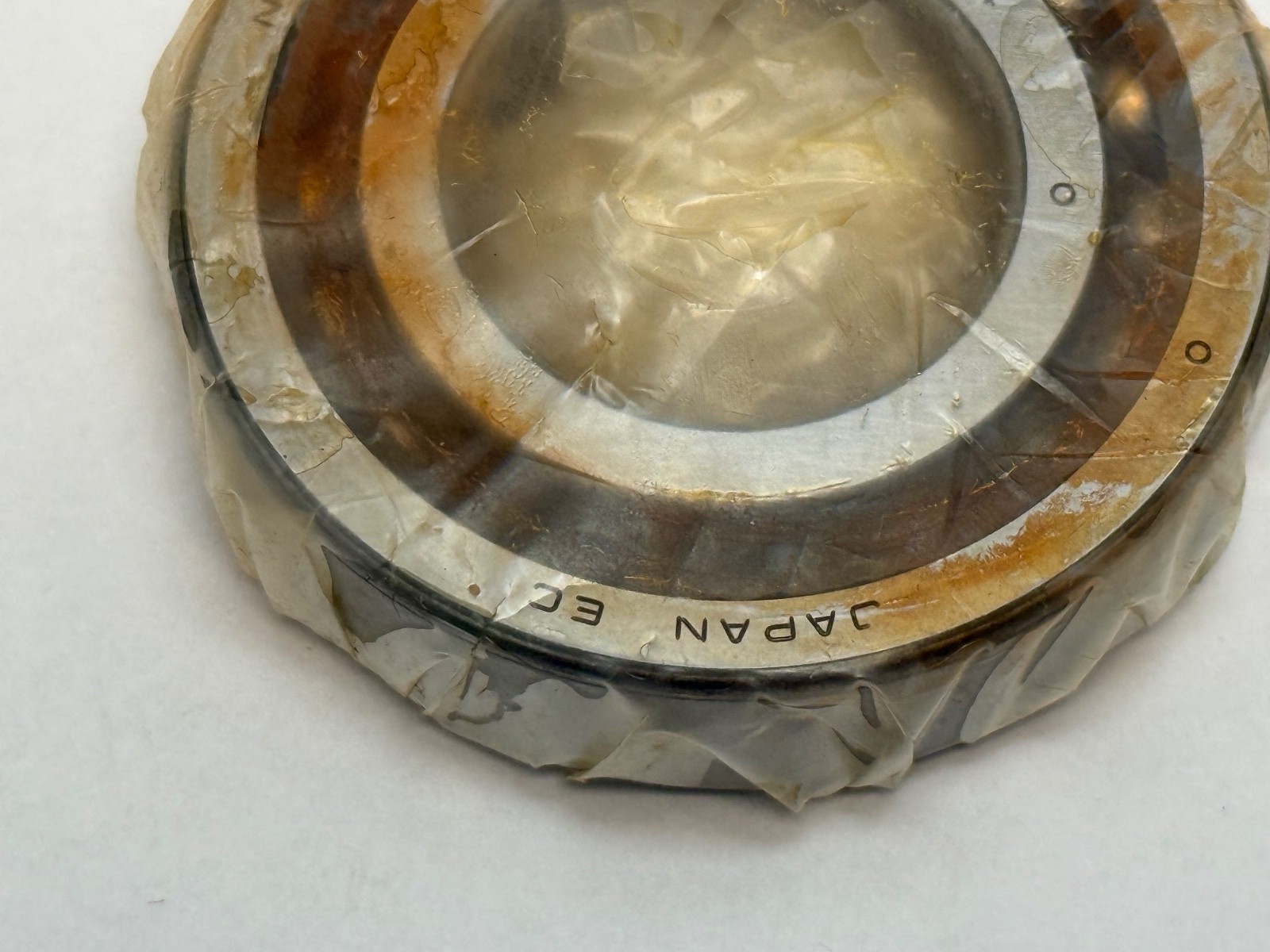

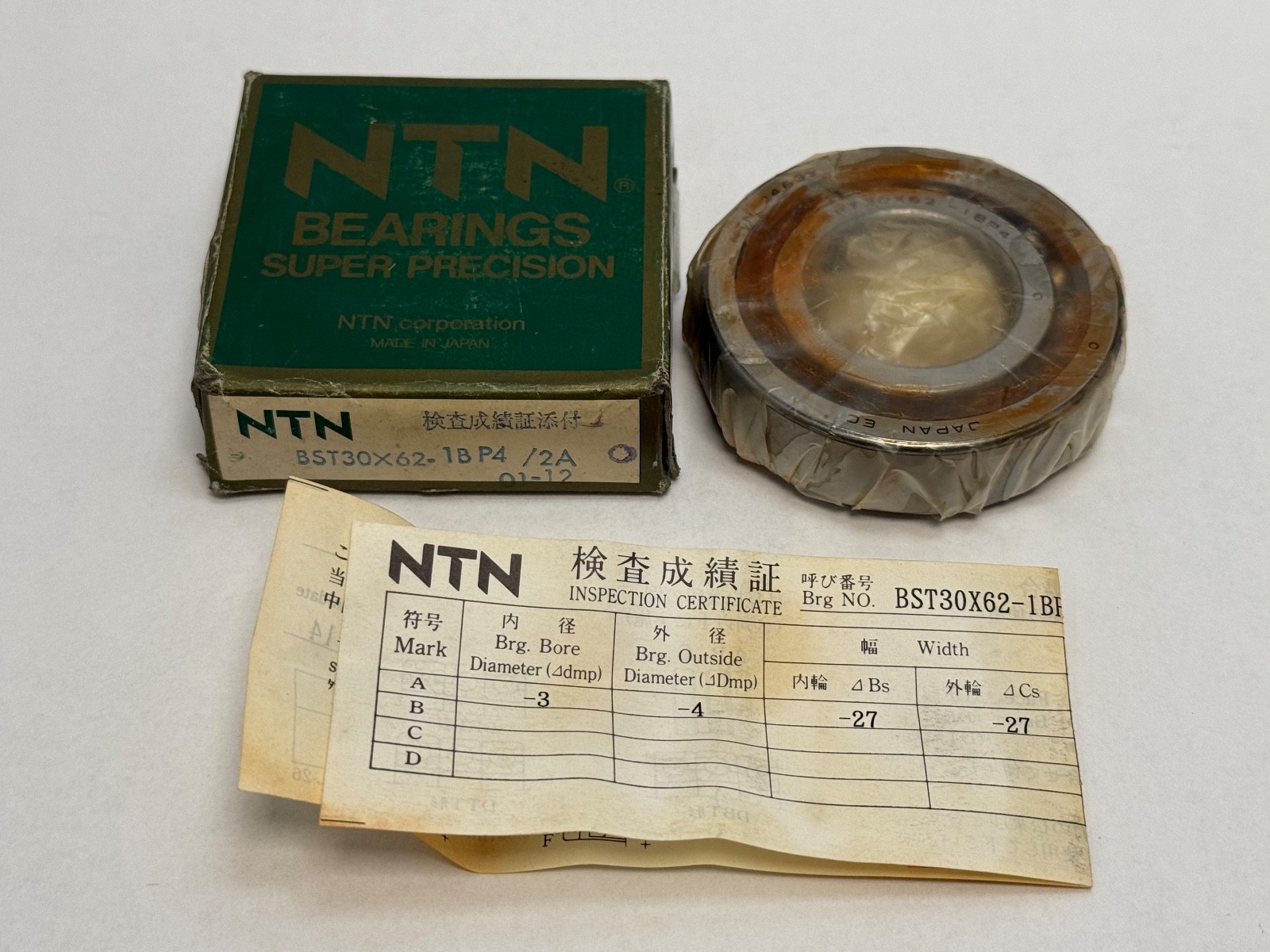

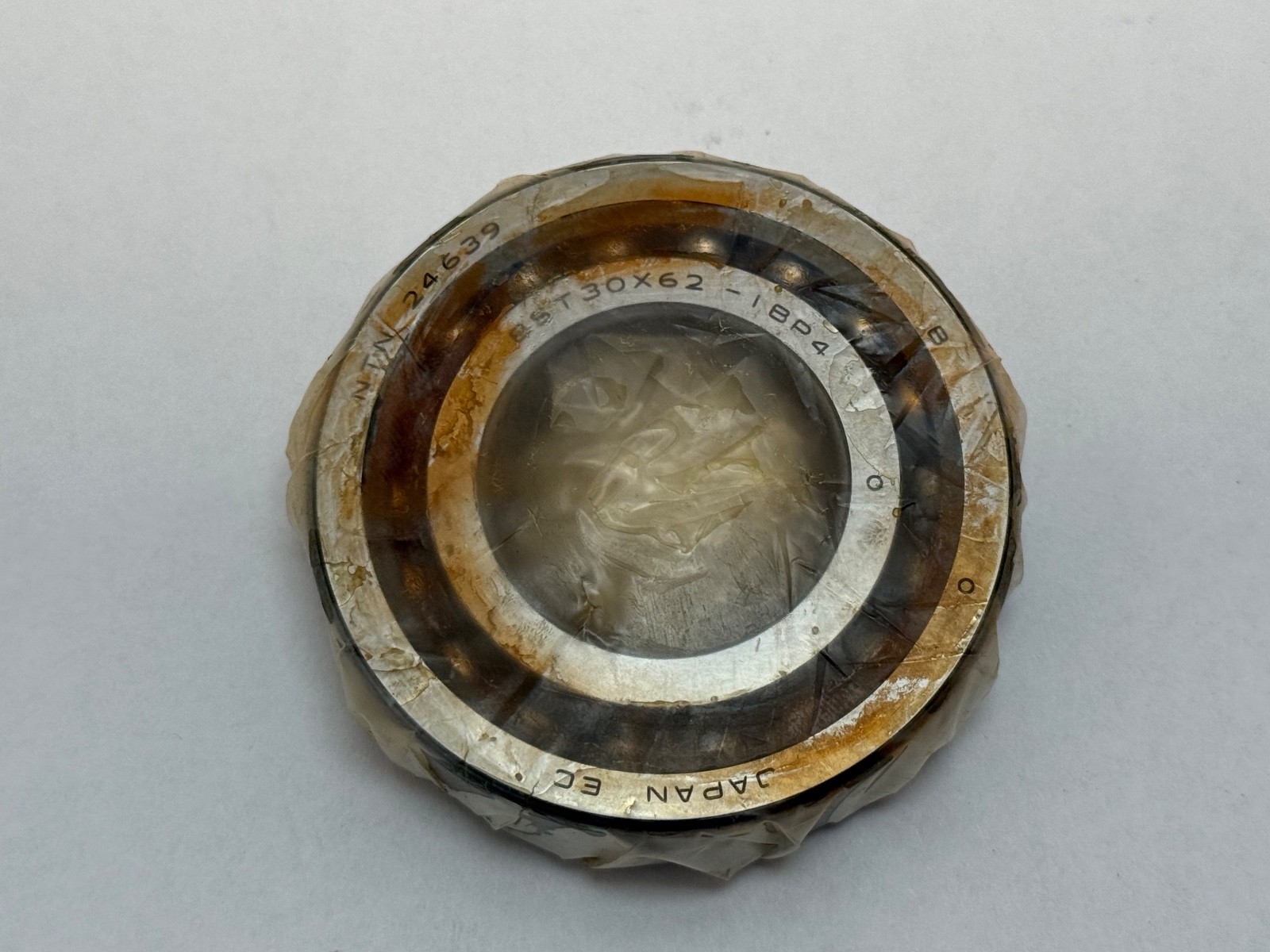

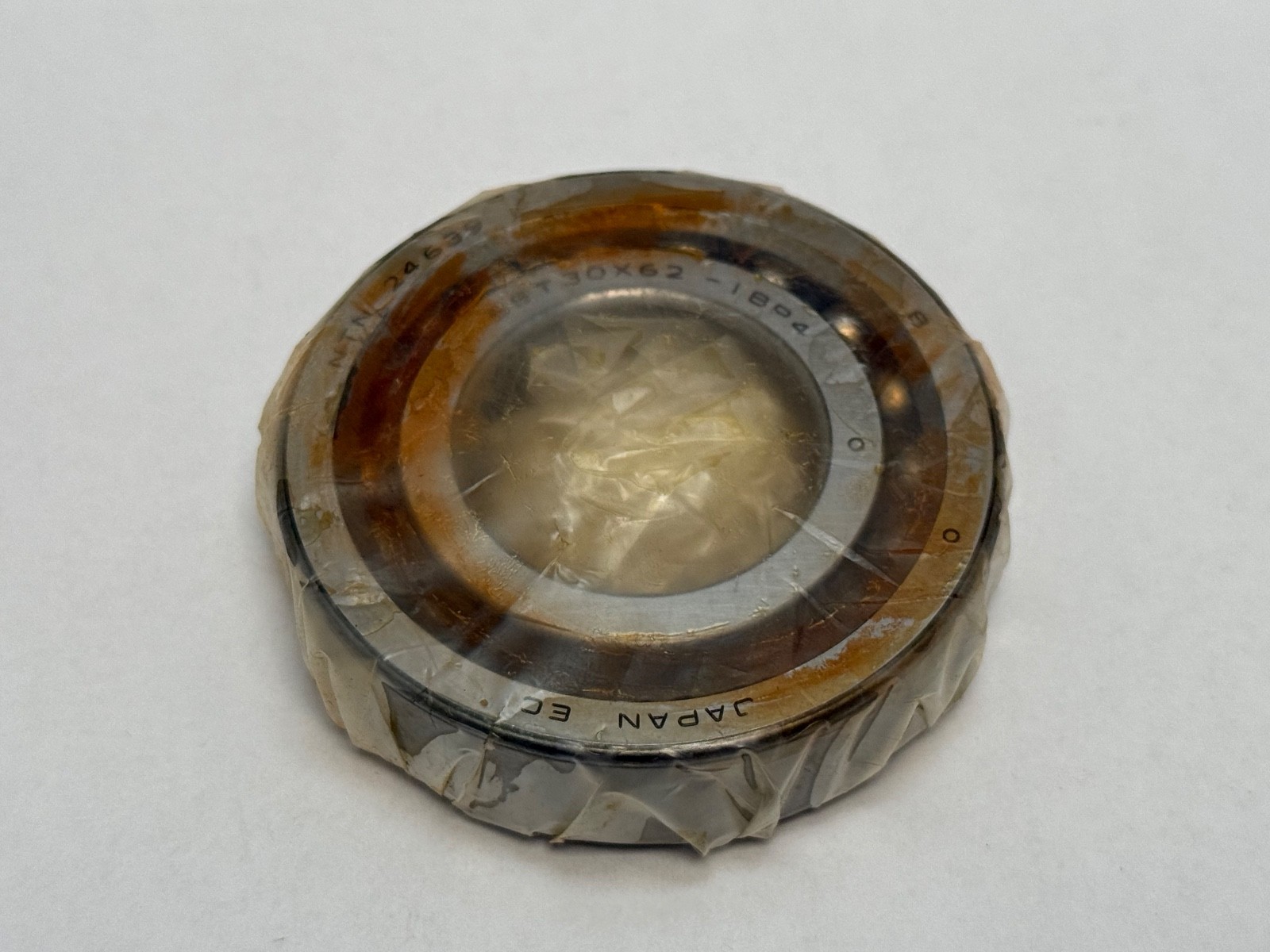

Ball screw support angular contact thrust bearing, 30 x 62 x 15 mm, 60° contact angle, ISO P4. NTN BST30X62-1BP4 single with polyamide cage.
List Price
$218.74
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | BST30X62-1BP4 |
| Model | BST 30X62 1B P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 15 mm |
| Material | Chrome Steel |
|---|---|
| Series | BST |
| Lubricant | Grease |
| Mpn Variants | BST30X62-1BP4, BST-30-X-62-1B-P4, BST 30X62 1B P4, BST30X62-1B, BST30X62 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | NTN BST series, 60 deg contact angle, ISO P4. Grease space 4.6 cm3 (single row). Fillet r 1.0 mm, r1 0.6 mm. Shoulders d1 44.4 mm, D1 51.6 mm. Operating temperature -40 to 120 C. |
| Min Temp | -40 °C |
| Dynamic Load Rating | 29,200 N |
| Static Load Rating | 59,000 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.21 kg (0.46 lb) |
| Cage Material | Glass-fibre reinforced polyamide |
| Snap Ring Included | No |
| Contact Angle | 60° |
| Preload | Heavy |
| Mounting Arrangement | Universal single (DB, DF, DT and multi-row sets) |
| Industry Terms | ball screw support bearing; angular contact thrust ball bearing; 60 degree thrust bearing; CNC ball screw bearing; BST bearing; 30x62x15 bearing |
| Common Misspellings | BST30X621BP4; BST 30 X 62 1B P4; NTN BST30x62; BST30X62-1B-P4; NTN BTS30X62-1BP4 |
| Application Types | Ball screw support ends; CNC machine axes; linear motion axes |
| Closure Type | Open |
| Cross Reference 1 | NSK 30TAC62B |
|---|---|
| Cross Reference 2 | FAG 7602030-TVP |
| Cross Reference 3 | SKF BSD 3062 C |
| Cross Reference 4 | Timken MM30BS62 |
| Cross Reference 5 | Koyo SAC3062B |
NTN BST30X62-1BP4 is a single-row angular contact thrust ball bearing for ball screw support, 30 x 62 x 15 mm, with a 60° contact angle, ISO P4 (ABEC 7) precision and a glass-fibre reinforced polyamide cage. Unit Quantity: 1 Pc.
BST — NTN angular contact thrust ball bearing for ball screws, 60° contact angle.
30X62 — 30 mm bore, 62 mm outside diameter.
P4 — ISO Class 4 precision, equivalent to ABEC 7.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Width: 15 mm. Contact Angle: 60°. Precision Class: ABEC 7 / P4. Dynamic Load Rating: 29,200 N. Static Load Rating: 59,000 N. Item Weight: 0.21 kg (0.46 lb). Cage Material: Glass-fibre reinforced polyamide. Preload: Heavy. Operating Temperature: -40 °C to 120 °C. Grease space, single row: 4.6 cm³. Number Of Rows: 1. Closure Type: Open. Unit Quantity: 1 Pc.
Fillet r: 1.0 mm; r1: 0.6 mm. Inner-ring shoulder d1: 44.4 mm. Outer-ring shoulder D1: 51.6 mm. Mounting Arrangement: universal single, combinable as DB, DF, DT and multi-row sets.
Cross-references on the 30 x 62 x 15 mm envelope at 60° and P4: NSK 30TAC62B, FAG 7602030-TVP, SKF BSD 3062 C, Timken MM30BS62 and Koyo SAC3062B.
30 mm bore, 62 mm outside diameter and 15 mm width.
Dynamic Load Rating is 29,200 N and Static Load Rating is 59,000 N.
BST bearings have a 60° contact angle, and P4 is ISO Class 4, equivalent to ABEC 7.
