Availability:
2 in stock
Angular contact ball bearing, 15 mm bore, 28 mm OD, 7 mm wide, 15° contact angle, ABEC 5 / P5, polyamide cage, universal flush-ground single.
List Price
$64.94
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 7902 C T2 G GN P5 / 2MM9303WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 28 mm |
| Width | 7 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7900 |
| Condition | New |
| Mpn Variants | 7902CT2GGNP5, 7902-C-T2-G-GN-P5, 7902C, 7902 C T2 G GN P5, 71902C |
| Precision Class | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (flush-ground single) |
| Cross Reference 1 | SKF 71902 CD |
|---|---|
| Cross Reference 2 | FAG B71902-C |
| Cross Reference 3 | NSK 7902C |
| Cross Reference 4 | Koyo 7902C |

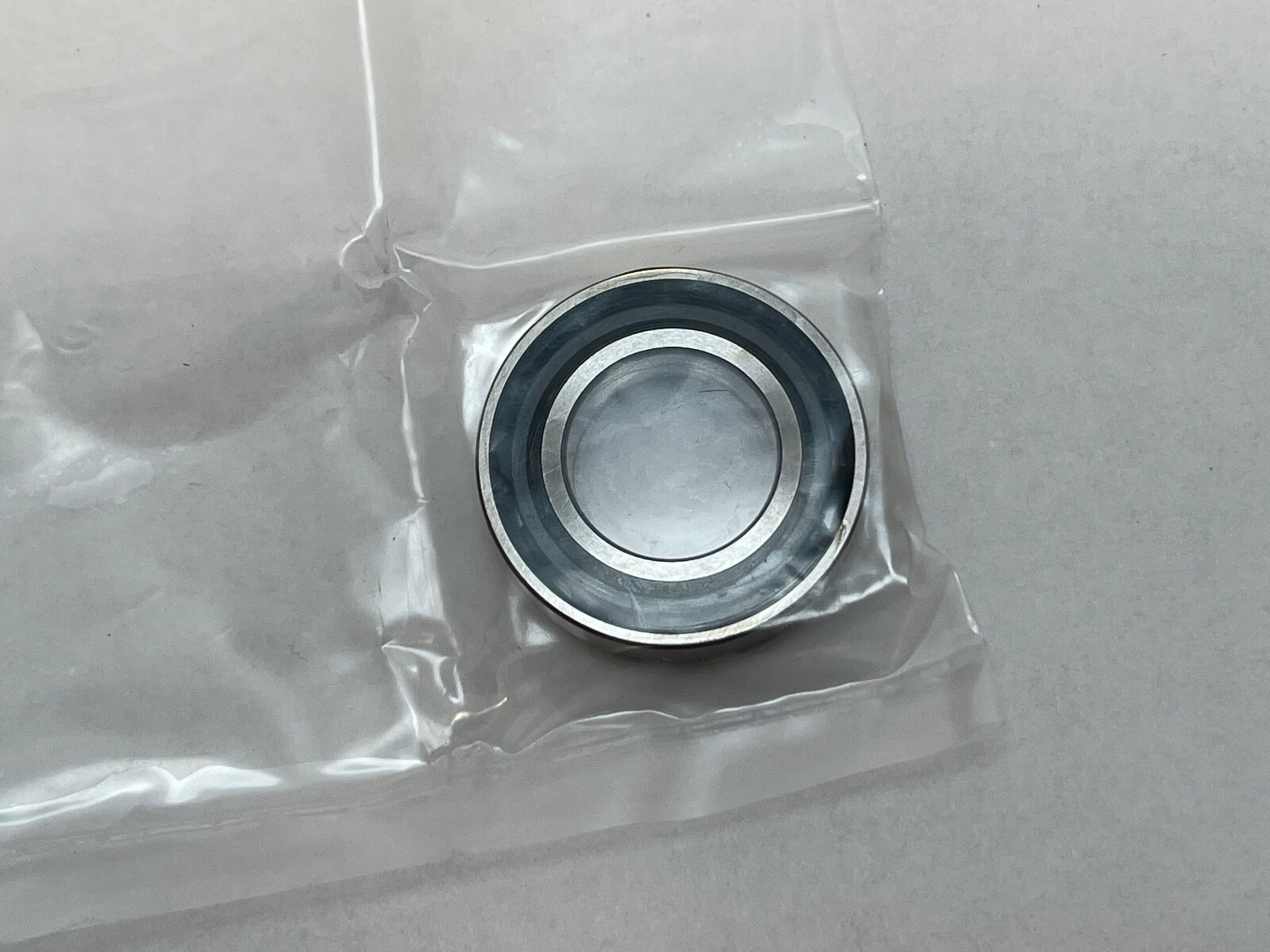

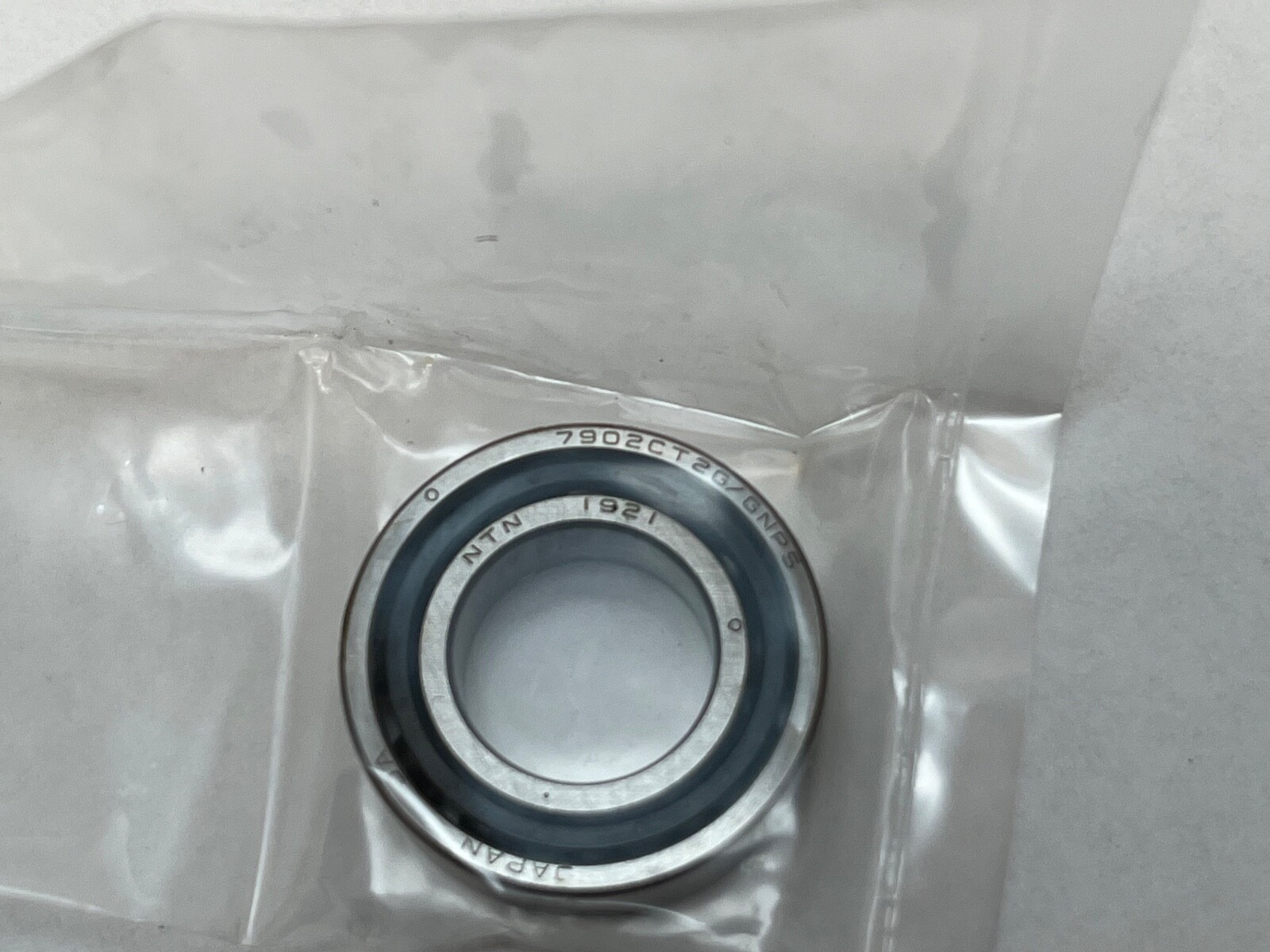

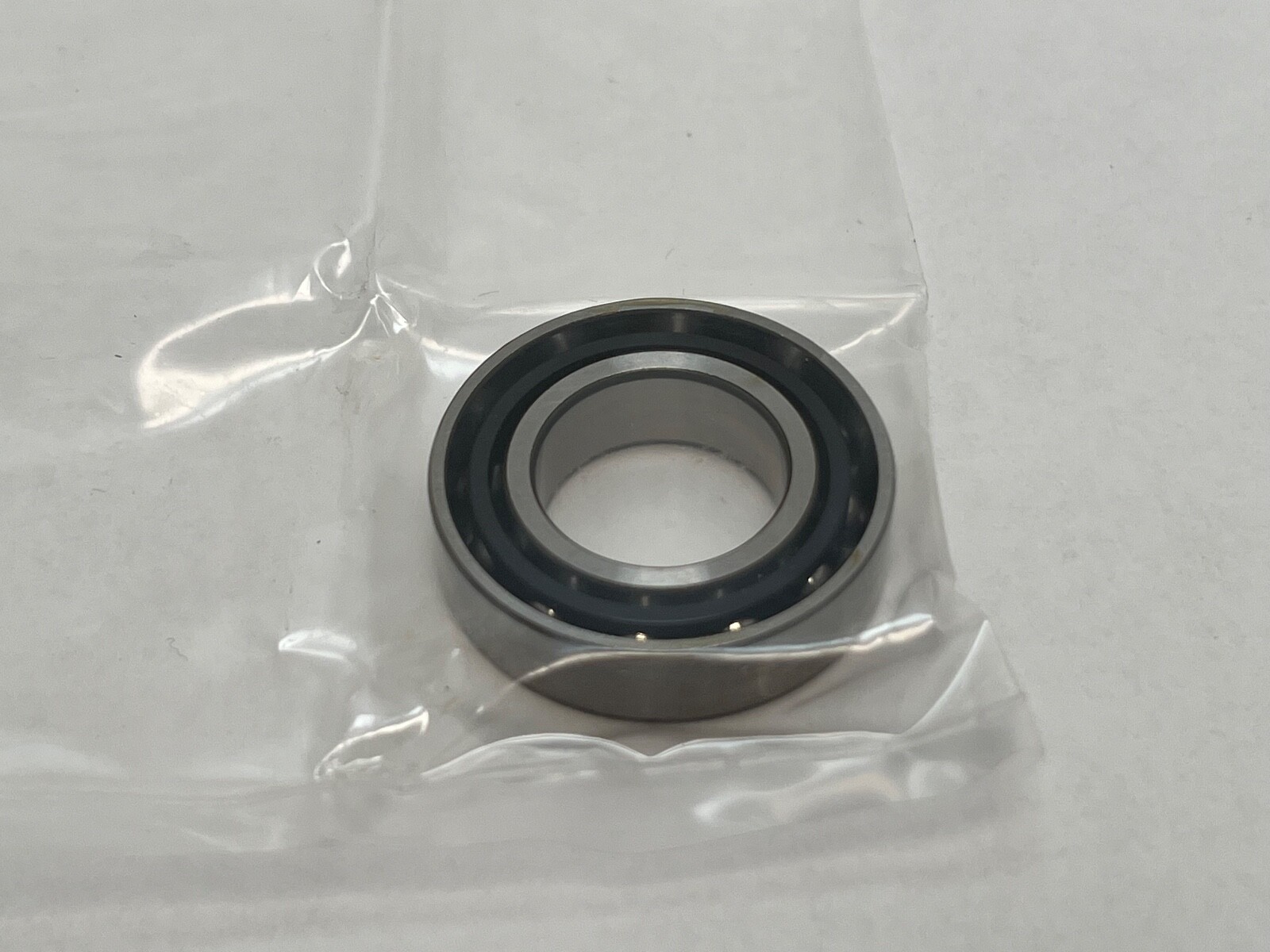

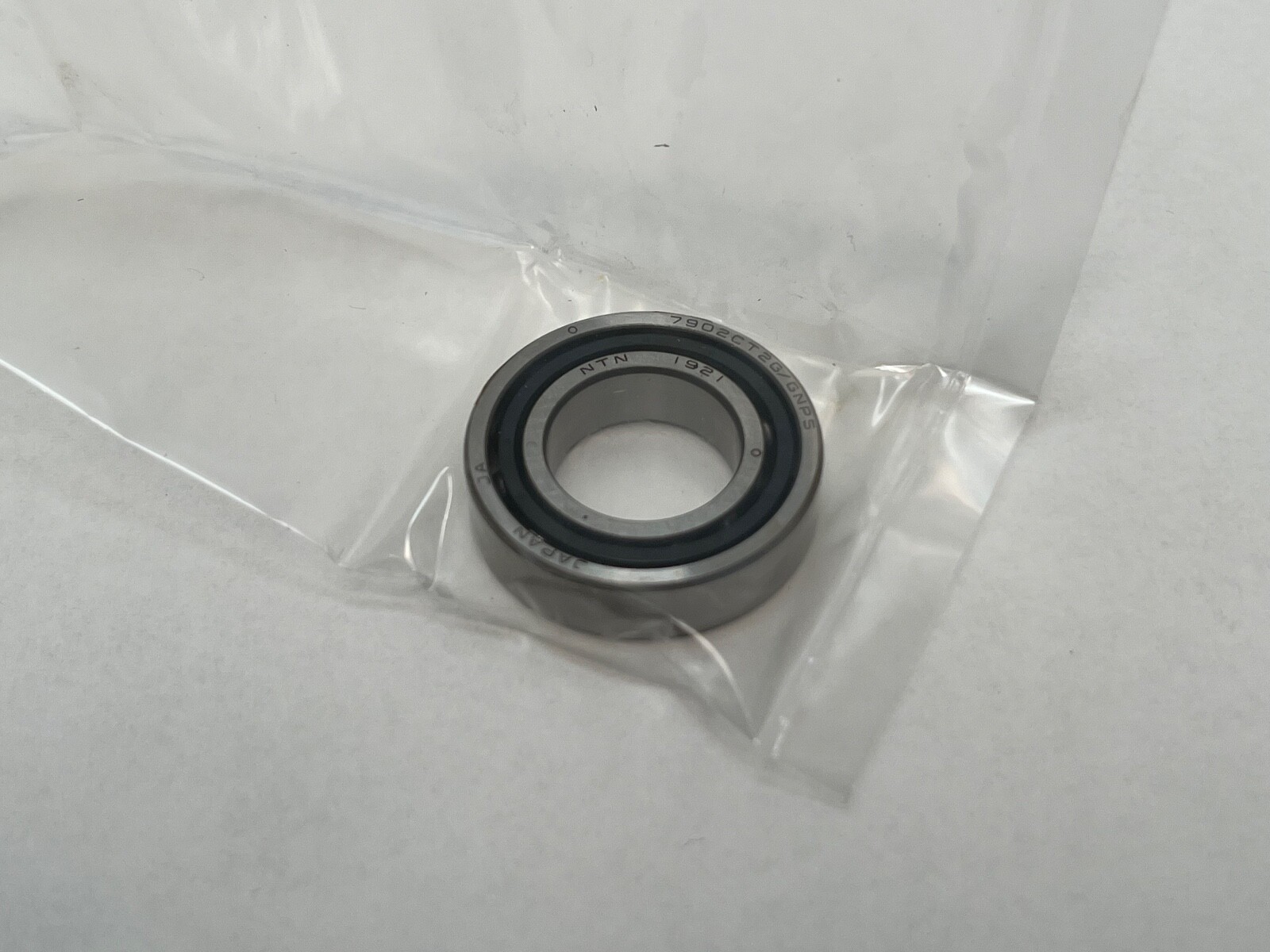

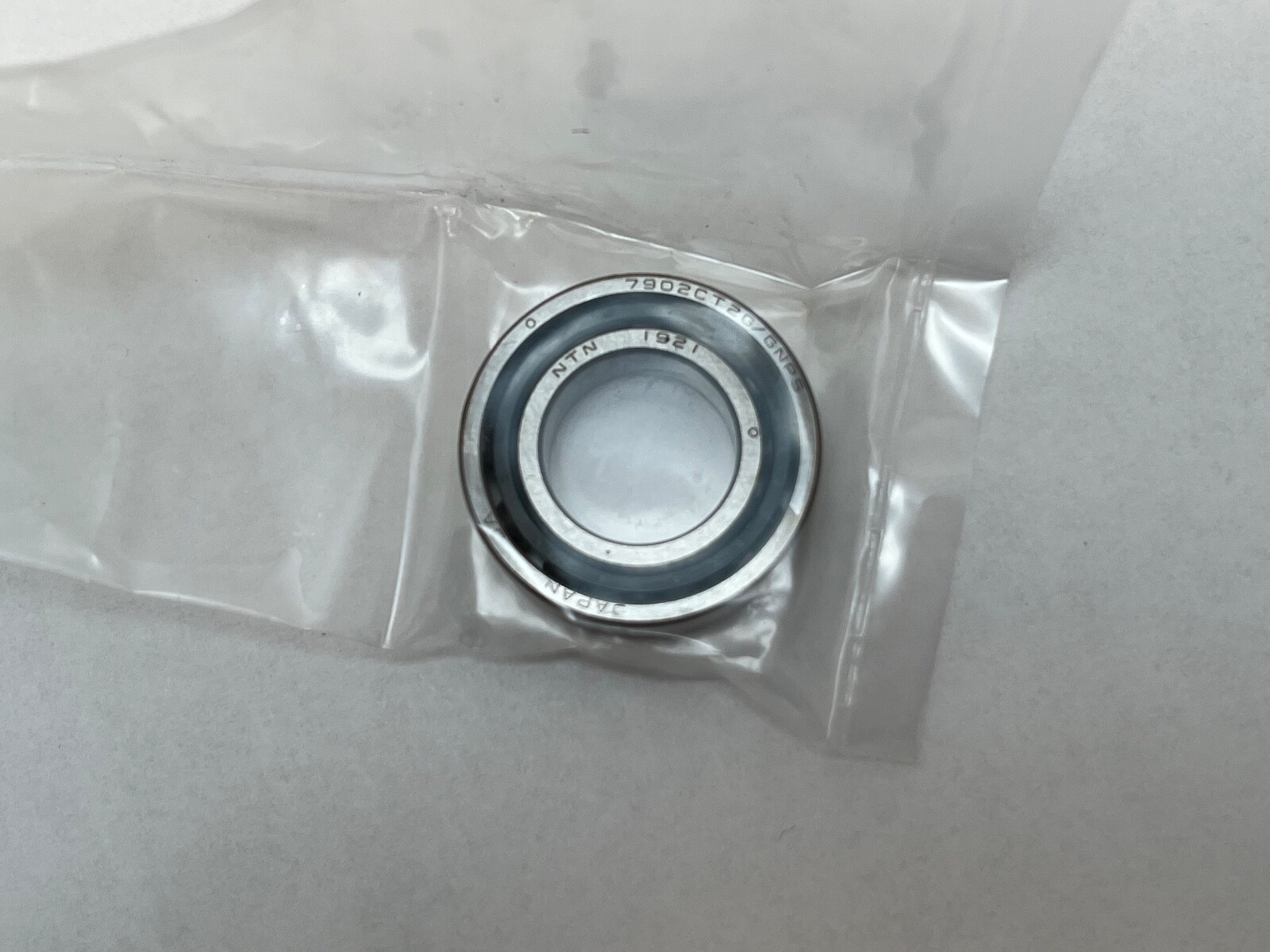

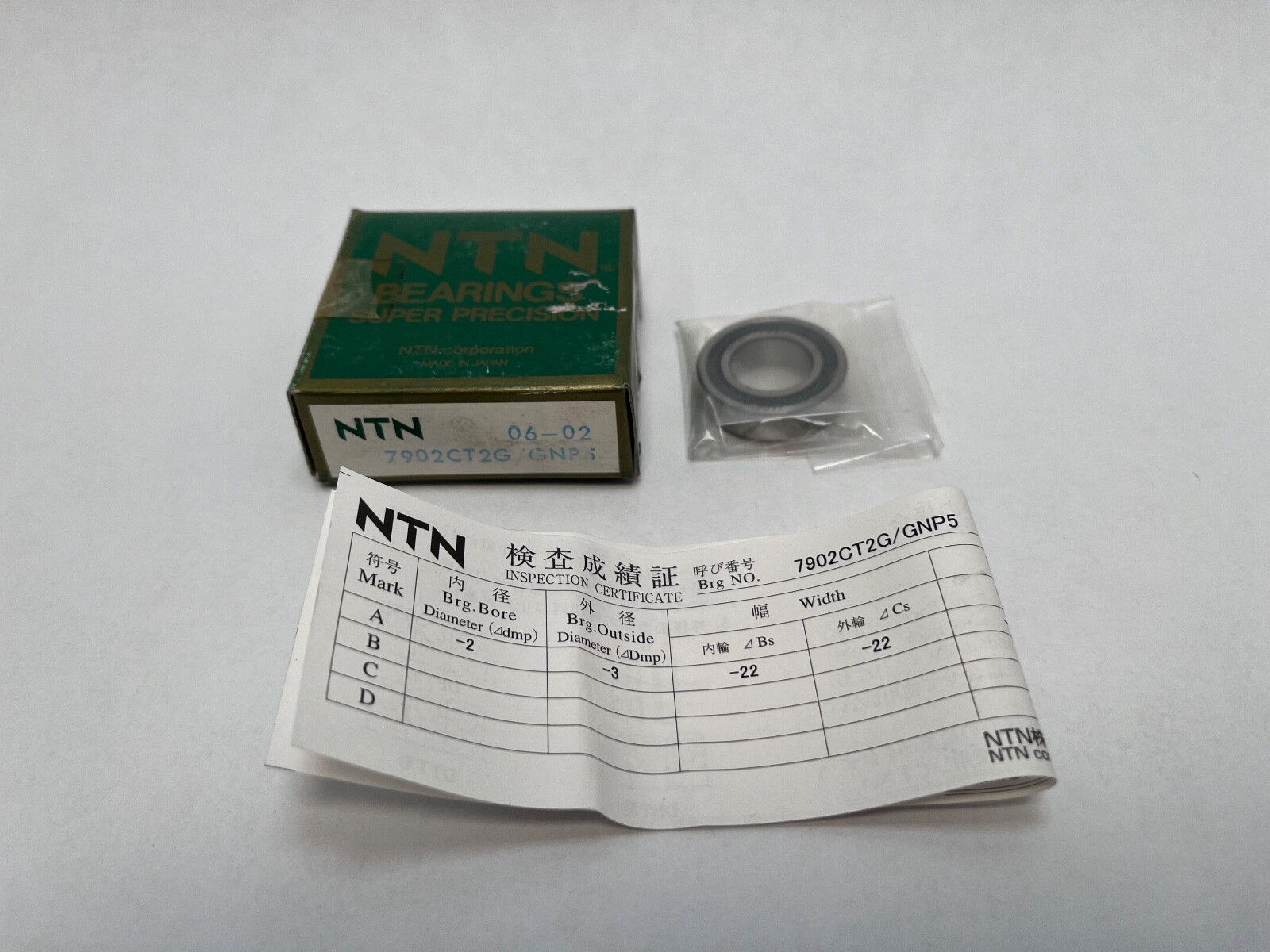

NTN 7902C single-row angular contact ball bearing, flush-ground for universal matching. Bore Diameter: 15 mm. Outside Diameter: 28 mm. Overall Width: 7 mm. Contact Angle: 15°. Cage Material: Polyamide. Precision Class: ABEC 5 / P5. Rolling Elements: Ball. Closure Type: Open. Series: 79 (ISO 719).
7902 — 79 series ultra-light angular contact ball bearing (ISO 71902 size); bore code 02 gives a 15 mm bore.
C — 15° contact angle.
T2 — polyamide (nylon) cage.
G — single bearing with flush-ground faces for universal matching in DB, DF or DT sets.
GN — NTN normal preload when paired with another G bearing.
P5 — ISO class 5 precision, equivalent to ABEC 5.
The thin 79 series section and 15° angle suit high-speed spindle and precision instrument duty in a compact radial space. Flush-ground faces allow any two G bearings of the same type to be combined into a matched set.
Unit Quantity: 1 Pc. Single universal bearing.
Cross-Reference: SKF 71902 CD, FAG B71902-C, NSK 7902C and Koyo 7902C are 15° 15 x 28 x 7 mm angular contact ball bearings of the same ISO 71902 size.
$231.30
29 in stock
