Duplex angular contact ball bearing pair, back-to-back (DB), 15 mm bore, 35 mm OD, 11 mm wide each, 15° contact angle, polyamide cages. Two matched bearings.
List Price
$133.84
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7202CDBGNP4 |
| Model | 7202-C-DB-GN+8D-P5 2MM202 WI CR DB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 35 mm |
| Width | 11 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7200 |
| Total Width | 22 mm (pair) |
| Mpn Variants | 7202CDBGNP4, 7202CDBGNP5, 7202-C-DB-GN+8D-P5, 7202C DB, 7202 C DB 8D GN P4 |
| Cage Type | Glass-fibre reinforced nylon |
| Dynamic Load Rating | 14,600 N (pair) |
| Static Load Rating | 9,050 N (pair) |
| Rolling Elements | Ball |
| Item Weight | 0.084 kg (0.185 lb) (pair) |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 25,000 rpm grease; 33,000 rpm oil (pair) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Back-to-back (DB) |
| Closure Type | Open |
| Industry Terms | Duplex angular contact bearing; matched bearing pair; back-to-back angular contact pair; DB pair |
| Common Misspellings | 7202 CDB GNP4; 7202CDBGN P4; 7202 C DB GN P4; NTN 7202 CDB |
| Application Types | Machine tool spindles; small high-speed spindles; precision instruments |
| Cross Reference 1 | Timken Fafnir 2MM202WI CR DUL (15°; universal, not DB) |
|---|---|
| Cross Reference 2 | NSK 7202C DB (15°, DB pair; preload may differ) |
| Cross Reference 3 | SKF 7202 CD/DB (15°, DB pair; preload may differ) |
| Cross Reference 4 | FAG B7202-C DB (15°, DB pair; preload may differ) |
| Cross Reference 5 | Koyo 7202C DB (15°, DB pair; preload may differ) |

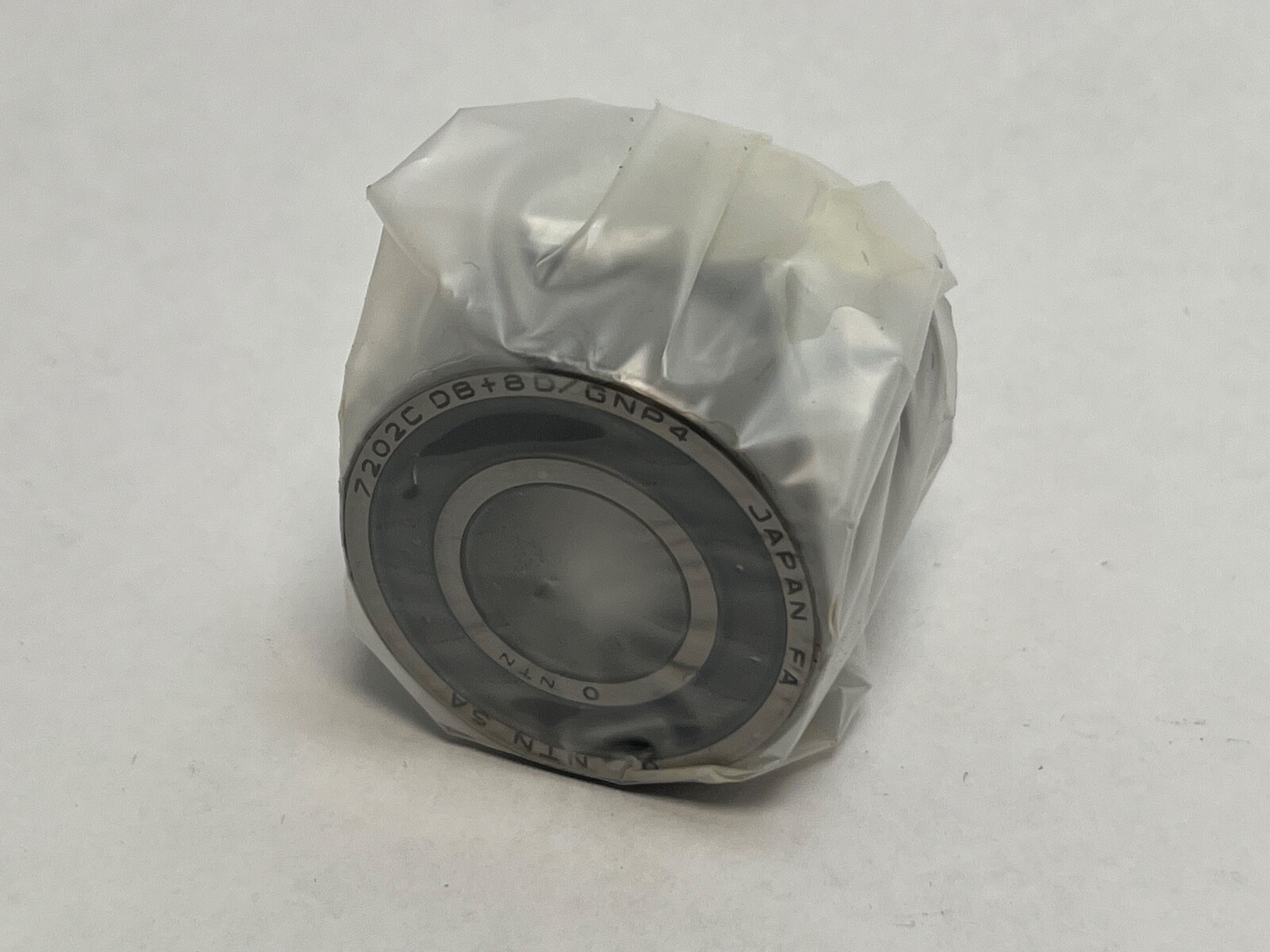

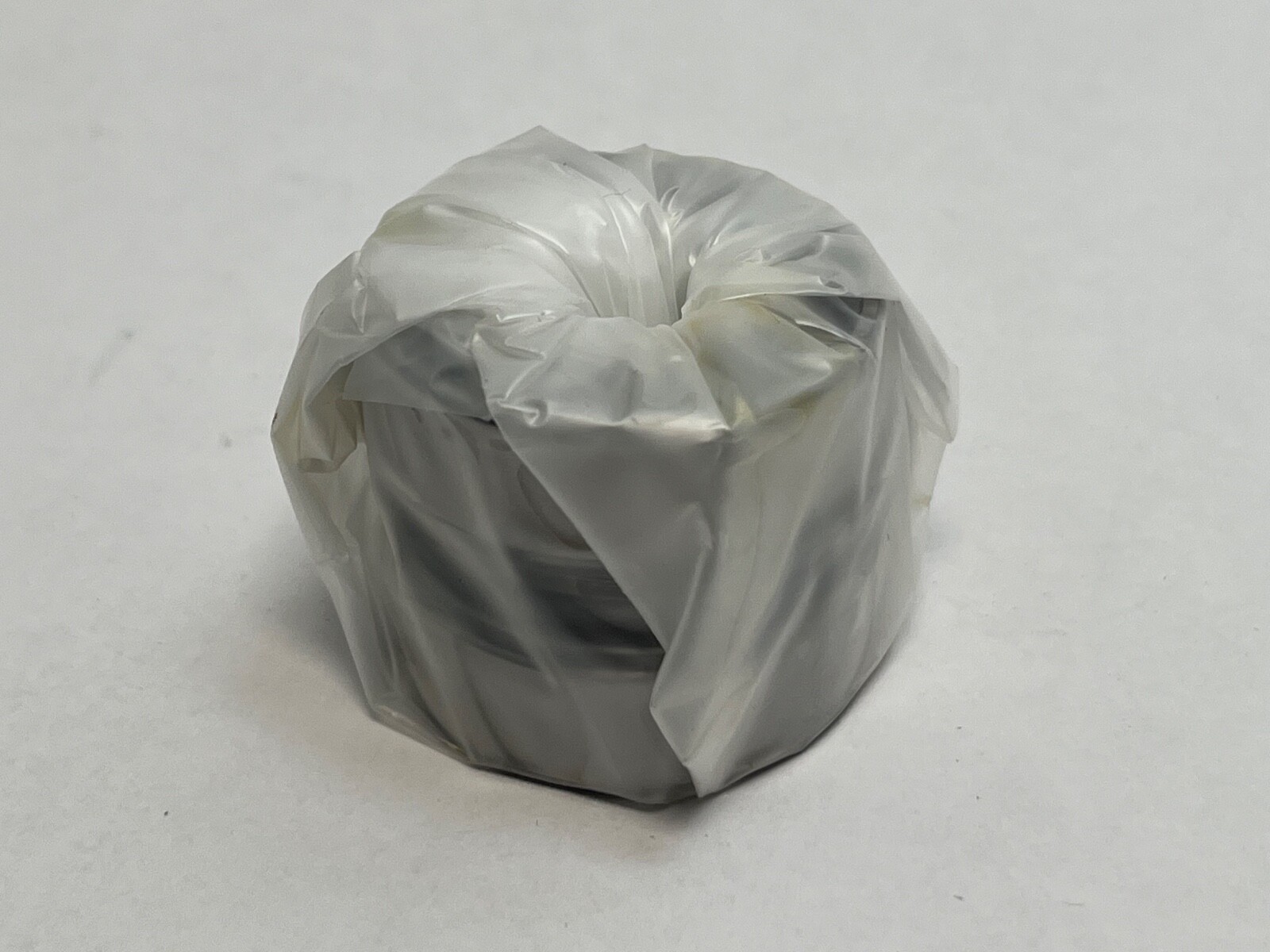

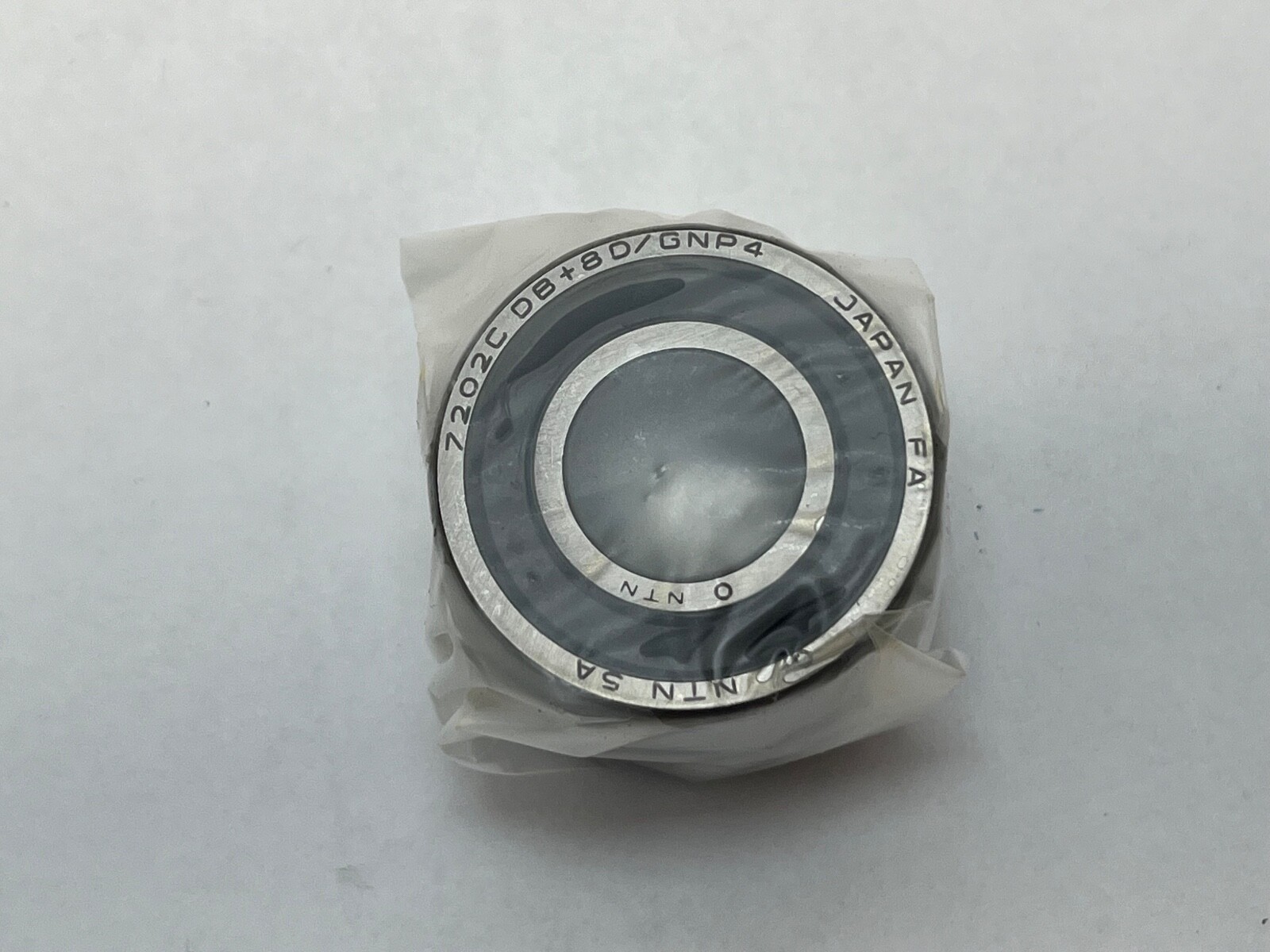

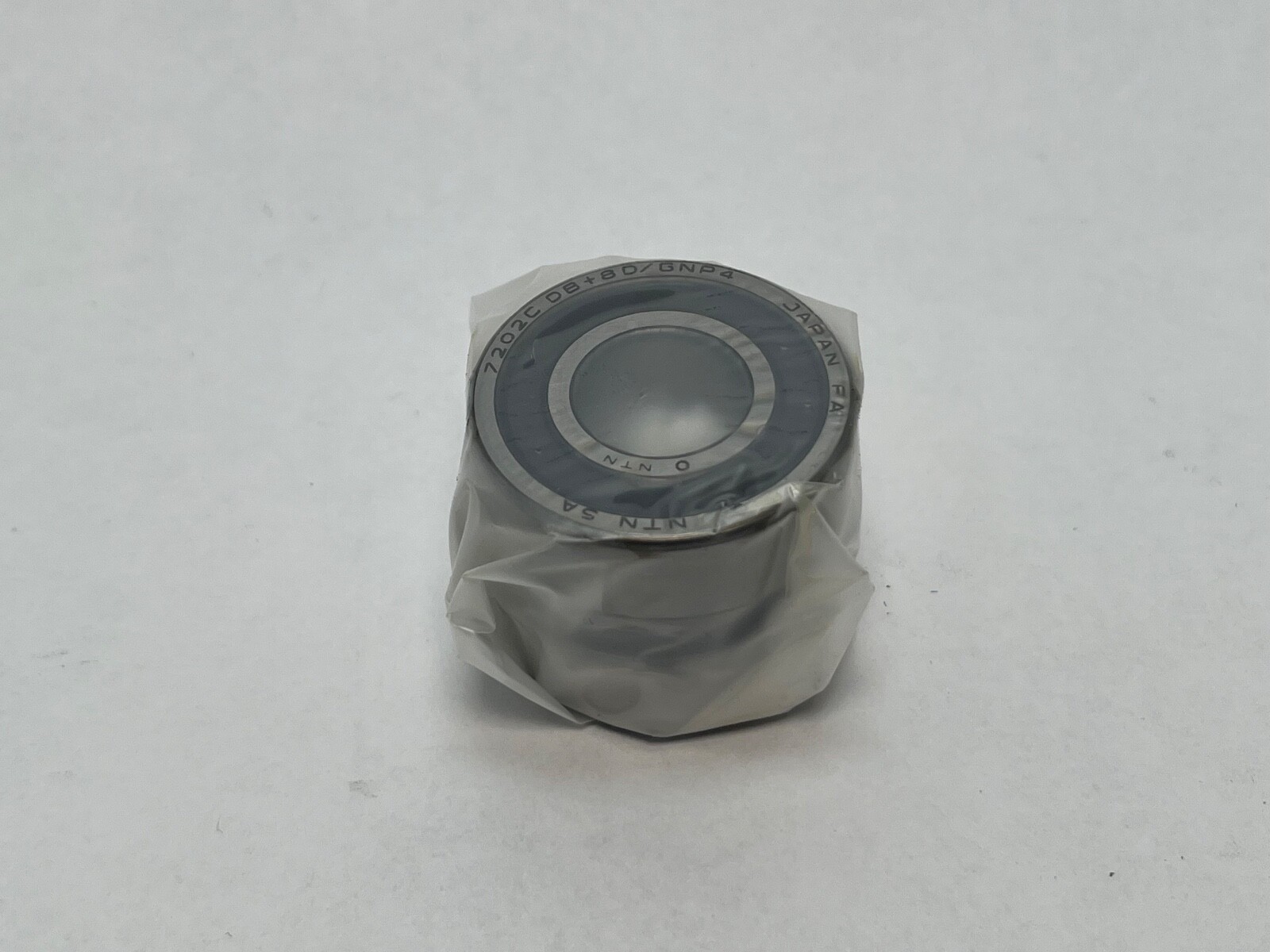

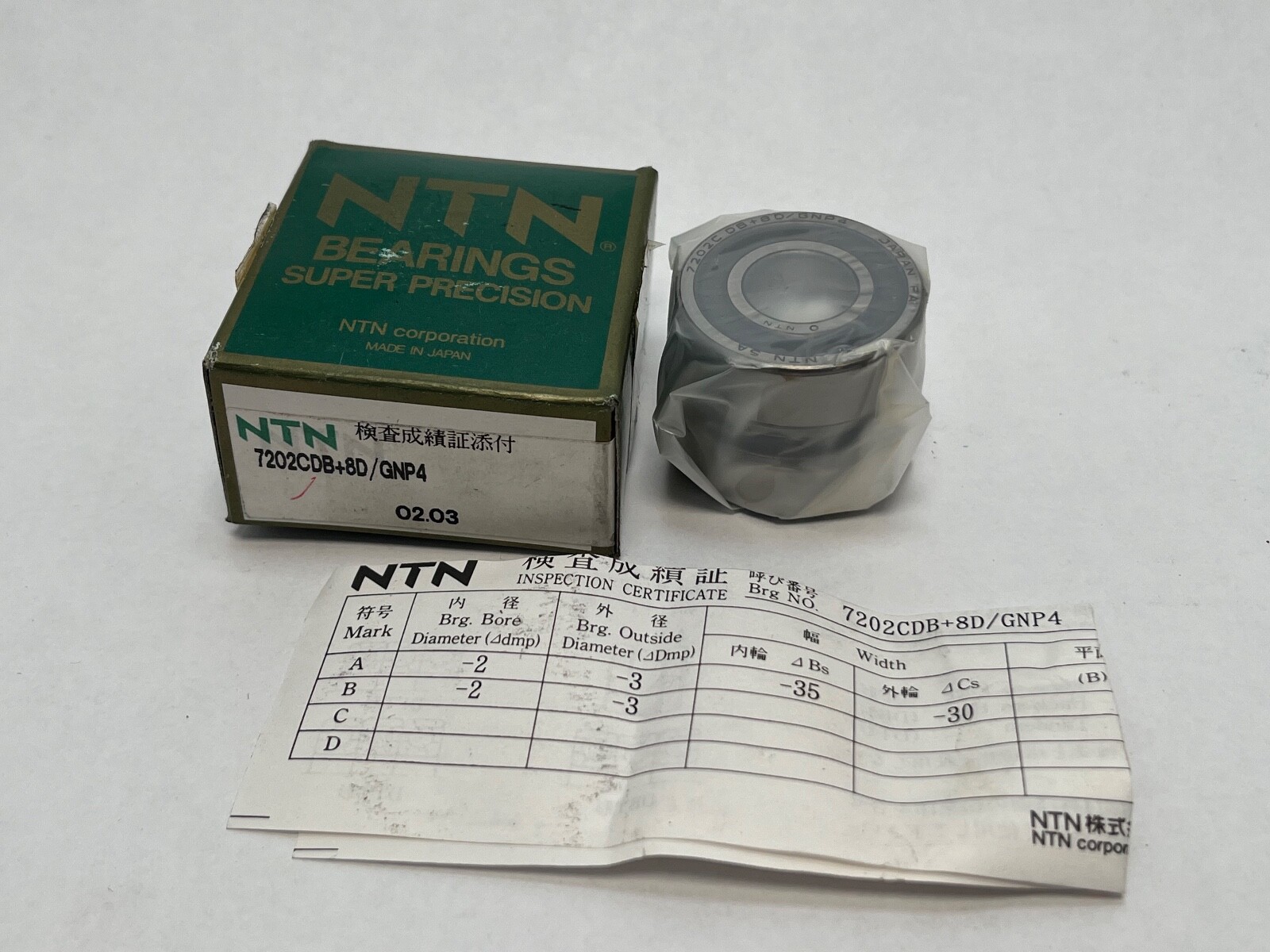

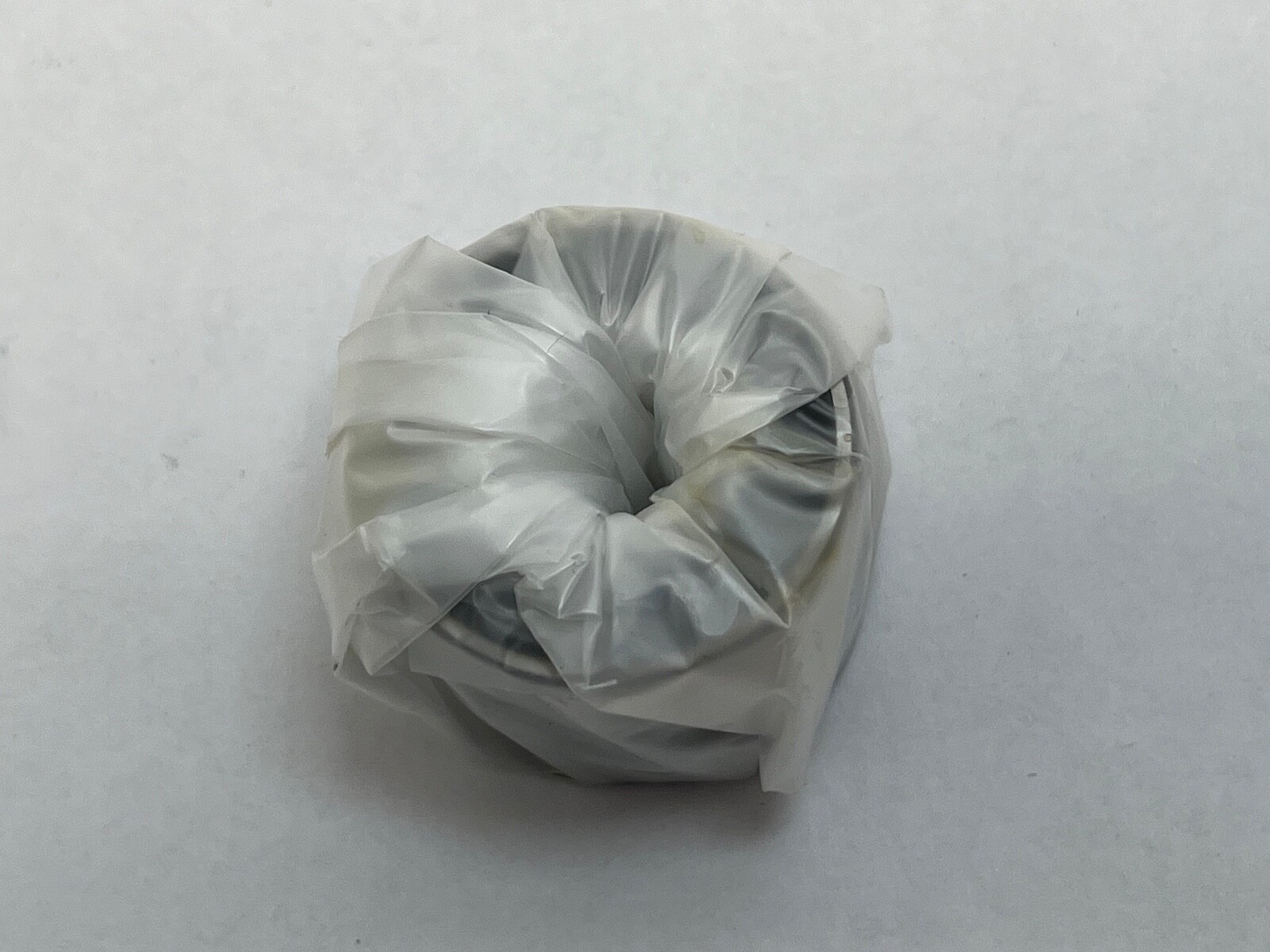

NTN 7202C matched duplex pair of single-row angular contact ball bearings, arranged back-to-back (DB), 15 mm bore, 35 mm outside diameter, 11 mm width per bearing, with a 15° contact angle and polyamide cages. Unit Quantity: 2 Pcs.
7202 — 72 series angular contact ball bearing; bore code 02 gives a 15 mm bore.
C — 15° contact angle.
DB — duplex back-to-back. Two single-row bearings ground as a matched set. Not a double-row bearing.
GN — NTN normal preload for the matched pair.
Bore Diameter: 15 mm. Outside Diameter: 35 mm. Overall Width: 11 mm per bearing. Total Width: 22 mm (pair). Contact Angle: 15°. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Closure Type: Open. Cage Material: Polyamide. Cage Type: Glass-fibre reinforced nylon. Mounting Arrangement: Back-to-back (DB). Series: 7200. Material: High Carbon Chrome Steel. Snap Ring: No.
Dynamic Load Rating: 14,600 N (pair). Static Load Rating: 9,050 N (pair). Limiting Speed: 25,000 rpm grease; 33,000 rpm oil (pair). Item Weight: 0.084 kg (0.185 lb) (pair). Harmonization Code: 8482.10.50.
Shaft abutment diameter da min: 19.5 mm. Housing abutment diameter Da max: 30.5 mm. Fillet radius ras max: 0.6 mm. Fillet radius r1as max: 0.3 mm. The back-to-back arrangement takes axial load in both directions and resists tilting moment.
15° 15 x 35 x 11 mm angular contact bearings in duplex form: Timken Fafnir 2MM202WI CR DUL, NSK 7202C DB, SKF 7202 CD/DB, FAG B7202-C DB and Koyo 7202C DB. Searchable forms of the number: 7202CDBGNP4, 7202CDBGNP5, 7202-C-DB-GN+8D-P5, 7202C DB, 7202 C DB 8D GN P4.
15 mm bore, 35 mm outside diameter, 11 mm width per bearing, with a 15° contact angle.
Duplex back-to-back: two single-row bearings ground as a matched set, mounted back-to-back.
25,000 rpm with grease and 33,000 rpm with oil, for the pair.
