Availability:
2 in stock

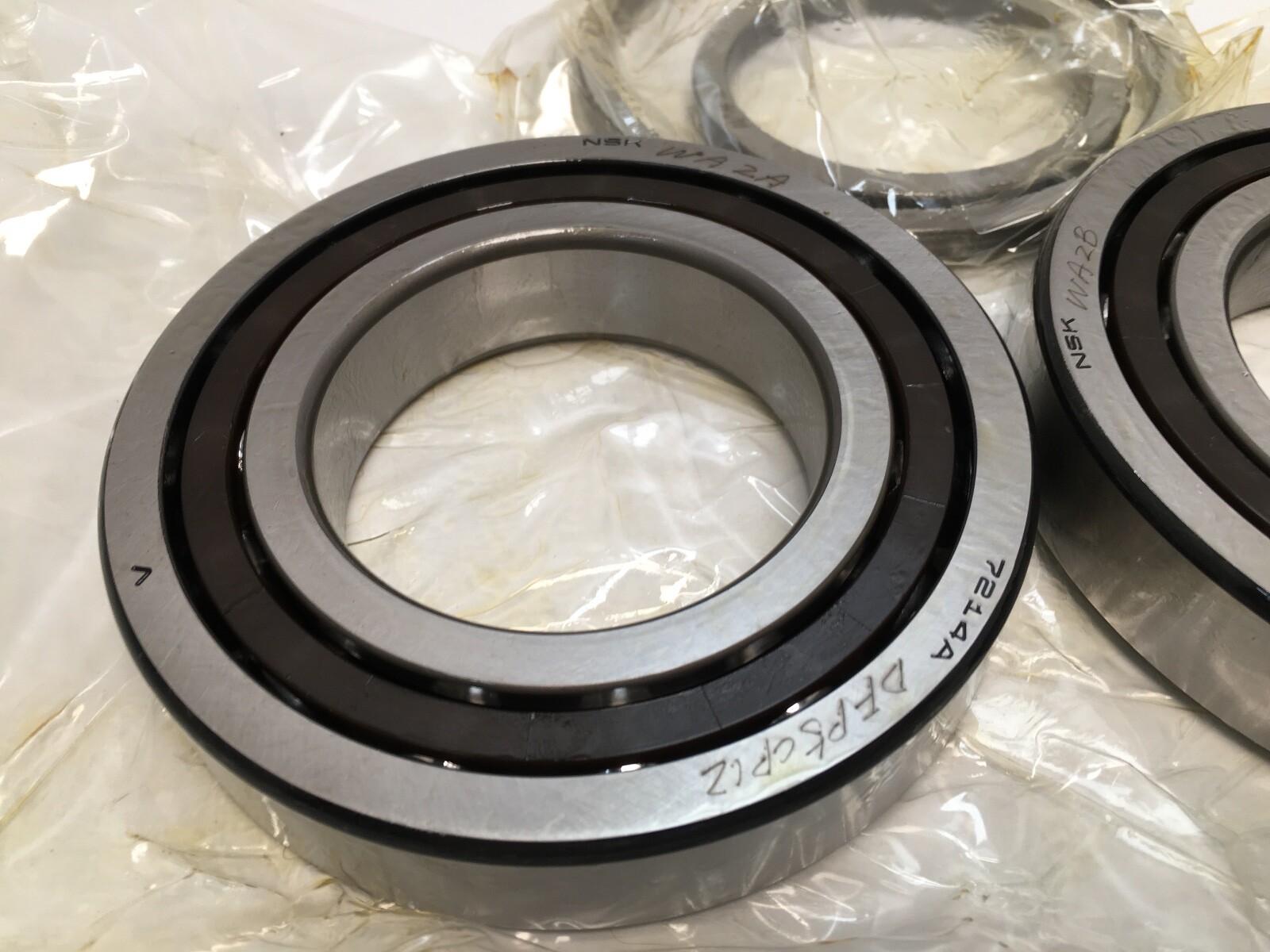

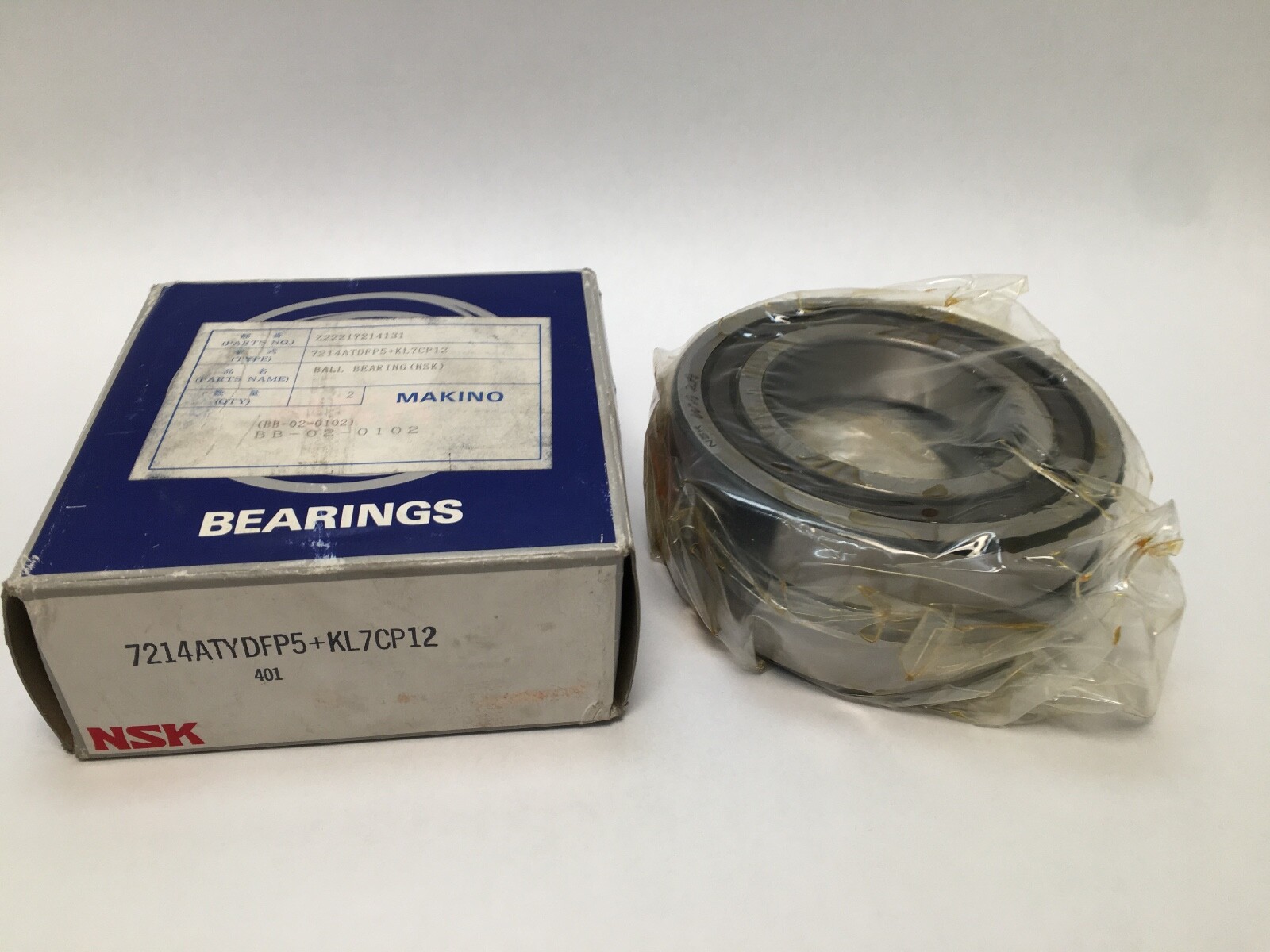

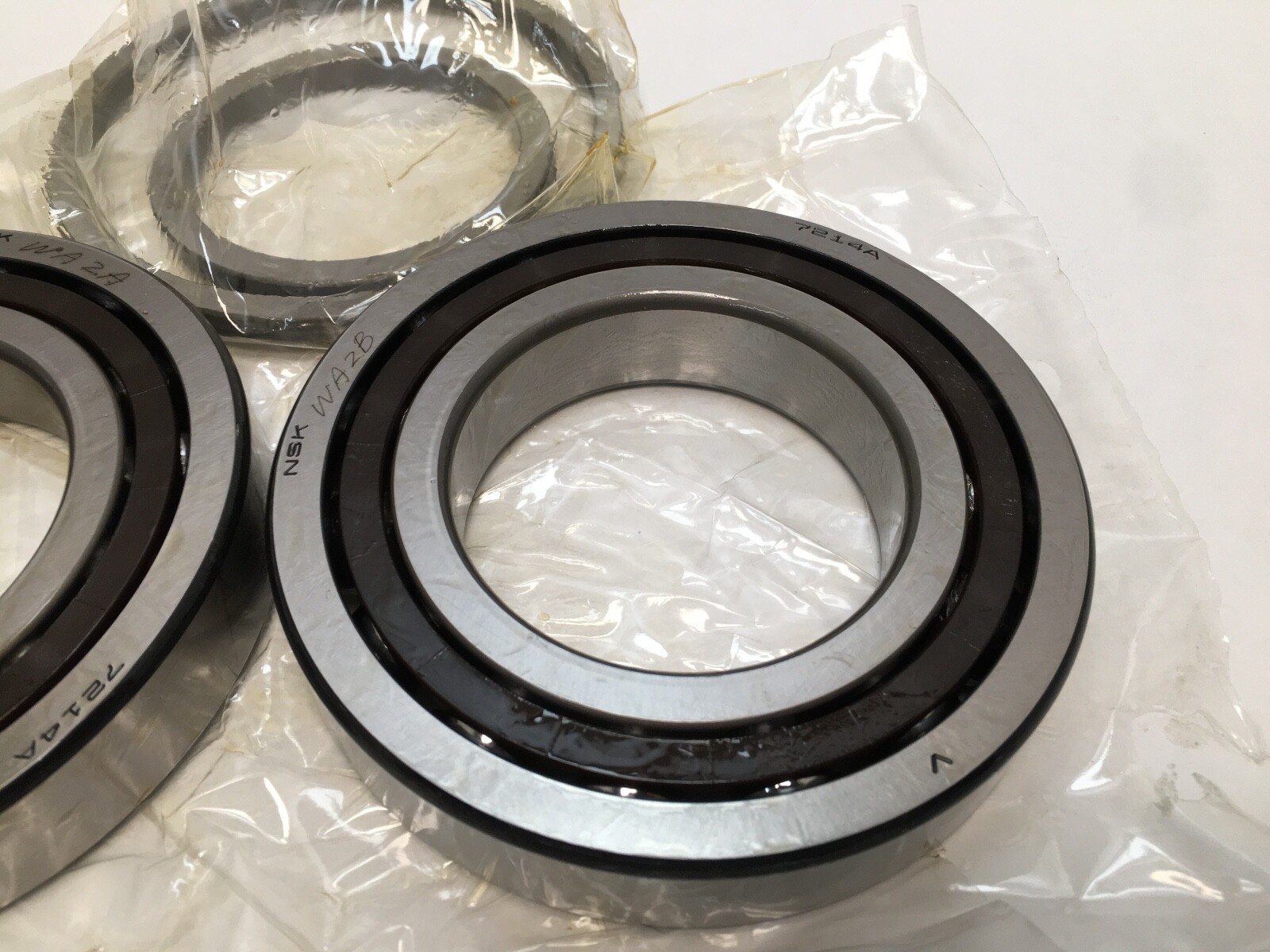

Super precision angular contact ball bearing pair, 70 x 125 x 24 mm each, 30 degree contact angle. Ball-guided cage, P5 accuracy, face-to-face matched set.
List Price
$262.36
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7214ATYDFP5+KL7CP12 |
| Model | 7214A TY DF P5 + KL7 CP12 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Base Number | 7214 |
|---|---|
| Industry Terms | super precision angular contact ball bearing; matched duplex pair; face-to-face bearing set; machine tool spindle bearing; ball-guided cage bearing; 30 degree angular contact bearing |
| Common Misspellings | 7214ATYDF P5; 7214ATYFDP5; 7Z14ATYDFP5; 7214-A-TY-DF-P5; 7214 ATYDFP5; 7214ATYDPF5; KL7CP12 |
| Application Types | machine tool spindles; grinding spindles; milling and turning spindles; precision gearboxes; high-speed rotary tables; screw drives |
| Overall Width | 24 mm |
| Mpn Variants | 7214ATYDFP5+KL7CP12; 7214A TY DF P5 + KL7 CP12; 7214-ATY-DF-P5 KL7-CP12; 7214ATYDFP5; 7214A TY DF P5; 7214ATY; 7214A; KL7; CP12 |
| Precision Class | P5 |
| Additional Attributes | Effective load centre a: 40.1 mm; shaft abutment da min: 79 mm; housing abutment Da max: 116 mm; abutment fillet ra max: 1.5 mm; bearing chamfer r min: 1.5 mm; r1 min: 1 mm; permissible axial load Pa: 38,000 N; preload classes offered EL, L, M, H |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 92,000 N |
| Static Load Rating | 59,500 N |
| Series | 7200 |
| Rolling Elements | Ball |
| Item Weight | 1.10 kg (2.425 lb) per bearing |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 7,700 rpm grease; 10,300 rpm oil |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 30° |
| Mounting Arrangement | Face-to-face (DF) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Koyo 7214 - standard class, single |
|---|---|
| Cross Reference 2 | NTN 7214/GNP5 - single, not a DF pair |
| Cross Reference 3 | RHP 7214ATP5 - single, not a DF pair |
| Cross Reference 4 | MRC 7214 - 29 deg vs 30 deg |

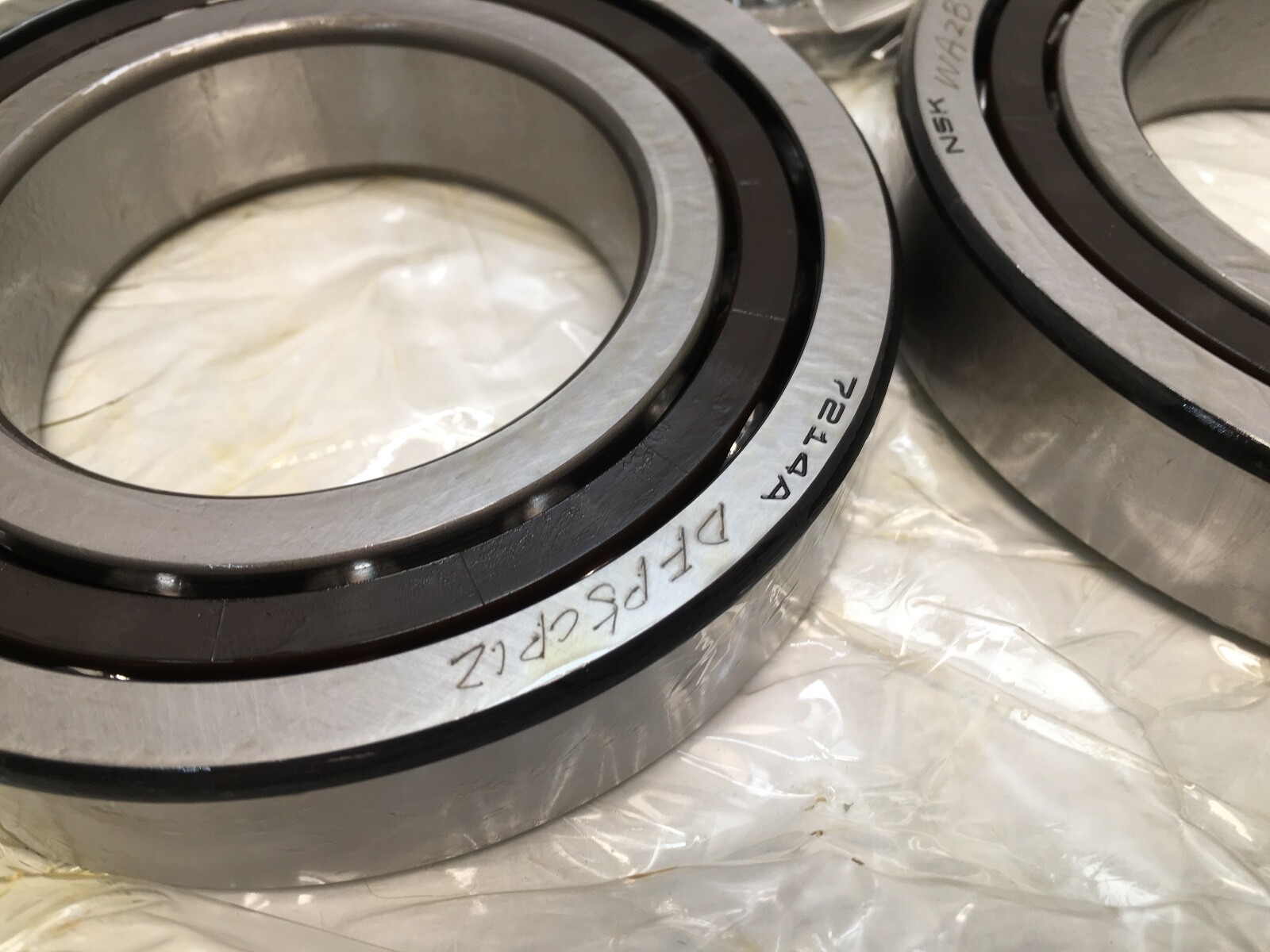

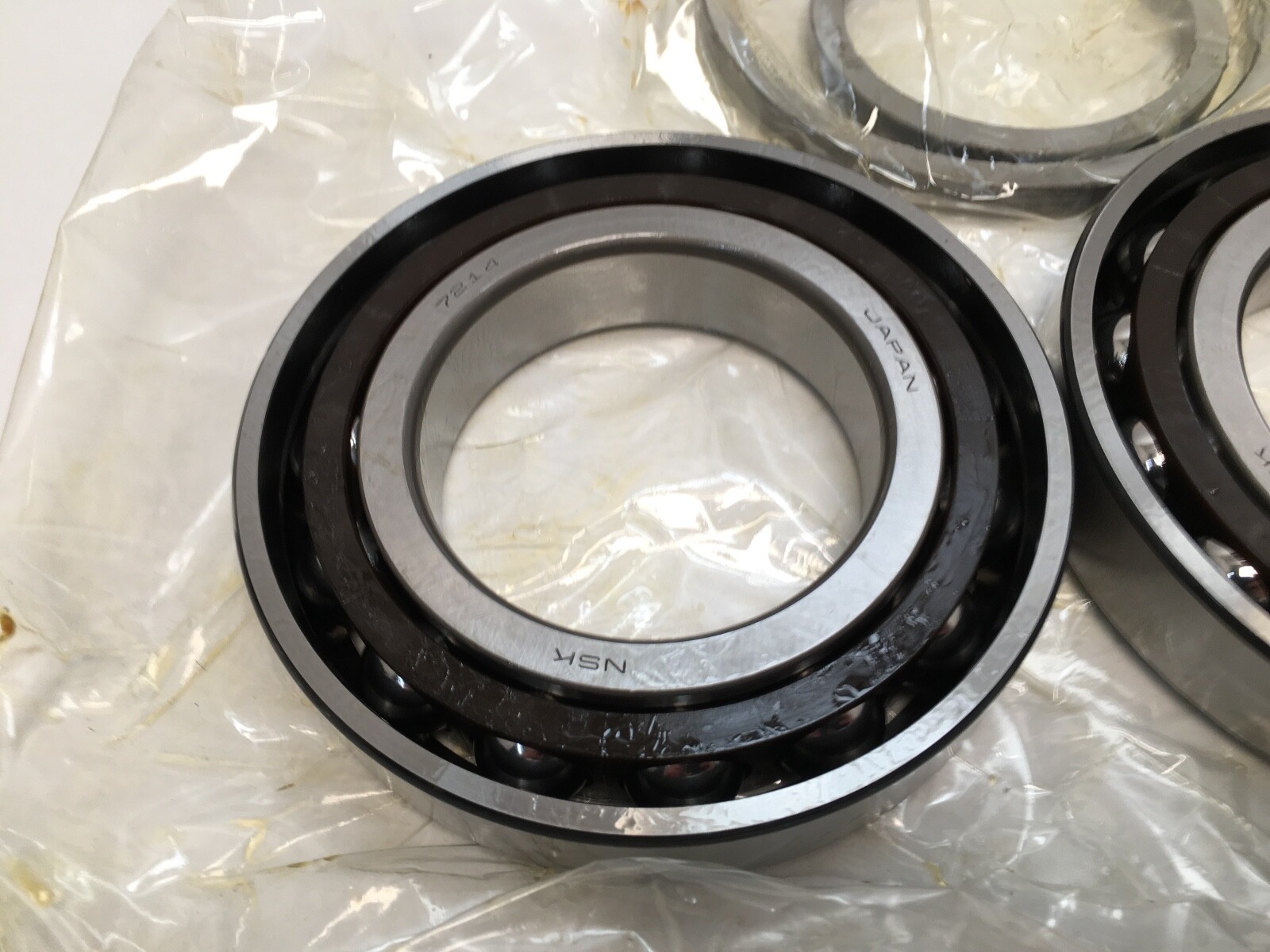

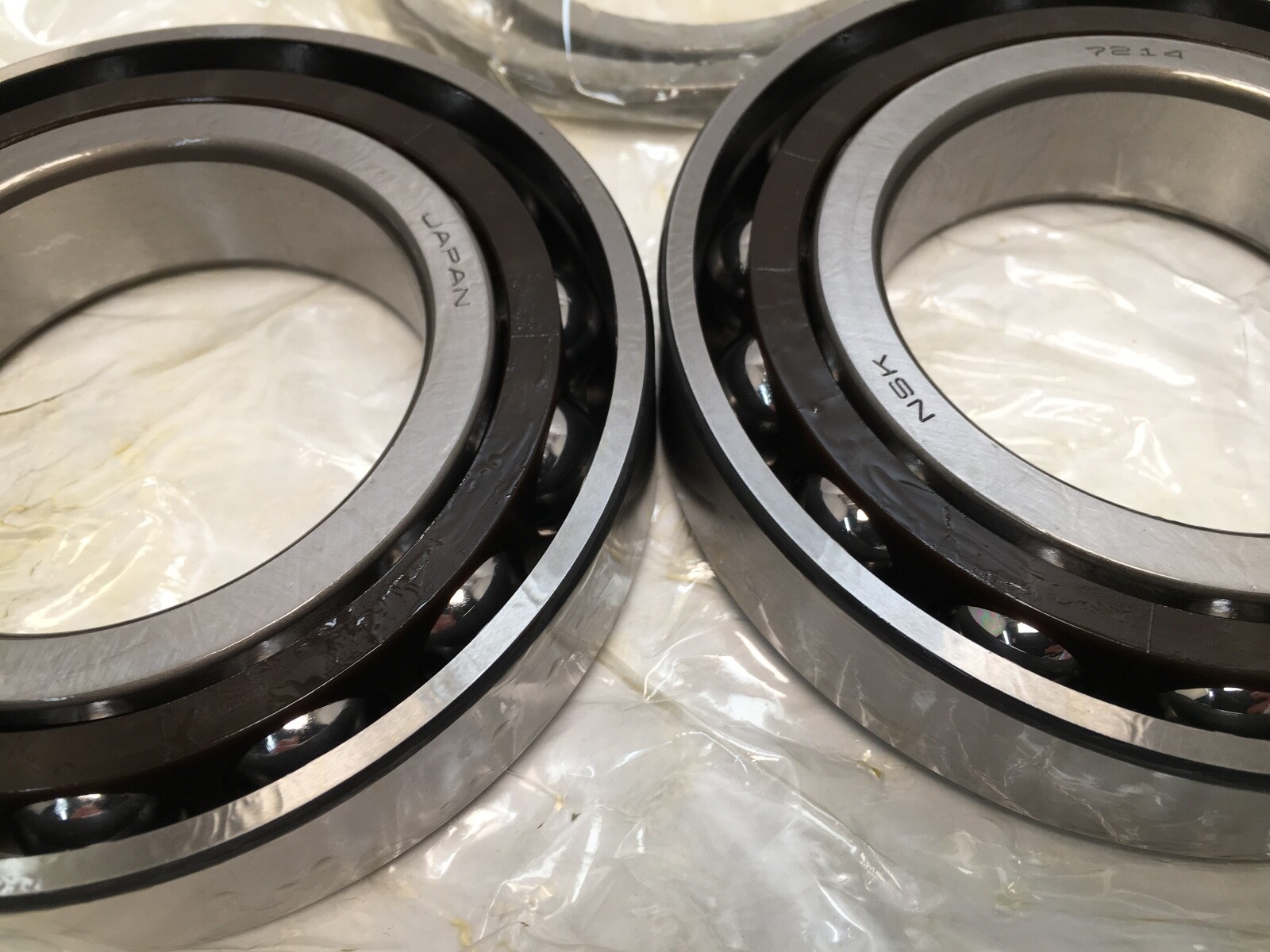

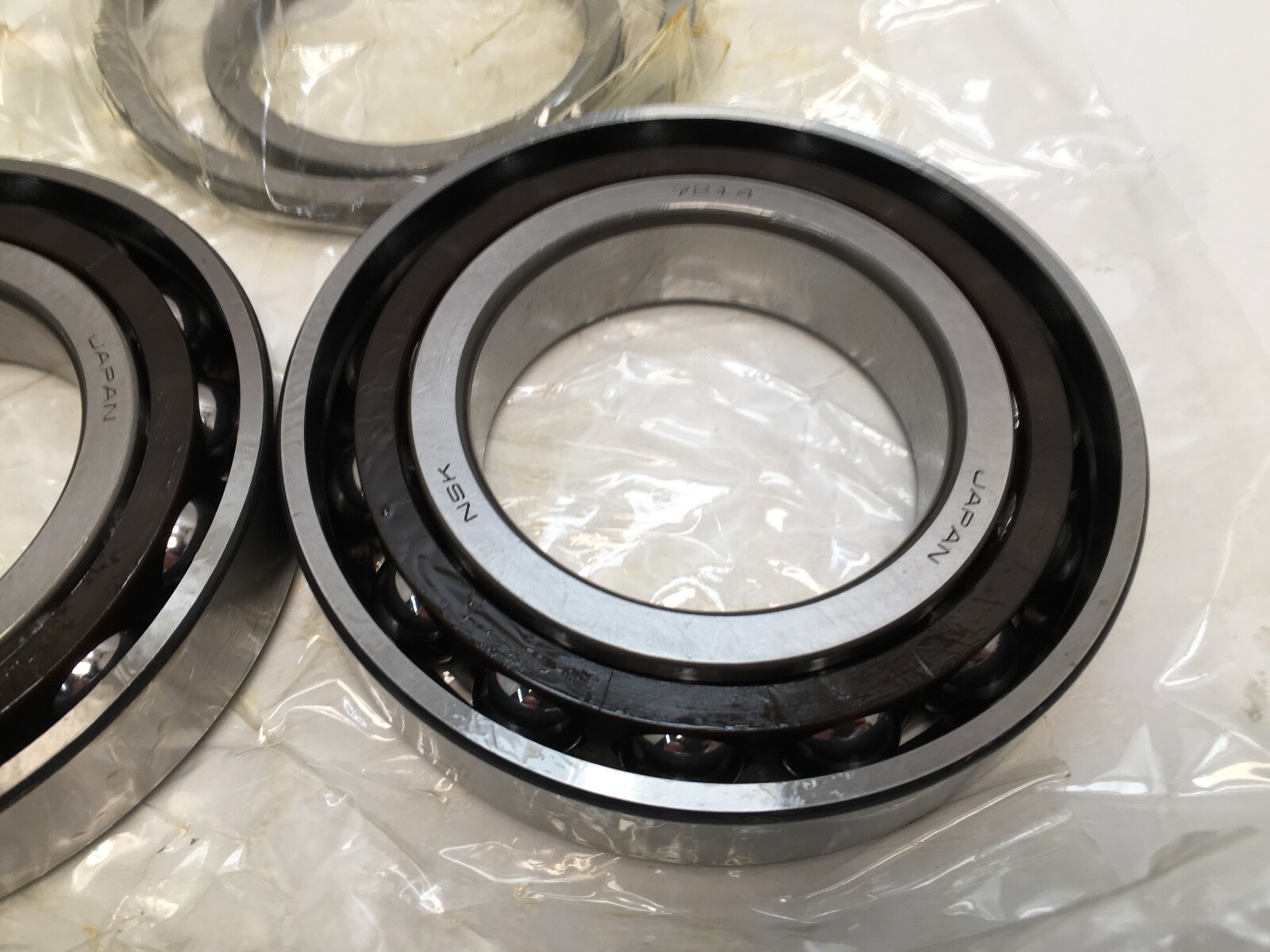

NSK 7214A TY DF P5 super precision angular contact ball bearings, supplied as a face-to-face matched pair. Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm per bearing. Contact Angle: 30°. Precision Class: P5. Cage Type: Ball-guided. Closure Type: Open. Rolling Elements: Ball. Bore Type: Straight. Number Of Rows: 1 per bearing. Series: 7200. Base Number: 7214. Mounting Arrangement: Face-to-face.
7214 — NSK’s number for the ISO 72-series size, 70 x 125 x 24 mm.
A — 30° contact angle.
TY — ball-guided cage.
DF — duplex face-to-face. Two single-row bearings ground as a matched set and mounted with their outer ring front faces together.
P5 — NSK super precision accuracy grade. This series is offered in P5, P4, P4Y and P3.
Dynamic Load Rating: 92,000 N per bearing. Static Load Rating: 59,500 N per bearing. Ratings and mass are per bearing, not per set.
Limiting Speed: 7,700 rpm grease; 10,300 rpm oil. Lubricant: grease or oil.
Item Weight: 1.10 kg (2.425 lb) per bearing.
Permissible axial load Pa: 38,000 N.
A 30° contact angle carries more axial load than the 15° and 25° executions of the same size, at a lower speed ceiling. A face-to-face arrangement sets the two load lines converging inward, which makes the pair more tolerant of shaft and housing misalignment than a back-to-back set.
Shaft abutment diameter da min: 79 mm. Housing abutment diameter Da max: 116 mm. Abutment fillet radius ra max: 1.5 mm.
Bearing chamfer r min: 1.5 mm. Bearing chamfer r1 min: 1 mm. Effective load centre a: 40.1 mm.
Preload classes offered on this size are EL, L, M and H.

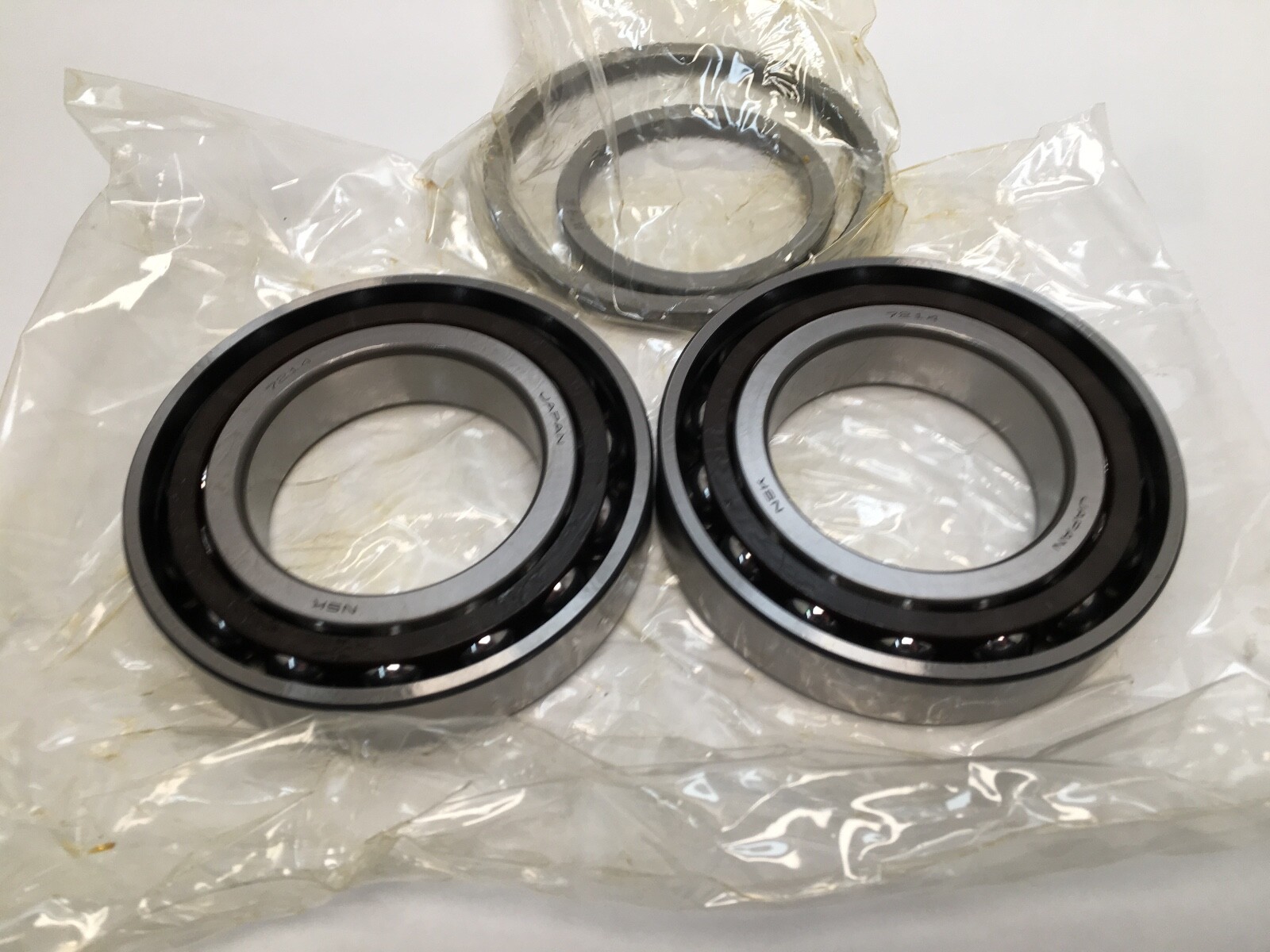

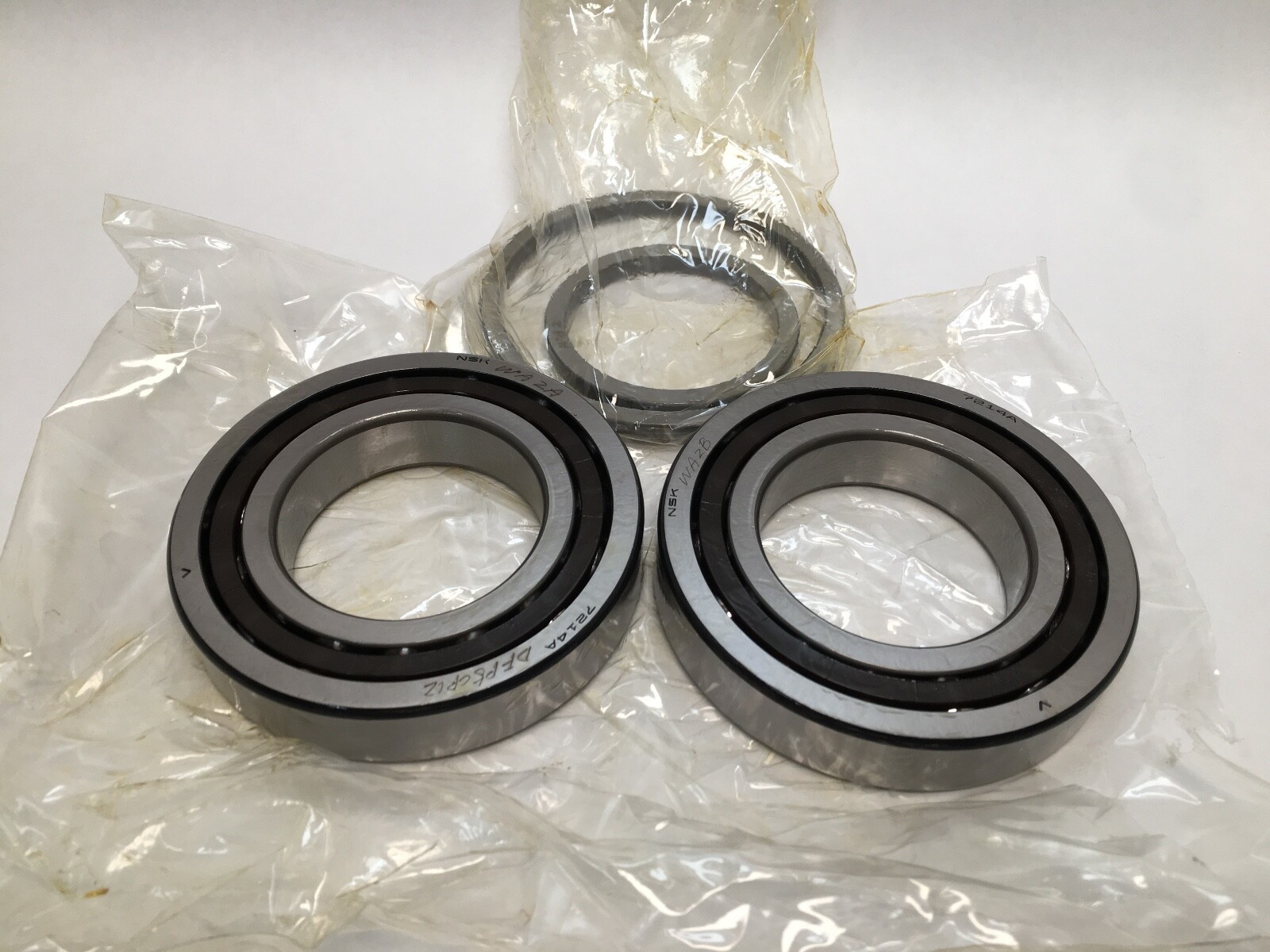

Unit Quantity: 2 Pcs. A matched face-to-face duplex pair.
30° bearings of the same 70 x 125 x 24 mm size: Koyo 7214 in standard class, NTN 7214/GNP5 and RHP 7214ATP5, each sold as a single bearing rather than a DF pair. MRC 7214 is the closest MRC execution at its own 29° angle.
