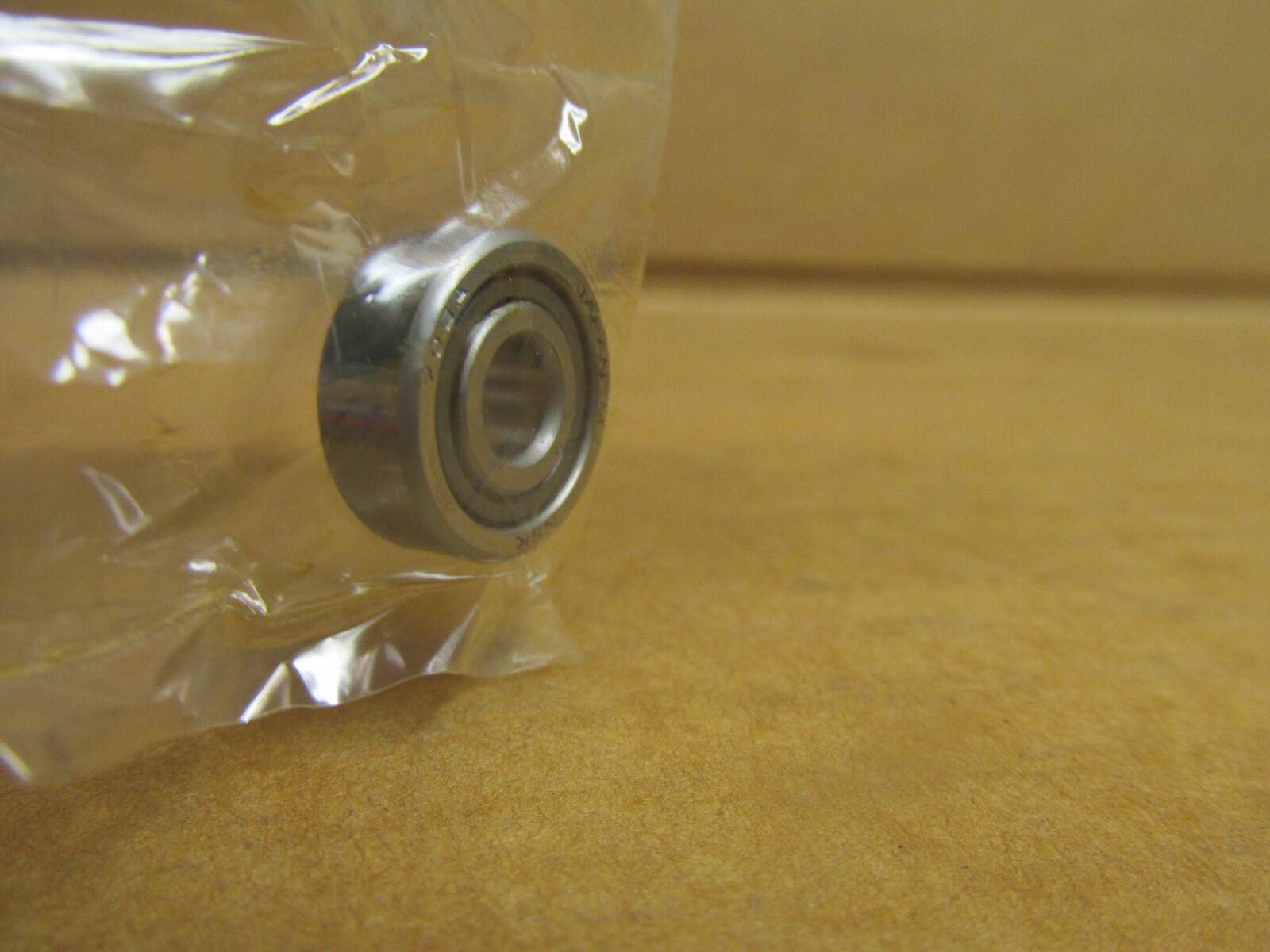

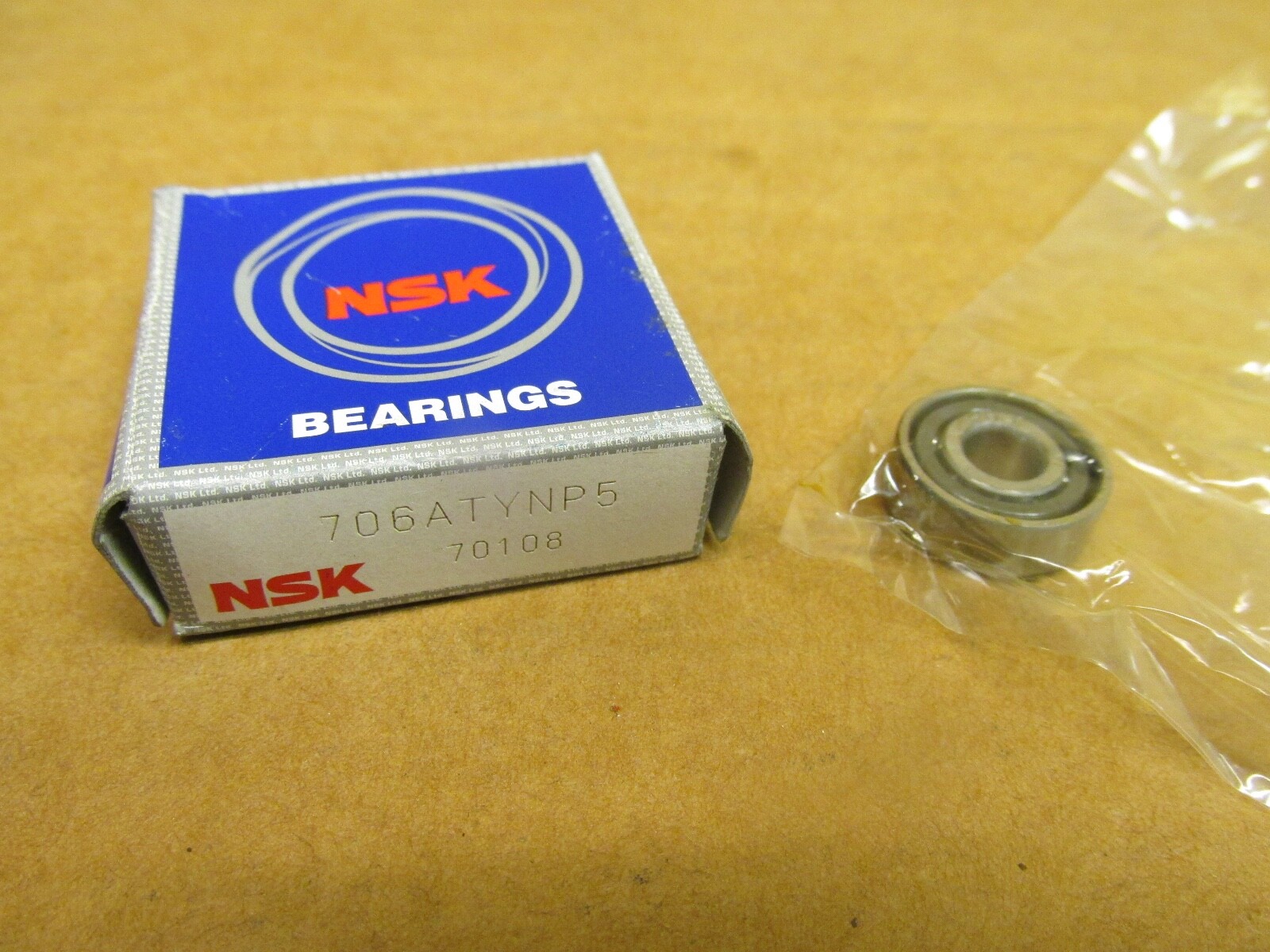

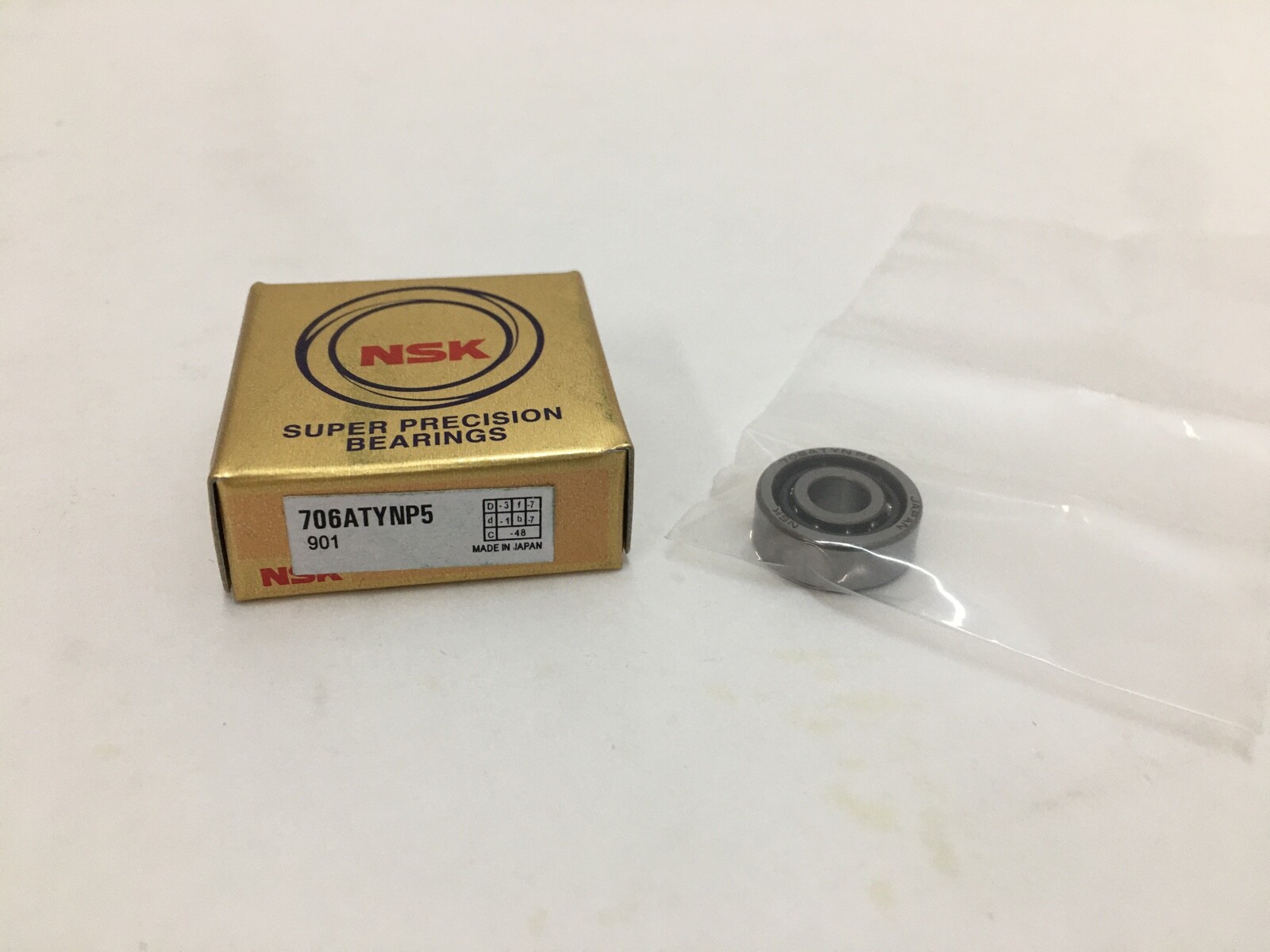

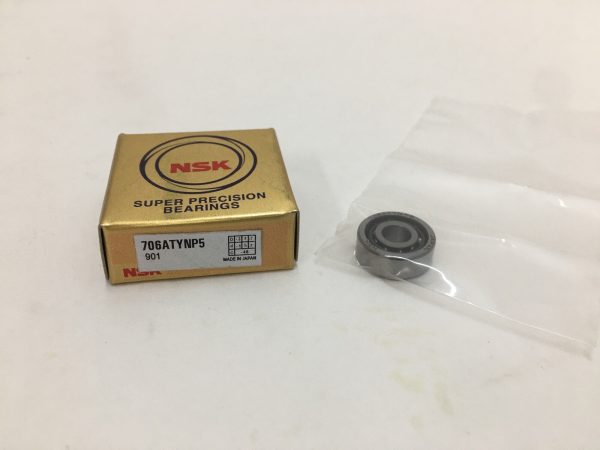

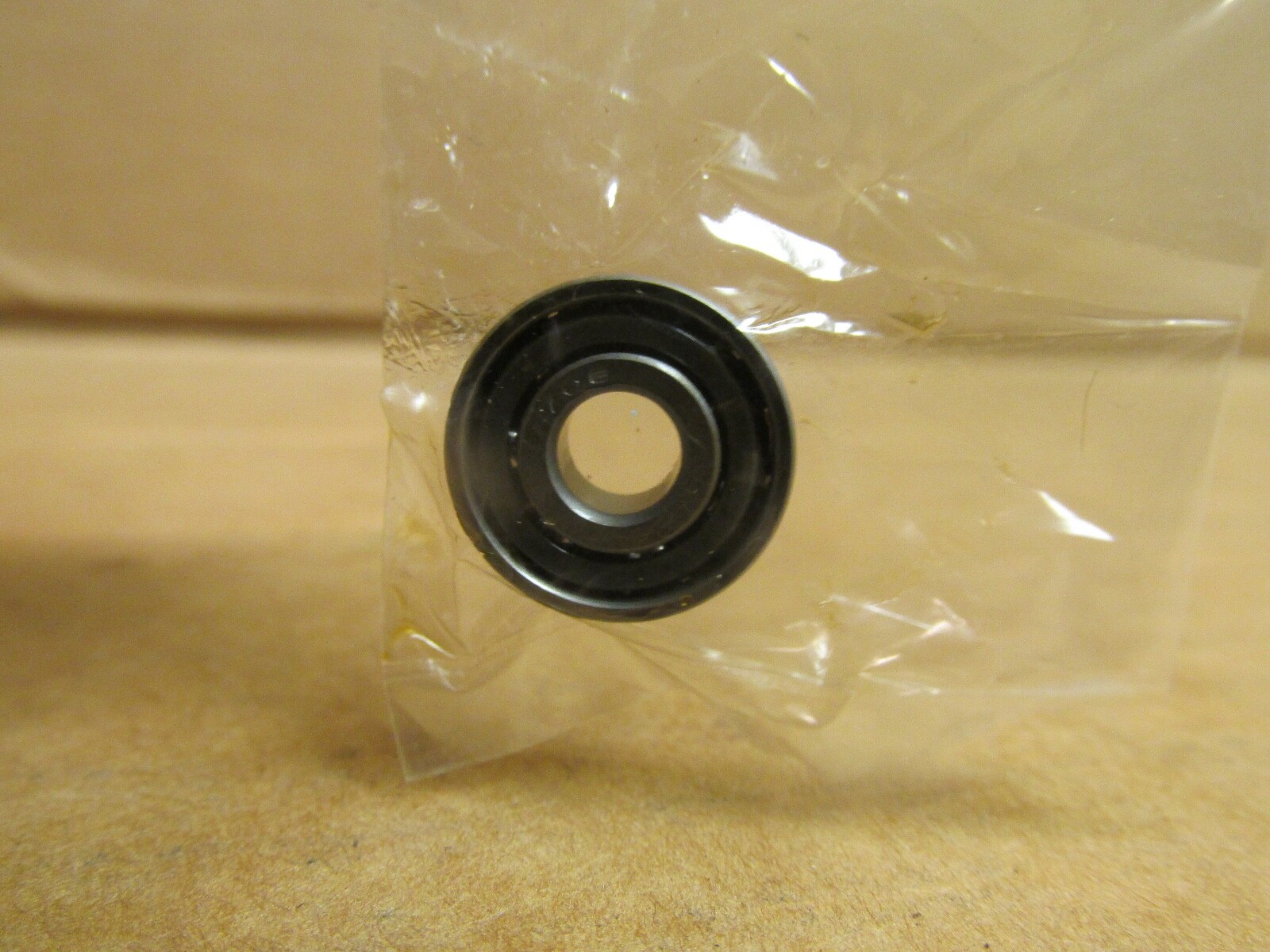

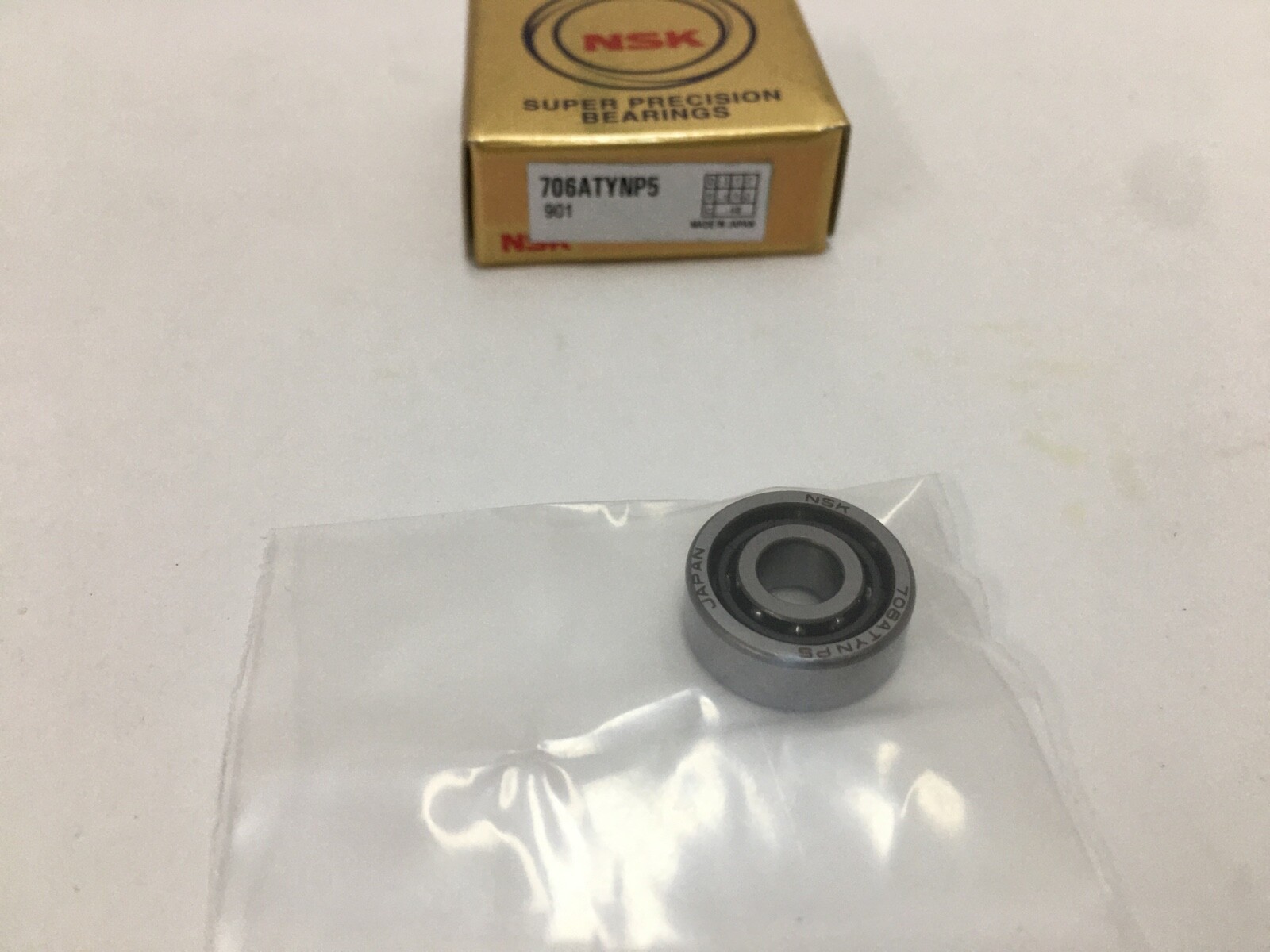

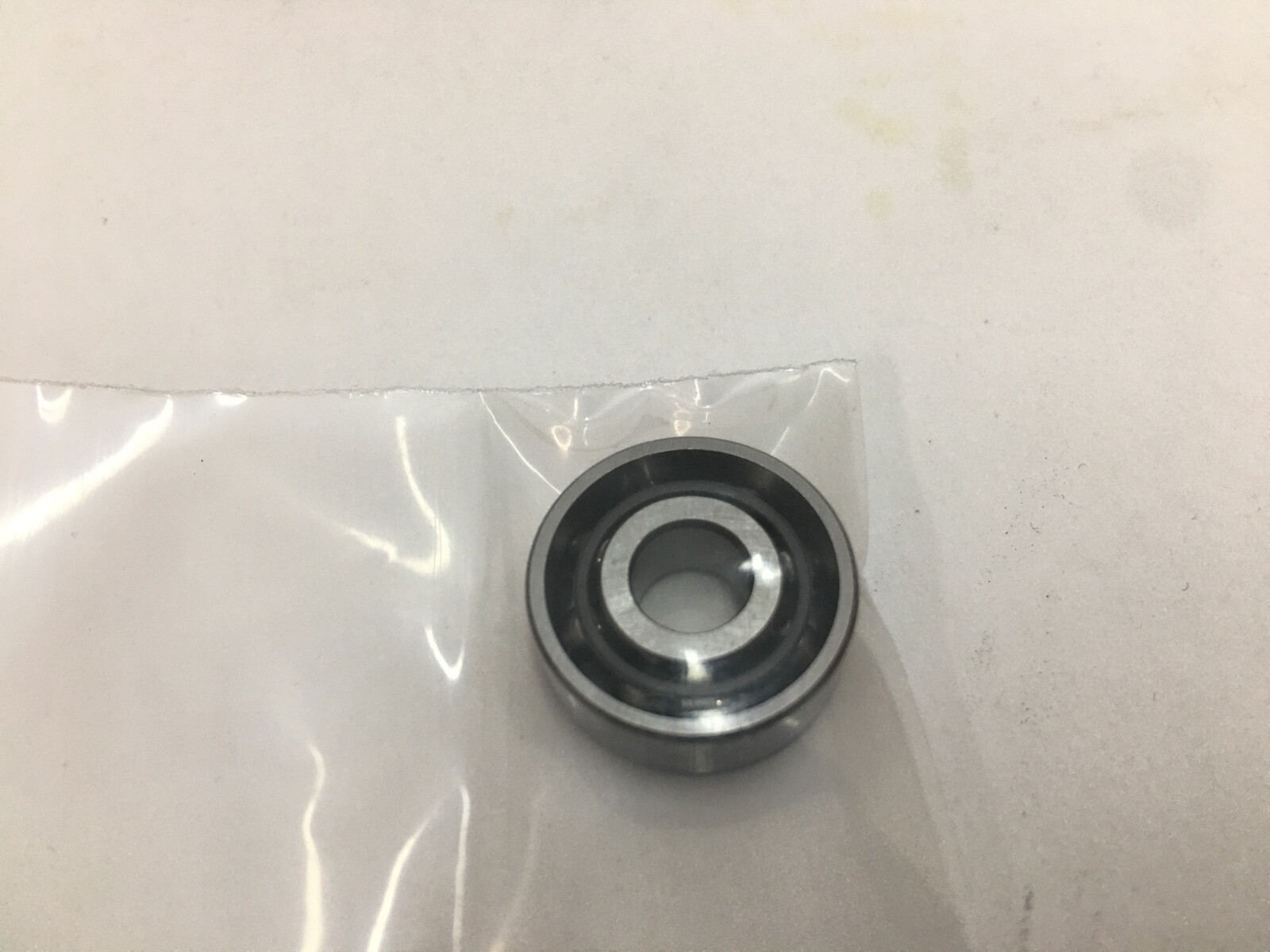

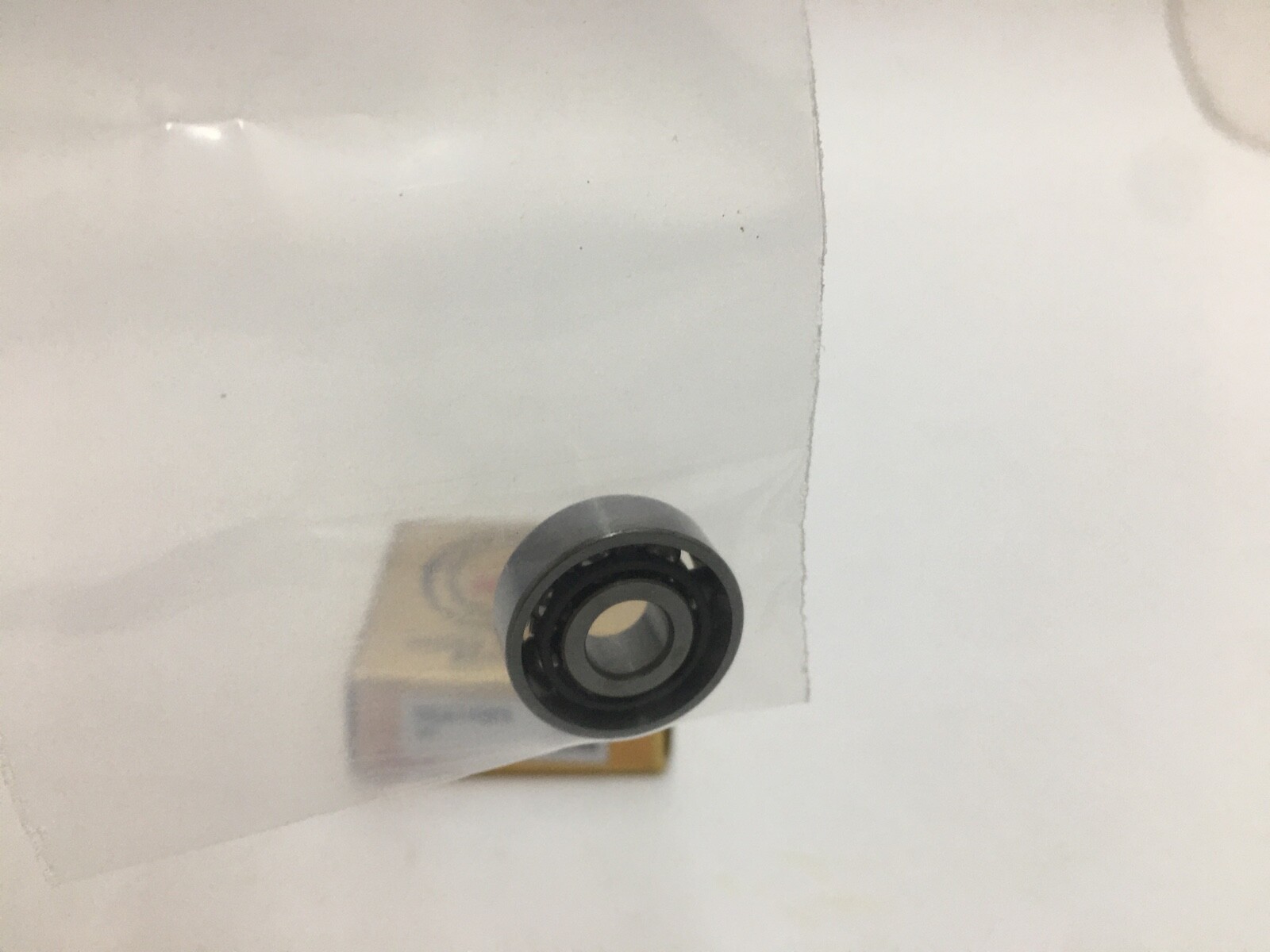

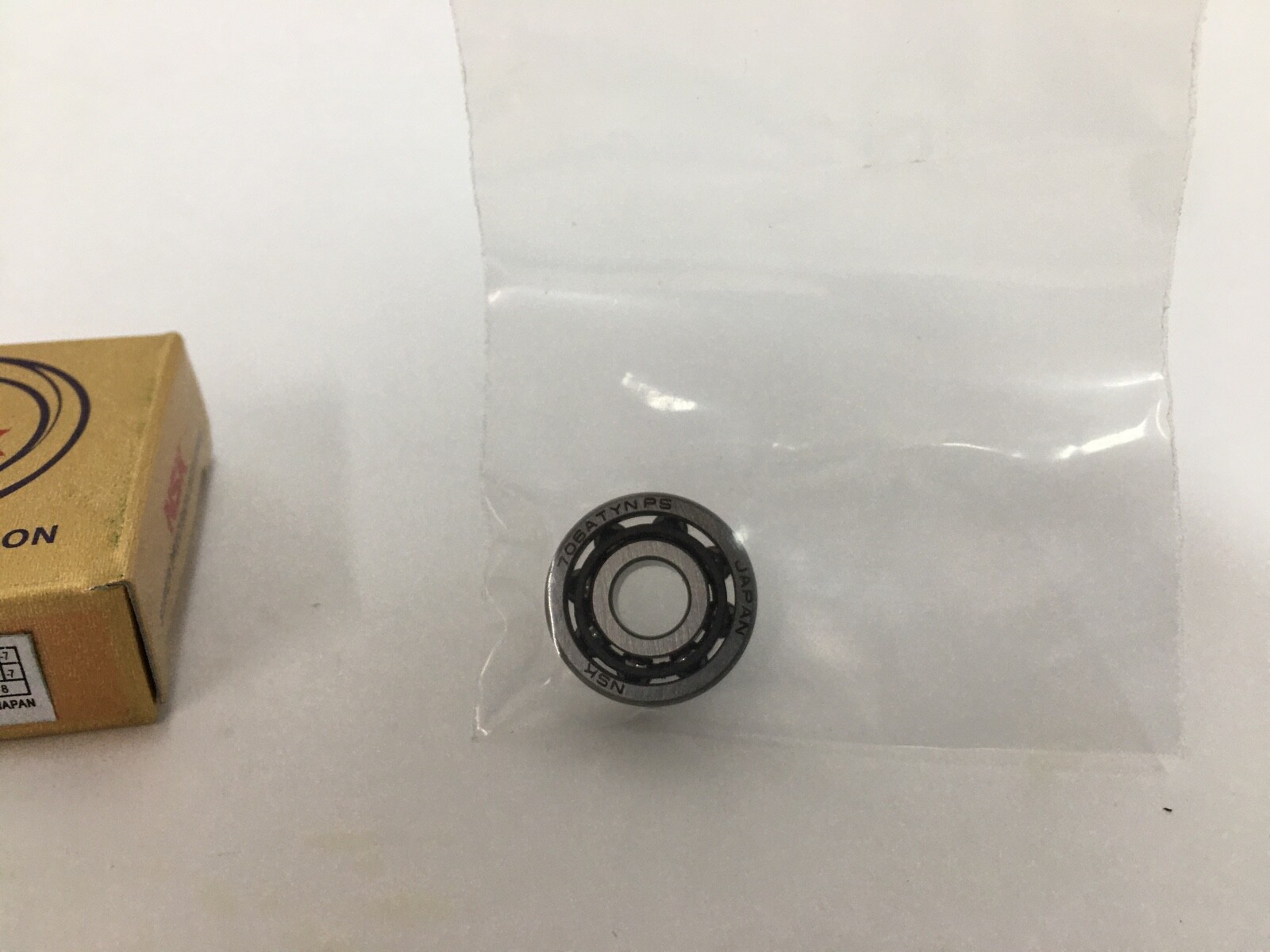

NSK 706ATYNP5 miniature angular contact ball bearing, 6 x 17 x 6 mm, 30° contact angle, polyamide ball-guided cage, ABEC 5 / P5. Dynamic load rating 2,030 N.
List Price
$29.30
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 706ATYNP5 |
| Model | 706ATYNP5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 6 mm |
| OD | 17 mm |
| Width | 6 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 700 |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 2,030 N |
| Rolling Elements | Ball |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 30° |
| Base Number | 706 |
| Industry Terms | miniature angular contact bearing, precision spindle bearing, instrument bearing |
| Common Misspellings | 706ATYNP4, 706ATNP5, 7O6ATYNP5 |
| Application Types | Small high-speed spindles, precision instruments, handpiece drives |
| Mpn Variants | 706ATYNP5, 706 A TYNP5, 706A TYN P5, 706A |
| Precision Class | ABEC 5 / P5 |
The NSK 706ATYNP5 is a miniature single-row angular contact ball bearing, 6 mm bore, 17 mm outside diameter and 6 mm width, with a 30° contact angle, polyamide ball-guided cage and ISO Class 5 precision. It suits small high-speed spindles, precision instruments and dental and medical handpiece drives.
70 — NSK standard-series angular contact bearing, ISO 10 dimension series.
6 — 6 mm bore.
A — 30° contact angle.
TYN — polyamide resin cage, ball-guided.
P5 — ISO Class 5 precision, equivalent to ABEC 5.
Bore Diameter: 6 mm. Outside Diameter: 17 mm. Overall Width: 6 mm. Contact Angle: 30°. Cage Material: Polyamide. Cage Type: Ball-guided. Precision Class: ABEC 5 / P5. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1.
Dynamic Load Rating: 2,030 N.
The 30° angle gives higher axial capacity than 15° or 25° executions of the same size.
Unit Quantity: 1 Pc. Single bearing, no matched-set suffix.
Other NSK executions of the 706A envelope carry different cage, preload or class suffixes, such as 706A-H-20TYNSULP5. The base designation 706A identifies the 6 x 17 x 6 mm, 30° size.
