Availability:
3 in stock

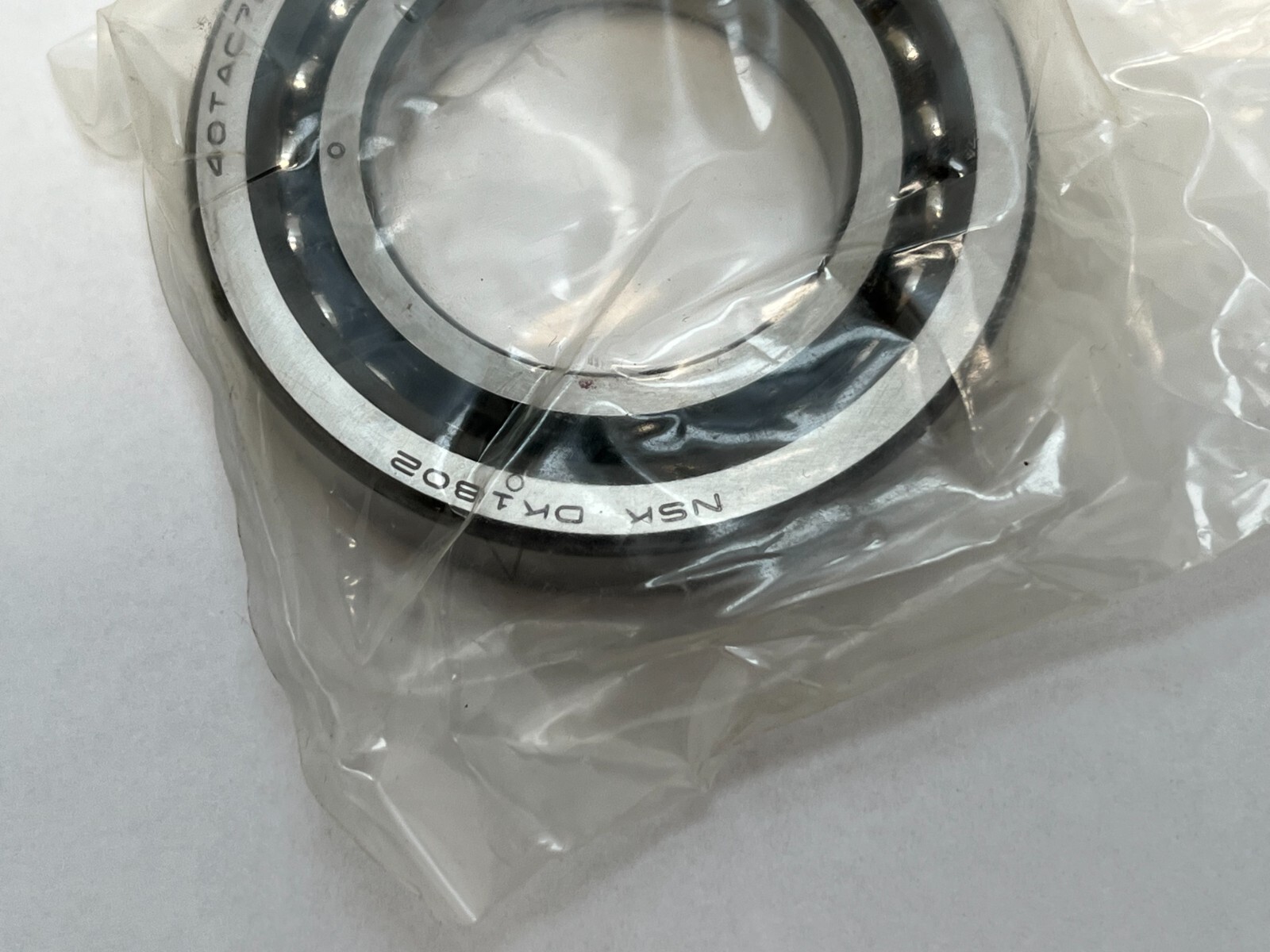

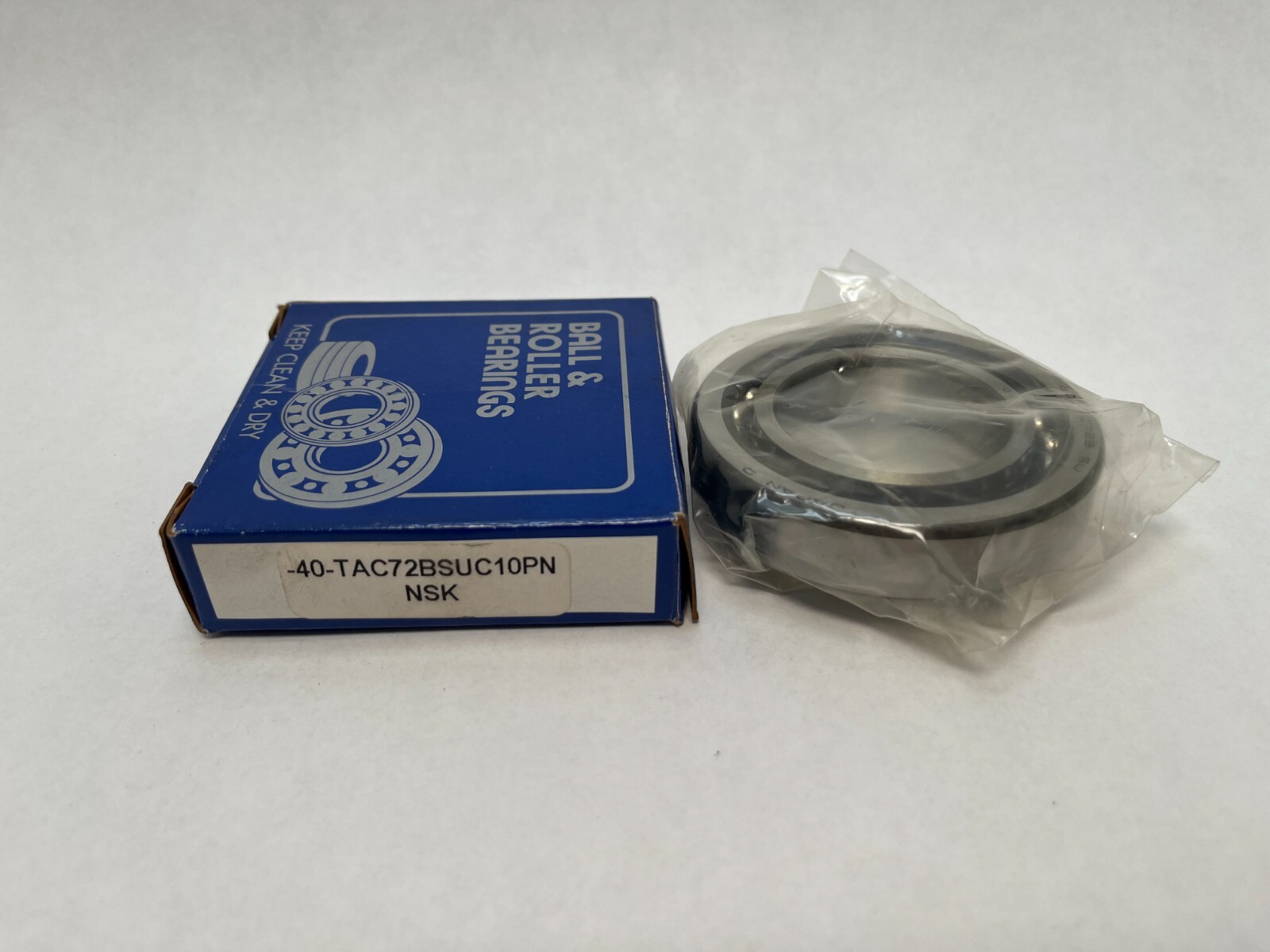

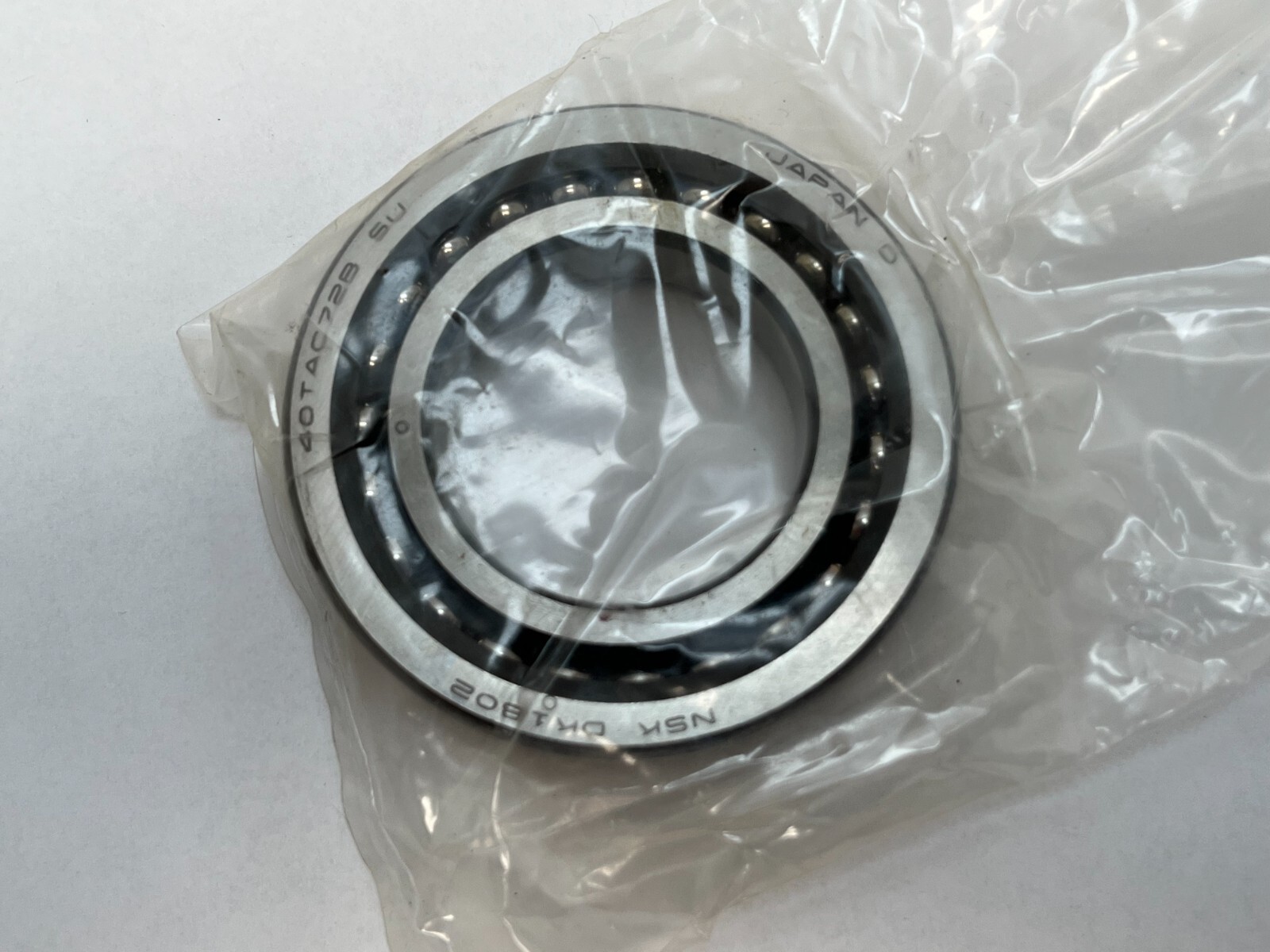

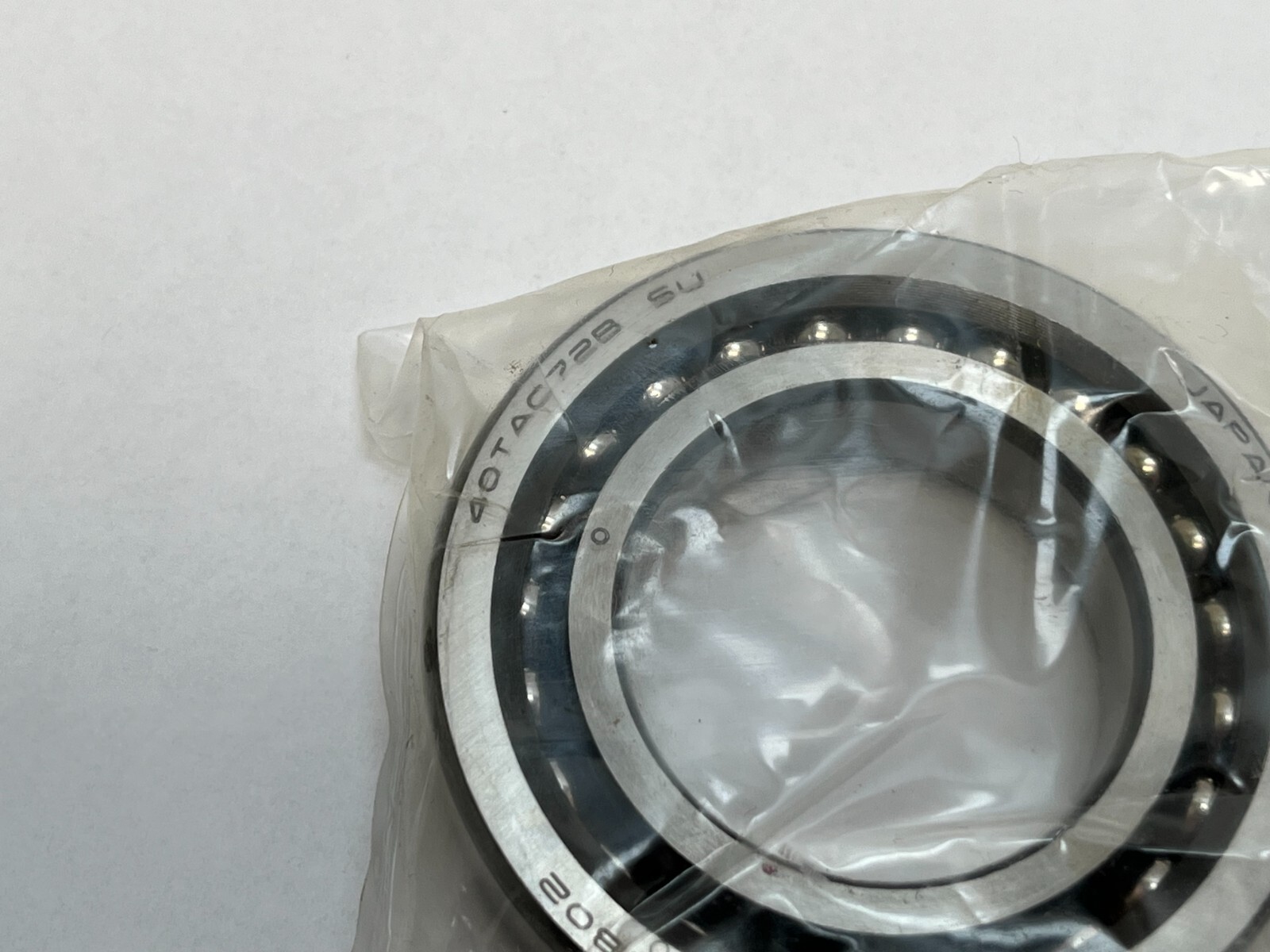

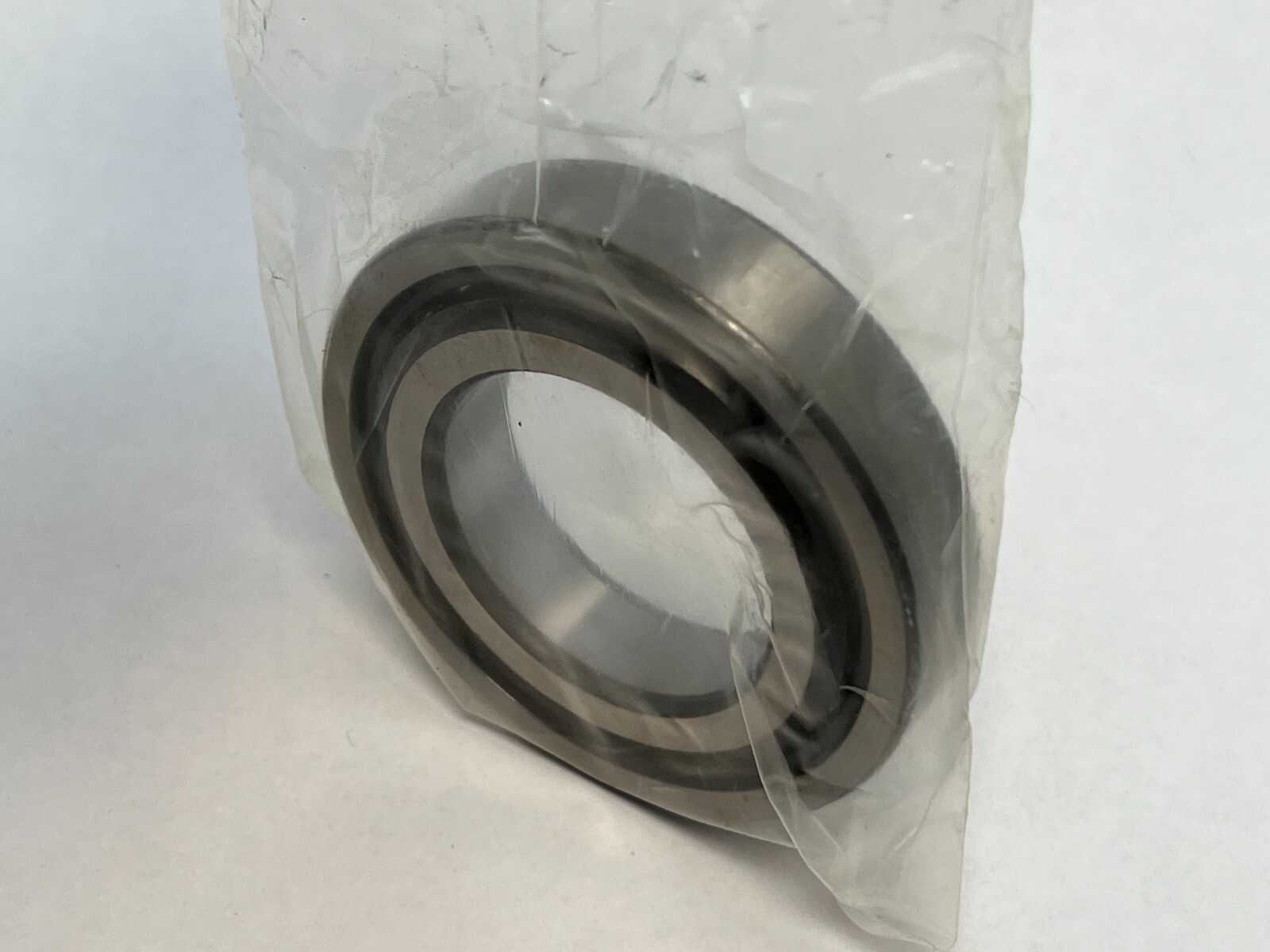

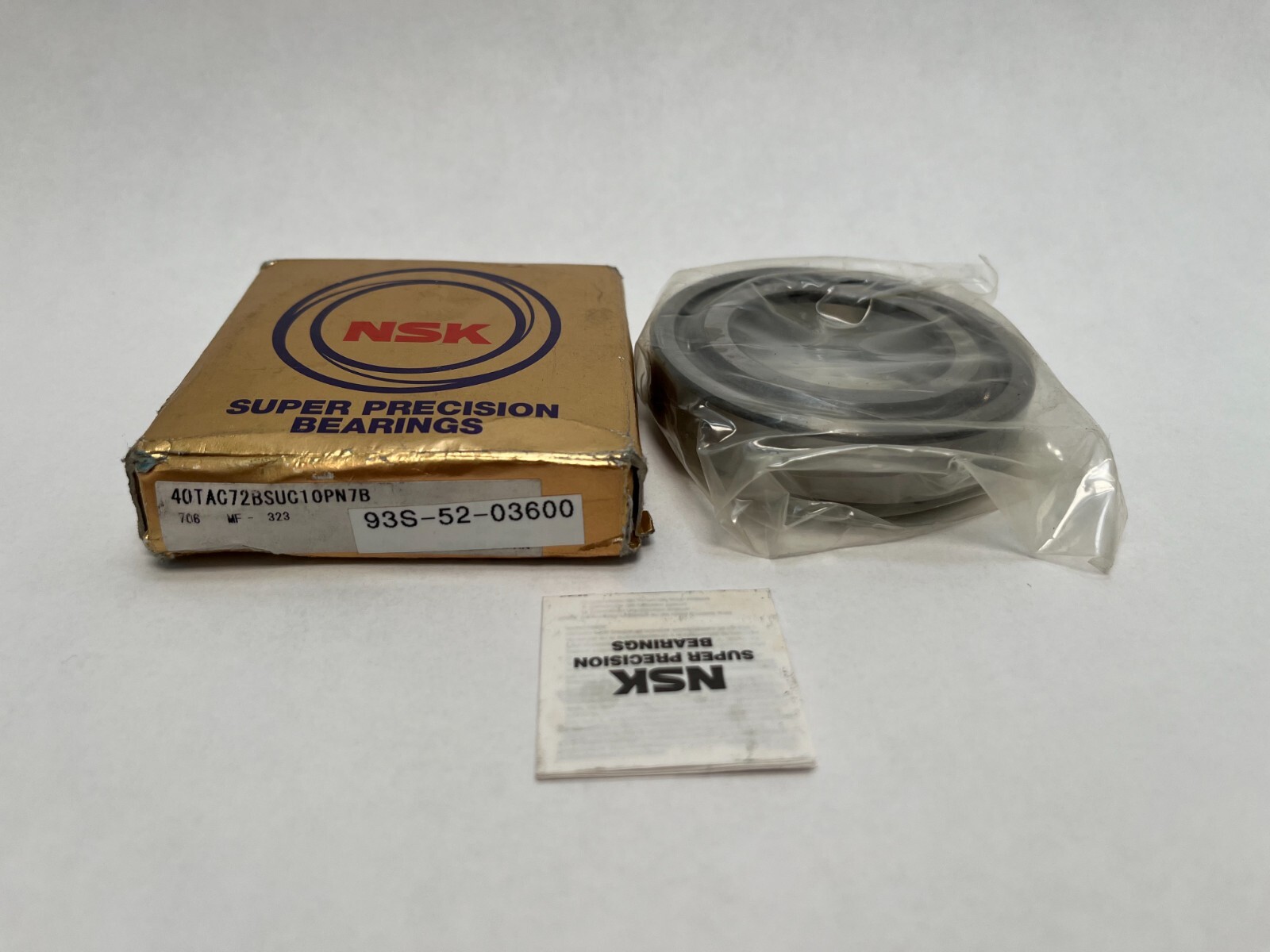

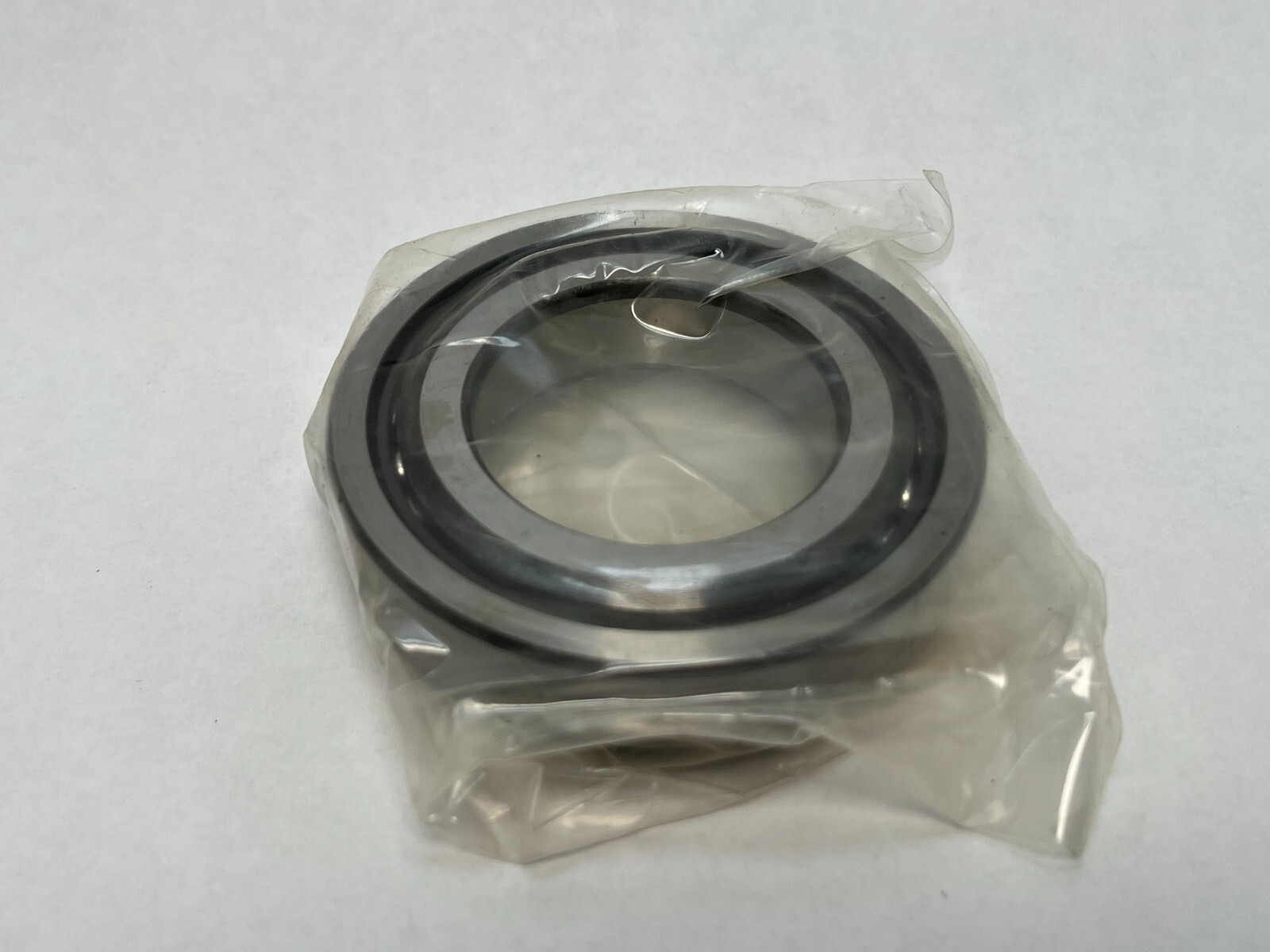

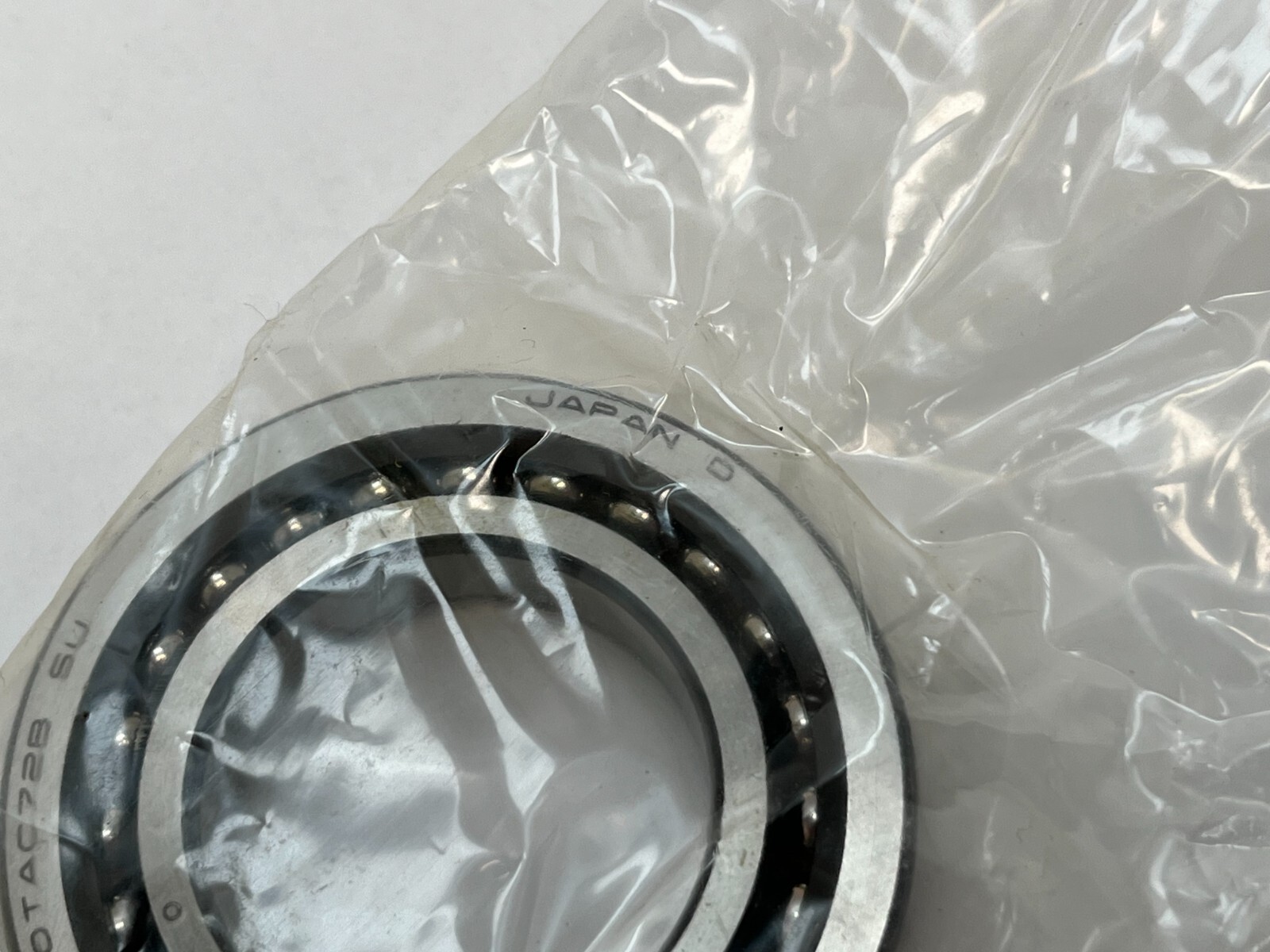

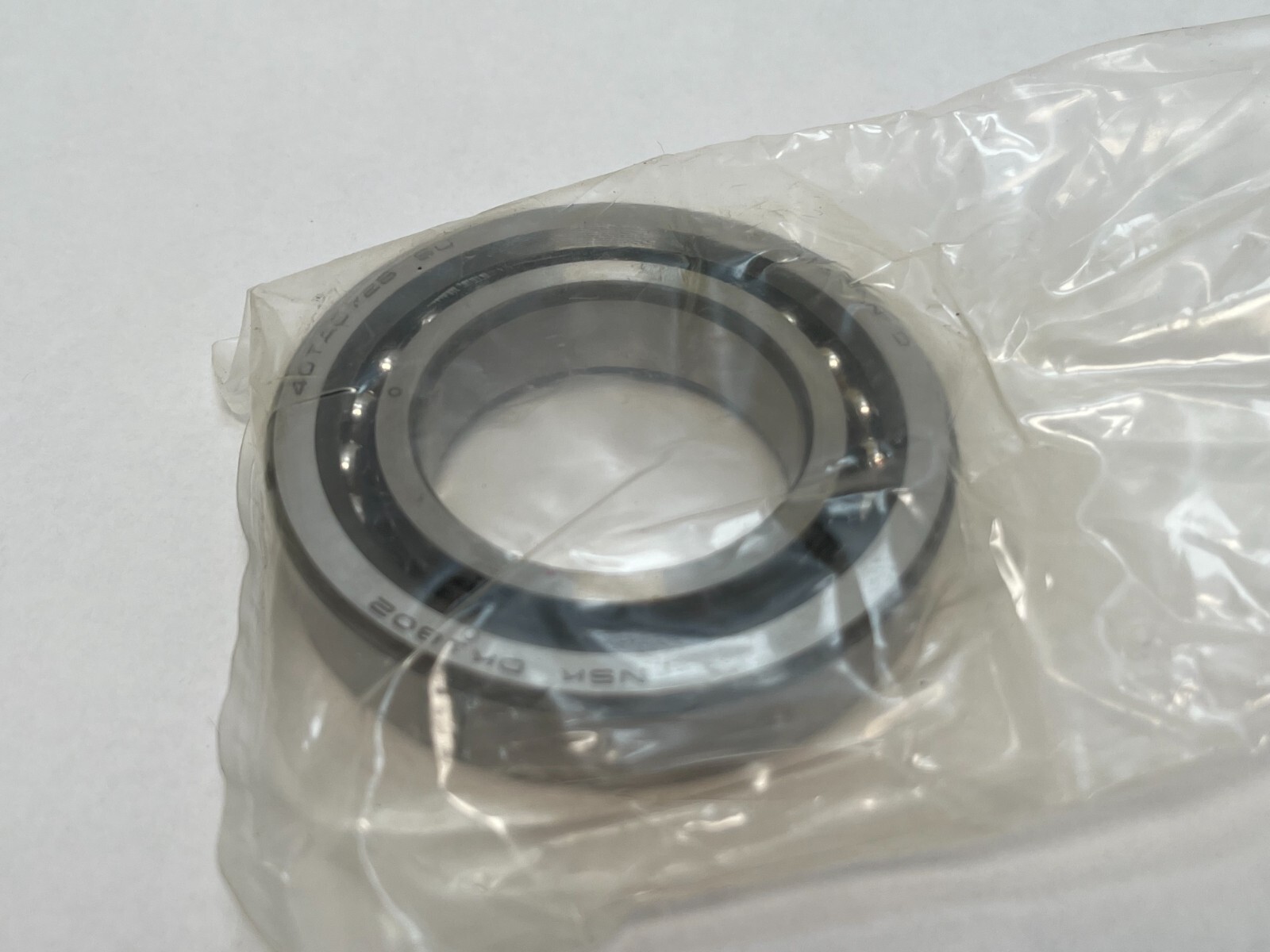

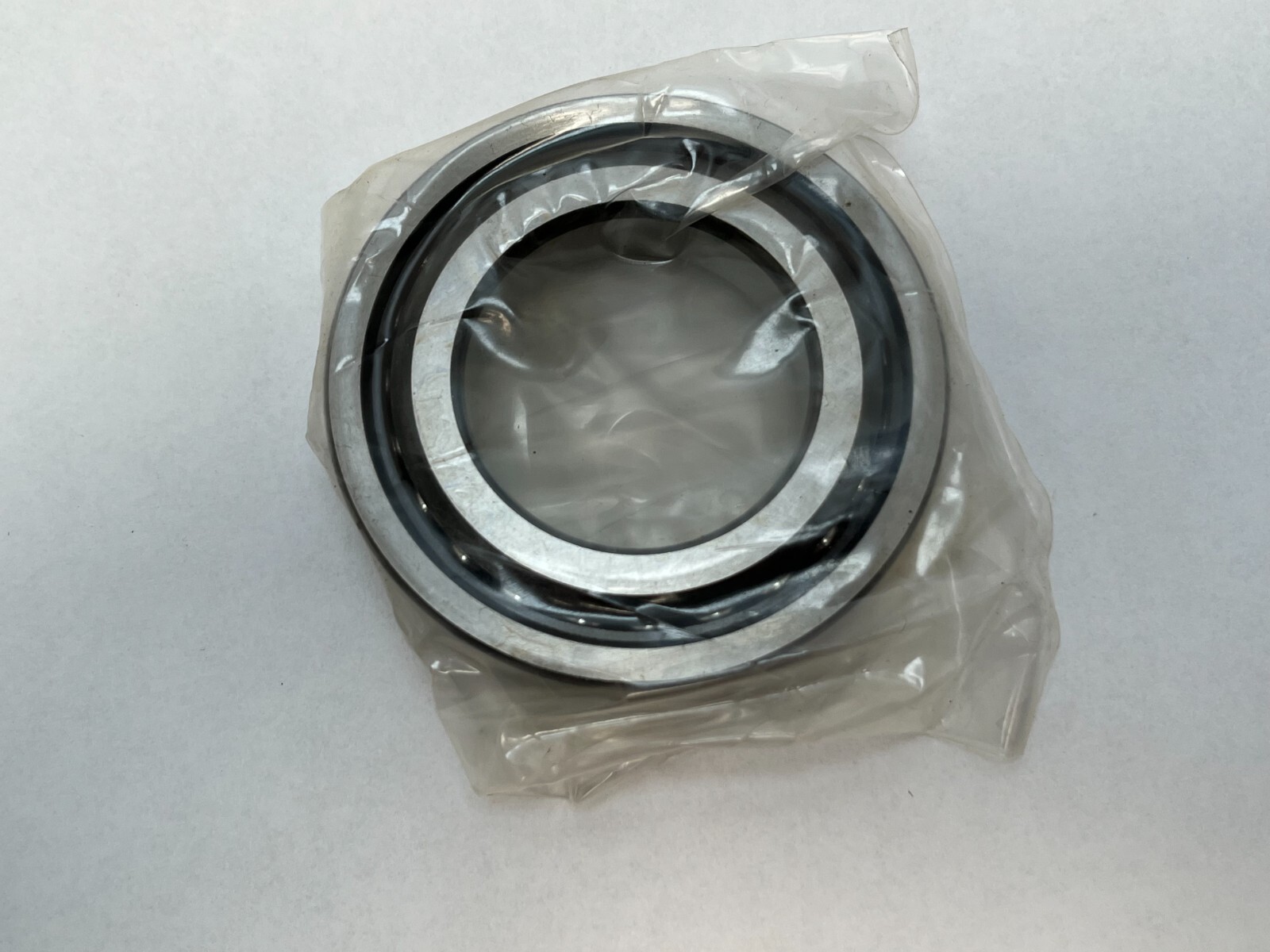

NSK 40TAC72BSUC10PN7B ball screw support bearing, 40 mm bore, 72 mm OD, 15 mm width. Single row, straight bore, open, thick-section TAC series.
List Price
$123.25
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 40TAC72BSUC10PN7B |
| Model | 40TAC72B |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 40 mm |
| OD | 72 mm |
| Width | 15 mm |
| Series | TAC |
|---|---|
| Base Number | 40TAC72B |
| Industry Terms | ball screw support bearing; ball screw bearing; screw support bearing; thrust angular contact ball bearing; BSB bearing |
| Common Misspellings | 40TAC72BSUCI0PN7B; 40TAC72BSU10PN7B; 40TAK72BSUC10PN7B; 40TAC72BSUC1OPN7B |
| Application Types | CNC machine tool ball screw ends; linear actuator screw supports; press and injection machine screw drives; precision positioning stages |
| Overall Width | 15 mm |
| Mpn Variants | 40TAC72BSUC10PN7B; 40TAC72B SUC10PN7B; 40TAC72-B-SUC-10-PN-7B; 40-TAC-72-B-SUC-10-PN-7B; 40TAC72BSUC10; 40TAC72B; 40TAC72 |
| Additional Attributes | Thick-section rings for axial stiffness at a ball screw end support |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Bearing Material | Bearing steel |
A single-row ball screw support bearing from NSK’s TAC series. Bore Diameter: 40 mm. Outside Diameter: 72 mm. Overall Width: 15 mm. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel.
TAC — NSK’s ball screw support bearing series. These are angular contact ball bearings built with a high contact angle and thick rings, so the assembly is stiff in the axial direction and holds a ball screw’s axial position under thrust.
40 — Bore Diameter: 40 mm.
72 — Outside Diameter: 72 mm.
A 15 mm width on a 40 mm bore and a 72 mm outside diameter gives a thick radial section for the width. The extra ring material is what makes the bearing axially stiff, which is the property a ball screw end support is selected for.
Axial stiffness at the screw end determines how closely a machine can hold position under cutting load, so ball screw support bearings are rated on stiffness and running accuracy rather than on radial capacity.
Bore Diameter: 1.5748 in. Outside Diameter: 2.8346 in. Overall Width: 0.5906 in. Bore Type: Straight, so the inner ring mounts directly on the screw journal and is clamped by a locknut against a shoulder.
Unit Quantity: 1 Pc.
