Angular contact ball bearing set, three pieces, 80 x 140 x 26 mm each, 40° contact angle, open, pressed steel cage. Tandem pair face-to-face with a single.
List Price
$322.87
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | MRC |
|---|---|
| MPN | 7216PDTDF |
| Model | 7216 PDTDF |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7200 |
| Condition | New – Open box |
| Lubricant | Oil |
| Base Number | 7216 |
| Industry Terms | Angular contact ball bearing set; triplex stack; tandem face-to-face; 40 degree contact angle; matched bearing set; machine tool spindle bearing |
| Common Misspellings | 7216 PDTDF; 7216PDTFD; 7216PDTDF MRC; 7216-PDTDF |
| Total Width | 78 mm across the three-bearing stack |

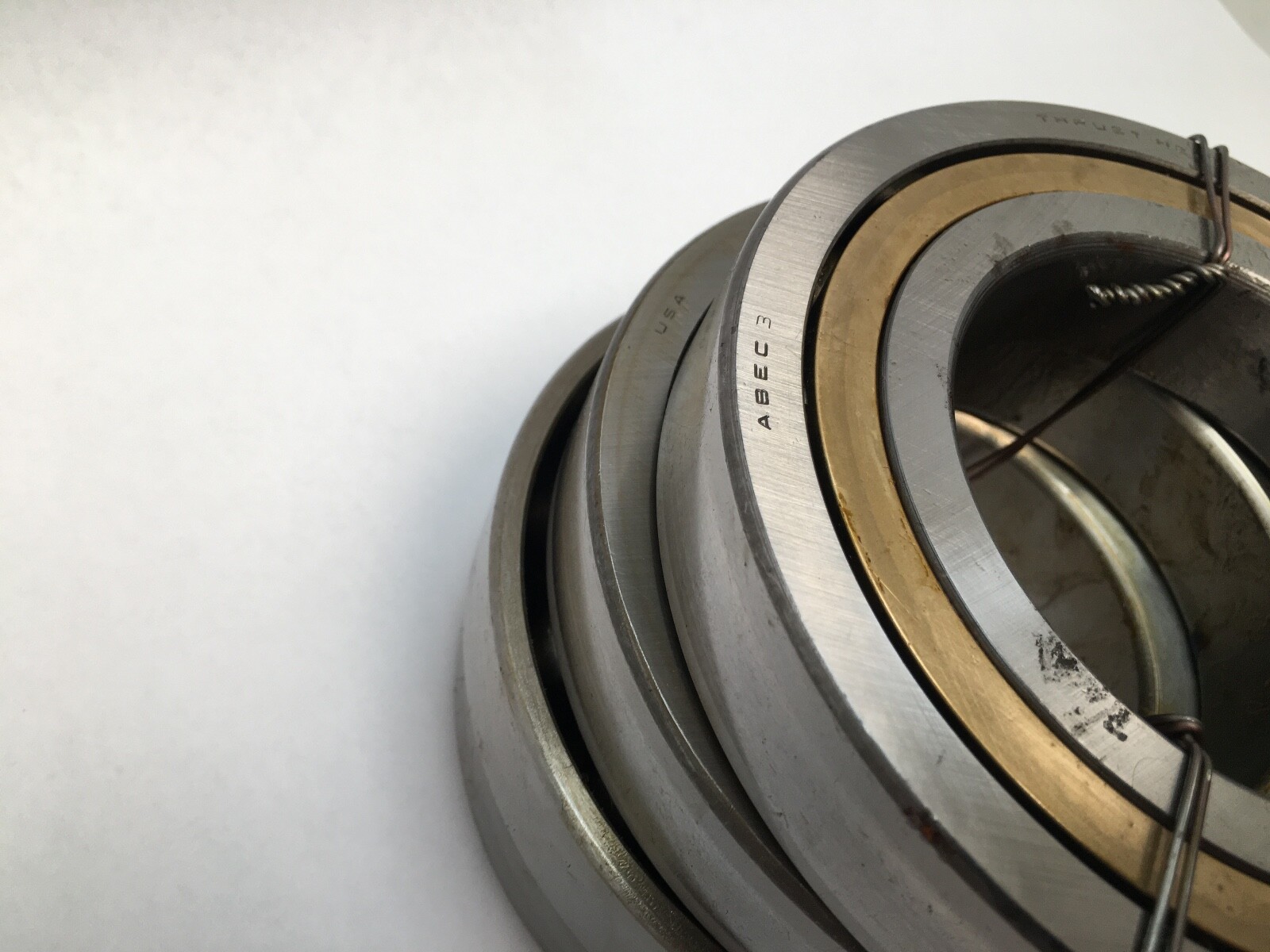

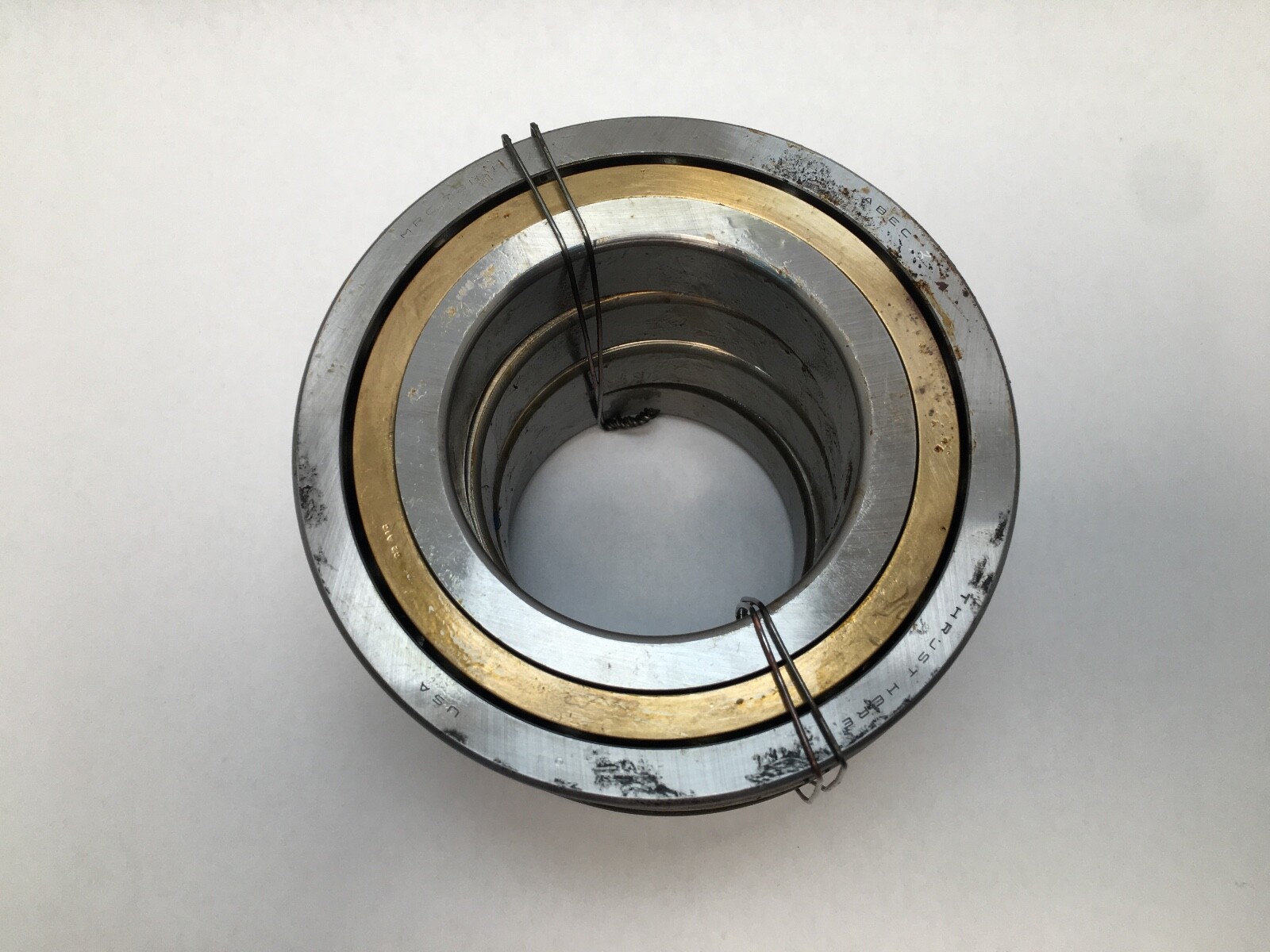

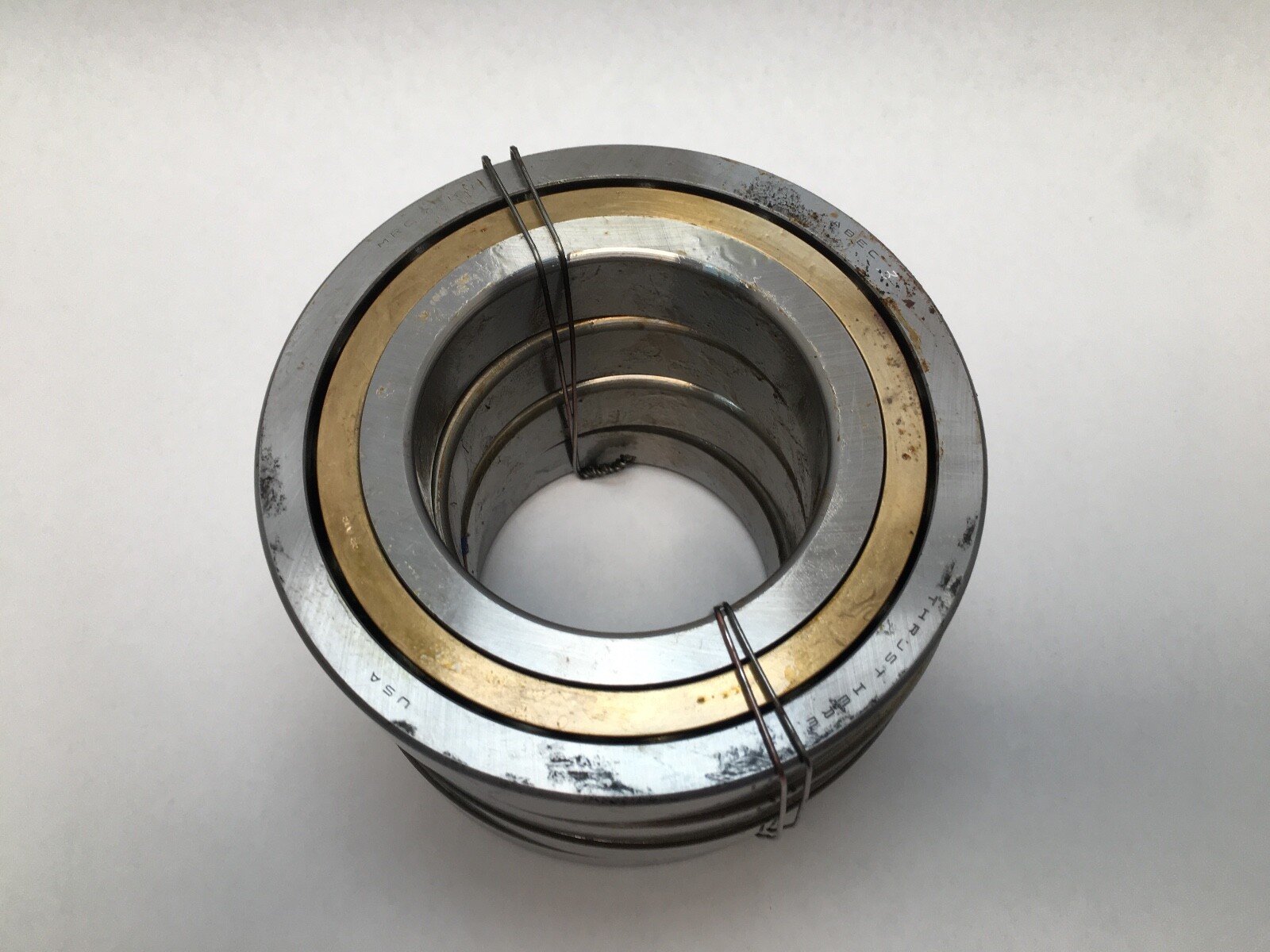

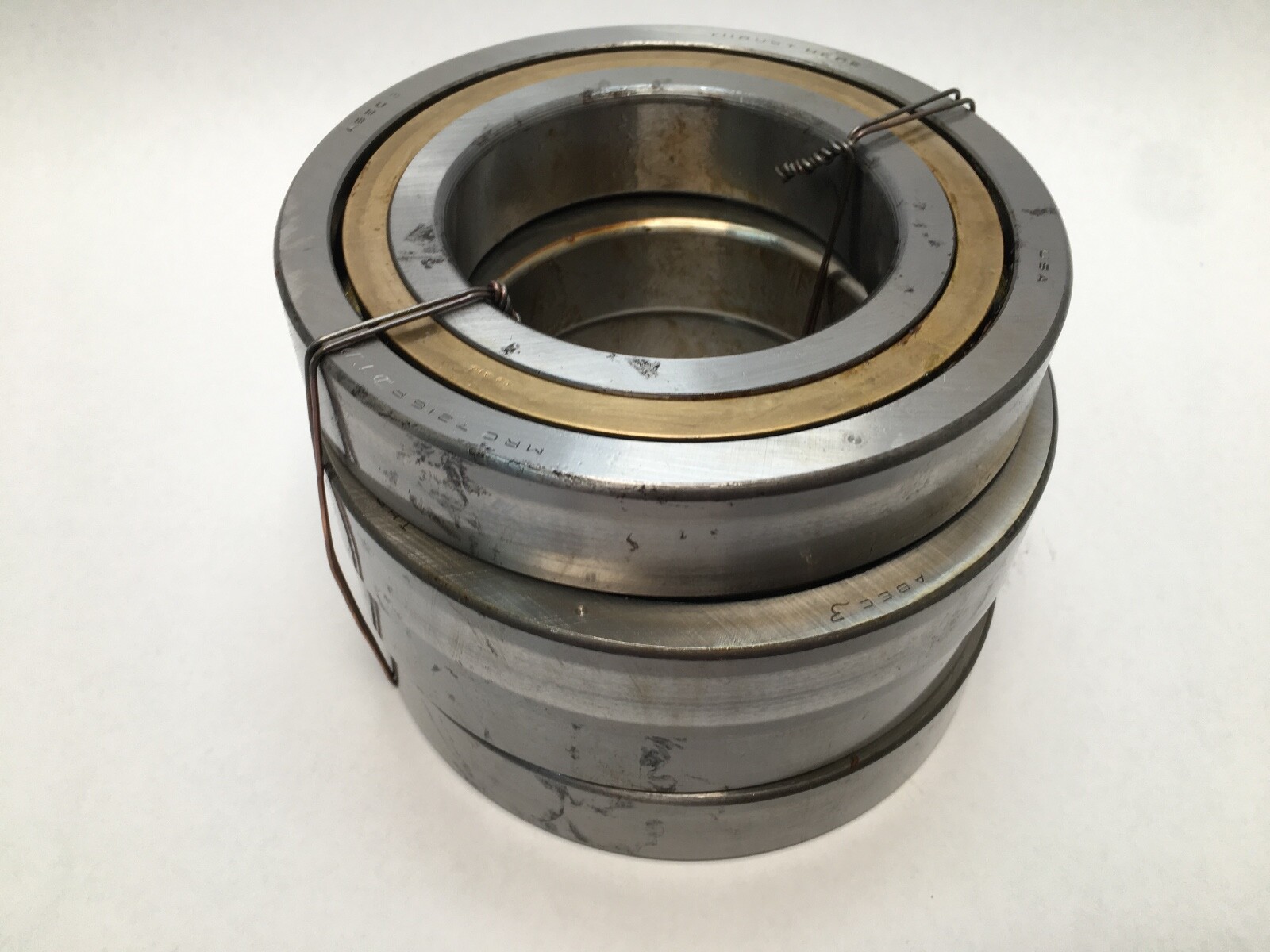

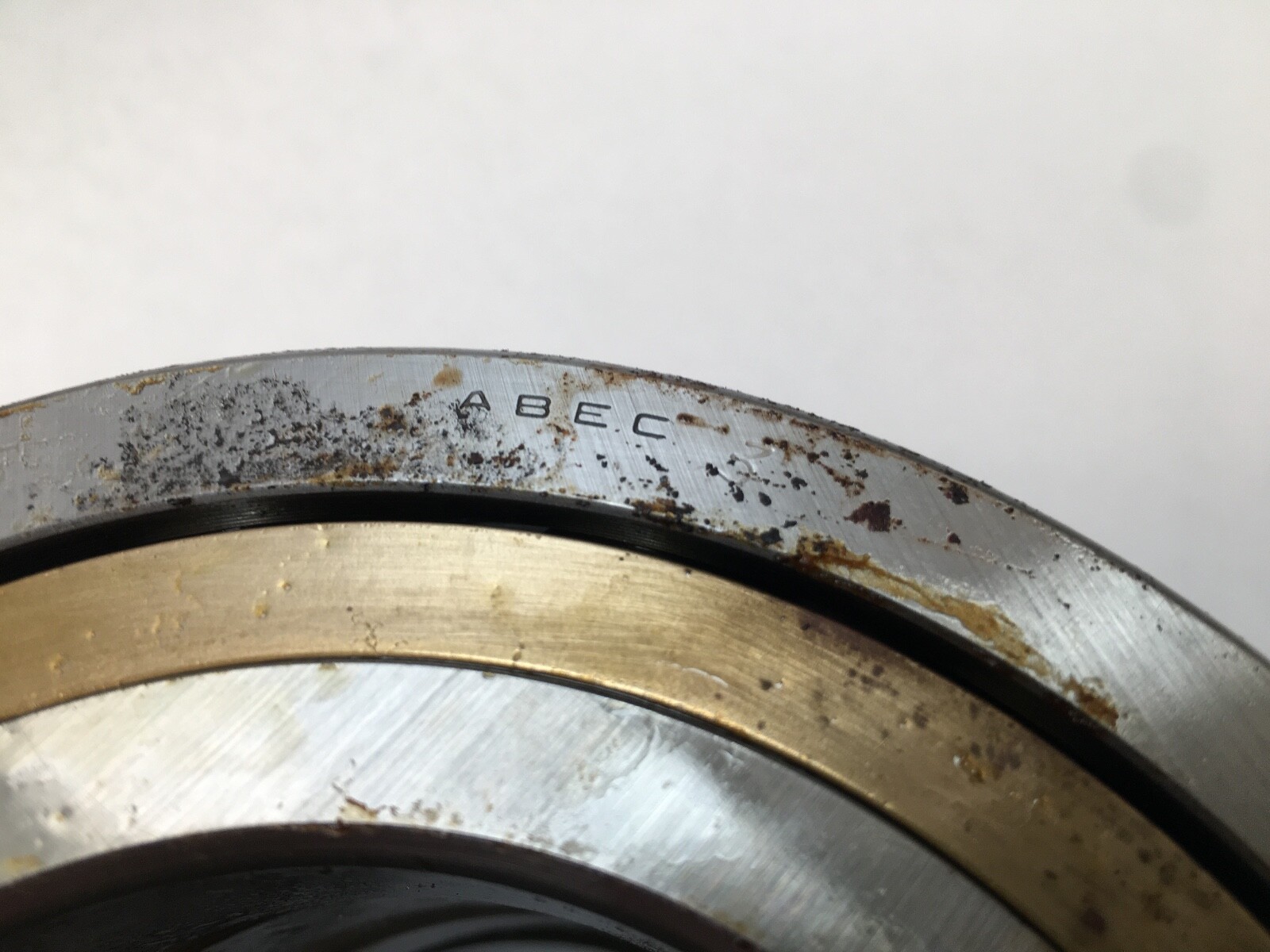

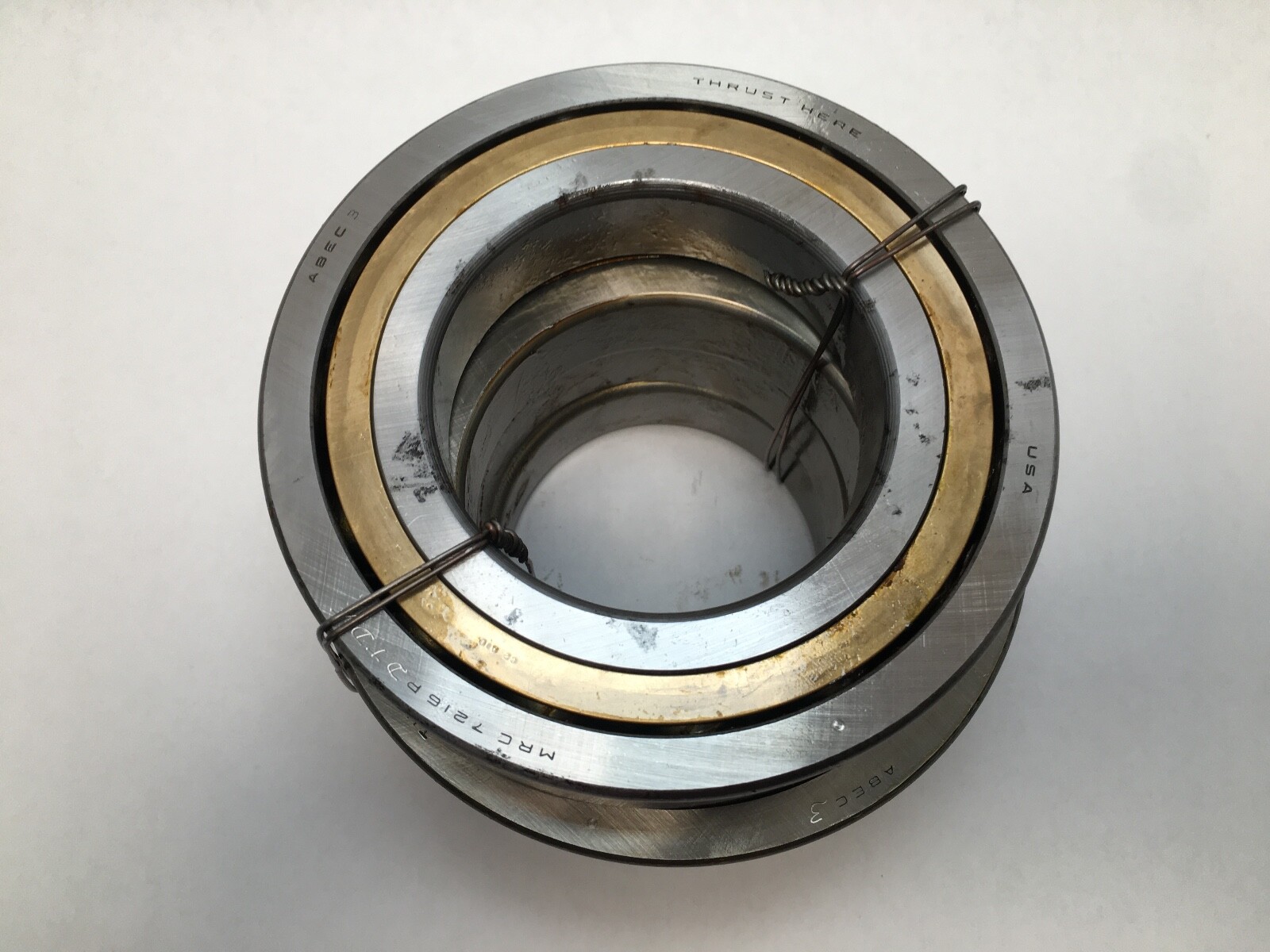

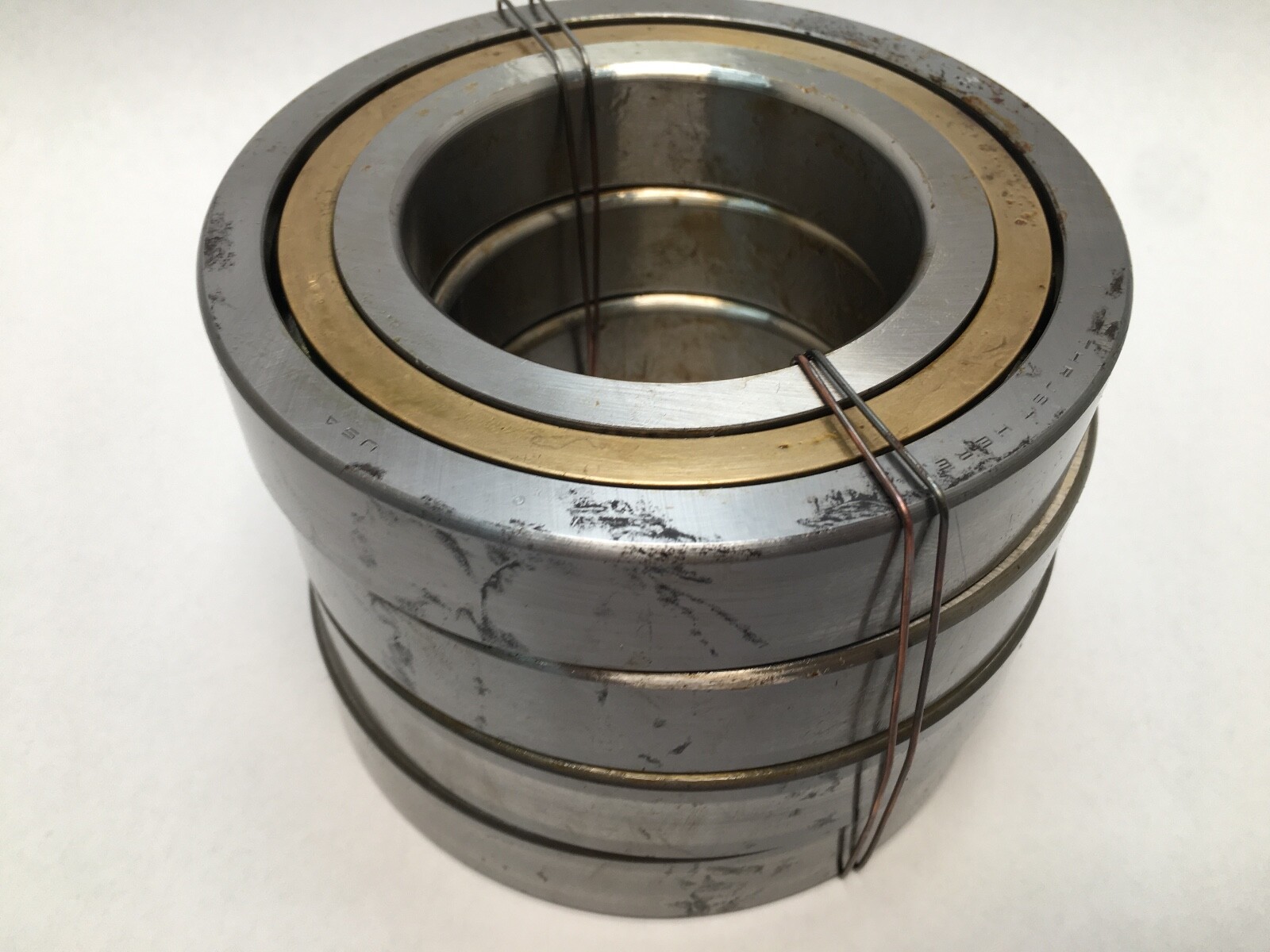

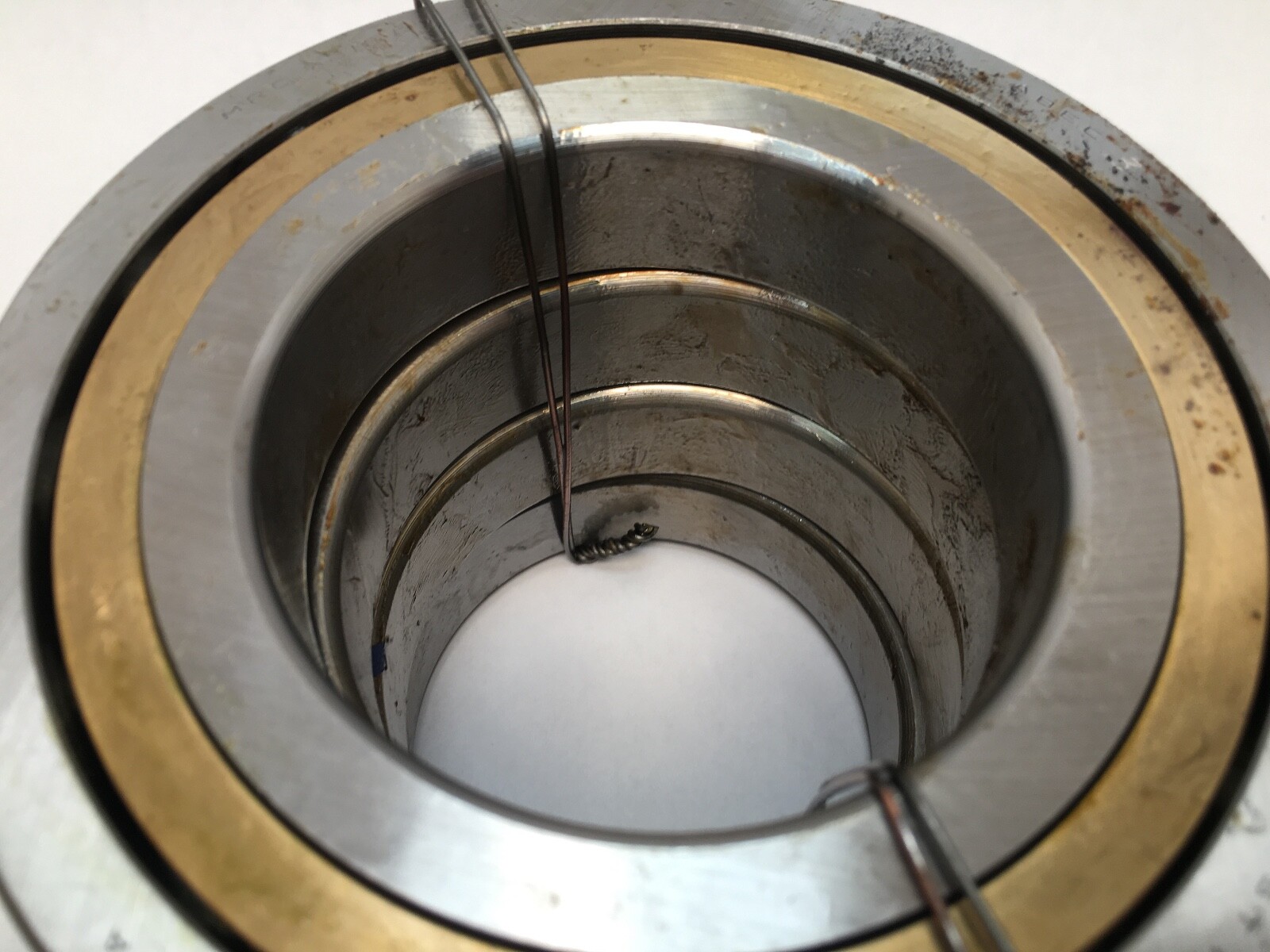

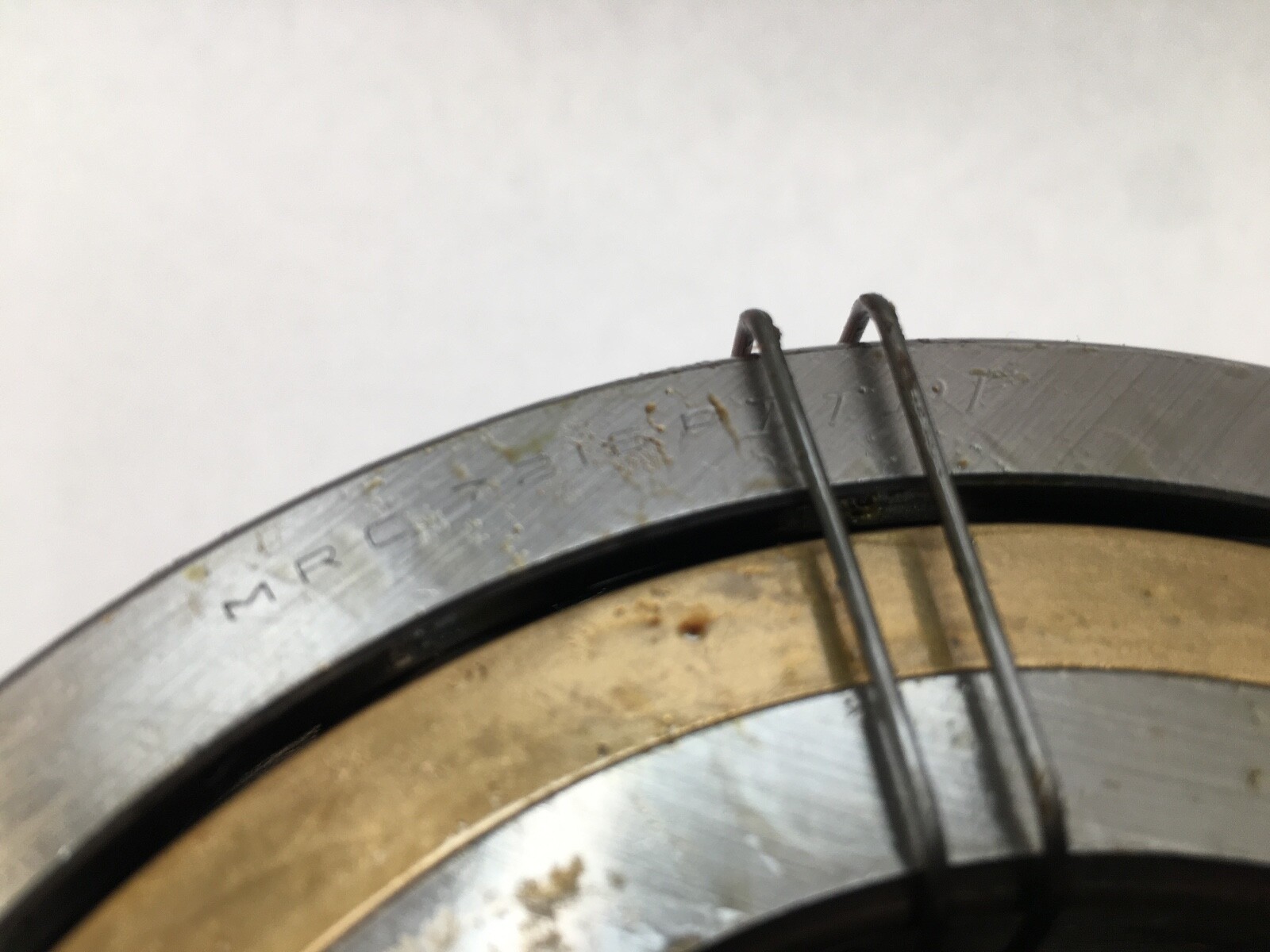

| Condition Note | Made In USA, New, Rust On End Bearings (See Pictures) |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Mpn Variants | 7216PDTDF; 7216P DTDF; 7216-P-DTDF; 7216 P DTDF; 7216PDT DF; 7216P |
| Arrangement Configuration | DTDF — tandem pair mounted face-to-face against a single bearing, three-bearing matched stack |
| Precision Class | Not specified |
| Min Temp | -30 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 72 kN per bearing |
| Static Load Rating | 64 kN per bearing |
| Precision Rating | Not specified |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 2.50 lbs per bearing |
| Cage Material | Steel |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40 ° |
| Mounting Arrangement | Tandem plus face-to-face (DTDF) |
| Design Units | Metric |
| Bearing Material | Chrome bearing steel |
| Part Number | 7216PDTDF |
| Cross Reference 1 | SKF 7216 BEP (related size, single bearing, 40° angular contact, polyamide cage) |
|---|---|
| Cross Reference 2 | FAG 7216-B-TVP (related size, single bearing, 40° angular contact, polyamide cage) |
| Cross Reference 3 | MRC 7216PDTDB (related arrangement, tandem pair mounted back-to-back) |
| Cross Reference 4 | MRC 7216PDU (related execution, single universally ground bearing) |

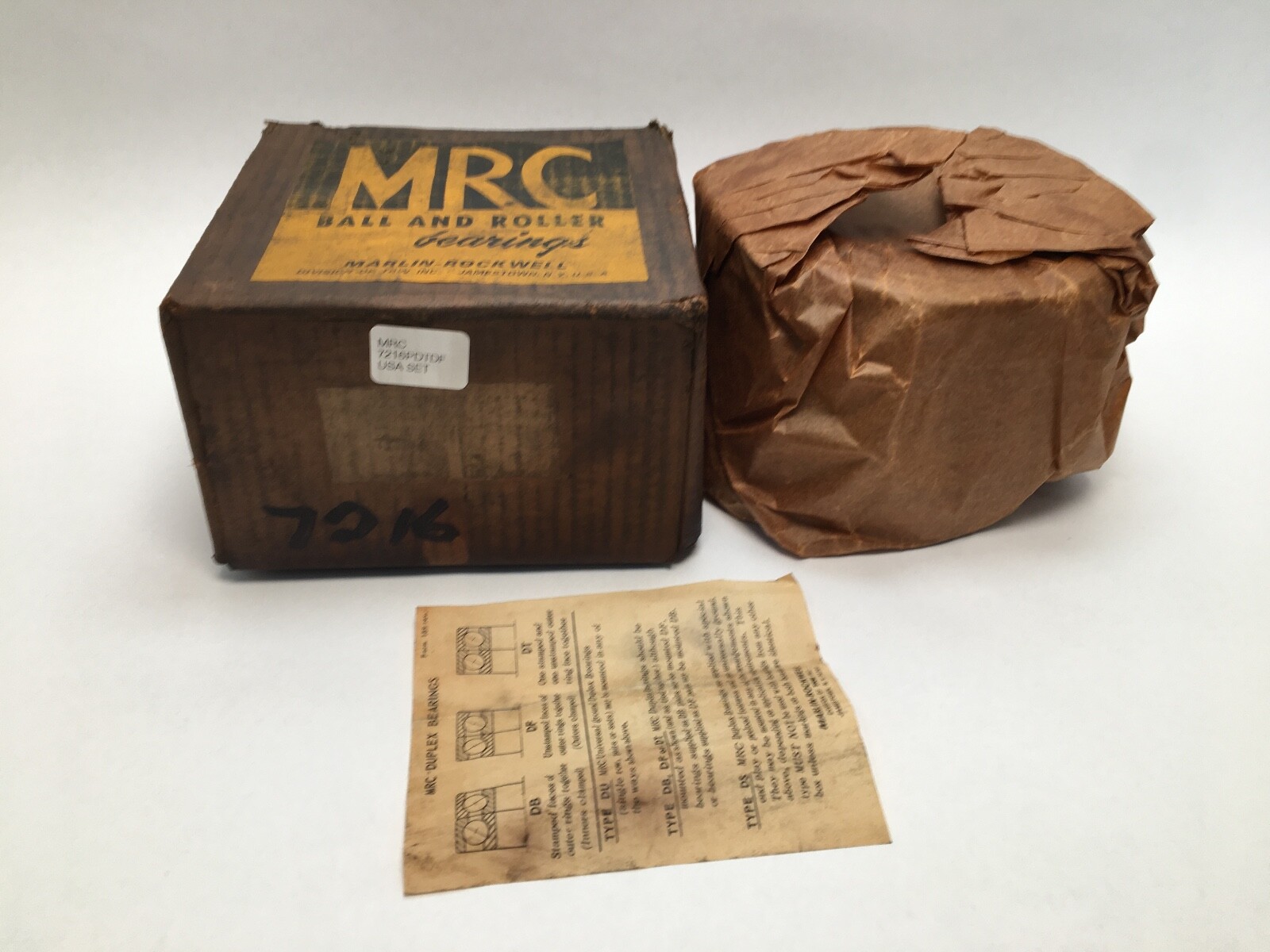

MRC 7216PDTDF angular contact ball bearing set. Bore: 80 mm. Outside diameter: 140 mm. Width: 26 mm per bearing. Series: 7200. Contact angle: 40°. Open on both faces, pressed steel cage, straight bore. Country of origin: United States.
Base number 7216, written on the carton as 7216P, 7216 P DTDF and 7216PDTDF. P: 40° contact angle. DTDF: a tandem pair mounted face-to-face against a single bearing — a three-bearing stack, matched and ground as one set.
A 40° contact angle is the heaviest thrust rating in the angular contact range. The two tandem bearings share thrust in one direction, roughly doubling axial capacity over a single bearing, while the third bearing set face-to-face against them carries thrust the other way. The result is high one-direction thrust capacity together with full reversing capability and good angular rigidity. Face-to-face mounting also accommodates a small amount of misalignment.
Three pieces, supplied as a matched stack: two bearings in tandem, one bearing face-to-face against them. Stack width across all three: 78 mm. Each bearing measures 80 x 140 x 26 mm.
Bearings from a matched stack are kept together and mounted in the marked relationship — the stamped outer ring face of one tandem bearing sits against the unstamped face of the other, and the unmarked outer ring faces meet at the face-to-face joint. Shaft and housing fits are kept light on a controlled-face set, since internal clearance changes the flushness of the ring faces. Face-to-face stacks are axially clamped both in the housing and on the shaft.
The 80 x 140 x 26 mm envelope is shared by SKF 7216 BEP and FAG 7216-B-TVP as related sizes; those are single bearings with different cage materials. Searchable forms: 7216PDTDF, 7216P DTDF, 7216-P-DTDF, 7216 P DTDF, 7216PDT DF.
