Double-row angular contact ball bearing, 55 mm bore x 100 mm OD x 33.3 mm wide, 30 degree contact angle, open, normal clearance, 57,200 N dynamic rating.
List Price
$37.31
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 5211-C |
| GTIN | 097741012287 |
| Model | 5211-C |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 1-5/16 in |
| Series | 5200 |
|---|---|
| Lubricant | Oil/Grease |
| Base Number | 5211 |
| Industry Terms | double row angular contact ball bearing; 5200 series MRC; 3200 series angular contact; open angular contact bearing; two-direction thrust bearing |
| Common Misspellings | 5211 C; 5211-C-; 5211CC; MRC 5211 K; 52 11C |
| Application Types | Pumps; gearboxes; machine tool feed screws; vertical shafts; fan and blower drives |
| Bore Shaft Size | 55.000 mm |
| Mpn Variants | 5211-C; 5211C; 5211 C; 5211; 3211 |
| Manufacturer Status | MRC bearings are part of SKF; cross-reference SKF for current supply |
| Arrangement Configuration | Double row, non-separable single bearing |
| Dynamic Load Rating | 57,200 N |
| Static Load Rating | 47,500 N |
| Rolling Elements | Ball |
| Limiting Speed | 4,300 rpm (grease) / 5,600 rpm (oil) |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 30° |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 5211-C |
| Total Width | 33.30 mm |
| Overall Width | 33.30 mm (1-5/16 in) |
| Dynamic Load Rating C1 | 57,200 N |
| Cross Reference 1 | SKF 3211 A |
|---|---|
| Cross Reference 2 | NTN 5211 |
| Cross Reference 3 | NSK 3211BTN |
| Cross Reference 4 | FAG 3211-B-TVH - 25 deg vs 30 deg |

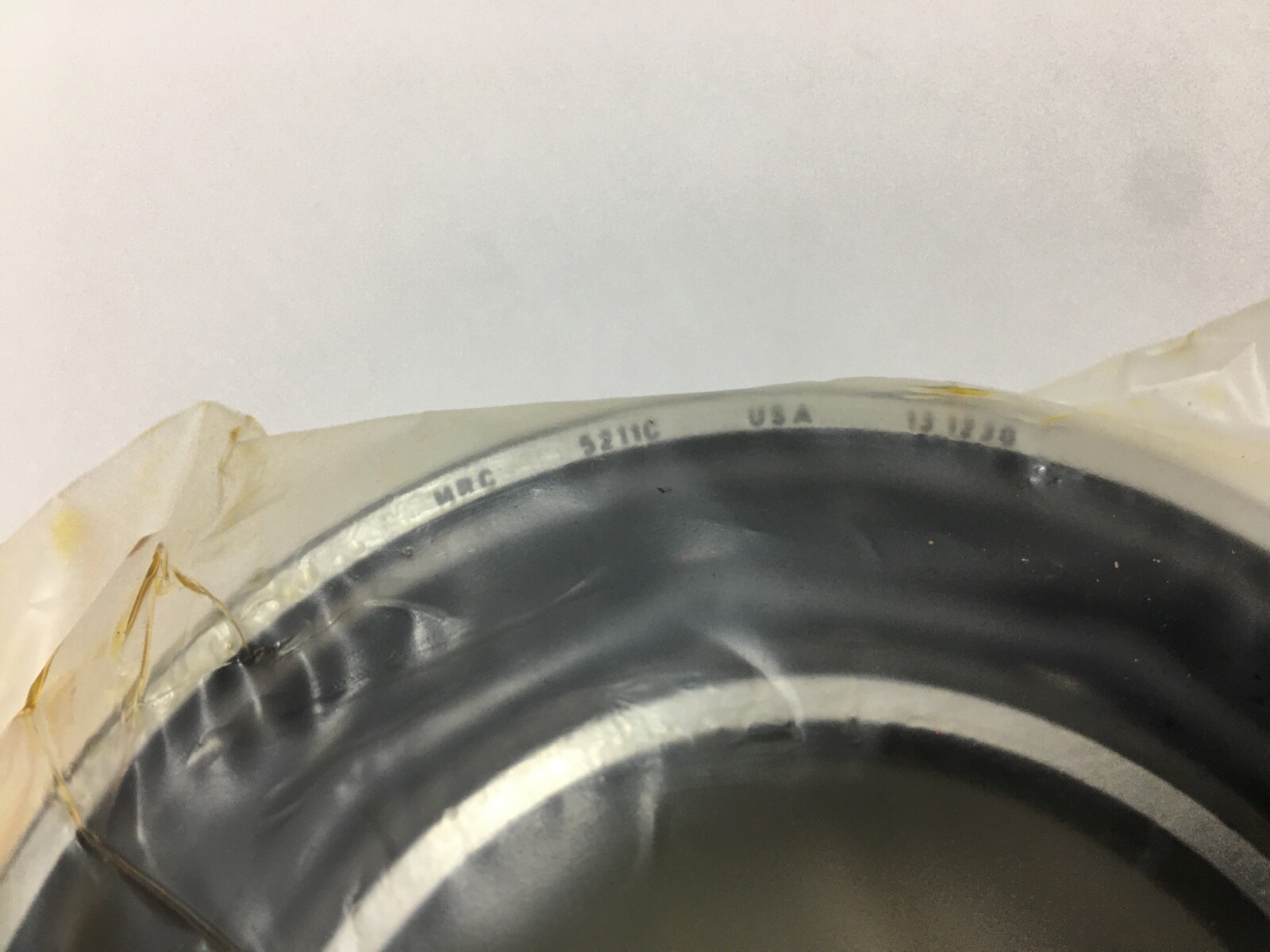

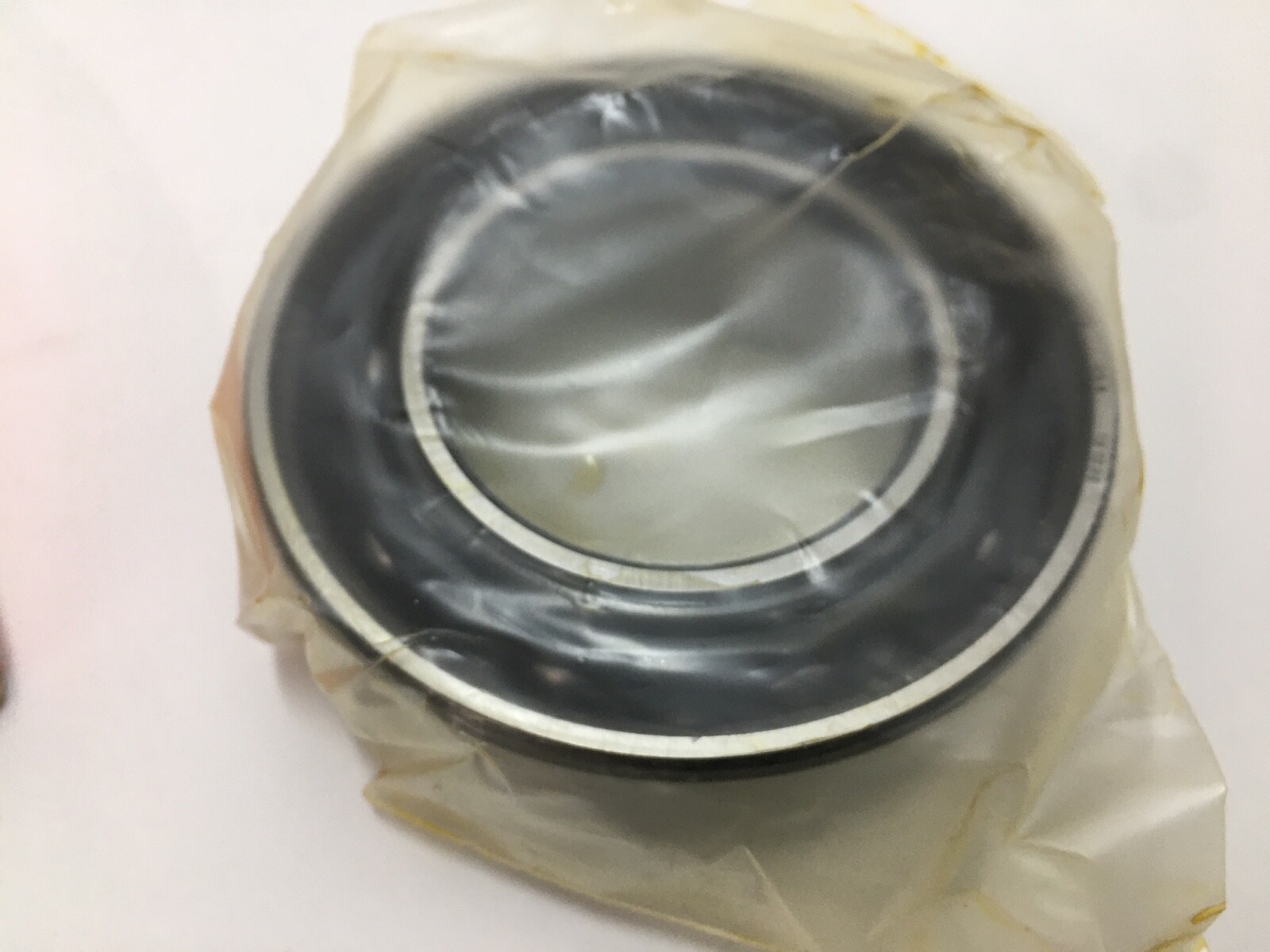

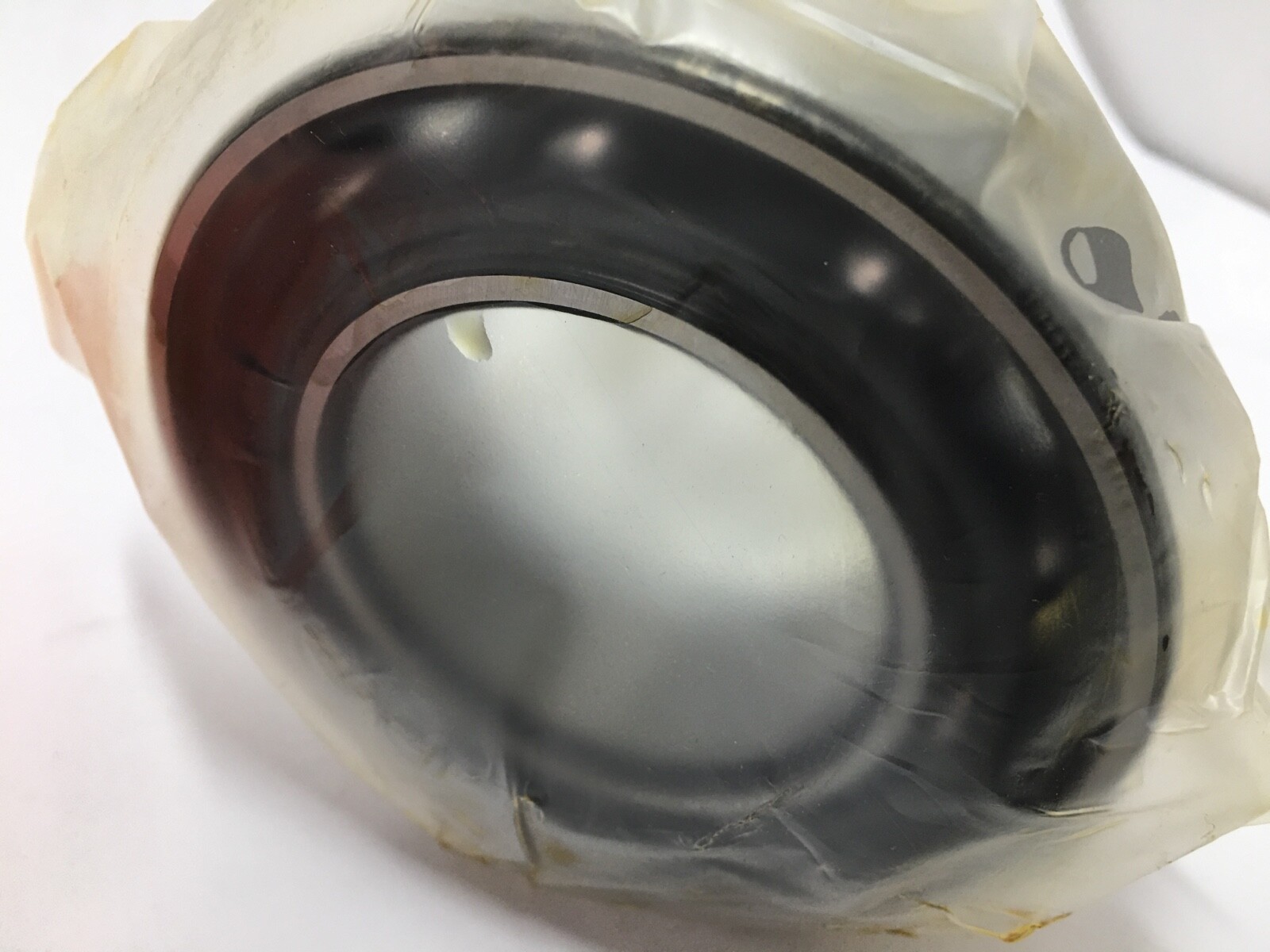

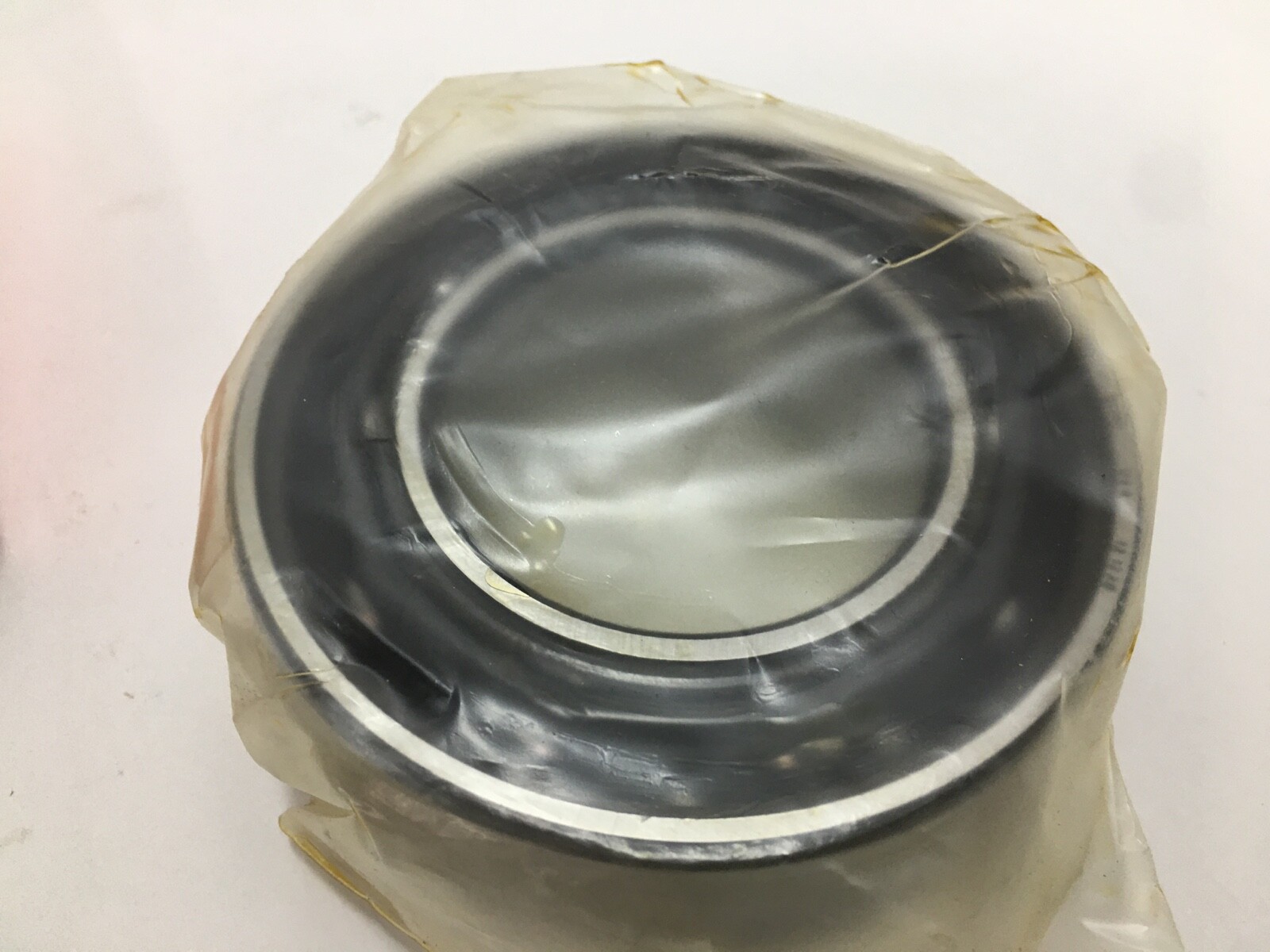

MRC 5211-C is a double-row angular contact ball bearing, 55 mm bore x 100 mm outside diameter x 33.30 mm (1-5/16 in) wide, 30° contact angle, open with no shields or seals, normal internal clearance. Two rows of balls run at opposed 30° angles inside one pair of rings, so one non-separable bearing carries radial load plus thrust in both directions and resists tilting moments. Unit Quantity: 1 Pc.
5200 — MRC double-row angular contact ball bearing series, sharing the ISO 3200 envelope; the carton also carries 3211.
11 — bore size code, 55 mm bore.
C — the MRC 5200-C build: open, no shield and no seal.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 33.30 mm (1-5/16 in). Contact Angle: 30°. Number Of Rows: 2. Closure Type: Open. Internal Clearance: CN. Dynamic Load Rating: 57,200 N. Static Load Rating: 47,500 N. Limiting Speed: 4,300 rpm grease; 5,600 rpm oil.
Maximum Shaft and Housing Fillet Radius ra: 1.50 mm. Arrangement: double row, non-separable single bearing. Series: 5200-C (ISO 3200 envelope).
Cross-references: SKF 3211 A, NTN 5211, NSK 3211BTN and FAG 3211-B-TVH (25° vs 30°). MPN Variants: 5211-C, 5211C, 5211 C, 5211, 3211. MRC bearings are part of SKF.
55 mm bore, 100 mm outside diameter, 33.30 mm (1-5/16 in) wide.
30°, two rows of balls.
Dynamic Load Rating: 57,200 N. Static Load Rating: 47,500 N. Limiting Speed: 4,300 rpm grease; 5,600 rpm oil.
