MRC 5207SBKFF double-row angular contact ball bearing, 35 x 72 x 26.99 mm, shields both sides, 30° contact angle. Current MRC equivalent 5207CFF.
List Price
$42.46
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 5207SBKFF |
| Model | 5207SBKFF |
| Bearing Type | Angular Contact Ball Bearing, Shields both sides |
| ID | 35 mm |
| OD | 72 mm |
| Width | 26.99 mm (1.0625 in) |
| Series | 5200 |
|---|---|
| Lubricant | Grease |
| Material | Bearing Steel |
| Dynamic Load Rating | 37,700 N |
| Static Load Rating | 27,500 N |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.1 |
| Contact Angle | 30° |
| Limiting Speed | 6,000 rpm grease; 8,000 rpm oil |
| Mpn Variants | 5207SBKFF, 5207-SBKFF, 5207 SBKFF, 5207SB, 5207CFF, 3207ZZ |
| Compatible With Replaces | MRC 5207CFF (current designation) |
| Industry Terms | 5207 double row angular contact bearing; 35x72x27 shielded bearing; 3207 ZZ bearing; 30 degree double row ball bearing |
| Common Misspellings | 5207 SBKFF; MRC5207SBKFF; 5207SBK FF; 5207-SBK-FF; MCR 5207SBKFF |
| Application Types | Pumps; gearboxes; compressors; general industrial machinery |
| Cross Reference 1 | MRC 5207CFF - current MRC designation |
|---|---|
| Cross Reference 2 | SKF 3207 A-2Z - shielded, 35x72x27 mm double-row |

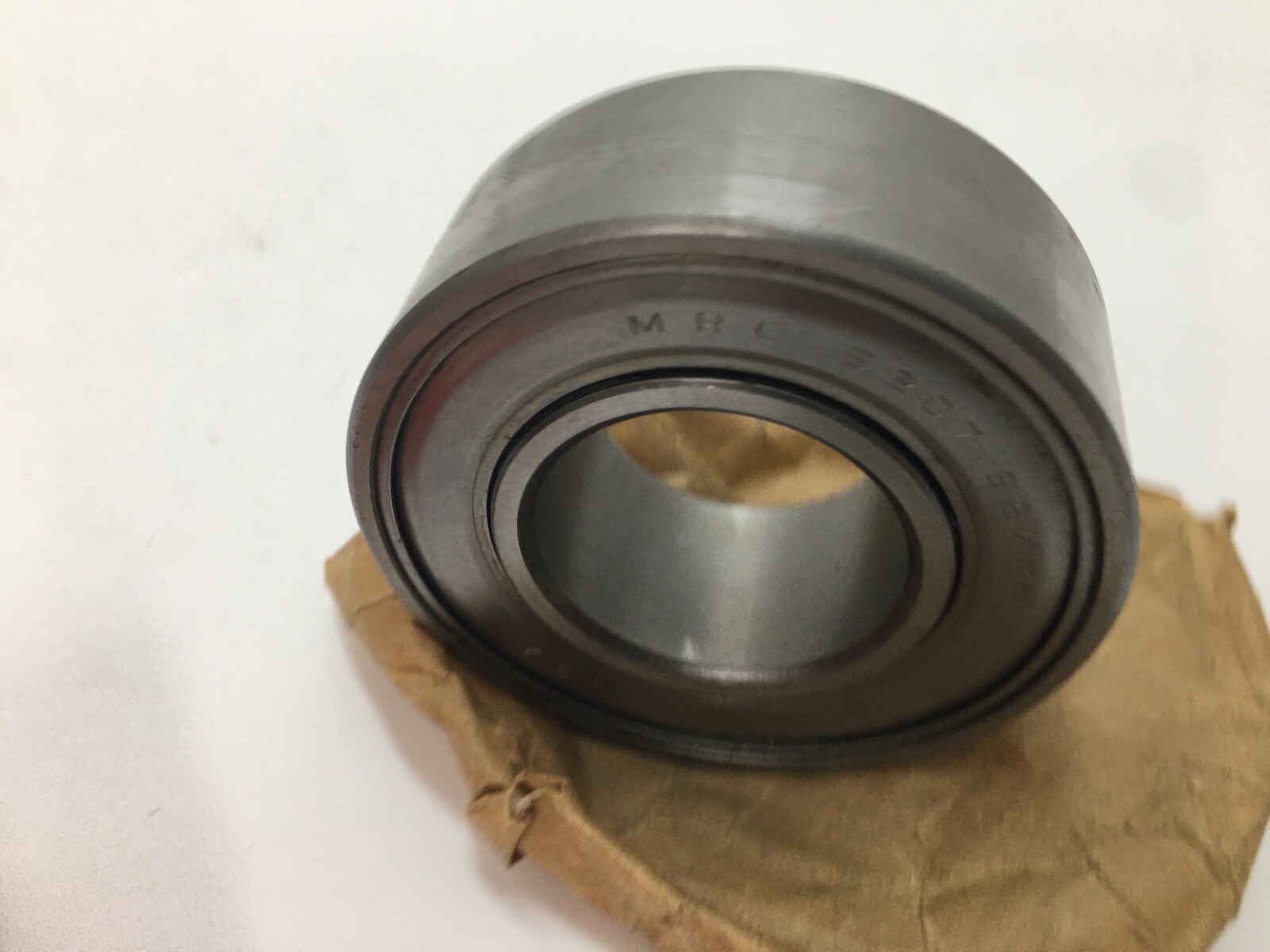

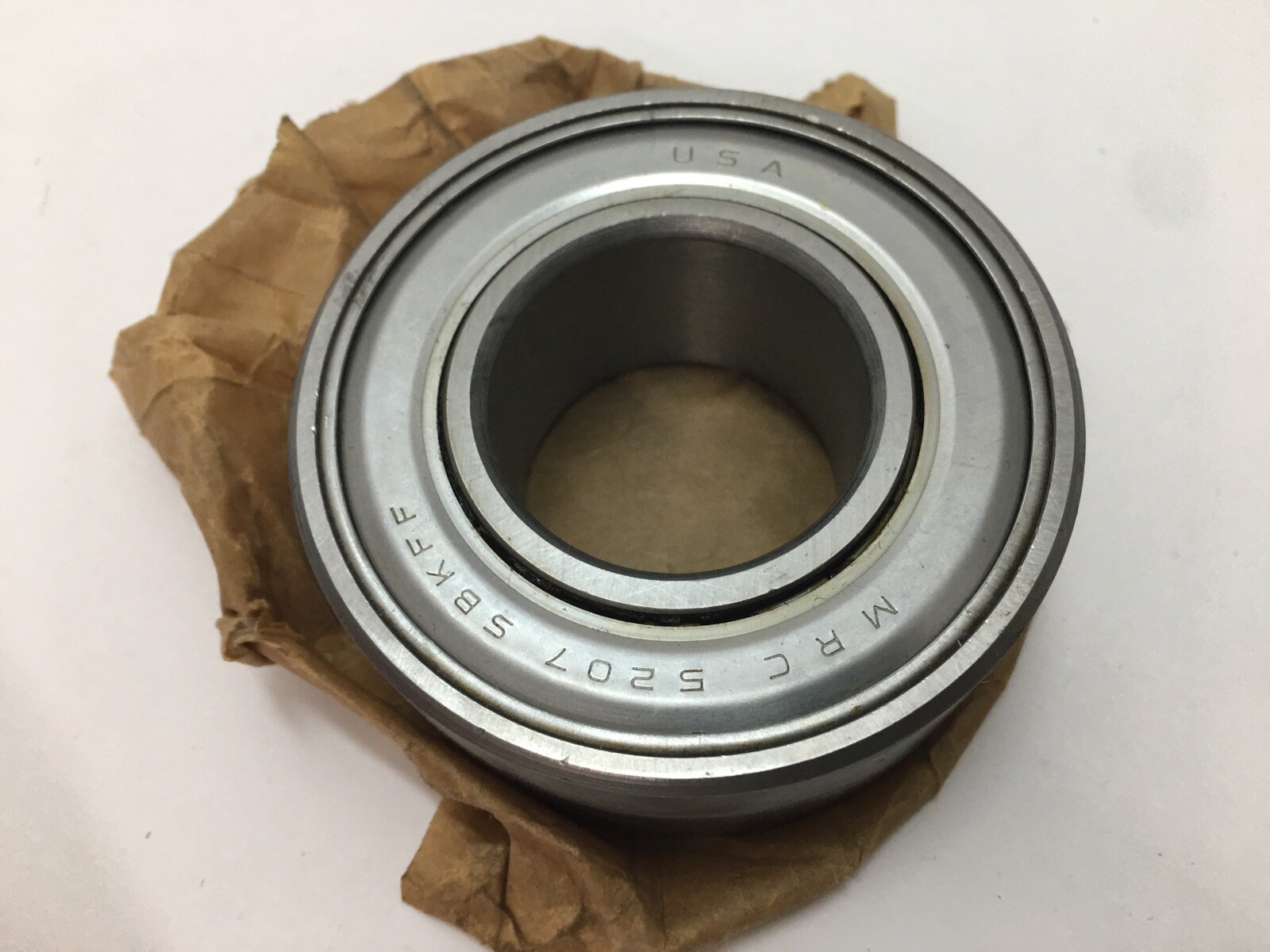

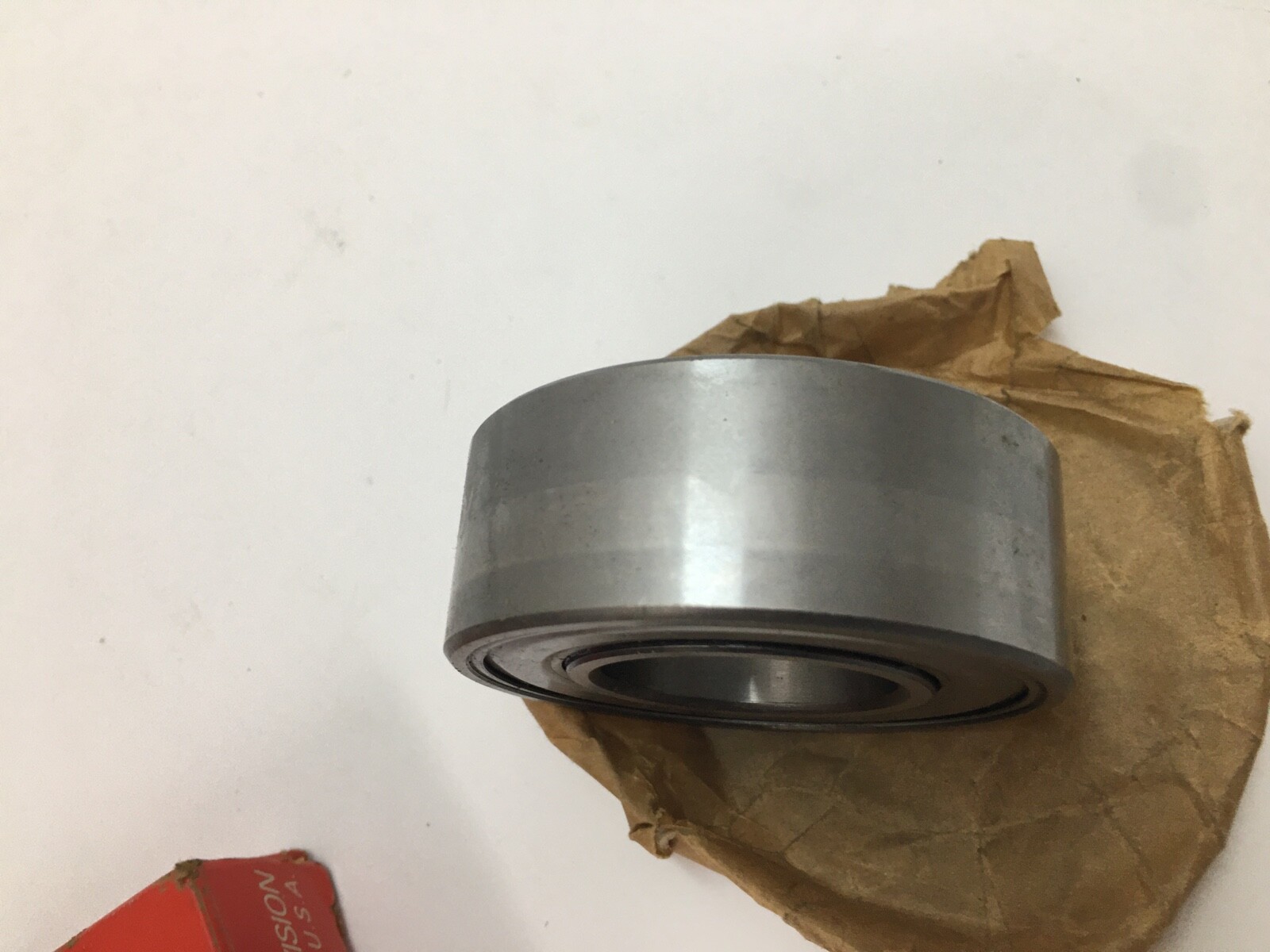

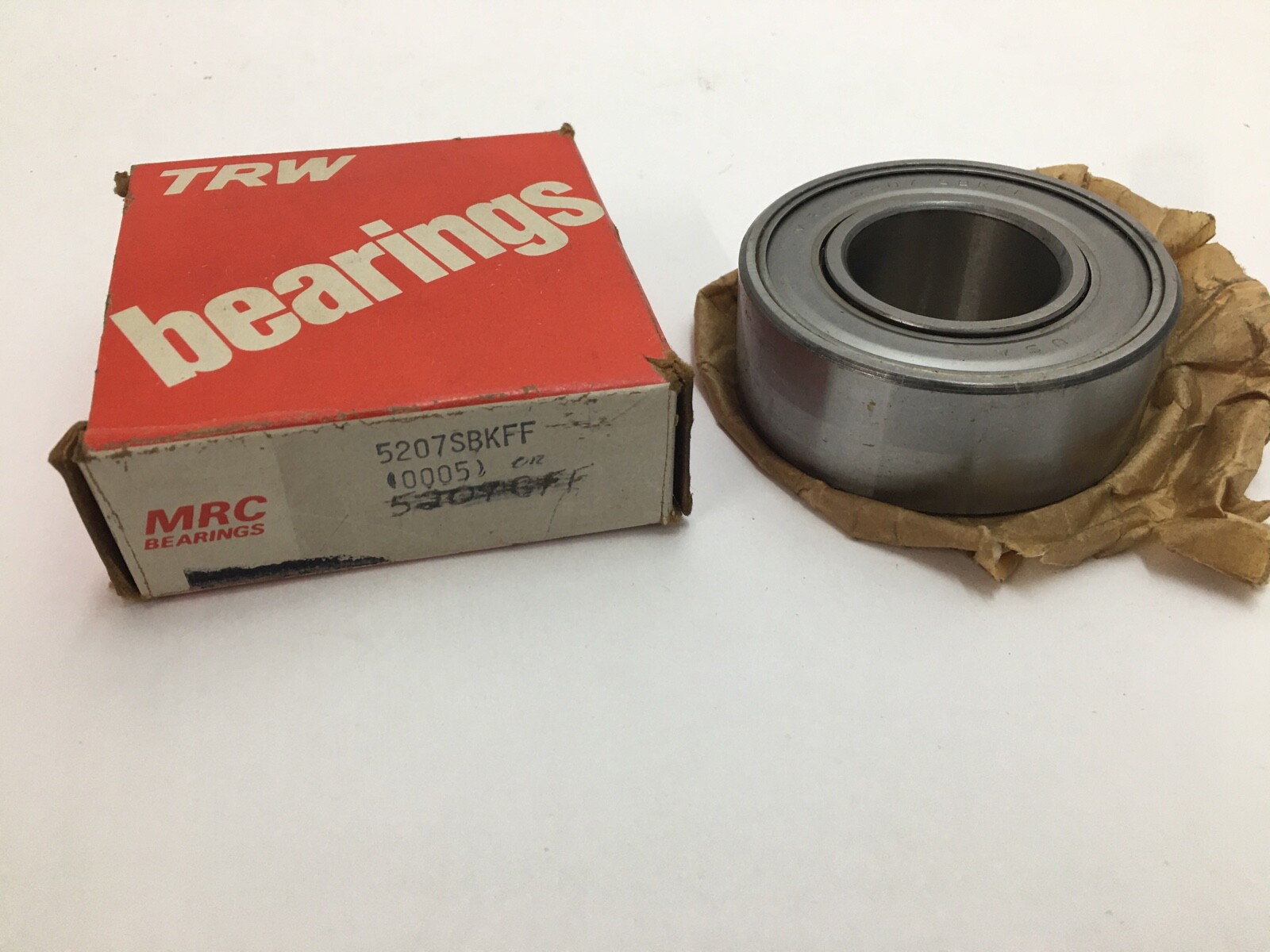

MRC 5207SBKFF is a double-row angular contact ball bearing from the MRC 5200 light series, 35 mm bore, 72 mm outside diameter and 1-1/16 in (26.99 mm) wide, shielded on both sides. It carries radial load together with axial load in both directions. One complete double-row bearing.
5207 — MRC 5200 light double-row series, bore code 07 = 35 mm bore; the ISO 3207 section.
SBKFF — earlier MRC execution suffix. MRC lists 5207CFF as the current designation.
FF — shields on both sides.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 26.99 mm (1.0625 in). Contact Angle: 30°. Dynamic Load Rating: 37,700 N. Static Load Rating: 27,500 N. Limiting Speed: 6,000 rpm grease; 8,000 rpm oil. Closure Type: Shields both sides. Number Of Rows: 2. Rolling Elements: Ball. Bore Type: Straight. Series: 5200. Unit Quantity: 1 Pc. Ratings and speeds are the MRC 5207CFF values.
The 35 x 72 x 26.99 mm envelope has a straight bore and carries axial load in both directions.
Cross-references: MRC 5207CFF (current MRC designation) and SKF 3207 A-2Z (shielded, 35 x 72 x 27 mm double-row). MPN variants: 5207SBKFF, 5207-SBKFF, 5207 SBKFF, 5207SB, 3207ZZ.
35 mm bore, 72 mm outside diameter and 26.99 mm (1-1/16 in) width.
MRC 5207CFF.
Dynamic load rating 37,700 N and static load rating 27,500 N, with a 30° contact angle.
