Availability:
1 in stock

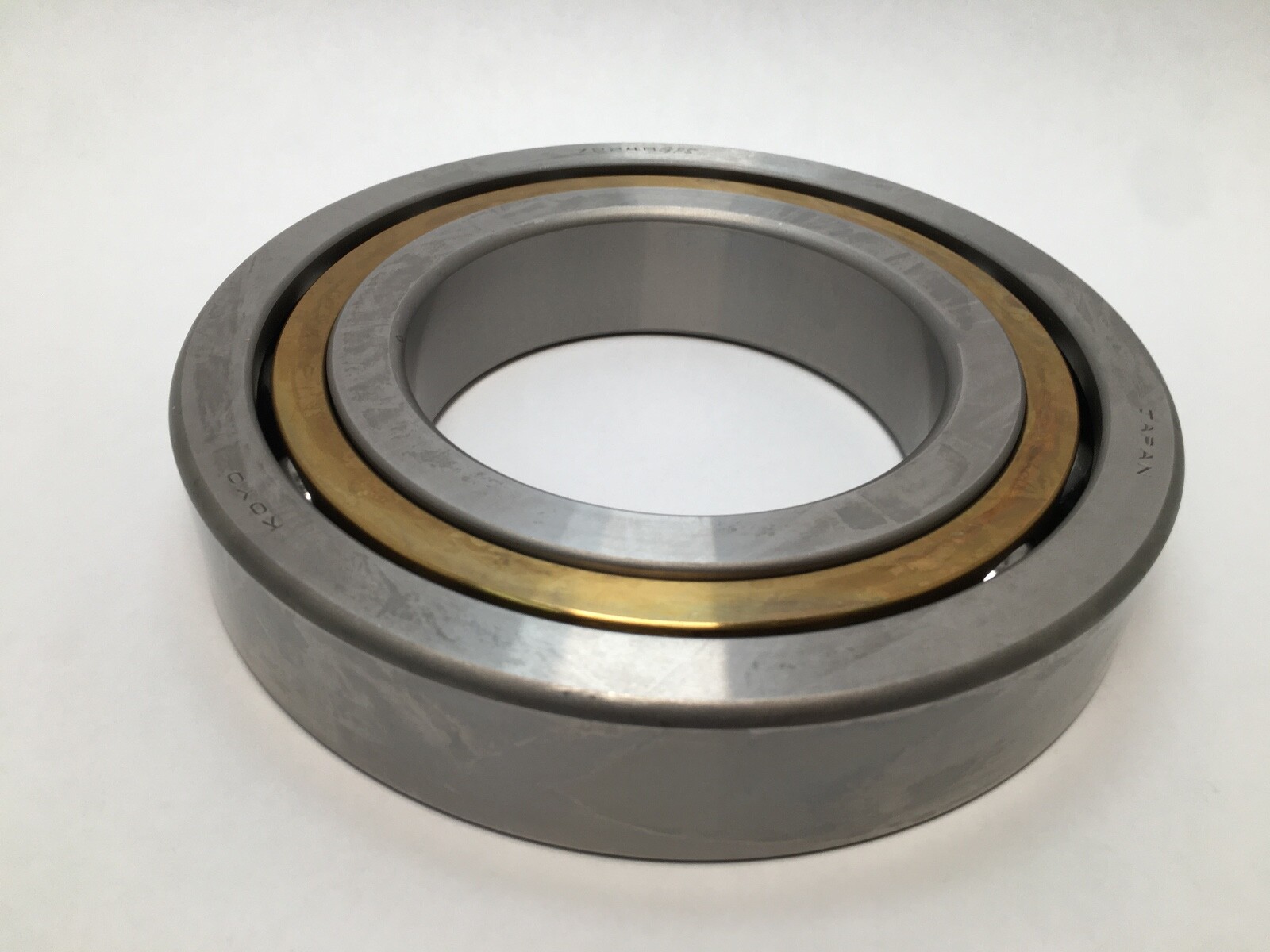

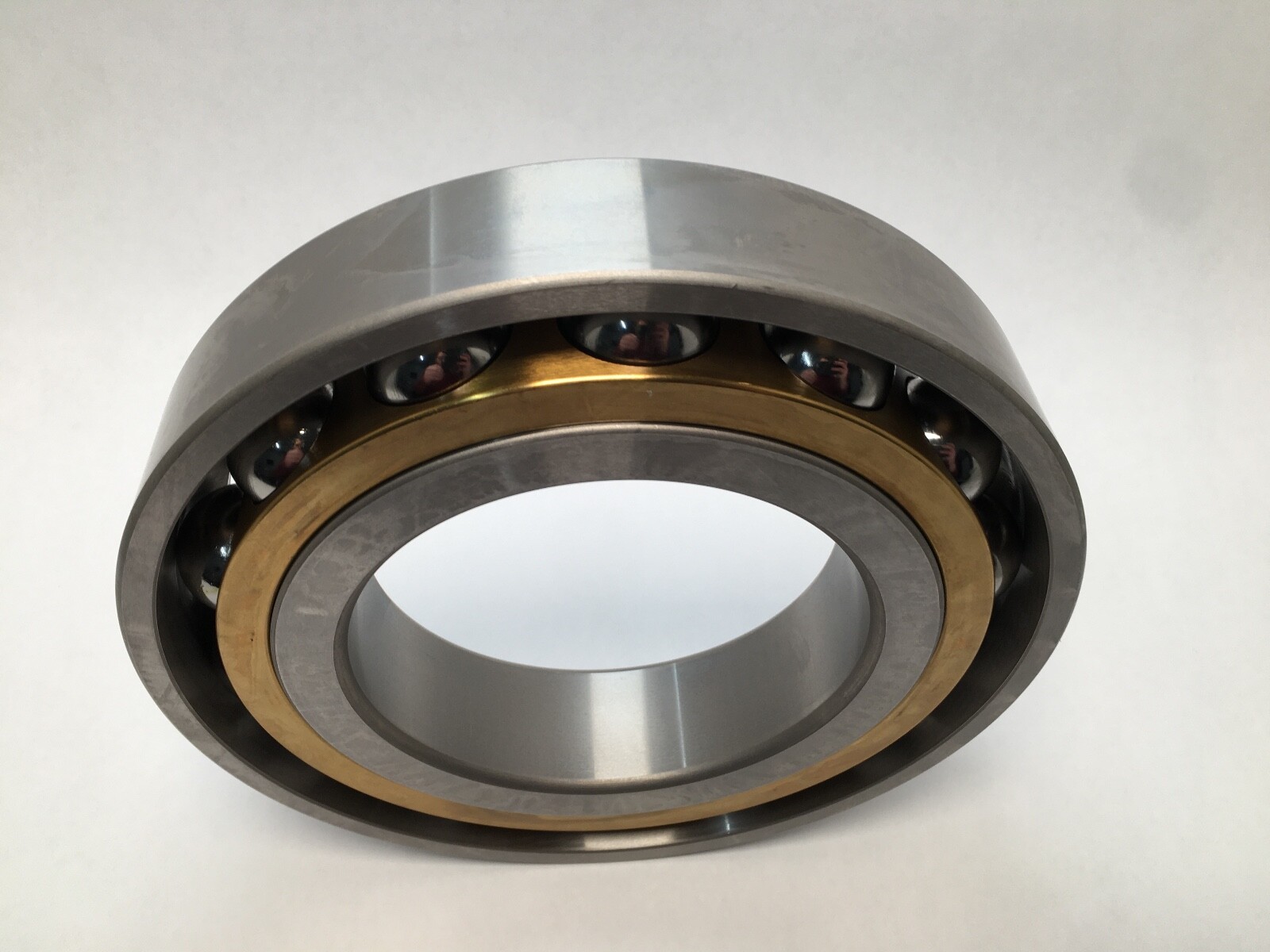

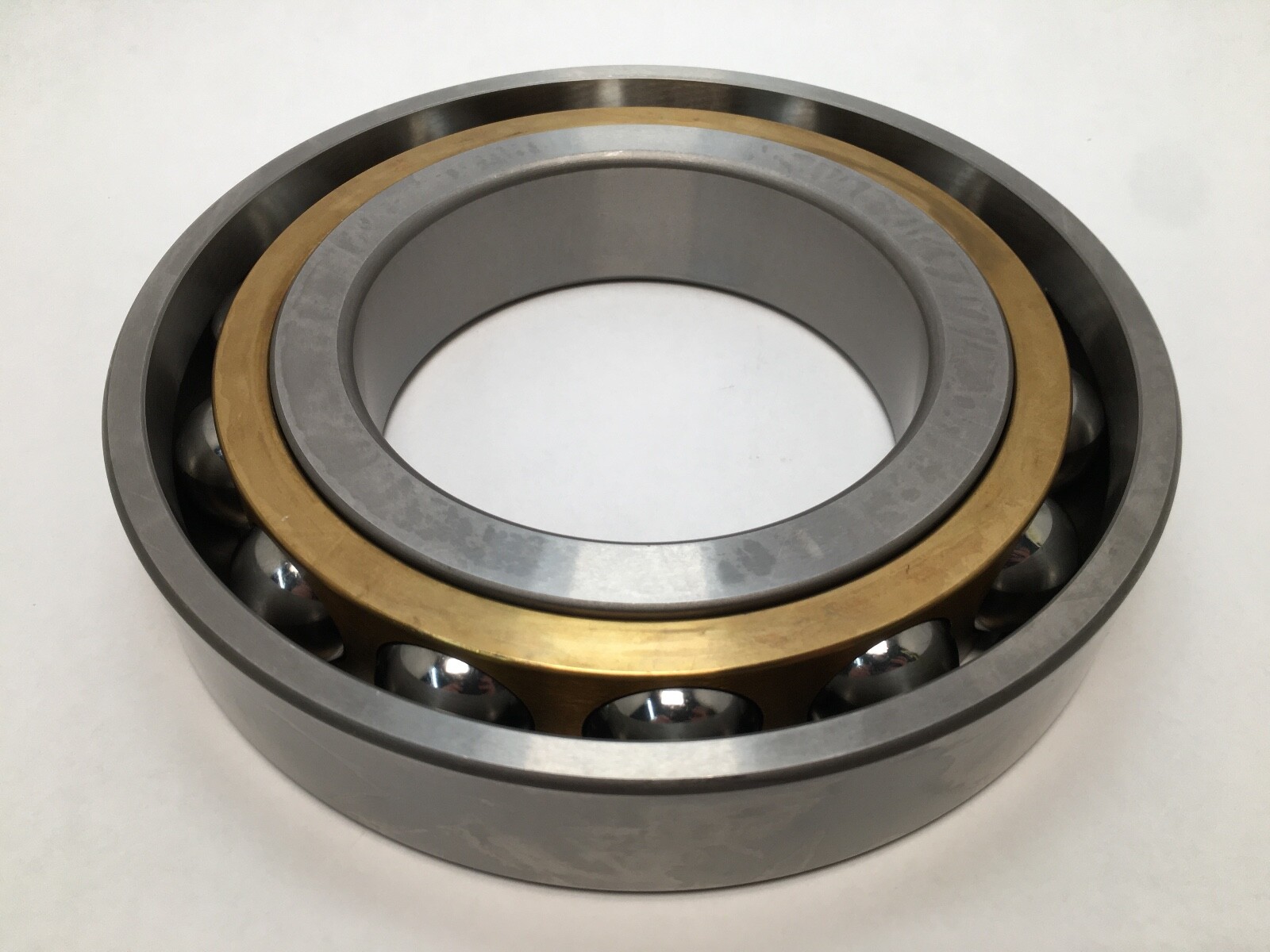

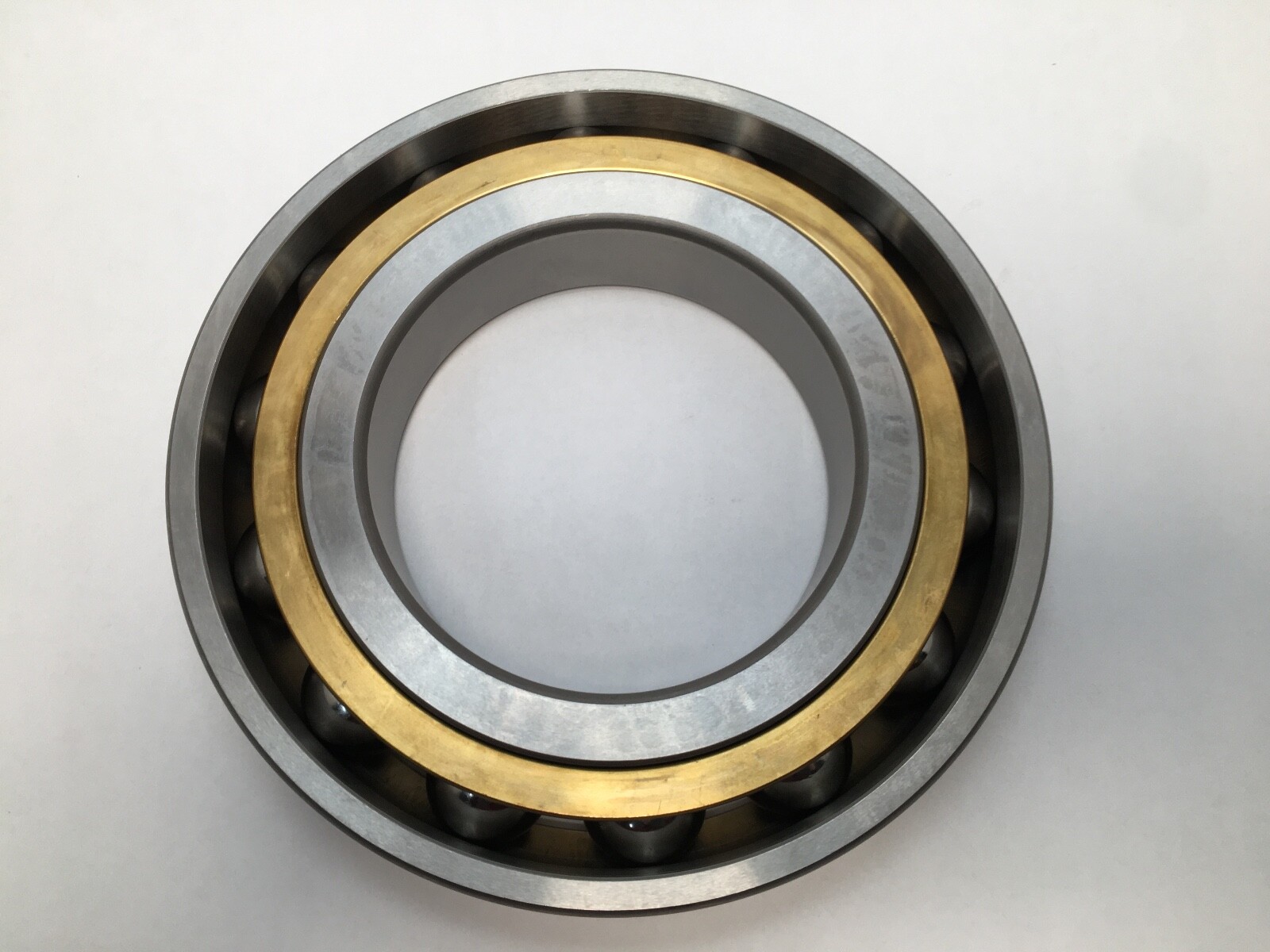

Angular contact ball bearing, 120 x 215 x 40 mm, 40° contact angle, machined brass cage, P5 precision class. Single row, open, straight bore, thrust-biased.
List Price
$344.17
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 7224 B G P5 FY |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 40 mm |
| Material | Bearing Steel |
|---|---|
| Series | ISO 72 dimension series |
| Lubricant | Oil/Grease |
| Base Number | 7224 |
| Industry Terms | angular contact ball bearing; 40 degree contact angle; brass cage bearing; P5 precision; thrust bearing; 7224B |
| Application Types | Thrust-dominated positions; vertical shafts; worm and bevel pinion positions; screw-down assemblies; heavily axially loaded gearboxes |
| Total Width | 40 mm |
| Bore Shaft Size | 120 mm |
| Mpn Variants | 7224BGP5FY; 7224BG P5 FY; 7224-BG-P5-FY; 7224BGP5; 7224BG; 7224B; 7224 |
| Manufacturer Status | Koyo is the bearing brand of JTEKT; the 7224B remains an active designation |
| Precision Class | P5 (ISO Class 5) |
| Dynamic Load Rating C1 | 184.0 kN |
| Cage Type | Machined |
| Dynamic Load Rating | 184.0 kN |
| Static Load Rating | 186.0 kN |
| Precision Rating | P5 (ISO Class 5) |
| Rolling Elements | Balls |
| Cage Material | Brass |
| Limiting Speed | 3,200 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Design Units | Metric |
| Part Number | 7224BGP5FY |
| Cross Reference 1 | SKF 7224 BEGAM (40°, brass cage; class not verified) |
|---|---|
| Cross Reference 2 | FAG 7224-B-MP-UA (40°, brass cage, universal pairing) |
| Cross Reference 3 | Koyo 7224C (15° contact angle, not 40°) |

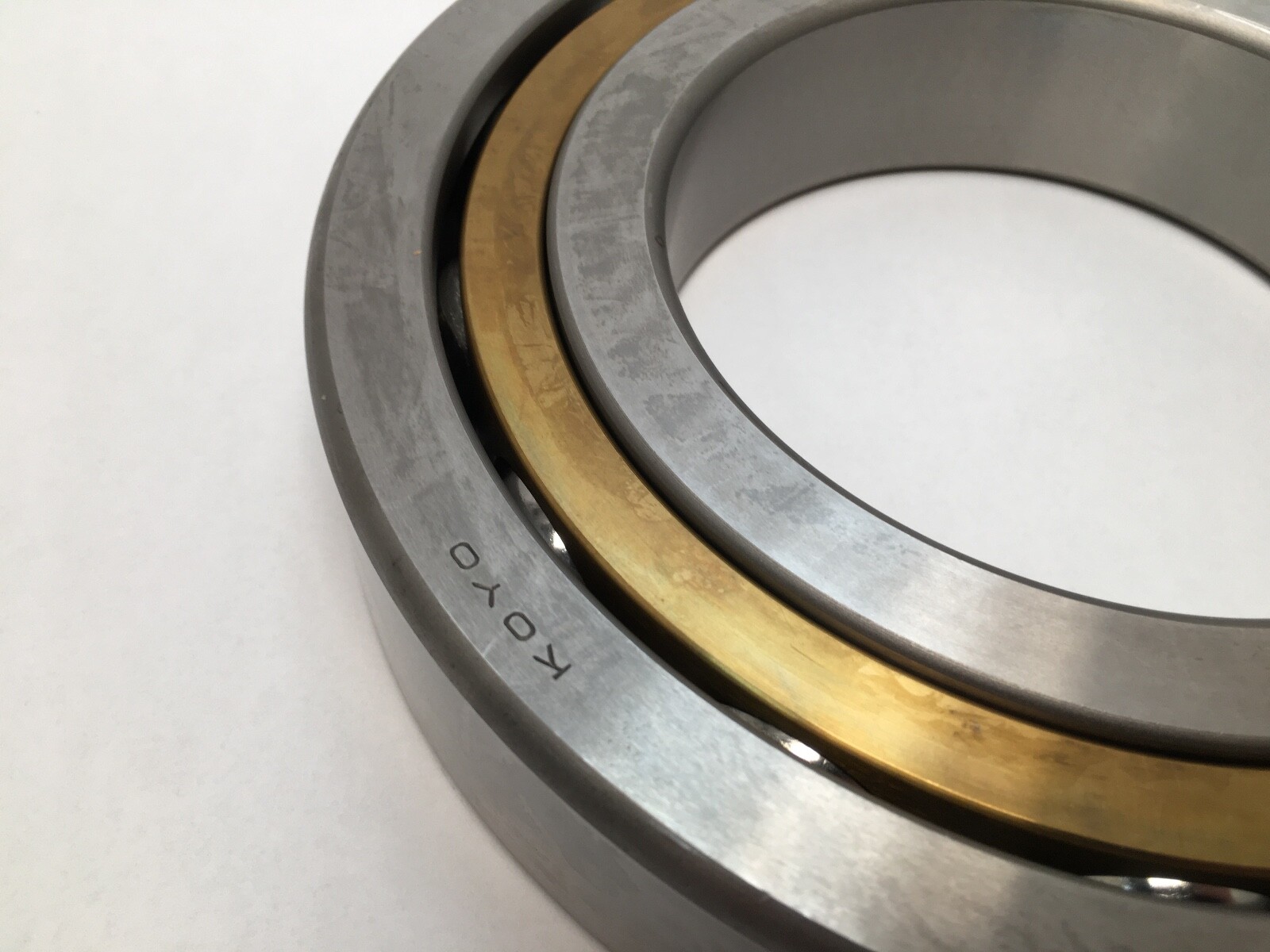

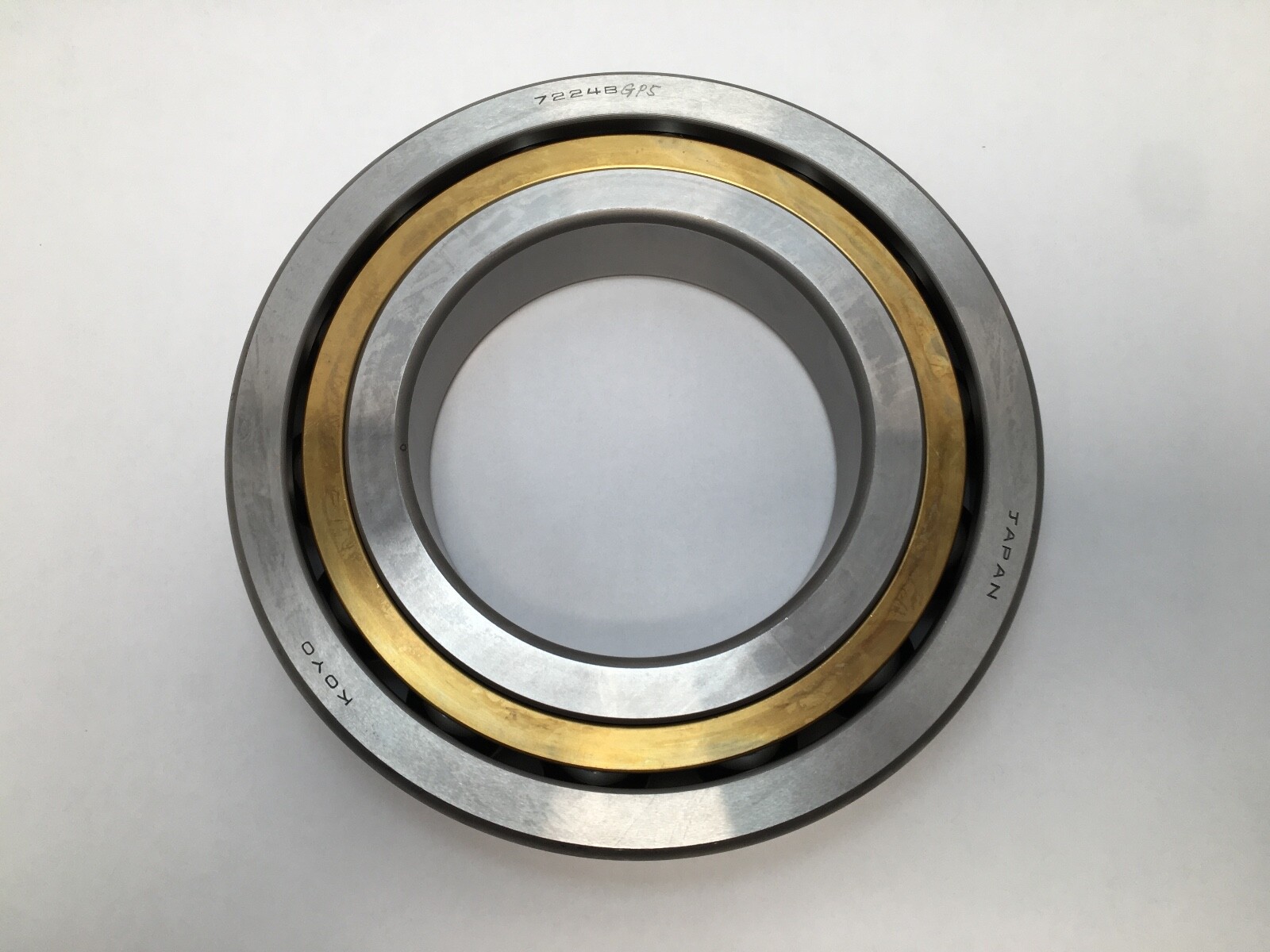

Koyo 7224BGP5FY single-row angular contact ball bearing in the 7224 envelope. Koyo is the bearing brand of JTEKT.
Bore: 120 mm
Outside Diameter: 215 mm
Width: 40 mm
Bore Type: Straight
Base Number: 7224
Series: ISO 72 dimension series
Contact Angle: 40°
Precision Class: P5 (ISO Class 5)
Dynamic Load Rating: 184.0 kN
Static Load Rating: 186.0 kN
Limiting Speed: 3,200 rpm
Number Of Rows: 1
Rolling Elements: Balls
Cage Type: Machined
Cage Material: Brass
Seal Type: Open
Closure Type: Open
Material: Bearing steel
Lubricant: Oil or grease
Snap Ring Included: No
Design Units: Metric

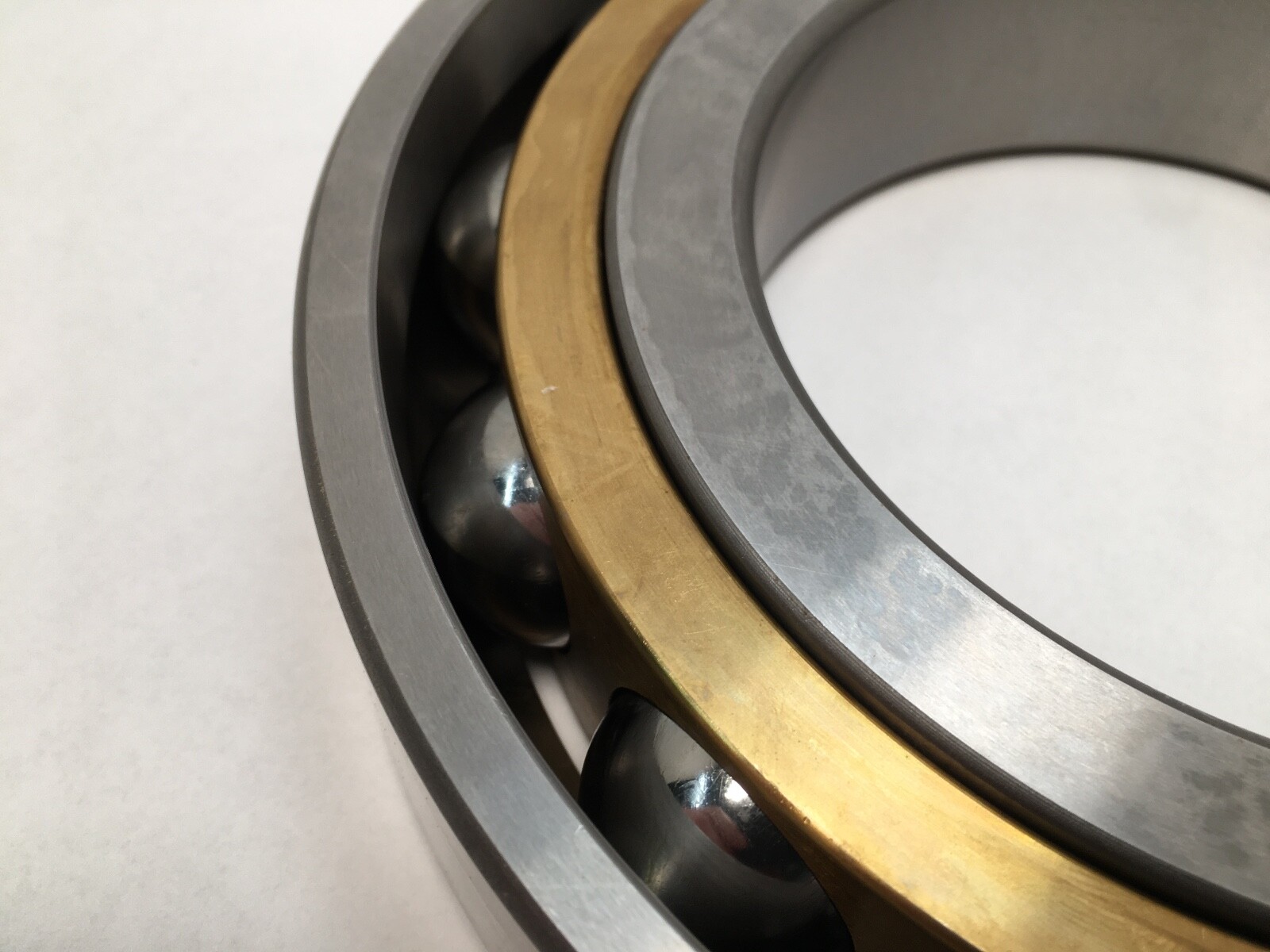

A 40° contact angle carries substantially more axial load than a 15° or 25° bearing of the same envelope and holds axial position firmly under thrust, at a lower speed ceiling and higher heat generation than the shallower angles. The machined brass cage tolerates shock loading and higher operating temperature than a pressed steel cage. P5 precision holds running accuracy tighter than standard tolerance.
Thrust-dominated positions, vertical shafts, worm and bevel pinion positions, screw-down assemblies and heavily axially loaded gearboxes.
Unit Quantity: 1 Pc

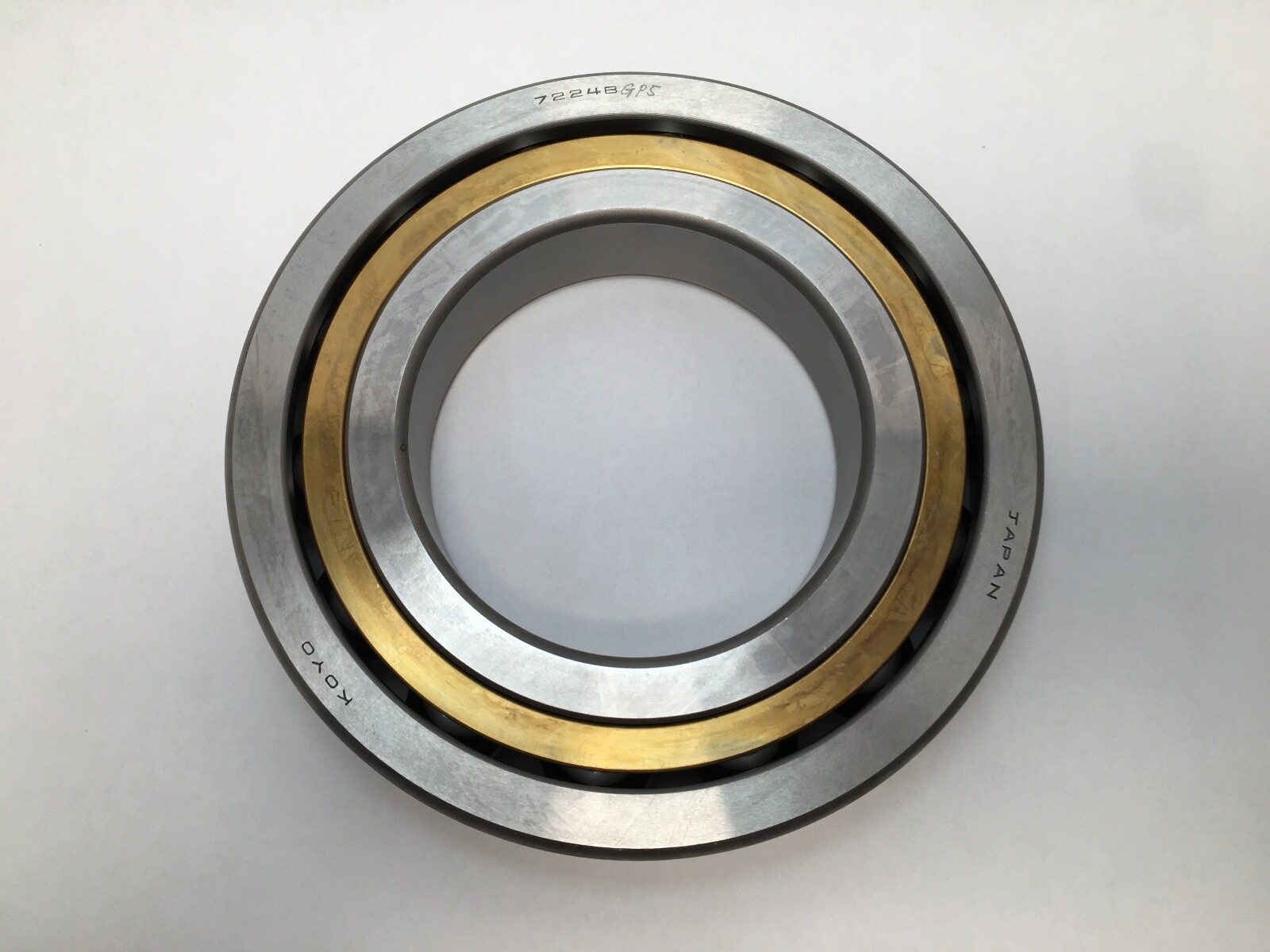

The outer ring carries a thrust-direction marking.

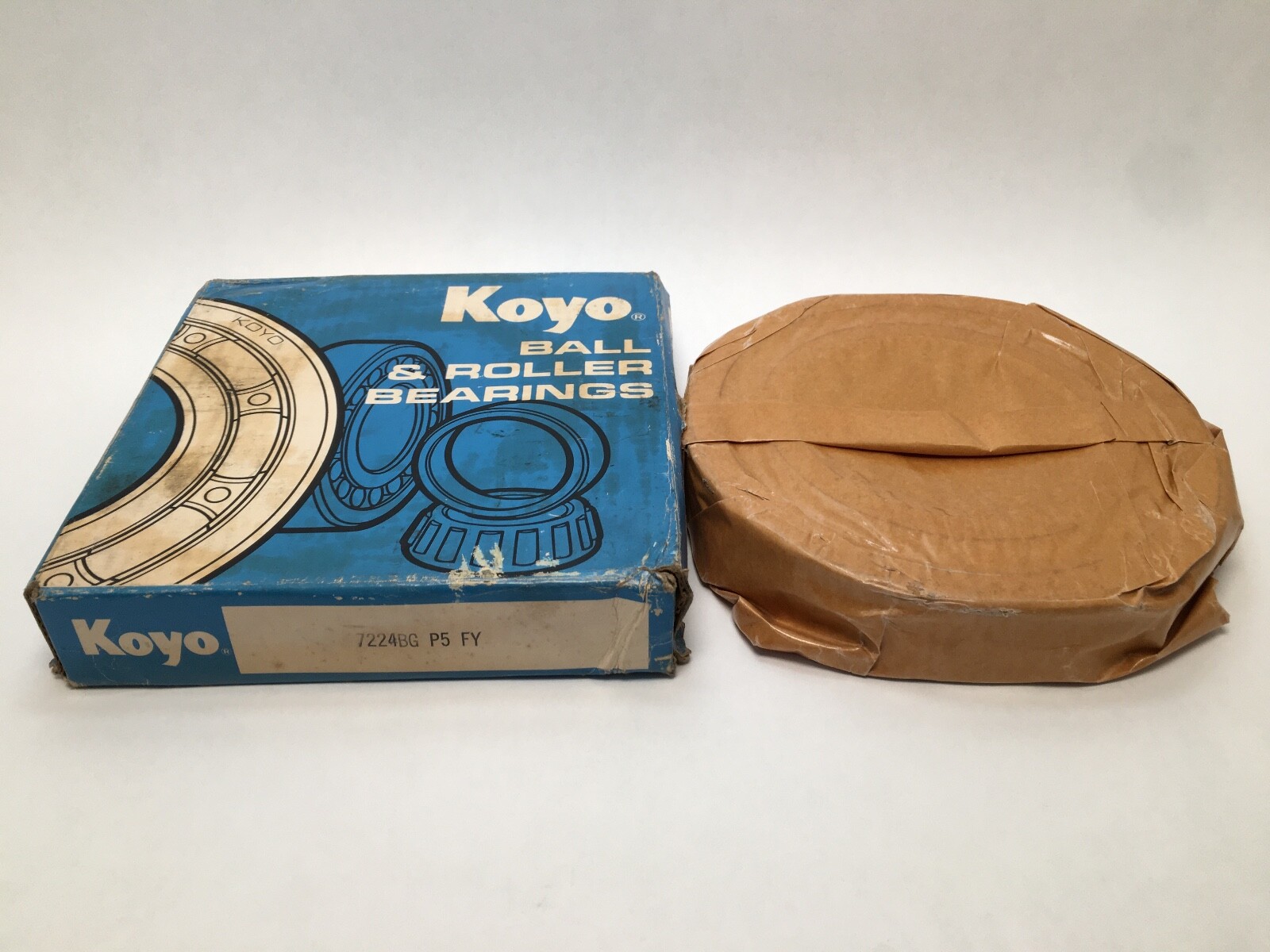

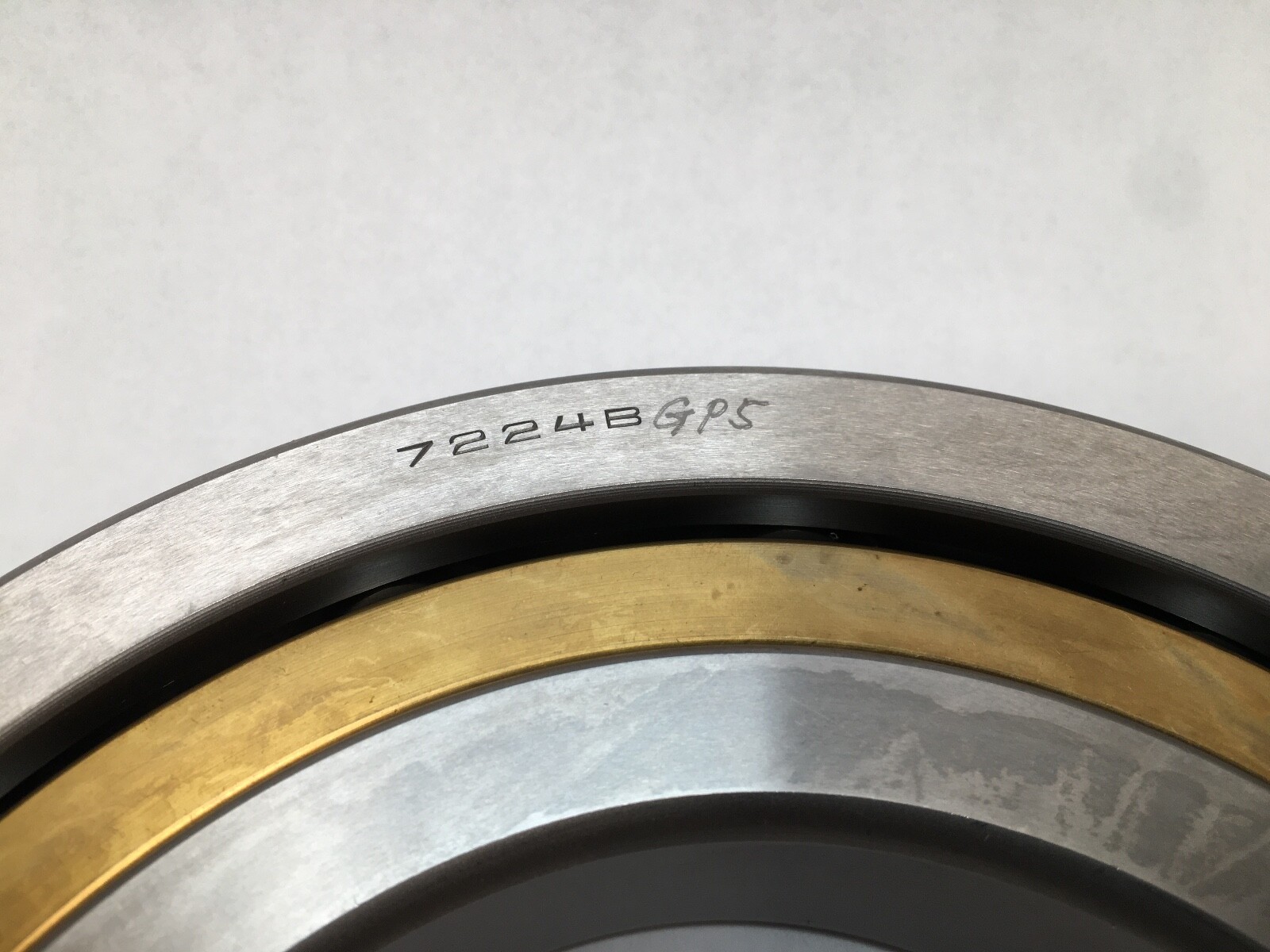

ISO base number 7224. Searchable forms: 7224BGP5FY, 7224BG P5 FY, 7224-BG-P5-FY, 7224BGP5, 7224BG, 7224B, 7224, AB3C-5 (carton marking).
Cross-Reference 1: SKF 7224 BEGAM (40°, brass cage; class not verified)
Cross-Reference 2: FAG 7224-B-MP-UA (40°, brass cage, universal pairing)
Cross-Reference 3: Koyo 7224C (15° contact angle, not 40°)

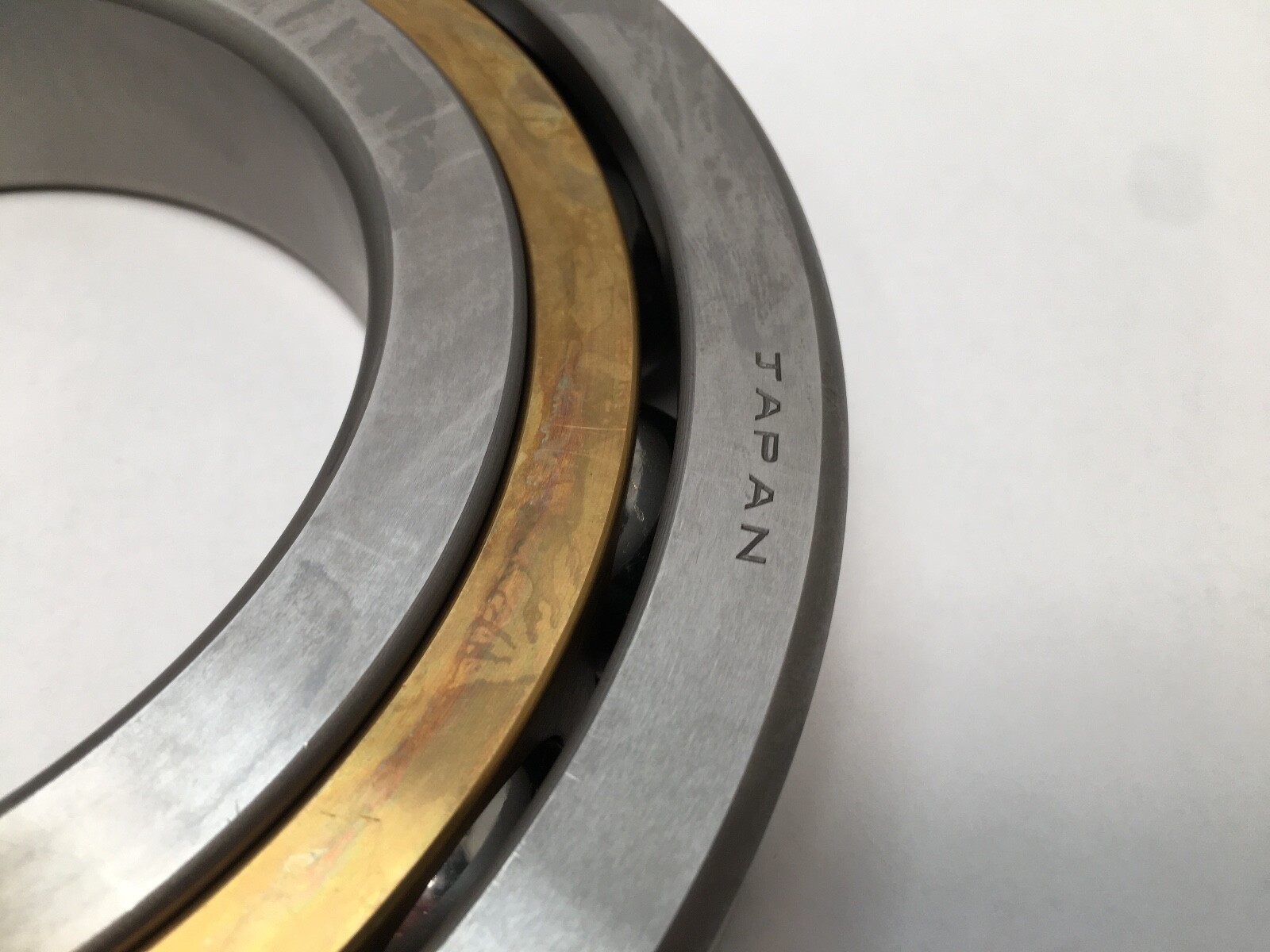

Country of Origin: Japan
Harmonization Code: 8482.10.50
