Availability:
1 in stock
FAG 1215 self-aligning ball bearing, 75 mm bore x 130 mm OD x 25 mm wide, straight bore, open, CN clearance. Double-row design for shaft misalignment.
List Price
$42.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 1215 |
| Model | 1215TV |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Series | 1200 |
|---|---|
| Dynamic Load Rating | 39,000 N |
| Static Load Rating | 15,700 N |
| Rolling Elements | Ball |
| Item Weight | 1.42 kg (3.13 lb) |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.1 |
| Internal Clearance | CN |
| Limiting Speed | 5,700 rpm |
| Base Number | 1215 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, 1200 series |
| Common Misspellings | 1215 FAG, F.A.G. 1215 |
| Application Types | line shafts, fans, conveyors, agricultural machinery, textile machinery |
| Mpn Variants | 1215, FAG 1215, 1215TV, 1215-TVH |
| Compatible With Replaces | Successor: FAG 1215-TVH |
| Additional Attributes | Successor 1215-TVH data: Dynamic Load Rating, Static Load Rating, Limiting Speed and Item Weight rows carry Schaeffler figures for 1215-TVH. Max housing shoulder 121 mm; min shaft shoulder 84 mm; max fillet radius 1.5 mm. |
| Cross Reference 1 | SKF 1215 ETN9 |
|---|---|
| Cross Reference 2 | NSK 1215 |
| Cross Reference 3 | NTN 1215 |
| Cross Reference 4 | Koyo 1215 |
| Cross Reference 5 | FAG 1215-TVH - current successor |

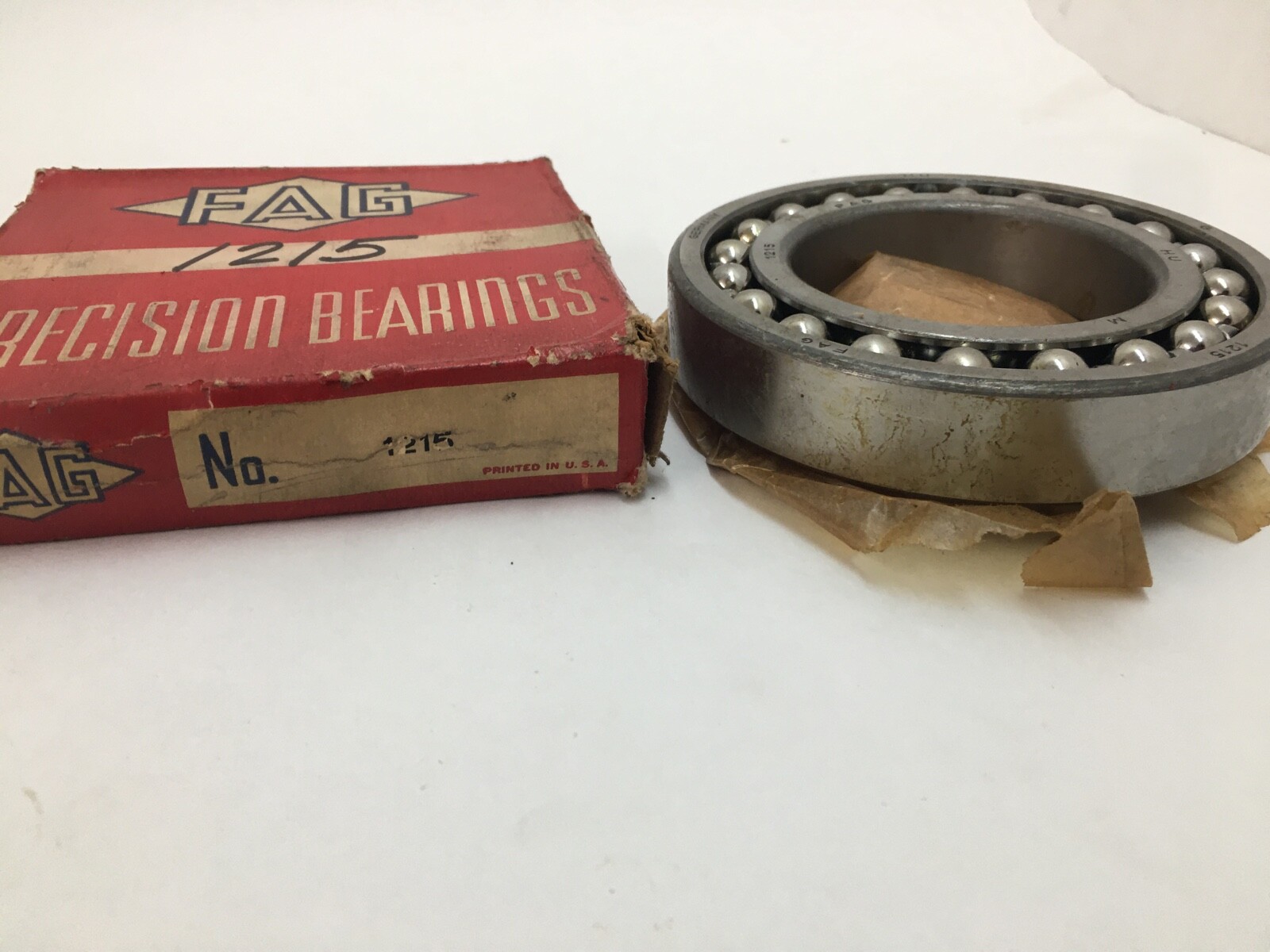

FAG 1215 double-row self-aligning ball bearing with a straight (cylindrical) bore and open faces, 75 x 130 x 25 mm. Unit Quantity: 1 Pc. Condition: new old stock, open box.
12 — FAG 12 series, light-section double-row self-aligning ball bearing (dimension series 02).
15 — bore code; 15 × 5 = 75 mm bore.
No suffix — straight bore, open, normal (CN) internal clearance. The current Schaeffler successor is 1215-TVH, with a glass-fibre reinforced polyamide cage.
Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Series: 1200. Number Of Rows: 2. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Internal Clearance: CN.
FAG 1215-TVH successor data: Dynamic Load Rating: 39,000 N. Static Load Rating: 15,700 N. Limiting Speed: 5,700 rpm. Item Weight: 1.42 kg (3.13 lb).
The spherical outer-ring raceway allows the inner ring, balls and cage to swivel, accommodating static shaft misalignment and shaft deflection. FAG 1215-TVH successor data: Maximum housing shoulder diameter: 121 mm. Minimum shaft shoulder diameter: 84 mm. Maximum fillet radius: 1.5 mm.
Cross-references: SKF 1215 ETN9, NSK 1215, NTN 1215, Koyo 1215. Schaeffler successor: FAG 1215-TVH. The tapered-bore version is FAG 1215-K-TVH.
Bore 75 mm, outside diameter 130 mm, width 25 mm, straight bore.
The current Schaeffler successor is FAG 1215-TVH, with a glass-fibre reinforced polyamide cage.
It is the bore code; 15 x 5 = 75 mm bore.
