Open deep groove ball bearing, 100 x 150 x 24 mm, 66,500 N dynamic rating, pressed steel cage, normal CN clearance. NTN 6020, ISO 10-series section.
List Price
$60.71
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6020 |
| Model | 6020 |
| Bearing Type | Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6000 |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 66,500 N |
| Static Load Rating | 54,000 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.15 kg (2.54 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,200 rpm grease; 5,000 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.68 |
| Bearing Material | High carbon chrome steel |
| Closure Type | Open |
| Base Number | 6020 |
| Industry Terms | deep groove ball bearing; radial ball bearing; Conrad bearing; open ball bearing; 100 mm bore ball bearing; single row radial bearing |
| Common Misspellings | NTN 6O20; NTN6020; NNT 6020; NTN 602O; NTN 6020 open |
| Application Types | electric motors; pumps; gearboxes; fans and blowers; general industrial machinery |
| Cross Reference 1 | SKF 6020 |
|---|---|
| Cross Reference 2 | FAG 6020 |
| Cross Reference 3 | NSK 6020 |
| Cross Reference 4 | Koyo 6020 |
| Cross Reference 5 | Nachi 6020 |

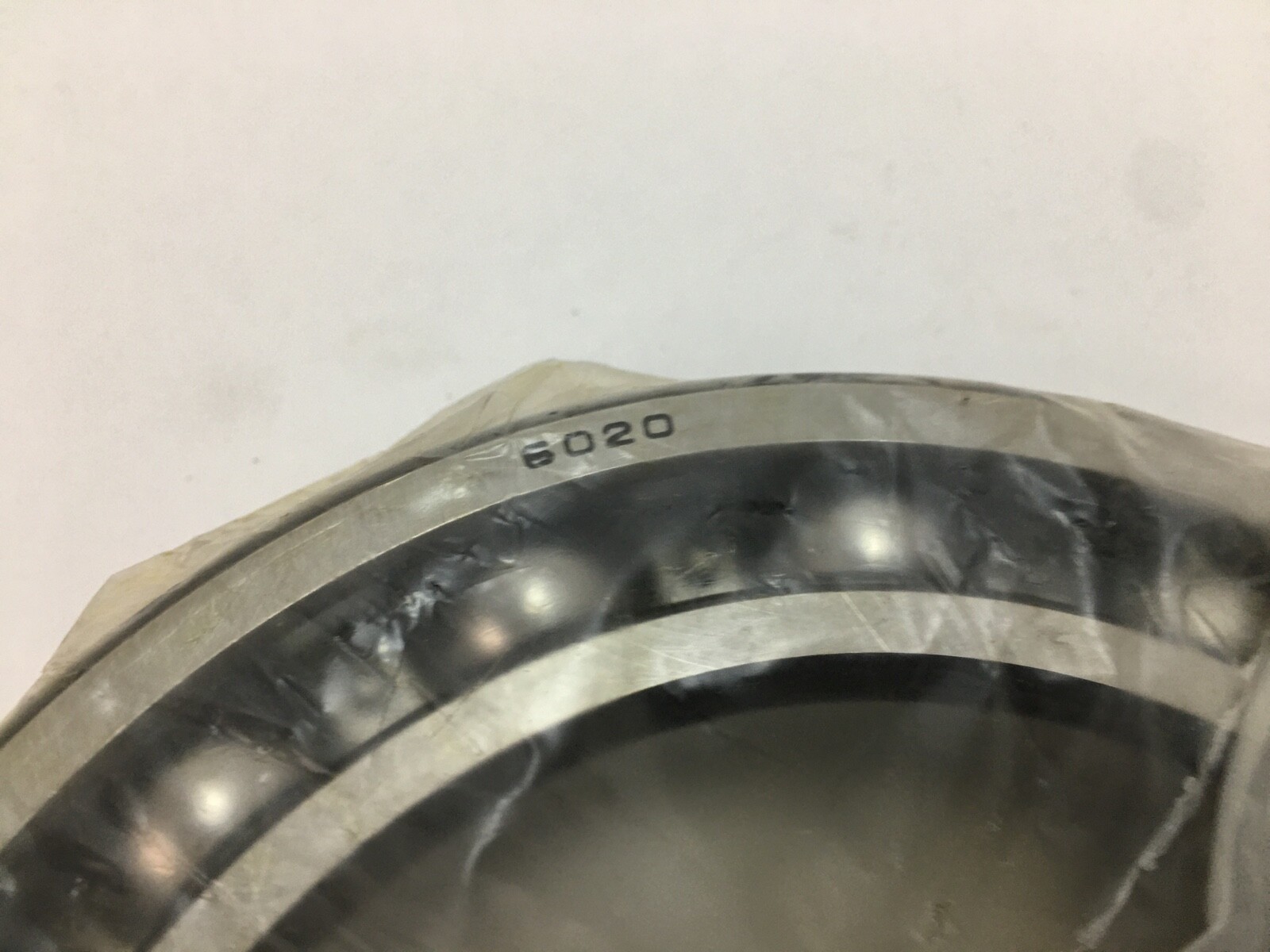

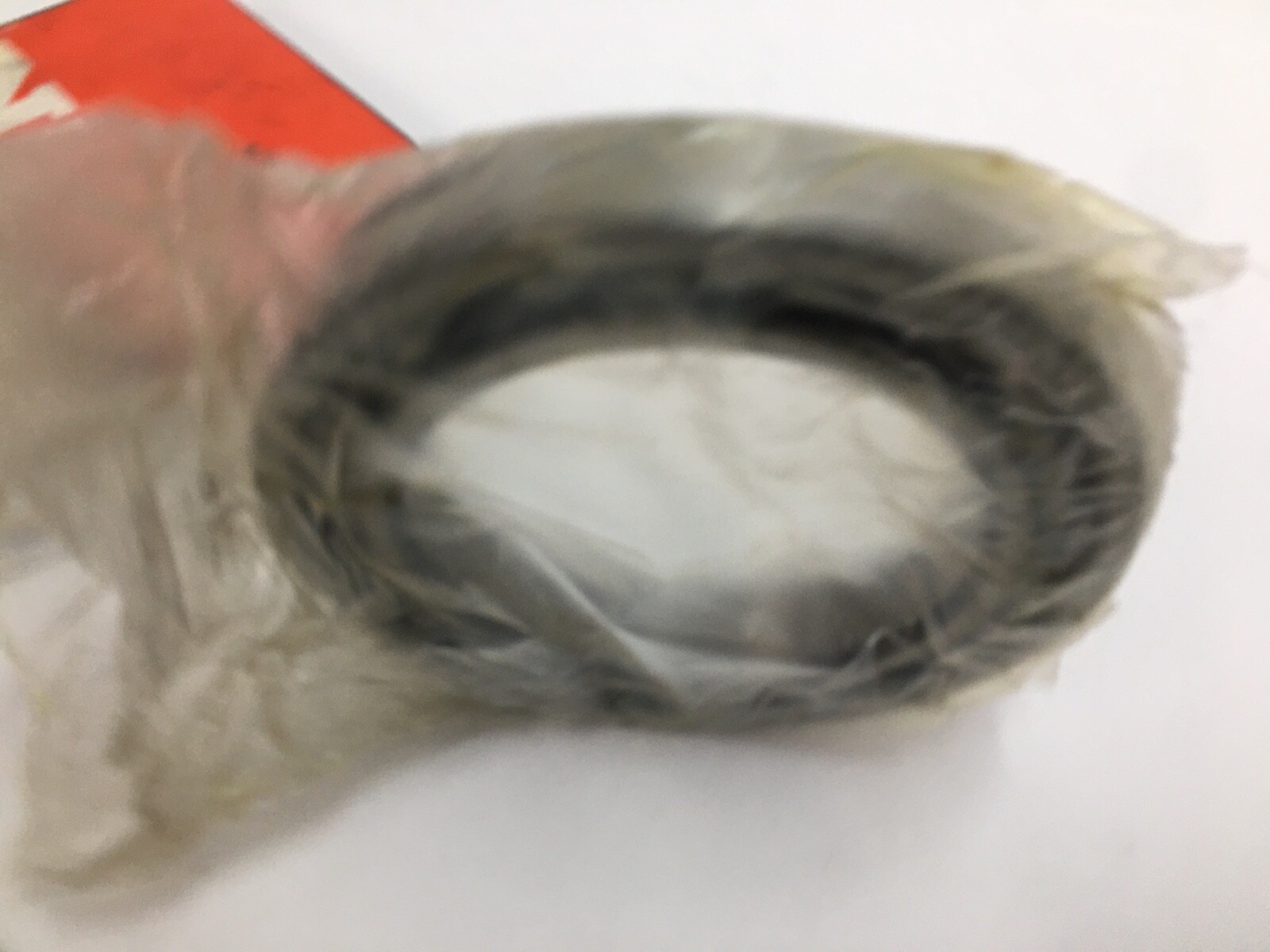

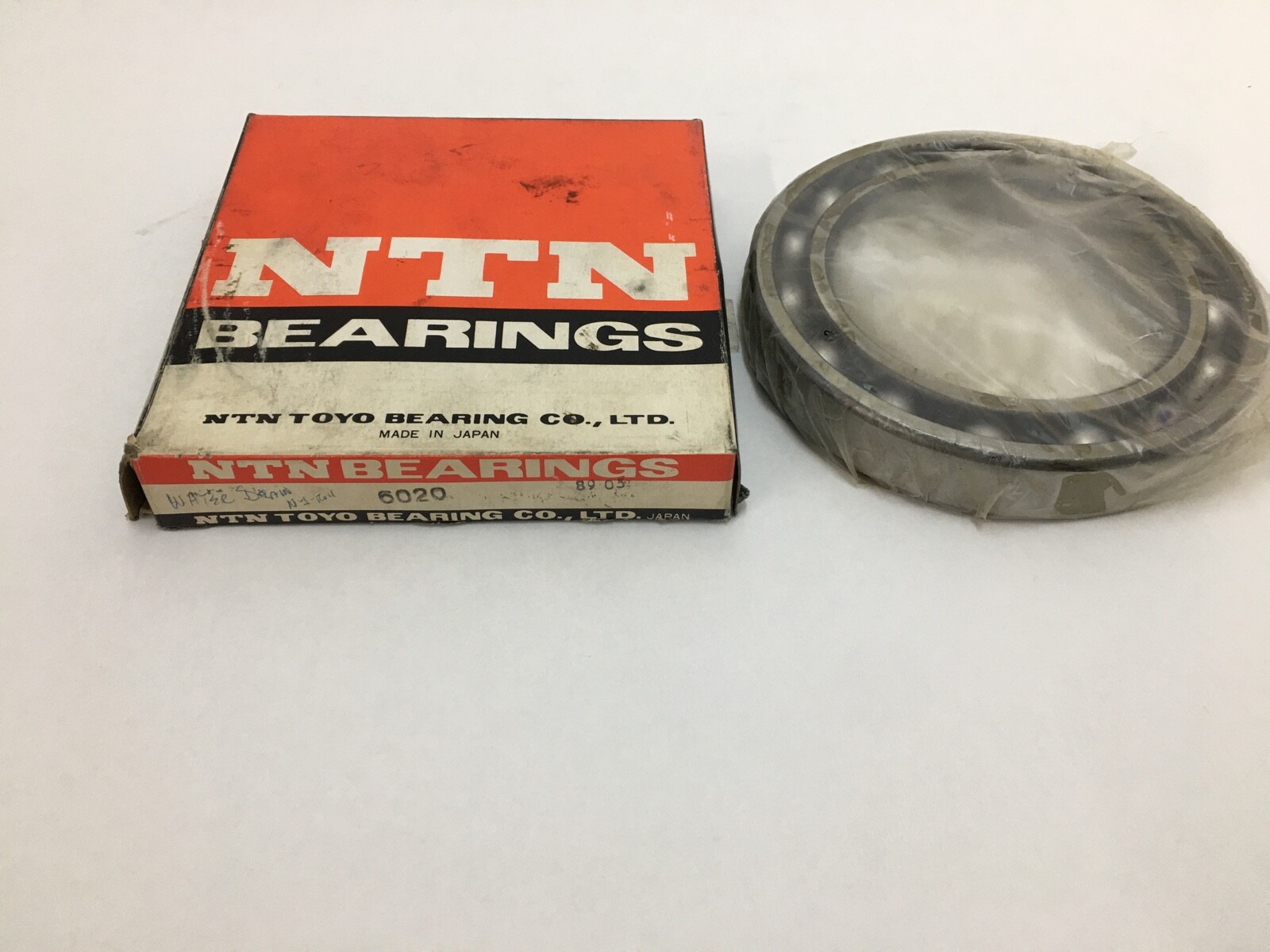

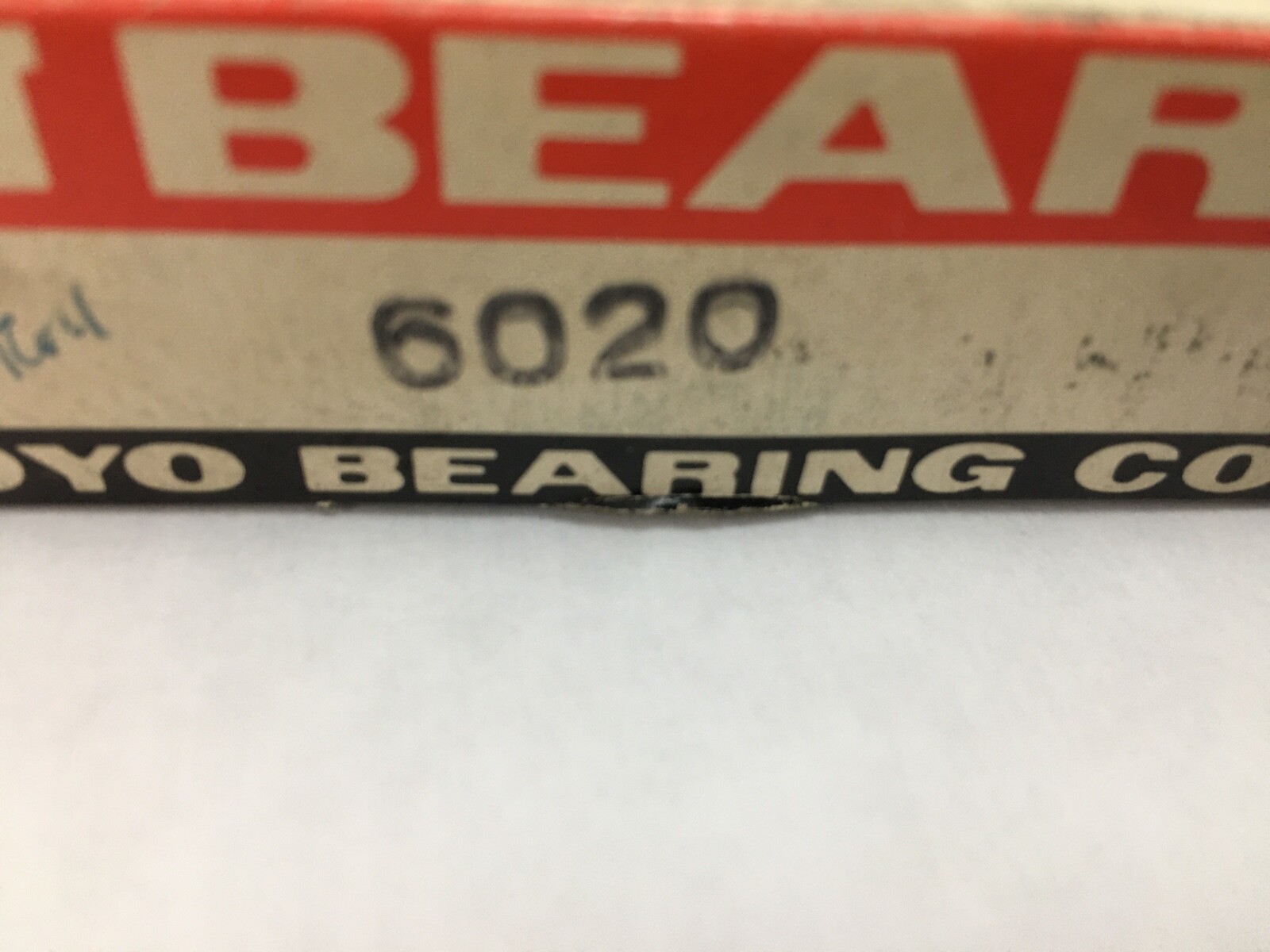

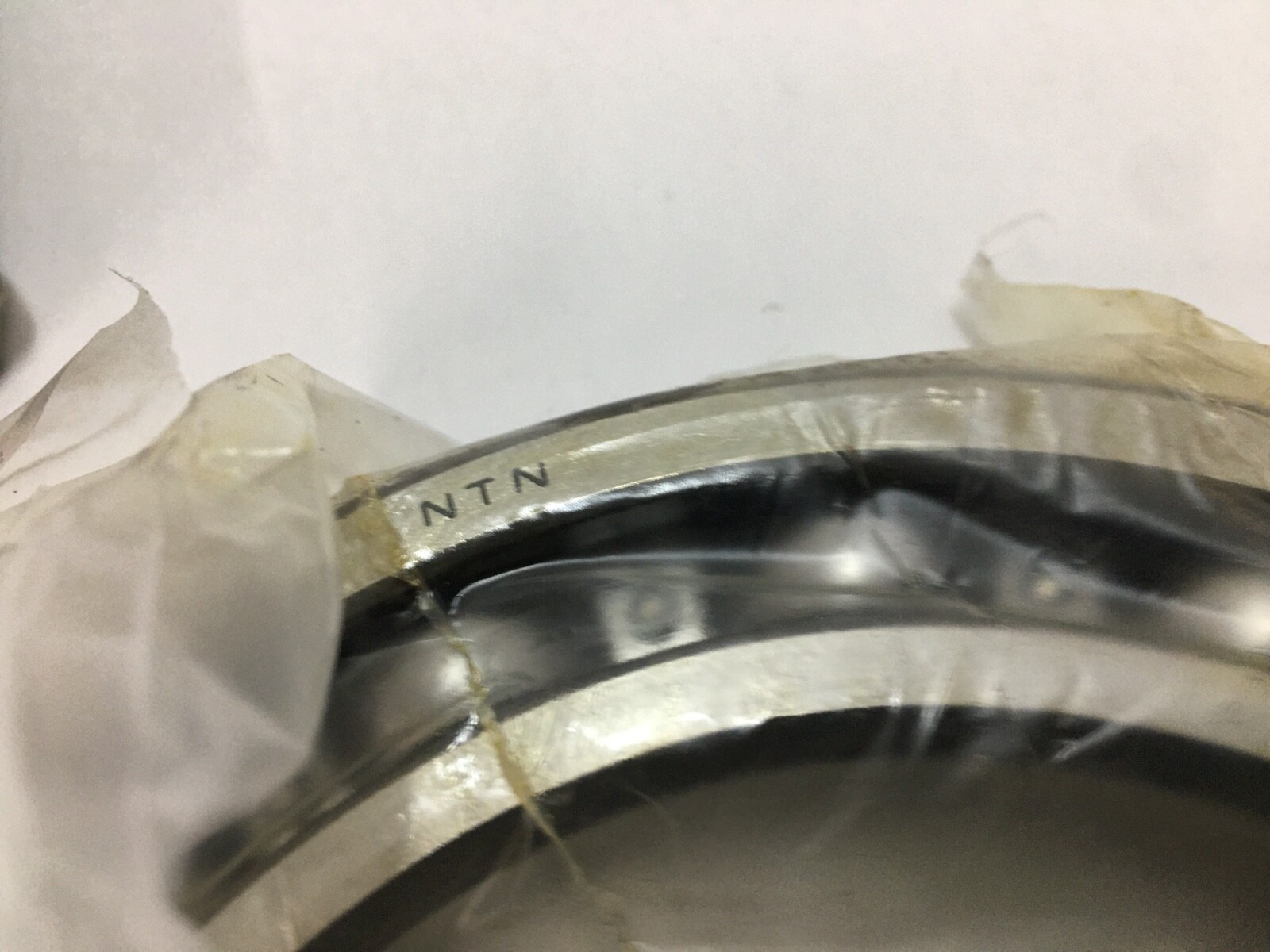

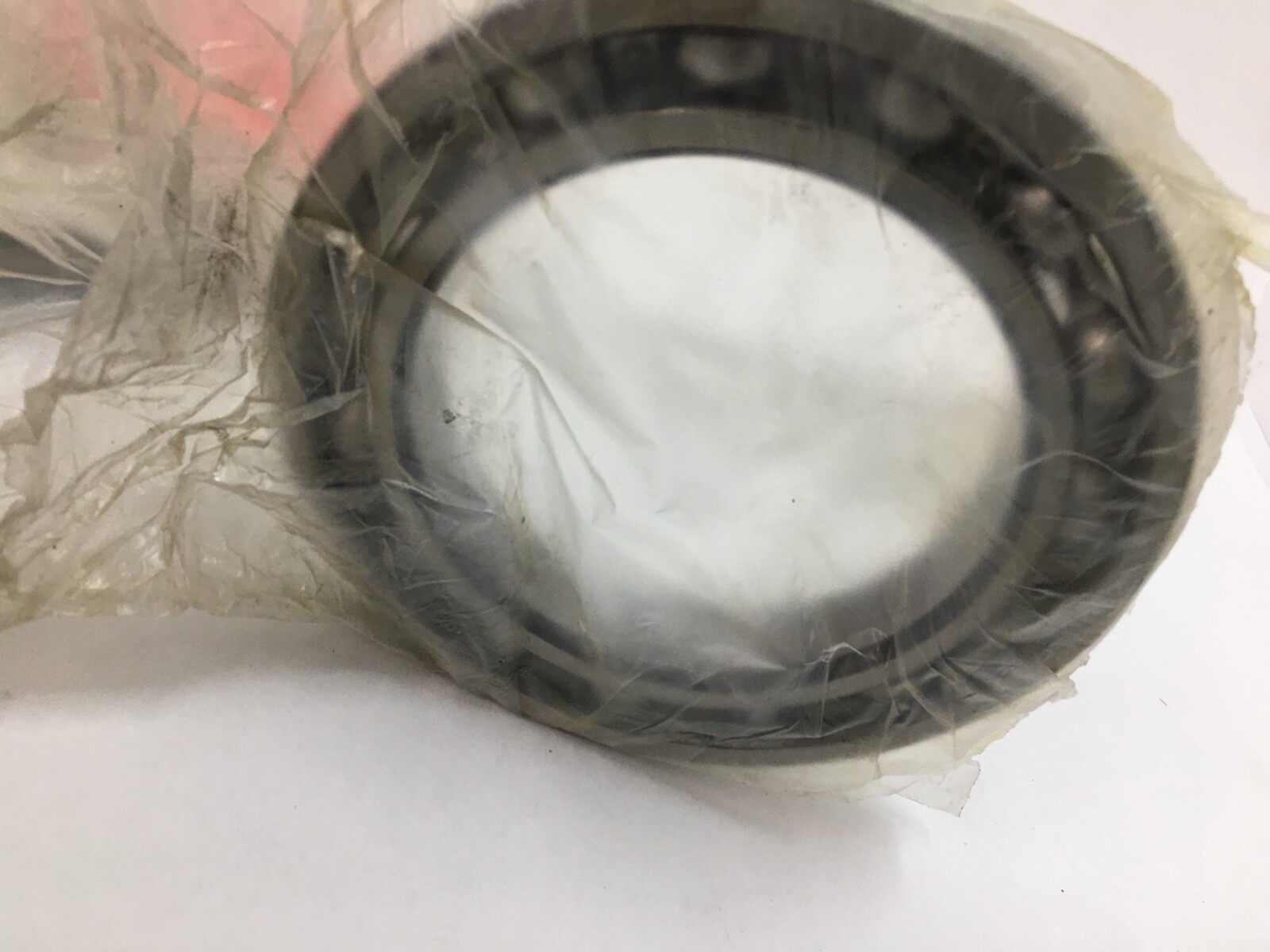

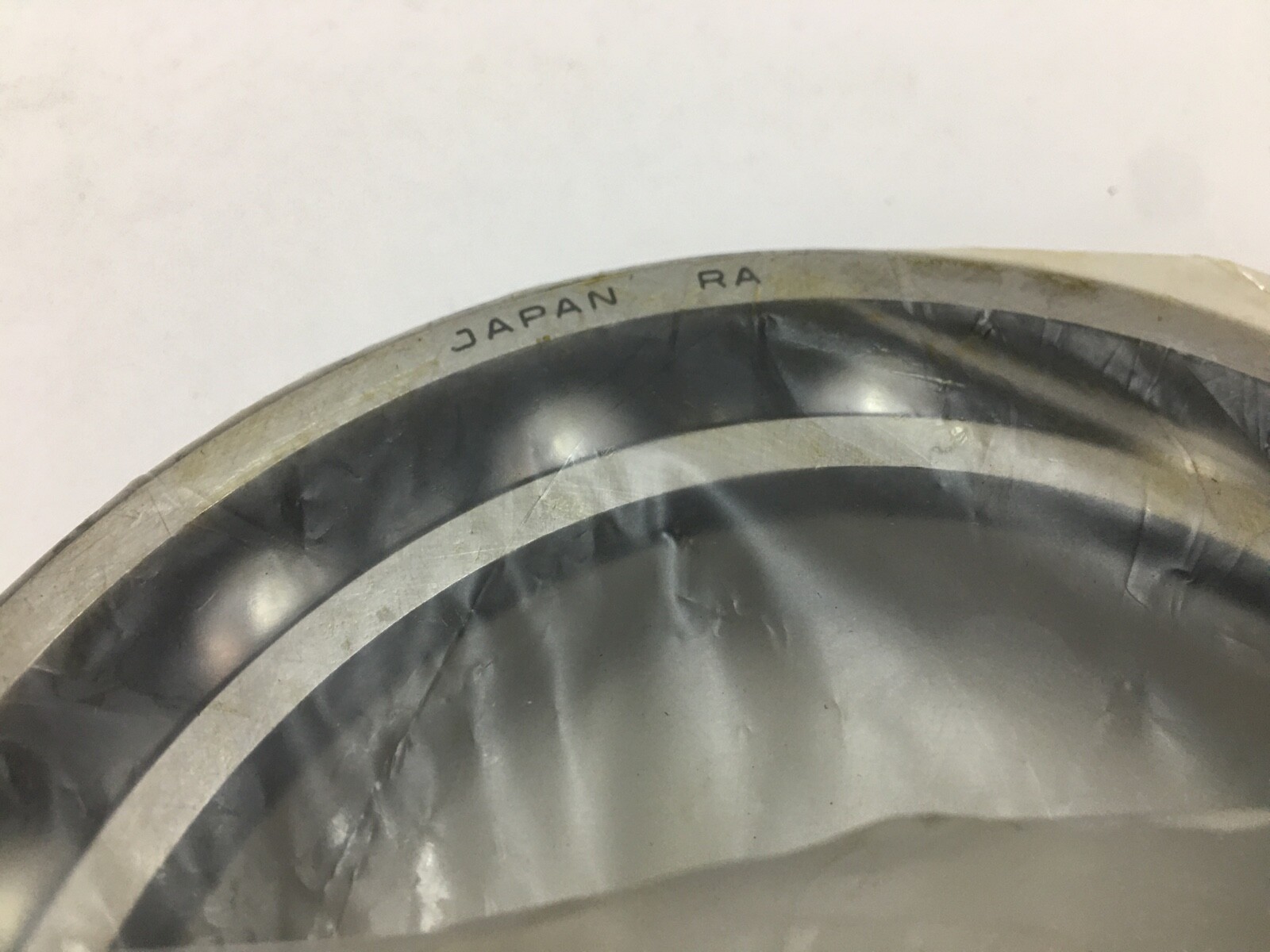

NTN 6020 is an open single-row deep groove ball bearing in the ISO 6020 size. Bore Diameter: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. Seal Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Bearing Material: High carbon chrome steel. Cage Material: Pressed steel. Internal Clearance: CN.
60 — NTN 10 dimension series, the extra-light deep groove section.
20 — bore code: 20 x 5 = 100 mm bore.
Dynamic Load Rating: 66,500 N. Static Load Rating: 54,000 N. Limiting Speed: 4,200 rpm grease; 5,000 rpm oil. Item Weight: 1.15 kg (2.54 lb). Operating Temperature: -40 to 120 °C. Series: 6000. Harmonization Code: 8482.10.50.68. Unit Quantity: 1 Pc.
Fillet Radius r min: 1.5 mm. Shaft Abutment da min: 108 mm. Housing Abutment Da max: 142 mm. Max Fillet ras: 1.5 mm.
SKF 6020, FAG 6020, NSK 6020, Koyo 6020 and Nachi 6020 are open 6020 bearings with the 100 x 150 x 24 mm boundary size.
100 mm bore, 150 mm outside diameter, 24 mm width.
Dynamic 66,500 N and static 54,000 N.
4,200 rpm with grease and 5,000 rpm with oil.
