This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double Row Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 39.67 mm Width, 30° Contact Angle, Open, Straight Bore$67.39
Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Medium Preload.$76.48
Single Row Angular Contact Ball Bearing, 70 x 125 x 24 mm, 40 Degree, Open, Polyamide Cage$78.74
Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Medium Preload.$84.13| MFR / Brand | INA |
|---|---|
| MPN | 32142RS |
| Model | 3214-2RS |
| Bearing Type | Angular Contact Ball Bearing, Double Rubber Seal |
| ID | 70 mm |
| OD | 125 mm |
| Width | 1-9/16 in |
| Series | 3200 |
|---|---|
| Lubricant | Grease |
| Material | Bearing Steel |
| Min Temp | -20 °C |
| Cage Type | Stamped |
| Dynamic Load Rating | 82 kN / 18430 lbf |
| Static Load Rating | 79 kN / 17760 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Balls |
| Max Temp | 110 °C |
| Item Weight | 3.70 lbs |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Internal Clearance | CN |
| Limiting Speed | 3100 rpm |
| Cross Reference 1 | SKF 3214 A-2RS1 |
|---|---|
| Cross Reference 2 | FAG 3214-B-2RSR |
| Cross Reference 3 | NTN 5214LLU |

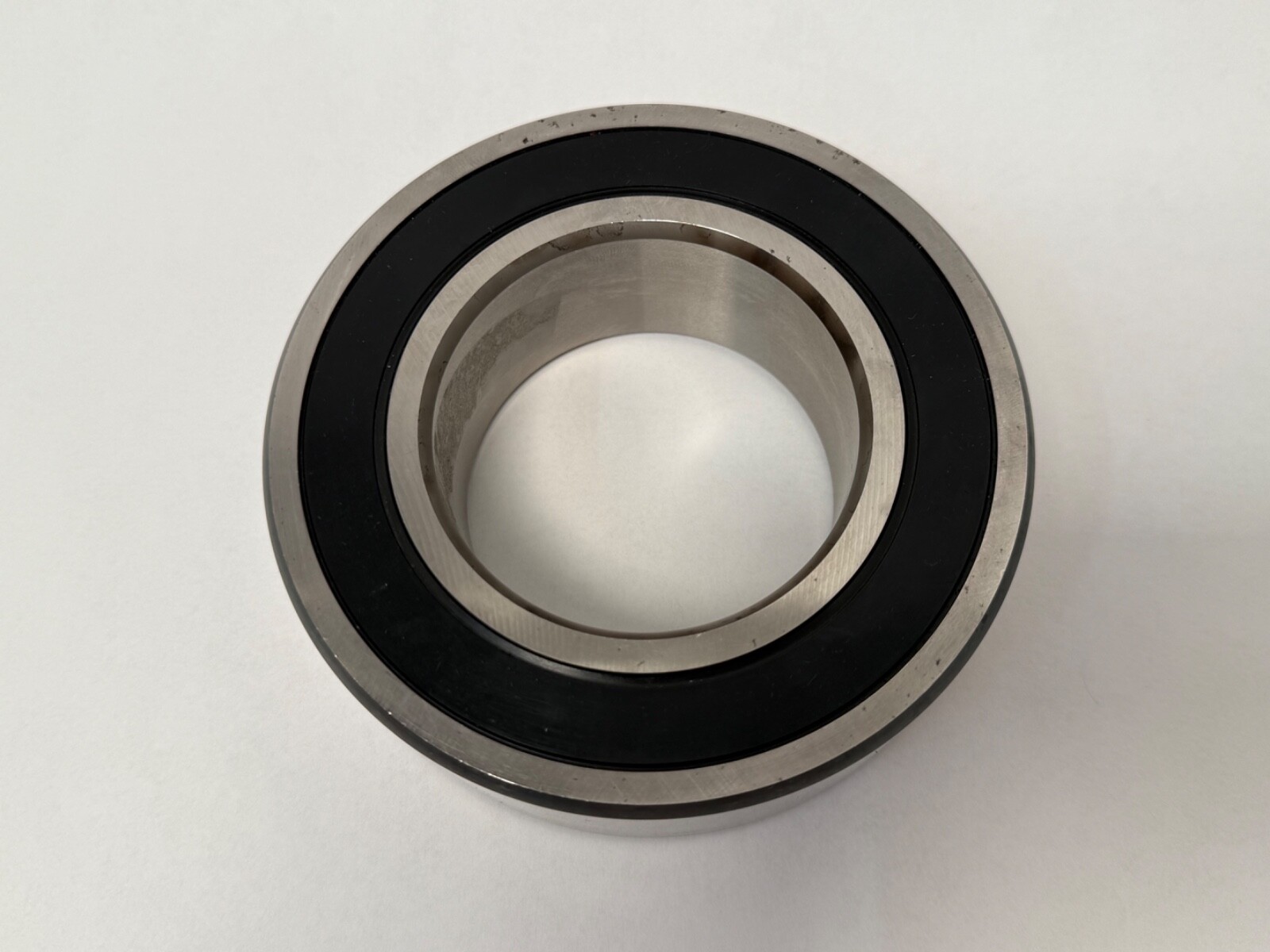

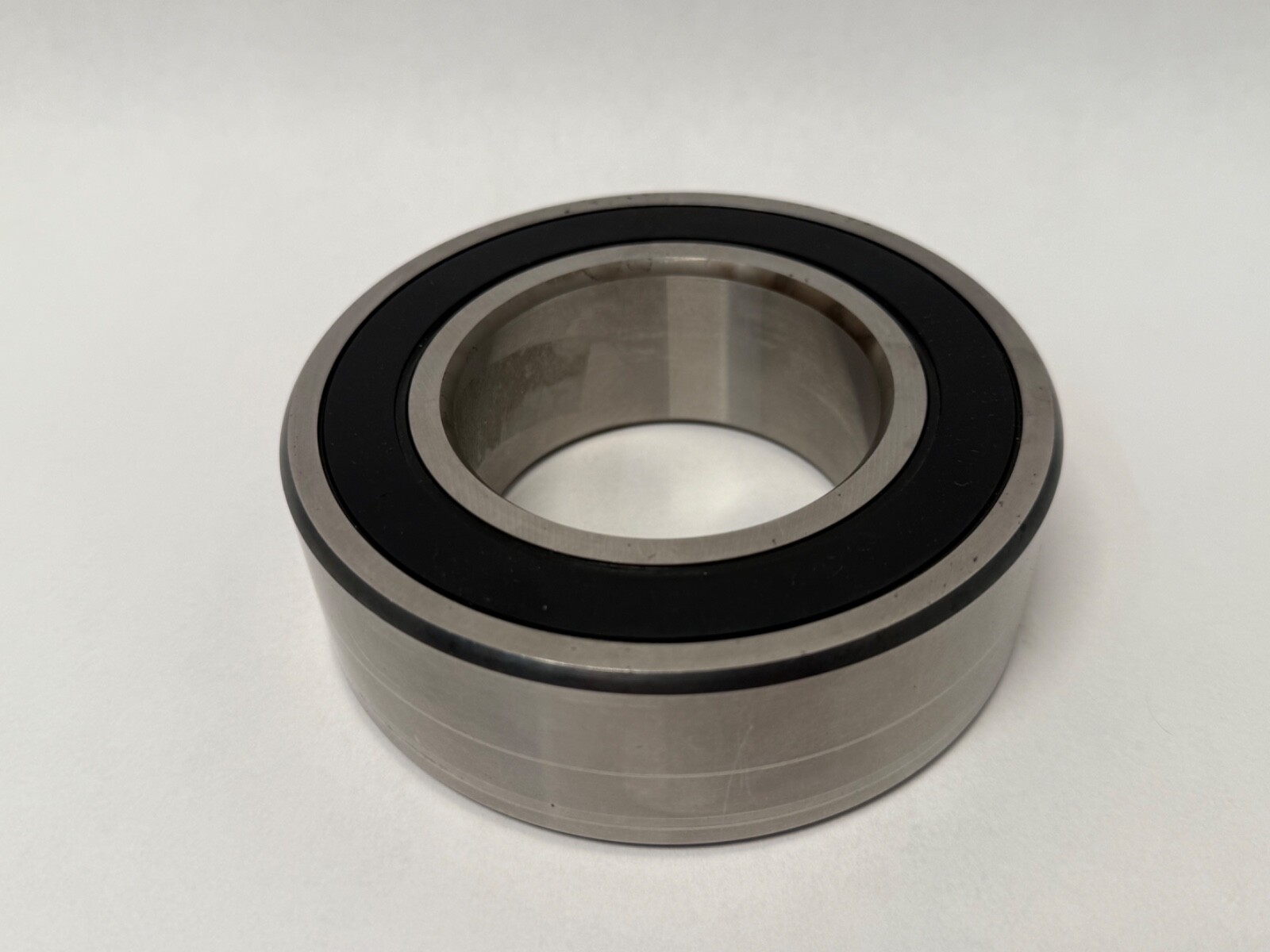

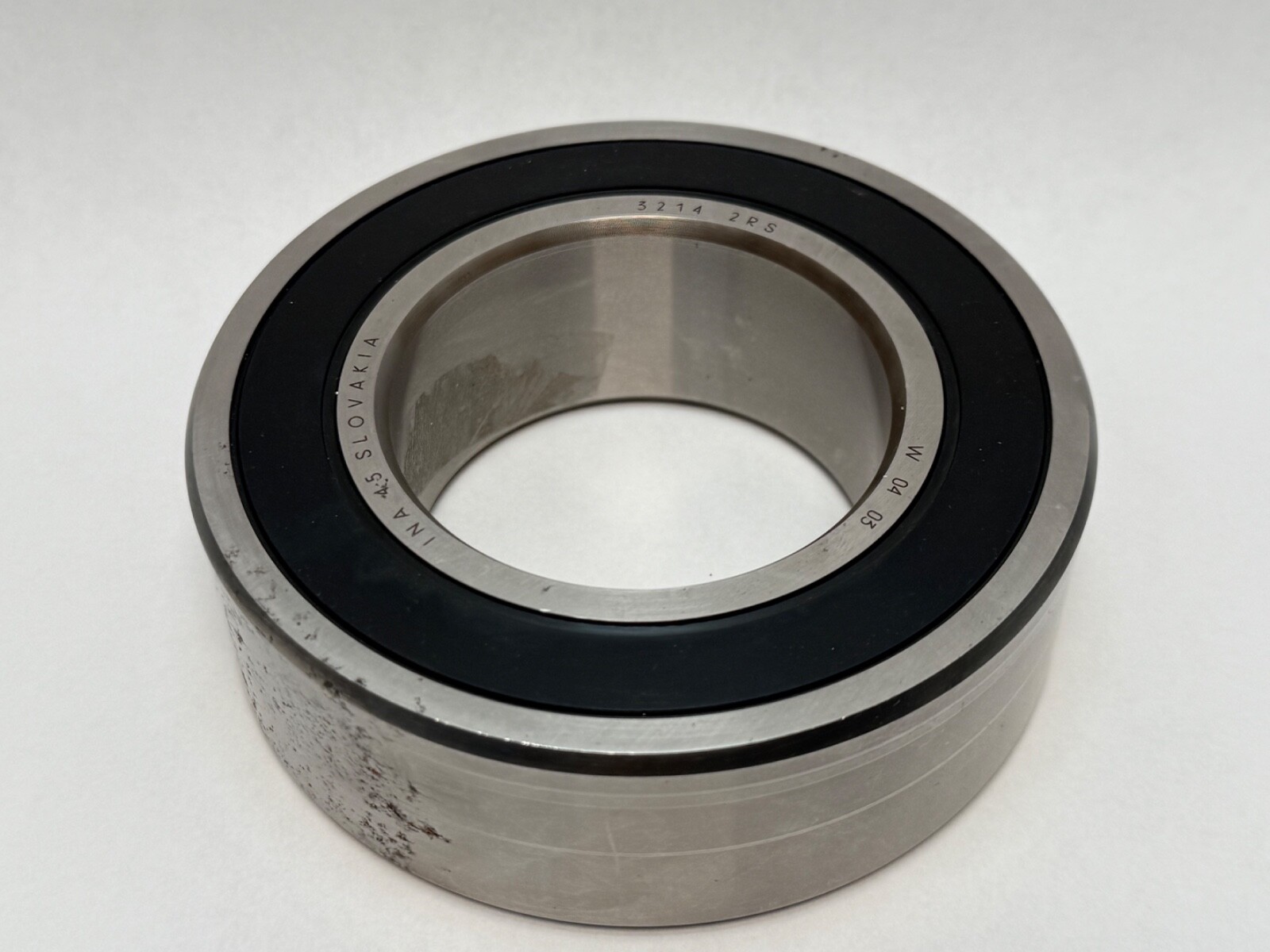

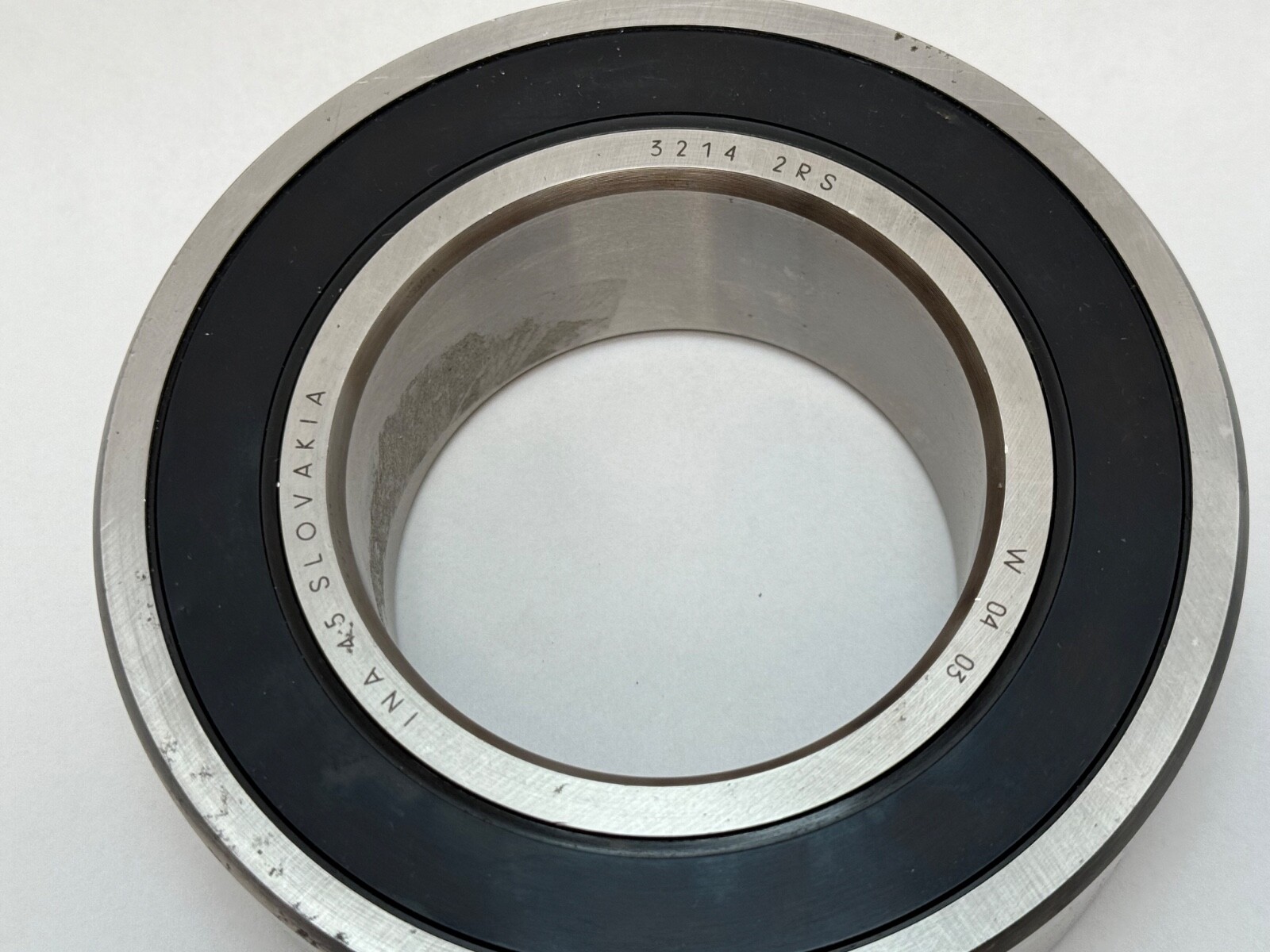

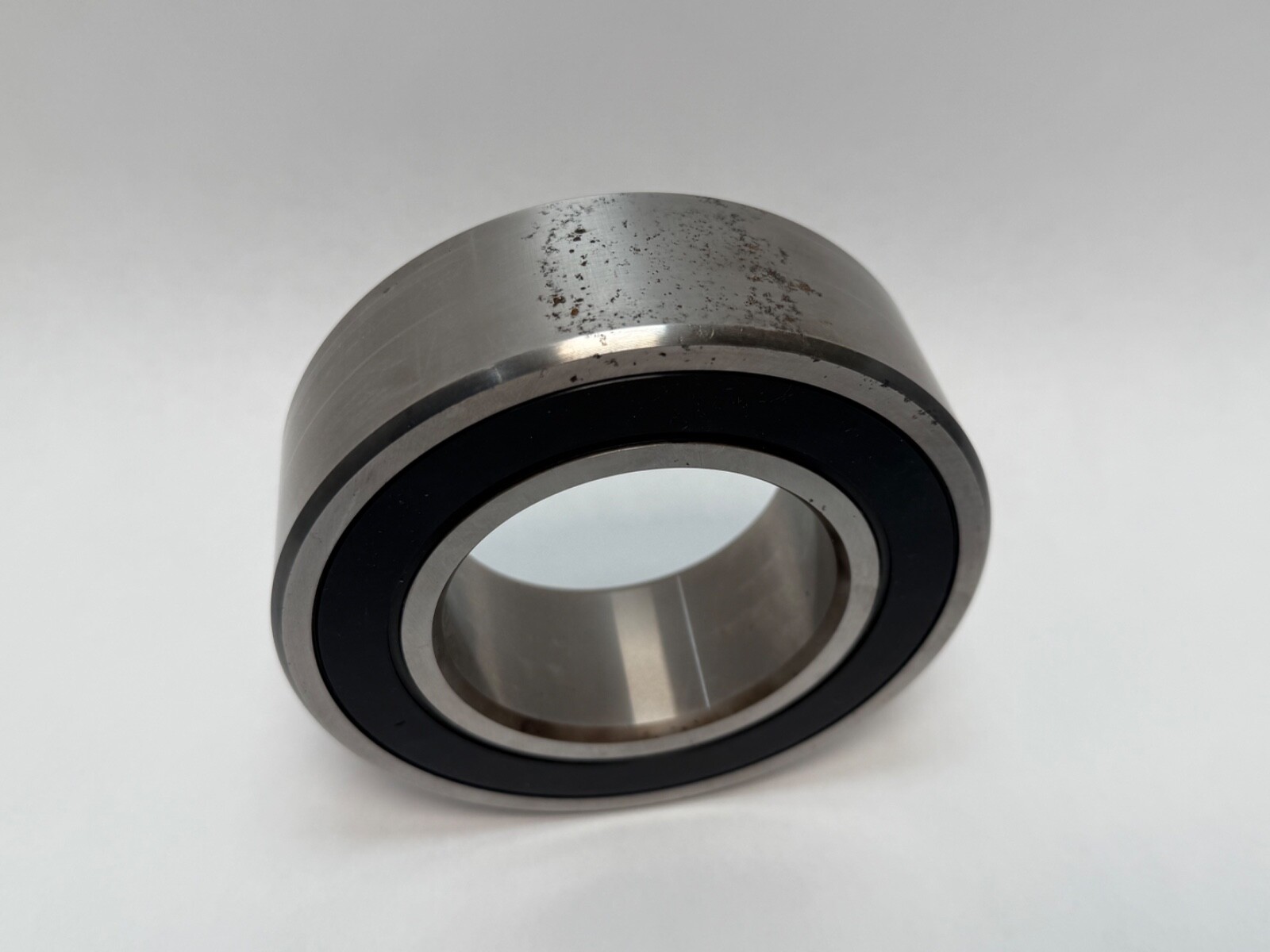

Angular Contact Bearing – 70 mm ID, 125 mm OD, 39.7 mm Width, Double Rubber Seal, 25° Contact Angle, CN Internal clearance
$231.30
29 in stock
