Availability:
3 in stock

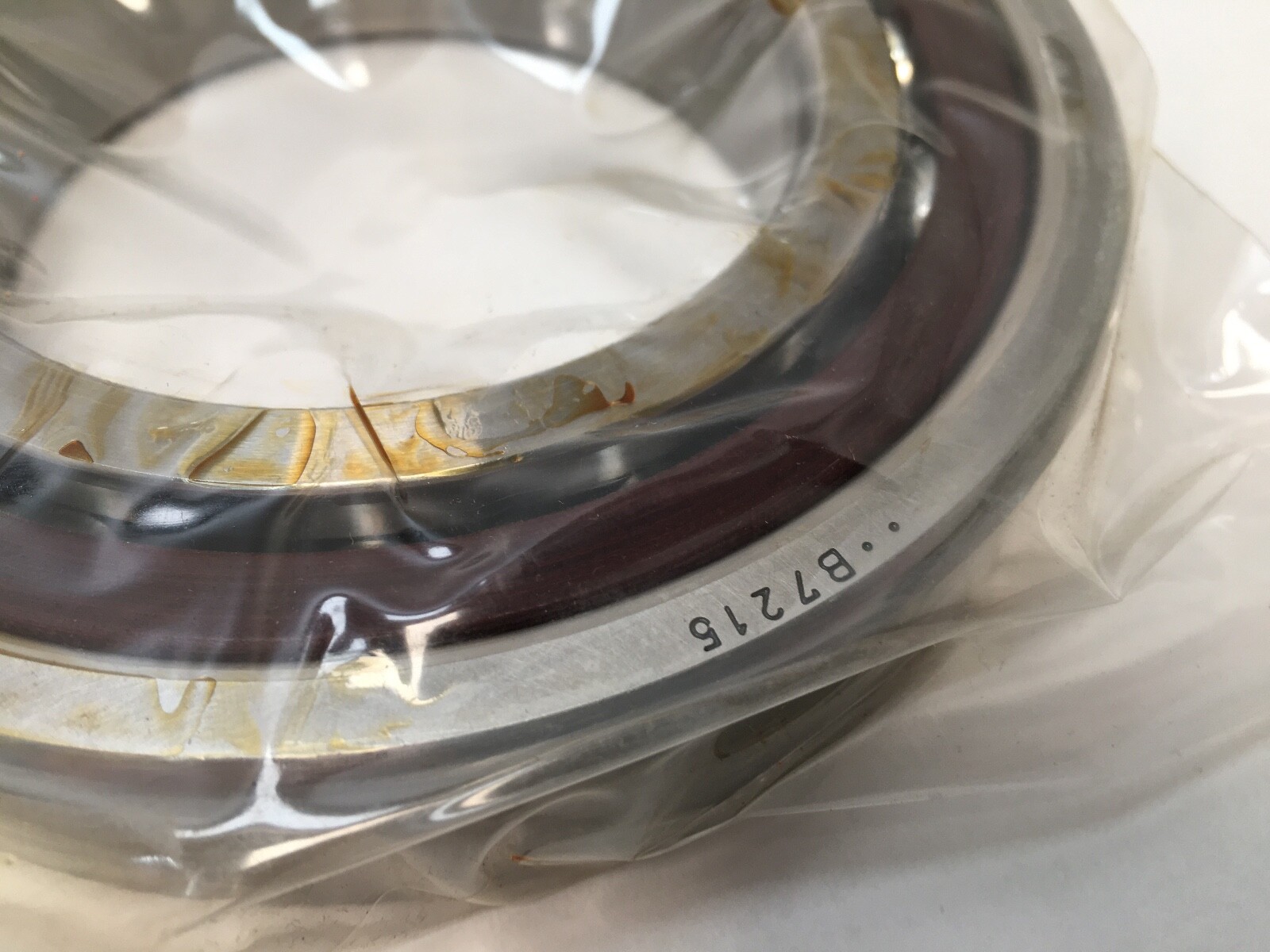

Angular contact spindle bearing, 75 x 130 x 25 mm, 15° contact angle, Medium preload 1,314 N. FAG B7215C.TPA.P4S.UM, phenolic cage, P4S, Cr 73,000 N.
List Price
$231.51
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7215CTPAP4K5UM |
| Model | B 7215C TPA P4 K5 UM / 215HCDUM / 2MM215 / 7215CTRSUMP4Y |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | High Carbon Chromium Steel |
|---|---|
| Industry Terms | super precision spindle bearing, angular contact ball bearing, machine tool spindle bearing, universal matched bearing |
| Mpn Variants | B7215CTPAP4K5UM, B7215C.TPA.P4S.UM, B-7215-C-TPA-P4-K5-UM, B7215-C-T-P4S-UM, B7215C |
| Precision Class | ABEC 7 / P4S |
| Additional Attributes | Fatigue load limit 4,650 N; shaft shoulder 85 mm; housing shoulder 120 mm; pressure cone apex distance 26.2 mm |
| Min Temp | -30 °C |
| Dynamic Load Rating | 73,000 N |
| Static Load Rating | 44,500 N |
| Series | B72 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 1.183 kg (2.61 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | Medium (1,314 N) |
| Mounting Arrangement | Universal (U) |
| Cross Reference 1 | SKF 7215 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7215C |
| Cross Reference 3 | Fafnir 2MM215WI |

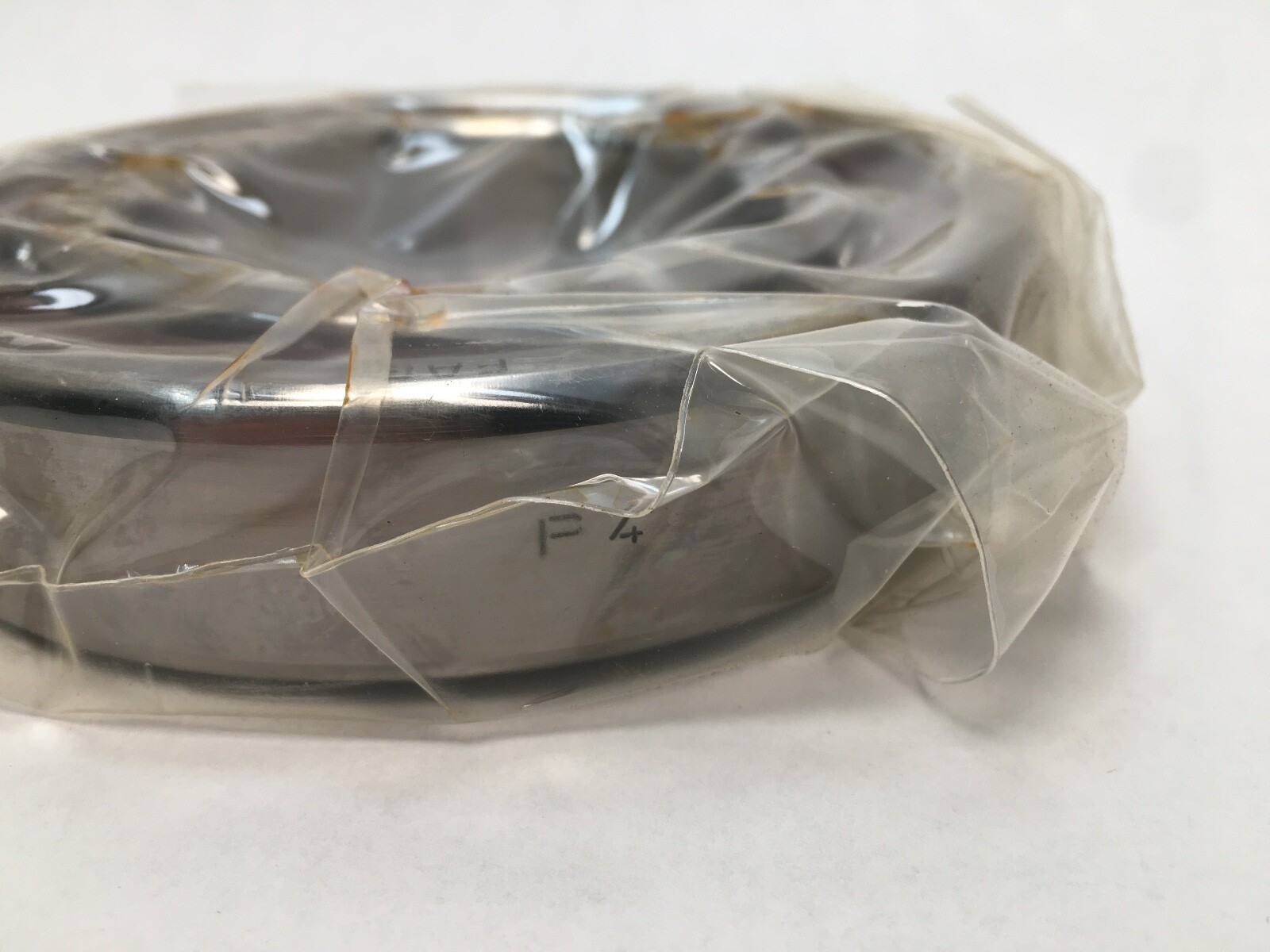

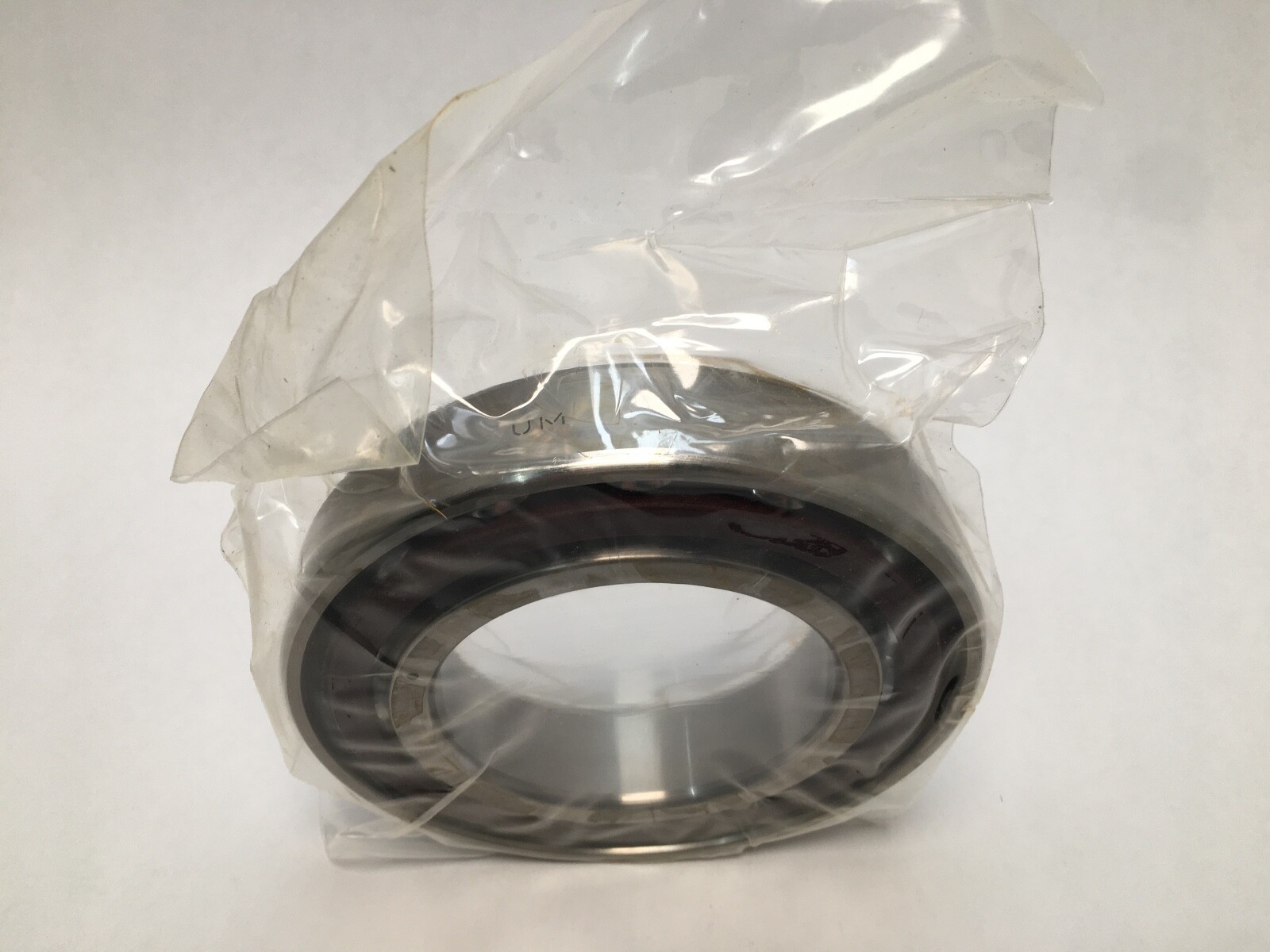

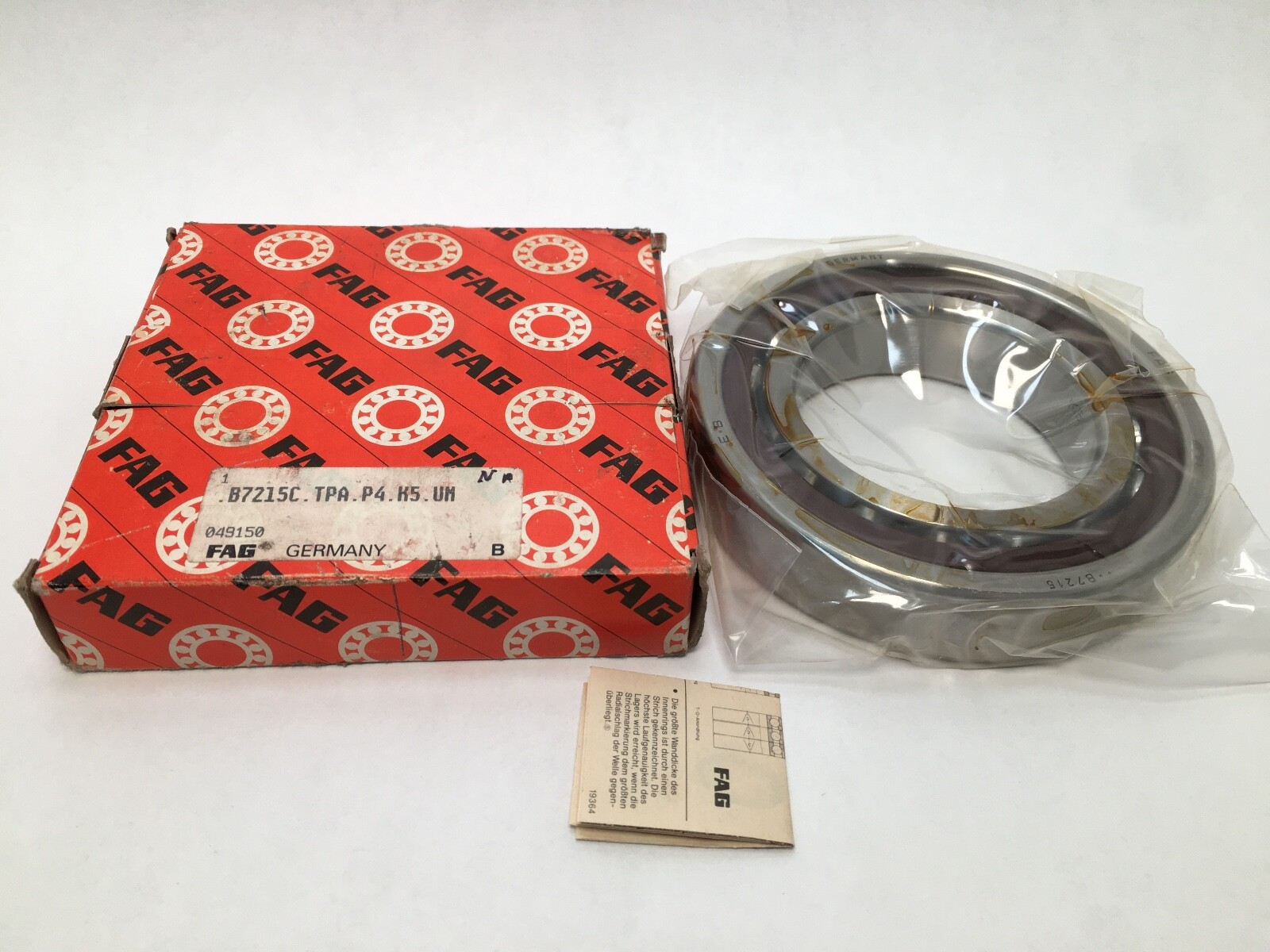

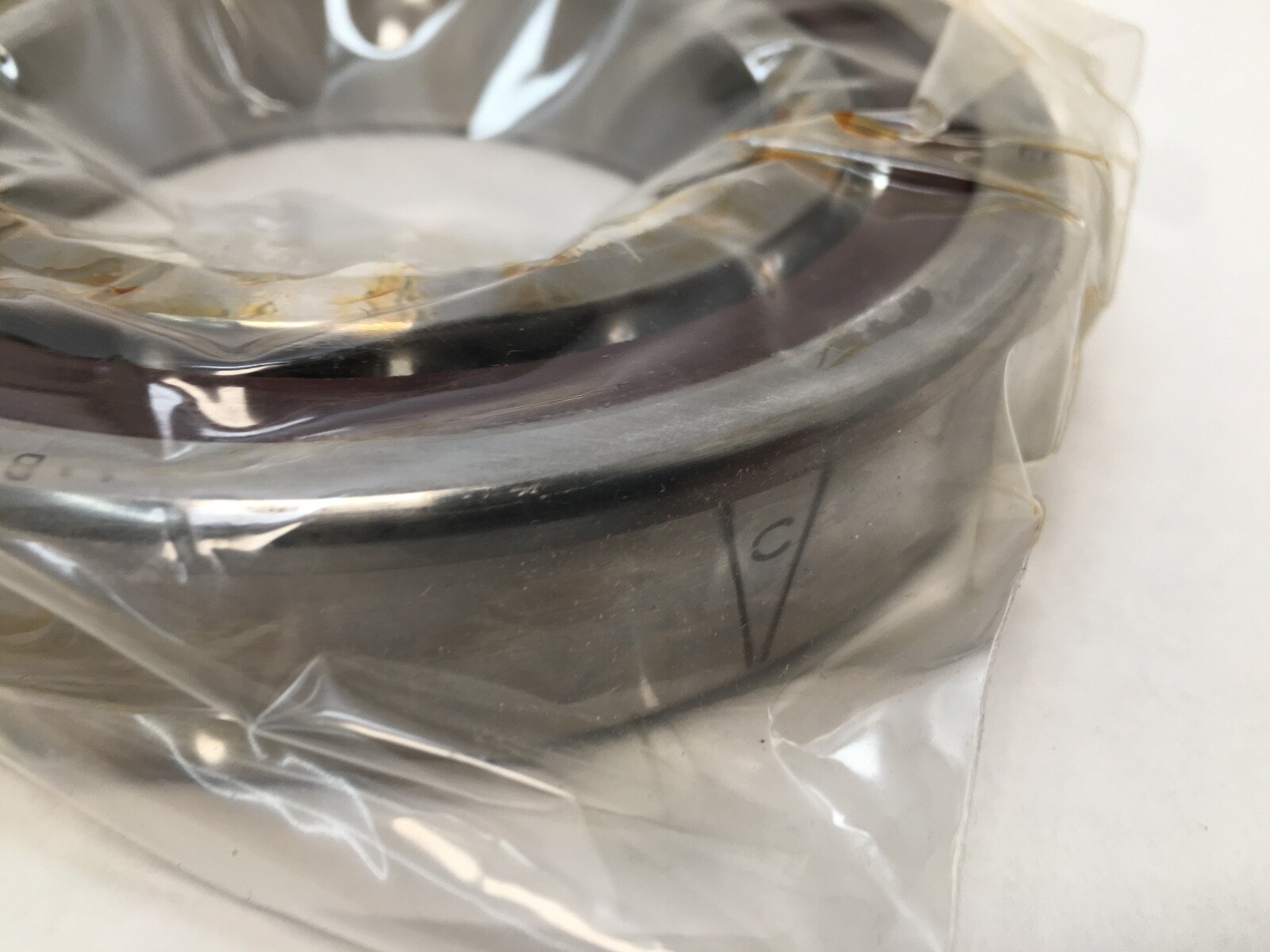

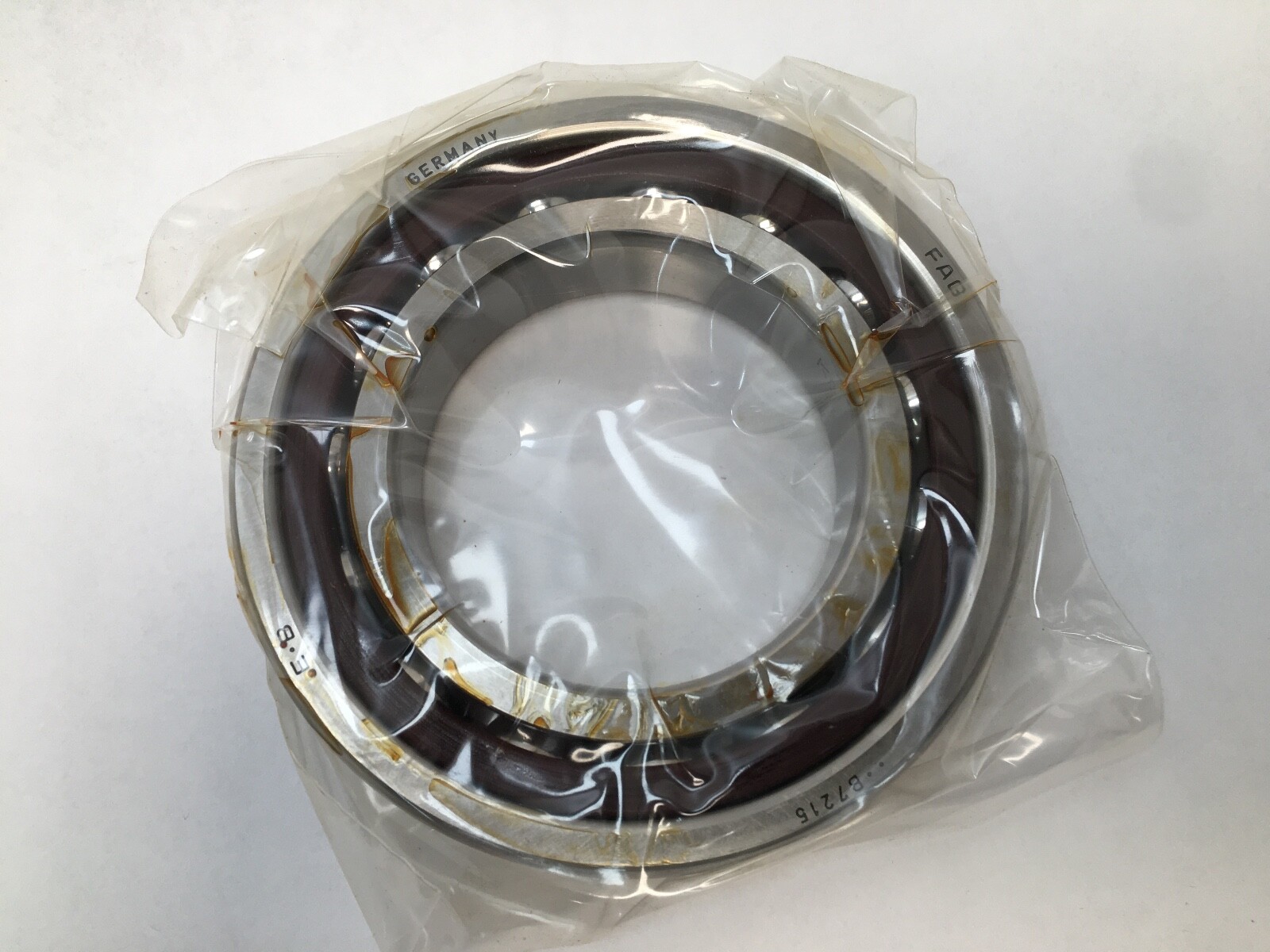

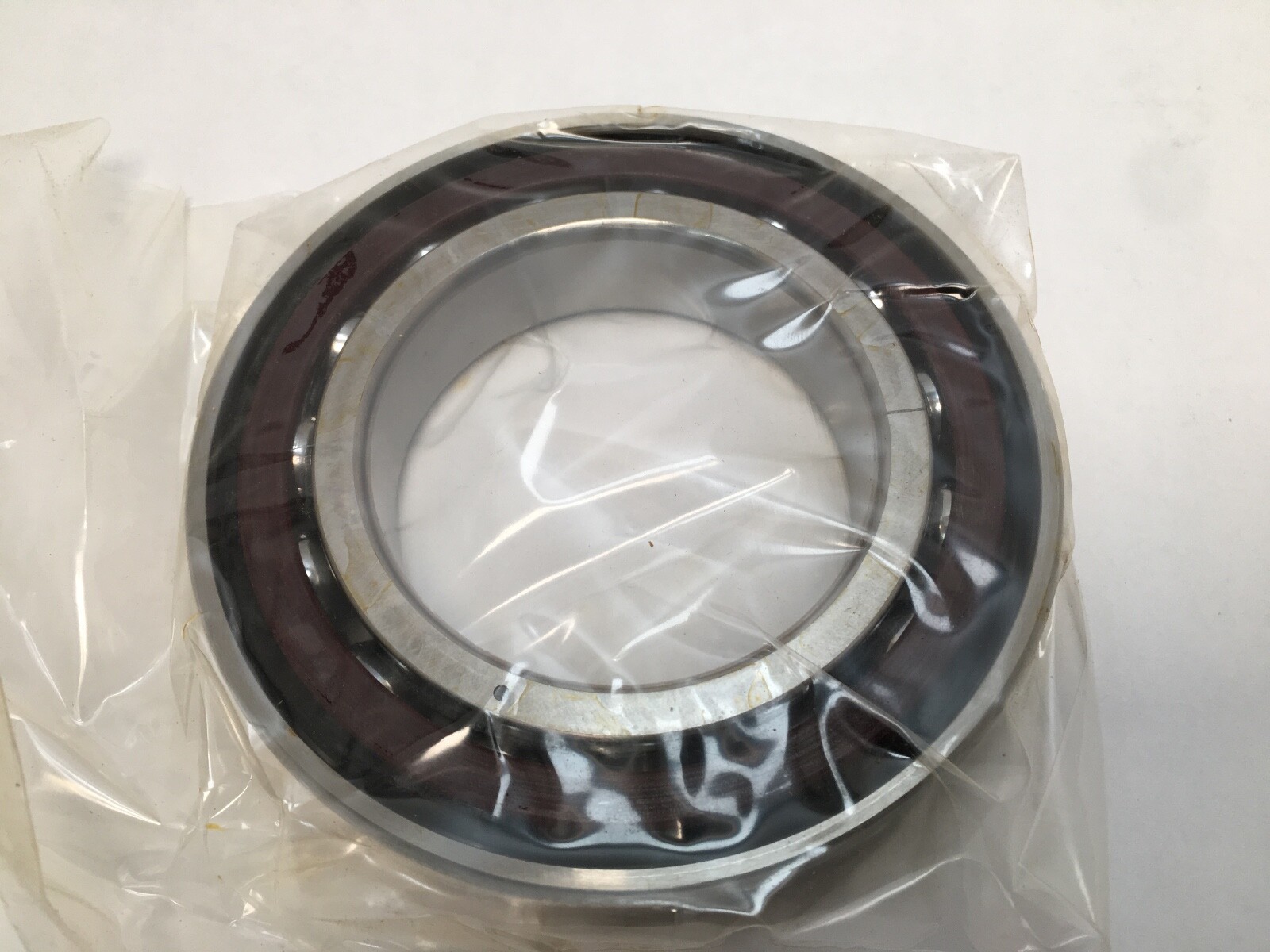

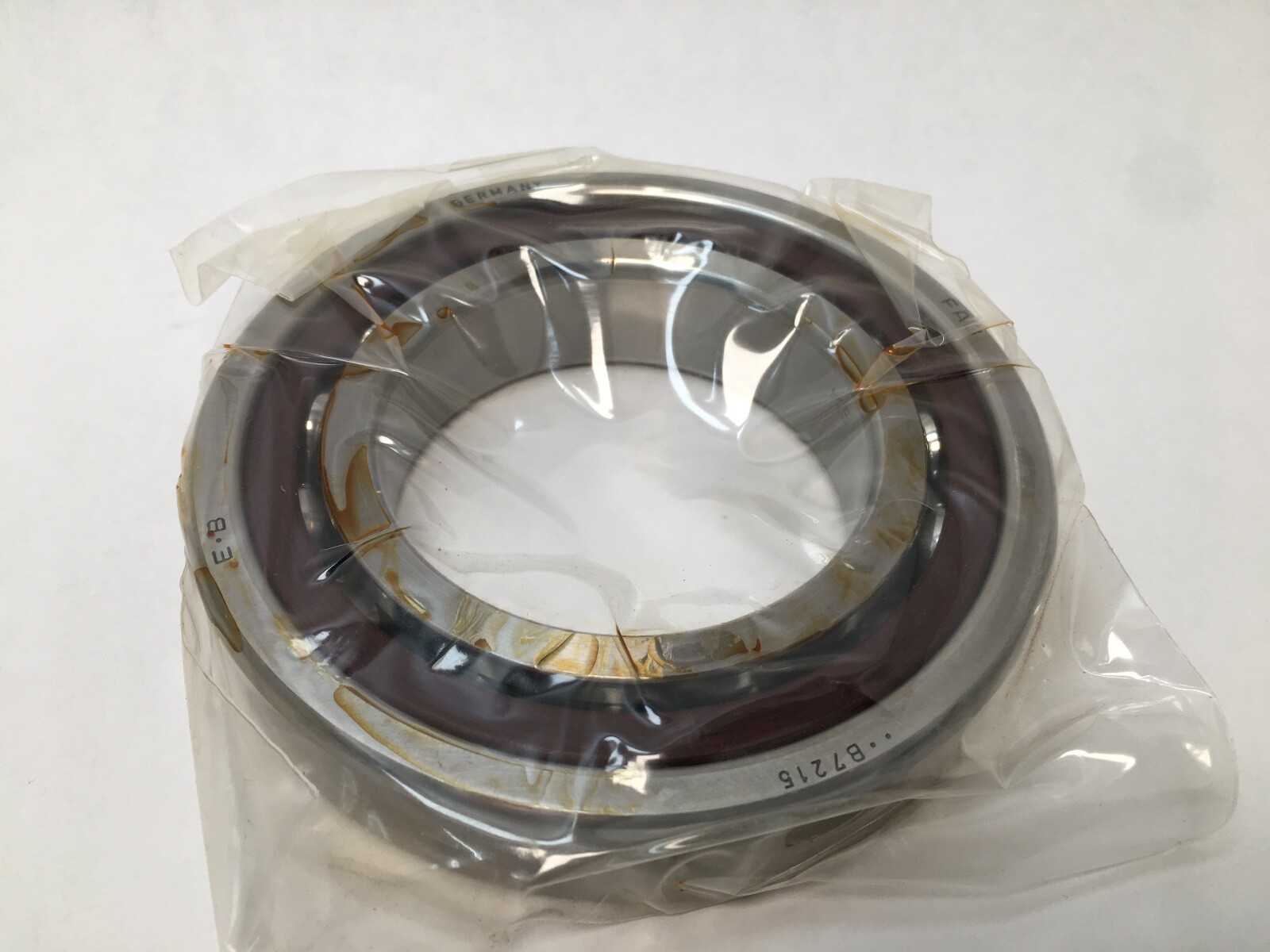

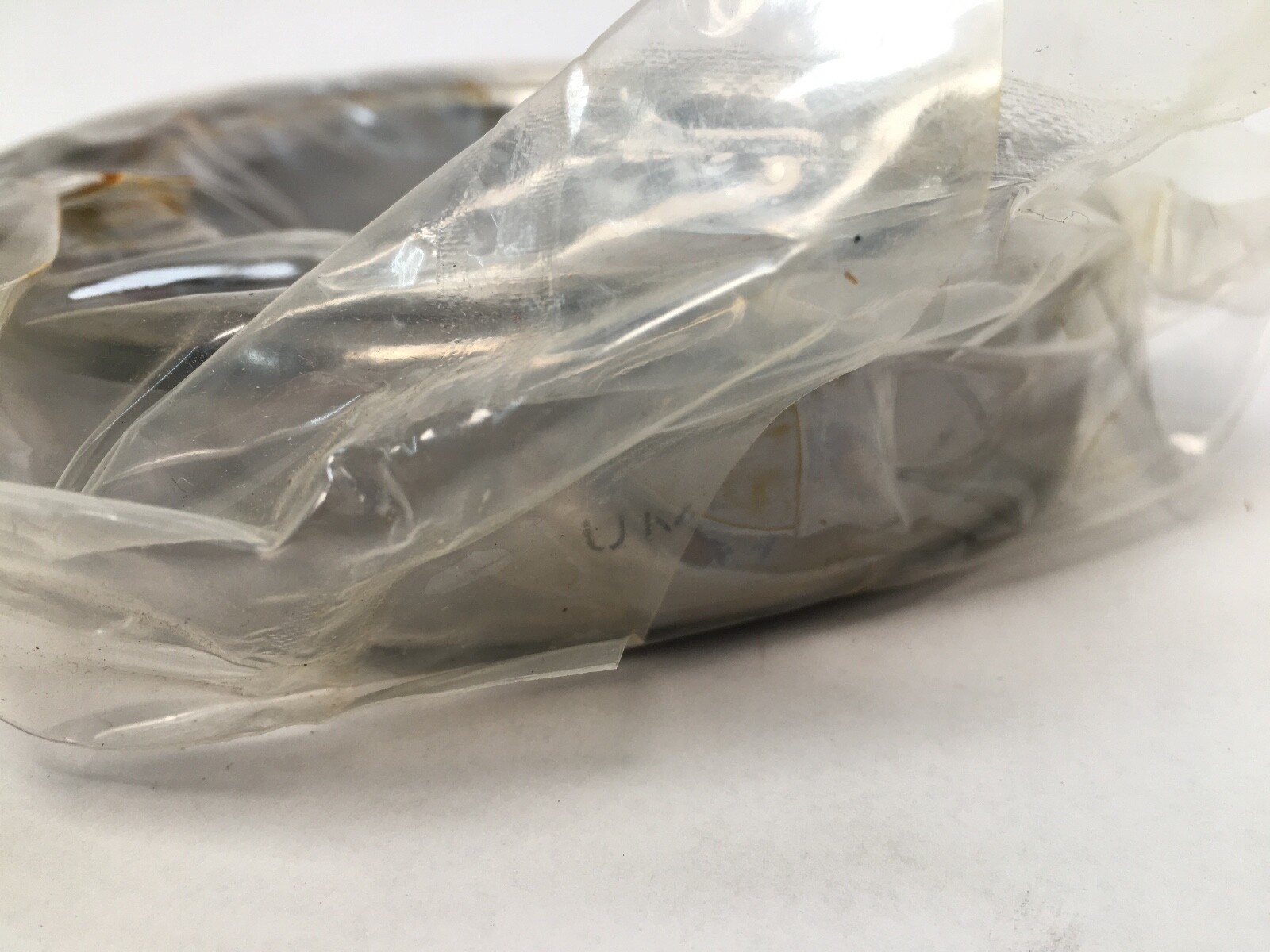

FAG B7215-C-T-P4S-UM super-precision spindle bearing, legacy designation B7215C.TPA.P4S.UM (carton marking B-7215-C-TPA-P4-K5-UM). Single-row angular contact ball bearing, 72 series, universally ground, Medium preload. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Width: 25 mm. Contact Angle: 15°. Preload: Medium (1,314 N).
B72 — FAG spindle bearing, ISO dimension series 02 (72xx).
15 — bore code, 15 x 5 = 75 mm.
C — 15° contact angle, for high speed with moderate axial rigidity.
T / TPA — laminated fabric (phenolic) cage. TPA is the legacy code; the current Schaeffler designation uses T.
P4S — FAG tolerance class, tighter than ISO P4.
U — universal design. The bearing can be paired back-to-back, face-to-face or in tandem with any other U bearing of the same size.
M — Medium preload.
Dynamic Load Rating: 73,000 N. Static Load Rating: 44,500 N. Fatigue Load Limit: 4,650 N. Cage Material: Phenolic. Precision Class: ABEC 7 / P4S. Operating Temperature: -30 °C to 100 °C. Item Weight: 1.183 kg (2.61 lb). Lubricant: grease or oil.
Preload: Medium, 1,314 N for a universal pair in back-to-back or face-to-face arrangement. The same size is also built with Light (413 N) and Heavy (2,617 N) preload. Medium preload gives higher axial rigidity than Light at a lower speed limit.
Shaft shoulder diameter: 85 mm. Housing shoulder diameter: 120 mm. Distance between pressure cone apexes: 26.2 mm.
Unit Quantity: 1 Pc. Single universal bearing. Closure Type: Open. Number Of Rows: 1.
Same 75 x 130 x 25 mm envelope and 15° contact angle: SKF 7215 CD/P4A, NSK 7215C, Fafnir 2MM215WI. Schaeffler lists B7215-C-T-P4S as the current designation replacing B7215C.TPA.P4 and B7215C.T.P4S.
