Availability:
2 in stock
FAG B7212CA.P4.UL super-precision spindle bearing, 60 x 110 x 22 mm, 15° contact angle, P4 precision, light preload (UL). Universal matching for paired spindle sets.
List Price
$157.90
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7212CAP4UL |
| Model | B7212C A P4 UL / 2MM212 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Light (UL) |
| Base Number | 7212 |
| Industry Terms | spindle bearing, super precision angular contact bearing, machine tool spindle bearing, universal matched bearing |
| Common Misspellings | B7212CAP4, B7212C.P4.UL, B7212-CA-P4-UL, B712C |
| Application Types | Machine tool spindles, grinding spindles, high-speed motor spindles |
| Overall Width | 22 mm |
| Mpn Variants | B7212CA.P4.UL, B7212-C-A-P4-UL, B7212CAP4UL, B 7212 C.A.P4.UL, 7212C |
| Arrangement Configuration | Single bearing, universal (UL) for DB, DF or DT pairing |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Compatible With / Replaces: FAG B7212-C-T-P4S-UL; Successor B7212-C-T-P4S-UL data: Dynamic load rating 56,000 N; Static load rating 31,000 N; Fatigue load limit 3,300 N; Limiting speed 13,000 rpm grease, 20,000 rpm oil; Light preload force 312 N; Lift-off force light 968 N; Axial rigidity light 71 N/µm; Mass 0.779 kg; Shaft shoulder 69.5 mm; Outer ring shoulder 101.5 mm; Min chamfer 1.5 mm; Pressure cone apex distance 22.5 mm; Operating temperature -30 to 100 °C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10 |
| Contact Angle | 15° |
| Cross Reference 1 | FAG B7212-C-T-P4S-UL – current execution |
|---|---|
| Cross Reference 2 | Fafnir 2MM212WI – check preload suffix |
| Cross Reference 3 | SKF 7212 CD/P4A – check preload suffix |
| Cross Reference 4 | NSK 7212C (P4) – check cage and preload |

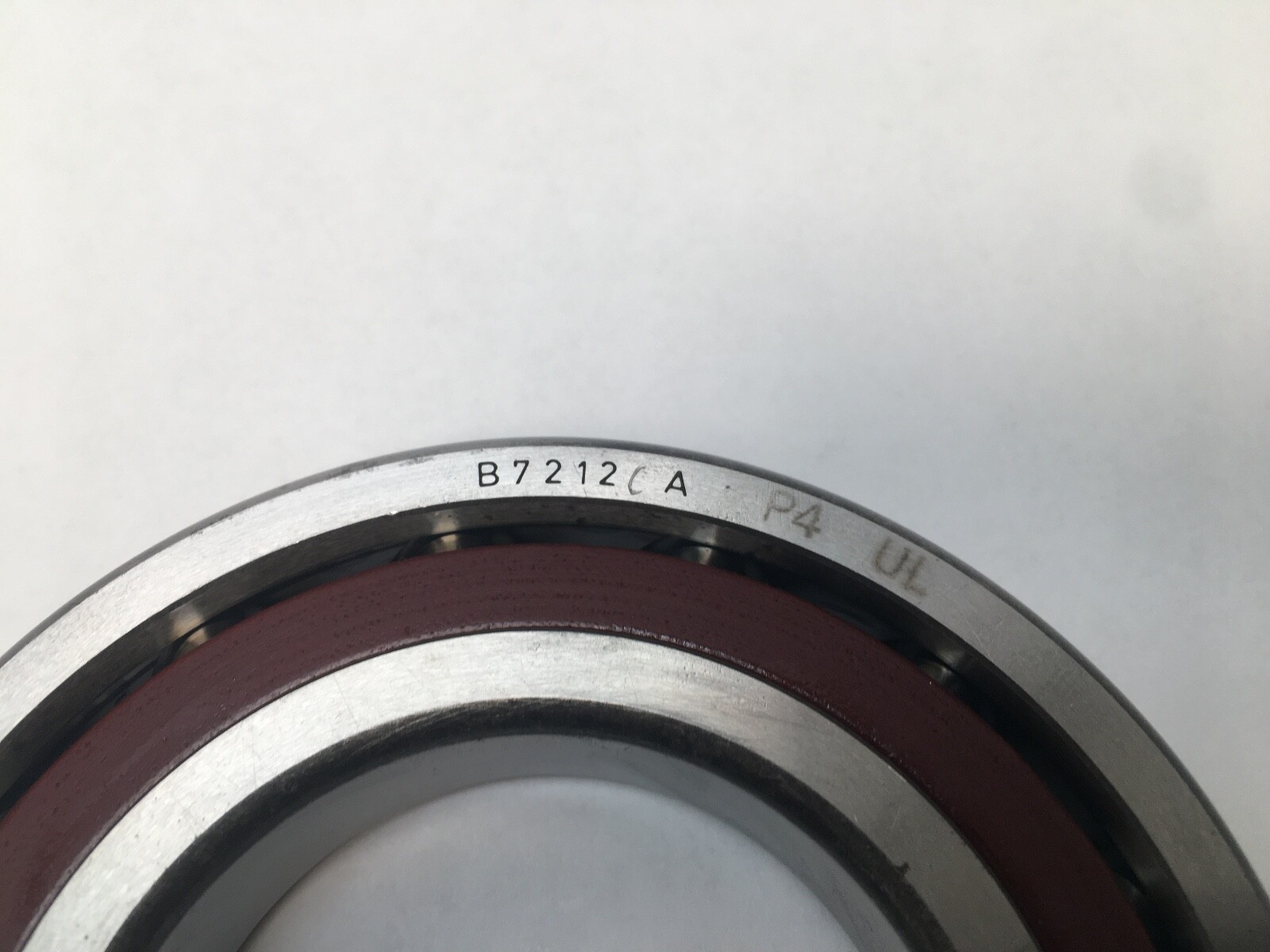

FAG B7212CA.P4.UL is a single-row super-precision angular contact spindle bearing from the FAG B72 series, universally ground with light preload. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light (UL).
B72 — FAG spindle bearing, ISO 72 series (light section).
12 — bore code, 60 mm.
C — 15° contact angle.
P4 — ISO P4 tolerance class, equivalent to ABEC 7.
UL — universal design, light preload. Any two bearings form a back-to-back, face-to-face or tandem pair with light preload.
The 15° angle and light preload suit high-speed spindles carrying mainly radial load. Seal type: Open. Closure Type: Open. Number Of Rows: 1. Bore Type: Cylindrical.
Successor B7212-C-T-P4S-UL data (current Schaeffler catalogue, same envelope, 15°, UL): Dynamic load rating 56,000 N. Static load rating 31,000 N. Fatigue load limit 3,300 N. Limiting speed 13,000 rpm grease; 20,000 rpm oil. Light preload force 312 N; lift-off force 968 N; axial rigidity 71 N/µm. Mass 0.779 kg (1.72 lb). Operating temperature −30 °C to 100 °C.
Successor B7212-C-T-P4S-UL data: Shaft shoulder diameter 69.5 mm (h12). Outer ring shoulder diameter 101.5 mm. Minimum chamfer 1.5 mm. Maximum fillet radius 1.5 mm. Maximum recess radius 0.6 mm. Pressure cone apex distance 22.5 mm. Lubrication injection pitch diameter 77 to 81.9 mm.
Compatible With / Replaces: FAG B7212-C-T-P4S-UL is the current Schaeffler execution of this size, angle and preload. Same 60 x 110 x 22 mm envelope, 15°, ABEC 7 class: SKF 7212 CD/P4A, NSK 7212C (P4), Timken Fafnir 2MM212WI.
