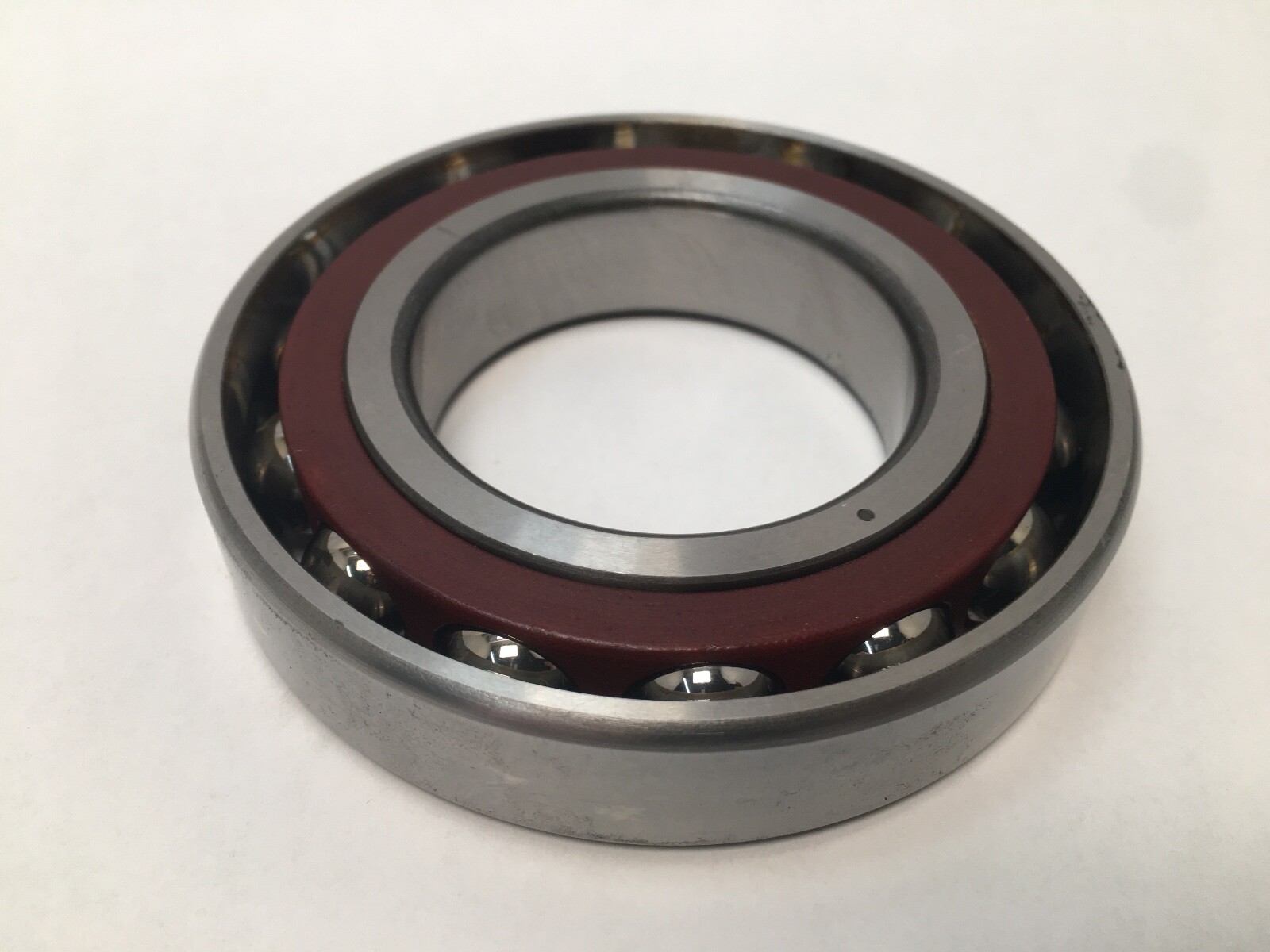

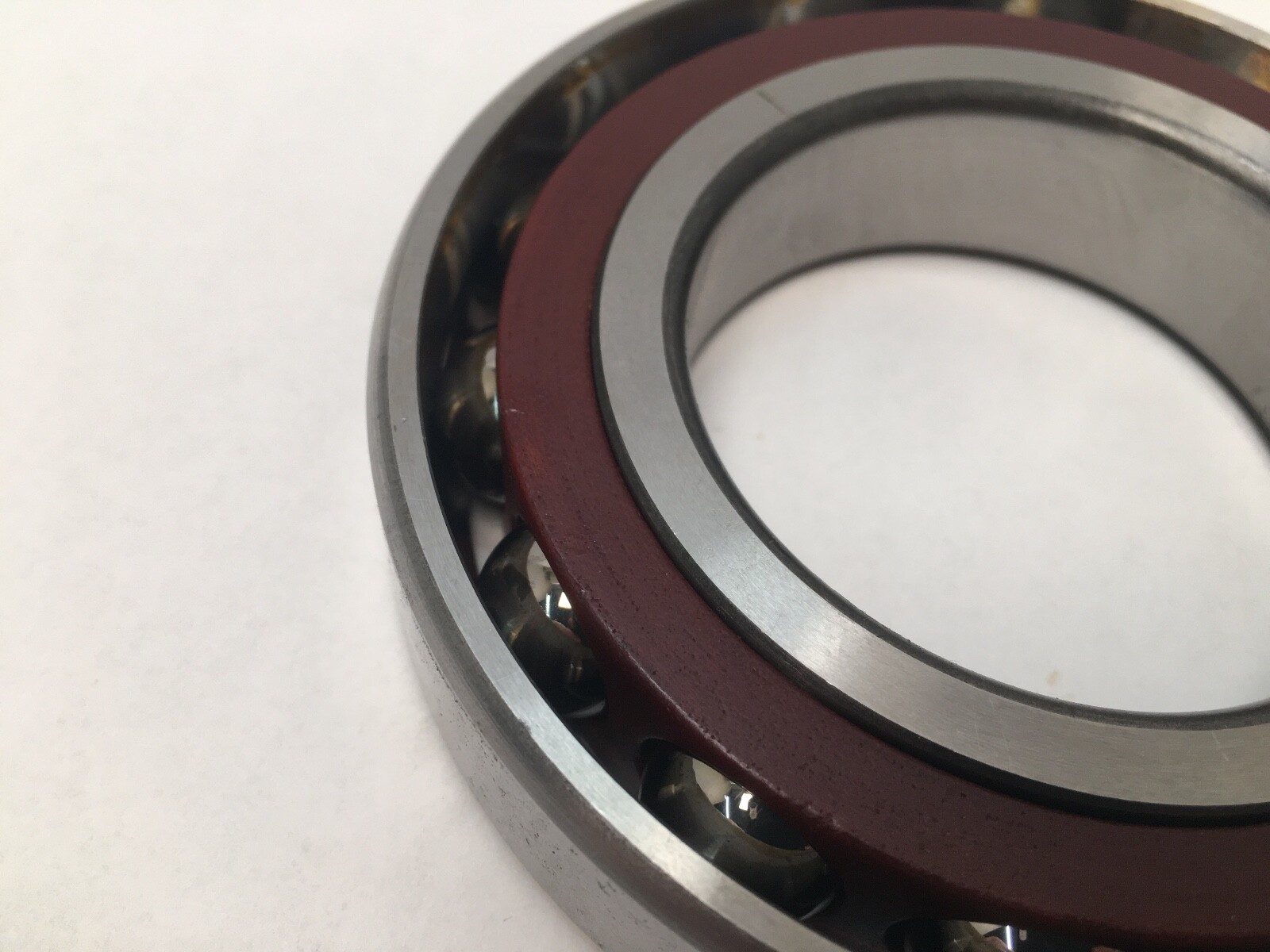

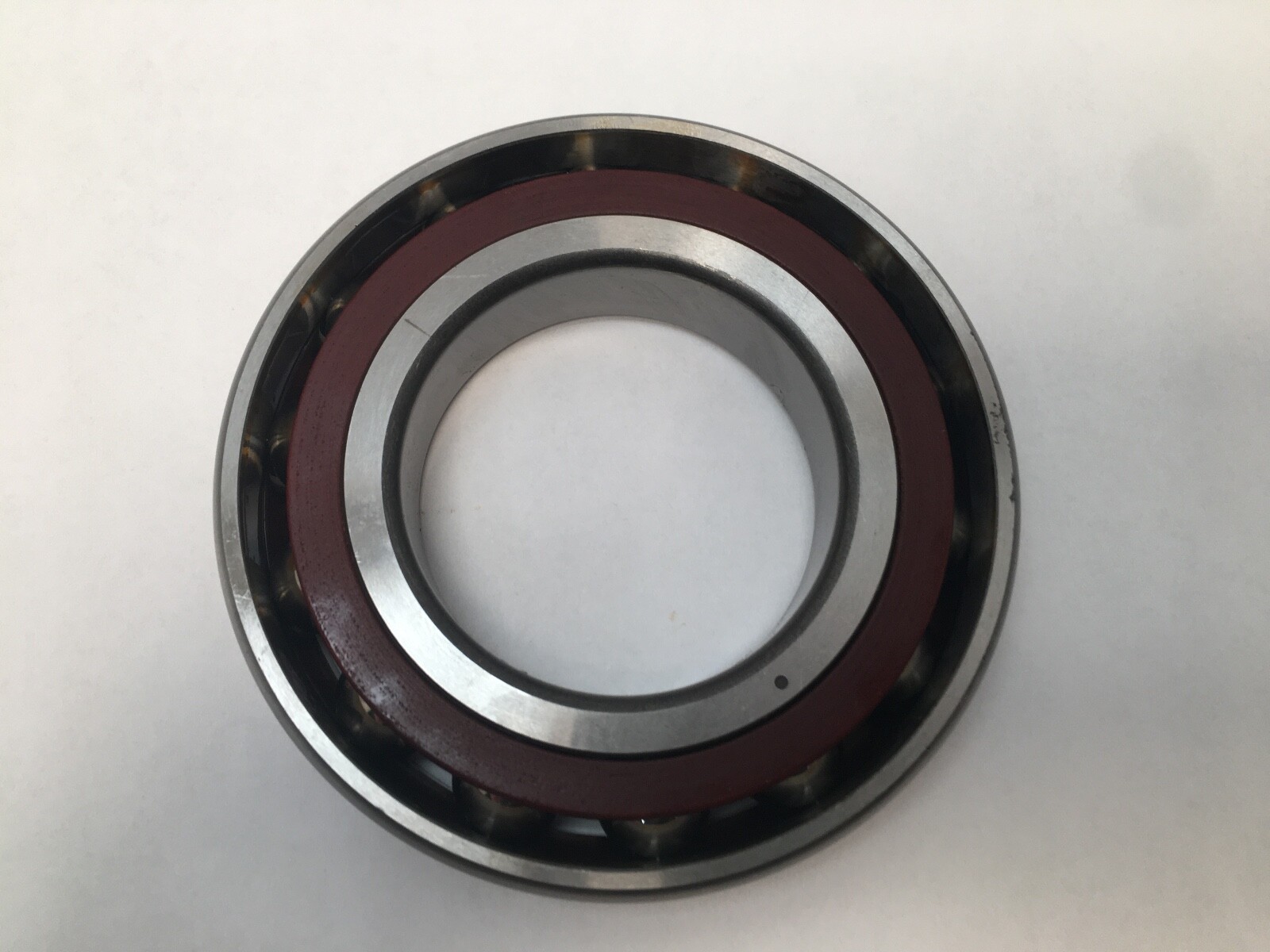

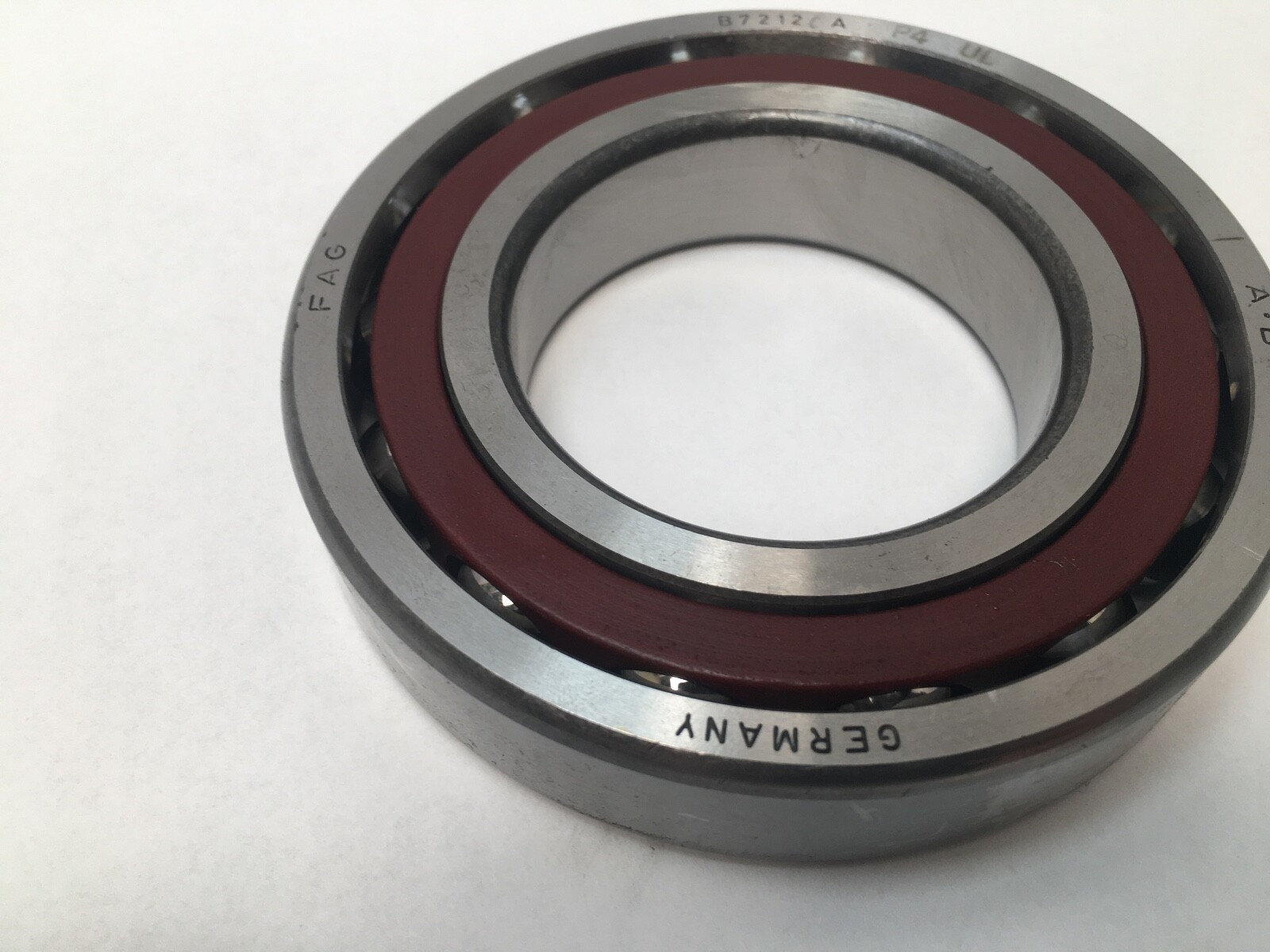

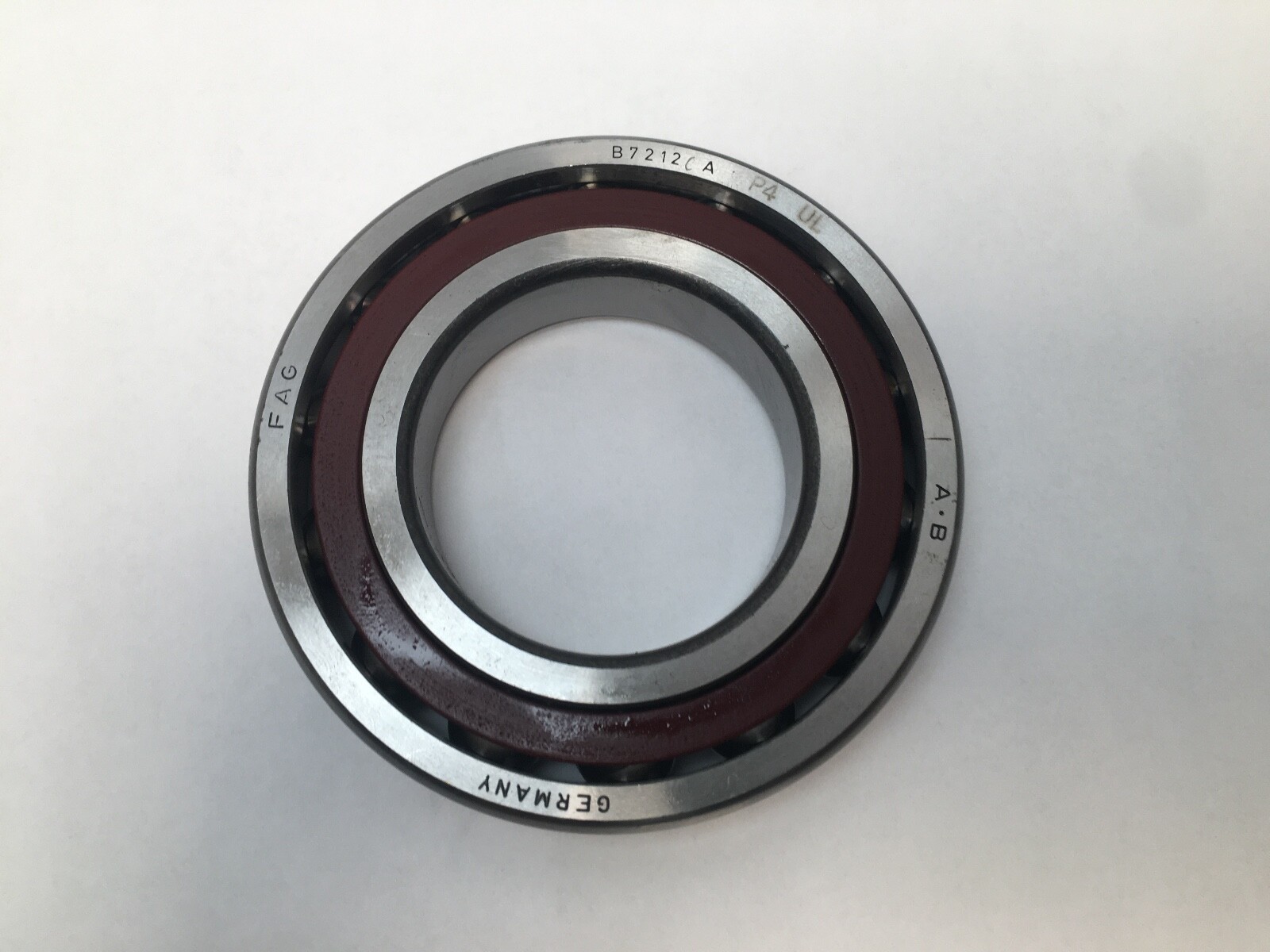

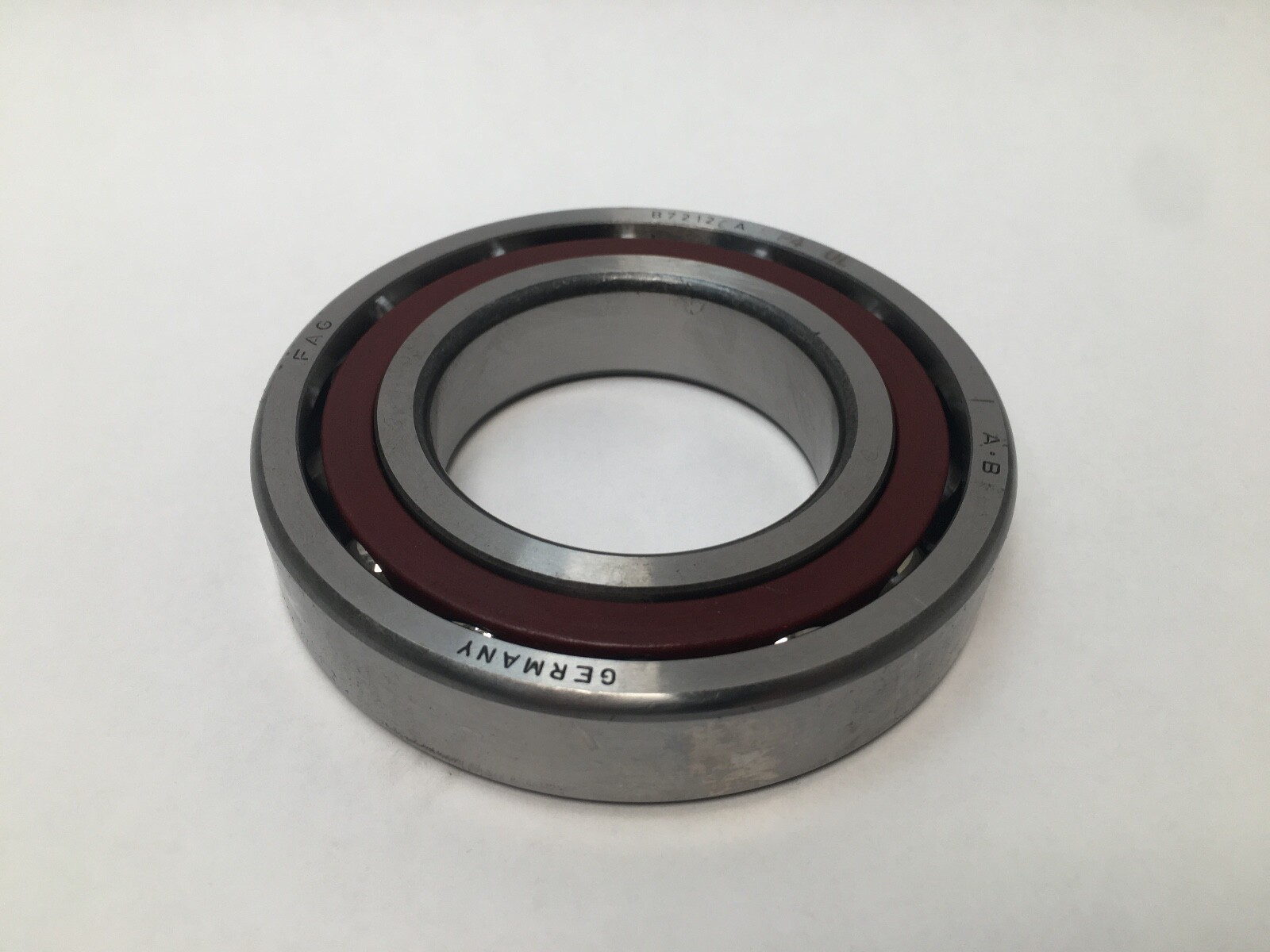

FAG B7212CA.P4.UL single-row angular contact spindle bearing, 60 x 110 x 22 mm, 15° contact angle, P4 precision, universal design with light preload (UL).
List Price
$157.90
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7212CA.P4.UL |
| Model | B7212C A P4 UL / 2MM212 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Light (UL) |
| Base Number | 7212 |
| Industry Terms | spindle bearing, super precision angular contact bearing, machine tool spindle bearing, universal matched bearing |
| Common Misspellings | B7212CAP4, B7212C.P4.UL, B7212-CA-P4-UL, B712C |
| Application Types | Machine tool spindles, grinding spindles, high-speed motor spindles |
| Overall Width | 22 mm |
| Mpn Variants | B7212CA.P4.UL, B7212-C-A-P4-UL, B7212CAP4UL, B 7212 C.A.P4.UL, 7212C |
| Arrangement Configuration | Single bearing, universal (UL) for DB, DF or DT pairing |
| Precision Class | ABEC 7 / P4 |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Harmonization Code | 8482.10 |
| Contact Angle | 15° |
| Closure Type | Open |
| Cross Reference 1 | FAG B7212-C-T-P4S-UL – current execution |
|---|---|
| Cross Reference 2 | Fafnir 2MM212WI – 15°, ABEC 7 / P4 |
| Cross Reference 3 | SKF 7212 CD/P4A – 15°, P4 |
| Cross Reference 4 | NSK 7212C (P4) – 15° |
FAG B7212CA.P4.UL single-row super-precision angular contact spindle bearing, FAG B72 series, universal design with light preload. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light (UL). Unit Quantity: 1 Pc.

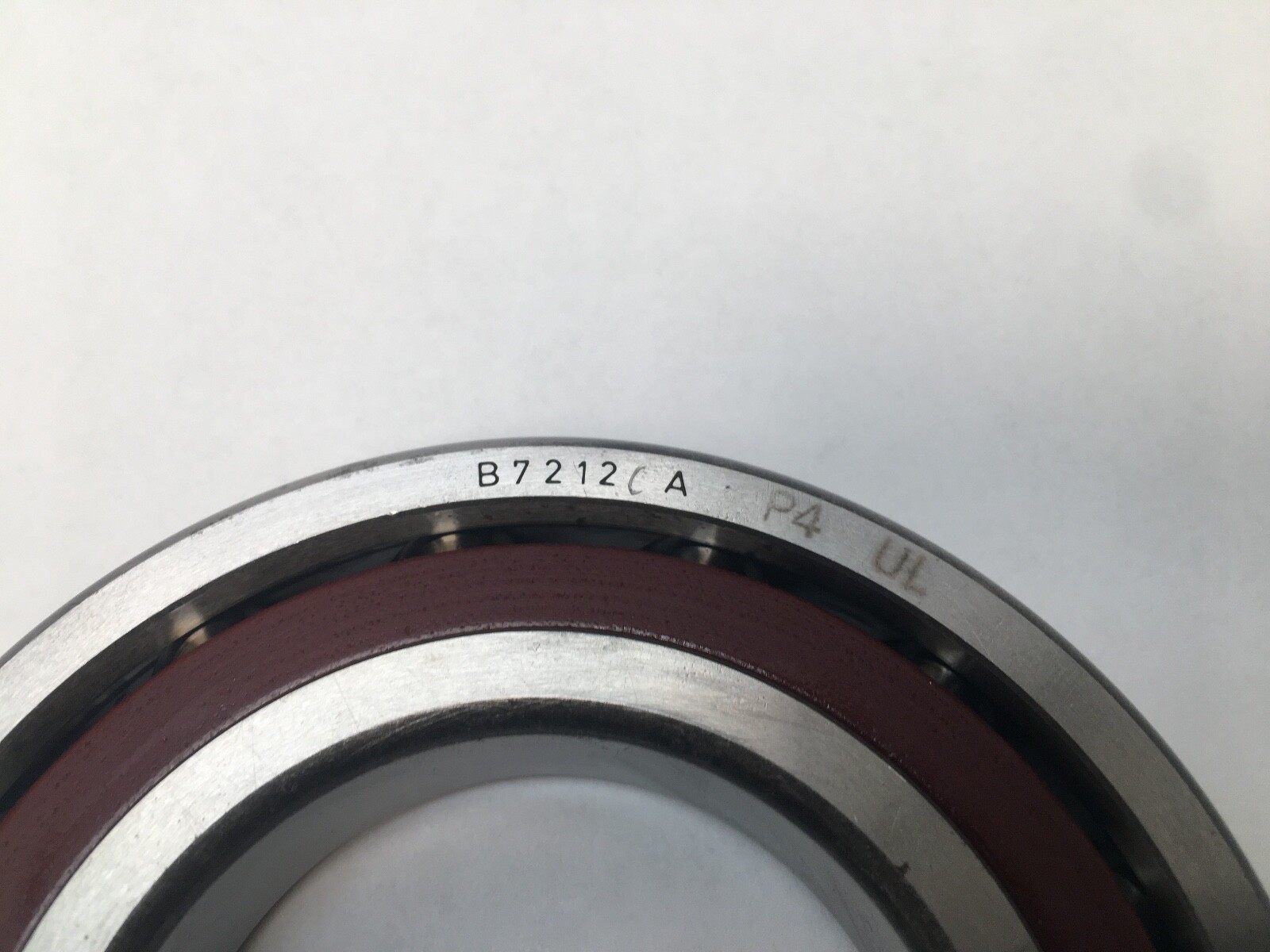

B72 — FAG spindle bearing, ISO 72 series (light section).
12 — bore code, 60 mm.
C — 15° contact angle.
P4 — ISO P4 tolerance class, equivalent to ABEC 7.
UL — universal design, light preload. Any two bearings form a back-to-back, face-to-face or tandem pair with light preload.
Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Cylindrical. Closure Type: Open. Seal Type: Open. Series: 7200. Base Number: 7212. Material: Bearing Steel. Arrangement: Single bearing, universal (UL) for DB, DF or DT pairing. Harmonization Code: 8482.10.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm.
FAG B7212-C-T-P4S-UL is the current Schaeffler execution of this size, angle and preload. Cross-references: Fafnir 2MM212WI (15°, ABEC 7 / P4); SKF 7212 CD/P4A (15°, P4); NSK 7212C (P4, 15°).
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm.
Contact Angle: 15° (C). Precision Class: ABEC 7 / P4.
UL is universal design with light preload. Preload: Light (UL).
