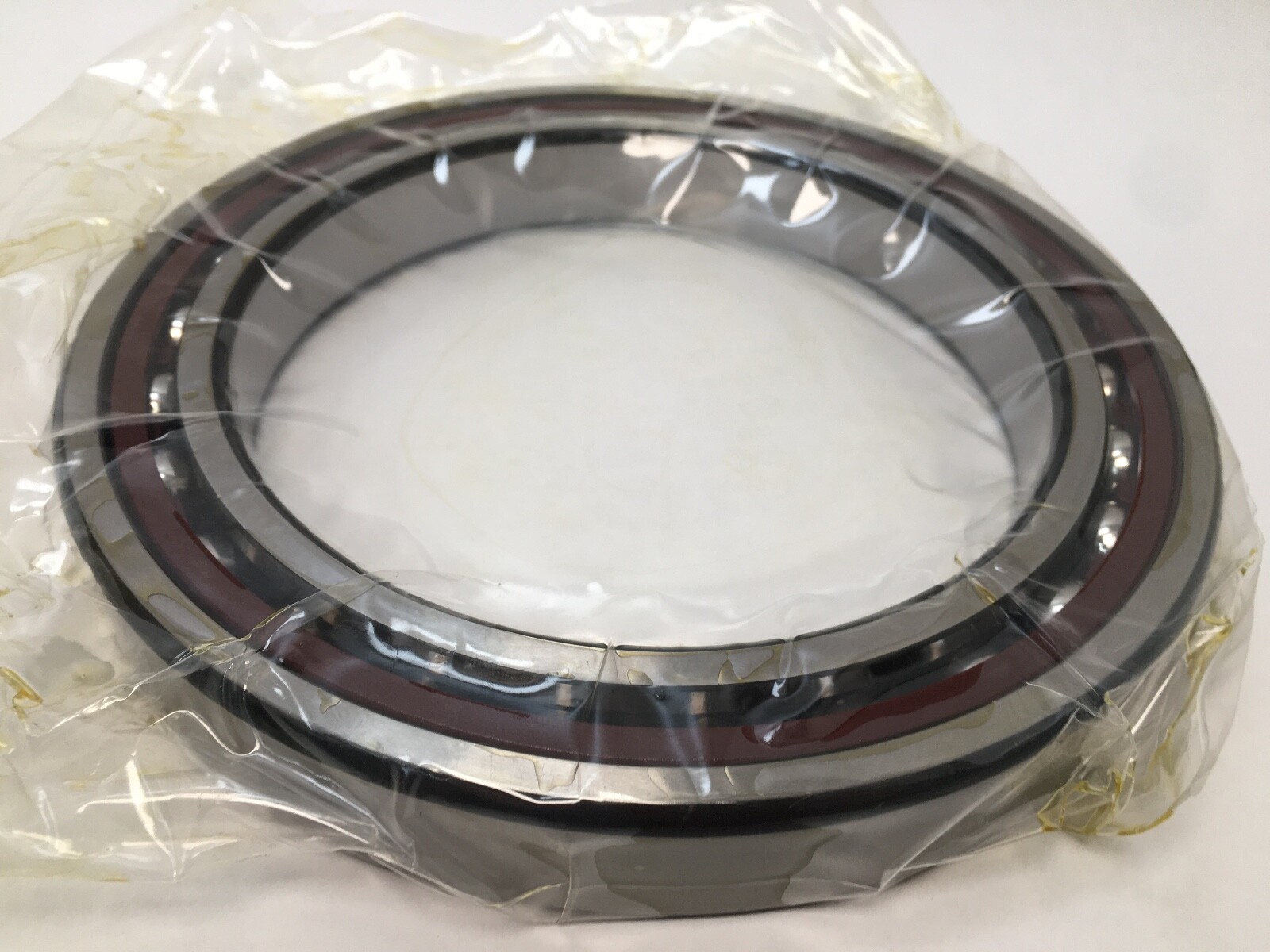

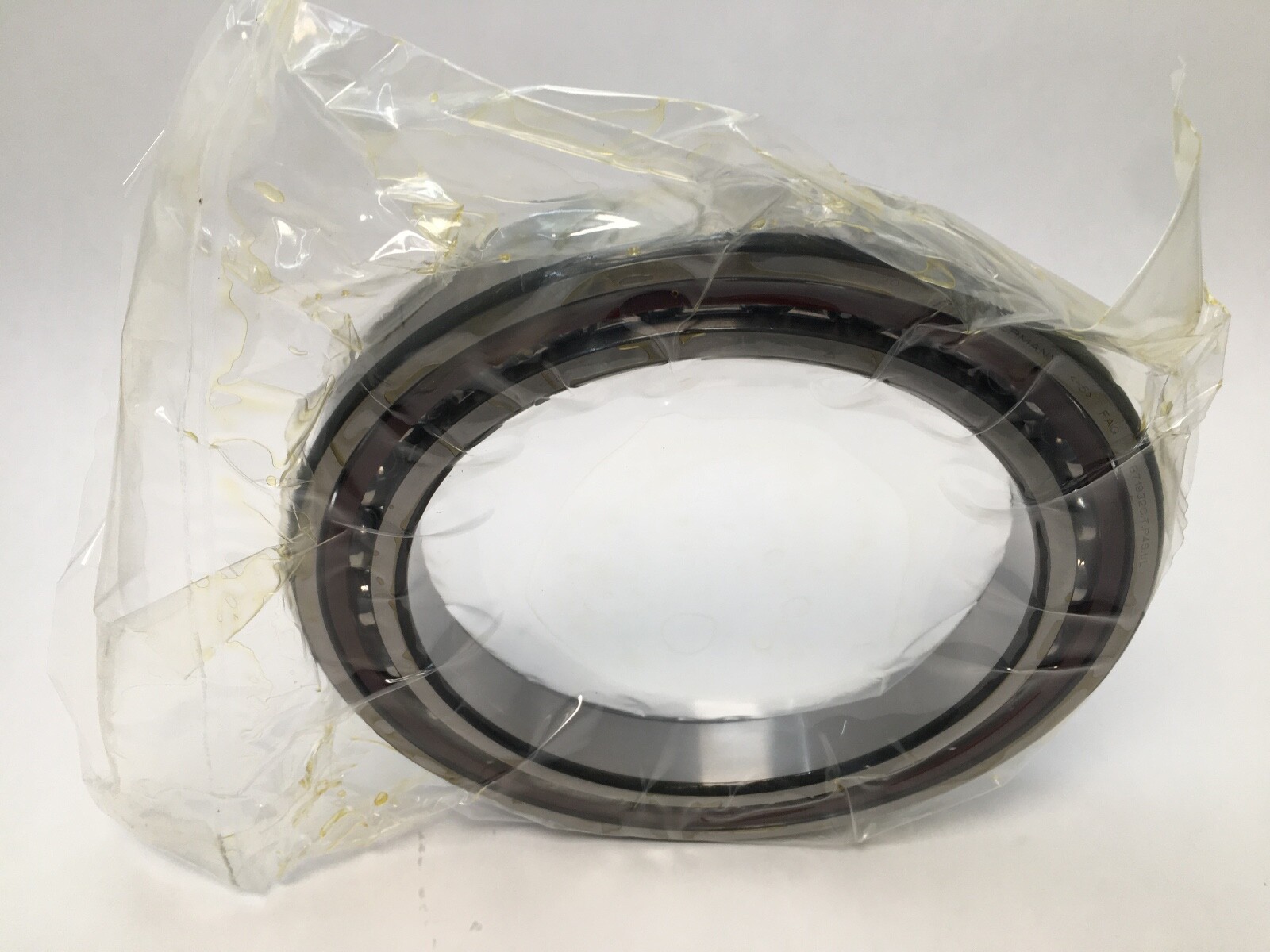

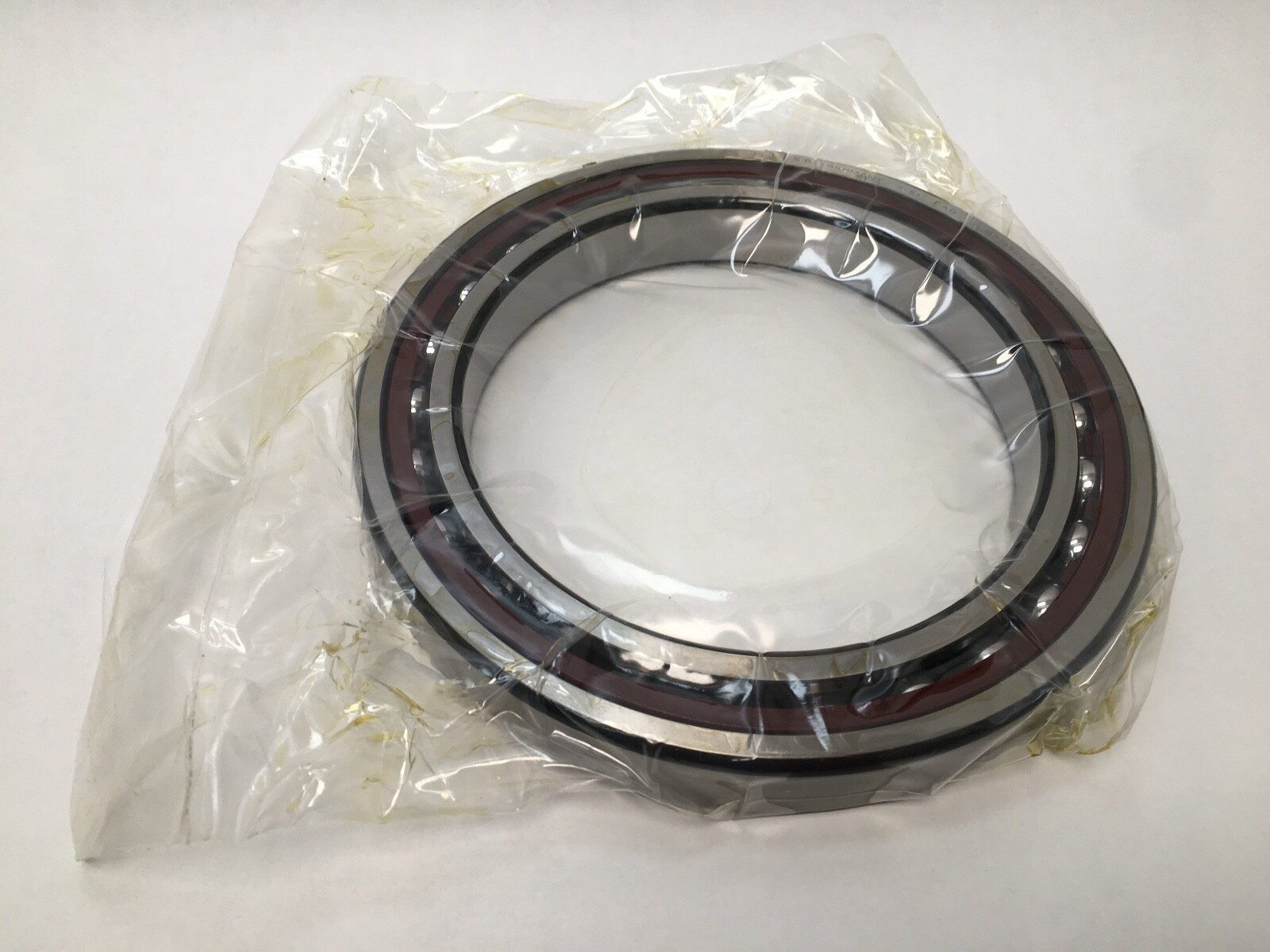

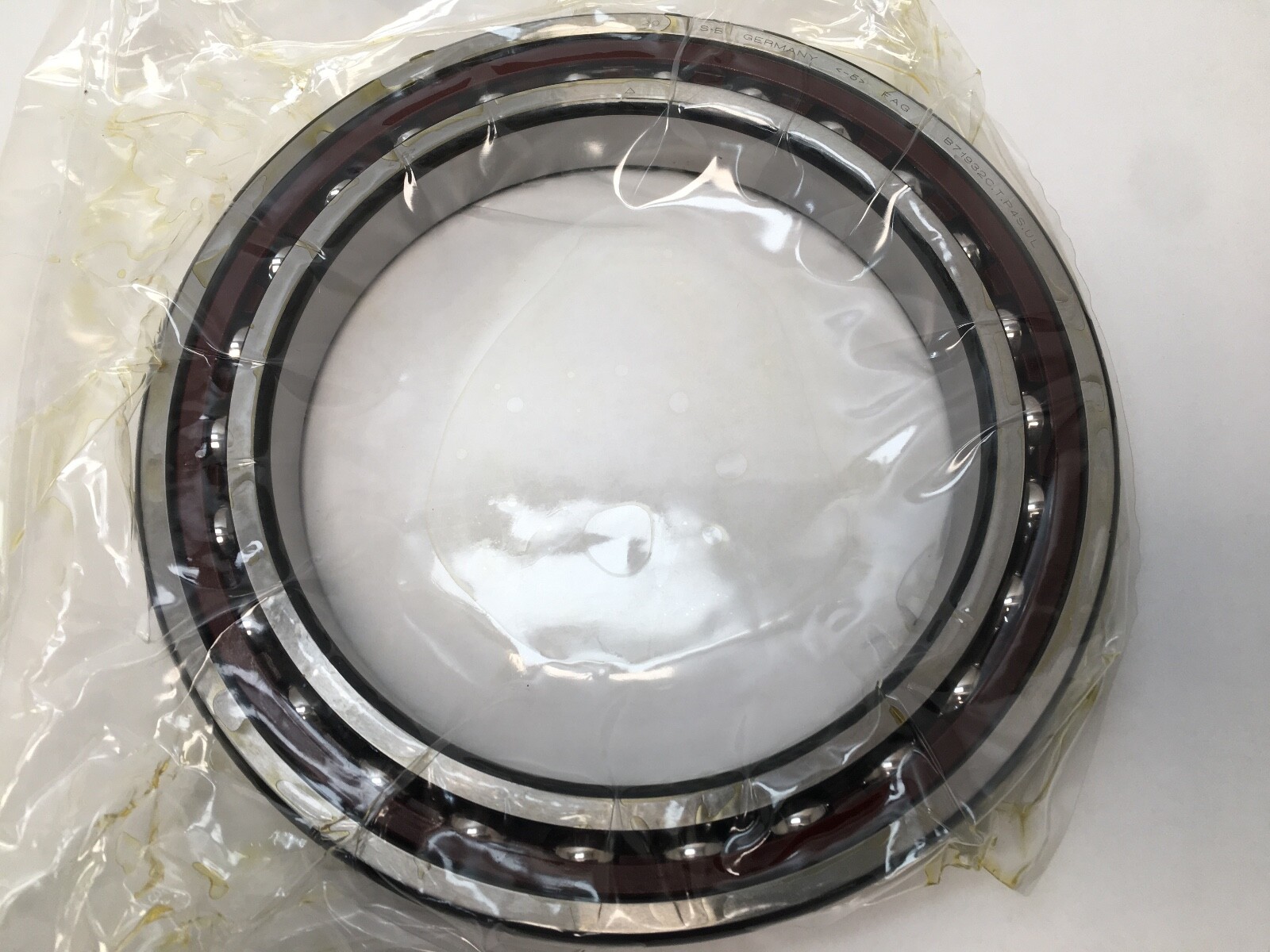

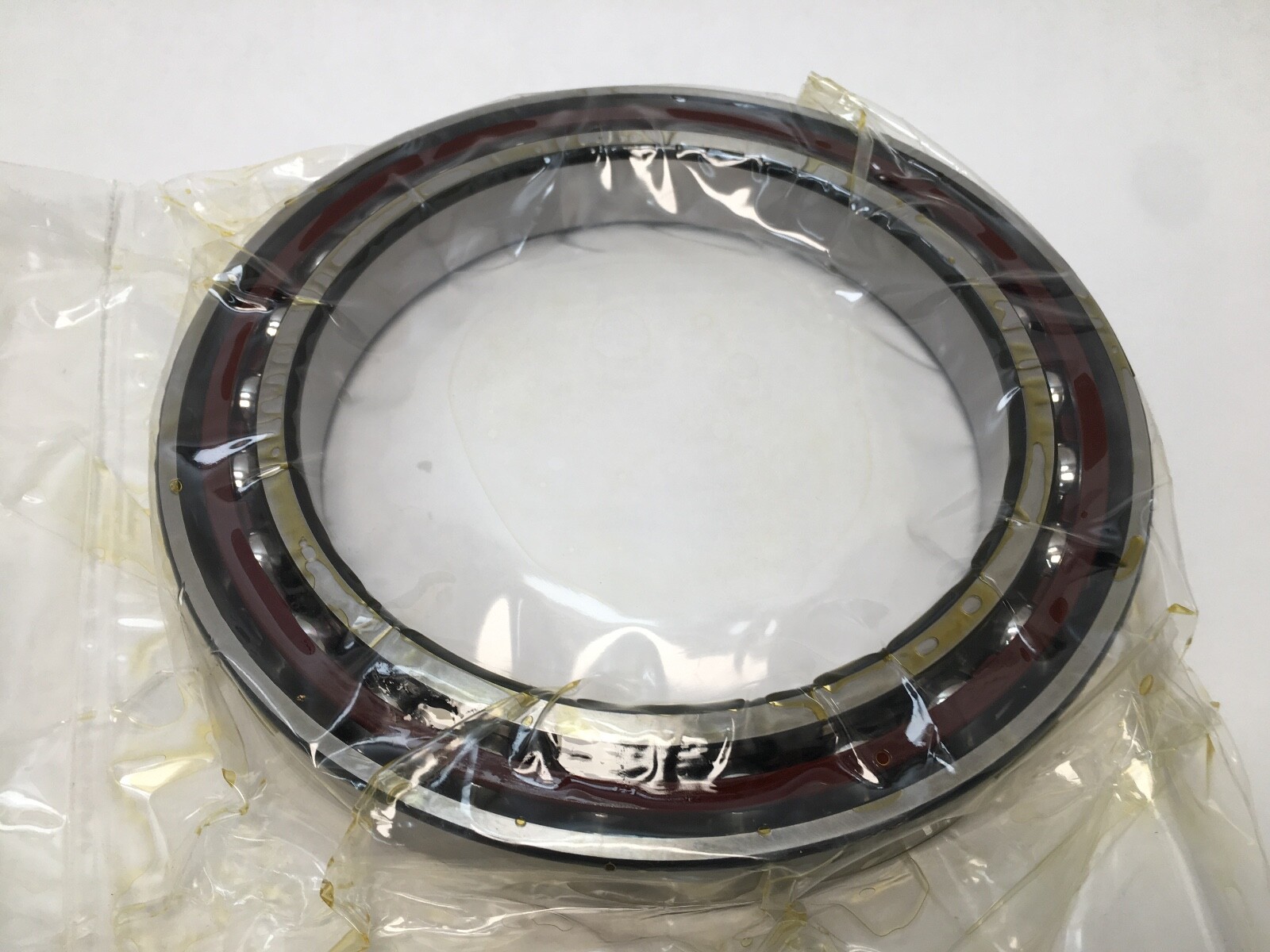

Super precision angular contact ball bearing, 160 x 220 x 28 mm, 15° contact angle, P4S class, phenolic cage, open, universally ground single bearing.
List Price
$895.99

7 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B71932-C-T-P4S-UL |

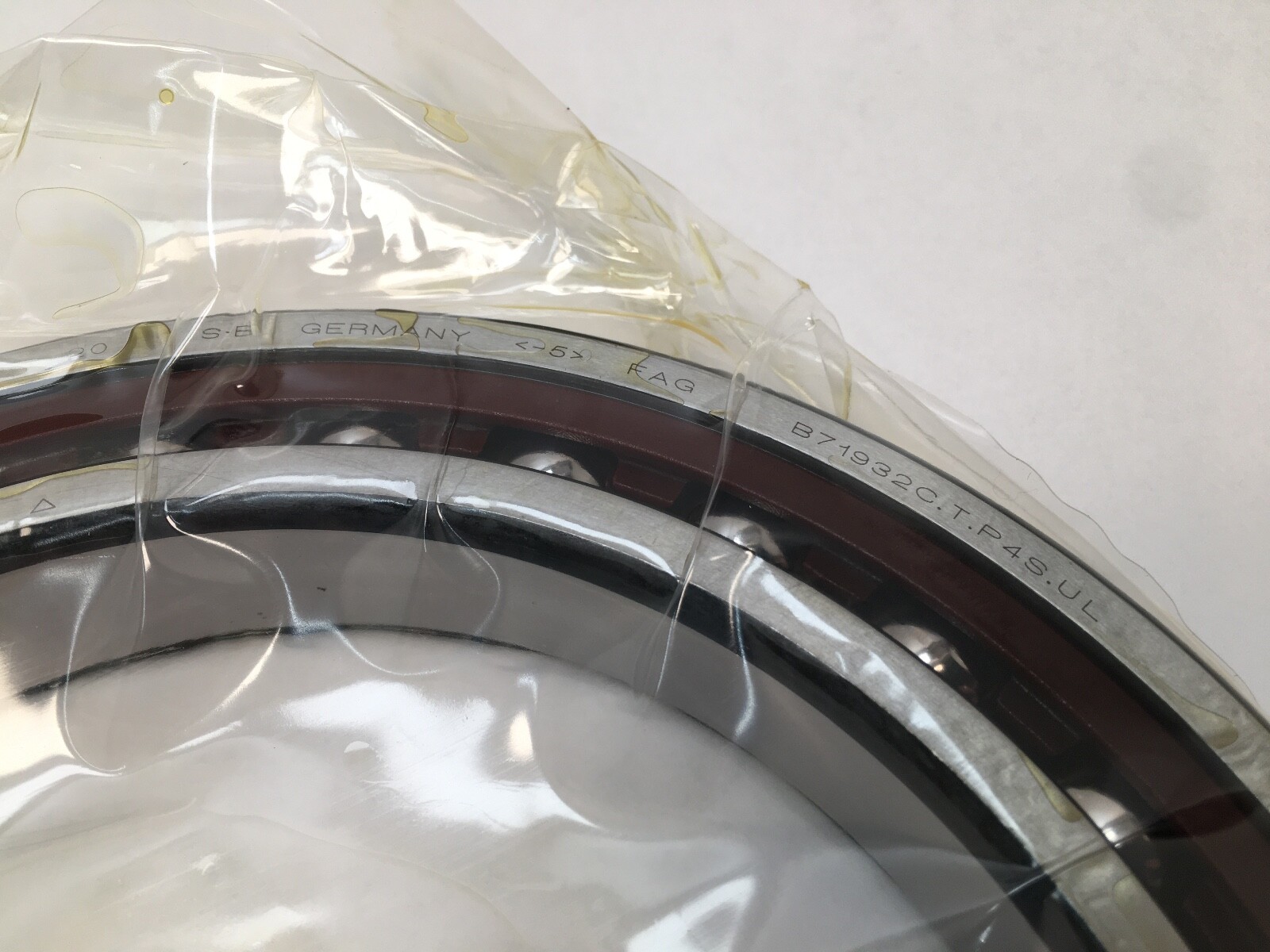

| Model | B71932C.T.P4S.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 160 mm |
| OD | 220 mm |
| Width | 28 mm |
| Preload | Light (UL) |
|---|---|
| Base Number | 71932 |
| Common Misspellings | FAG B7I932C, B71932 C T P4S UL, FAG B71932CTP4SUI, Schaefler, Schaffler, 71932CD P4A |
| Application Types | Large machine tool spindles, boring and milling spindles, grinding spindles, precision rotary and indexing tables, high accuracy gearboxes |
| Bore Shaft Size | 160 mm (6.2992 in) |

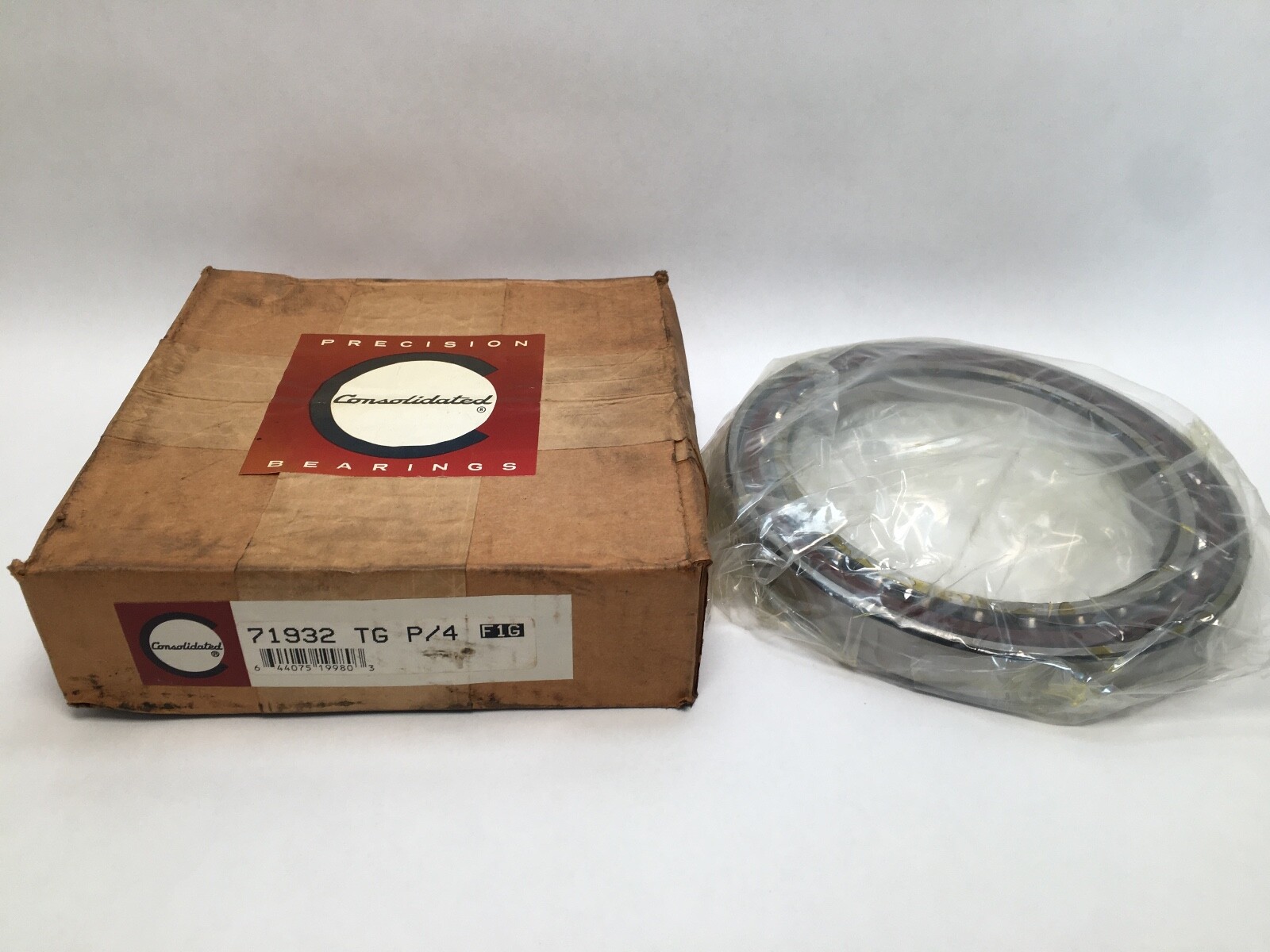

| Mpn Variants | B71932C.T.P4S.UL, B71932-C-T-P4S-UL, B71932CTP4SUL, B71932C T P4S UL, B71932C, B71932, 71932C, 71932, 71932TGP4, B71932CTP4S |
| Manufacturer Status | FAG is a Schaeffler Group brand; the B7 spindle bearing range remains in current production |
| Precision Class | P4S |
| Rolling Elements | Ball |
| Cage Material | Phenolic (textile laminate) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | B71932-C-T-P4S-UL |
| Closure Type | Open |
FAG B71932-C-T-P4S-UL super precision angular contact ball bearing, single row, open, universally ground single bearing. Bore 160 mm, outside diameter 220 mm, width 28 mm, 15° contact angle, phenolic cage, light preload when matched.
B — FAG B-series spindle bearing.
71932 — ISO 719 extra-thin dimension series, 160 x 220 x 28 mm. The 32 is the bore code: 32 x 5 = 160 mm.
C — contact angle 15°.
T — phenolic (textile laminate) cage.
P4S — FAG restricted tolerance class, tighter than P4.
UL — universal grinding, light preload.
Bore Diameter: 160 mm (6.2992 in). Outside Diameter: 220 mm. Width: 28 mm. Contact Angle: 15°. Precision Class: P4S. Cage Material: Phenolic (textile laminate). Preload: Light (UL). Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Unit Quantity: 1 Pc.
Bore: 160 mm. Outside Diameter: 220 mm. Width: 28 mm. Radial section: 30 mm. Universally ground: any two or more bearings of this designation can be combined in back-to-back (DB), face-to-face (DF), tandem (DT) or triplex arrangements at the specified light preload.
FAG B71932-E-T-P4S-UL is the 25° version on the same envelope. MPN variants: B71932C.T.P4S.UL, B71932-C-T-P4S-UL, B71932CTP4SUL, B71932C T P4S UL, B71932C, B71932, 71932C, 71932, 71932TGP4, B71932CTP4S.
Bore 160 mm, outside diameter 220 mm, width 28 mm.
15°. The C in the designation is the FAG code for a 15° contact angle.
A single bearing (Unit Quantity: 1 Pc). The UL suffix marks it as universally ground with light preload.
