Availability:
4 in stock

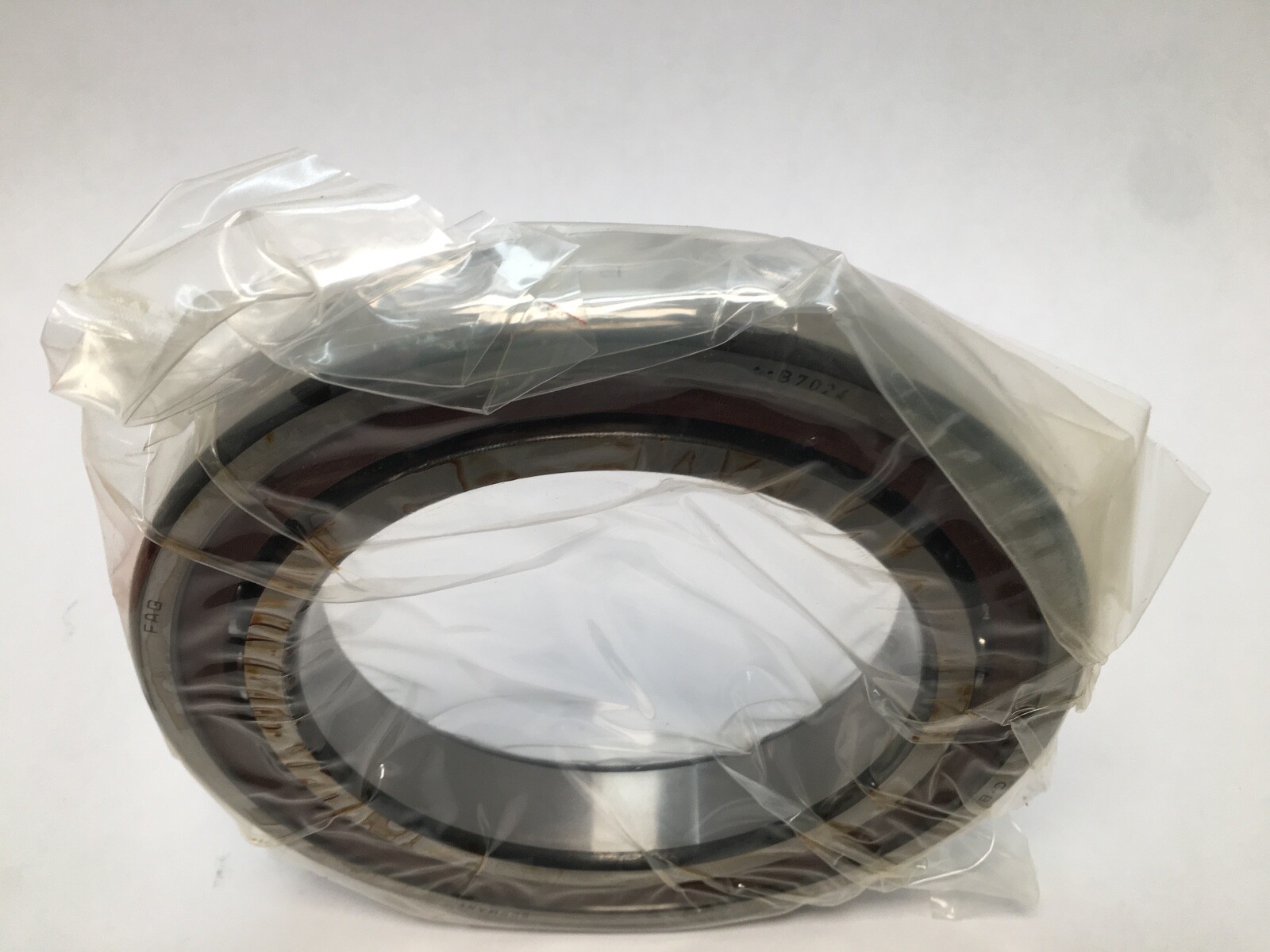

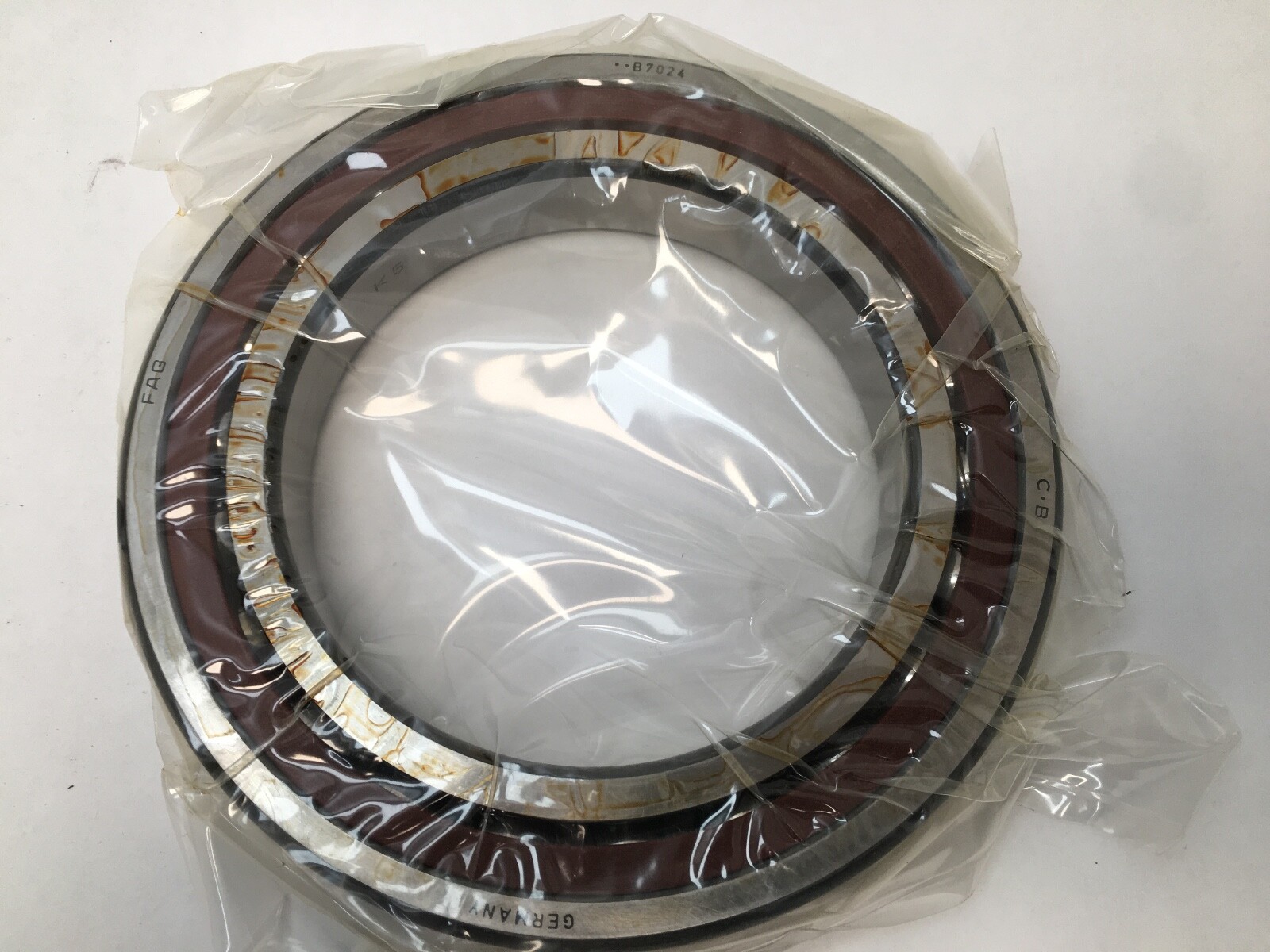

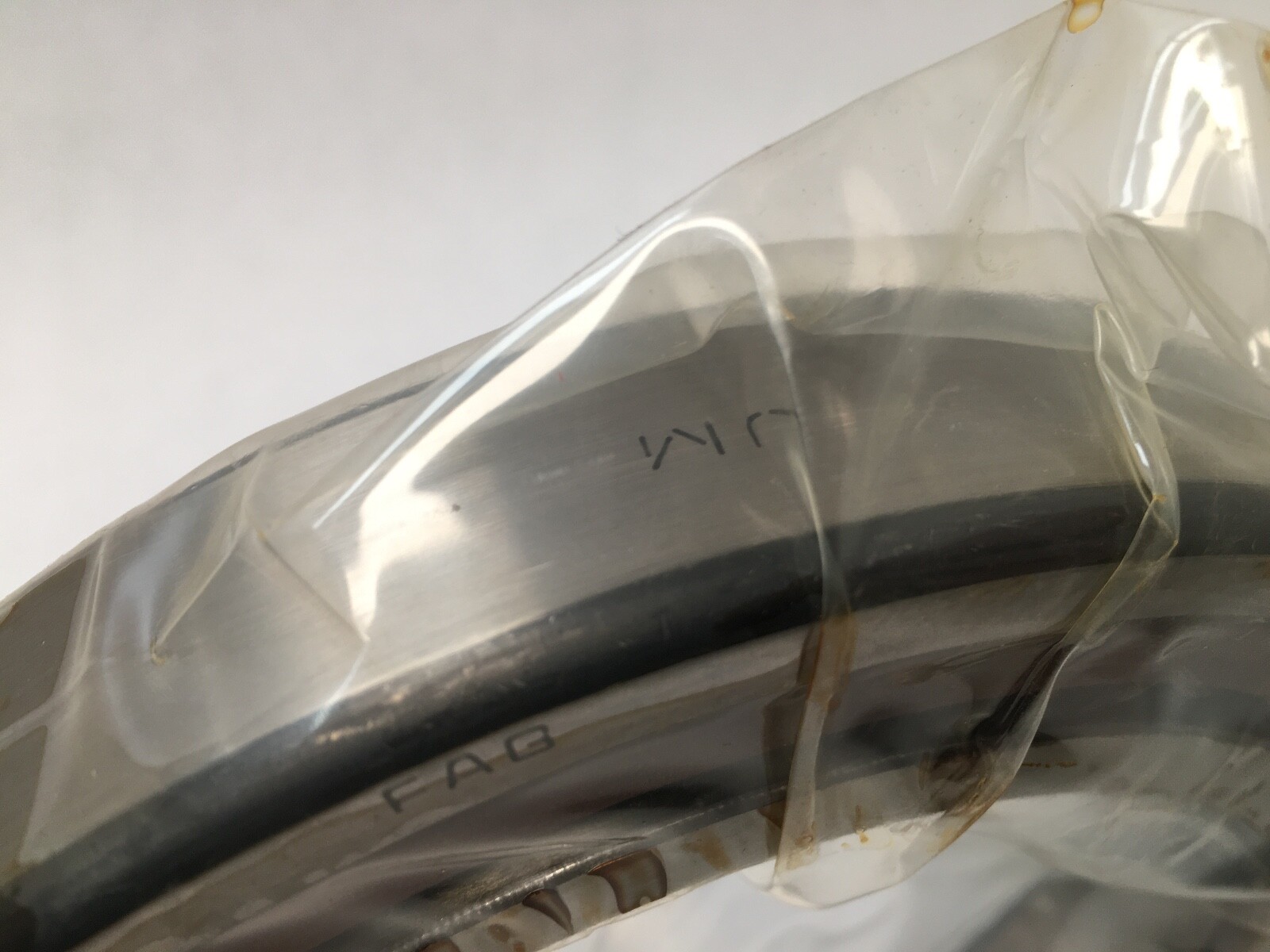

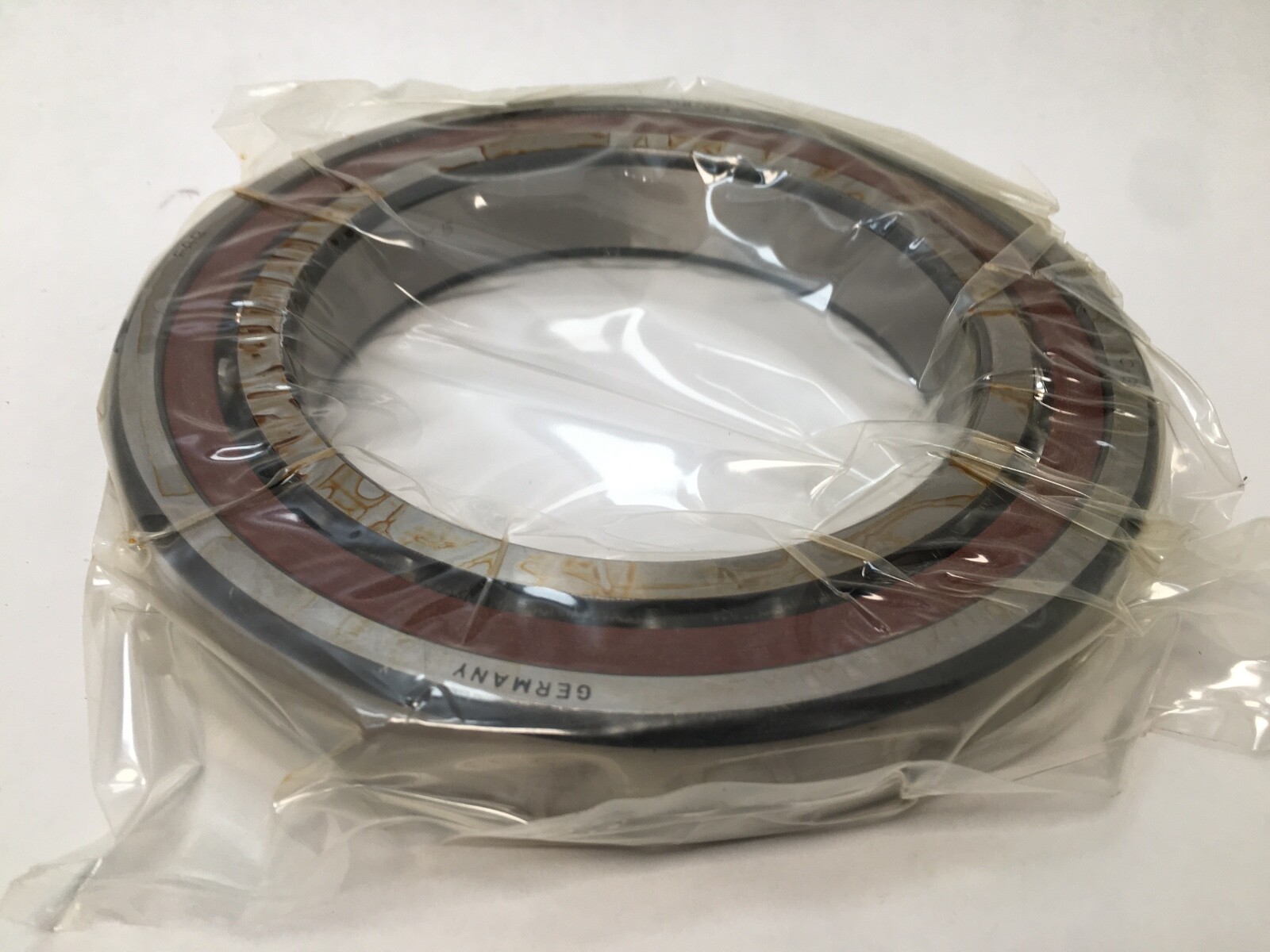

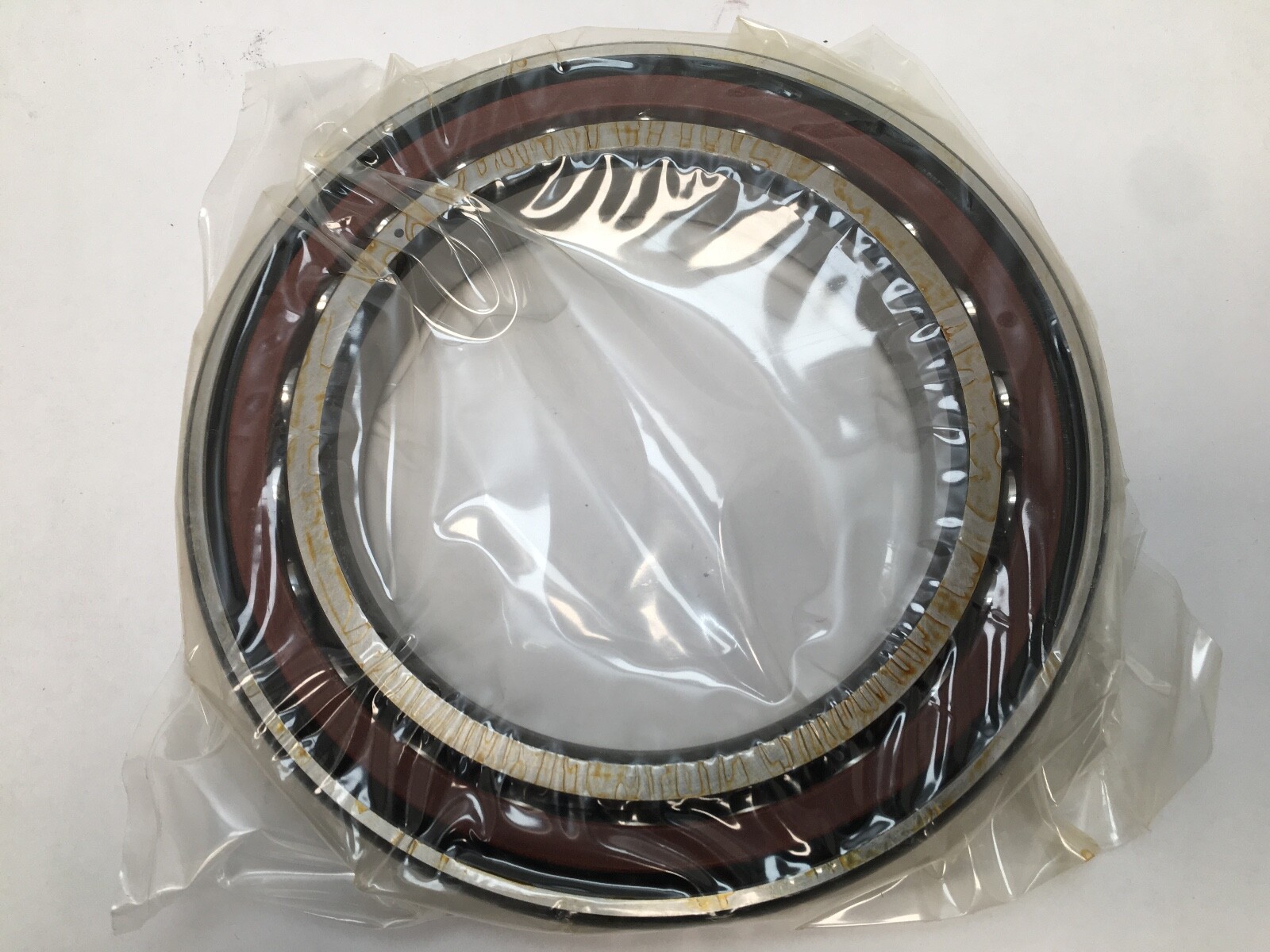

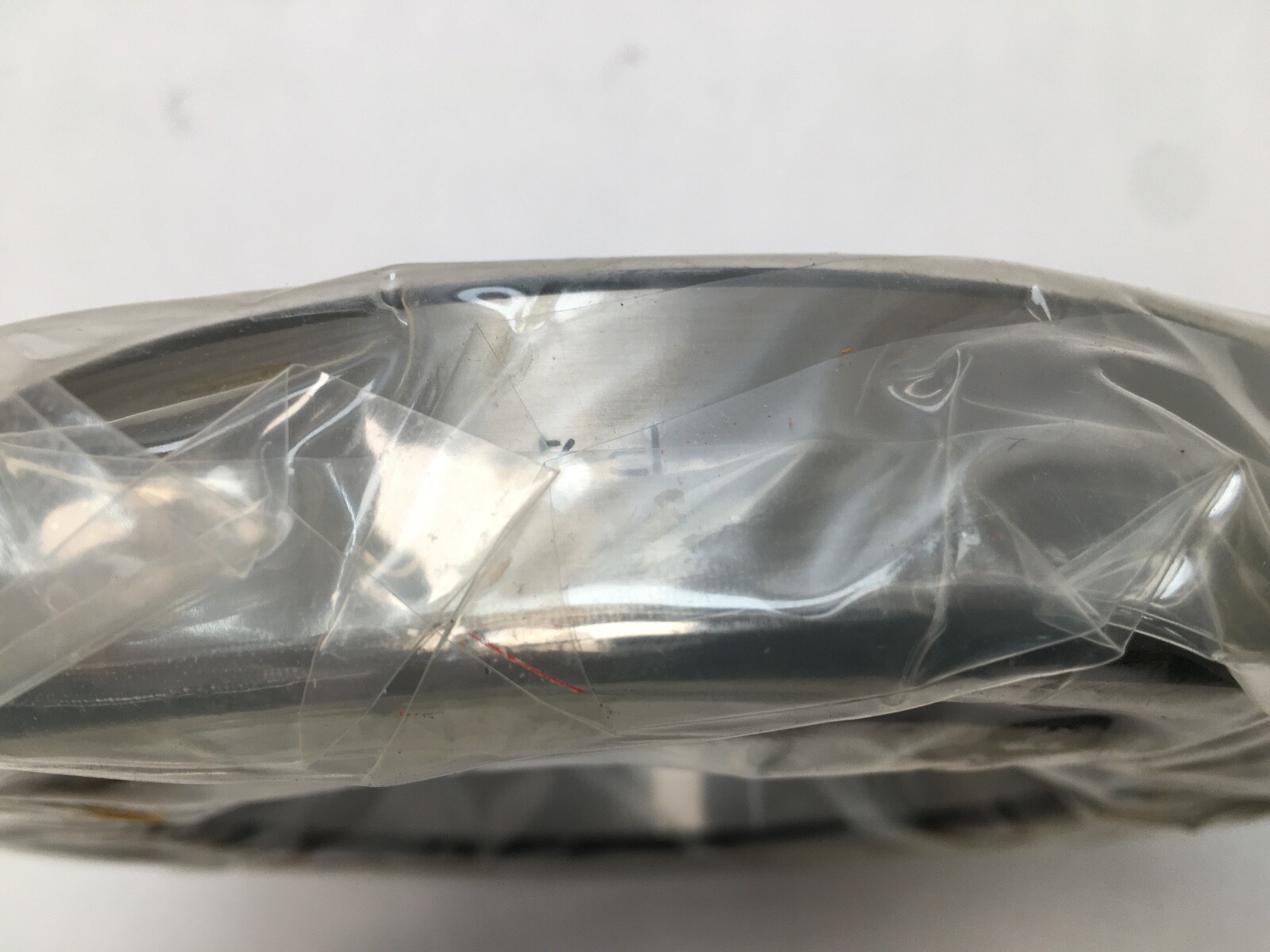

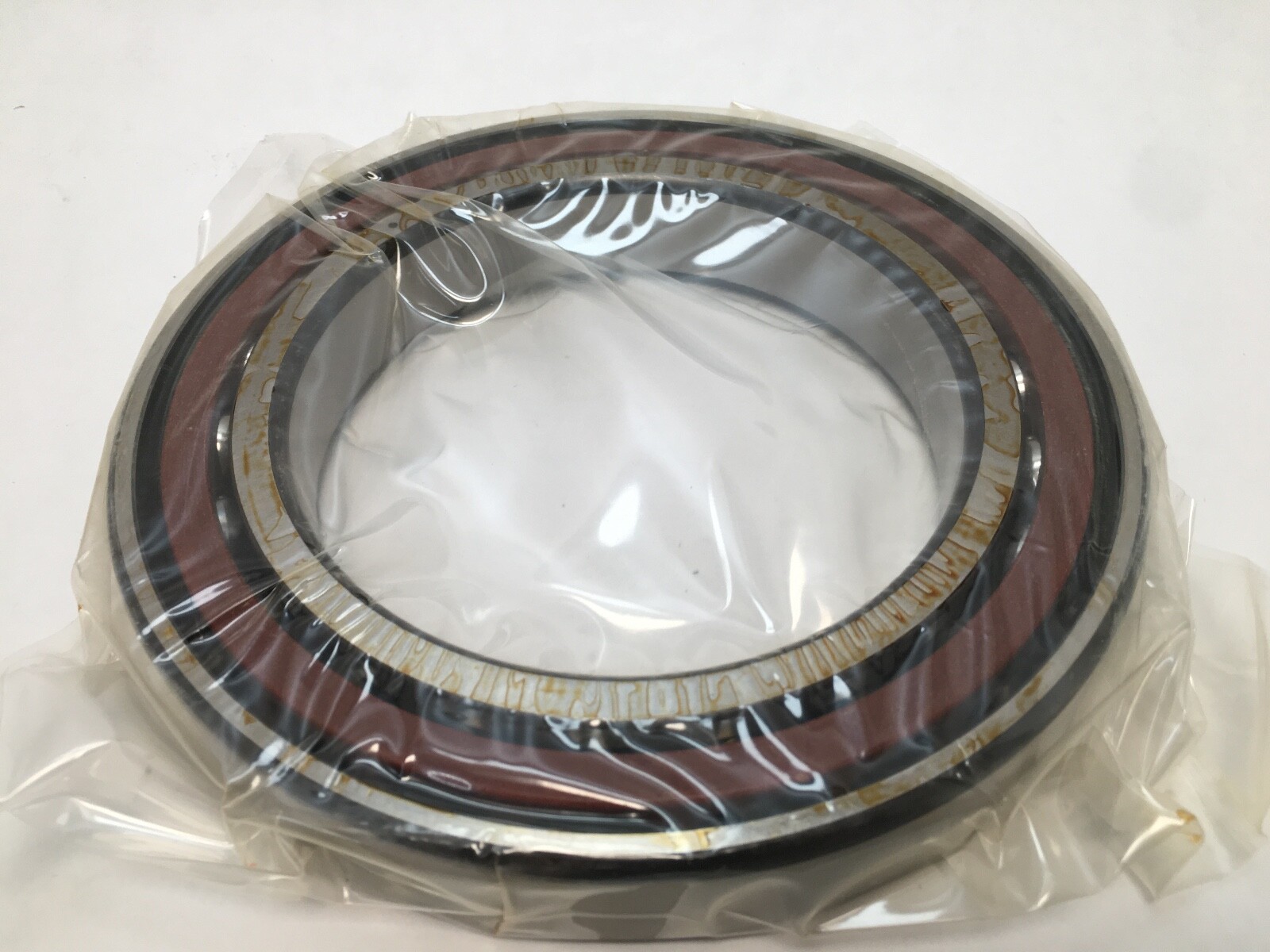

Angular contact spindle bearing, 120 x 180 x 28 mm, 25° contact angle, Medium preload 3,298 N. FAG B7024-E-T-P4S-UM, phenolic cage, P4S, Cr 109,000 N.
List Price
$588.50
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7024ETPAP4K5UM |
| Model | 3MM9124WI / B7024E.TPA.P4.K5.UM / 2124HDM / QH0L24 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil |
| Preload | Medium Preload |
| Industry Terms | super precision spindle bearing, angular contact ball bearing, machine tool spindle bearing, universal matched bearing |
| Mpn Variants | B7024-E-T-P4S-UM, B7024E.TPA.P4S.UM, B7024ETPAP4K5UM, B-7024-E-TPA-P4-K5-UM, B7024E |
| Precision Class | ABEC 7 / P4S |
| Additional Attributes | Fatigue load limit 6,700 N; shaft shoulder 131 mm; housing shoulder 169 mm; pressure cone apex distance 49 mm |
| Min Temp | -30 °C |
| Dynamic Load Rating | 109,000 N |
| Static Load Rating | 78,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 2.07 kg (4.56 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (U) |
| Cross Reference 1 | SKF 7024 ACD/P4A |
|---|---|
| Cross Reference 2 | NSK 7024A5 |
| Cross Reference 3 | Fafnir 3MM9124WI |

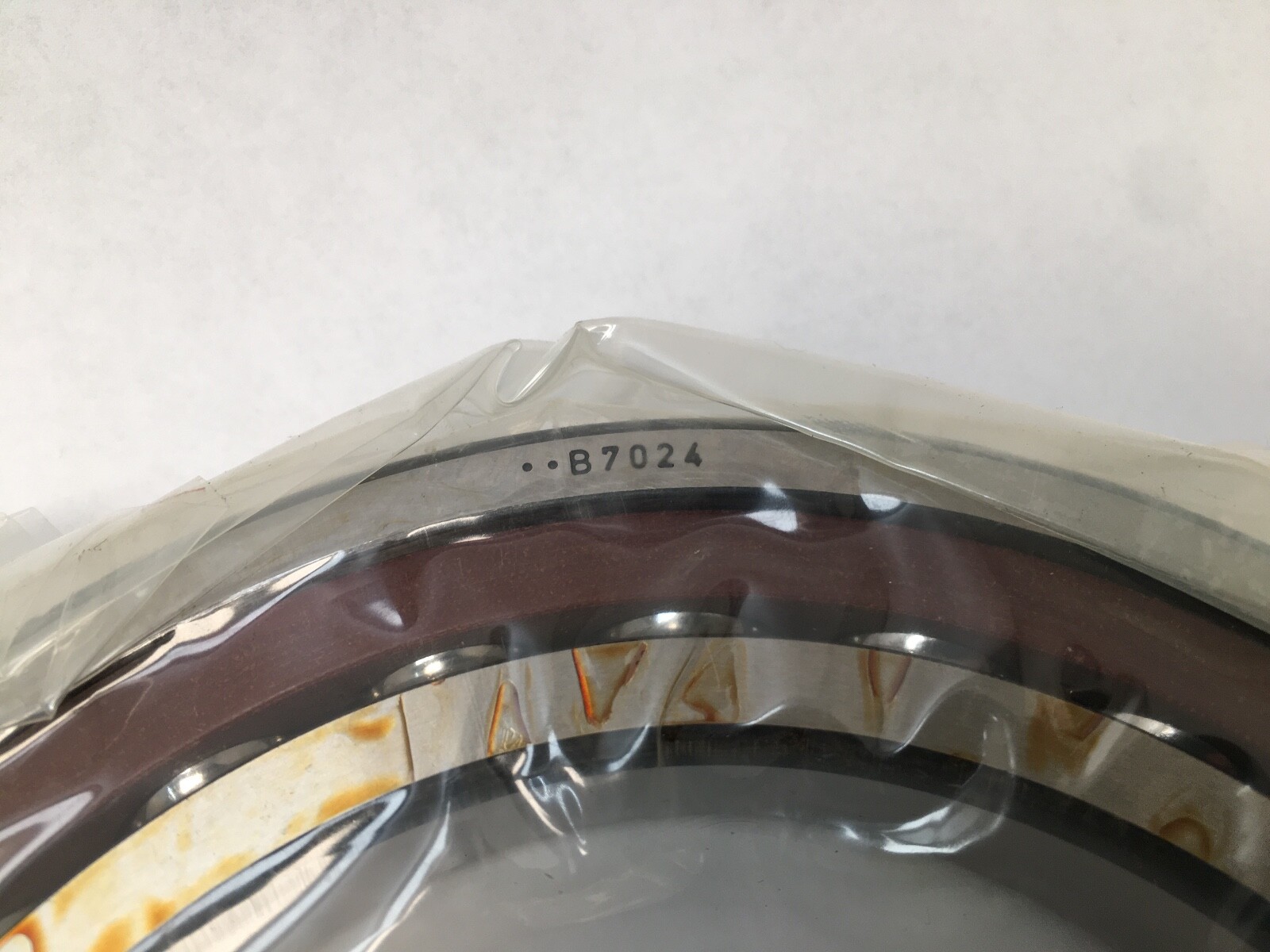

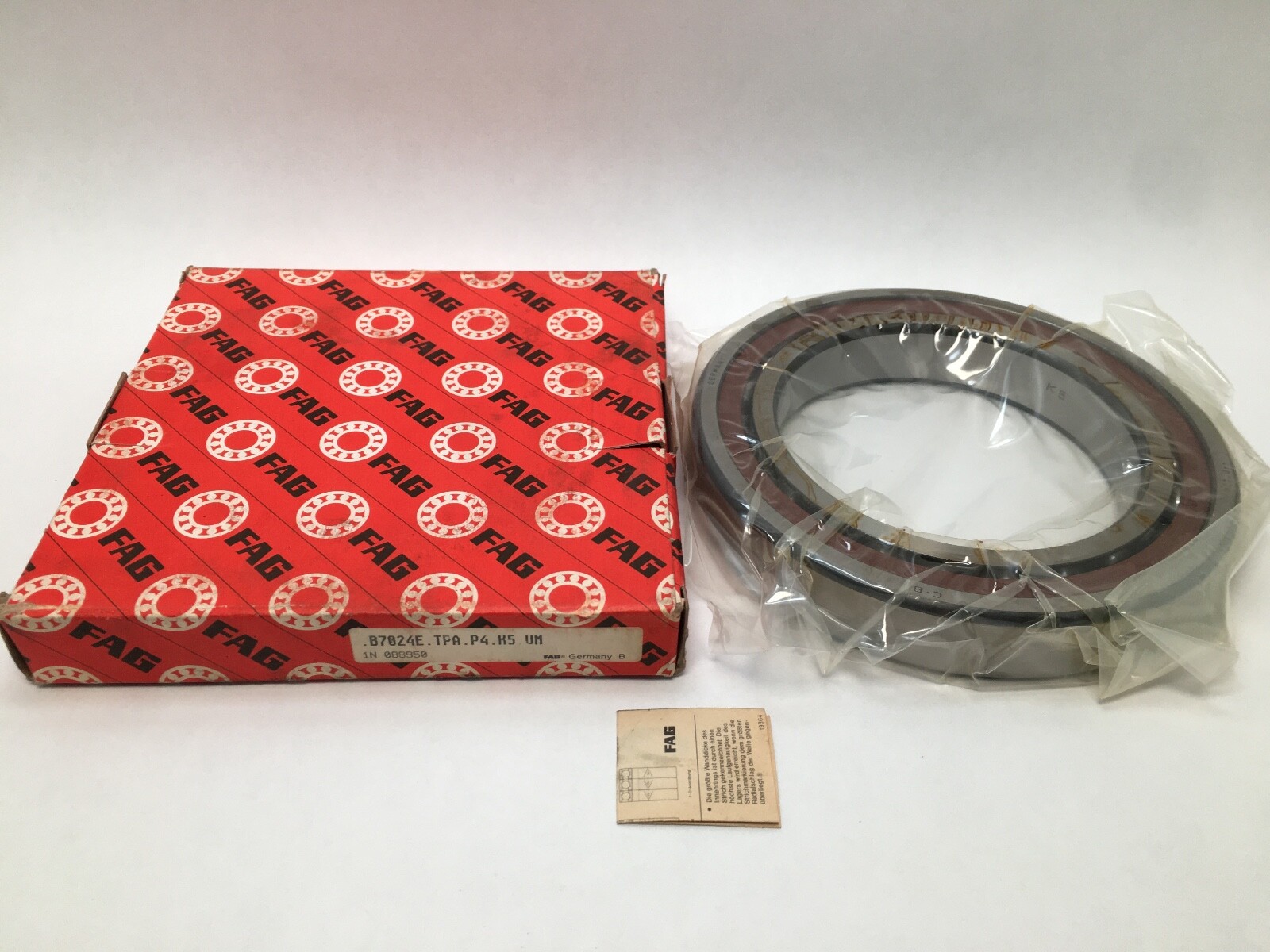

FAG B7024-E-T-P4S-UM super-precision spindle bearing, legacy designation B7024E.TPA.P4S.UM (carton marking B-7024-E-TPA-P4-K5-UM). Single-row angular contact ball bearing, universally ground, Medium preload. Bore Diameter: 120 mm. Outside Diameter: 180 mm. Width: 28 mm. Contact Angle: 25°. Preload: Medium (3,298 N).
B70 — FAG spindle bearing, ISO dimension series 10 (70xx).
24 — bore code, 24 x 5 = 120 mm.
E — 25° contact angle, for higher axial load capacity and axial rigidity than the 15° C execution.
T / TPA — laminated fabric (phenolic) cage. TPA is the legacy code; the current Schaeffler designation uses T.
P4S — FAG tolerance class, tighter than ISO P4.
U — universal design. The bearing can be paired back-to-back, face-to-face or in tandem with any other U bearing of the same size.
M — Medium preload.
Dynamic Load Rating: 109,000 N. Static Load Rating: 78,000 N. Fatigue Load Limit: 6,700 N. Cage Material: Phenolic. Precision Class: ABEC 7 / P4S. Operating Temperature: -30 °C to 100 °C. Item Weight: 2.07 kg (4.56 lb). Lubricant: grease or oil.
Preload: Medium, 3,298 N for a universal pair in back-to-back or face-to-face arrangement. The same size is also built with Light (983 N) and Heavy (6,830 N) preload. Medium preload gives higher axial rigidity than Light at a lower speed limit.
Shaft shoulder diameter: 131 mm. Housing shoulder diameter: 169 mm. Distance between pressure cone apexes: 49 mm. Minimum chamfer dimension: 2 mm.
Unit Quantity: 1 Pc. Single universal bearing. Closure Type: Open. Number Of Rows: 1.
Same 120 x 180 x 28 mm envelope and 25° contact angle: SKF 7024 ACD/P4A, NSK 7024A5, Fafnir 3MM9124WI. Schaeffler lists B7024-E-T-P4S as the current designation replacing B7024E.TPA.P4 and B7024E.T.P4S.
