Availability:
2 in stock
Super precision angular contact ball bearing, 105mm bore x 160mm OD x 26mm wide, 15° contact angle, ABEC 7, light preload, universal design.
List Price
$260.02
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7021-C-P4-UL |
| Model | B7021-C-P4-UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 105 mm |
| OD | 160 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Base Number | 7021 |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact, precision ball bearing |
| Common Misspellings | FGA, F.A.G., B7021CAP4UL, B7O21C, B7021-CA-P4-UL |
| Application Types | Machine tool spindles, grinding spindles, precision gearboxes, high-speed rotating assemblies |
| Bore Shaft Size | 105 mm (4.1339 in) |
| Mpn Variants | B7021CA.P4.UL, B7021C.P4.UL, B-7021-C-P4-UL, B7021CP4UL, B7021-C-A-P4-UL, B7021CAP4UL |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Part Number | B7021CA.P4.UL |

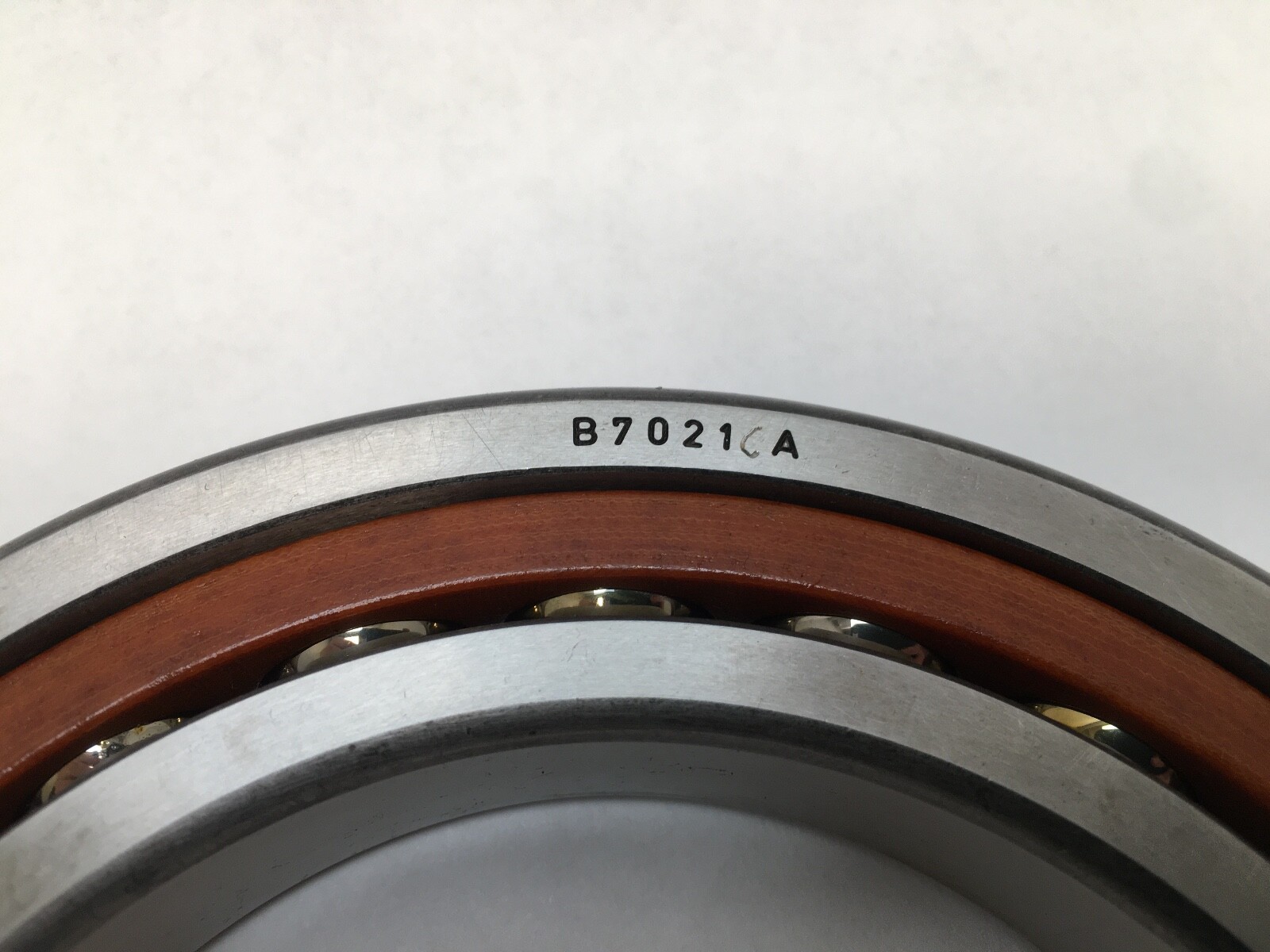

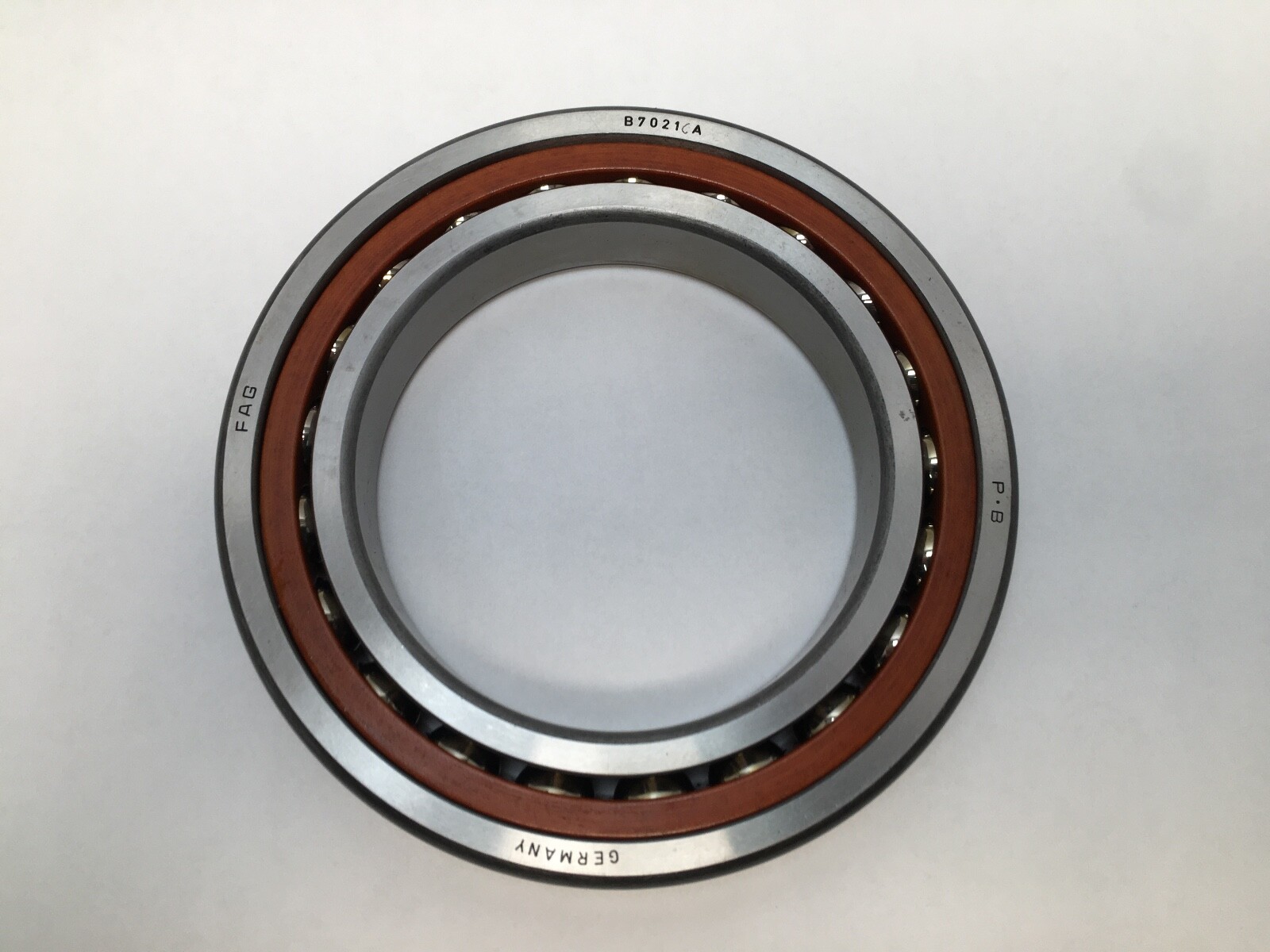

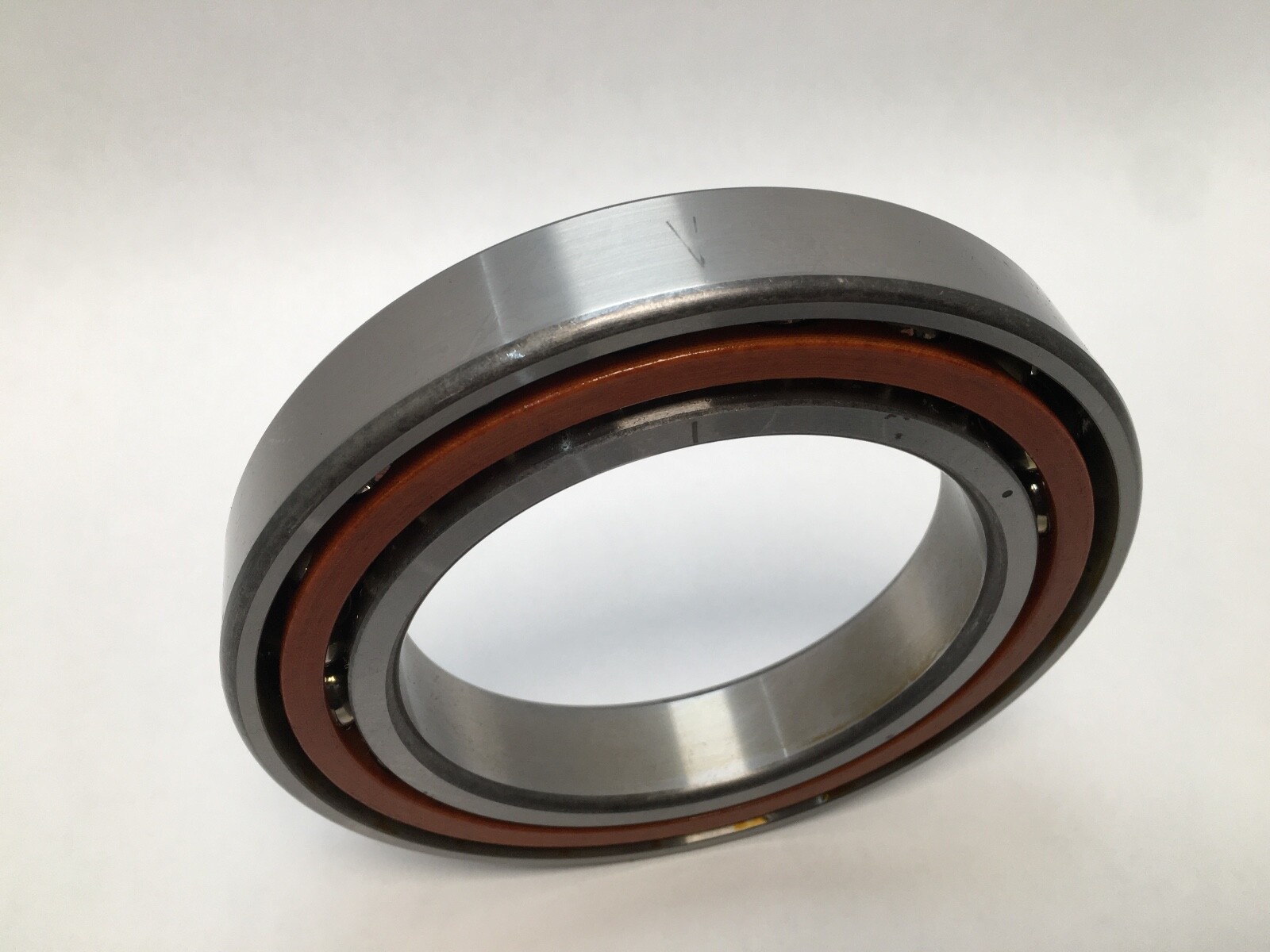

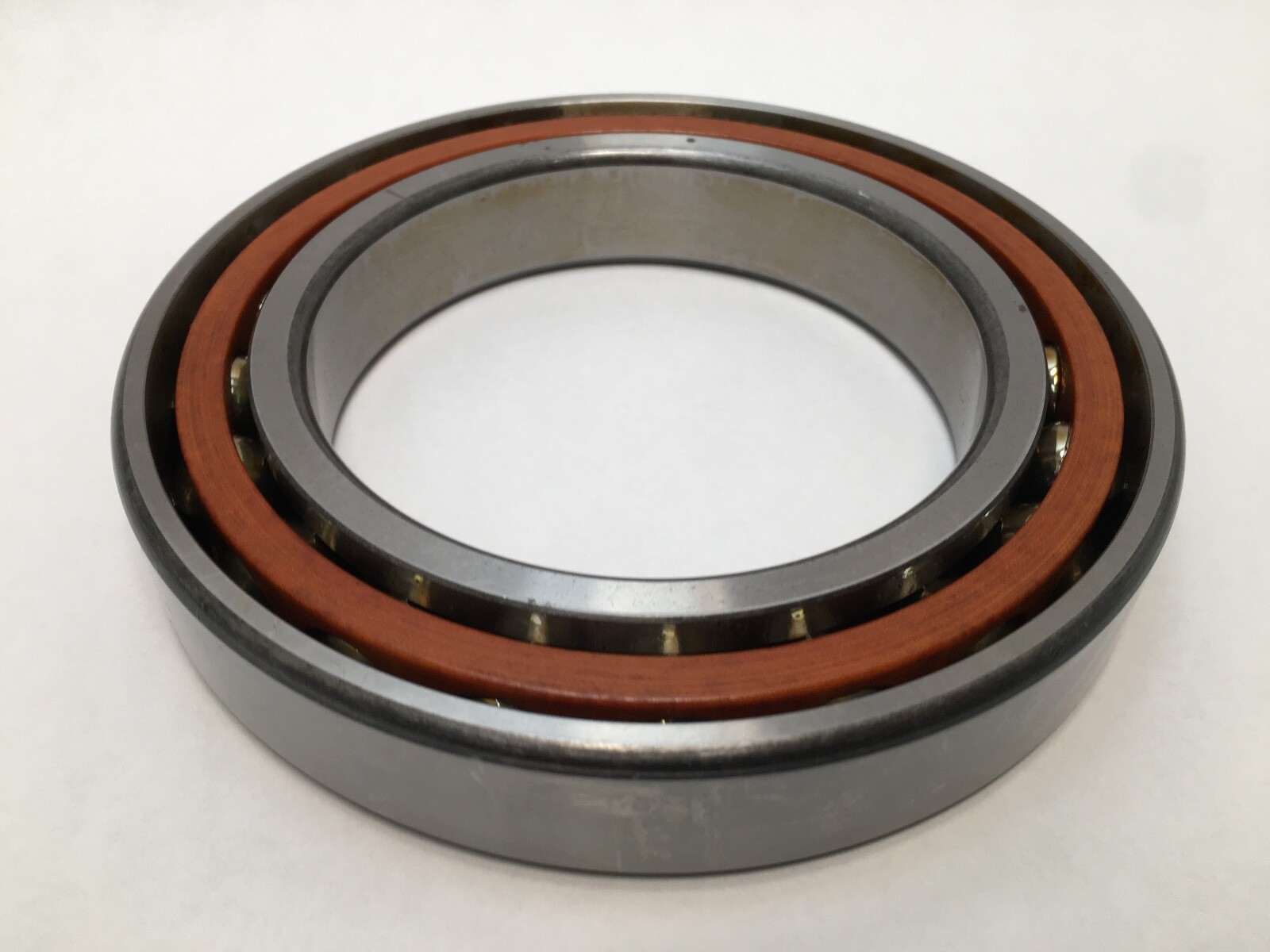

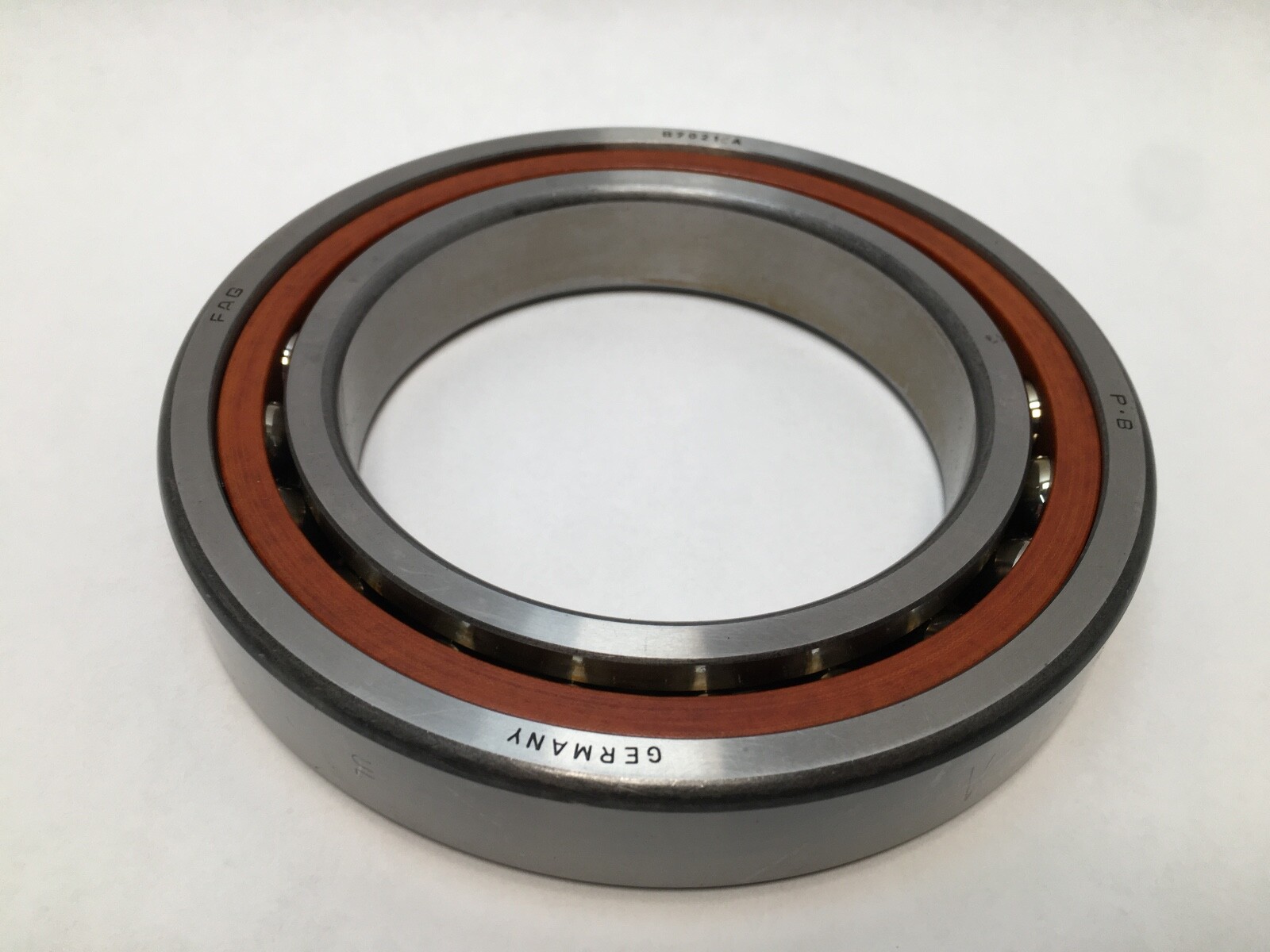

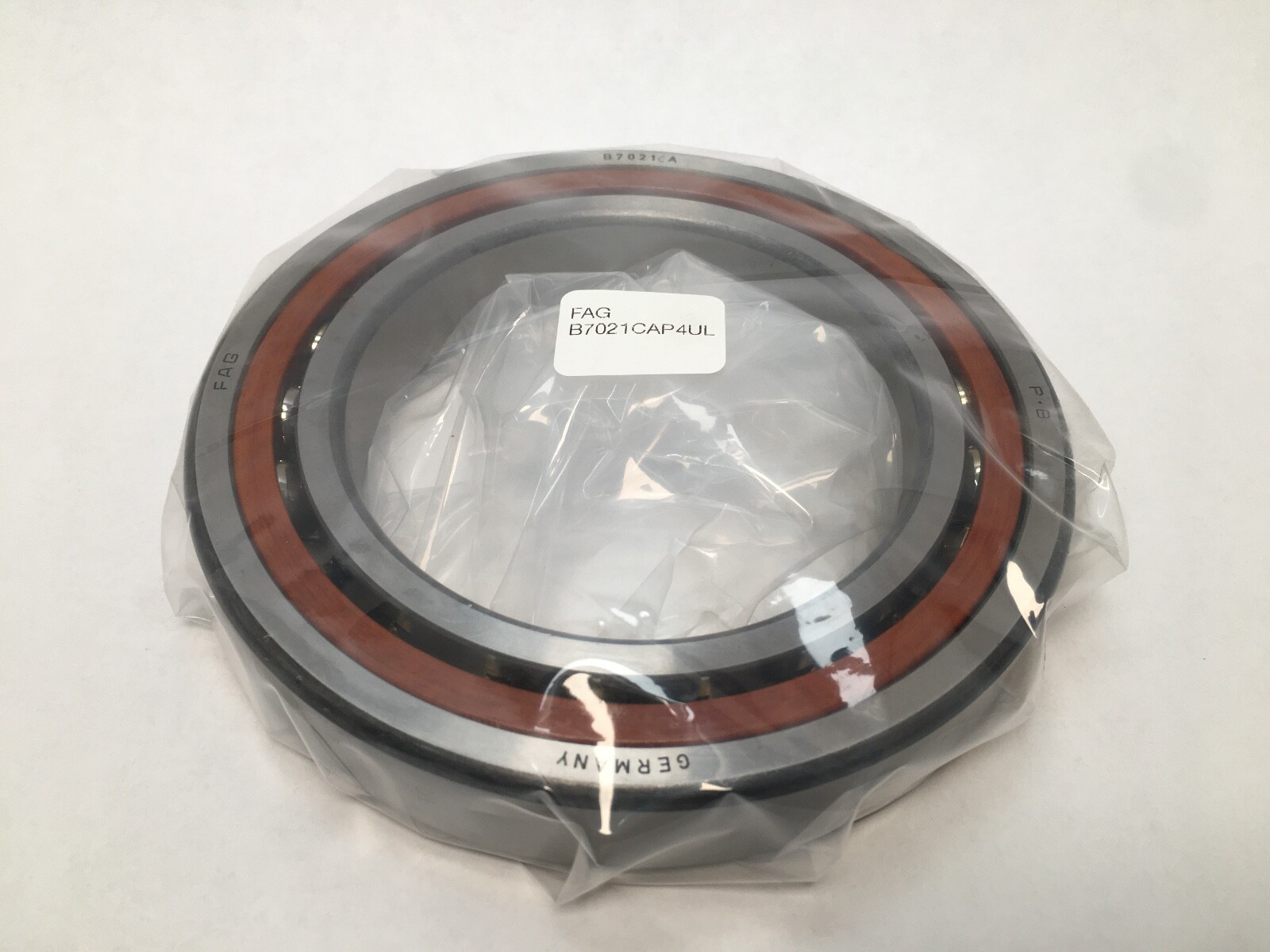

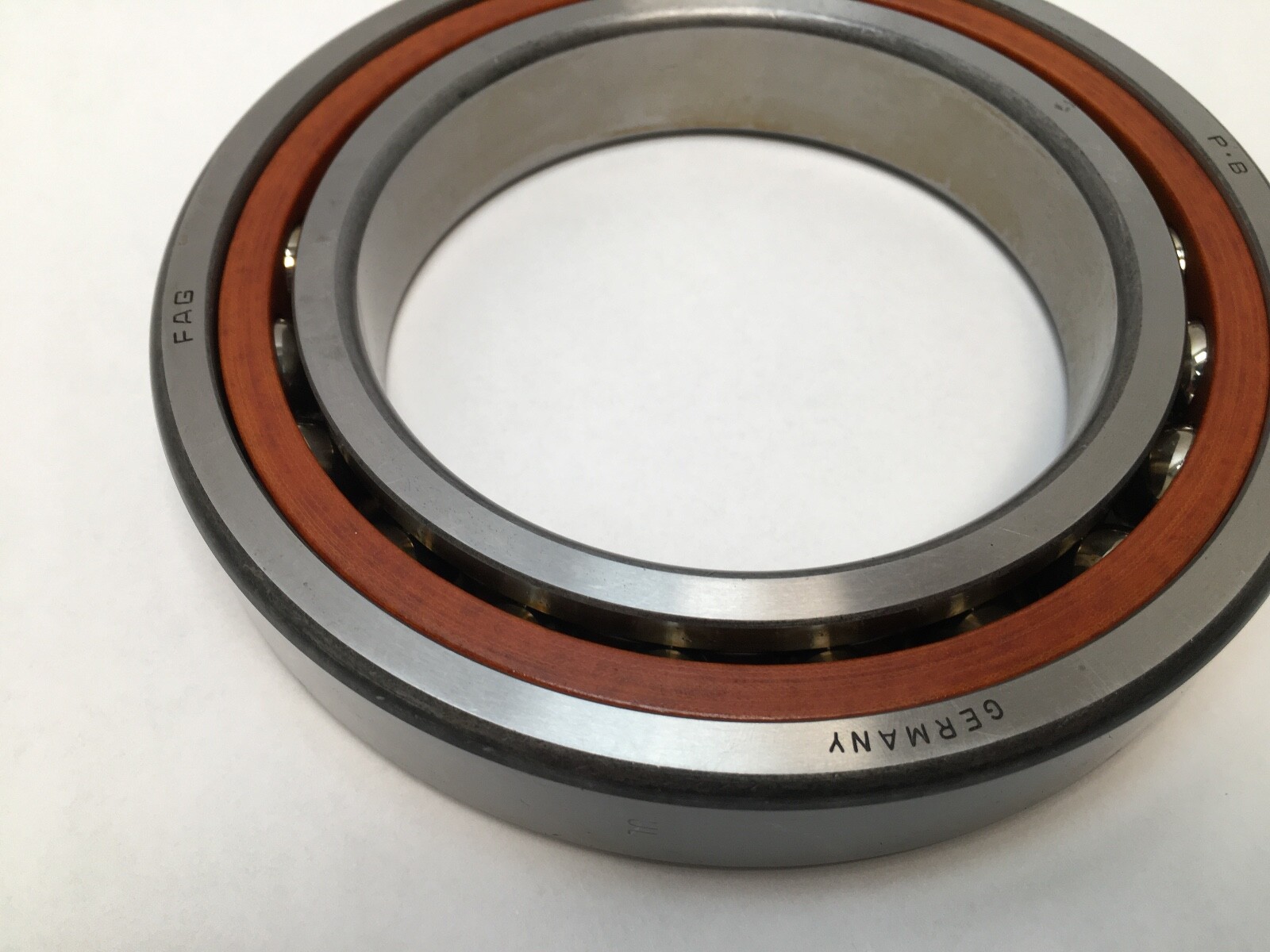

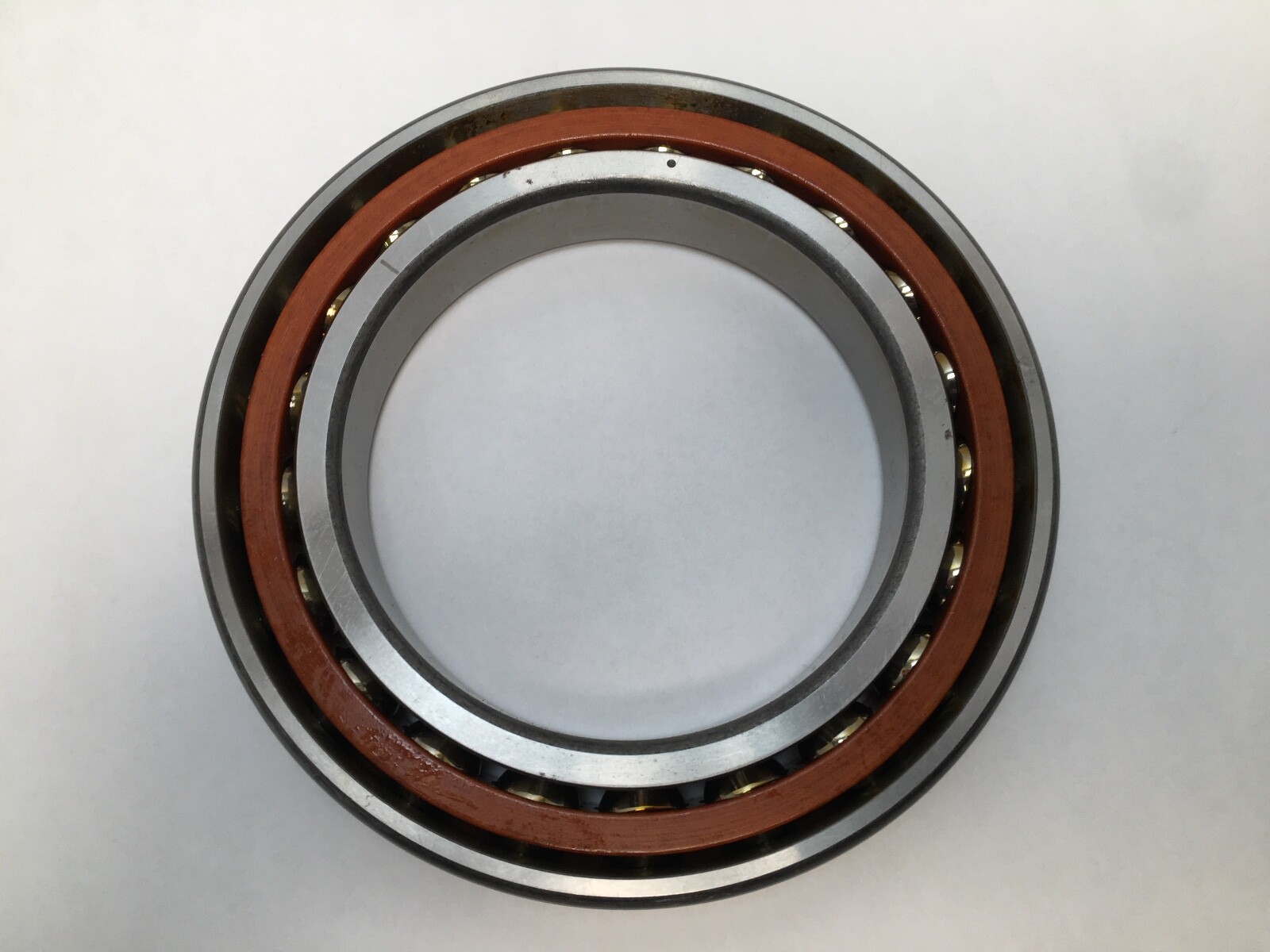

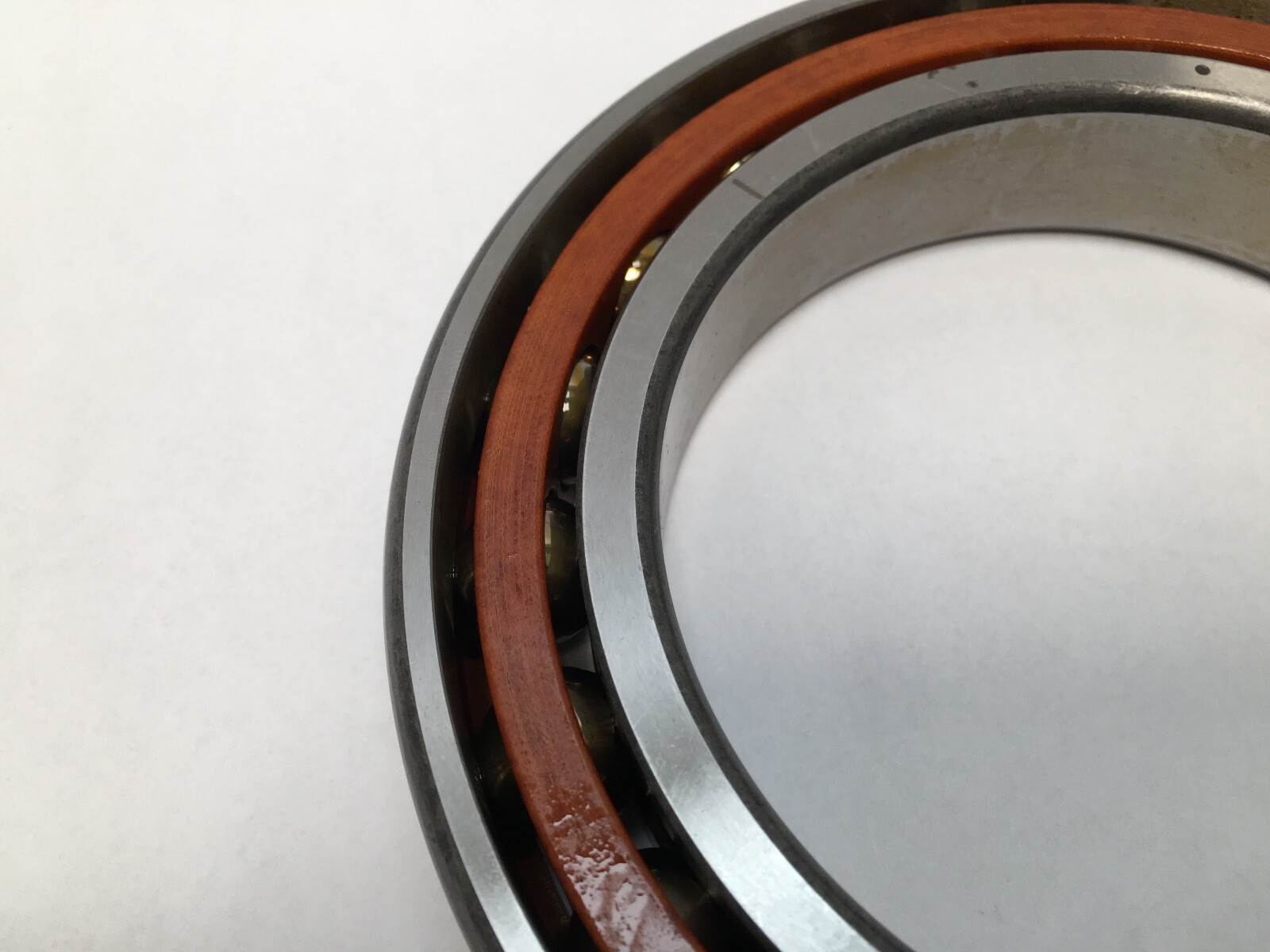

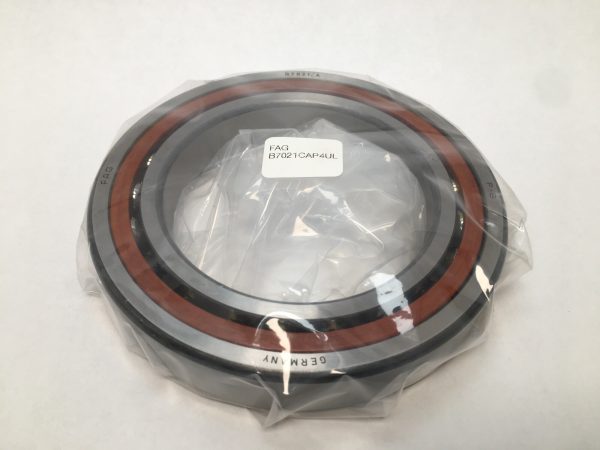

A FAG B7021-C-P4-UL super precision single-row angular contact ball bearing. Bore 105 mm, outside diameter 160 mm, width 26 mm, in the ISO 7021 envelope. Open faces, universal design.

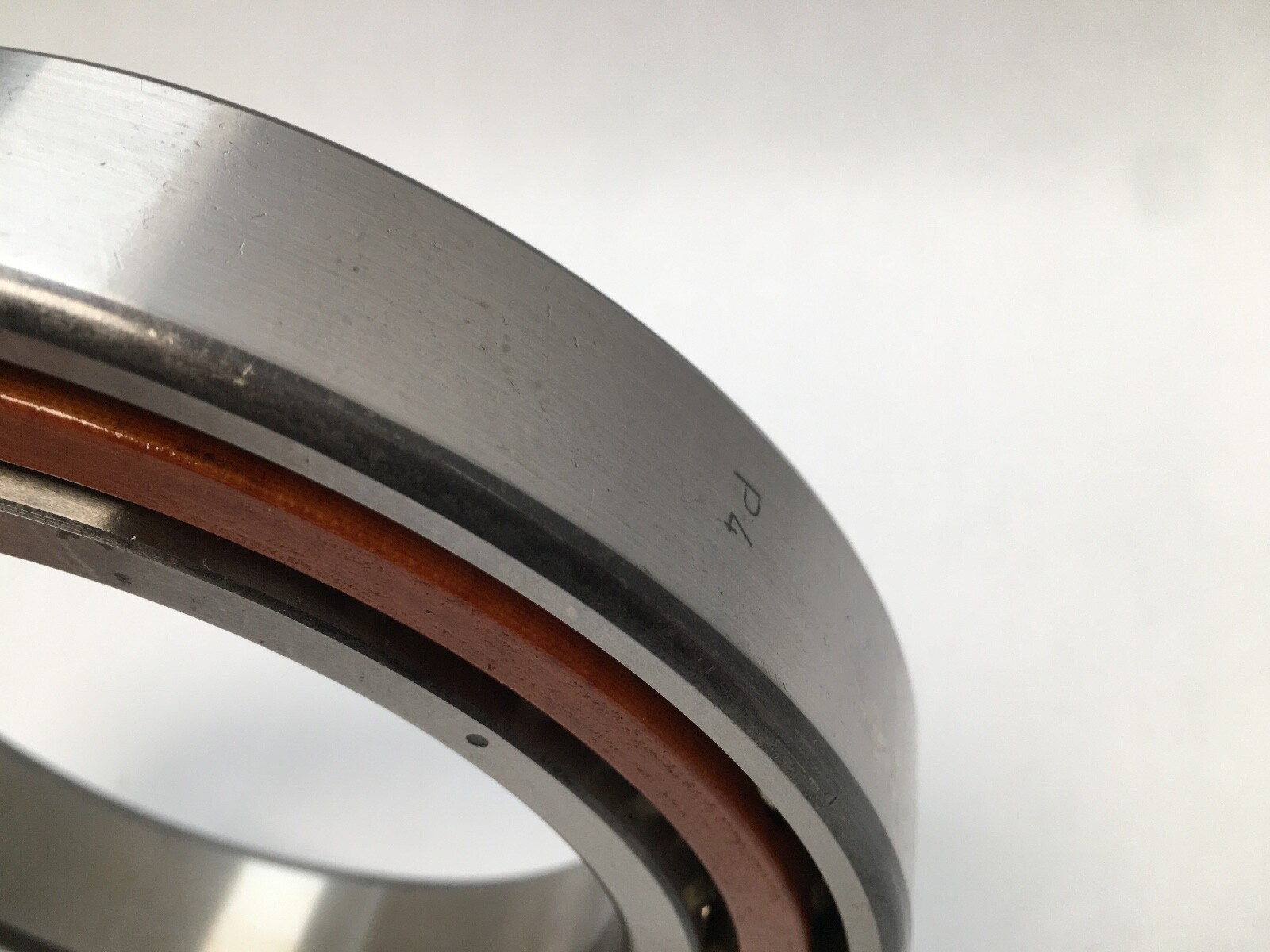

The B prefix denotes the FAG super precision angular contact series. 7021 denotes the ISO 70 series, bore code 21 giving a 105 mm bore. C denotes a 15° contact angle in the FAG scheme. P4 denotes ABEC 7 precision. U denotes a universal design, ground to stack in any arrangement. L denotes light preload.
A 15° contact angle favours speed and radial stiffness; the 25° FAG execution, coded E, trades speed for thrust capacity. Light preload holds heat generation and running torque down, which suits higher spindle speeds. A single row takes thrust in one direction only.
Bore: 105 mm. Outside diameter: 160 mm. Width: 26 mm. Contact angle: 15°. Precision class: P4, equivalent to ABEC 7. Preload: light. Rolling elements: steel balls, single row. Closure: open both faces.
1 Pc. Universal design, matchable into duplex or triplex sets.
Universal grinding allows this bearing to run alone or to be stacked back-to-back, face-to-face or in tandem, with preload established by the ground ring faces once clamped against square shoulders.
The generic ISO form of this designation is 7021C-P4 at 15°, light preload. A B7021-E variant shares the envelope at 25° and is a related size, as are medium and heavy preload variants.
