Availability:
6 in stock

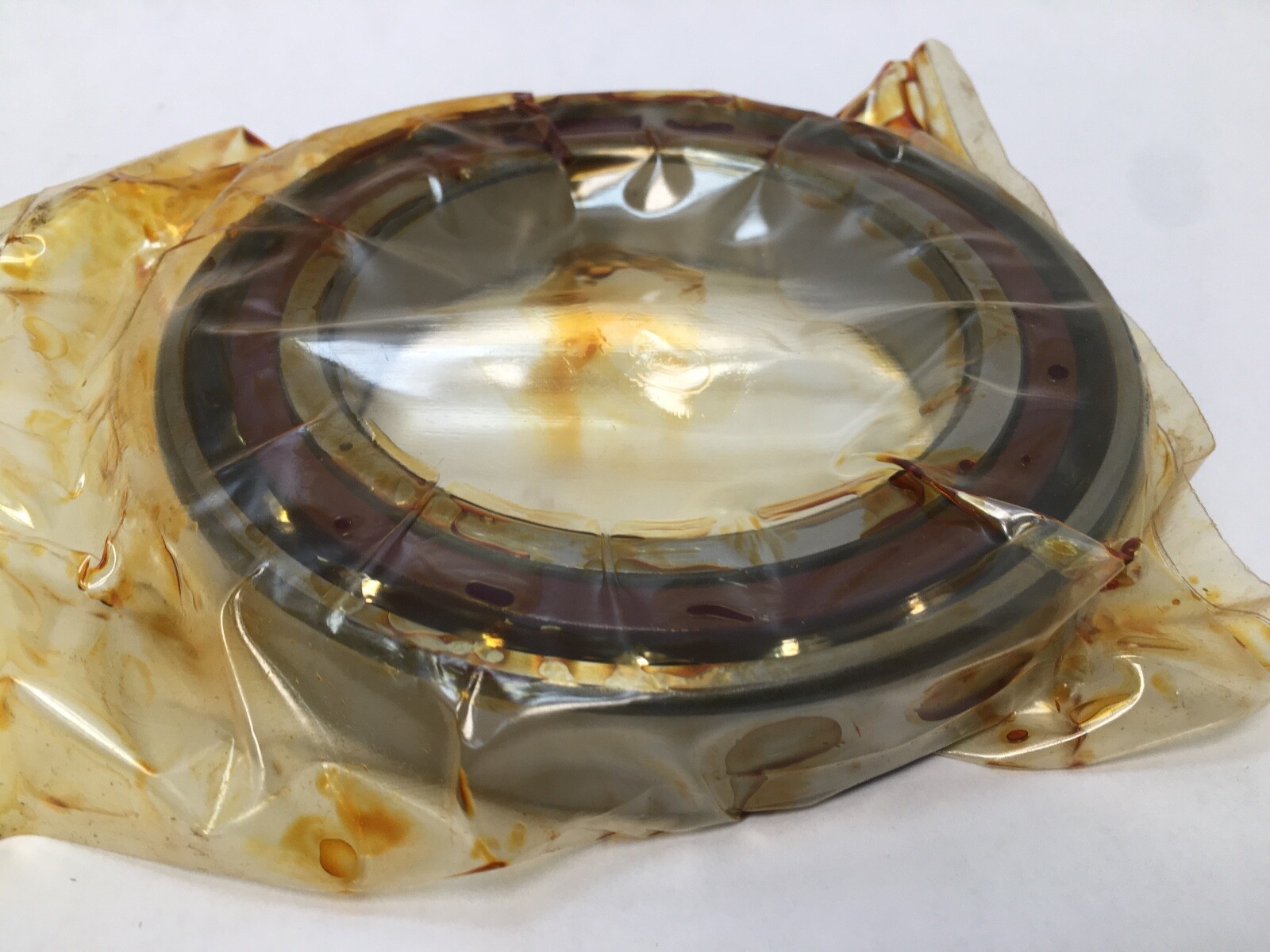

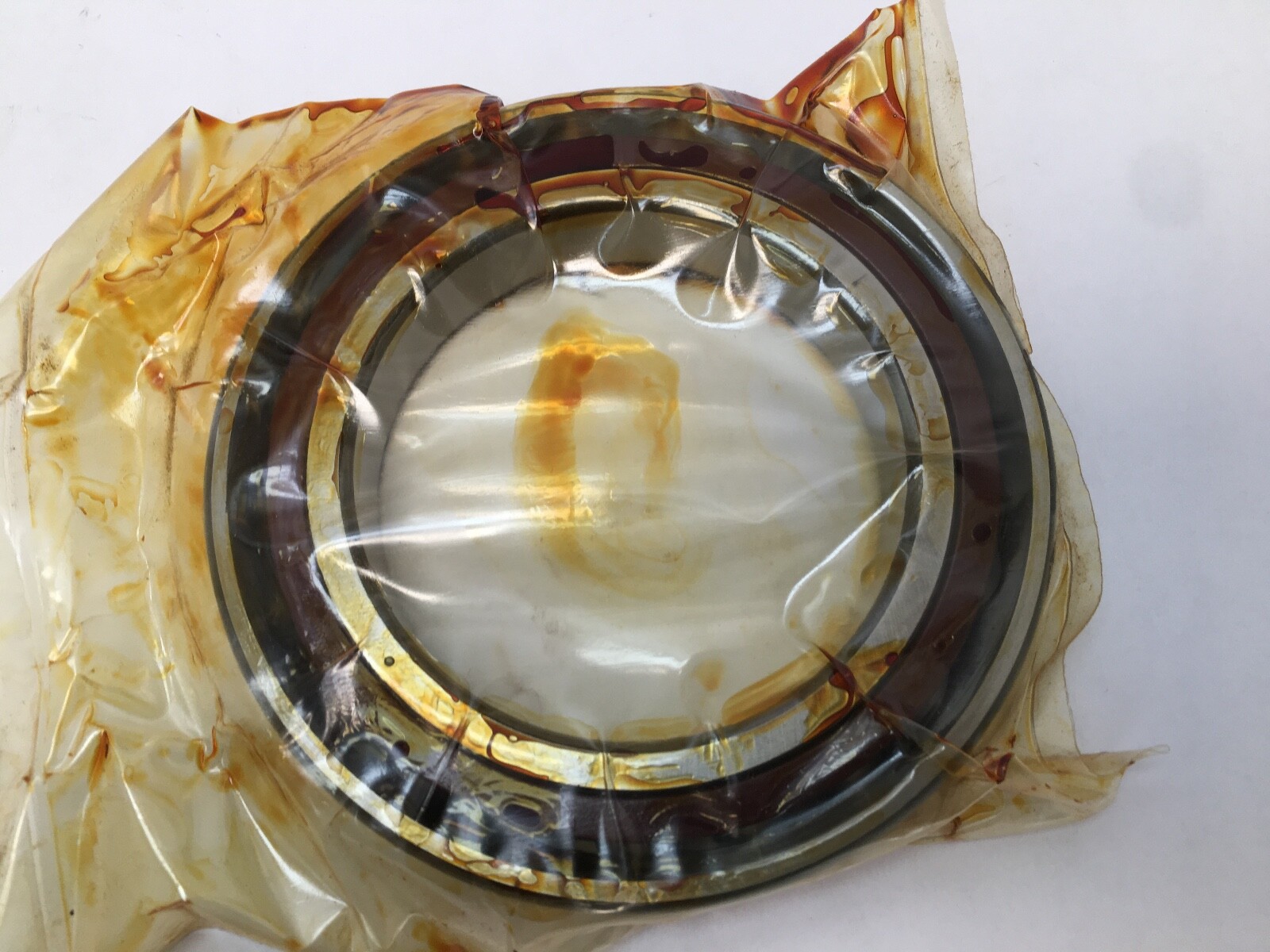

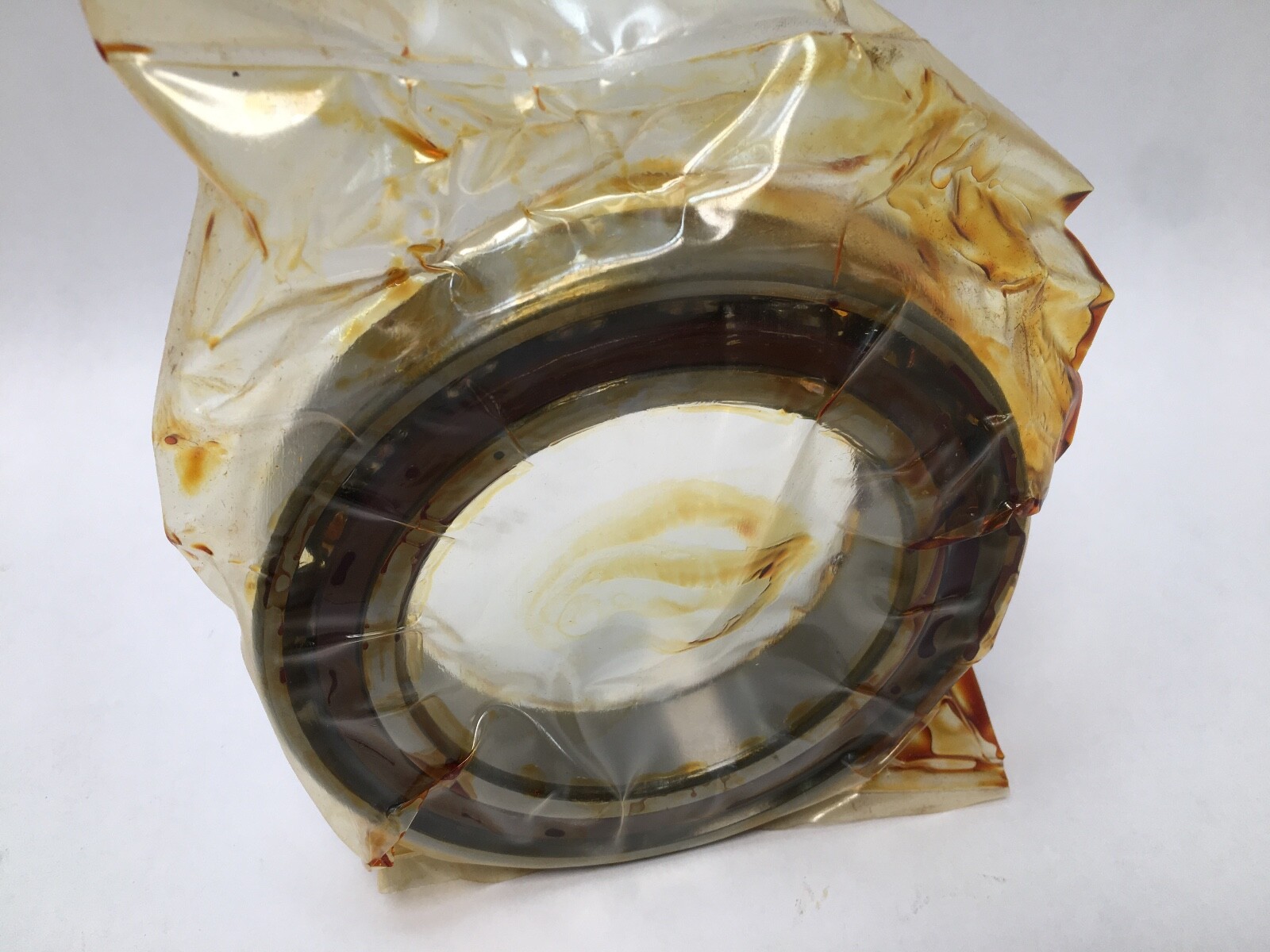

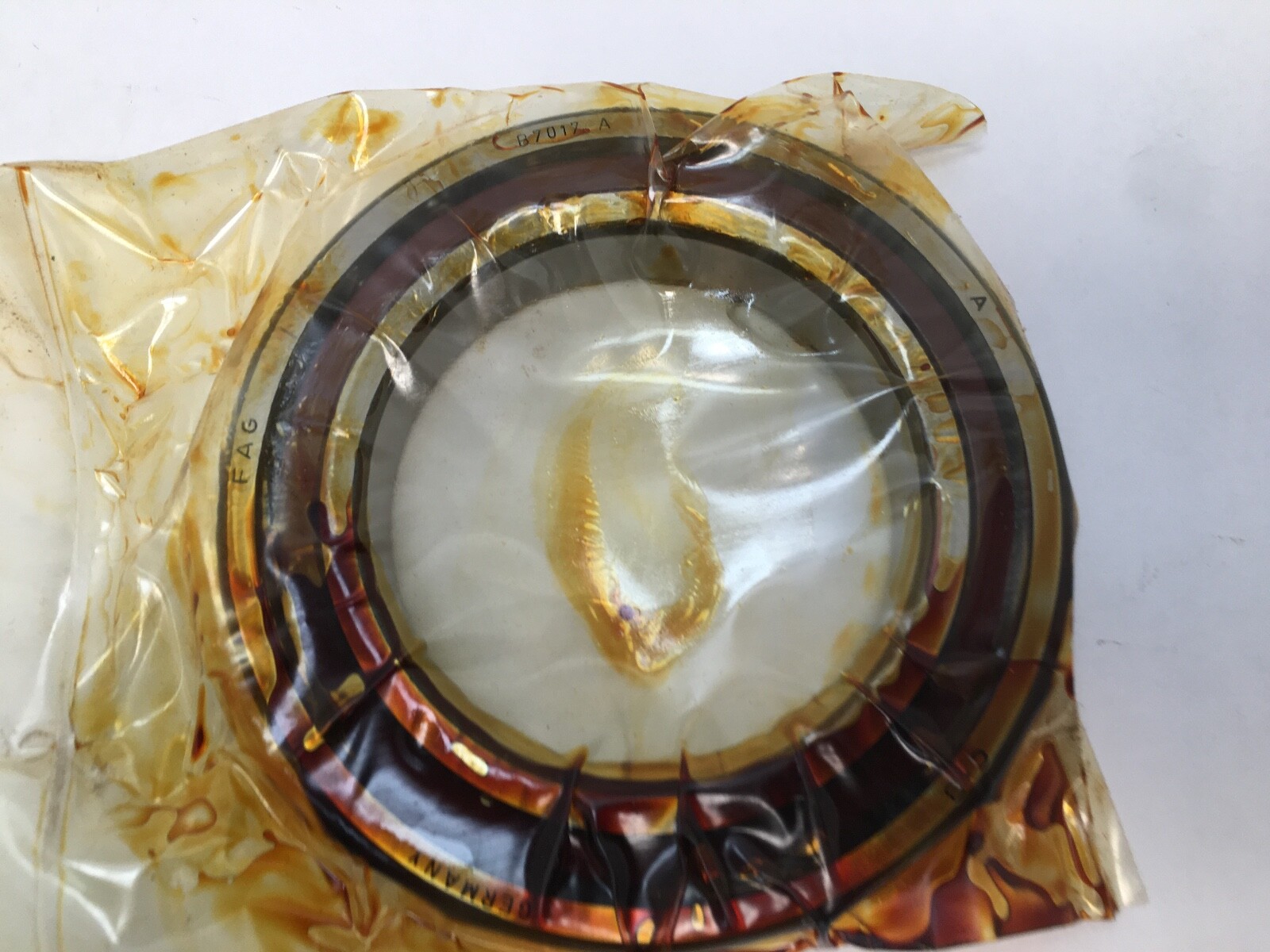

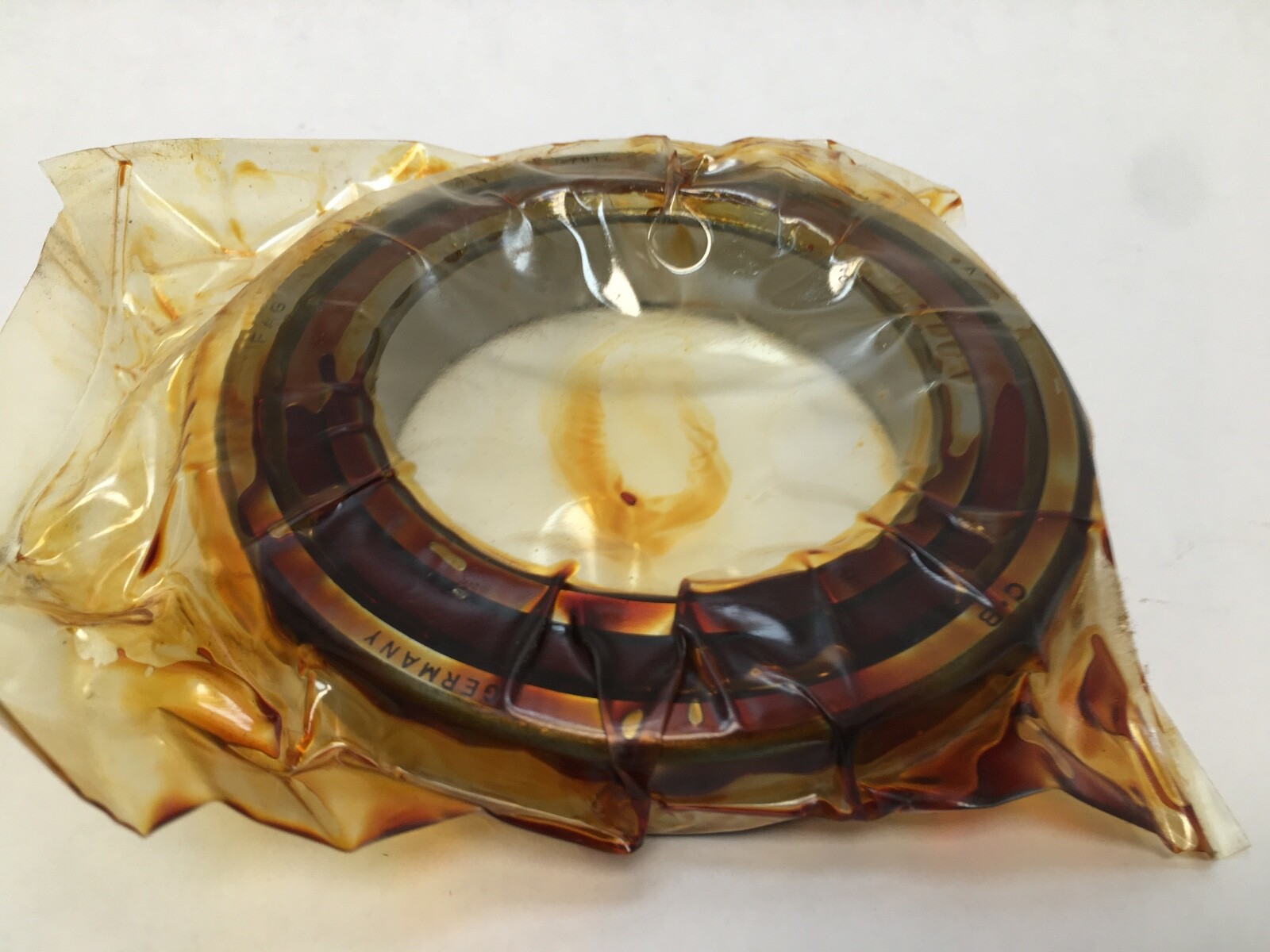

Angular contact spindle bearing, 85 x 130 x 22 mm, 15° contact angle, Light preload 367 N. FAG B7017C.T.P5.UL, phenolic cage, ABEC 5 / P5, 11,000 rpm grease.
List Price
$217.96
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7017CTP5UL |
| Model | B7017CTP5UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 130 mm |
| Width | 22 mm |
| Material | Chrome Steel |
|---|---|
| Series | B70 |
| Lubricant | grease or oil |
| Preload | Light (367 N) |
| Industry Terms | precision spindle bearing, angular contact ball bearing, machine tool spindle bearing, universal matched bearing |
| Mpn Variants | B7017C.T.P5.UL, B7017CTP5UL, B-7017-C-T-P5-UL, B7017C.TPA.P5.UL, B7017-C-T-P4S-UL, B7017C |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | Fatigue load limit 4,450 N; shaft shoulder 93 mm; housing shoulder 122 mm; pressure cone apex distance 25.4 mm |
| Min Temp | -30 °C |
| Dynamic Load Rating | 66,000 N |
| Static Load Rating | 43,500 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.892 kg (1.97 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 11,000 rpm grease; 16,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (U) |
| Cross Reference 1 | SKF 7017 CD |
|---|---|
| Cross Reference 2 | NSK 7017C |
| Cross Reference 3 | Fafnir 2MM9117WI (ABEC 7) |

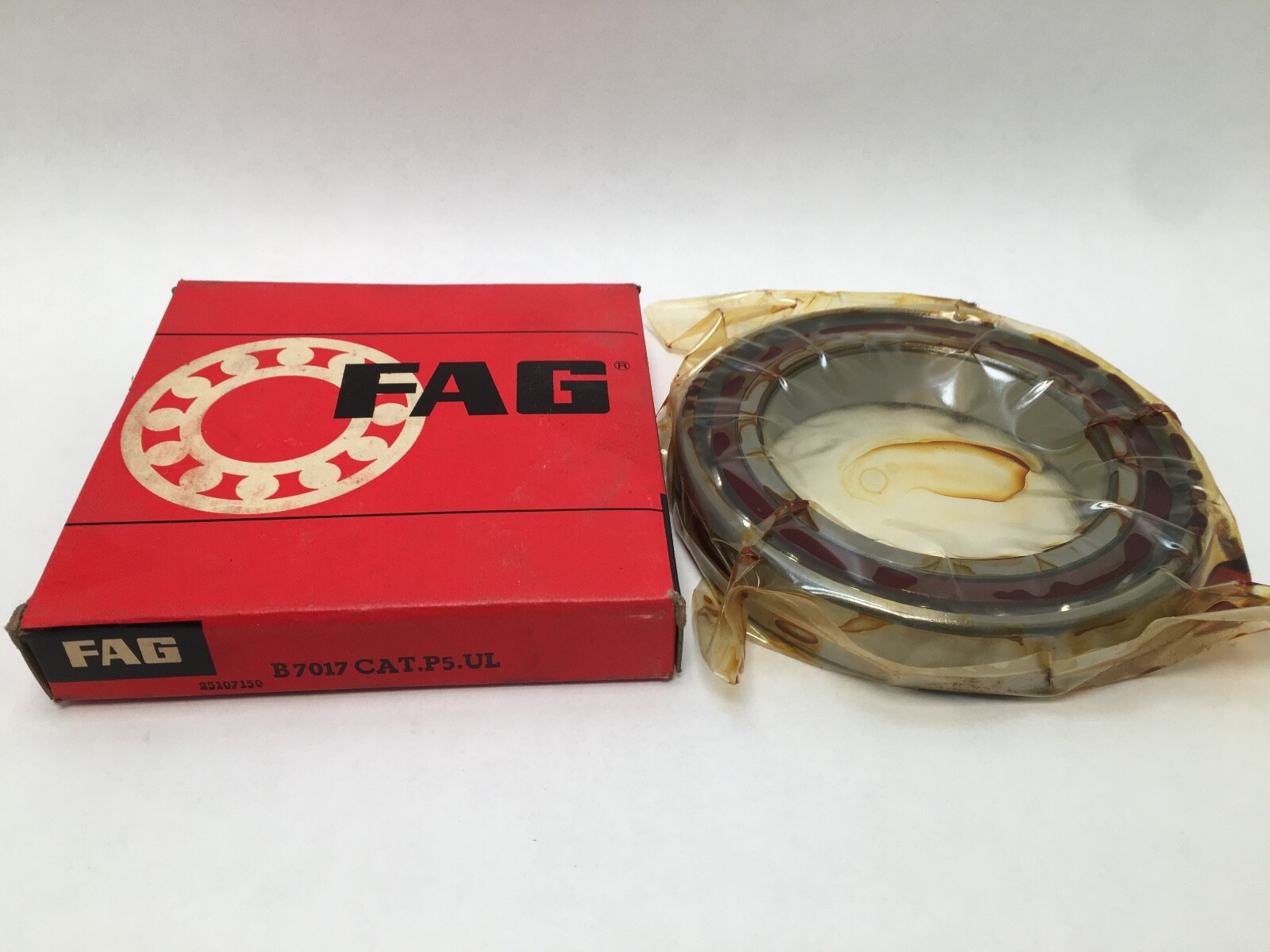

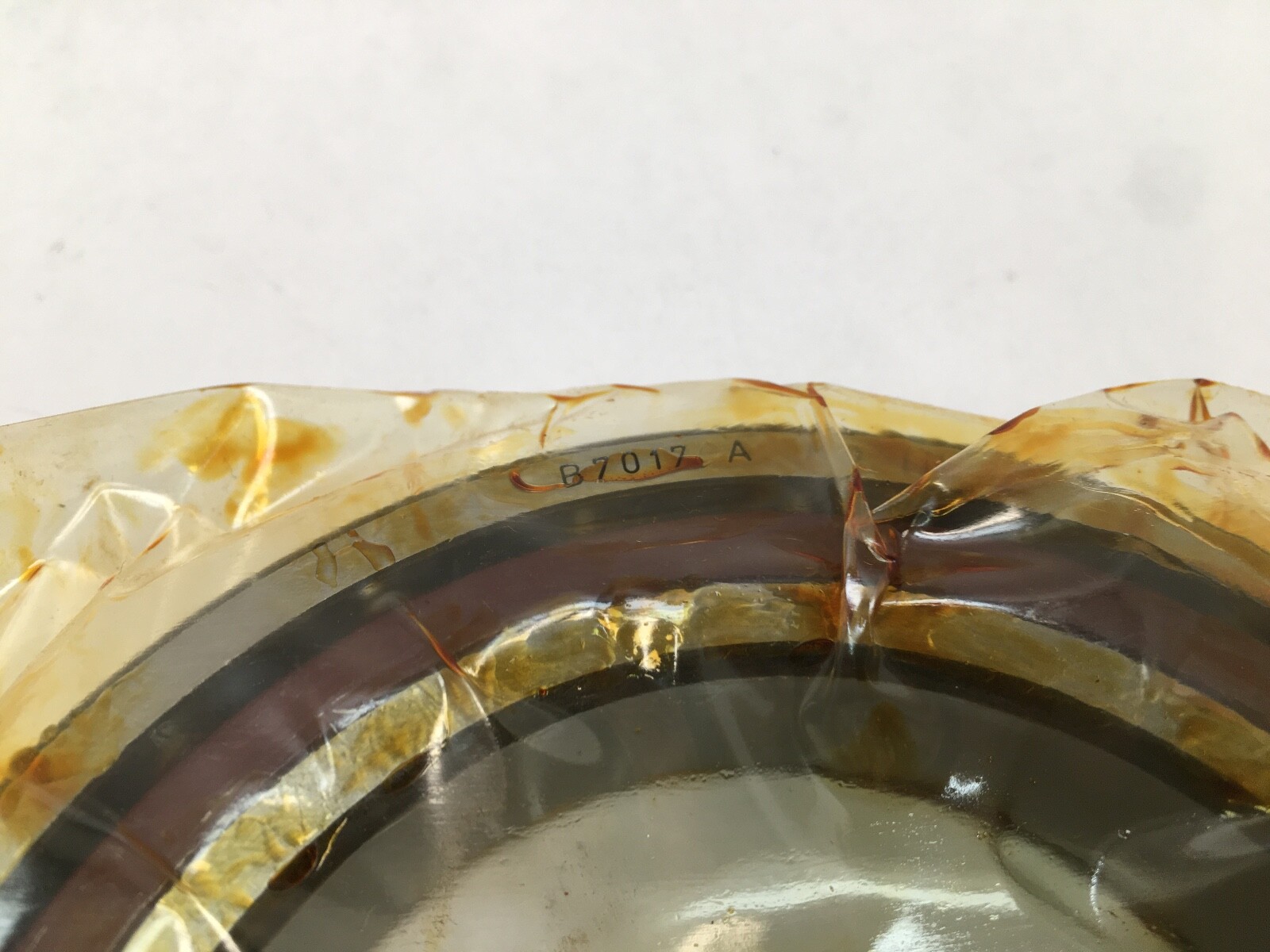

FAG B7017C.T.P5.UL spindle bearing (marking B-7017-C-T-P5-UL), current Schaeffler designation B7017-C-T-P4S-UL. Single-row angular contact ball bearing, universally ground, Light preload. Bore Diameter: 85 mm. Outside Diameter: 130 mm. Width: 22 mm. Contact Angle: 15°. Preload: Light (367 N).
B70 — FAG spindle bearing, ISO dimension series 10 (70xx).
17 — bore code, 17 x 5 = 85 mm.
C — 15° contact angle, for high speed with moderate axial rigidity.
T — laminated fabric (phenolic) cage.
P5 — ISO tolerance class P5, equivalent to ABEC 5.
U — universal design. The bearing can be paired back-to-back, face-to-face or in tandem with any other U bearing of the same size.
L — Light preload.
Dynamic Load Rating: 66,000 N. Static Load Rating: 43,500 N. Fatigue Load Limit: 4,450 N. Limiting Speed: 11,000 rpm grease; 16,000 rpm oil. Cage Material: Phenolic. Precision Class: ABEC 5 / P5. Operating Temperature: -30 °C to 100 °C. Item Weight: 0.892 kg (1.97 lb). Lubricant: grease or oil.
Preload: Light, 367 N for a universal pair in back-to-back or face-to-face arrangement. The same size is also built with Medium (1,183 N) and Heavy (2,368 N) preload. Light preload gives the highest speed capability of the three.
Shaft shoulder diameter: 93 mm. Housing shoulder diameter: 122 mm. Distance between pressure cone apexes: 25.4 mm.
Unit Quantity: 1 Pc. Single universal bearing. Closure Type: Open. Number Of Rows: 1.
Same 85 x 130 x 22 mm envelope and 15° contact angle: SKF 7017 CD, NSK 7017C, Fafnir 2MM9117WI (ABEC 7 class). Schaeffler lists B7017-C-T-P4S-UL as the current designation replacing B7017C.TPA.P5.UL.
