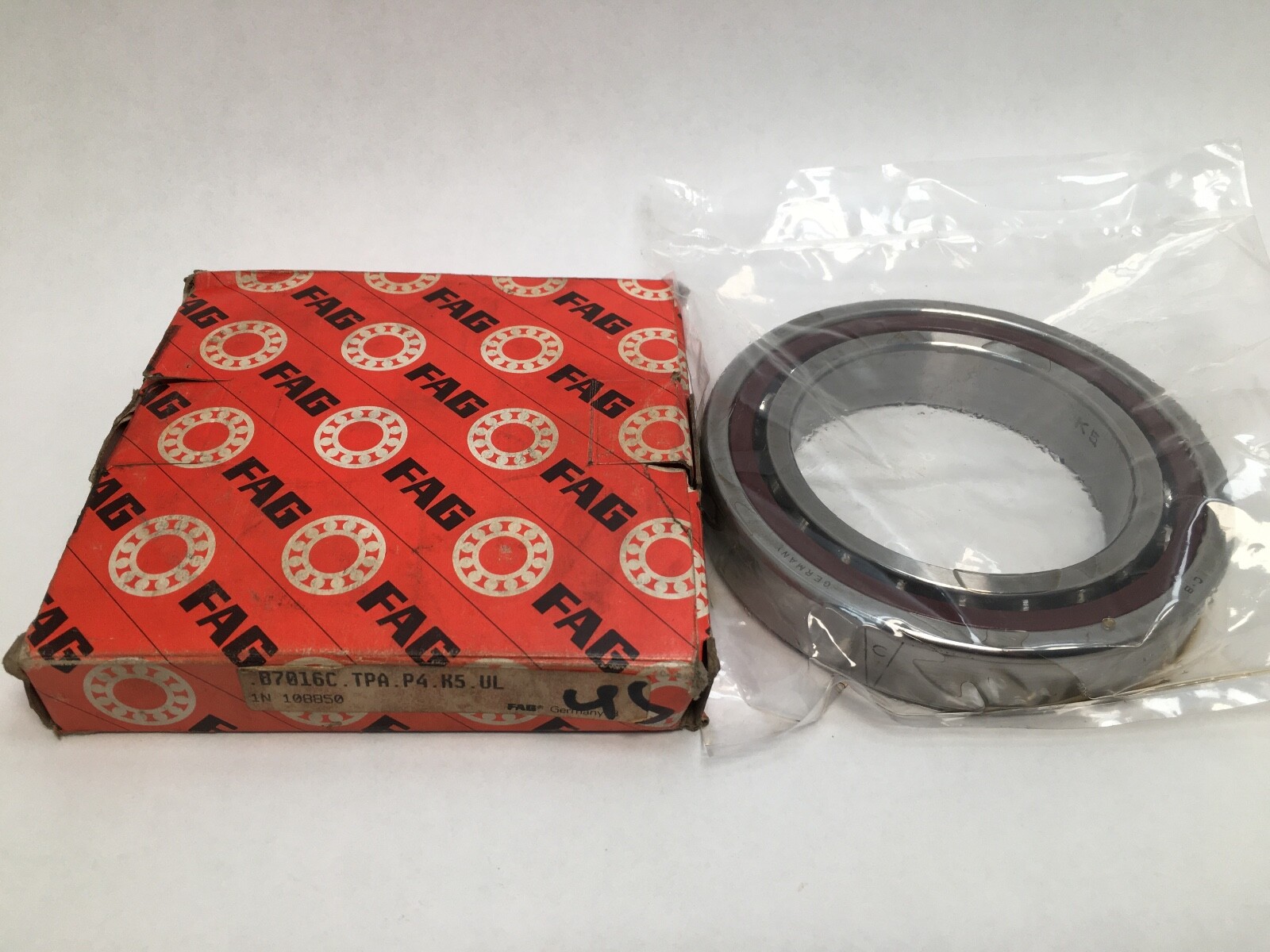

FAGB7016CTPAP4K5ULSuper Precision Angular Contact Ball Bearing 80 x 125 x 22 mm 15 Degree ABEC 7 Light Preload Polyamide Cage

Product Description

What this part is

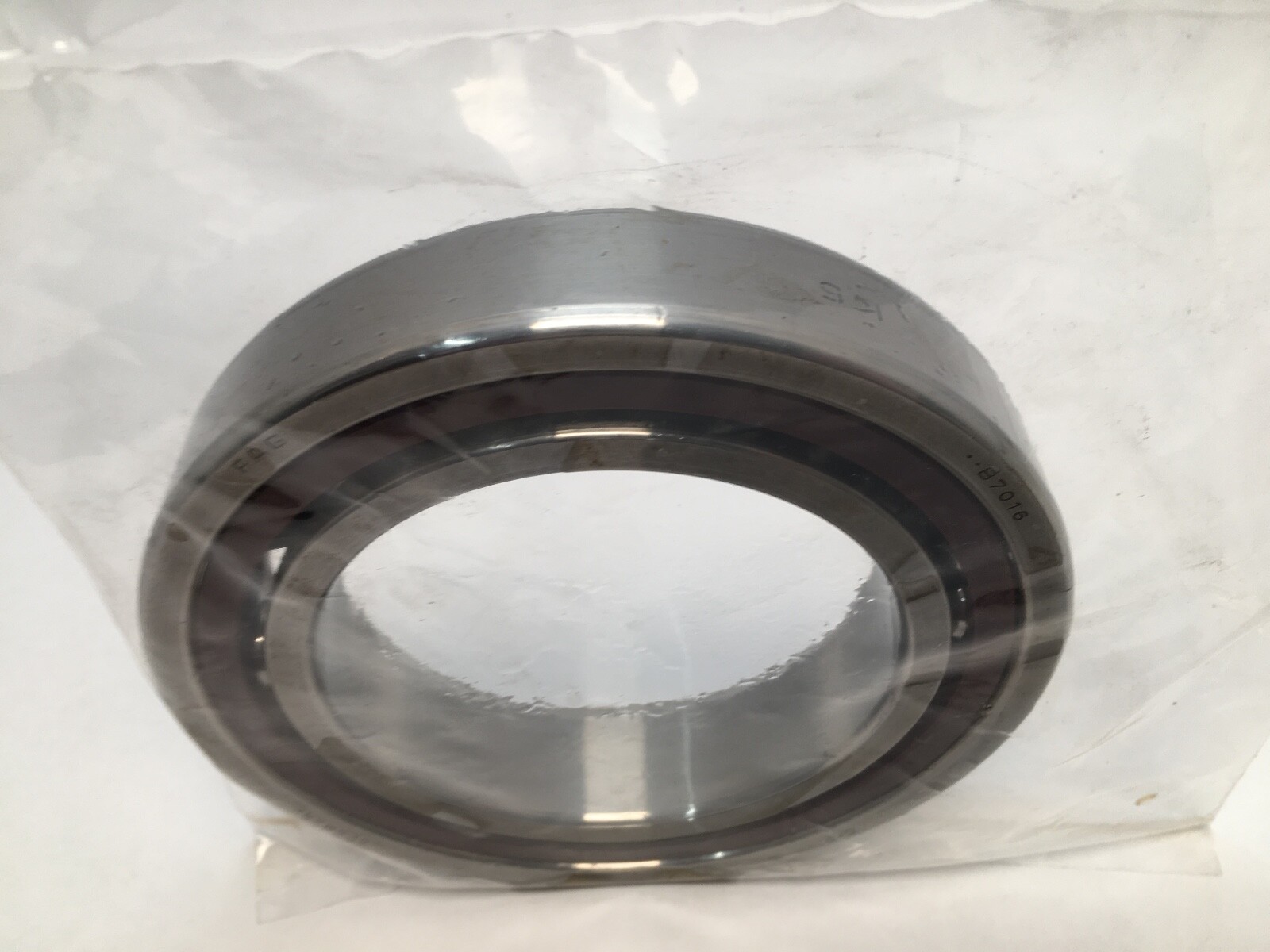

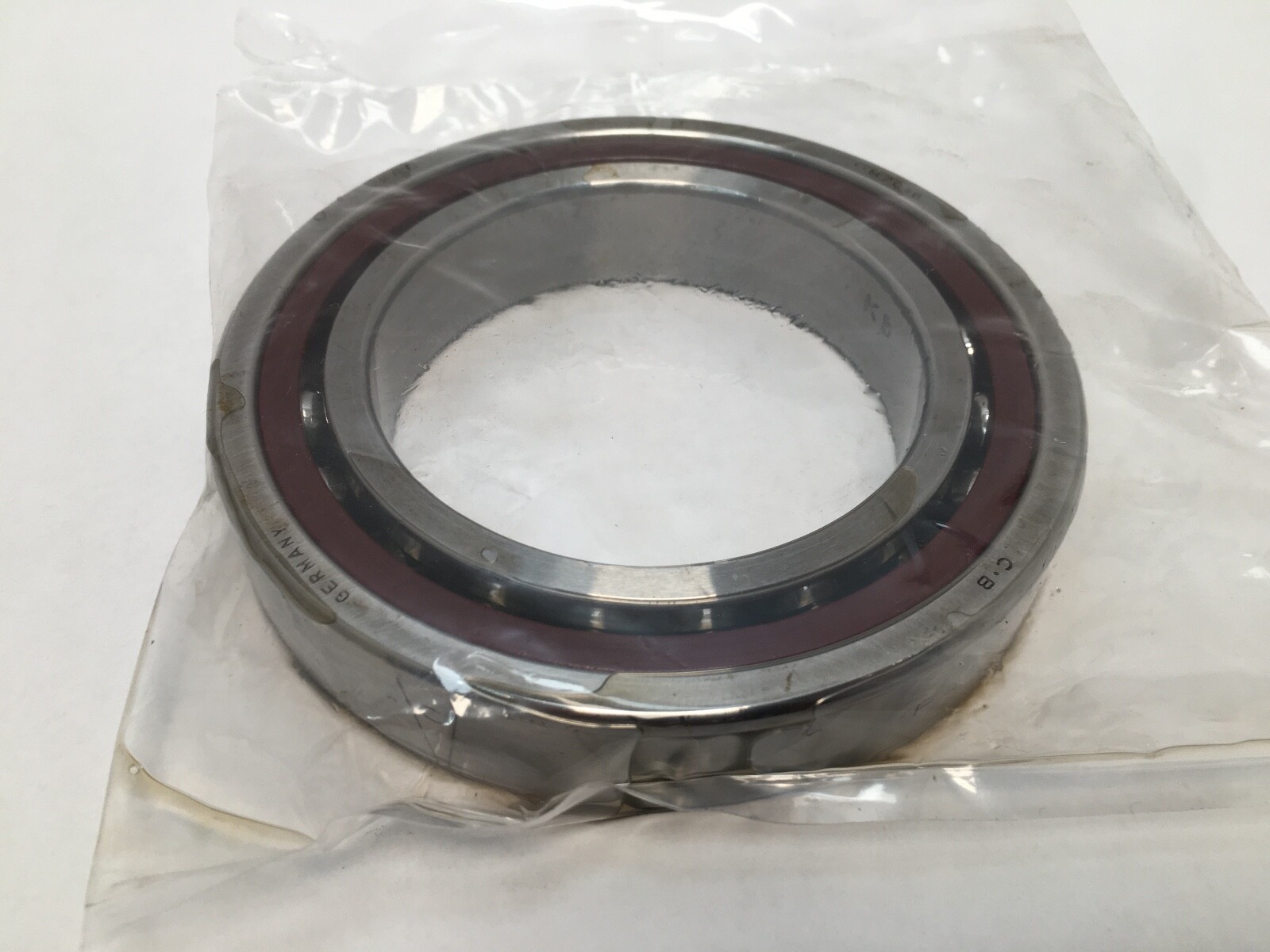

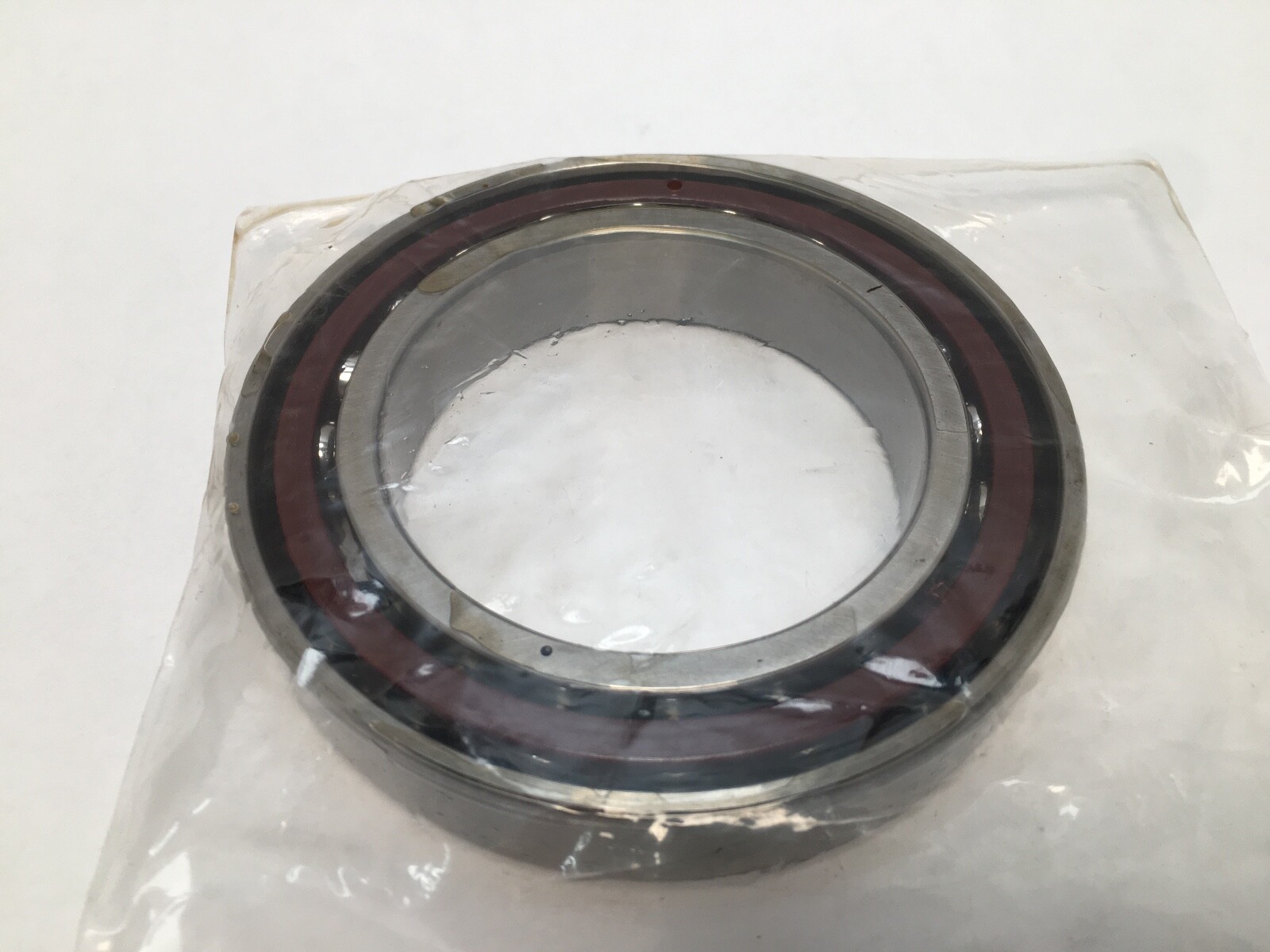

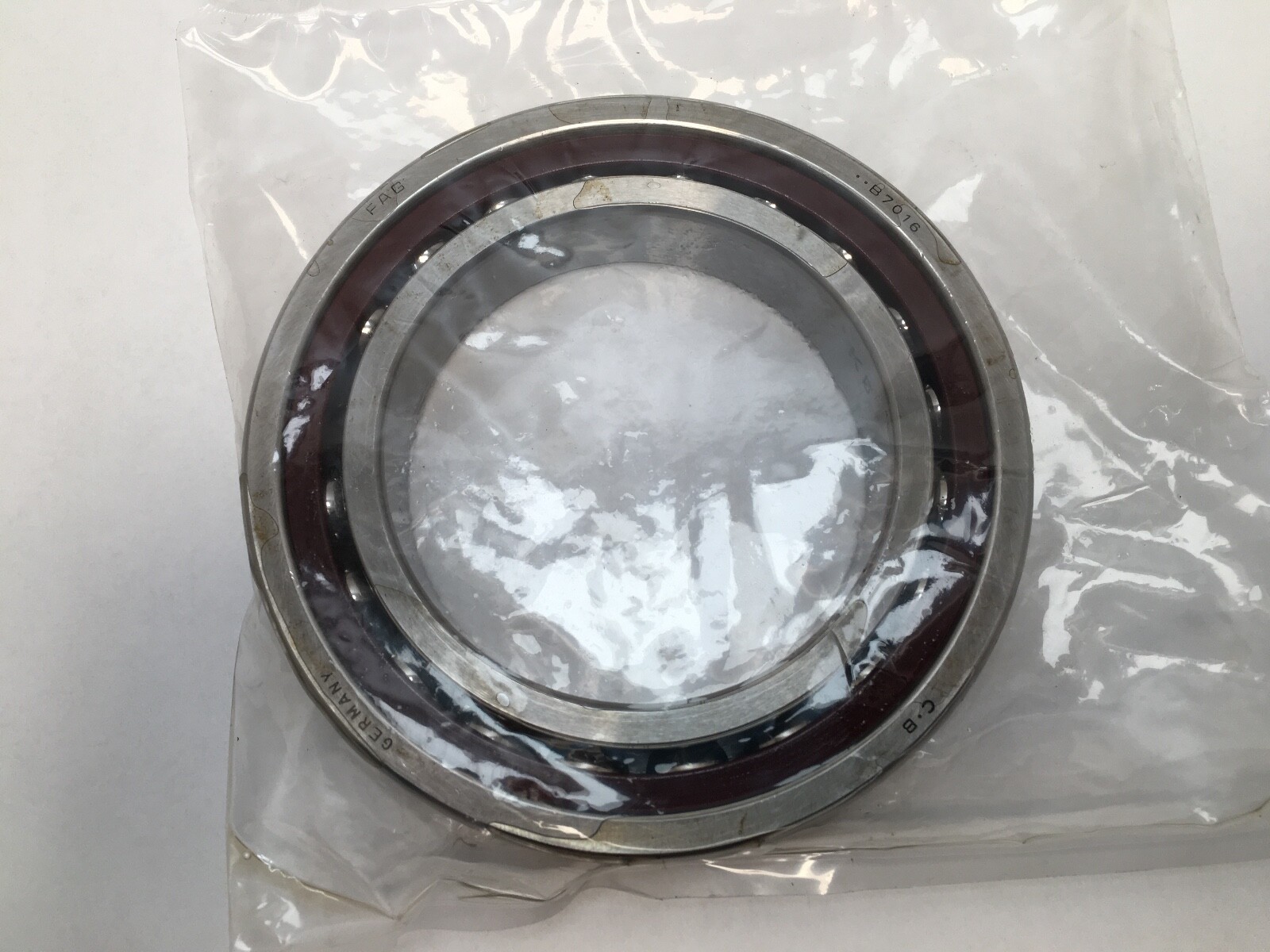

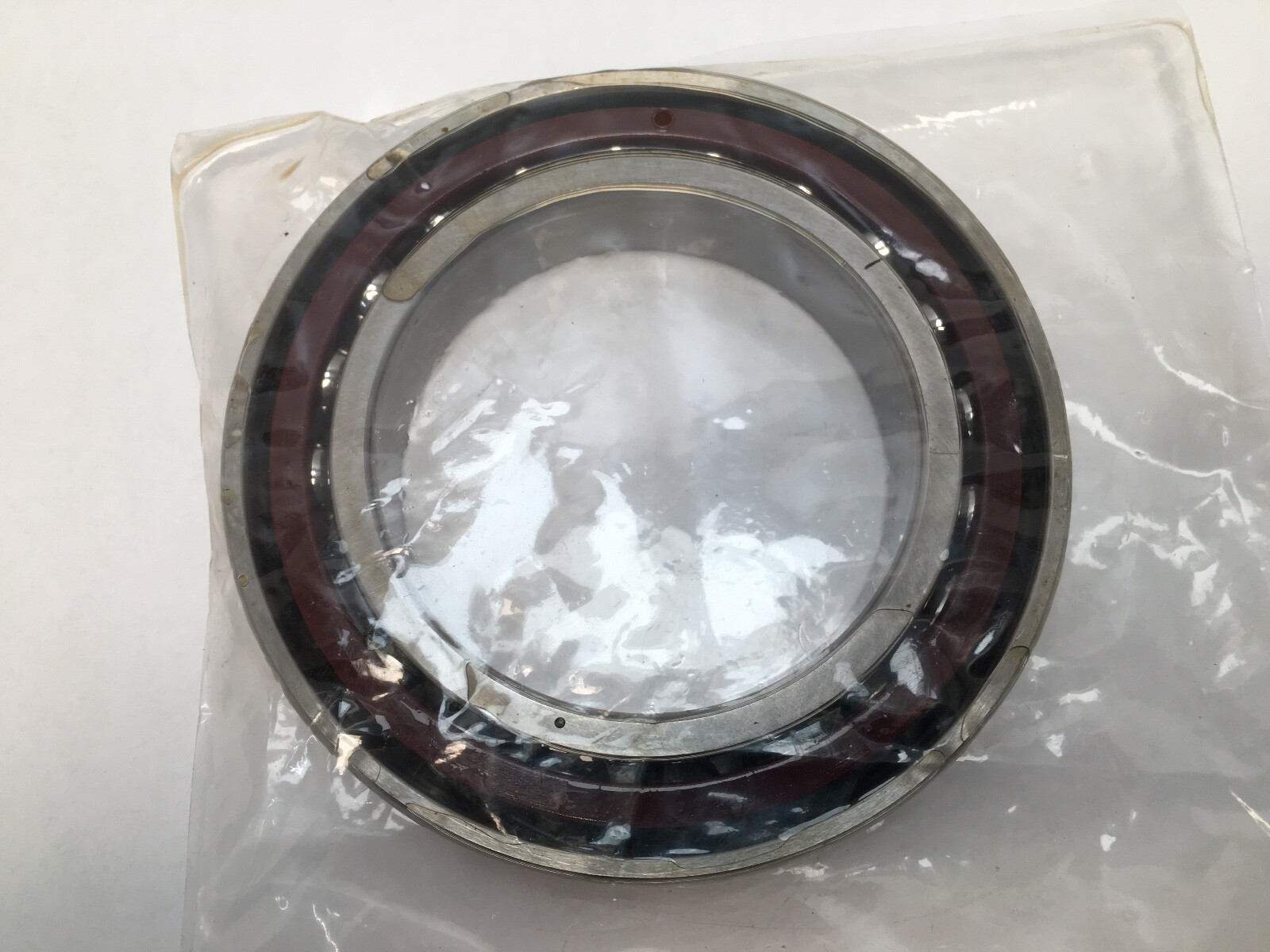

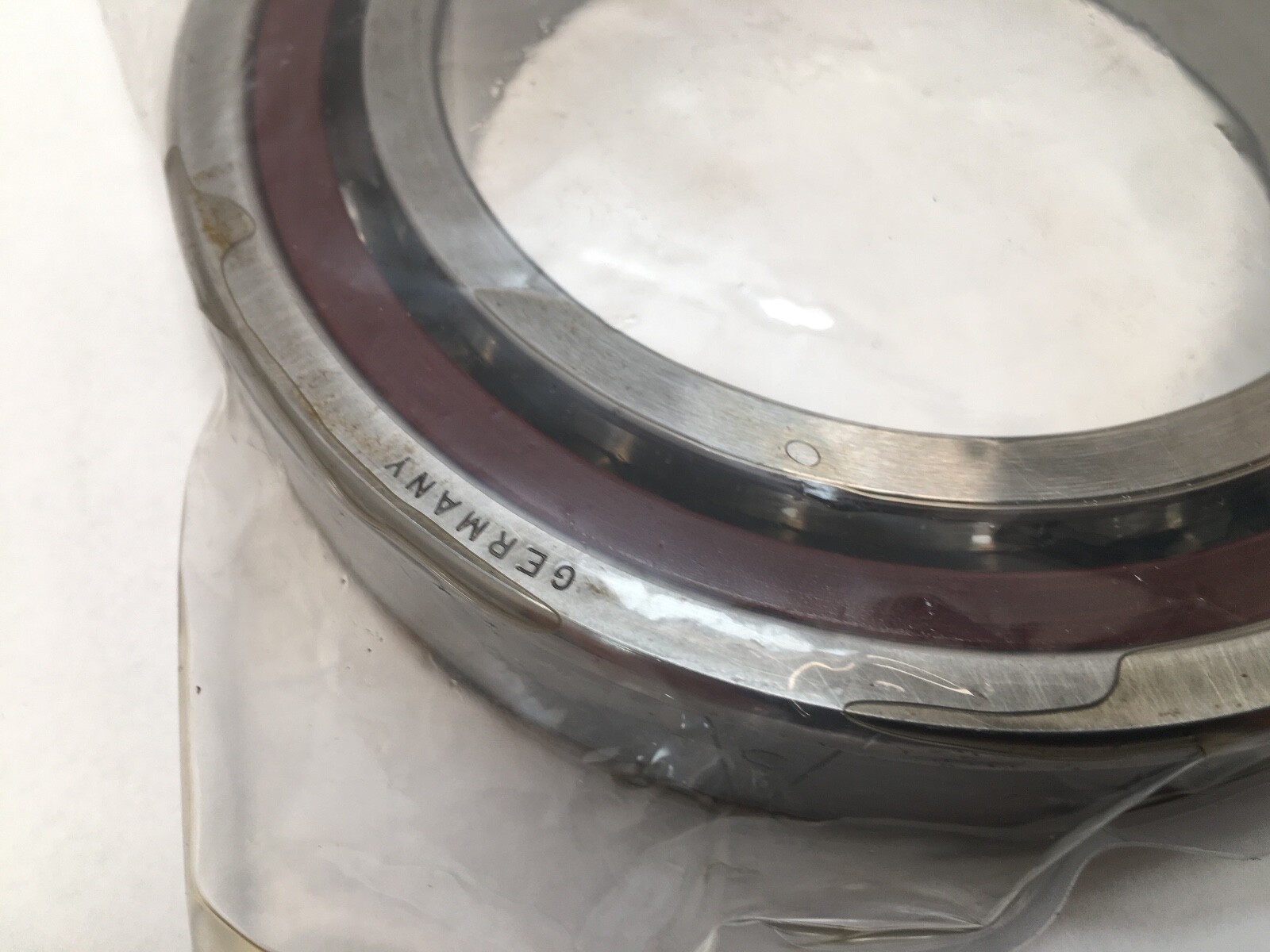

A single-row super-precision angular contact ball bearing in the FAG B-series spindle range, 80 mm bore × 125 mm outside diameter × 22 mm width, in the ISO 7016 envelope.

Decoding the designation

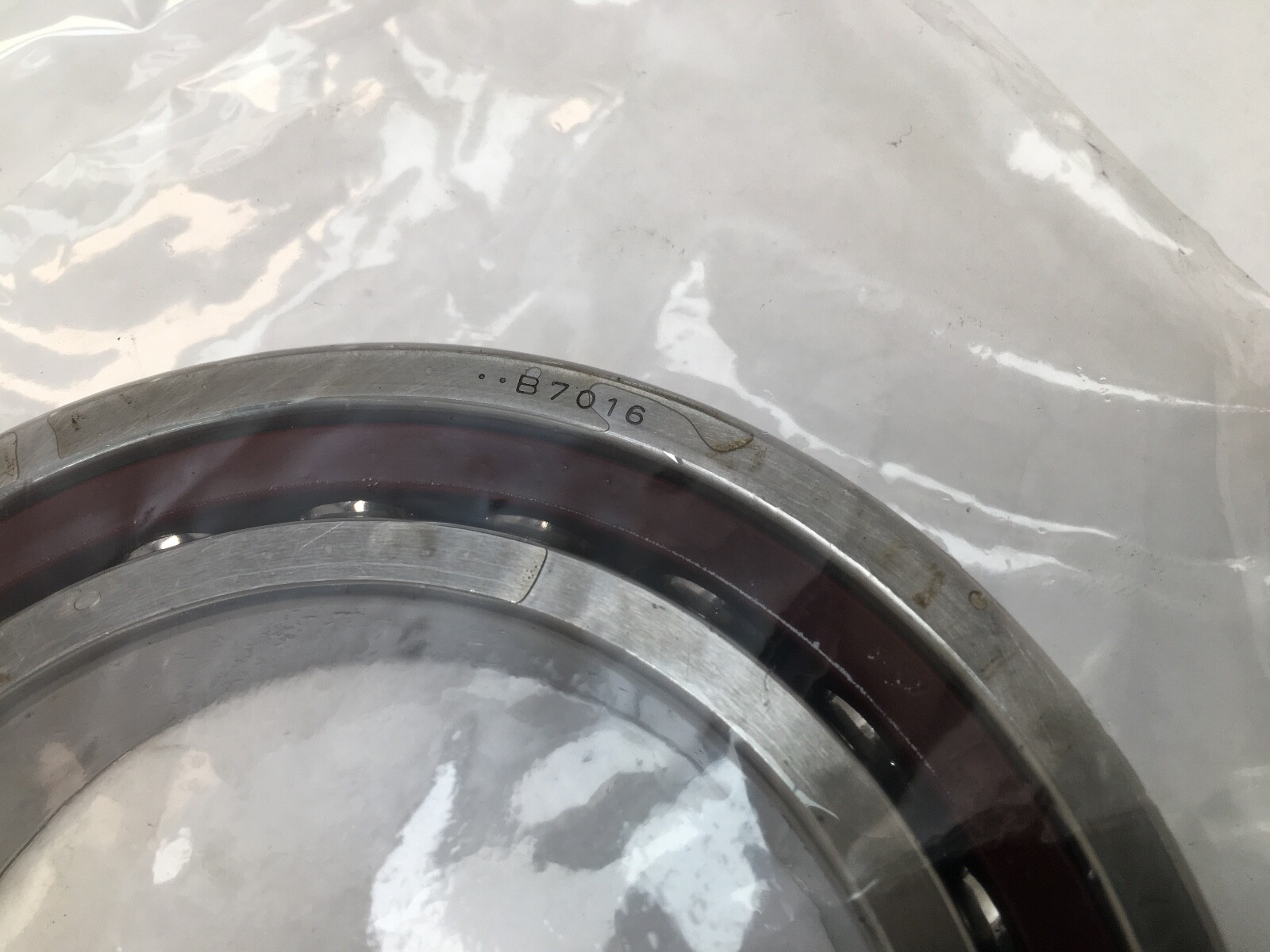

B — FAG super-precision spindle bearing series.
7016 — single-row angular contact ball bearing, 200 dimension series, bore code 16, giving an 80 mm bore.
C — 15° contact angle in the FAG scheme.
TPA — glass-fibre reinforced polyamide cage.
P4S — ABEC 7 dimensional accuracy with ABEC 9 running accuracy.
UL — universally ground single bearing, light preload.

What these specs mean in practice

A single-row angular contact ball bearing takes thrust in one direction only, which is why these bearings are normally used in pairs or stacks so the arrangement carries thrust both ways. A 15° contact angle biases the bearing toward speed and radial rigidity, and carries less thrust than a 25° bearing in the same envelope. Light preload keeps contact loads and heat generation low, suiting high-speed spindles where thermal growth rather than stiffness sets the limit.

A glass-fibre reinforced polyamide cage is lighter and quieter than machined brass and cheaper than phenolic, and it places the continuous working temperature ceiling near 120 °C. Polyamide is also sensitive to aggressive synthetic lubricants over long service, where phenolic or brass is the usual alternative.

Published specifications

Bore: 80 mm (3.1496 in)
Outside diameter: 125 mm (4.9213 in)
Width: 22 mm (0.8661 in)
Contact angle: 15°
Precision class: P4S — ABEC 7 dimensional, ABEC 9 running
Preload: light (L)
Rows: 1
Cage material: glass-fibre reinforced polyamide (PA66)
Rolling elements: steel balls
Closure: open, both faces
ISO base number: 7016 C

Quantity and configuration

Single bearing, 1 Pc. Universal grinding allows it to be stacked back-to-back, face-to-face or in tandem with matching bearings of the same designation.

Fitting notes

Mounting is an interference fit on the shaft and a close fit in the housing bore, both held to super-precision spindle limits. Faces seat against square ground shoulders, and a runout error at the shoulder transfers directly into the raceway. A polyamide cage suits induction heating of the inner ring only within the cage temperature limit.

Interchange guidance

Same-spec 15° P4 light-preload single equivalents in other schemes are the SKF 7016 CD/P4A, NSK 7016CTYSUL and RHP 7016CTSULP4. The B7016C.T.P4S.UL has a phenolic cage in place of polyamide, the B7016-E is 25°, and the UM and UH versions differ in preload — those are related sizes rather than interchanges.
