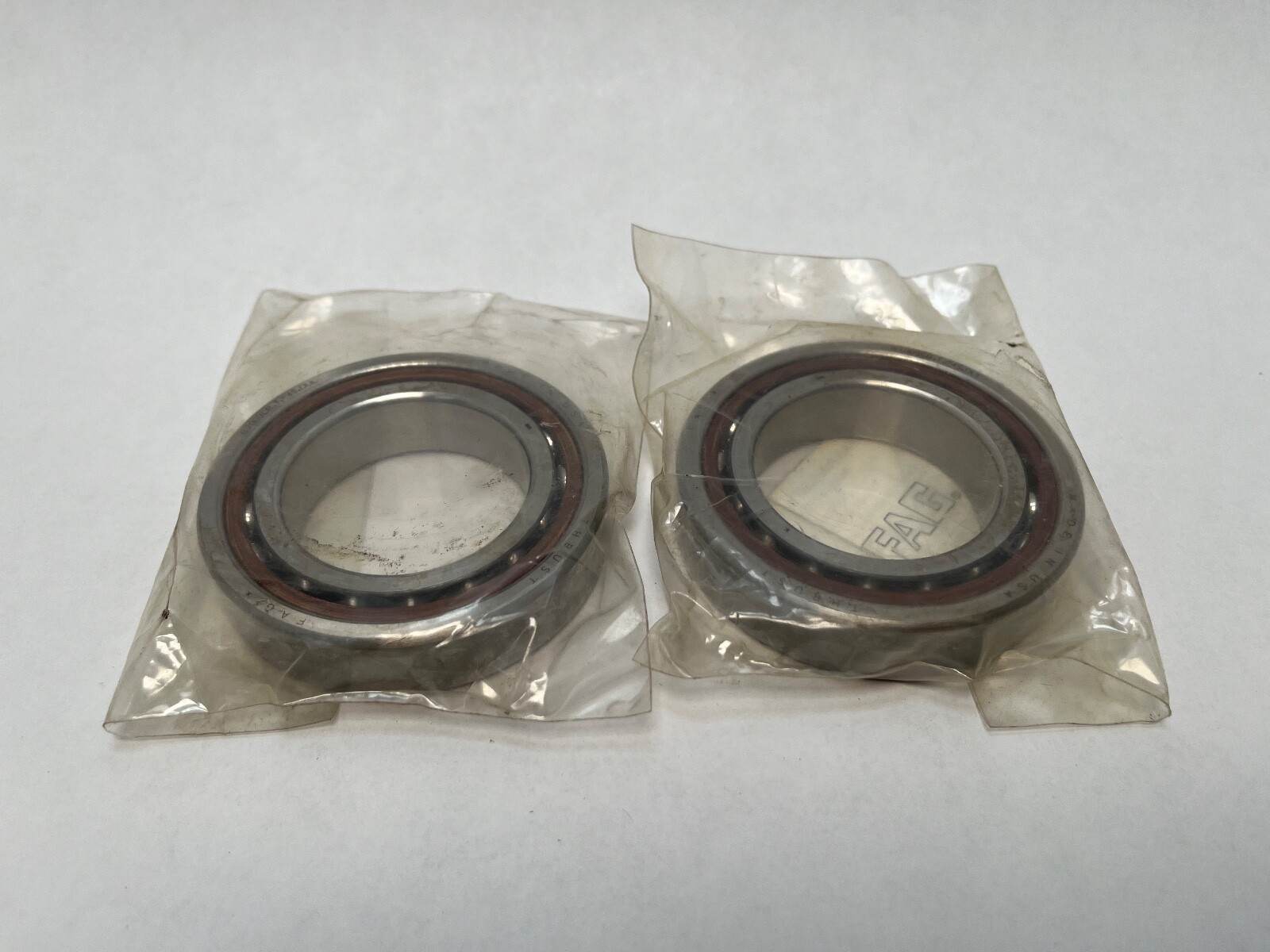

FAG B7009CB.T.P4S.DUL matched pair of angular contact ball bearings, 45 x 75 x 16 mm each, 15 degree contact angle, P4S, light preload. 2 Pcs.
List Price
$203.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7009-C-B-T-P4S-DUL |
| Model | B 7009 C B T P4S DUL / 2MM9109WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Base Number | B7009 |
| Industry Terms | spindle bearing; machine tool bearing; super precision angular contact pair; matched duplex set |
| Common Misspellings | B7009 CB T P4S DUL; B7009CB TP4SDUL; B7009-CB-T-P4SDUL |
| Bore Shaft Size | 45 mm |
| Mpn Variants | B7009CBTP4SDUL; B7009CB.T.P4S.DUL; B-7009-CB-T-P4S-DUL; B7009-C-B-T-P4S-DUL; 7009C; 2MM9109WI CR DUL |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | B7009-C-B-T-P4S-DUL |
| Cross Reference 1 | Fafnir 2MM9109WI CR DUL (carton-marked) |
|---|---|
| Cross Reference 2 | SKF 7009 CD/P4ADGA (light preload, P4A) |
| Cross Reference 3 | NSK 7009CTYNDULP4 (polyamide cage) |
| Cross Reference 4 | FAG B7009-E-T-P4S-UL - 25 deg contact angle (related) |

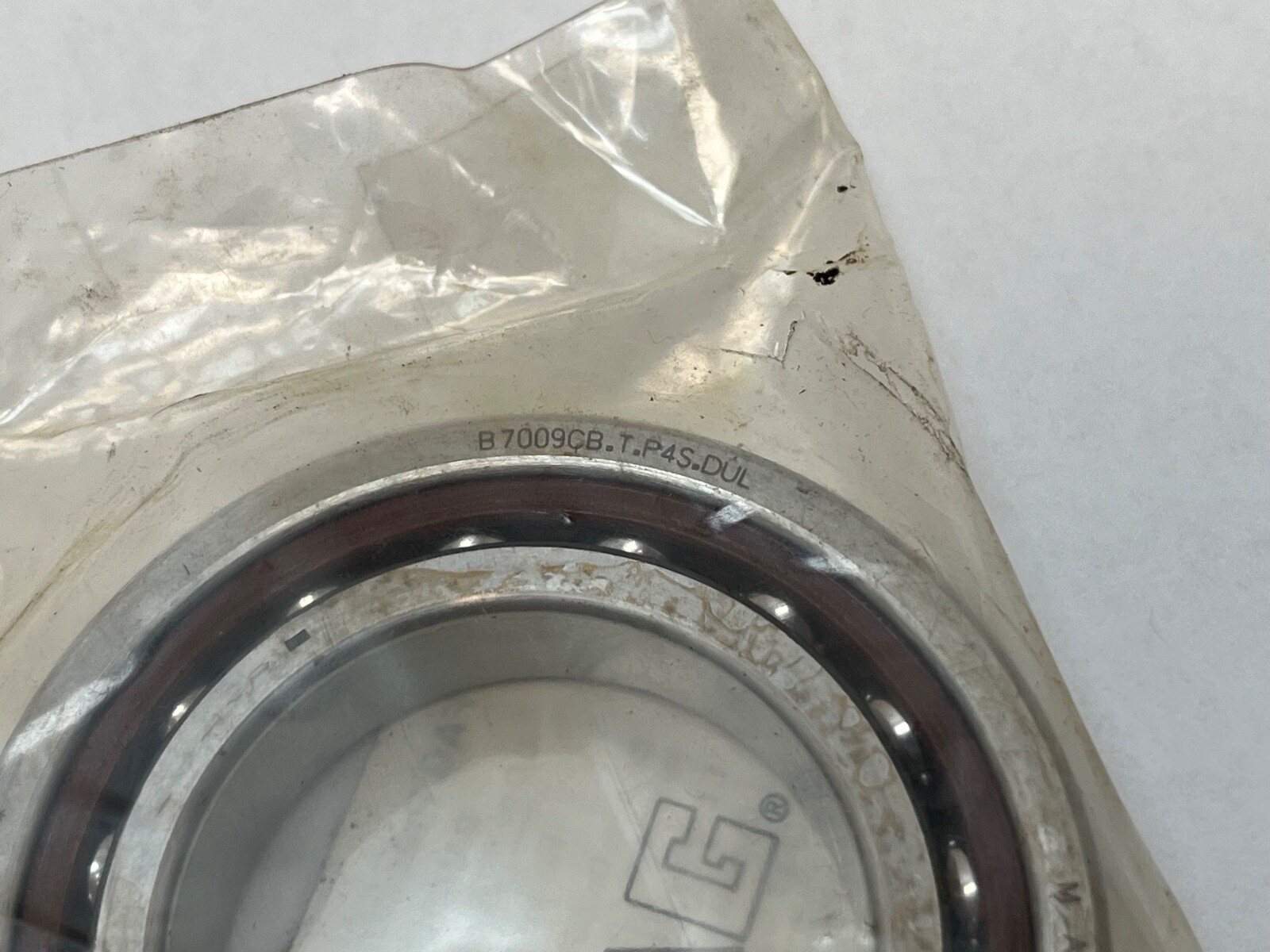

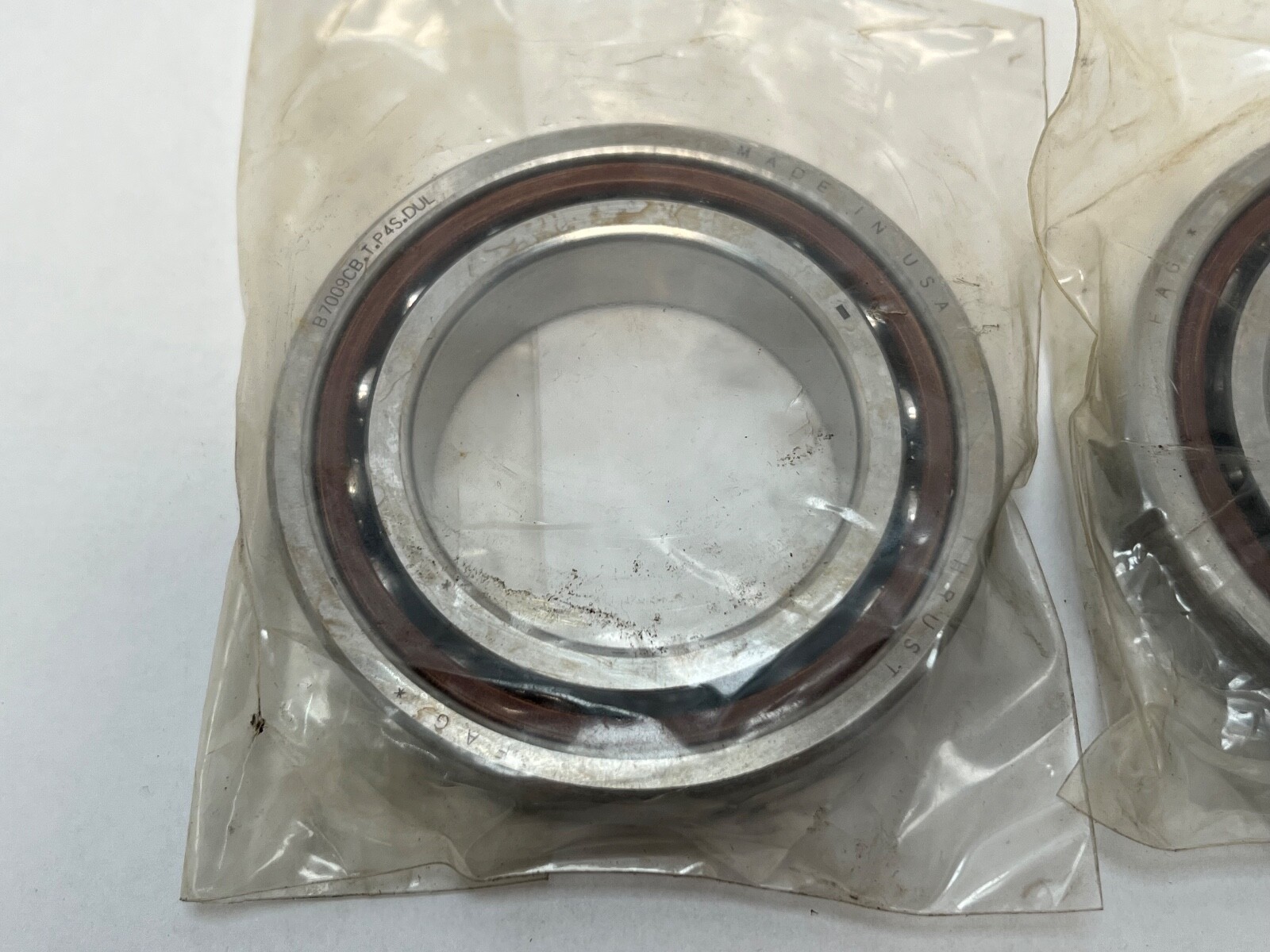

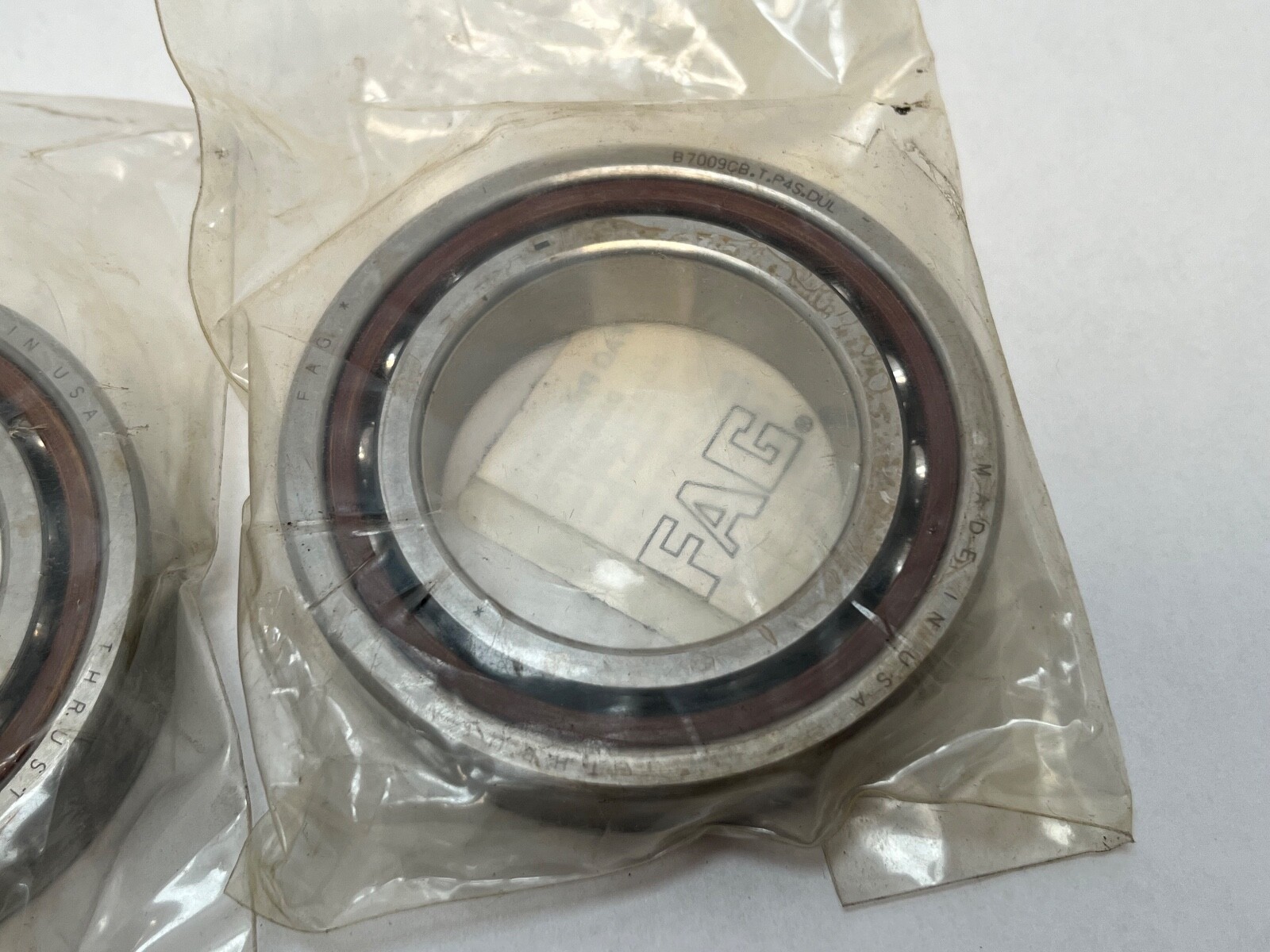

FAG B7009 C B T P4S DUL super-precision angular contact ball bearing set, a factory-matched pair of two bearings (2 Pcs). Each bearing: 45 mm bore, 75 mm outside diameter, 16 mm width, 15° contact angle, open on both faces, fabric-base laminate phenolic cage. Total width across the pair: 32 mm.
B7009 — Schaeffler spindle-bearing series on the ISO 70 light envelope, 45 mm bore.
C — 15° contact angle.
T — fabric-base laminate phenolic cage.
P4S — super-precision accuracy class.
DUL — universally matchable pair ground for light preload.
2MM9109WI CR DUL — the Timken Fafnir designation carried on the carton for the same bearing; 9109 is the ISO 7009 size, 2MM is 15°, CR is the outer-land-riding phenolic cage.
Bore Diameter: 45 mm. Outside Diameter: 75 mm. Width: 16 mm per bearing. Total Width: 32 mm across the matched pair. Contact Angle: 15°. Preload: Light. Precision Class: P4S. Cage Material: Phenolic. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Material: Chrome Steel. Closure Type: Open. Series: 7000. Unit Quantity: 2 Pcs.
Envelope: 45 x 75 x 16 mm per bearing, ISO 7009 size. Universally matchable rings are ground with offset faces, so the pair mounts back-to-back, face-to-face or in tandem at the defined light preload.
Timken Fafnir 2MM9109WI CR DUL (carton-marked). SKF 7009 CD/P4ADGA (light preload, P4A) and NSK 7009CTYNDULP4 (polyamide cage) are 15° light-preload universally matchable pairs. FAG B7009-E-T-P4S-UL is a related size at a 25° contact angle.
15°, from the C in the designation.
A fabric-base laminate phenolic cage, from the T in the designation.
45 mm bore, 75 mm outside diameter, 16 mm width; 32 mm across the pair.
