FAG7011TGP4Angular Contact Ball Bearing – 55 mm ID, 90 mm OD, 18 mm Width, 15° Contact Angle, ABEC 7 / P4, Light Preload

Condition: New

Availability:

1 in stock

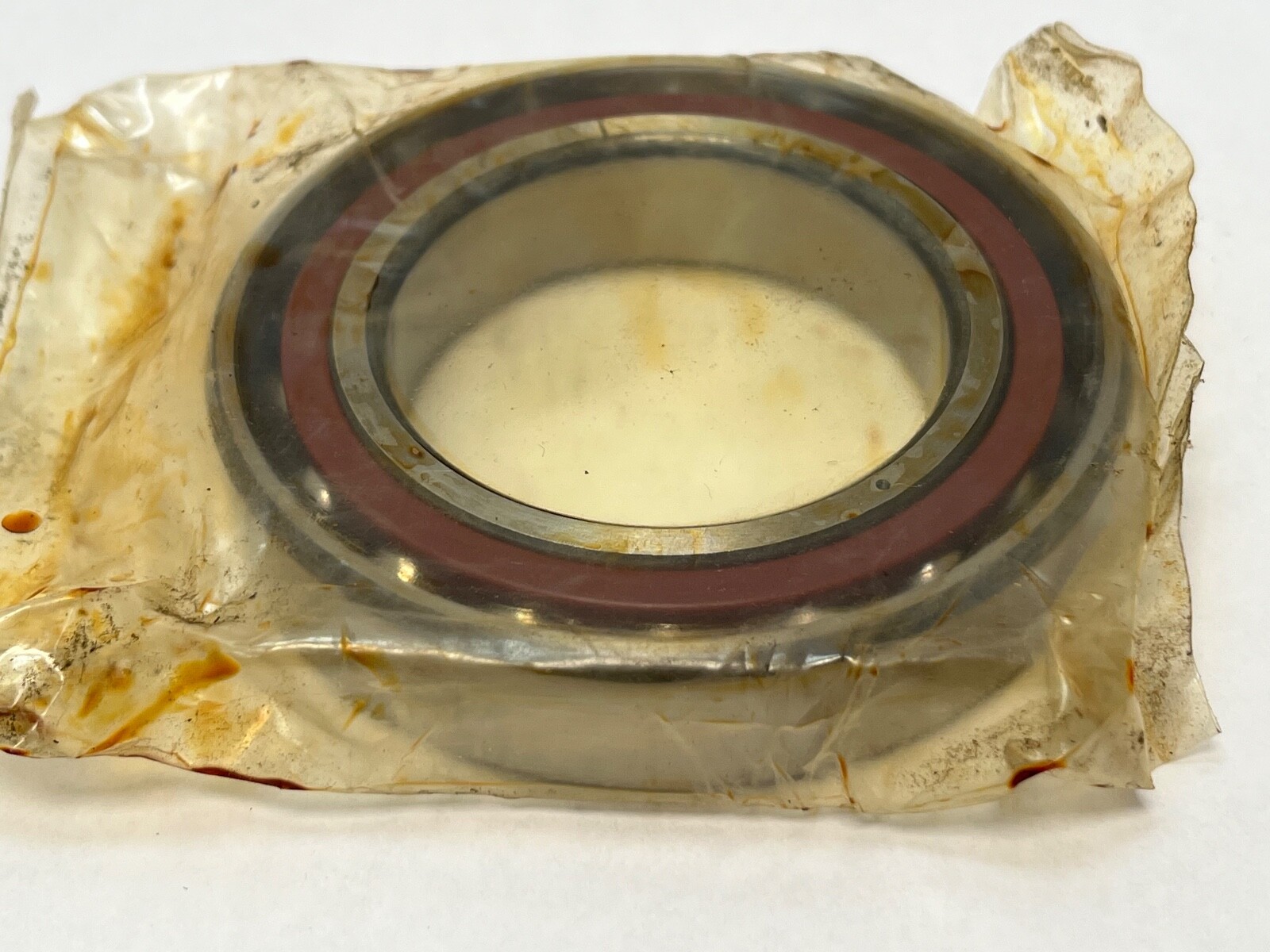

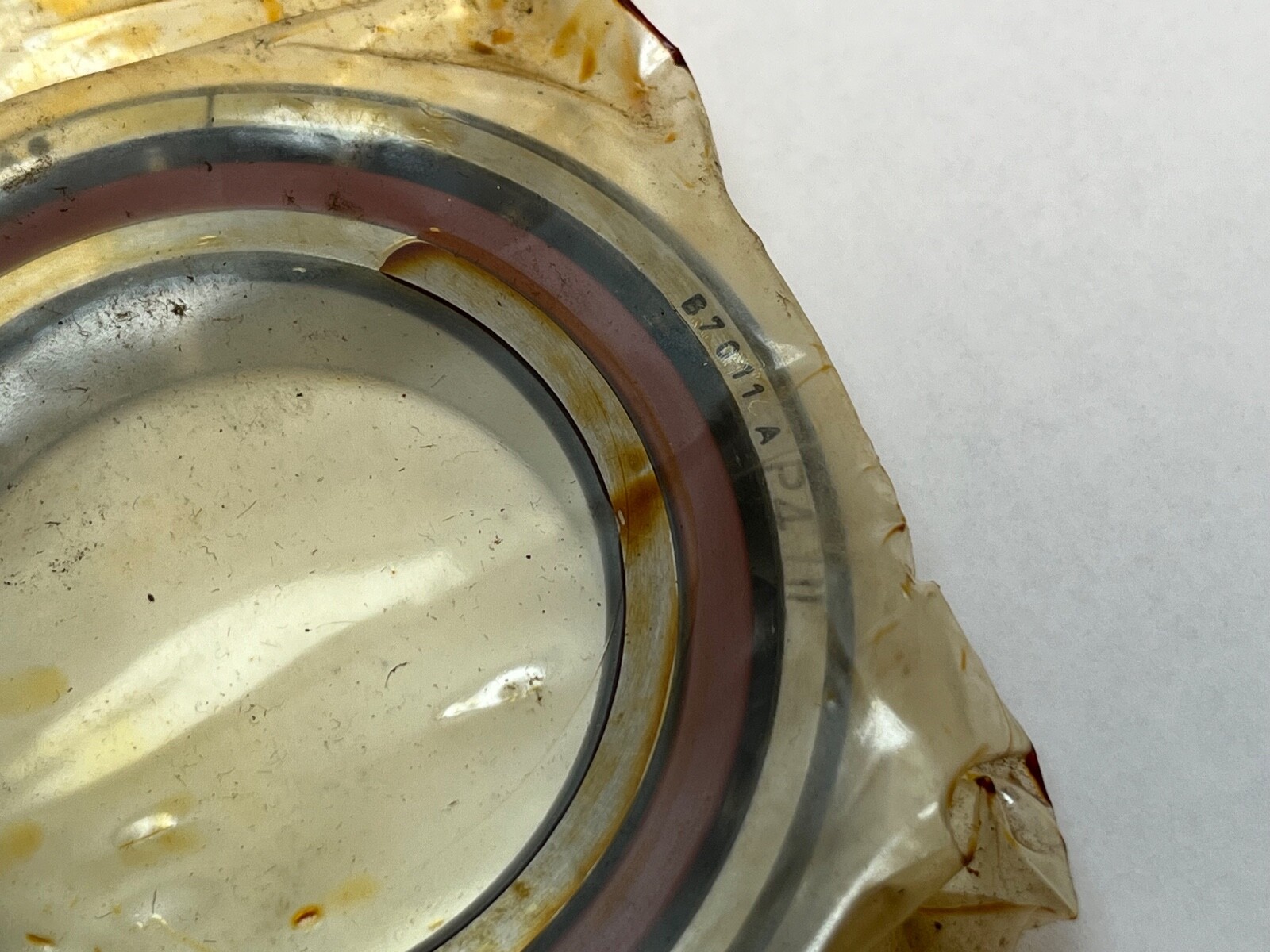

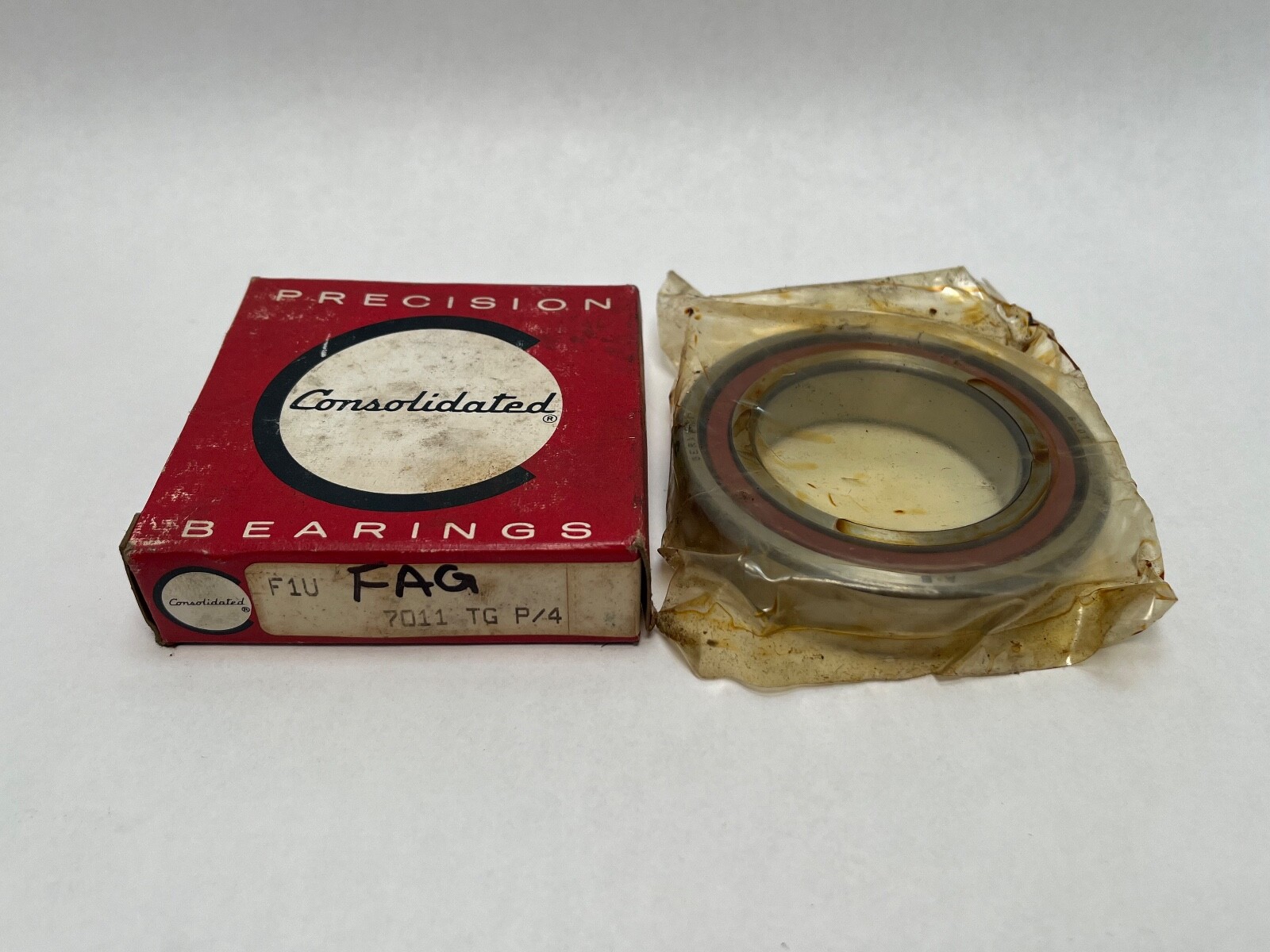

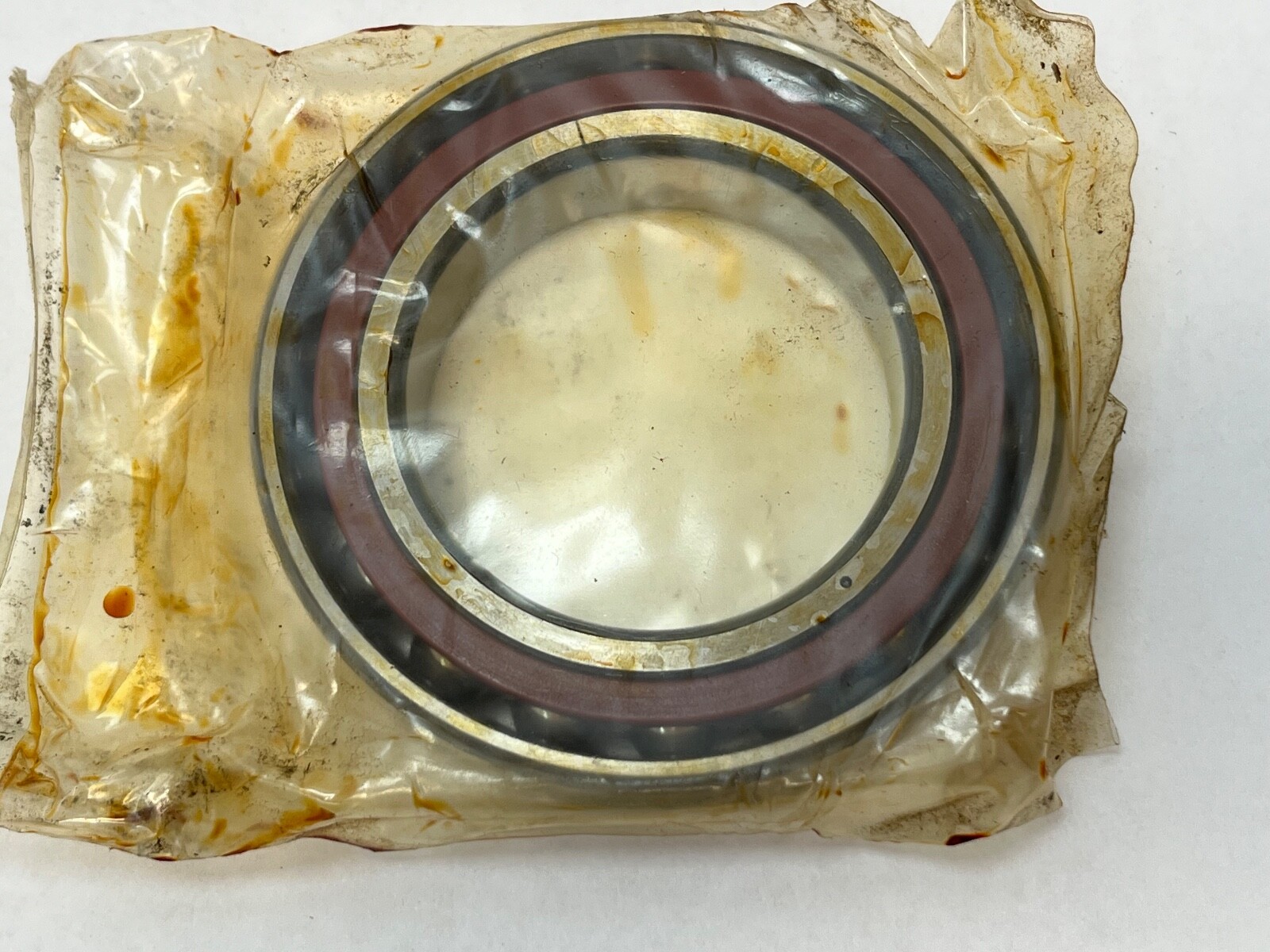

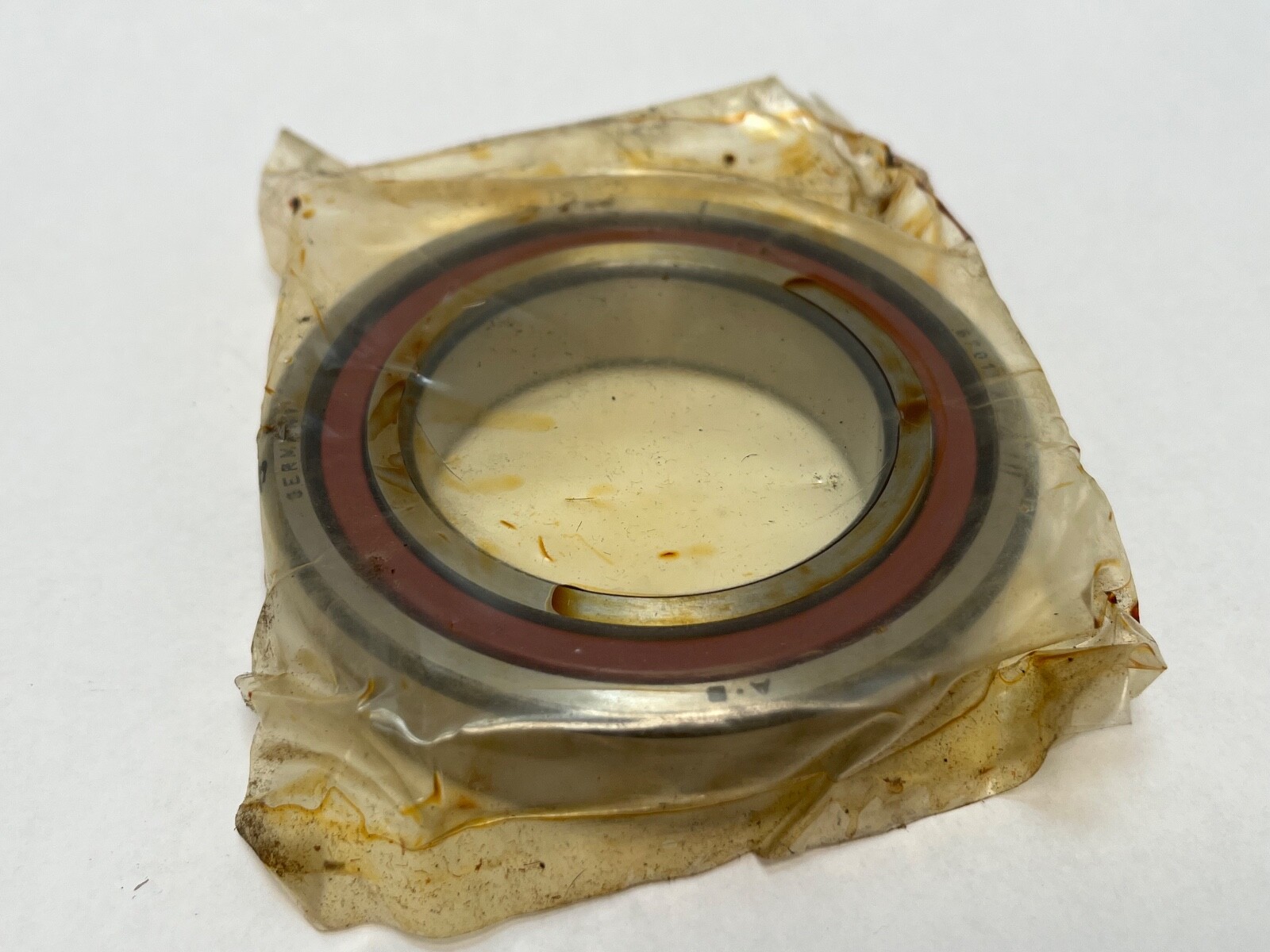

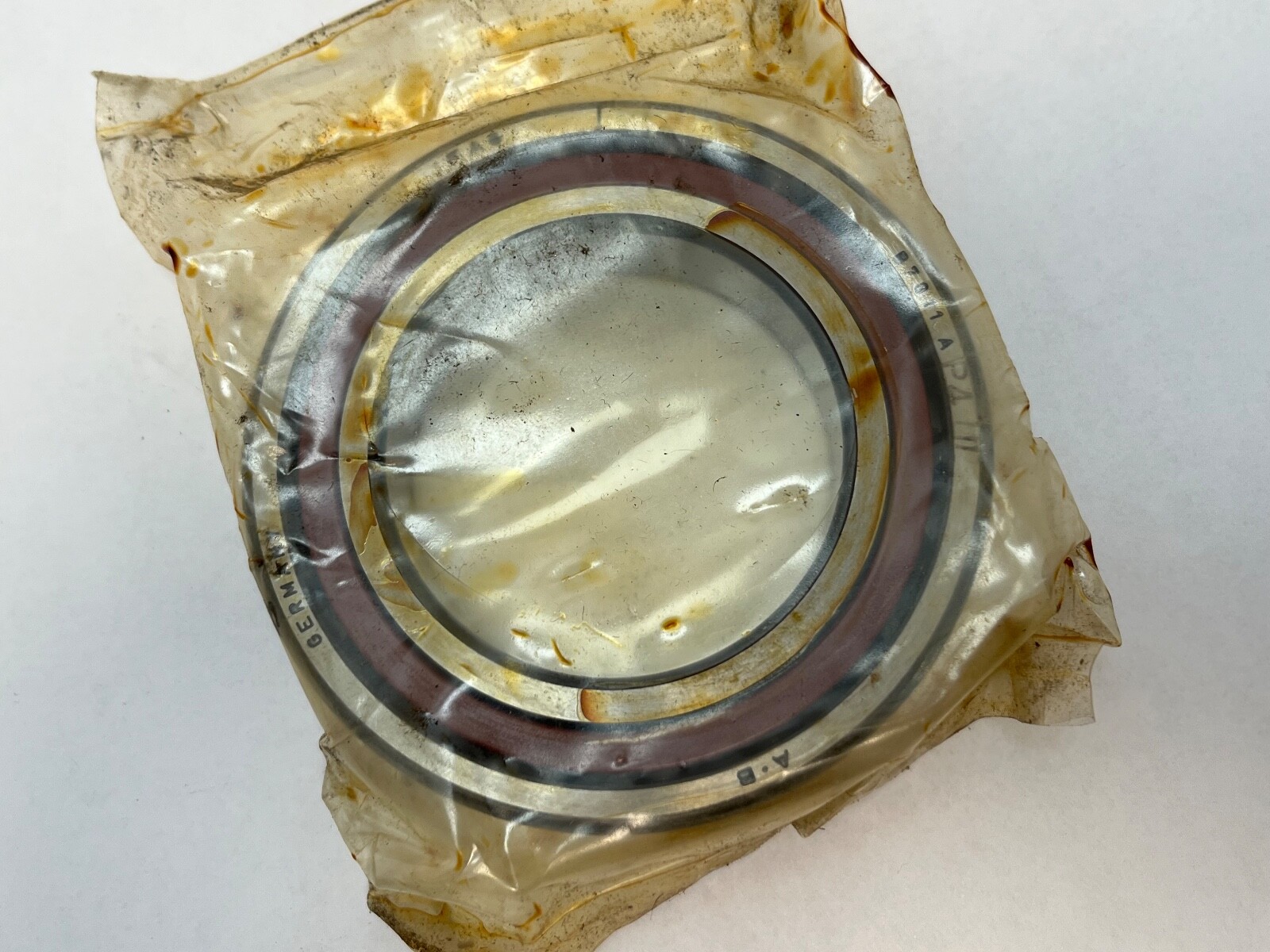

Angular contact spindle bearing, 55 mm bore x 90 mm OD x 18 mm width, 15° contact angle, ABEC 7 / P4, light preload. Consolidated (FAG) 7011TGP4.

List Price

$126.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN7011TGP4
Model7011 TG P4 / B 7011C T P4 UL/ 2MM9111WI CR SUL
Bearing TypeAngular Contact Ball Bearing, Open
ID55 mm
OD90 mm
Width18 mm

Technical Specifications

Mpn Variants7011TGP4, 7011-TG-P4, B-7011-C-T-P4-UL, B7011C.T.P4.UL, Consolidated 7011TGP4
Precision ClassABEC 7 / P4
Cage TypeMachined, outer-ring land-riding
Precision RatingABEC 7 / P4
Series7000
Rolling ElementsBall
Cage MaterialPhenolic
Number Of Rows1
Contact Angle15°
PreloadLight
Mounting ArrangementUniversal (DB, DF or DT)
Industry Termsspindle bearing; angular contact spindle bearing; super-precision bearing; universally matchable bearing; 7011C P4 bearing
Common MisspellingsFAG 7011 TGP4; Fag 7011TG P4; FAG7011TGP4; Consolidated 7011 TG P4
Application TypesMachine tool spindles; high-speed spindles; precision grinding spindles

Cross-References

Cross Reference 1SKF 7011 CD/P4ADGA - extra light preload
Cross Reference 2NSK 7011CTRSULP4
Cross Reference 3Fafnir 2MM9111WICRSUL
Cross Reference 4FAG B7011-C-T-P4S-UL - P4S, tighter class
Seller Part Number: B-EG2B1#EZIYZY

Product Description

What this part is:

Consolidated (FAG designation) 7011TGP4 single-row super-precision angular contact spindle bearing in the ISO 7011 envelope, current FAG form B7011-C-T-P4S-UL. Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 55 mm. Outside Diameter: 90 mm. Overall Width: 18 mm. Contact Angle: 15°. Unit Quantity: 1 Pc.

Decoding the designation:

7011 — 70 series angular contact, bore code 11 = 55 mm bore.

C — 15° contact angle.

TG — machined phenolic cage, outer-ring land-riding.

P4 — precision class P4, equivalent to ABEC 7.

UL — universal matching, light preload.

Specifications:

Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Rolling Elements: Ball. Number Of Rows: 1. Mounting Arrangement: Universal (DB, DF or DT). Series: 7000.

Dimensions and mounting:

Bore Diameter: 55 mm. Outside Diameter: 90 mm. Overall Width: 18 mm. Chamfer r min: 1.1 mm. Chamfer r1 min: 1.1 mm. Shaft abutment diameter da: 62 mm. Housing abutment diameter Da: 83 mm. Fillet radius ra max: 1 mm. Effective load centre a: 18.7 mm.

Compatibility and replacement:

Same 55 x 90 x 18 mm envelope and 15°: NSK 7011CTRSULP4 and Fafnir 2MM9111WICRSUL, both P4 with light preload. FAG B7011-C-T-P4S-UL has the same envelope and light preload at the tighter P4S class. SKF 7011 CD/P4ADGA has the same envelope, angle and class with extra light preload.

Other forms of the number: 7011TGP4, 7011-TG-P4, B-7011-C-T-P4-UL, B7011C.T.P4.UL, Consolidated 7011TGP4.

Frequently asked questions:

What is the contact angle of the 7011TGP4?

The contact angle is 15°, set by the C in the designation.

What are the dimensions?

Bore Diameter is 55 mm, Outside Diameter is 90 mm and Overall Width is 18 mm.

What does UL mean?

UL marks universal matching with light preload, so any two bearings pair in back-to-back, face-to-face or tandem arrangement.
